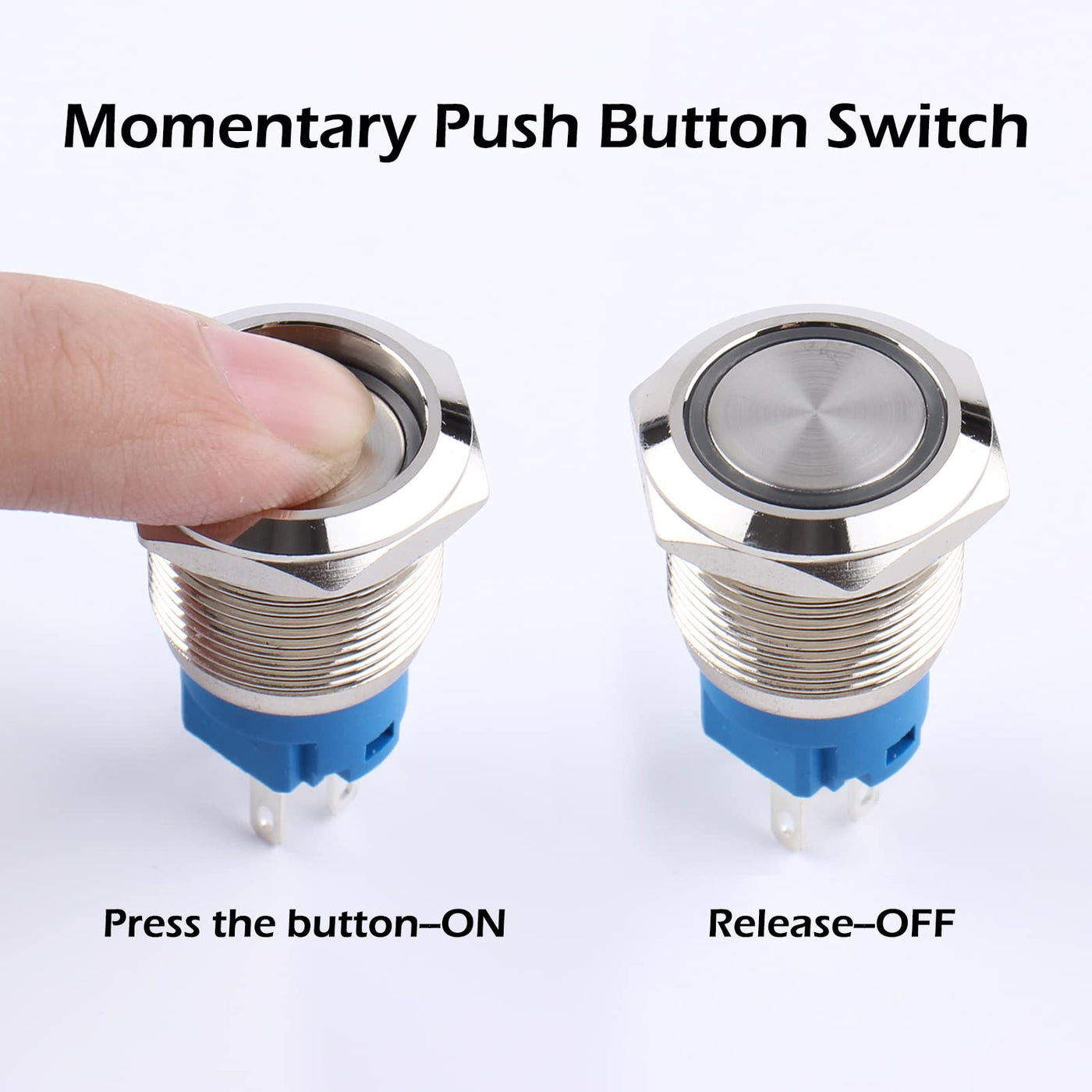

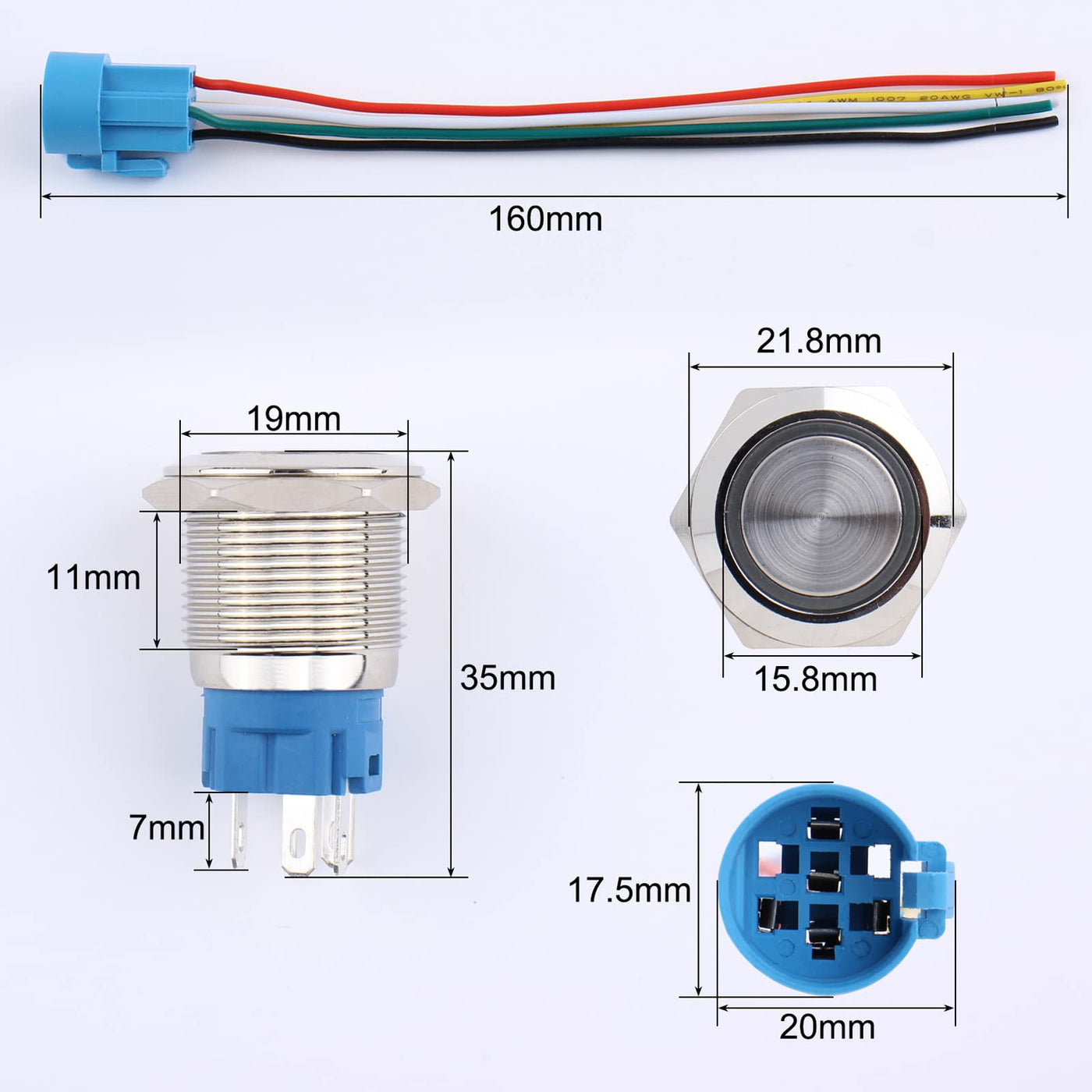

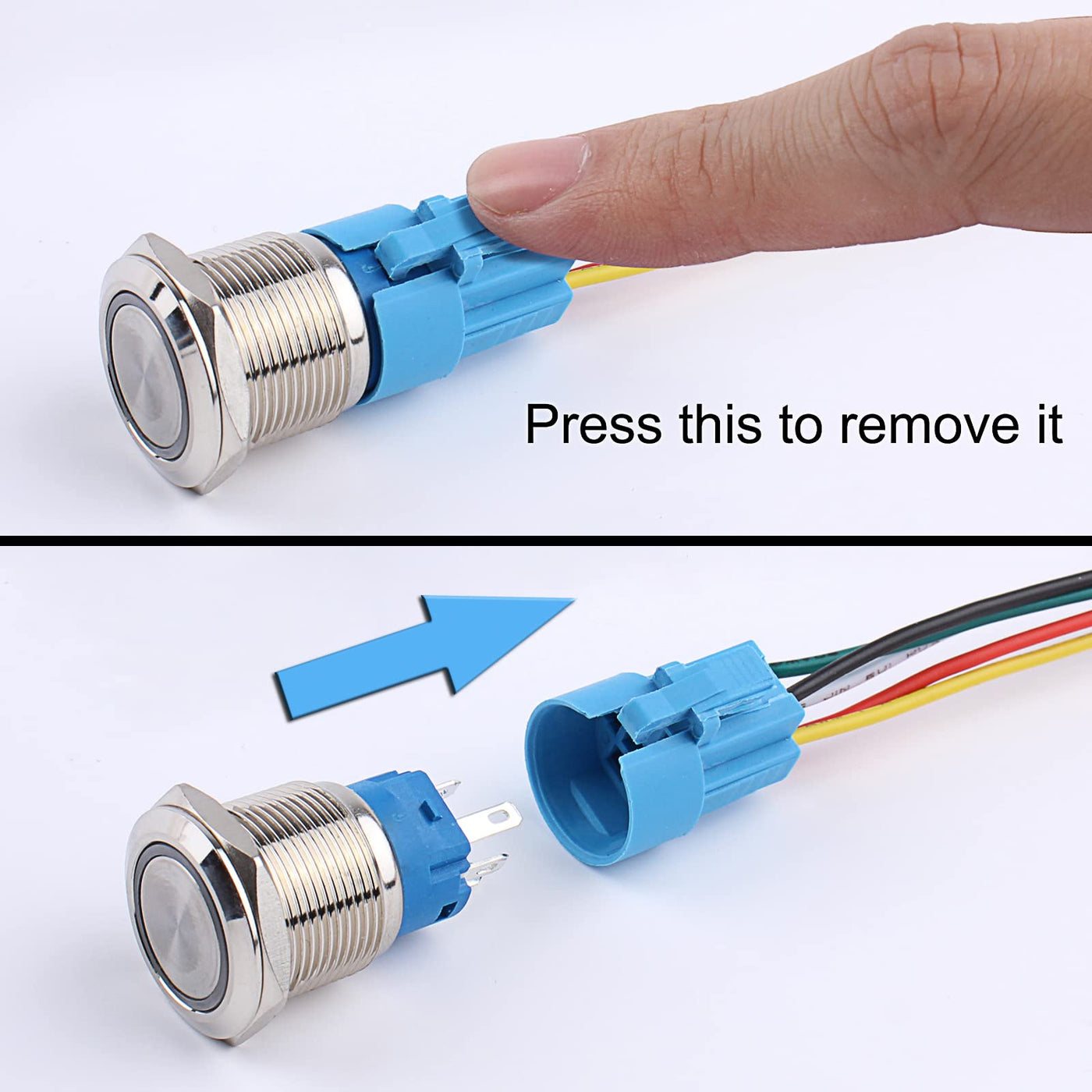

{"id":7171004432564,"title":"DMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led) Red 19mm with Socket 2sets","handle":"dmwd-2pcs-19mm-3-4-momentary-push-button-switch-12v-24v-ring-led-1no-1nc-self-reset-on-off-metal-shell-waterproof-with-wire-socketip66-red-led-red-19mm-with-socket-2sets","description":"\u003ch3\u003eDMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more What is a momentary push button switch Press the\nbutton--ON, when the button is released, the circuit is broken. Easy to\nInstall 5 pins terminal is connected to the wire socket plug, don’t need\nsoldering. Makes it easier for you to install. Momentary Push Button Switch\nRing Indicator Specifications: Mounting Hole Size: 16MM(5\/8\"); 19MM(3\/4’’);\n22MM(7\/8\") Material: Nickel plated brass LED Rating: 3A,12V-24V DC\/AC\nOperation Type: Momentary Head Shape: Flat head Led Pattern: Ring indicator\nContact Configuration: 1NO 1NC Protection Degree: IP66,IK09 Package Include: 2\nX Momentary Push Button Switch 2 X Wire Socket Plug Read more Note: 1.Don’t\nimmerse the button switch in water. 2.The package does not contain the wiring\ninstructions,please refer to the wiring diagram in this link picture. IP66\nWaterproof Push Button Switch Metal shell button switch.IP66 waterproof and\nIK09 dustproof. So it can be used in wet and dusty environment. 5 Pins with\nWire Socket Connector Momentary Pre-wired push button switch, don’t need\nsoldering. More convenient to operate. 5 Colors LED Ring Light Indicator DMWD\nswitch LED voltage is 12-24V. Bright ring led indicator switch use non-polar\nlamp bead. 5 pure colors for your choose. Read more Momentary Push Button\nSwitch 12v 24v momentary illuminated push button switch waterproof. Press the\nbutton--ON, when the button is released, the circuit is broken. Long Service\nLife Brass nickel plated shell. With wiring socket connector, quick\ninstallation. Excellent contact which make pushbutton switch long service\nlife. Widely Applications Metal push button switch have a wide range of\napplications. Suitable for car, marine, boat, computer, door bell, home\nappliance, bicycle, instrument control and so on. Read more Momentary 2sets\nLatching 2sets Momentary 2sets Latching 2sets Momentary NO LED 1pc Momentary\nMini 2pcs Shell Material Nickel Plated Brass Nickel Plated Brass Aluminum\nAlloy Aluminum Alloy Nickel Plated Brass Nickel Plated Brass Operation Type\nMomentary Latching Momentary Latching Momentary Momentary LED Pattern Halo\nRing Power symbol Speaker\/Horn Halo Ring NO LED Halo Ring Package Included 2 X\nswitch + 2 X socket 2 X switch + 2 X socket 2 X switch + 2 X socket 2 X switch\n+ 2 X socket 1 X switch 2 X switch\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMomentary Switch:Press the button--ON,Release--OFF.Head Type:Flat head.Contact Configuration:1NO 1NC.\u003c\/li\u003e\n \u003cli\u003eMounting Hole Size:19MM(3\/4).Led Voltage:12V-24V DC\/AC.Terminal is connected to the wire socket plug.Dont need soldering.Makes your operation easier.\u003c\/li\u003e\n \u003cli\u003eDifferent wiring methods,led light can be on all the time or only on when the device is working.\u003c\/li\u003e\n \u003cli\u003eProtection Degree:IP66 and IK09.Waterproof and dustproof.It can be used in wet or dusty environment.But Dont immerse the button switch in water.\u003c\/li\u003e\n \u003cli\u003eWidely Applications:Metal buttons have a wide range of applications.Suitable for car,computer,instrument and meter industry,door bell, home appliance button and so on.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-27T21:30:32+10:00","created_at":"2022-06-27T21:30:41+10:00","vendor":"DMWD","type":"Pushbutton Switches","tags":["industrial"],"price":13000,"price_min":13000,"price_max":13000,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41611590402228,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09HTW15NL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led) Red 19mm with Socket 2sets","public_title":null,"options":["Default Title"],"price":13000,"weight":59,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B09HTW15NL.jpg?v=1656401609","\/\/auspowers.com\/cdn\/shop\/products\/61RdOX364cL.jpg?v=1656329441","\/\/auspowers.com\/cdn\/shop\/products\/611080Dl7hL.jpg?v=1656329441","\/\/auspowers.com\/cdn\/shop\/products\/618_tkUP1XL.jpg?v=1656329441","\/\/auspowers.com\/cdn\/shop\/products\/71MOUFFJB3L.jpg?v=1656329441","\/\/auspowers.com\/cdn\/shop\/products\/71leuhJjpnL.jpg?v=1656329441","\/\/auspowers.com\/cdn\/shop\/products\/71kThL27BuL.jpg?v=1656329441"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B09HTW15NL.jpg?v=1656401609","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led) Red 19mm with Socket 2sets ","id":26320763879604,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B09HTW15NL.jpg?v=1656401609"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B09HTW15NL.jpg?v=1656401609","width":1600},{"alt":"[Australia - AusPower] - DMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led) Red 19mm with Socket 2sets ","id":26307479437492,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61RdOX364cL.jpg?v=1656329441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61RdOX364cL.jpg?v=1656329441","width":1600},{"alt":"[Australia - AusPower] - DMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led) Red 19mm with Socket 2sets ","id":26307479470260,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/611080Dl7hL.jpg?v=1656329441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/611080Dl7hL.jpg?v=1656329441","width":1600},{"alt":"[Australia - AusPower] - DMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led) Red 19mm with Socket 2sets ","id":26307479503028,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/618_tkUP1XL.jpg?v=1656329441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/618_tkUP1XL.jpg?v=1656329441","width":1600},{"alt":"[Australia - AusPower] - DMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led) Red 19mm with Socket 2sets ","id":26307479535796,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71MOUFFJB3L.jpg?v=1656329441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71MOUFFJB3L.jpg?v=1656329441","width":1600},{"alt":"[Australia - AusPower] - DMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led) Red 19mm with Socket 2sets ","id":26307479568564,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71leuhJjpnL.jpg?v=1656329441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71leuhJjpnL.jpg?v=1656329441","width":1600},{"alt":"[Australia - AusPower] - DMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led) Red 19mm with Socket 2sets ","id":26307479601332,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71kThL27BuL.jpg?v=1656329441"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71kThL27BuL.jpg?v=1656329441","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDMWD 2PCS 19MM 3\/4’’ Momentary Push Button Switch 12V-24V Ring Led 1NO 1NC Self-Reset ON\/Off Metal Shell Waterproof with Wire Socket(IP66,Red Led)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more What is a momentary push button switch Press the\nbutton--ON, when the button is released, the circuit is broken. Easy to\nInstall 5 pins terminal is connected to the wire socket plug, don’t need\nsoldering. Makes it easier for you to install. Momentary Push Button Switch\nRing Indicator Specifications: Mounting Hole Size: 16MM(5\/8\"); 19MM(3\/4’’);\n22MM(7\/8\") Material: Nickel plated brass LED Rating: 3A,12V-24V DC\/AC\nOperation Type: Momentary Head Shape: Flat head Led Pattern: Ring indicator\nContact Configuration: 1NO 1NC Protection Degree: IP66,IK09 Package Include: 2\nX Momentary Push Button Switch 2 X Wire Socket Plug Read more Note: 1.Don’t\nimmerse the button switch in water. 2.The package does not contain the wiring\ninstructions,please refer to the wiring diagram in this link picture. IP66\nWaterproof Push Button Switch Metal shell button switch.IP66 waterproof and\nIK09 dustproof. So it can be used in wet and dusty environment. 5 Pins with\nWire Socket Connector Momentary Pre-wired push button switch, don’t need\nsoldering. More convenient to operate. 5 Colors LED Ring Light Indicator DMWD\nswitch LED voltage is 12-24V. Bright ring led indicator switch use non-polar\nlamp bead. 5 pure colors for your choose. Read more Momentary Push Button\nSwitch 12v 24v momentary illuminated push button switch waterproof. Press the\nbutton--ON, when the button is released, the circuit is broken. Long Service\nLife Brass nickel plated shell. With wiring socket connector, quick\ninstallation. Excellent contact which make pushbutton switch long service\nlife. Widely Applications Metal push button switch have a wide range of\napplications. Suitable for car, marine, boat, computer, door bell, home\nappliance, bicycle, instrument control and so on. Read more Momentary 2sets\nLatching 2sets Momentary 2sets Latching 2sets Momentary NO LED 1pc Momentary\nMini 2pcs Shell Material Nickel Plated Brass Nickel Plated Brass Aluminum\nAlloy Aluminum Alloy Nickel Plated Brass Nickel Plated Brass Operation Type\nMomentary Latching Momentary Latching Momentary Momentary LED Pattern Halo\nRing Power symbol Speaker\/Horn Halo Ring NO LED Halo Ring Package Included 2 X\nswitch + 2 X socket 2 X switch + 2 X socket 2 X switch + 2 X socket 2 X switch\n+ 2 X socket 1 X switch 2 X switch\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMomentary Switch:Press the button--ON,Release--OFF.Head Type:Flat head.Contact Configuration:1NO 1NC.\u003c\/li\u003e\n \u003cli\u003eMounting Hole Size:19MM(3\/4).Led Voltage:12V-24V DC\/AC.Terminal is connected to the wire socket plug.Dont need soldering.Makes your operation easier.\u003c\/li\u003e\n \u003cli\u003eDifferent wiring methods,led light can be on all the time or only on when the device is working.\u003c\/li\u003e\n \u003cli\u003eProtection Degree:IP66 and IK09.Waterproof and dustproof.It can be used in wet or dusty environment.But Dont immerse the button switch in water.\u003c\/li\u003e\n \u003cli\u003eWidely Applications:Metal buttons have a wide range of applications.Suitable for car,computer,instrument and meter industry,door bell, home appliance button and so on.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
