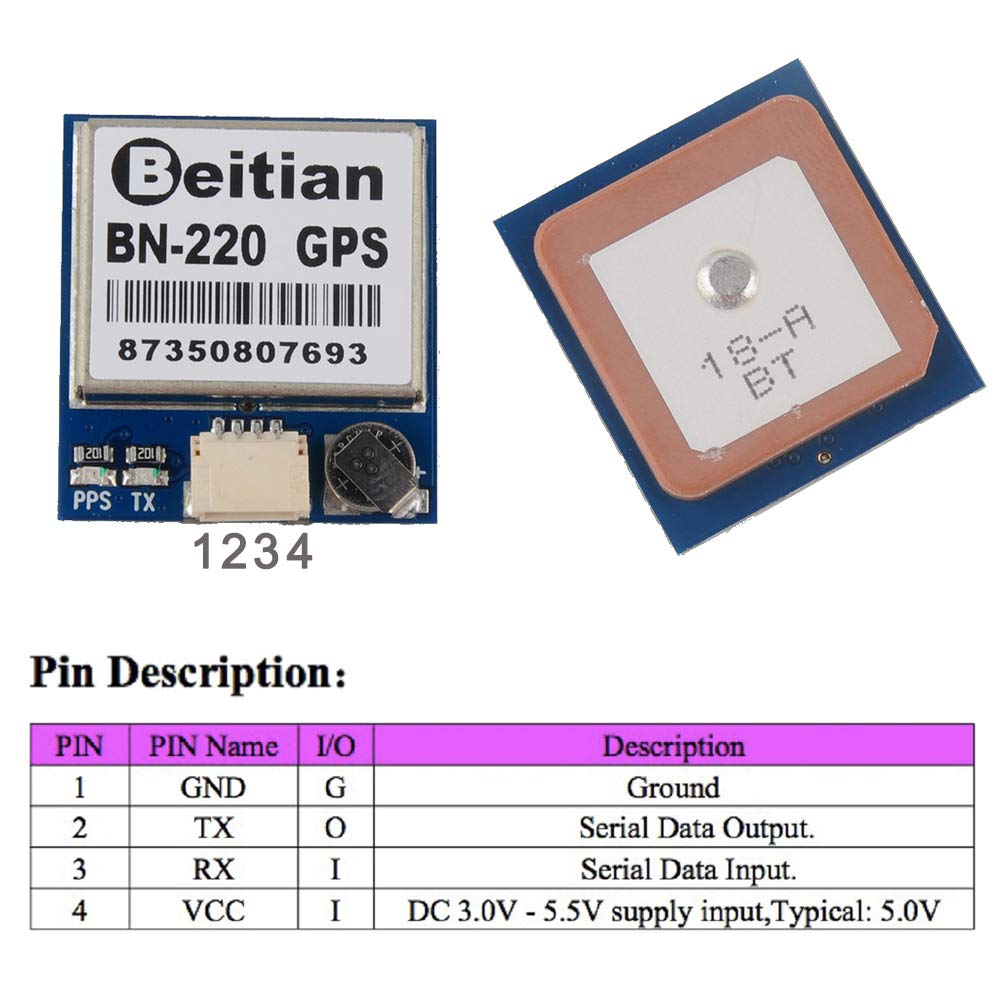

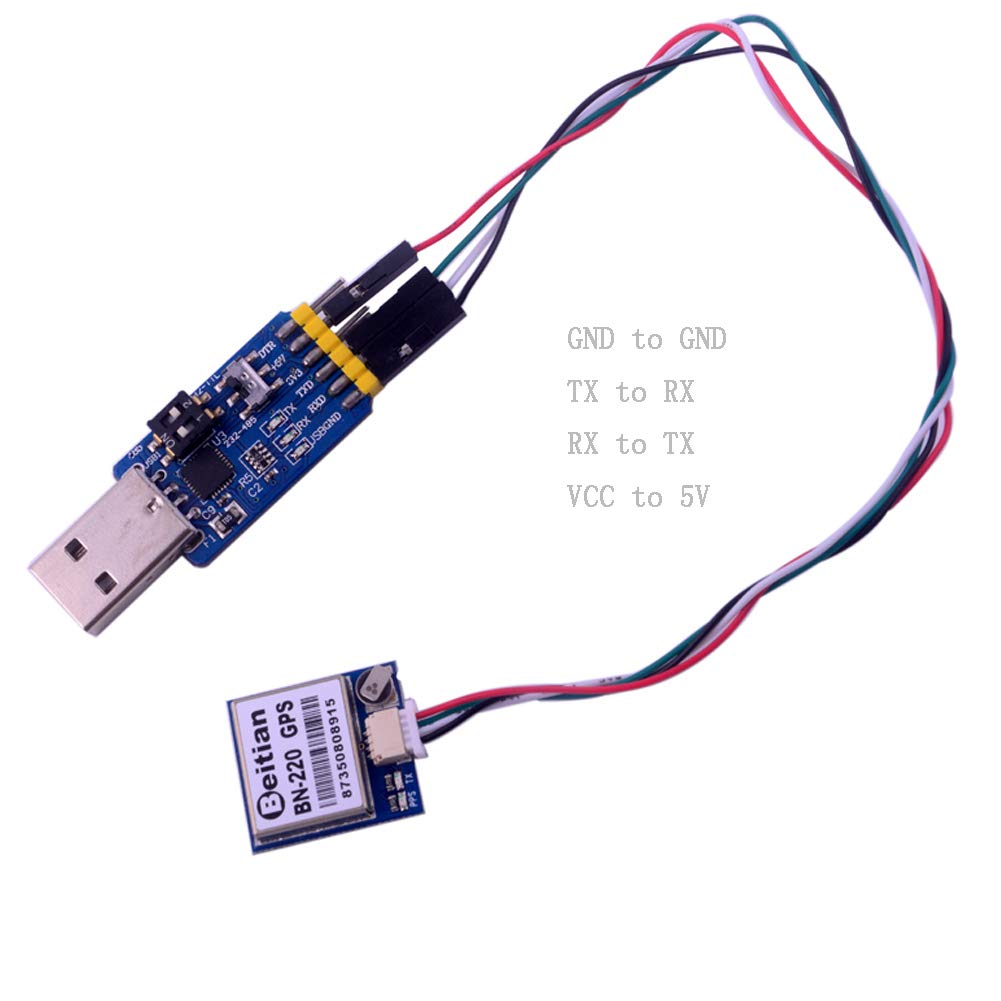

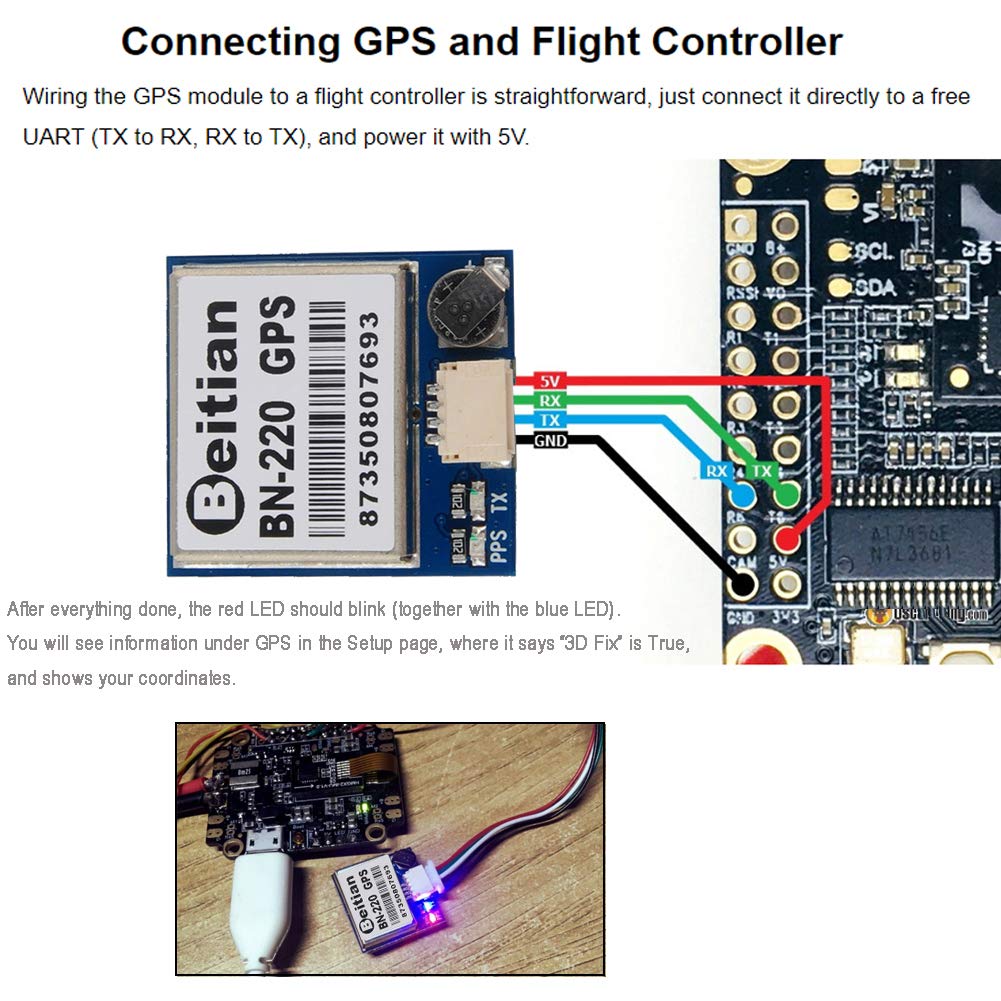

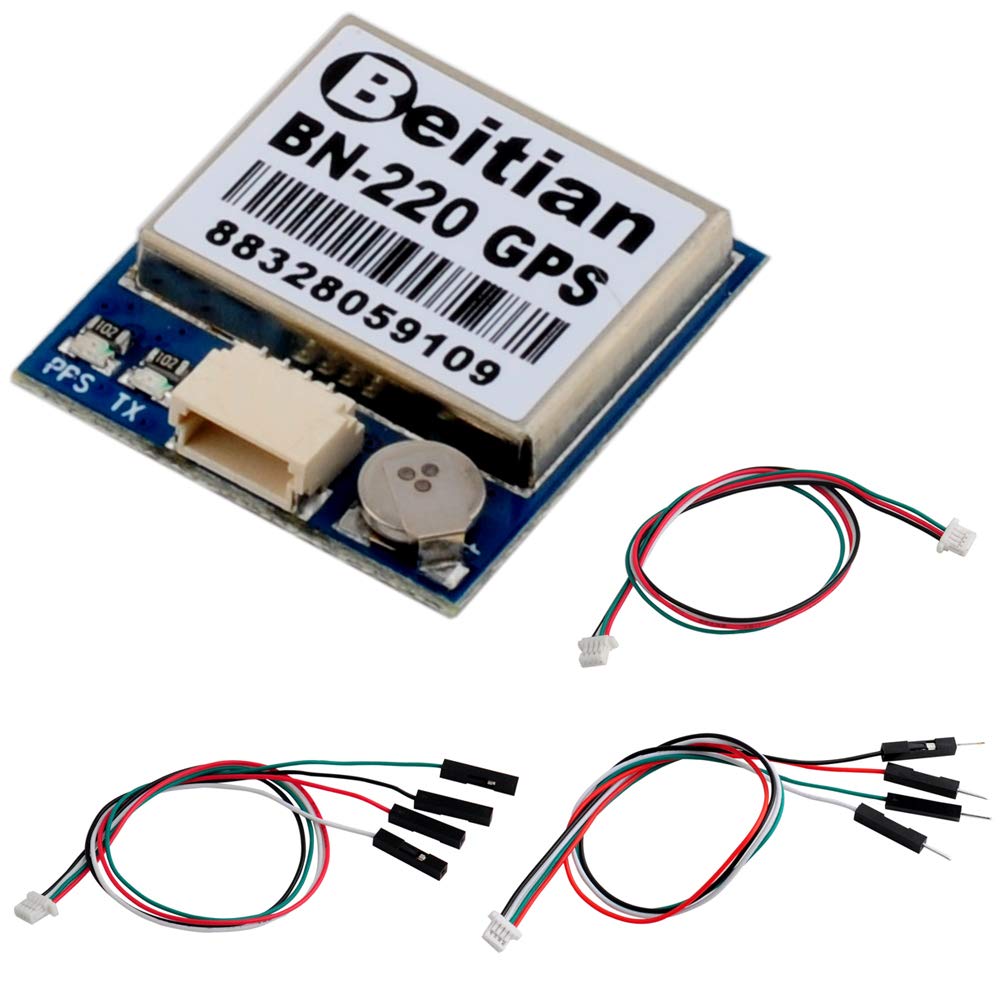

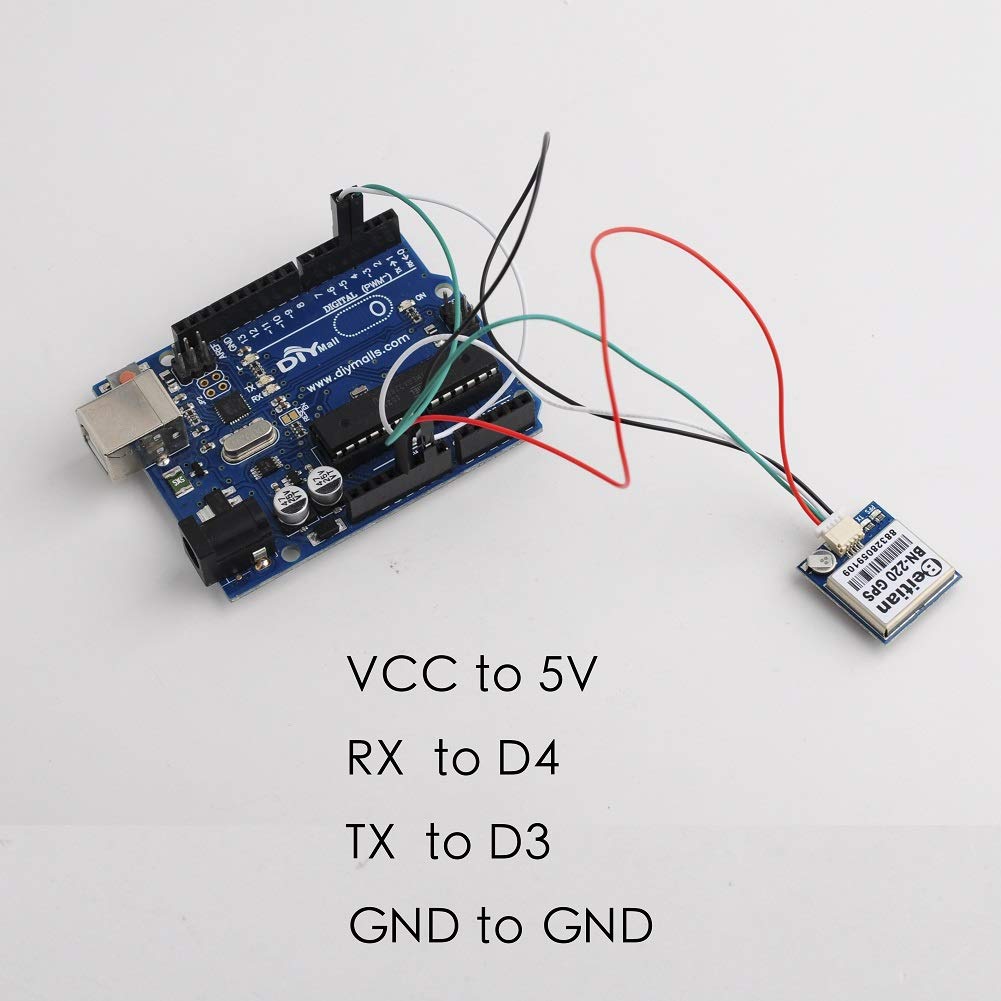

{"id":7089373053108,"title":"DIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control","handle":"diymalls-bn-220-gps-module-ttl-dual-gps-glonass-w-flash-gps-passive-antenna-for-arduino-raspberry-pi-pixhawk-cc3d-betaflight-flight-control","description":"\u003ch3\u003eDIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is bn 220 GPS ? Beitian bn-220 is dual gps glonass\nreceiver module, equiped with flash no compass. It is compatible with arduino,\nflight control and pc. Read more Flight Control Wiring Beitian bn-220 gps\nmodule is easily connected with most flight control, TX to RX, RX to TX, GND\nto GND, VCC to 5V. CP2102 USB to TTL and PC usb to ttl adapter makes bn 220\ngps using with PC conveniently. -Connect usb to ttl serial with bn220 gps\nmodule, GND to GND, TX to RX, RX to TX, VCC to 5V. -Install driver for usb to\nttl module on PC. Microcontroller Board bn220 gps works with most\nmicrocontroller board. After wiring done, red and blue LED indicator should\nblink. Read more BN1-80 GPS BN-220 GPS BN220 GPS BN-220 GPS +USB to TTL\nBN-220T GPS Size 18x18x6mm 22x20x6mm 22x20x6mm 22x20x6mm 22x20x9mm Flash No\nYes Yes Yes Yes Compass No No No No No Antenna Passive Passive Passive Passive\nPassive Pin 4 4 4 4 4 BN-880 GPS BN-880 GPS +USB to TTL BN-880Q GPS USB to TTL\nSize 28x28x10mm 28x28x10mm 28x28x8mm Flash Yes Yes Yes Compass Yes Yes No\nAntenna Active Active Active Pin 6 6 6\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhen you use it for Raspberry Pi, there is no driver installation needed but you need to install software\u003c\/li\u003e\n \u003cli\u003eWhen you power up bn 220 GPS module the first time in a new location, it always takes longer to find satillites. This is referred to as cold start. Once youve done it the first time, later when you restart bn220 GPS module, it will get a lock much faster.\u003c\/li\u003e\n \u003cli\u003eData Level : TTL or RS-232,Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable\u003c\/li\u003e\n \u003cli\u003eIf you have any problem, please contact seller as follow: click \"DIYmalls\"(you can find \"Sold by DIYmalls\" under Buy Now button), in the new page, click \"Ask a question\".\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-10-27T18:03:52+11:00","created_at":"2022-03-22T17:47:05+11:00","vendor":"DIYmalls","type":"Antennas","tags":["auspowers_batchtwo"],"price":13300,"price_min":13300,"price_max":13300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41344311230644,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B086ZK9BT4","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control","public_title":null,"options":["Default Title"],"price":13300,"weight":9,"compare_at_price":null,"inventory_management":null,"barcode":"JS466-GGG-197","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B086ZK9BT4.jpg?v=1648621361","\/\/auspowers.com\/cdn\/shop\/products\/61zqXMgX1CL.jpg?v=1647931625","\/\/auspowers.com\/cdn\/shop\/products\/710VPH1JumL.jpg?v=1647931625","\/\/auspowers.com\/cdn\/shop\/products\/61hmNkmWZ8L.jpg?v=1647931625","\/\/auspowers.com\/cdn\/shop\/products\/51HinJxmYkL.jpg?v=1647931625","\/\/auspowers.com\/cdn\/shop\/products\/51BOscnoCML_8f03ecc2-43de-4fe4-ae1a-ff5c799586e2.jpg?v=1647931625"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B086ZK9BT4.jpg?v=1648621361","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control ","id":25358907769012,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B086ZK9BT4.jpg?v=1648621361"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B086ZK9BT4.jpg?v=1648621361","width":1001},{"alt":"[Australia - AusPower] - DIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control ","id":25249286422708,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61zqXMgX1CL.jpg?v=1647931625"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61zqXMgX1CL.jpg?v=1647931625","width":1001},{"alt":"[Australia - AusPower] - DIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control ","id":25249286455476,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/710VPH1JumL.jpg?v=1647931625"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/710VPH1JumL.jpg?v=1647931625","width":1001},{"alt":"[Australia - AusPower] - DIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control ","id":25249286488244,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61hmNkmWZ8L.jpg?v=1647931625"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61hmNkmWZ8L.jpg?v=1647931625","width":1001},{"alt":"[Australia - AusPower] - DIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control ","id":25249286521012,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51HinJxmYkL.jpg?v=1647931625"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51HinJxmYkL.jpg?v=1647931625","width":1001},{"alt":"[Australia - AusPower] - DIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control ","id":25249286553780,"position":6,"preview_image":{"aspect_ratio":1.402,"height":714,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51BOscnoCML_8f03ecc2-43de-4fe4-ae1a-ff5c799586e2.jpg?v=1647931625"},"aspect_ratio":1.402,"height":714,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51BOscnoCML_8f03ecc2-43de-4fe4-ae1a-ff5c799586e2.jpg?v=1647931625","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDIYmalls BN-220 GPS Module TTL Dual GPS Glonass w\/Flash + GPS Passive Antenna for Arduino Raspberry Pi Pixhawk CC3D Betaflight Flight Control\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhat is bn 220 GPS ? Beitian bn-220 is dual gps glonass\nreceiver module, equiped with flash no compass. It is compatible with arduino,\nflight control and pc. Read more Flight Control Wiring Beitian bn-220 gps\nmodule is easily connected with most flight control, TX to RX, RX to TX, GND\nto GND, VCC to 5V. CP2102 USB to TTL and PC usb to ttl adapter makes bn 220\ngps using with PC conveniently. -Connect usb to ttl serial with bn220 gps\nmodule, GND to GND, TX to RX, RX to TX, VCC to 5V. -Install driver for usb to\nttl module on PC. Microcontroller Board bn220 gps works with most\nmicrocontroller board. After wiring done, red and blue LED indicator should\nblink. Read more BN1-80 GPS BN-220 GPS BN220 GPS BN-220 GPS +USB to TTL\nBN-220T GPS Size 18x18x6mm 22x20x6mm 22x20x6mm 22x20x6mm 22x20x9mm Flash No\nYes Yes Yes Yes Compass No No No No No Antenna Passive Passive Passive Passive\nPassive Pin 4 4 4 4 4 BN-880 GPS BN-880 GPS +USB to TTL BN-880Q GPS USB to TTL\nSize 28x28x10mm 28x28x10mm 28x28x8mm Flash Yes Yes Yes Compass Yes Yes No\nAntenna Active Active Active Pin 6 6 6\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhen you use it for Raspberry Pi, there is no driver installation needed but you need to install software\u003c\/li\u003e\n \u003cli\u003eWhen you power up bn 220 GPS module the first time in a new location, it always takes longer to find satillites. This is referred to as cold start. Once youve done it the first time, later when you restart bn220 GPS module, it will get a lock much faster.\u003c\/li\u003e\n \u003cli\u003eData Level : TTL or RS-232,Default TTL level. To make it be RS232 output, you need to use one TTL to RS232 converter cable\u003c\/li\u003e\n \u003cli\u003eIf you have any problem, please contact seller as follow: click \"DIYmalls\"(you can find \"Sold by DIYmalls\" under Buy Now button), in the new page, click \"Ask a question\".\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
