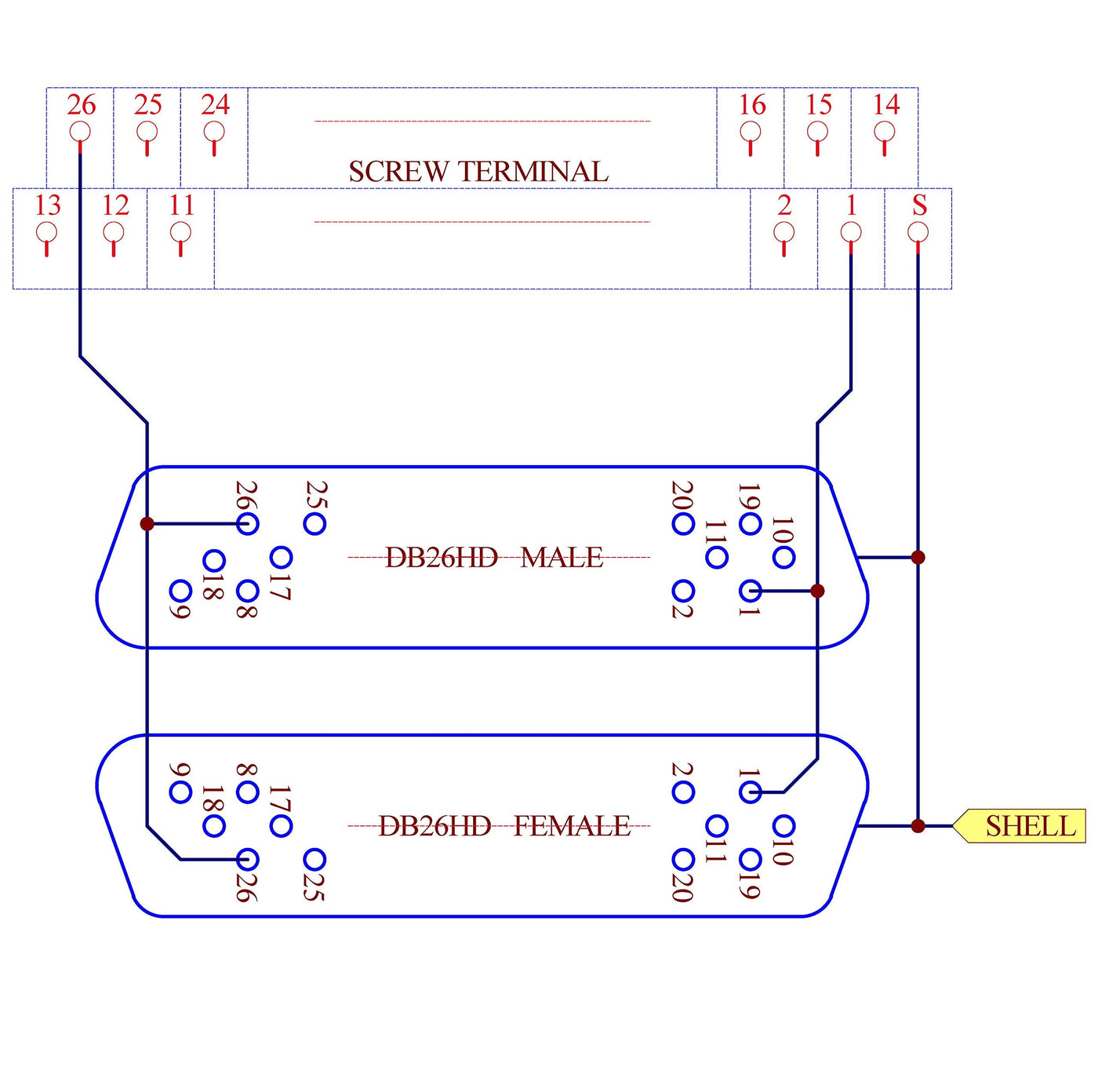

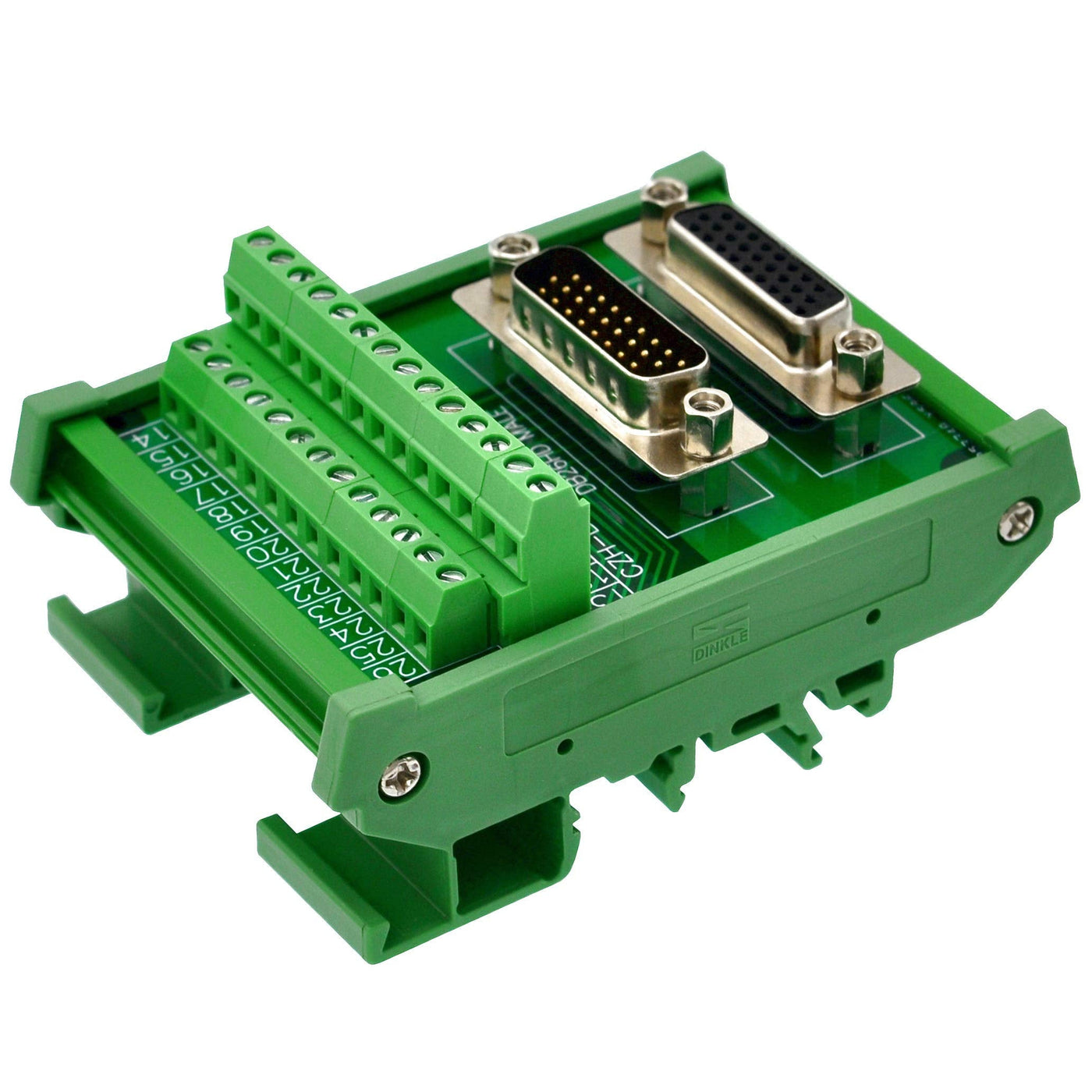

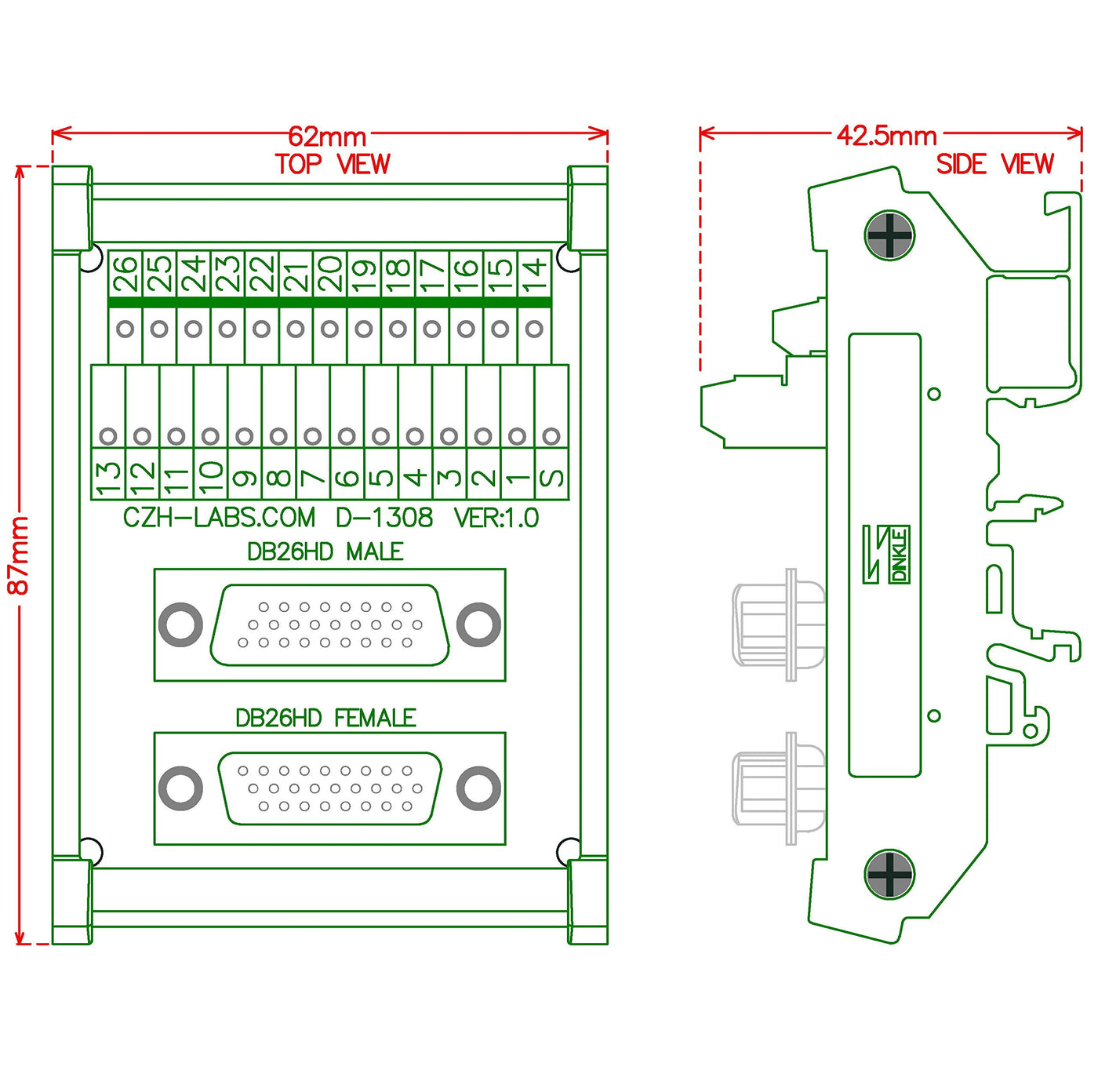

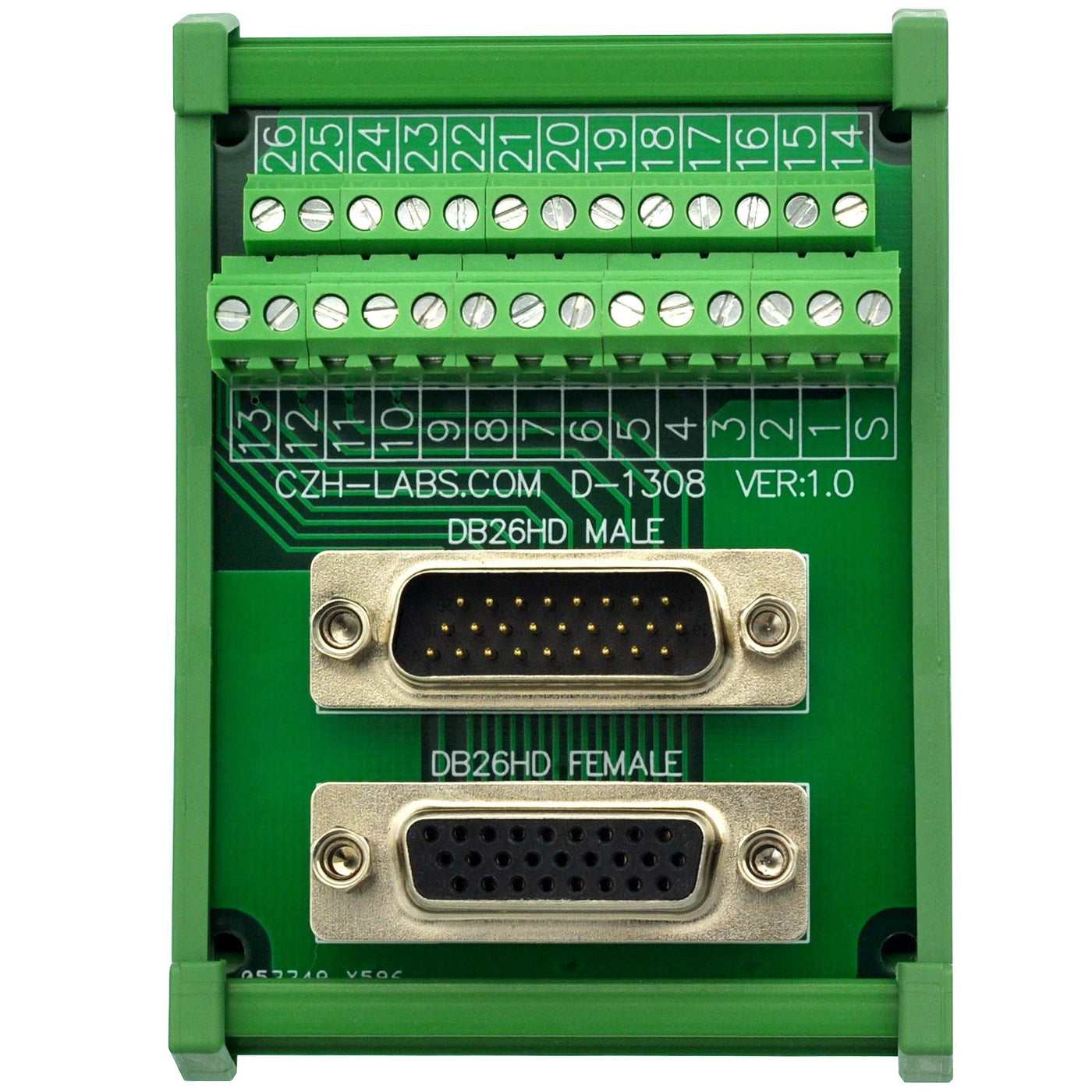

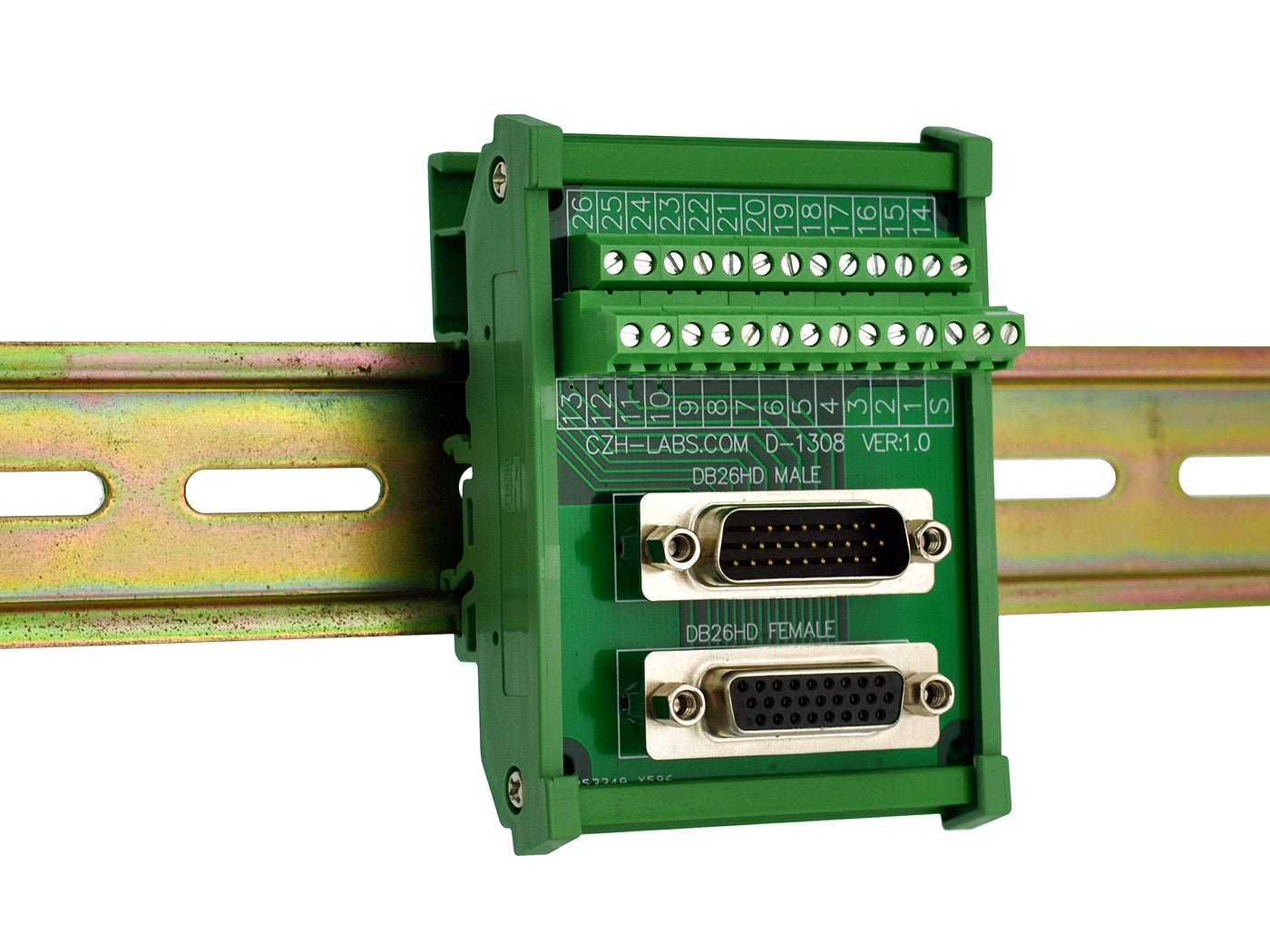

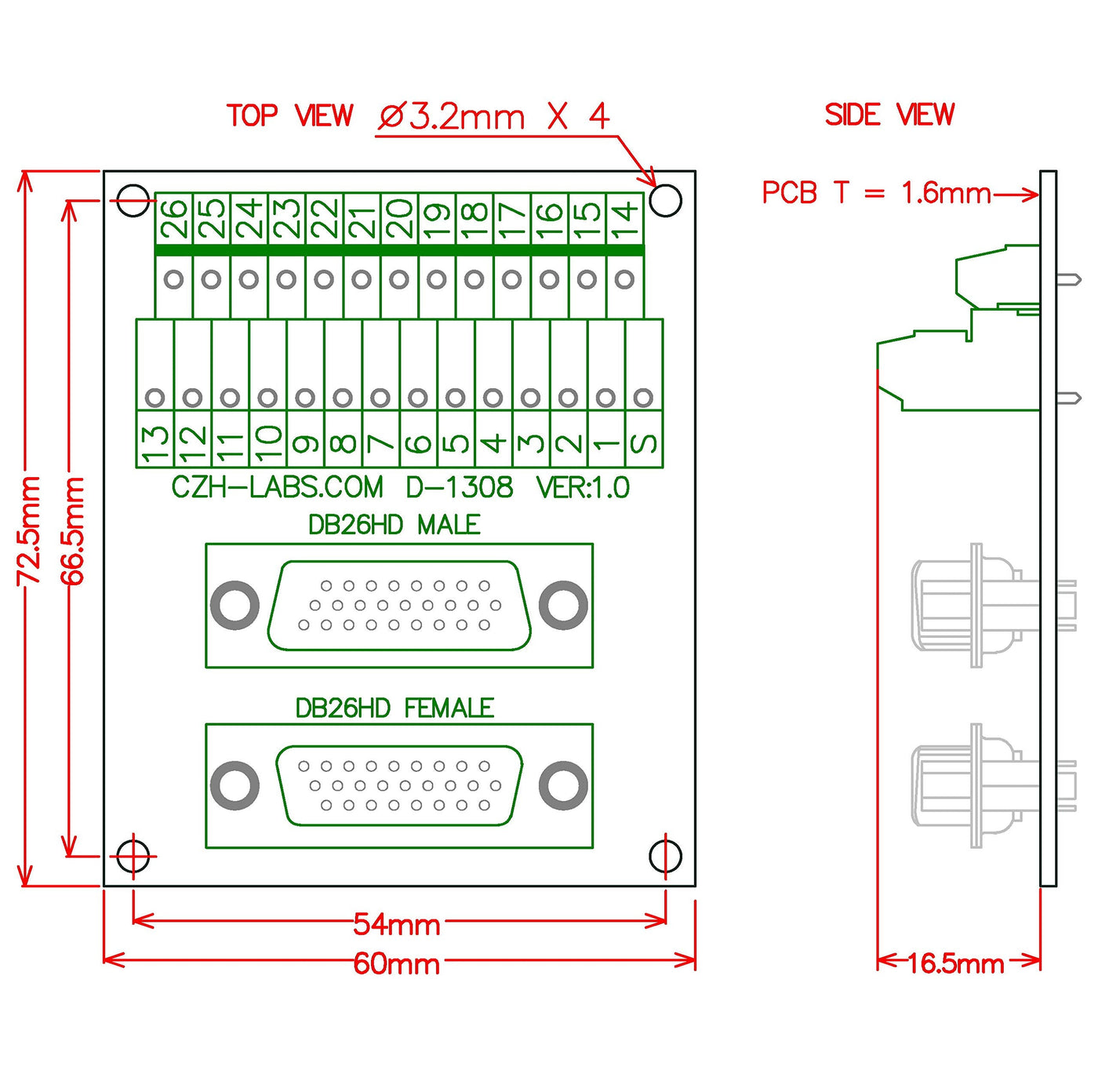

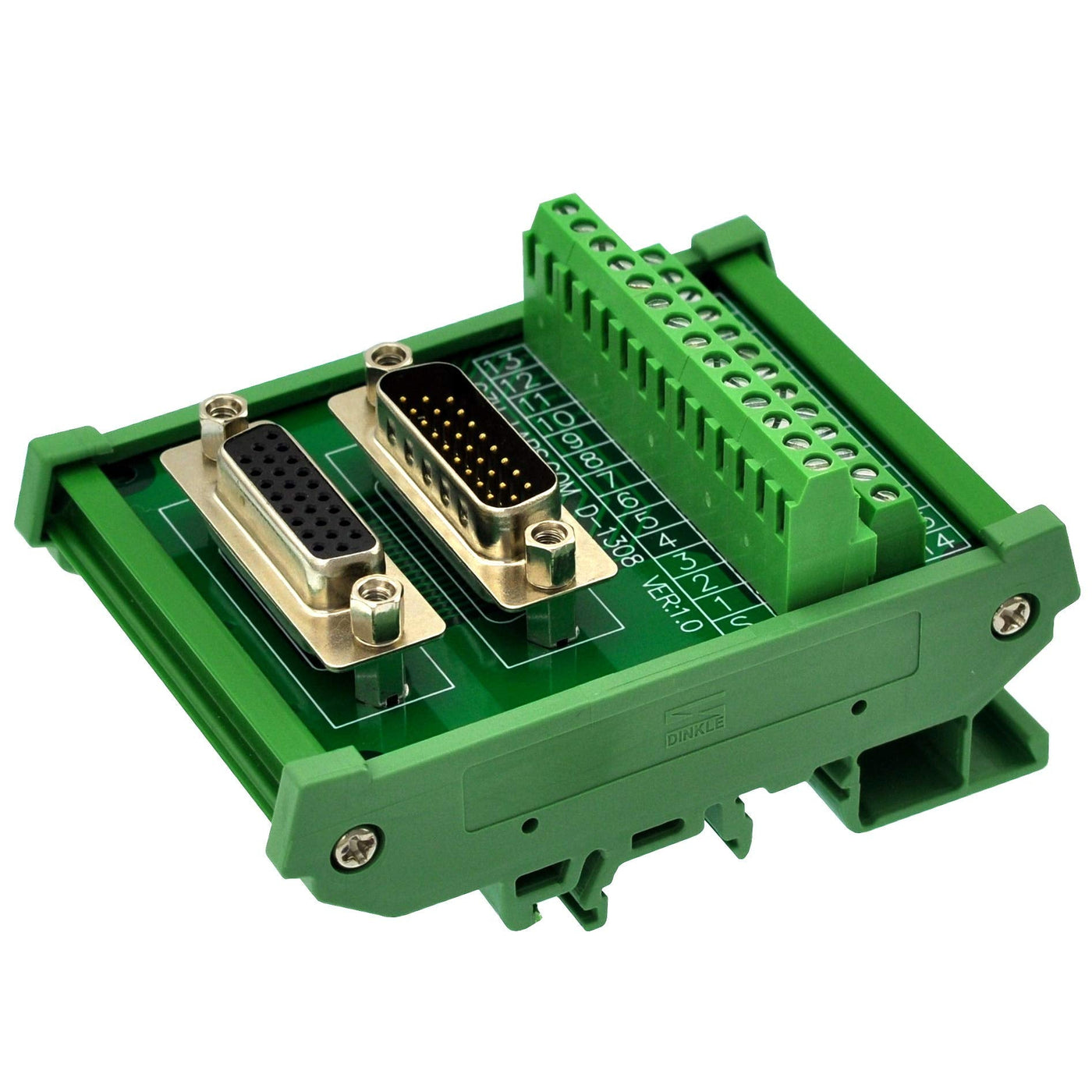

{"id":7975308132532,"title":"DIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board.","handle":"din-rail-mount-dsub-db26hd-male-female-header-interface-module-d-sub-breakout-board","description":"\u003ch3\u003eDIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, Standard DB26HD Male\/Female header connectors. Male header, female header\nand screw terminal 1:1:1 connects for per line. 2, Rated voltage: 60V. Rated\ncurrent: 1A \/ per pin. Operating Temperature: -20ºC to 50ºC 3, Terminal block:\nPitch 3.81mm\/0.15\" miniaturization screw terminal block. Wire range -\n26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm\n(1.7Lb-In.). Pin header and Cage - Brass. 4, FR-4 fiber glass PCB, dual copper\nlayers. 5, High quality fireproof nylon material DIN rail mount carrier (not\nChina low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the\ncarrier can be taken apart for PCB screw mount use.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStandard DB26HD Male\/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.\u003c\/li\u003e\n \u003cli\u003eRated voltage: 60V. Rated current: 1A \/ per pin. Operating Temperature: -20oC to 50oC\u003c\/li\u003e\n \u003cli\u003eTerminal block: Pitch 3.81mm\/0.15\" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.\u003c\/li\u003e\n \u003cli\u003eFR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003eHigh quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for PCB screw mount use.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-07-26T02:25:48+10:00","created_at":"2025-07-26T02:25:44+10:00","vendor":"CZH-LABS","type":"IO Modules","tags":["industrial_best_sellers_Jun2025"],"price":15800,"price_min":15800,"price_max":15800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43992910004404,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07XD8GPG6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board.","public_title":null,"options":["Default Title"],"price":15800,"weight":135,"compare_at_price":null,"inventory_management":"shopify","barcode":"MD-D1308T-1","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07XD8GPG6.jpg?v=1775762270","\/\/auspowers.com\/cdn\/shop\/files\/81IMIdiJUlL.jpg?v=1753460747","\/\/auspowers.com\/cdn\/shop\/files\/81oANrjBEHL.jpg?v=1753460747","\/\/auspowers.com\/cdn\/shop\/files\/81wwvl3neFL.jpg?v=1753460747","\/\/auspowers.com\/cdn\/shop\/files\/81_hXbfsPjL.jpg?v=1753460747","\/\/auspowers.com\/cdn\/shop\/files\/814Be5IRmDL.jpg?v=1753460747","\/\/auspowers.com\/cdn\/shop\/files\/81pOhy07S9L.jpg?v=1753460747"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07XD8GPG6.jpg?v=1775762270","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board. ","id":31877546148020,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1894,"width":1894,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07XD8GPG6.jpg?v=1775762270"},"aspect_ratio":1.0,"height":1894,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07XD8GPG6.jpg?v=1775762270","width":1894},{"alt":"[Australia - AusPower] - DIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board. ","id":31877546180788,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2065,"width":2065,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81IMIdiJUlL.jpg?v=1753460747"},"aspect_ratio":1.0,"height":2065,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81IMIdiJUlL.jpg?v=1753460747","width":2065},{"alt":"[Australia - AusPower] - DIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board. ","id":31877546213556,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1719,"width":1719,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81oANrjBEHL.jpg?v=1753460747"},"aspect_ratio":1.0,"height":1719,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81oANrjBEHL.jpg?v=1753460747","width":1719},{"alt":"[Australia - AusPower] - DIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board. ","id":31877546246324,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1920,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81wwvl3neFL.jpg?v=1753460747"},"aspect_ratio":1.333,"height":1920,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81wwvl3neFL.jpg?v=1753460747","width":2560},{"alt":"[Australia - AusPower] - DIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board. ","id":31877546279092,"position":5,"preview_image":{"aspect_ratio":1.006,"height":2545,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81_hXbfsPjL.jpg?v=1753460747"},"aspect_ratio":1.006,"height":2545,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81_hXbfsPjL.jpg?v=1753460747","width":2560},{"alt":"[Australia - AusPower] - DIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board. ","id":31877546311860,"position":6,"preview_image":{"aspect_ratio":1.006,"height":2545,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/814Be5IRmDL.jpg?v=1753460747"},"aspect_ratio":1.006,"height":2545,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/814Be5IRmDL.jpg?v=1753460747","width":2560},{"alt":"[Australia - AusPower] - DIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board. ","id":31877546344628,"position":7,"preview_image":{"aspect_ratio":1.006,"height":2545,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81pOhy07S9L.jpg?v=1753460747"},"aspect_ratio":1.006,"height":2545,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81pOhy07S9L.jpg?v=1753460747","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDIN Rail Mount DSUB DB26HD Male\/Female Header Interface Module, D-SUB Breakout Board.\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1, Standard DB26HD Male\/Female header connectors. Male header, female header\nand screw terminal 1:1:1 connects for per line. 2, Rated voltage: 60V. Rated\ncurrent: 1A \/ per pin. Operating Temperature: -20ºC to 50ºC 3, Terminal block:\nPitch 3.81mm\/0.15\" miniaturization screw terminal block. Wire range -\n26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm\n(1.7Lb-In.). Pin header and Cage - Brass. 4, FR-4 fiber glass PCB, dual copper\nlayers. 5, High quality fireproof nylon material DIN rail mount carrier (not\nChina low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the\ncarrier can be taken apart for PCB screw mount use.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStandard DB26HD Male\/Female header connectors. Male header, female header and screw terminal 1:1:1 connects for per line.\u003c\/li\u003e\n \u003cli\u003eRated voltage: 60V. Rated current: 1A \/ per pin. Operating Temperature: -20oC to 50oC\u003c\/li\u003e\n \u003cli\u003eTerminal block: Pitch 3.81mm\/0.15\" miniaturization screw terminal block. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.\u003c\/li\u003e\n \u003cli\u003eFR-4 fiber glass PCB, dual copper layers.\u003c\/li\u003e\n \u003cli\u003eHigh quality fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm \/ 32mm \/ 15mm rail, and the carrier can be taken apart for PCB screw mount use.\u003c\/li\u003e\n \u003c\/ul\u003e"}
