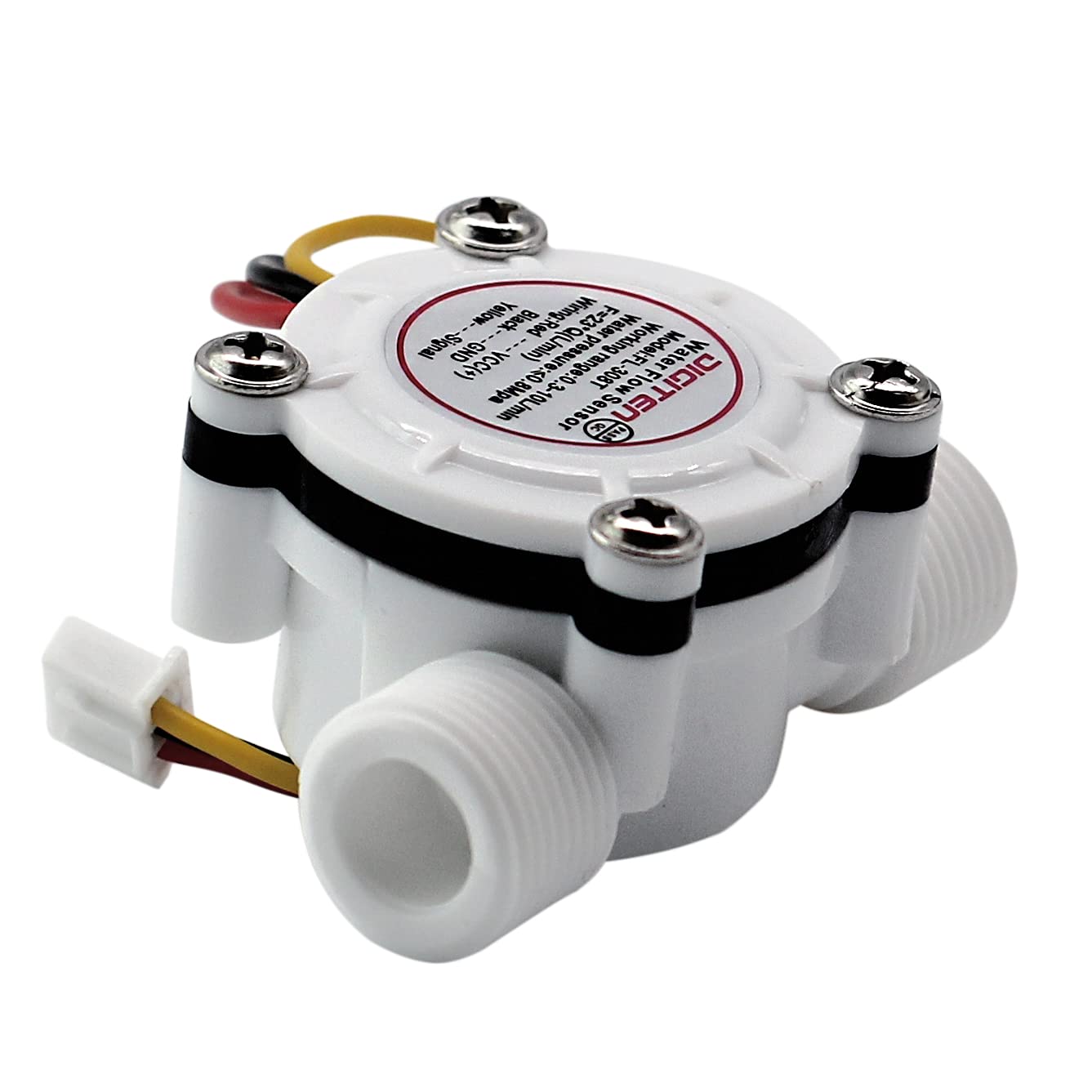

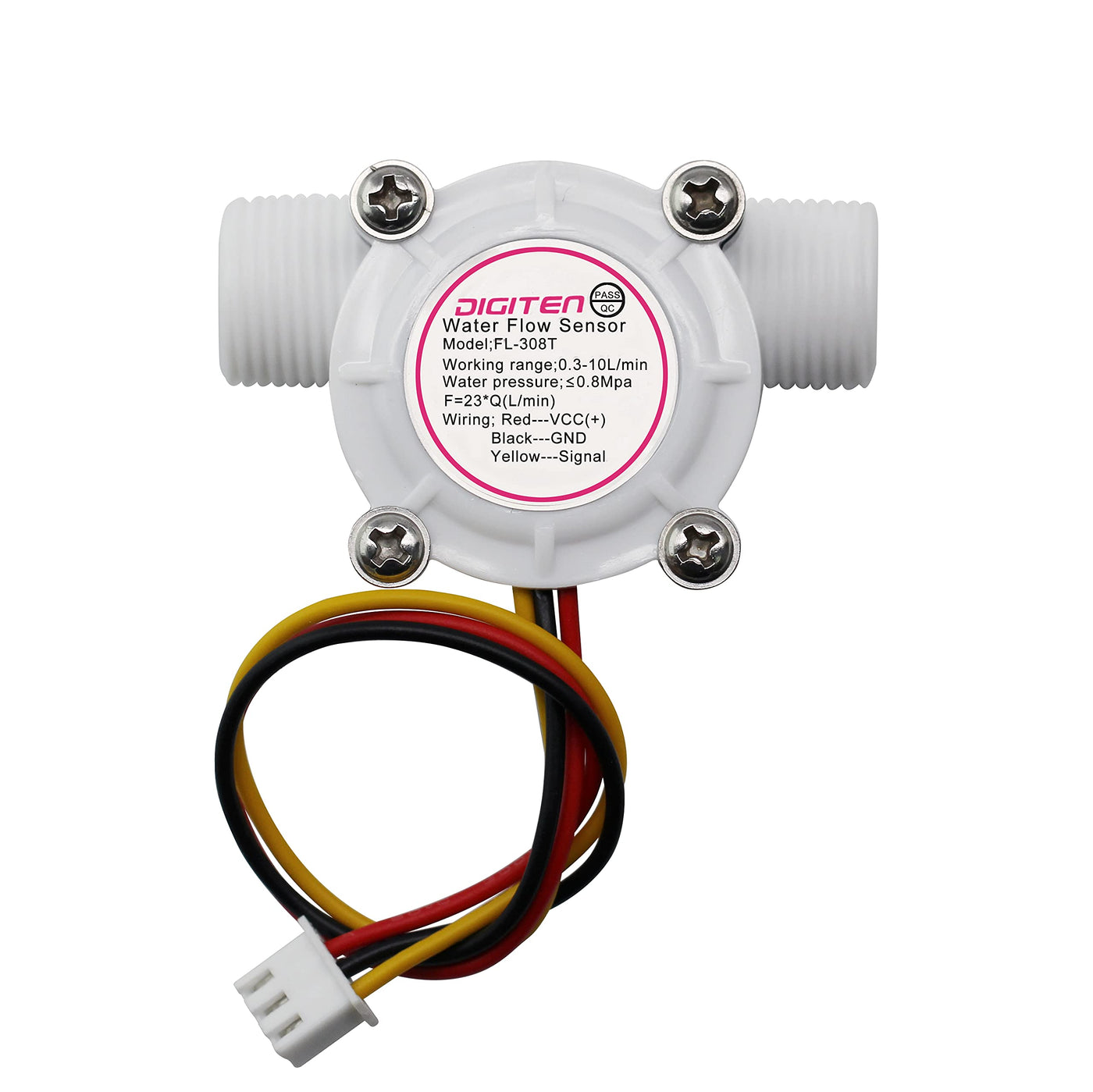

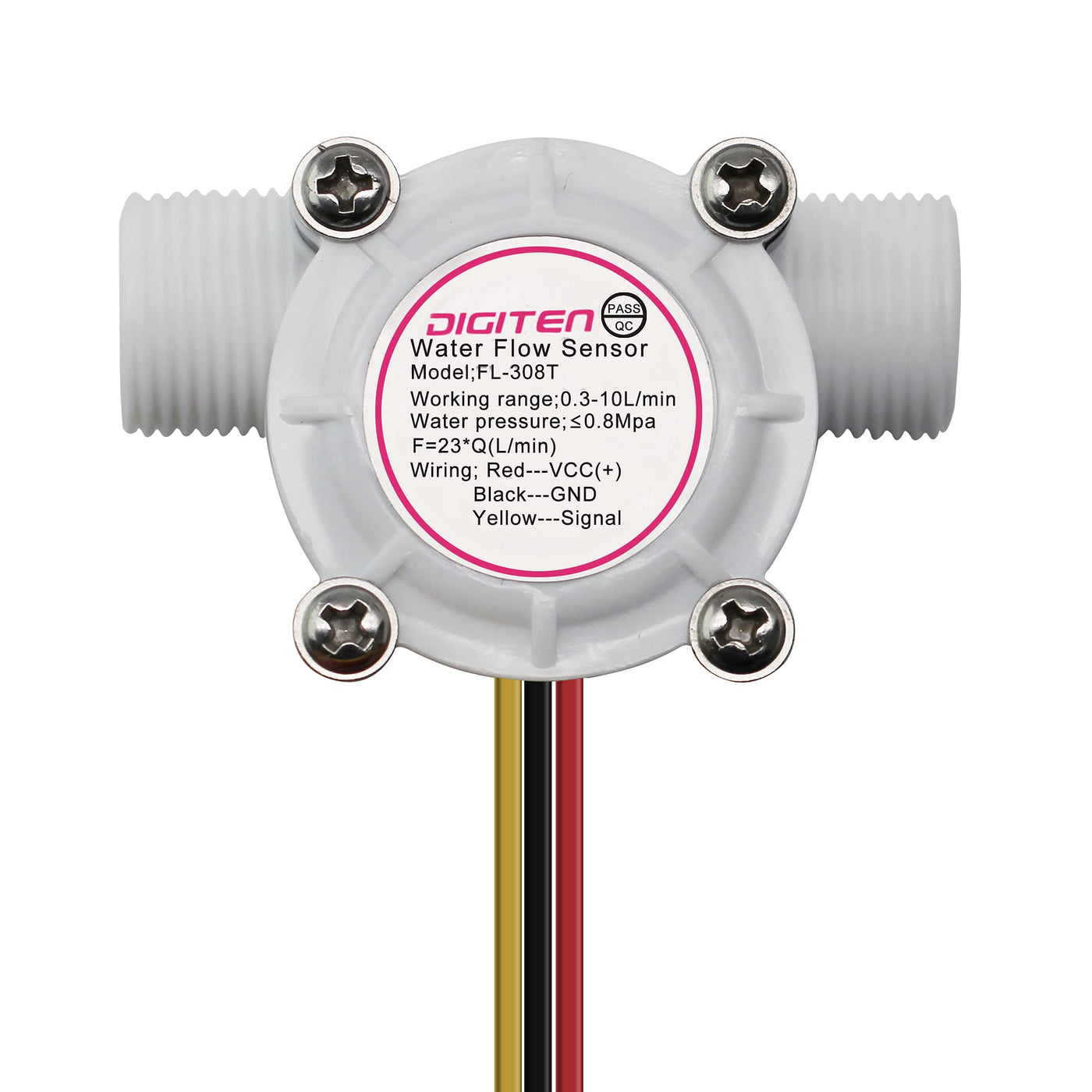

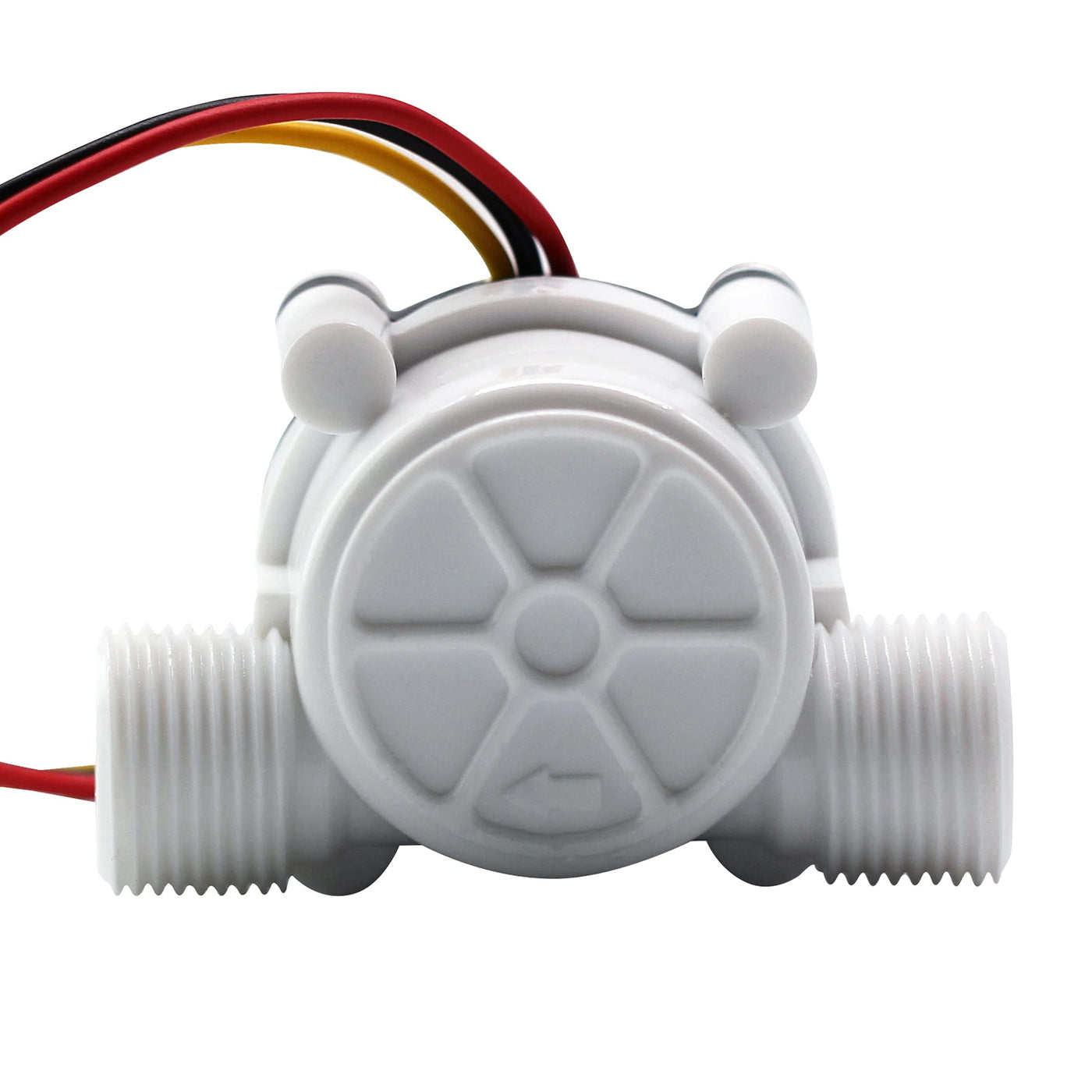

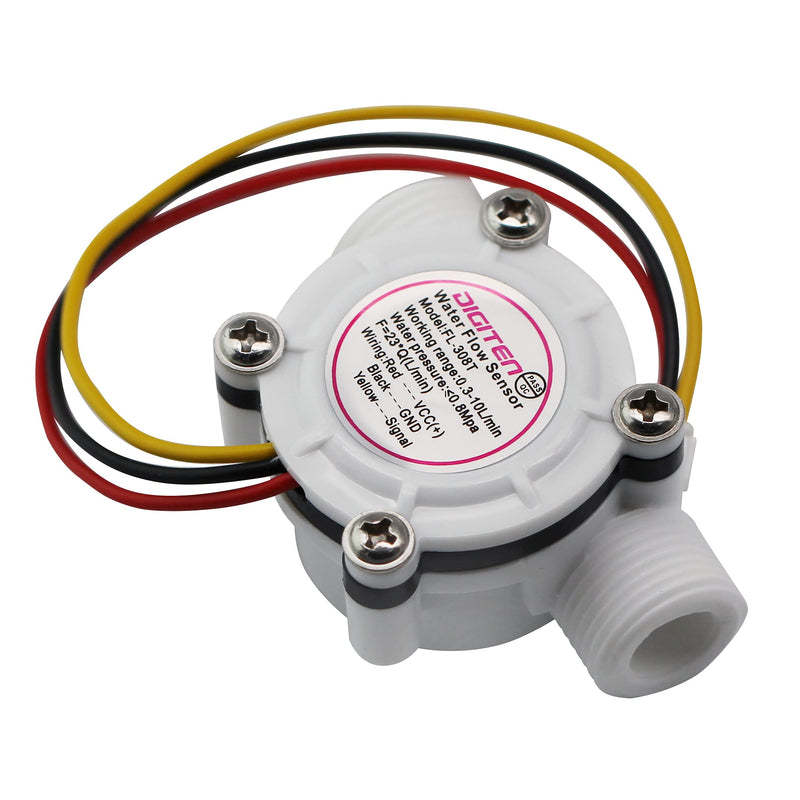

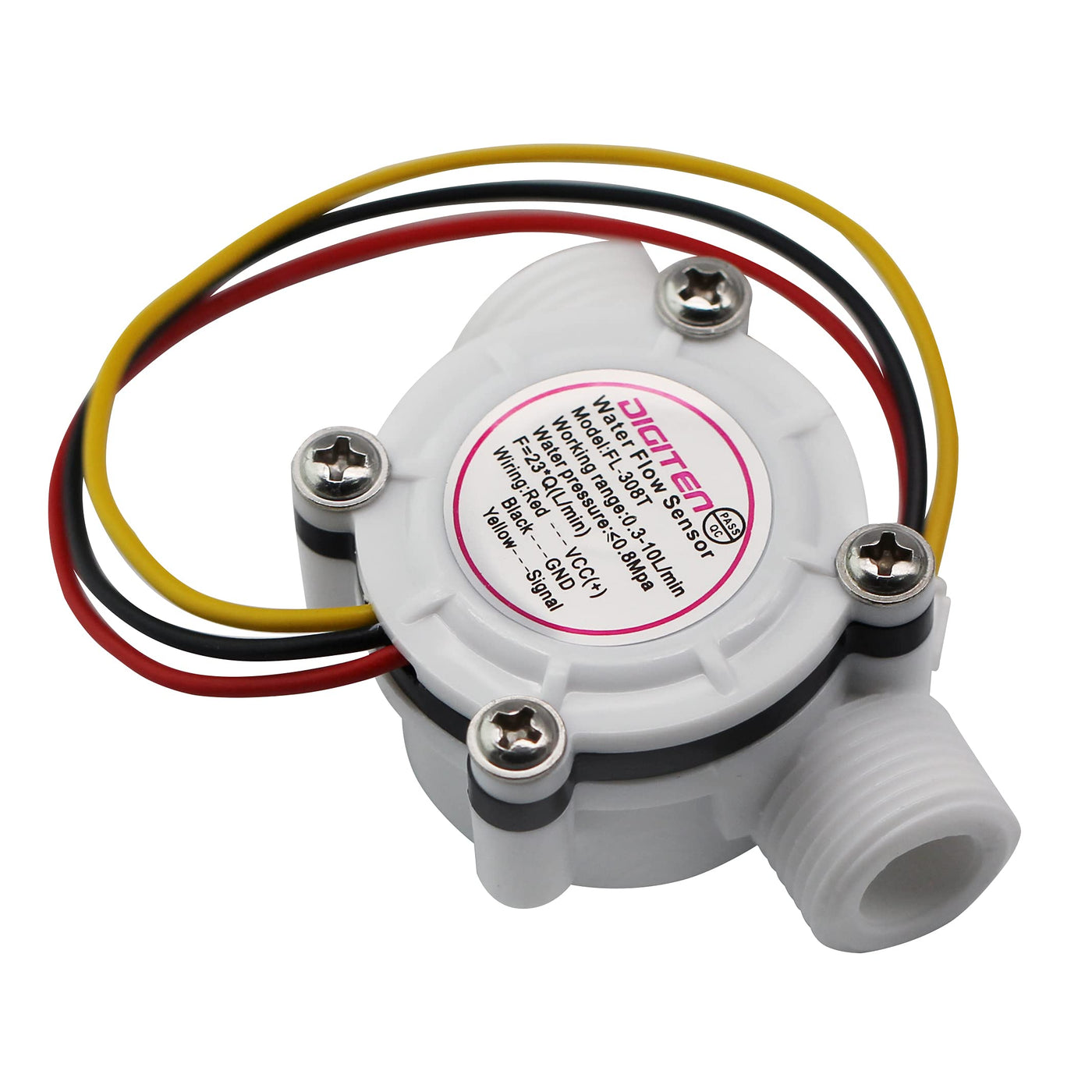

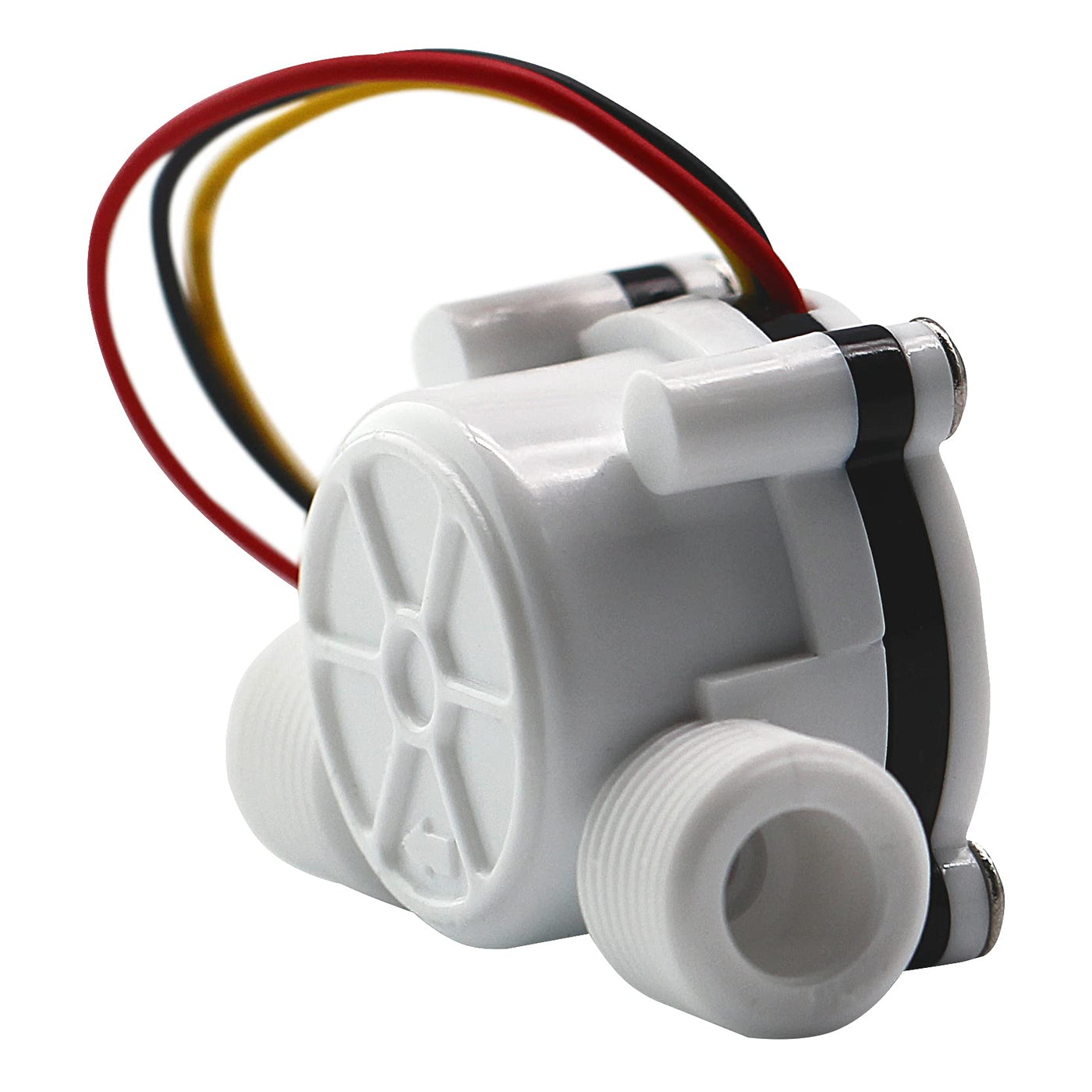

DIGITEN G3/8 Water Flow Sensor Witch, Hall Effect Flowmeter Liquid Fluid Meter Sensor Switch Flowmeter Meter 0.3-10L/min
DIGITEN G3/8 Water Flow Sensor Witch, Hall Effect Flowmeter Liquid Fluid Meter Sensor Switch Flowmeter Meter 0.3-10L/min

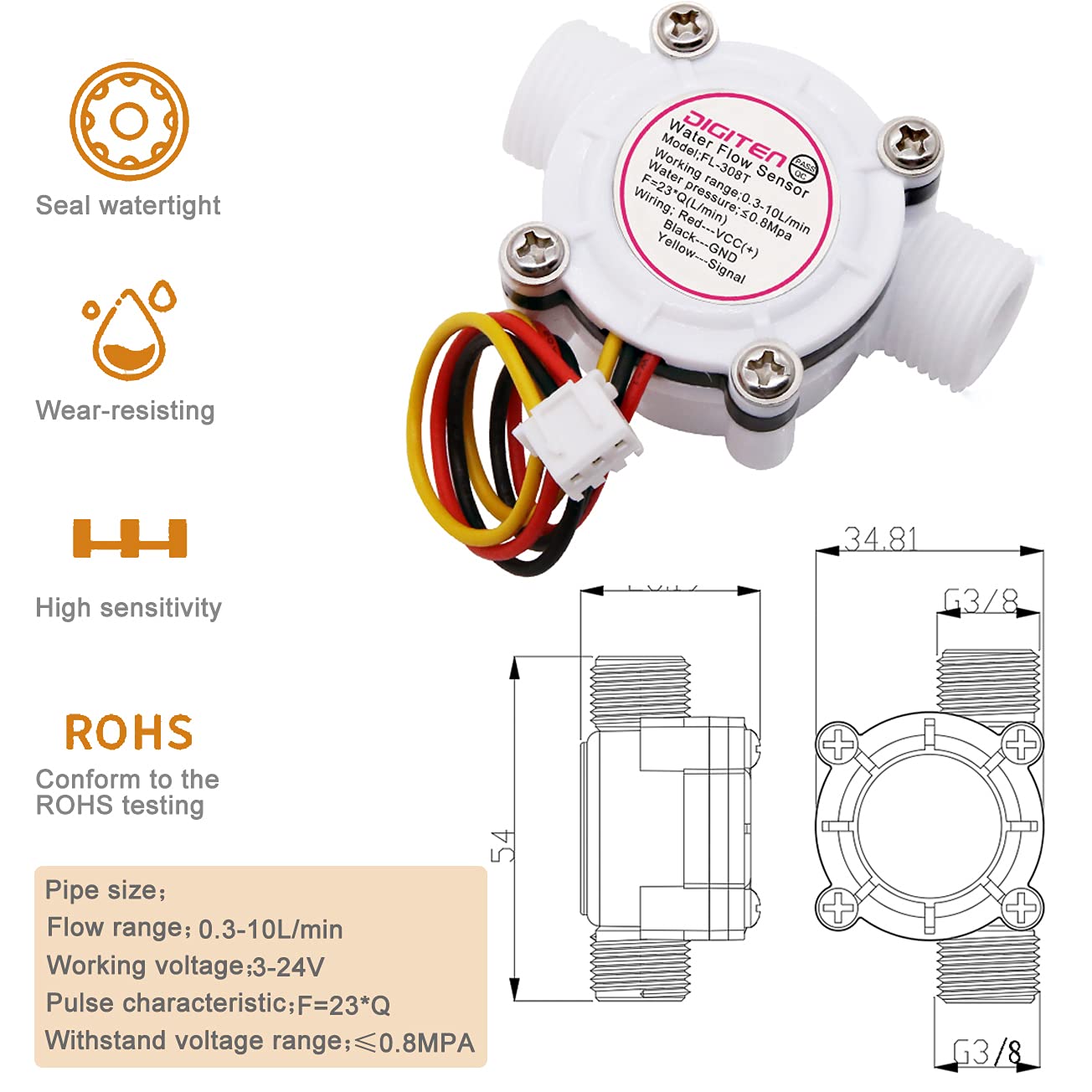

Waterproof,Heat resistance,pressure resistance,cold resistance. Working voltage: 3-24VDC. Frequency: F=23 Q (L / Min) error: 2% Flow range:0.3-10L/min Maximum current:1.5 mA(DC 5V) Operating Temp:0-80C,Operating humidity:35%-90%RH Pressure range: 0.1-0.8MPa Storage Temperature:-25-80C Storage humidity:25%-95%RH Output Waveform:Square Wave,output pulse singal. ROHS Compliant. Cable length:15cm. Note:The thread is BSP, if used for NPT, need thread seal tape.
Product Features
- Lightweight, reasonable size, stable performance, low water pressure start.
- Easy to install, safe to use.
- There is an integrated hall effect sensor that outputs an electrical pulse with every revolution, which is sealed from the water pipe and allows the sensor to stay safe and dry.
- Food grade plastic, safe and reliable.
- Widely used for water heaters, water dispenser, water purifier, water vending machine, coffee maker, flow measurement device, water control machine, petrochemical industry, residential area flow control, waterworks, farmland and garden irrigation, etc.
