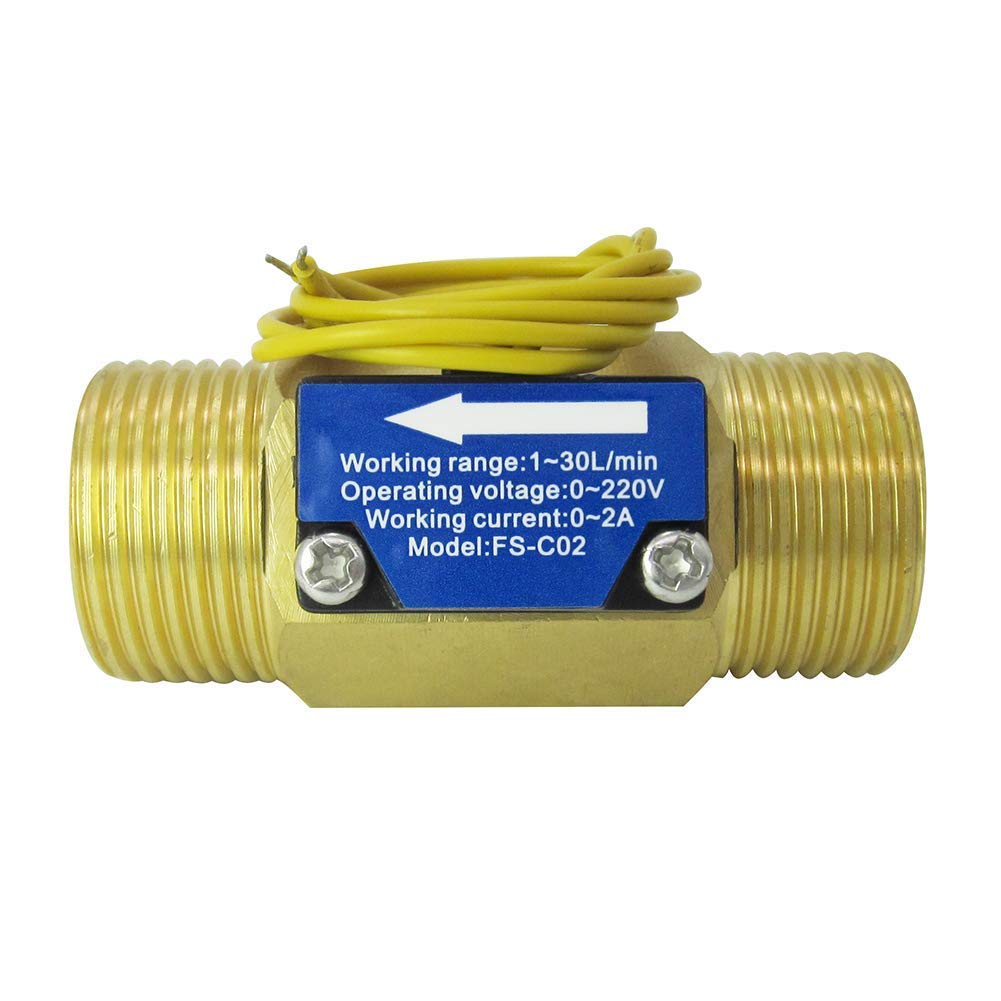

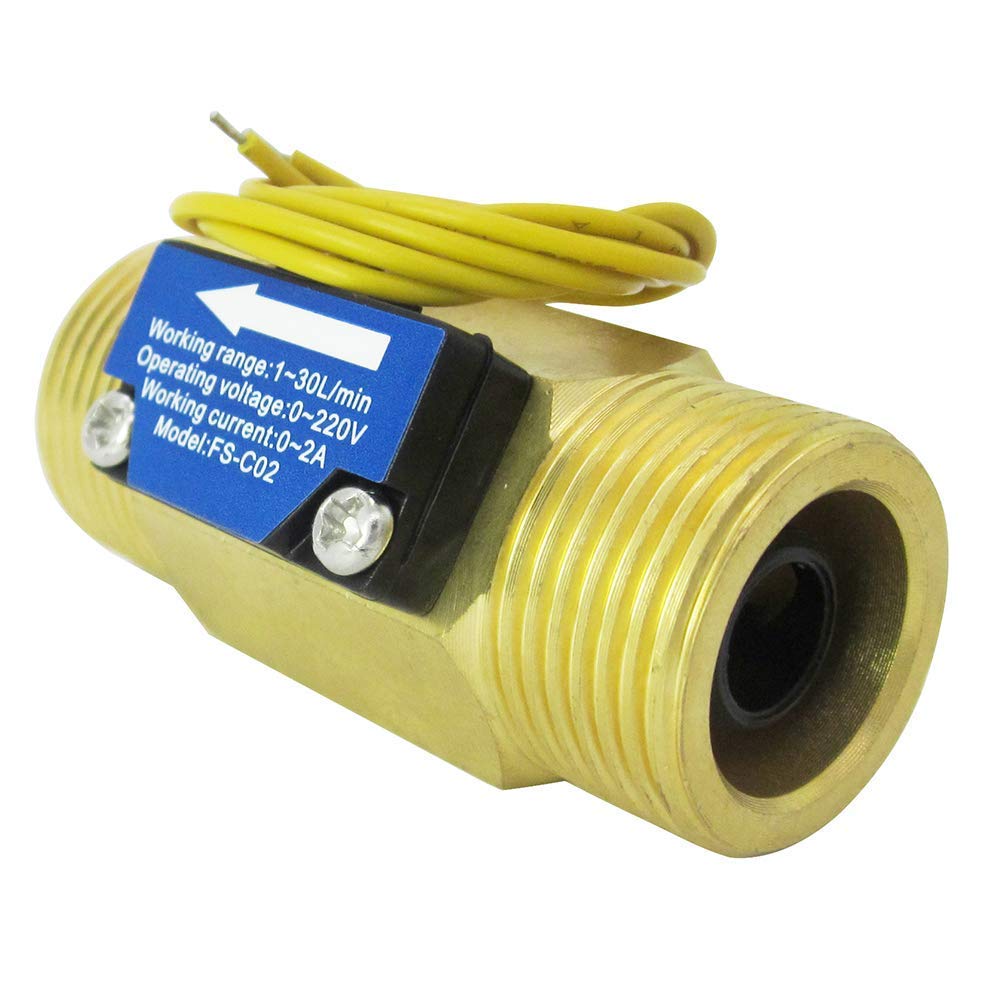

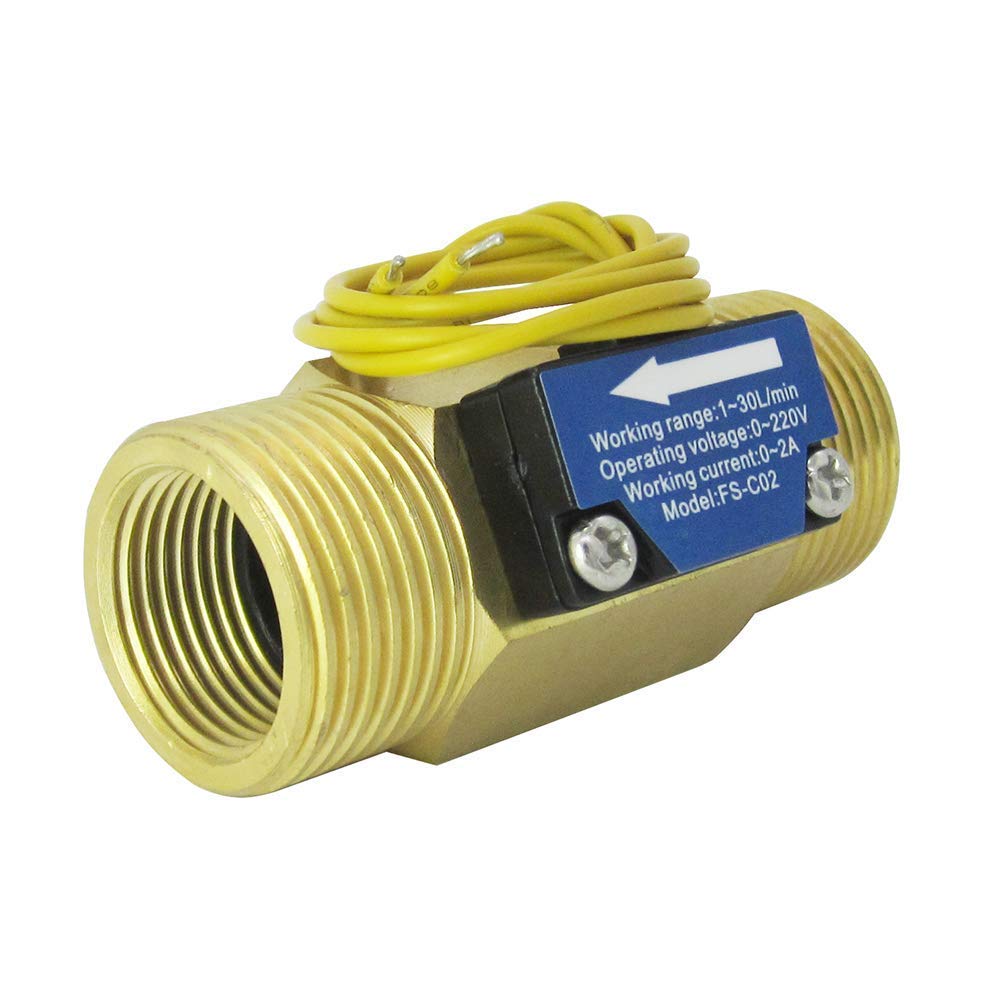

{"id":7842177581236,"title":"DIGITEN FS-C02 G3\/4\" BSP Male Thread Brass Water Flow Switch 1-30L\/min, 0-2A\/ 0-220V(AC or DC) G3\/4\" Male Thread","handle":"digiten-fs-c02-g3-4-bsp-male-thread-brass-water-flow-switch-1-30l-min-0-2a-0-220vac-or-dc-g3-4-male-thread","description":"\u003ch3\u003eDIGITEN FS-C02 G3\/4\" BSP Male Thread Brass Water Flow Switch 1-30L\/min, 0-2A\/ 0-220V(AC or DC)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMain application: Magnetic Water Flow Switch adopts a Magnetic Reed Switch and\na movable magnet which is fixed inside the water pipe. When water runs through\nthe pipe part, the magnet will detect the water flow, and the magnet is shoved\nto one side by the flow. This then attracts the conductive strip which gets\npulled down and makes contact, which completes the circuit and activates\nwhatever electrical device you have attached to it Specifications: Thread\ntype: 3\/4\" BSP Male Thread It is fit in NPT Thread if you connect them with\nteflon Operation voltage: 0-220V(AC or DC) Flow range: 1-30L\/min Working\ntemperature: 1-120? Mini start water pressure: 0.02Mpa Max working pressure:\n1.75 MPa Max loading power: 50W Working current: 0-2A Response time: 0.2S\nMaterial: Brass Male Thread External Diameter: 25.85mm(1.0 inch) Tube Length:\n60mm(2.36 inch) Cable Length: 29cm(11.41 inch) Size: 60mm30mm30mm(LWH)\nPlease Note: Don't forget to mark which way the old flow switch arrow is\npointing so you can install exactly the same. Package Include: Brass Flow\nSwitch x 1\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSafe and ReliableThis flow sensor switch is made of brass, all materials are in line with ROHS testing standards. It's a safety device that shuts off the current to the device (heaters, pumps, etc.) when it senses no water flow.When connecting the load, please add a relay.\u003c\/li\u003e\n \u003cli\u003eThread type: 3\/4\" BSP Male Thread The flow sensor `s male thread external diameter: 25.85mm.It is fit in NPT Thread if you connect them with teflon\u003c\/li\u003e\n \u003cli\u003eEasy to install Our flow sensor is waterproof, heat resistance, pressurresistance, cold resistance, small size, stable and reliable.\u003c\/li\u003e\n \u003cli\u003eSpecificationOperation voltage of this flow sensor is : 0-220V(AC or DC), Working current: 0-2A, max working pressure: 1.75 MPa. Flow range: 1-30L\/min.\u003c\/li\u003e\n \u003cli\u003eWidely Applications This water flow sensor switch can be use for Water heaters, pumps, hot tub, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-09-19T14:02:26+10:00","created_at":"2024-09-07T16:20:05+10:00","vendor":"DIGITEN","type":"Flow Switches","tags":["industrial_Aug2024_update","sold2024"],"price":15200,"price_min":15200,"price_max":15200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43564340805812,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07QNN3R6G","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DIGITEN FS-C02 G3\/4\" BSP Male Thread Brass Water Flow Switch 1-30L\/min, 0-2A\/ 0-220V(AC or DC) G3\/4\" Male Thread","public_title":null,"options":["Default Title"],"price":15200,"weight":159,"compare_at_price":null,"inventory_management":"shopify","barcode":"713458680808","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07QNN3R6G.jpg?v=1775748885","\/\/auspowers.com\/cdn\/shop\/files\/61PJesD3LHL.jpg?v=1725690008","\/\/auspowers.com\/cdn\/shop\/files\/61DSyl_8WxL.jpg?v=1725690008","\/\/auspowers.com\/cdn\/shop\/files\/7118u1a5oXL.jpg?v=1725690009"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07QNN3R6G.jpg?v=1775748885","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DIGITEN FS-C02 G3\/4\" BSP Male Thread Brass Water Flow Switch 1-30L\/min, 0-2A\/ 0-220V(AC or DC) G3\/4\" Male Thread ","id":30728871018676,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07QNN3R6G.jpg?v=1775748885"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07QNN3R6G.jpg?v=1775748885","width":1001},{"alt":"[Australia - AusPower] - DIGITEN FS-C02 G3\/4\" BSP Male Thread Brass Water Flow Switch 1-30L\/min, 0-2A\/ 0-220V(AC or DC) G3\/4\" Male Thread ","id":30728871051444,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61PJesD3LHL.jpg?v=1725690008"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61PJesD3LHL.jpg?v=1725690008","width":1001},{"alt":"[Australia - AusPower] - DIGITEN FS-C02 G3\/4\" BSP Male Thread Brass Water Flow Switch 1-30L\/min, 0-2A\/ 0-220V(AC or DC) G3\/4\" Male Thread ","id":30728871084212,"position":3,"preview_image":{"aspect_ratio":0.999,"height":1002,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61DSyl_8WxL.jpg?v=1725690008"},"aspect_ratio":0.999,"height":1002,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61DSyl_8WxL.jpg?v=1725690008","width":1001},{"alt":"[Australia - AusPower] - DIGITEN FS-C02 G3\/4\" BSP Male Thread Brass Water Flow Switch 1-30L\/min, 0-2A\/ 0-220V(AC or DC) G3\/4\" Male Thread ","id":30728871116980,"position":4,"preview_image":{"aspect_ratio":1.0,"height":2560,"width":2560,"src":"\/\/auspowers.com\/cdn\/shop\/files\/7118u1a5oXL.jpg?v=1725690009"},"aspect_ratio":1.0,"height":2560,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/7118u1a5oXL.jpg?v=1725690009","width":2560}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDIGITEN FS-C02 G3\/4\" BSP Male Thread Brass Water Flow Switch 1-30L\/min, 0-2A\/ 0-220V(AC or DC)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMain application: Magnetic Water Flow Switch adopts a Magnetic Reed Switch and\na movable magnet which is fixed inside the water pipe. When water runs through\nthe pipe part, the magnet will detect the water flow, and the magnet is shoved\nto one side by the flow. This then attracts the conductive strip which gets\npulled down and makes contact, which completes the circuit and activates\nwhatever electrical device you have attached to it Specifications: Thread\ntype: 3\/4\" BSP Male Thread It is fit in NPT Thread if you connect them with\nteflon Operation voltage: 0-220V(AC or DC) Flow range: 1-30L\/min Working\ntemperature: 1-120? Mini start water pressure: 0.02Mpa Max working pressure:\n1.75 MPa Max loading power: 50W Working current: 0-2A Response time: 0.2S\nMaterial: Brass Male Thread External Diameter: 25.85mm(1.0 inch) Tube Length:\n60mm(2.36 inch) Cable Length: 29cm(11.41 inch) Size: 60mm30mm30mm(LWH)\nPlease Note: Don't forget to mark which way the old flow switch arrow is\npointing so you can install exactly the same. Package Include: Brass Flow\nSwitch x 1\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSafe and ReliableThis flow sensor switch is made of brass, all materials are in line with ROHS testing standards. It's a safety device that shuts off the current to the device (heaters, pumps, etc.) when it senses no water flow.When connecting the load, please add a relay.\u003c\/li\u003e\n \u003cli\u003eThread type: 3\/4\" BSP Male Thread The flow sensor `s male thread external diameter: 25.85mm.It is fit in NPT Thread if you connect them with teflon\u003c\/li\u003e\n \u003cli\u003eEasy to install Our flow sensor is waterproof, heat resistance, pressurresistance, cold resistance, small size, stable and reliable.\u003c\/li\u003e\n \u003cli\u003eSpecificationOperation voltage of this flow sensor is : 0-220V(AC or DC), Working current: 0-2A, max working pressure: 1.75 MPa. Flow range: 1-30L\/min.\u003c\/li\u003e\n \u003cli\u003eWidely Applications This water flow sensor switch can be use for Water heaters, pumps, hot tub, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.\u003c\/li\u003e\n \u003c\/ul\u003e"}
