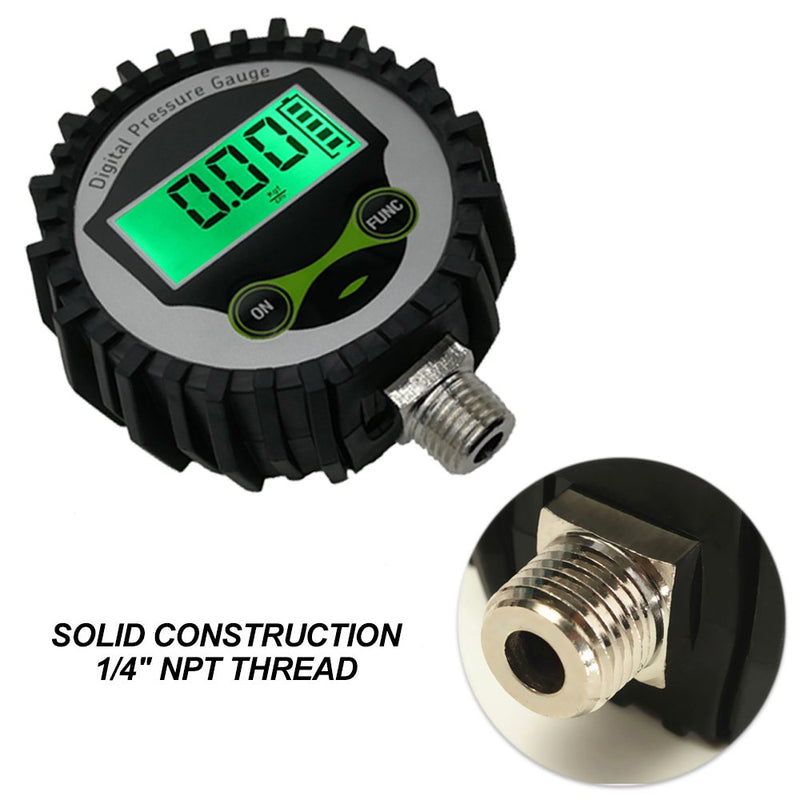

Digital Low Pressure Gauge with 1/4'' NPT Bottom Connector and Rubber Protector by Uharbour, -15 — 15 psi, Accuracy 1% .F.S. (-15-15)PSI Bottom Mount
Digital Low Pressure Gauge with 1/4'' NPT Bottom Connector and Rubber Protector by Uharbour, -15 — 15 psi, Accuracy 1% .F.S.
Digital Low Pressure Gauge Specification: Measuring Media: Gas Weight: 115g Product size: diameter 76 32 cm (with rubber protector), 6427mm (without rubber protector) Sensor Type: Silicon semiconductor sensor Accuracy: ± 1% .F.S @ 20 degrees centigrade Resolution: 0.02 PSI Pressure range: -15 ~15psi(can not read 0-0.3psi) Display: LCD readout, Auto shut off, Green light background, Battery status in the display Backlight Off Time: 30s Auto off Time: 90s Gear Shape Rubber Protector Rubber Material: PVC Pressure limit: 1.5 times of the full scale working pressure Operating temperature: 0 ~ 45 degrees centigrade Storage Temperature: -10 ~ 75 degrees centigrade Pressure connectors: 1/4" NPT Instrument power supply: DC3V (21.5V AAA battery powered) (included) NOTICE: THIS GAUGE IS NOT SUITABLE FOR FLAMMABLE GAS!!!!!CAN NOT READS UNDER 0-0.3 PSI !!!! HIGH ACCURACY AND WIDE RANGE Performance tested & certified accurate to ±1% (Relative Humidity Temperature 25°C) with display resolution of 0.02 psi; FOUR different measuring units to choose for a wide range of measurement: -15 ~ 15 psi, -1 ~ 1bar, -1 ~ 1 kg/c㎡, -100 ~ 100 kpa. Read more HEAVY DUTY DESIGN The digital gauge will withstand impacts and keep its accuracy over the service life even if the they are subject to impacts. Shock resistance, vibration resistance and durable. Solid Construction, Universal Standard thread Connection 1/4" NPT thread. Read more DIGITAL BACKLIGHT READOUT The air pressure gauge's digital backlight display allows you to readout easily even in the night. BATTERY SAVING Easy to replace. After measuring, the pressure gauge will turn off automatically after 150s of inactivity to preserve battery life. WIDE APPLICATION For measuring gas, air pressure. It applies to these fields of pressure container, automation equipment, matching with laboratory equipment and all vehicles tires including heavy duty ones. Read more
Product Features
- 1. HIGH ACCURACY: Performance tested & certified accurate to 1% (Relative Humidity Temperature 25C) with display resolution of 0.02 psi; FOUR different measuring units to choose: -15 ~ 15 PSI, -1 ~ 1 BAR, -1 ~ 1KGF/CM2, -100 ~ 100 KPA.

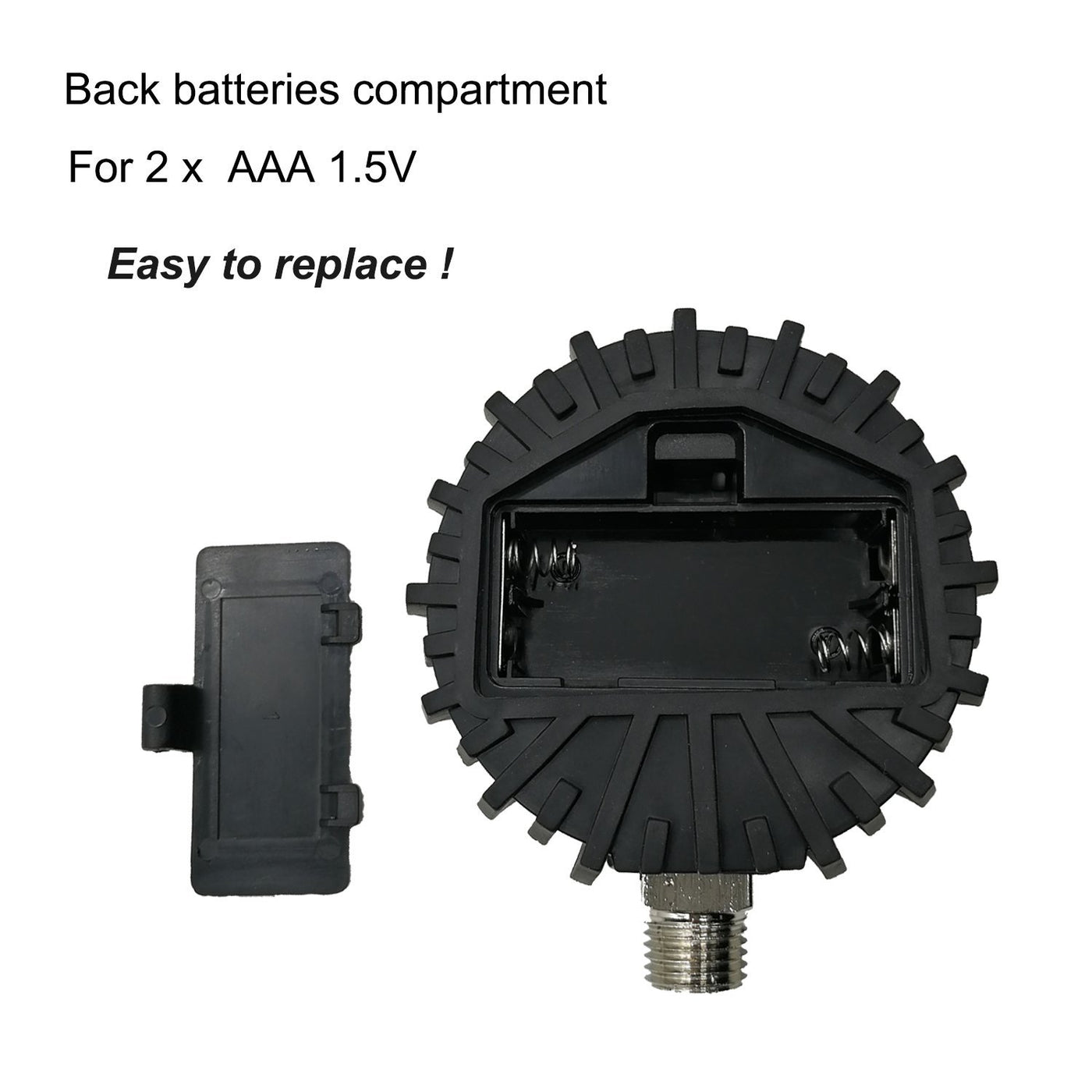

- 2. BATTERY SAVING: Power by 2 x LR03 AAA 1.5V (Included in the package). After measuring, the pressure gauge will turn off automatically after 150s of inactivity to preserve battery life.
- 3. HIGH QUALITY, shock resistance, vibration resistance and durable.
- 4. WIDE APPLICATION for measuring gas and air pressure. It applies to these fields of pressure container, automation equipment, matching with laboratory equipment and all vehicles tires including heavy duty ones.
- 5. One year warranty, unconditionally new replacement or refund for any quality products.
