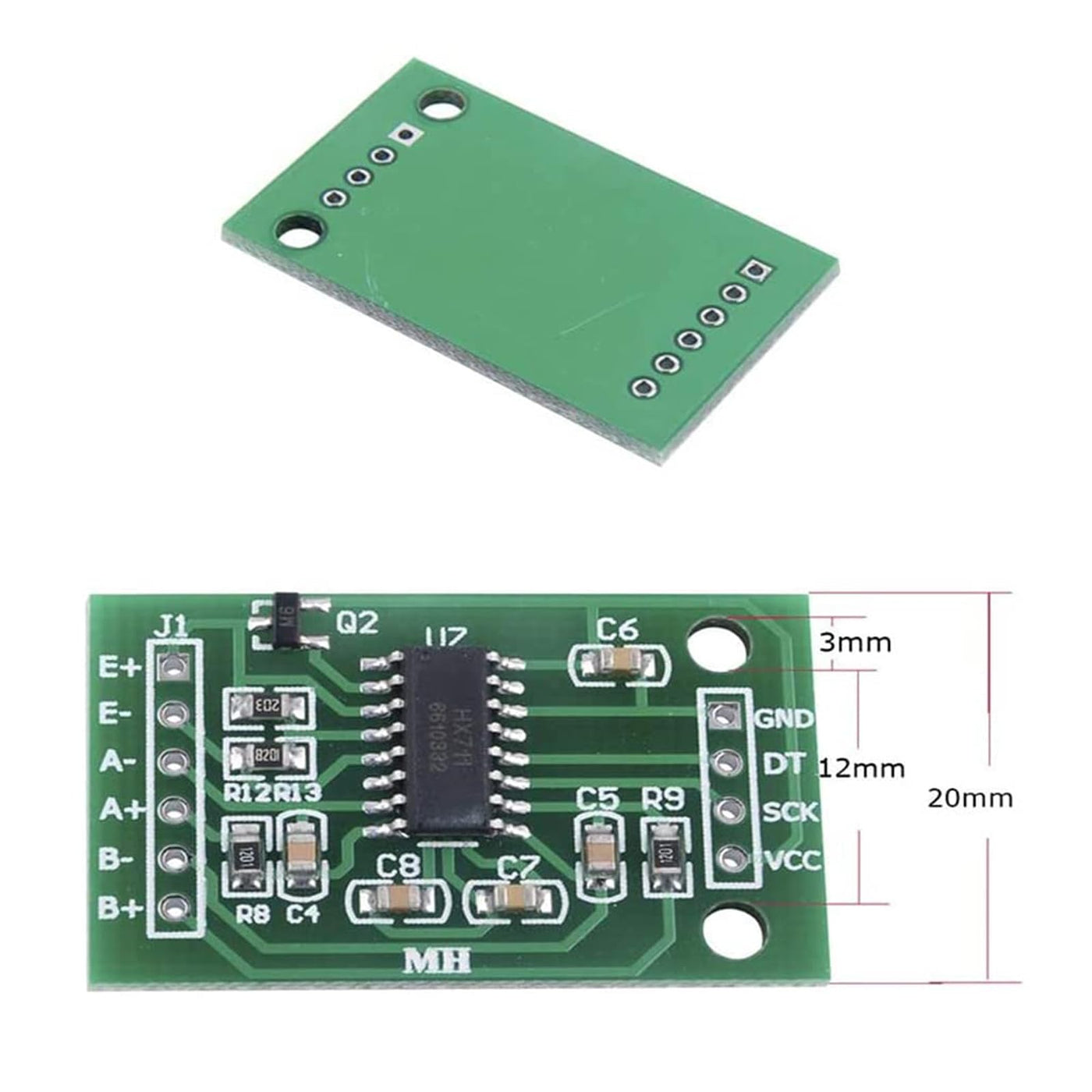

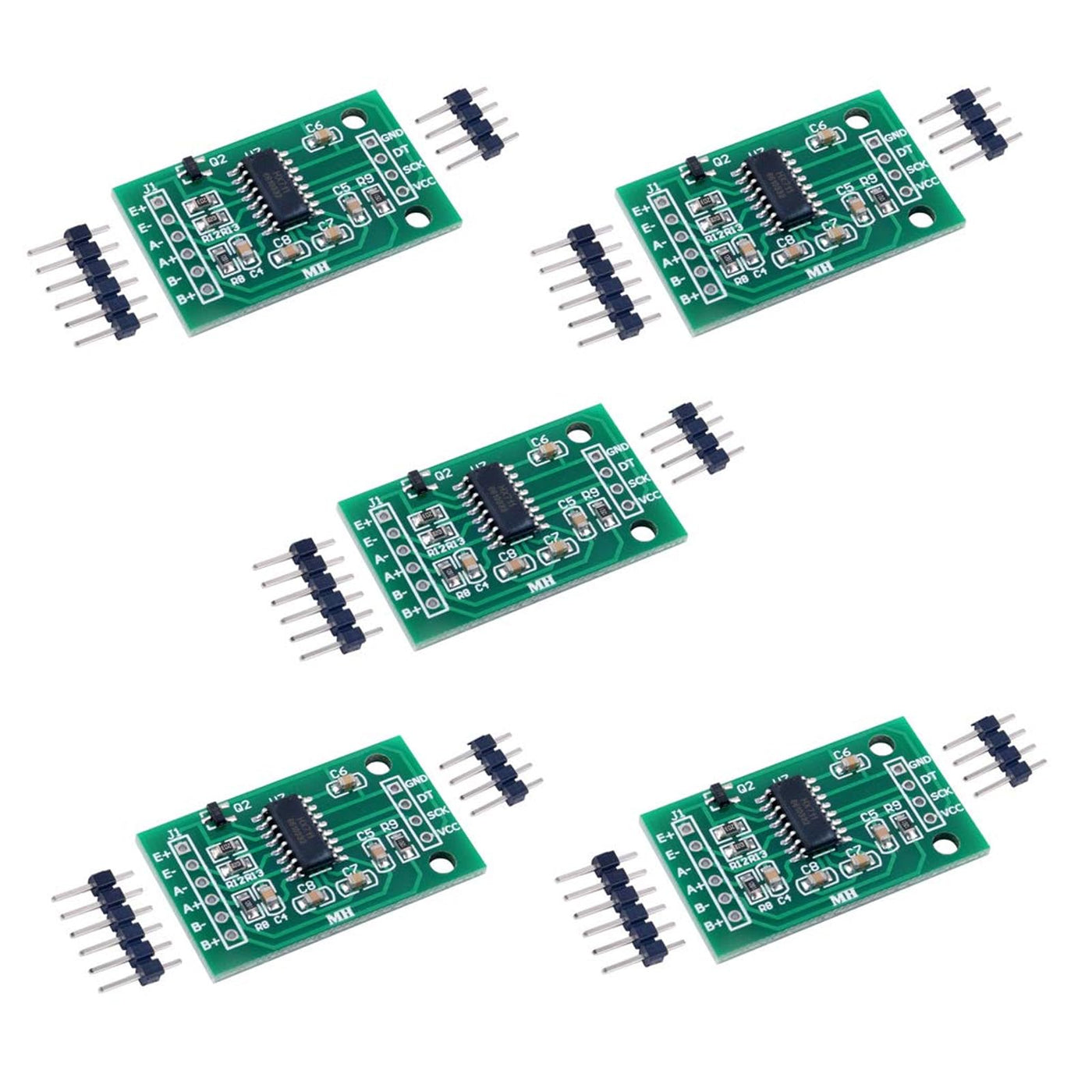

Digital Load Cell Weight Sensor 1kg 2kg 3kg 5kg 10kg 20kg (5PCS HX711 Module)

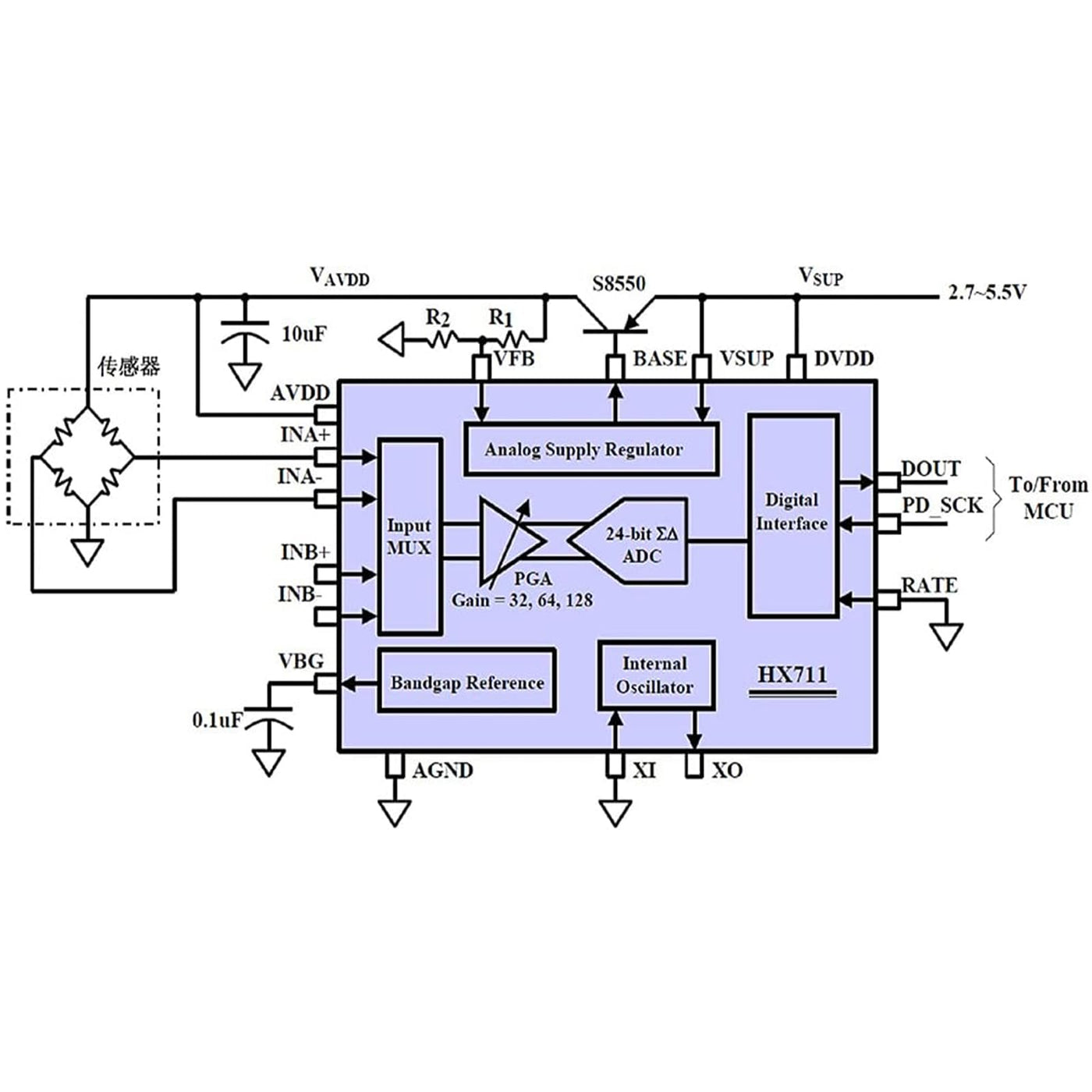

Description: This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module. Features: Two selectable differential input channels On-chip active low noise PGA with selectable gain of 3264 and 128 On-chip power supply regulator for load-cell and ADC analog power supply On-chip oscillator requiring no external component with optional external crystal On-chip power-on-reset Simple digital control and serial interface: pin-driven controlsno programming needed Simultaneous 50 and 60Hz supply rejection Current consumption including on-chip analog power supply regulator: normal operation <1.5mApower down <1uA Operation supply voltage range: 2.6 ~ 5.5V Operating Temperature Range:-20 degree ~ +85 degree Package Included: 1 X HX711 ADC Module

Product Features

The HX711 module uses 24 high-precision A/D converter chips, the HX711 is designed for high-precision electronic scales and has two analogue input channels with an integrated 128x programmable amplifier
The on-chip active low noise PGA is selectable between 3264 and 128x gain

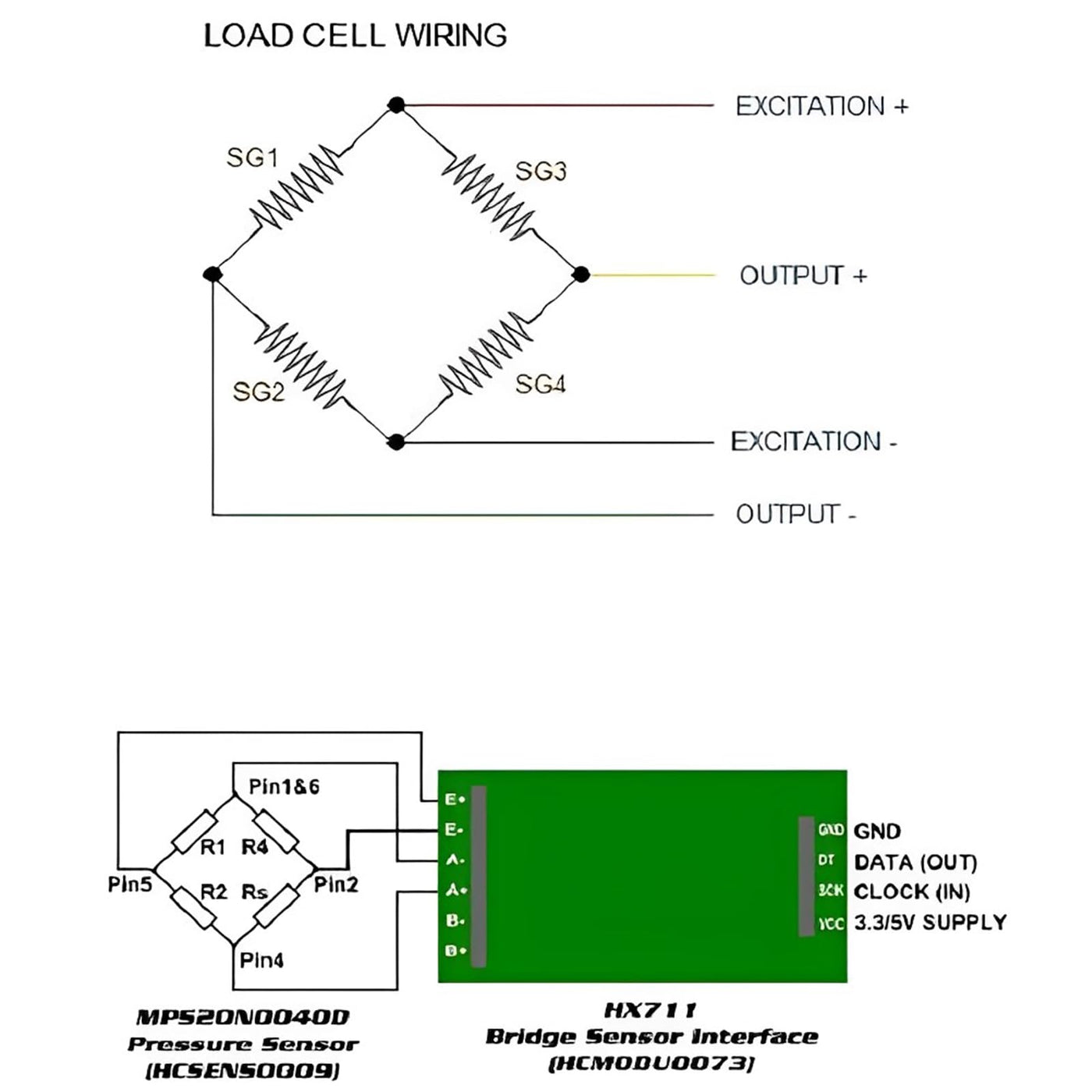

The input circuit can be configured as a pressure bridge (e.g., in pressure balance mode) to achieve high accuracy and low cost, making it an ideal front-end module.
Simple digital control and serial interface: pin control, no programming required
