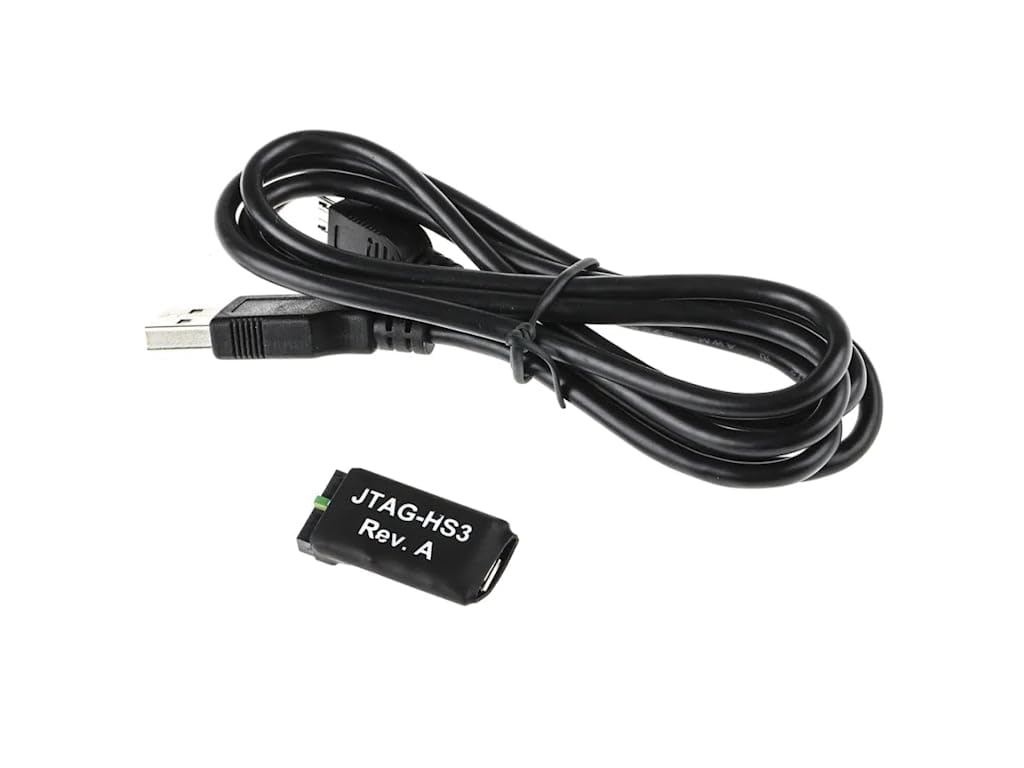

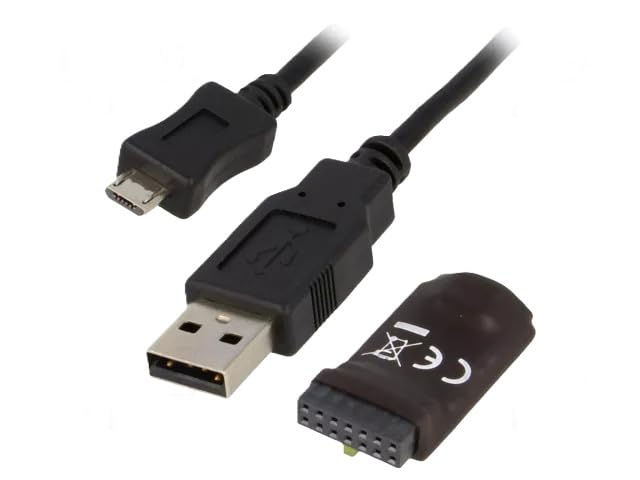

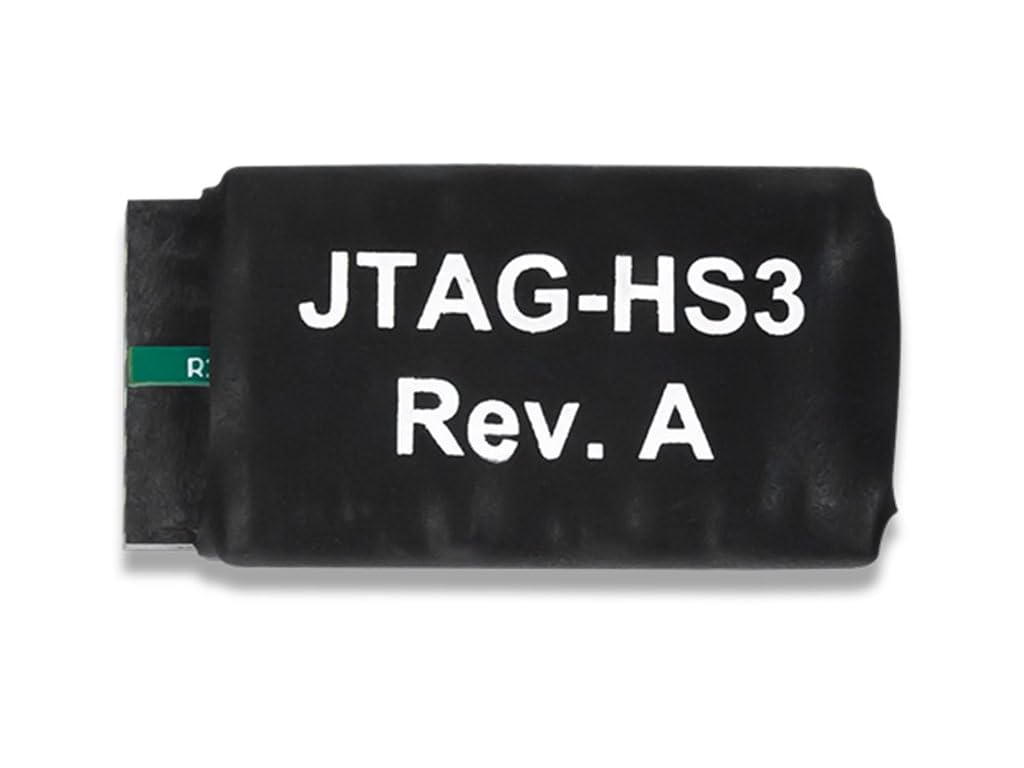

{"id":8088869994676,"title":"Digilent JTAG-HS3 Programming Cable","handle":"digilent-jtag-hs3-programming-cable","description":"\u003ch3\u003eDigilent JTAG-HS3 Programming Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe JTAG-HS3 is an affordable high-speed Xilinx FPGA programming solutions.\nThe HS3 builds on the successful JTAG-HS1 by adding an open-drain buffer to\npin 14 allowing for the debugging of Xilinx Zynq-SOC processors. It can be\nattached to target boards using Xilinx's 2x7 connector, and is compatible\nwith all Xilinx tools, including iMPACT, ChipScope, and EDK. When connected to\na PC via a standard A to micro-USB cable, the JTAG HS3 receives its power from\nUSB and can be recognized as a Digilent programming cable, even if the HS3 is\nnot attached to the target board. The JTAG bus can be shared with other\ndevices as the HS3's signals are held in high-impedance, except when actively\ndriven during programming. The HS3 is small and light, allowing it to be held\nfirmly in place by the system board connector. This is a unique programming\nheader and is not compatible with the 1x6 MTE Digilent JTAG Connector.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSmall, complete, all-in-one JTAG programming\/debugging solution for Xilinx FPGAs and SoCs\u003c\/li\u003e\n \u003cli\u003ePlugs directly into standard Xilinx JTAG header\u003c\/li\u003e\n \u003cli\u003eHigh-Speed USB2 port that can drive JTAG bus up to 30Mbit\/sec (frequency adjustable by user)\u003c\/li\u003e\n \u003cli\u003eOpen drain buffer on pin 14 allows debugging software to reset the processor core of\u003c\/li\u003e\n \u003cli\u003eUses USB Micro-B connector\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-21T18:10:20+10:00","created_at":"2026-07-21T16:55:03+10:00","vendor":"Digilent","type":"USB Cables","tags":["home_industrial_July2026"],"price":25700,"price_min":25700,"price_max":25700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44288517865652,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0725Z7Q12","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Digilent JTAG-HS3 Programming Cable","public_title":null,"options":["Default Title"],"price":25700,"weight":41,"compare_at_price":null,"inventory_management":"shopify","barcode":"799430212441","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0725Z7Q12.jpg?v=1784616905","\/\/auspowers.com\/cdn\/shop\/files\/31SFFQSQYcL.jpg?v=1784616905","\/\/auspowers.com\/cdn\/shop\/files\/41Z8iTaHQDL.jpg?v=1784616904"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0725Z7Q12.jpg?v=1784616905","options":["Title"],"media":[{"alt":null,"id":33130806935732,"position":1,"preview_image":{"aspect_ratio":1.333,"height":768,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0725Z7Q12.jpg?v=1784616905"},"aspect_ratio":1.333,"height":768,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0725Z7Q12.jpg?v=1784616905","width":1024},{"alt":null,"id":33130806968500,"position":2,"preview_image":{"aspect_ratio":1.333,"height":480,"width":640,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31SFFQSQYcL.jpg?v=1784616905"},"aspect_ratio":1.333,"height":480,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31SFFQSQYcL.jpg?v=1784616905","width":640},{"alt":null,"id":33130807001268,"position":3,"preview_image":{"aspect_ratio":1.333,"height":768,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41Z8iTaHQDL.jpg?v=1784616904"},"aspect_ratio":1.333,"height":768,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41Z8iTaHQDL.jpg?v=1784616904","width":1024}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDigilent JTAG-HS3 Programming Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThe JTAG-HS3 is an affordable high-speed Xilinx FPGA programming solutions.\nThe HS3 builds on the successful JTAG-HS1 by adding an open-drain buffer to\npin 14 allowing for the debugging of Xilinx Zynq-SOC processors. It can be\nattached to target boards using Xilinx's 2x7 connector, and is compatible\nwith all Xilinx tools, including iMPACT, ChipScope, and EDK. When connected to\na PC via a standard A to micro-USB cable, the JTAG HS3 receives its power from\nUSB and can be recognized as a Digilent programming cable, even if the HS3 is\nnot attached to the target board. The JTAG bus can be shared with other\ndevices as the HS3's signals are held in high-impedance, except when actively\ndriven during programming. The HS3 is small and light, allowing it to be held\nfirmly in place by the system board connector. This is a unique programming\nheader and is not compatible with the 1x6 MTE Digilent JTAG Connector.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eSmall, complete, all-in-one JTAG programming\/debugging solution for Xilinx FPGAs and SoCs\u003c\/li\u003e\n \u003cli\u003ePlugs directly into standard Xilinx JTAG header\u003c\/li\u003e\n \u003cli\u003eHigh-Speed USB2 port that can drive JTAG bus up to 30Mbit\/sec (frequency adjustable by user)\u003c\/li\u003e\n \u003cli\u003eOpen drain buffer on pin 14 allows debugging software to reset the processor core of\u003c\/li\u003e\n \u003cli\u003eUses USB Micro-B connector\u003c\/li\u003e\n \u003c\/ul\u003e"}
