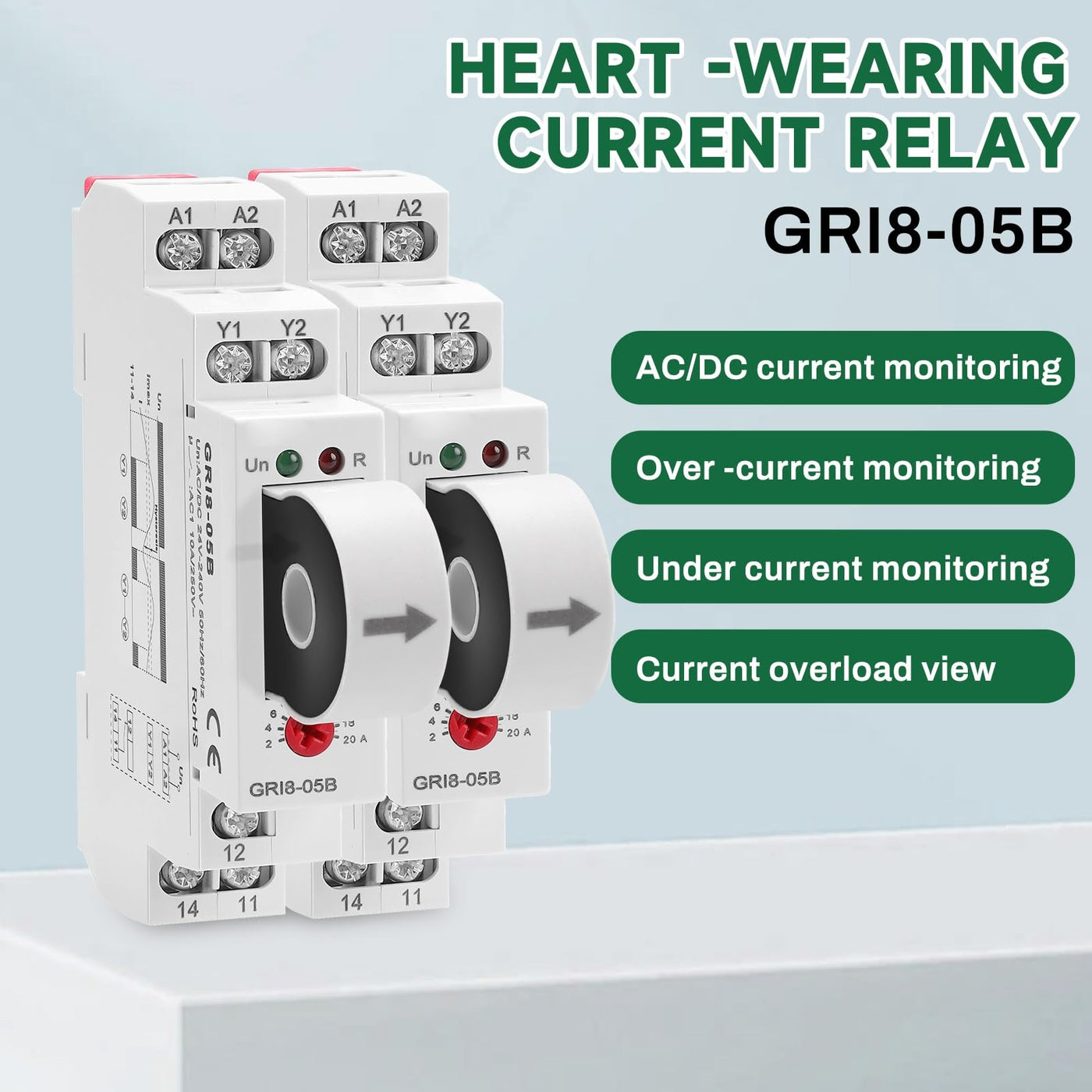

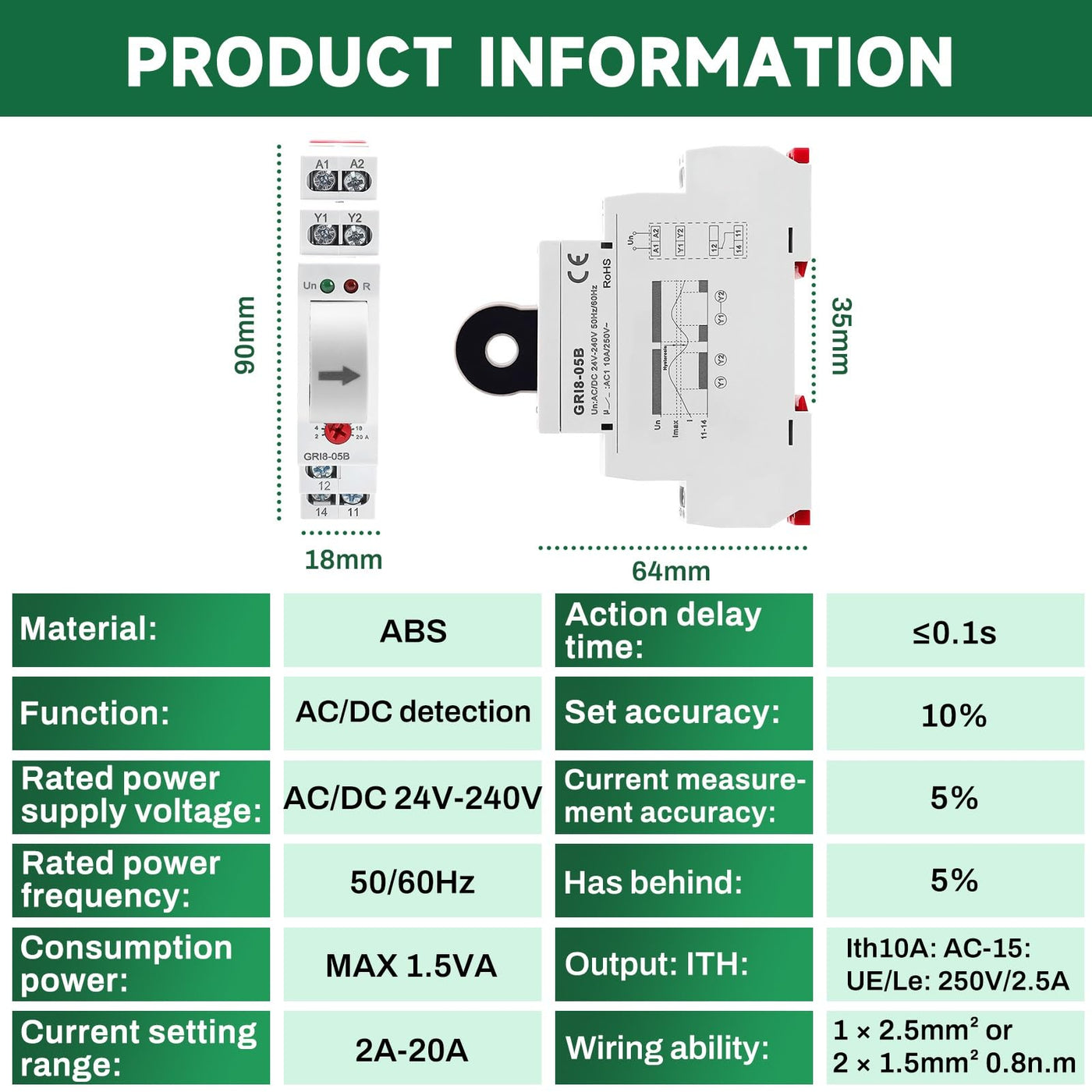

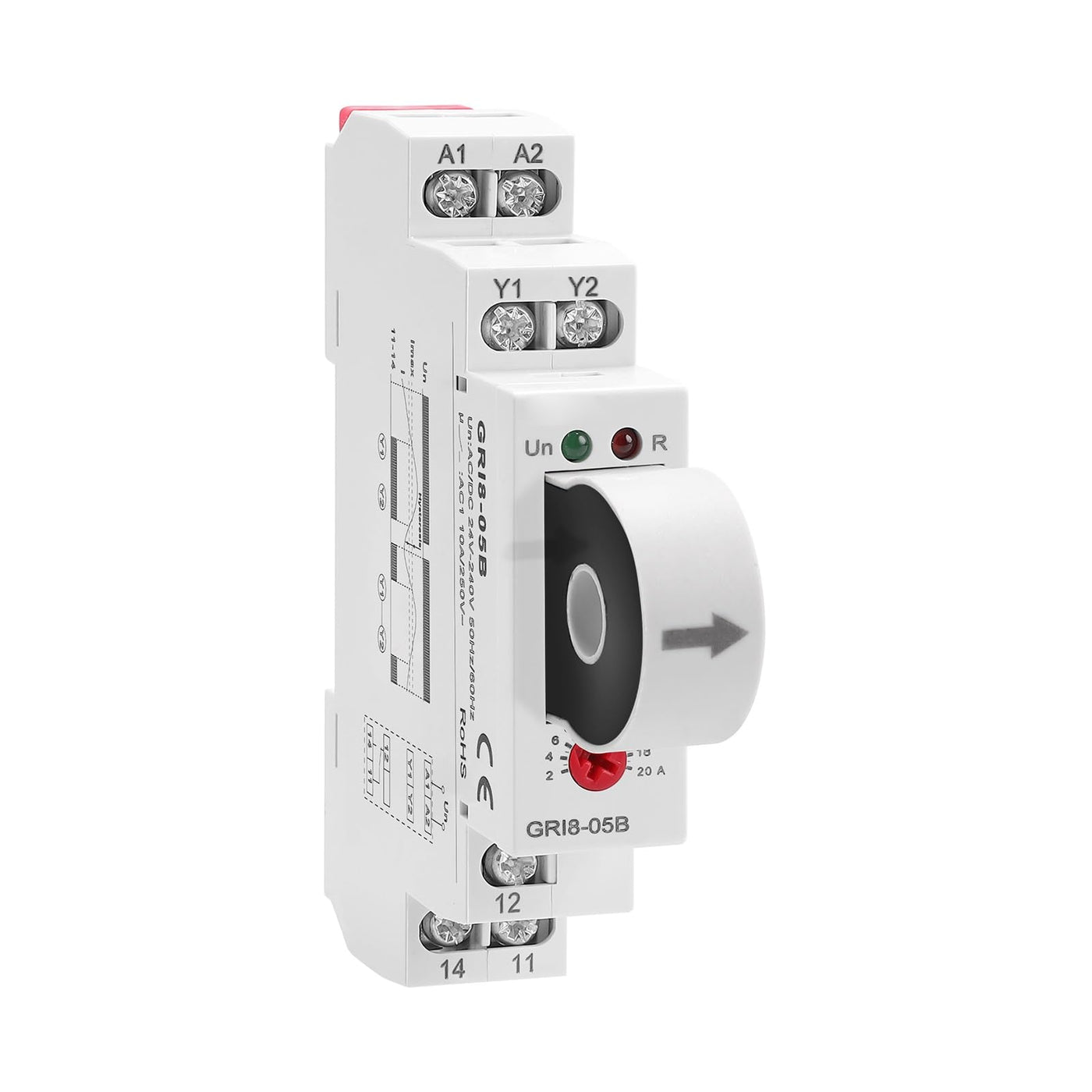

{"id":7993426149556,"title":"DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V","handle":"dewin-surveillance-relay-gri8-05b-ac-dc-over-and-under-current-relay-2a-20a-adjustable-overload-protection-ac-dc-24v-240v","description":"\u003ch3\u003eDEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Function: AC and DC detection Rated supply voltage: AC\/DC 24V\n- 240V Rated mains frequency: 50\/60 Hz. Power consumption: max. 1.5 VA.\nCurrent setting range: 2A-20A. Current setting method: button setting Action\ndelay time: ≤0.1s Adjustment accuracy: 10% Current measurement accuracy: 5%\nHysteresis value: 5% Output: Ith:10A:AC-15: Ue\/le:250V\/2.5A. Mechanical life:\n10 million times. Ambient temperature: -35°C to +75°C. Wiring capacity: 1 x\n2.5 mm² or 2 x 1.5 mm² 0.8 N.m. Packing list: 1 x relay.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMonitoring Relay: relay panel current 2A - 20A adjustable, can monitor, set overcurrent\/undercurrent monitoring mode via jumper, clearly display current overload.\u003c\/li\u003e\n \u003cli\u003eLED Indicator: The relay panel is equipped with an LED indicator. When the input terminals are powered, the green LED lights up, and when the output terminals are powered, the red LED flashes.\u003c\/li\u003e\n \u003cli\u003eCurrent Monitoring Relay: The shell is made of brand new flame retardant ABS material, which does not drip particles after the combustion test and whose residual flame goes out quickly. It is flame retardant, impact resistant, weather resistant and not easy to deform.\u003c\/li\u003e\n \u003cli\u003eConvenient Installation:Power relay with passage center, passage design, can be connected without disconnecting the circuit. The relay is small and compact, suitable for mounting on a 35mm DIN rail.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-30T15:52:57+10:00","created_at":"2025-09-30T15:52:53+10:00","vendor":"DEWIN","type":"Relays","tags":["industryDE_Sep2025"],"price":19500,"price_min":19500,"price_max":19500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44055747428532,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DZHD9FCG","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V","public_title":null,"options":["Default Title"],"price":19500,"weight":90,"compare_at_price":null,"inventory_management":"shopify","barcode":"QCYYQYQDI-GS98891-02","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0DZHD9FCG.jpg?v=1775773283","\/\/auspowers.com\/cdn\/shop\/files\/71C-z_xW-zL.jpg?v=1759211576","\/\/auspowers.com\/cdn\/shop\/files\/71w-GxOursL.jpg?v=1759211576","\/\/auspowers.com\/cdn\/shop\/files\/71Os9uTb_kL.jpg?v=1759211576","\/\/auspowers.com\/cdn\/shop\/files\/61Al62HLdIL.jpg?v=1759211576","\/\/auspowers.com\/cdn\/shop\/files\/717JNcH4ciL.jpg?v=1759211576","\/\/auspowers.com\/cdn\/shop\/files\/71Wj9PLDM6L.jpg?v=1759211576","\/\/auspowers.com\/cdn\/shop\/files\/61ASa8ocHmL.jpg?v=1759211576","\/\/auspowers.com\/cdn\/shop\/files\/817ew1vpdkL.jpg?v=1759211576"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DZHD9FCG.jpg?v=1775773283","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V ","id":32223028281524,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DZHD9FCG.jpg?v=1775773283"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DZHD9FCG.jpg?v=1775773283","width":1601},{"alt":"[Australia - AusPower] - DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V ","id":32223028314292,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71C-z_xW-zL.jpg?v=1759211576"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71C-z_xW-zL.jpg?v=1759211576","width":1601},{"alt":"[Australia - AusPower] - DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V ","id":32223028347060,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71w-GxOursL.jpg?v=1759211576"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71w-GxOursL.jpg?v=1759211576","width":1601},{"alt":"[Australia - AusPower] - DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V ","id":32223028379828,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Os9uTb_kL.jpg?v=1759211576"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Os9uTb_kL.jpg?v=1759211576","width":1601},{"alt":"[Australia - AusPower] - DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V ","id":32223028412596,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Al62HLdIL.jpg?v=1759211576"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Al62HLdIL.jpg?v=1759211576","width":1601},{"alt":"[Australia - AusPower] - DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V ","id":32223028445364,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/717JNcH4ciL.jpg?v=1759211576"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/717JNcH4ciL.jpg?v=1759211576","width":1601},{"alt":"[Australia - AusPower] - DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V ","id":32223028478132,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Wj9PLDM6L.jpg?v=1759211576"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Wj9PLDM6L.jpg?v=1759211576","width":1601},{"alt":"[Australia - AusPower] - DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V ","id":32223028510900,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ASa8ocHmL.jpg?v=1759211576"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ASa8ocHmL.jpg?v=1759211576","width":1601},{"alt":"[Australia - AusPower] - DEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V ","id":32223028543668,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/817ew1vpdkL.jpg?v=1759211576"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/817ew1vpdkL.jpg?v=1759211576","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDEWIN Surveillance Relay, GRI8-05B AC\/DC Over and Under Current Relay 2A-20A Adjustable Overload Protection AC\/DC 24V-240V\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Function: AC and DC detection Rated supply voltage: AC\/DC 24V\n- 240V Rated mains frequency: 50\/60 Hz. Power consumption: max. 1.5 VA.\nCurrent setting range: 2A-20A. Current setting method: button setting Action\ndelay time: ≤0.1s Adjustment accuracy: 10% Current measurement accuracy: 5%\nHysteresis value: 5% Output: Ith:10A:AC-15: Ue\/le:250V\/2.5A. Mechanical life:\n10 million times. Ambient temperature: -35°C to +75°C. Wiring capacity: 1 x\n2.5 mm² or 2 x 1.5 mm² 0.8 N.m. Packing list: 1 x relay.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eMonitoring Relay: relay panel current 2A - 20A adjustable, can monitor, set overcurrent\/undercurrent monitoring mode via jumper, clearly display current overload.\u003c\/li\u003e\n \u003cli\u003eLED Indicator: The relay panel is equipped with an LED indicator. When the input terminals are powered, the green LED lights up, and when the output terminals are powered, the red LED flashes.\u003c\/li\u003e\n \u003cli\u003eCurrent Monitoring Relay: The shell is made of brand new flame retardant ABS material, which does not drip particles after the combustion test and whose residual flame goes out quickly. It is flame retardant, impact resistant, weather resistant and not easy to deform.\u003c\/li\u003e\n \u003cli\u003eConvenient Installation:Power relay with passage center, passage design, can be connected without disconnecting the circuit. The relay is small and compact, suitable for mounting on a 35mm DIN rail.\u003c\/li\u003e\n \u003c\/ul\u003e"}
