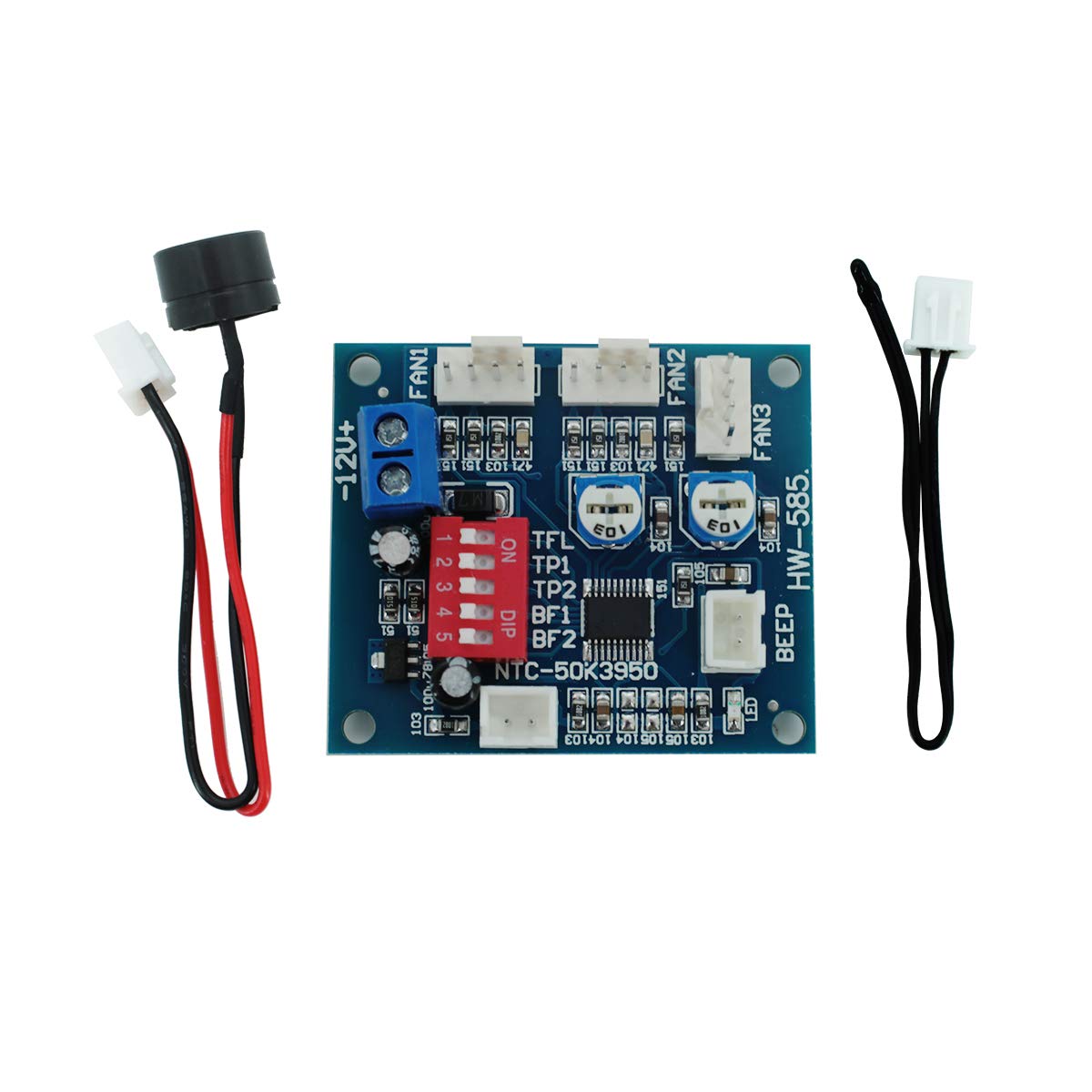

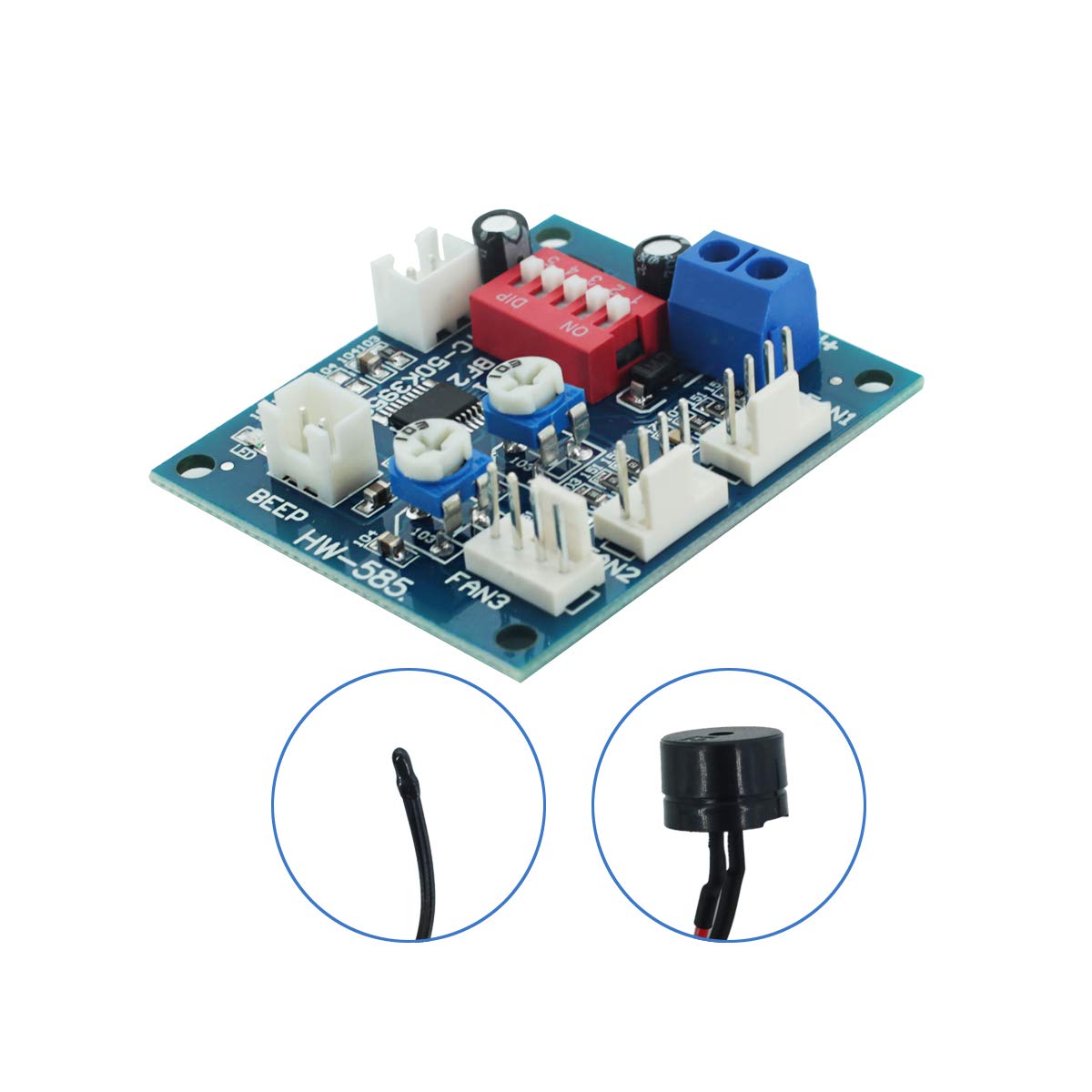

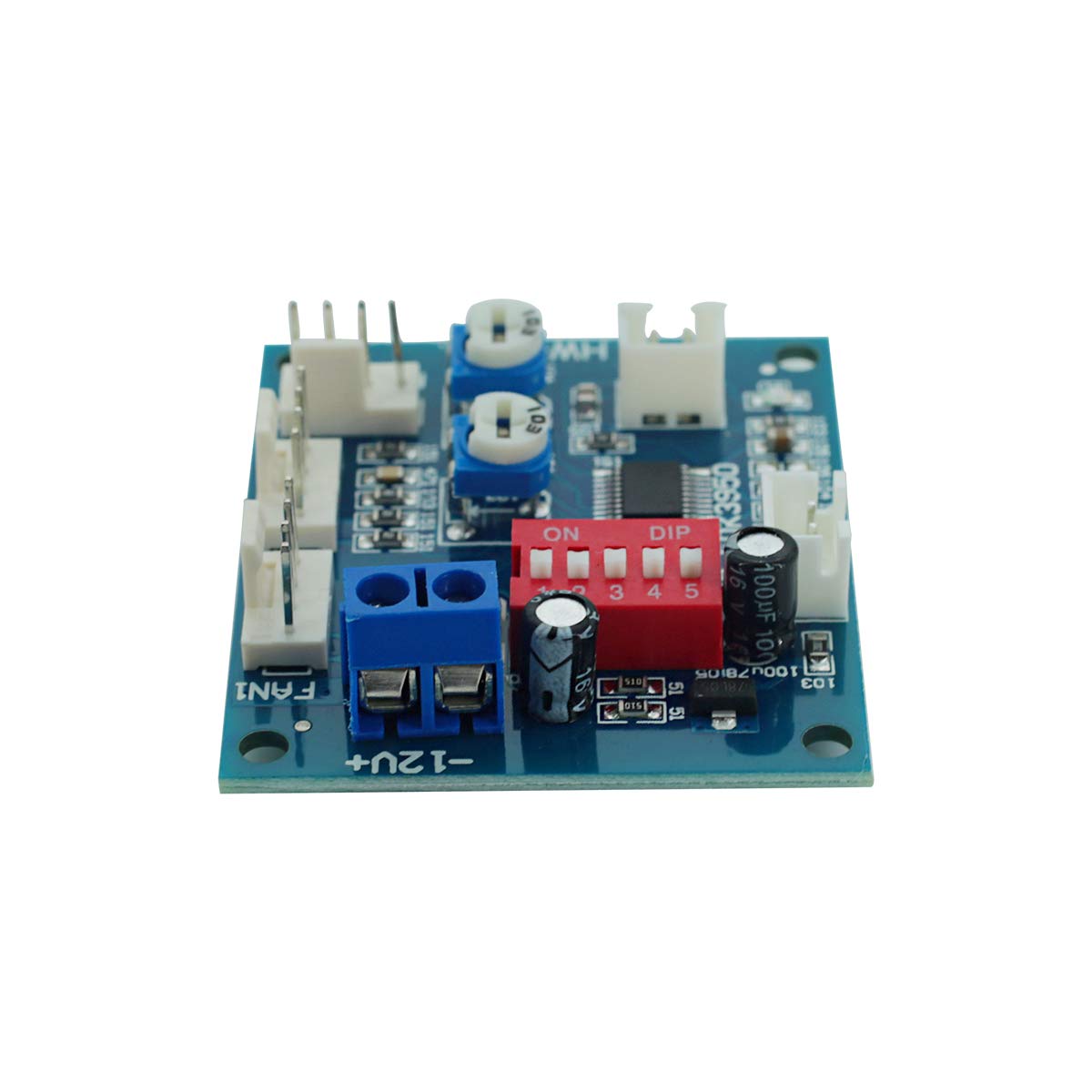

{"id":7172995645620,"title":"DEVMO DC 12V 5A PWM 4 Wires PC CPU Fan Thermostat Automatic Temperature Control Speed Controller Board Speed Controller Temperature Probe Buzzer Compatible with Ar-duino Heat Sink HW-585","handle":"devmo-dc-12v-5a-pwm-4-wires-pc-cpu-fan-thermostat-automatic-temperature-control-speed-controller-board-speed-controller-temperature-probe-buzzer-compatible-with-ar-duino-heat-sink-hw-585","description":"\u003ch3\u003eDEVMO DC 12V 5A PWM 4 Wires PC CPU Fan Thermostat Automatic Temperature Control Speed Controller Board Speed Controller Temperature Probe Buzzer Compatible with Ar-duino Heat Sink HW-585\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFunction setting switch Description: TFL (No. 1): The lowest temperature\nchannel PWM setting, when ON state FAN1 PWM minimum is 40%, when OFF the\nminimum PWM of FAN1 is 20%. TP1 TP2 (No. 2,3): Temperature channel control\ntemperature zones are interpreted as follows (need to used with the\ntemperature probe): TP1 TP2 Accelerating temperature Full speed temperature\nOFF OFF 35° 45° ON OFF 40° 55° OFF ON 50° 70° ON ON 60° 90° When the\ntemperature lower than the accelerated temperature, then output at the minimum\nrotation speed; when it exceed over the full temperature, then always output\nat full speed. BF1 BF2 (No. 4,5): corresponds FAN1 FAN2 stall alarm function\nswitch, when the corresponding open channel fan break down, the controller\nwill alarm with soundand light (works with buzzle), alarm will automatically\neliminated when the fan is rotated recovery . If BF1 and BF2 both are open\n(ON), the FAN1, FAN2 hPackage Included: 1 x DC 12V Four Wire Thermostat PWM\nFan Speed Controller Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking voltage: DC12V.\u003c\/li\u003e\n \u003cli\u003eCircuit load capacity: the maximum output current of each channel is 5A, and the maximum bus current is 9A.\u003c\/li\u003e\n \u003cli\u003eCircuit board size: length, width and height 50mm*43mm*13m,Positioning hole position: 44mm*37mm.\u003c\/li\u003e\n \u003cli\u003eTemperature probe parameters: 50K B=3950 ,according to the temperature probe error, generally 3-5%\u003c\/li\u003e\n \u003cli\u003eOutput range: the first channel 20%-100% or 40%-100% (TFL=ON),The second and third channels 10%-100%;Minimum speed for stall alarm: 700-800 rpm\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-28T22:40:11+10:00","created_at":"2022-06-28T22:40:15+10:00","vendor":"DEVMO","type":"Temperature Controllers","tags":["industrial"],"price":13200,"price_min":13200,"price_max":13200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41615683911860,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08HK7LS74","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DEVMO DC 12V 5A PWM 4 Wires PC CPU Fan Thermostat Automatic Temperature Control Speed Controller Board Speed Controller Temperature Probe Buzzer Compatible with Ar-duino Heat Sink HW-585","public_title":null,"options":["Default Title"],"price":13200,"weight":32,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B08HK7LS74.jpg?v=1656484715","\/\/auspowers.com\/cdn\/shop\/products\/61zMU15TnjL.jpg?v=1656420015","\/\/auspowers.com\/cdn\/shop\/products\/51DccBiROZL.jpg?v=1656420015","\/\/auspowers.com\/cdn\/shop\/products\/51oh5s1xC2L.jpg?v=1656420015"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B08HK7LS74.jpg?v=1656484715","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DEVMO DC 12V 5A PWM 4 Wires PC CPU Fan Thermostat Automatic Temperature Control Speed Controller Board Speed Controller Temperature Probe Buzzer Compatible with Ar-duino Heat Sink HW-585 ","id":26335337250996,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B08HK7LS74.jpg?v=1656484715"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B08HK7LS74.jpg?v=1656484715","width":1200},{"alt":"[Australia - AusPower] - DEVMO DC 12V 5A PWM 4 Wires PC CPU Fan Thermostat Automatic Temperature Control Speed Controller Board Speed Controller Temperature Probe Buzzer Compatible with Ar-duino Heat Sink HW-585 ","id":26324288864436,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61zMU15TnjL.jpg?v=1656420015"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61zMU15TnjL.jpg?v=1656420015","width":1200},{"alt":"[Australia - AusPower] - DEVMO DC 12V 5A PWM 4 Wires PC CPU Fan Thermostat Automatic Temperature Control Speed Controller Board Speed Controller Temperature Probe Buzzer Compatible with Ar-duino Heat Sink HW-585 ","id":26324288897204,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51DccBiROZL.jpg?v=1656420015"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51DccBiROZL.jpg?v=1656420015","width":1200},{"alt":"[Australia - AusPower] - DEVMO DC 12V 5A PWM 4 Wires PC CPU Fan Thermostat Automatic Temperature Control Speed Controller Board Speed Controller Temperature Probe Buzzer Compatible with Ar-duino Heat Sink HW-585 ","id":26324288929972,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51oh5s1xC2L.jpg?v=1656420015"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51oh5s1xC2L.jpg?v=1656420015","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDEVMO DC 12V 5A PWM 4 Wires PC CPU Fan Thermostat Automatic Temperature Control Speed Controller Board Speed Controller Temperature Probe Buzzer Compatible with Ar-duino Heat Sink HW-585\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFunction setting switch Description: TFL (No. 1): The lowest temperature\nchannel PWM setting, when ON state FAN1 PWM minimum is 40%, when OFF the\nminimum PWM of FAN1 is 20%. TP1 TP2 (No. 2,3): Temperature channel control\ntemperature zones are interpreted as follows (need to used with the\ntemperature probe): TP1 TP2 Accelerating temperature Full speed temperature\nOFF OFF 35° 45° ON OFF 40° 55° OFF ON 50° 70° ON ON 60° 90° When the\ntemperature lower than the accelerated temperature, then output at the minimum\nrotation speed; when it exceed over the full temperature, then always output\nat full speed. BF1 BF2 (No. 4,5): corresponds FAN1 FAN2 stall alarm function\nswitch, when the corresponding open channel fan break down, the controller\nwill alarm with soundand light (works with buzzle), alarm will automatically\neliminated when the fan is rotated recovery . If BF1 and BF2 both are open\n(ON), the FAN1, FAN2 hPackage Included: 1 x DC 12V Four Wire Thermostat PWM\nFan Speed Controller Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWorking voltage: DC12V.\u003c\/li\u003e\n \u003cli\u003eCircuit load capacity: the maximum output current of each channel is 5A, and the maximum bus current is 9A.\u003c\/li\u003e\n \u003cli\u003eCircuit board size: length, width and height 50mm*43mm*13m,Positioning hole position: 44mm*37mm.\u003c\/li\u003e\n \u003cli\u003eTemperature probe parameters: 50K B=3950 ,according to the temperature probe error, generally 3-5%\u003c\/li\u003e\n \u003cli\u003eOutput range: the first channel 20%-100% or 40%-100% (TFL=ON),The second and third channels 10%-100%;Minimum speed for stall alarm: 700-800 rpm\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
