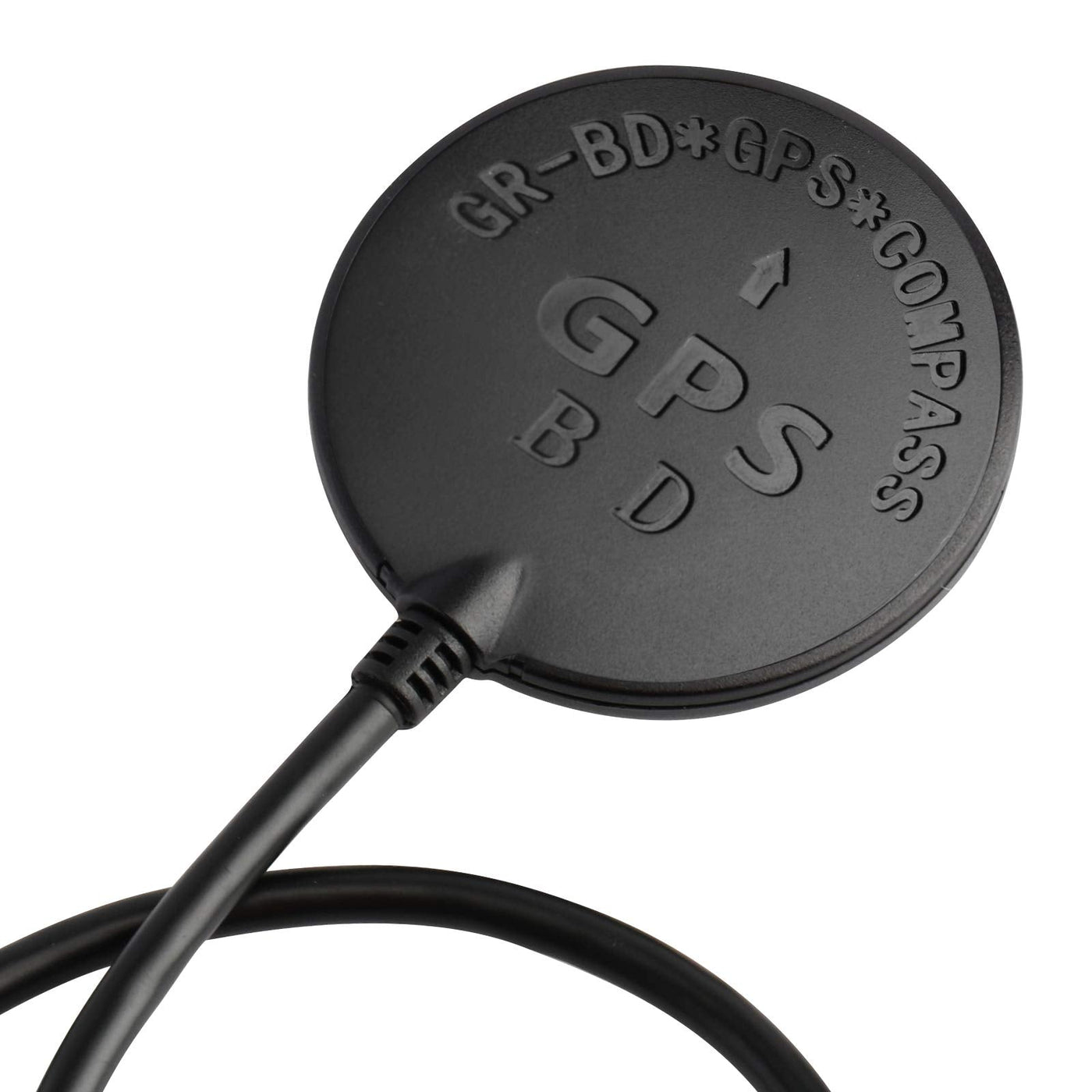

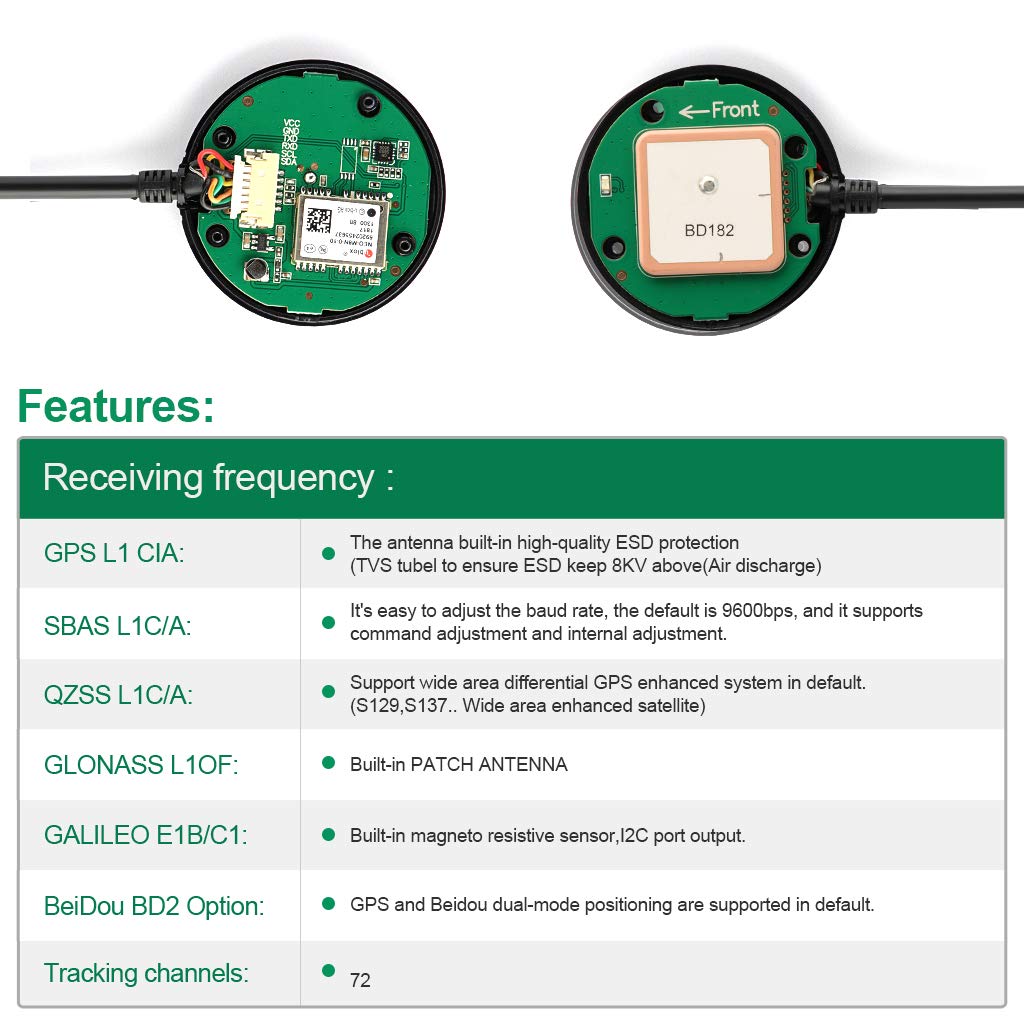

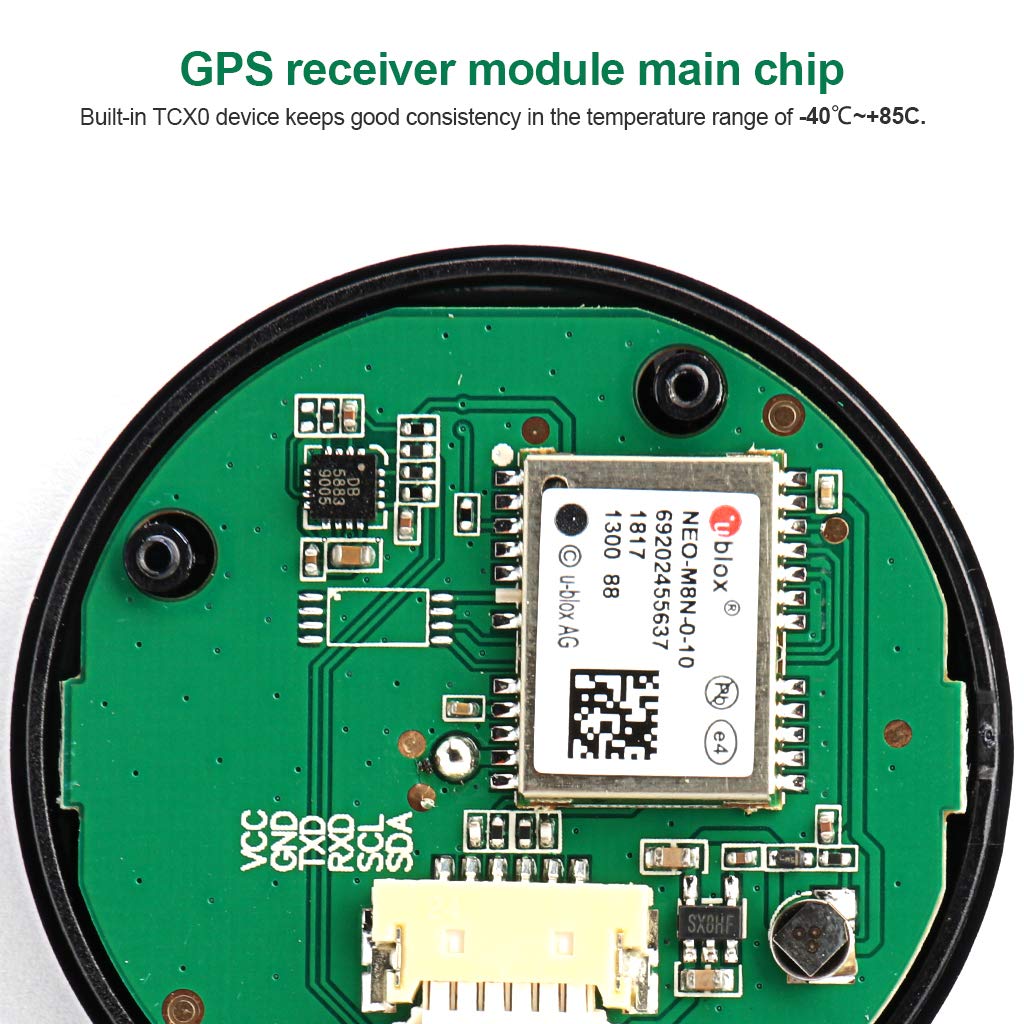

{"id":7088823664820,"title":"Deegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC","handle":"deegoo-fpv-gps-compass-module-neo-m8n-gps-bds-module-precision-apm-drone-control-gps-receiver-fpv-flight-control-pixhawk-navigation-module-for-apm-pix-px4-compatible-with-apm-port-i2c-mwc","description":"\u003ch3\u003eDeegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Main chip: U-BLOX M8030 KTBuilt-in TCXO, which maintain good\nconsistency in the temperature of -40 ℃ ~ +85 ℃. GPS L1 C\/A: The antenna\nbuilt-in high-quality ESD protection [TVS tube] to ensure ESD keep 8KV above\n[Air discharge]. SBAS L1C\/A: It’s easy to adjust the baud rate, the default is\n9600bps, and it supports command adjustment and internal adjustment. QZSS L1C\n\/ A: Support wide area differential GPS enhanced system in default. [S129,\nS137…. Wide area enhanced satellite. GLONASS L1OF: Built-in PATCH ANTENNA.\nGALILEO E1B\/C1: Built-in magneto resistive sensor, I2C port output. BeiDou\nBD2[Option]: GPS and Beidou dual-mode positioning are supported in default.\nTracking channels: 72 Product Size:41.539.65.3mm Positioning performance： ♥\nAutonomous positioning: 2.5m [average] ♥ Auxiliary positioning: 2m [average],\nwith SBAS assistance. ♥ Drift: \u0026lt;0.02m\/s ♥ Timing accuracy: 60ns ♥ Reference\ncoordinate system: WGS-84 ♥ Maximum altitude: 50000 meters [Pay special\nattention to atmospheric temperature when flying at high altitudes, and you\nneed to turn on the flight mode] ♥ Maximum speed: 500m\/s ♥ Acceleration: \u0026lt;4g\nElectrical performance: Tracking sensitivity: -161dBm Capture sensitivity:\n-148dBm Cold start time: 29s [average] Warm start time: 28s [average] Hot\nstart time: 1s [average] Interface electrical performance: Wide voltage range:\nthe main power supply is +3.0~5.5V UART port: GPS data; I2C port: magnetic\ncompass data [HIC5883L] GPS output data baud rate 9600bps, I2C port ADDR: 7bit\n0x1E, 8bit_read 0x3D, 8bit_write Ox3E Package Including: 1 X GPS BDS C\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide range of use: for APM flight control, PIX flight control, PX4 flight control; The outlet terminal is directly compatible with the APM serial port and I2C port. Plug and play other flight controllers are also available, such as MWC flight controller.\u003c\/li\u003e\n \u003cli\u003eMain chip: U-B-LOX M8030 KT, Built-in TCXO, which maintain good consistency in the temperature of -40 C ~ +85 C; Tracking channels: 72 Three in one Function: Support GPS BDS dual-mode positioning, plus compass chip! Let you realize the desire of one module can be used in many ways!\u003c\/li\u003e\n \u003cli\u003ePositioning; Auto-positioning: 2.5m [in average]; Auxiliary positioning: 2m [average], with SBAS assistance; Drift: \u0026lt;0.02m \/ s; Timing accuracy: 60ns; Reference coordinate system: WGS-84; Maximum altitude: 50000 meters [Please pay attention to atmospheric; Temperature during high-altitude flight, and please open the flight mode]; Maximum speed: 500m \/ s; Acceleration: \u0026lt;4g.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2025-06-17T00:11:14+10:00","created_at":"2022-03-21T19:00:38+11:00","vendor":"Deegoo-FPV","type":"Antennas","tags":["auspowers_batchtwo"],"price":16800,"price_min":16800,"price_max":16800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41342090248372,"title":"GPS Compass Module","option1":"GPS Compass Module","option2":null,"option3":null,"sku":"B08NY9JSZ3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Deegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC - GPS Compass Module","public_title":"GPS Compass Module","options":["GPS Compass Module"],"price":16800,"weight":18,"compare_at_price":null,"inventory_management":null,"barcode":"0789615751506","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B08NY9JSZ3.jpg?v=1648602788","\/\/auspowers.com\/cdn\/shop\/products\/71RZIe9k-wL.jpg?v=1647849638","\/\/auspowers.com\/cdn\/shop\/products\/51icWd0TpuL.jpg?v=1647849638","\/\/auspowers.com\/cdn\/shop\/products\/61wOnt9mJ6L.jpg?v=1647849638","\/\/auspowers.com\/cdn\/shop\/products\/614GlO8KUiL.jpg?v=1647849638","\/\/auspowers.com\/cdn\/shop\/products\/71Z5FApCufL.jpg?v=1647849638","\/\/auspowers.com\/cdn\/shop\/products\/51ovMPXKTxL.jpg?v=1647849638"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B08NY9JSZ3.jpg?v=1648602788","options":["Style"],"media":[{"alt":"[Australia - AusPower] - Deegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC ","id":25355282776244,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B08NY9JSZ3.jpg?v=1648602788"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B08NY9JSZ3.jpg?v=1648602788","width":1600},{"alt":"[Australia - AusPower] - Deegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC ","id":25236563067060,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71RZIe9k-wL.jpg?v=1647849638"},"aspect_ratio":1.0,"height":1024,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71RZIe9k-wL.jpg?v=1647849638","width":1024},{"alt":"[Australia - AusPower] - Deegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC ","id":25236563099828,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51icWd0TpuL.jpg?v=1647849638"},"aspect_ratio":1.0,"height":1024,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51icWd0TpuL.jpg?v=1647849638","width":1024},{"alt":"[Australia - AusPower] - Deegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC ","id":25236563132596,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61wOnt9mJ6L.jpg?v=1647849638"},"aspect_ratio":1.0,"height":1024,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61wOnt9mJ6L.jpg?v=1647849638","width":1024},{"alt":"[Australia - AusPower] - Deegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC ","id":25236563165364,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/products\/614GlO8KUiL.jpg?v=1647849638"},"aspect_ratio":1.0,"height":1024,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/614GlO8KUiL.jpg?v=1647849638","width":1024},{"alt":"[Australia - AusPower] - Deegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC ","id":25236563198132,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71Z5FApCufL.jpg?v=1647849638"},"aspect_ratio":1.0,"height":1024,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71Z5FApCufL.jpg?v=1647849638","width":1024},{"alt":"[Australia - AusPower] - Deegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC ","id":25236563230900,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51ovMPXKTxL.jpg?v=1647849638"},"aspect_ratio":1.0,"height":1024,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51ovMPXKTxL.jpg?v=1647849638","width":1024}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDeegoo-FPV GPS Compass Module+ NEO-M8N+ GPS BDS Module Precision APM Drone Control, GPS Receiver FPV Flight Control Pixhawk Navigation Module for APM PIX PX4, Compatible with APM Port I2C MWC\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: Main chip: U-BLOX M8030 KTBuilt-in TCXO, which maintain good\nconsistency in the temperature of -40 ℃ ~ +85 ℃. GPS L1 C\/A: The antenna\nbuilt-in high-quality ESD protection [TVS tube] to ensure ESD keep 8KV above\n[Air discharge]. SBAS L1C\/A: It’s easy to adjust the baud rate, the default is\n9600bps, and it supports command adjustment and internal adjustment. QZSS L1C\n\/ A: Support wide area differential GPS enhanced system in default. [S129,\nS137…. Wide area enhanced satellite. GLONASS L1OF: Built-in PATCH ANTENNA.\nGALILEO E1B\/C1: Built-in magneto resistive sensor, I2C port output. BeiDou\nBD2[Option]: GPS and Beidou dual-mode positioning are supported in default.\nTracking channels: 72 Product Size:41.539.65.3mm Positioning performance： ♥\nAutonomous positioning: 2.5m [average] ♥ Auxiliary positioning: 2m [average],\nwith SBAS assistance. ♥ Drift: \u0026lt;0.02m\/s ♥ Timing accuracy: 60ns ♥ Reference\ncoordinate system: WGS-84 ♥ Maximum altitude: 50000 meters [Pay special\nattention to atmospheric temperature when flying at high altitudes, and you\nneed to turn on the flight mode] ♥ Maximum speed: 500m\/s ♥ Acceleration: \u0026lt;4g\nElectrical performance: Tracking sensitivity: -161dBm Capture sensitivity:\n-148dBm Cold start time: 29s [average] Warm start time: 28s [average] Hot\nstart time: 1s [average] Interface electrical performance: Wide voltage range:\nthe main power supply is +3.0~5.5V UART port: GPS data; I2C port: magnetic\ncompass data [HIC5883L] GPS output data baud rate 9600bps, I2C port ADDR: 7bit\n0x1E, 8bit_read 0x3D, 8bit_write Ox3E Package Including: 1 X GPS BDS C\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWide range of use: for APM flight control, PIX flight control, PX4 flight control; The outlet terminal is directly compatible with the APM serial port and I2C port. Plug and play other flight controllers are also available, such as MWC flight controller.\u003c\/li\u003e\n \u003cli\u003eMain chip: U-B-LOX M8030 KT, Built-in TCXO, which maintain good consistency in the temperature of -40 C ~ +85 C; Tracking channels: 72 Three in one Function: Support GPS BDS dual-mode positioning, plus compass chip! Let you realize the desire of one module can be used in many ways!\u003c\/li\u003e\n \u003cli\u003ePositioning; Auto-positioning: 2.5m [in average]; Auxiliary positioning: 2m [average], with SBAS assistance; Drift: \u0026lt;0.02m \/ s; Timing accuracy: 60ns; Reference coordinate system: WGS-84; Maximum altitude: 50000 meters [Please pay attention to atmospheric; Temperature during high-altitude flight, and please open the flight mode]; Maximum speed: 500m \/ s; Acceleration: \u0026lt;4g.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
