Decibel Meter, Sound Level Meter 882A Portable 30-130dB Noise Meter with 5-Digit LCD Display, DBA/DBC Rating, MAX/MIN, Data Hold, Quick/Slow Selection for Sound Quality Control Gc-882a
Decibel Meter, Sound Level Meter 882A Portable 30-130dB Noise Meter with 5-Digit LCD Display, DBA/DBC Rating, MAX/MIN, Data Hold, Quick/Slow Selection for Sound Quality Control

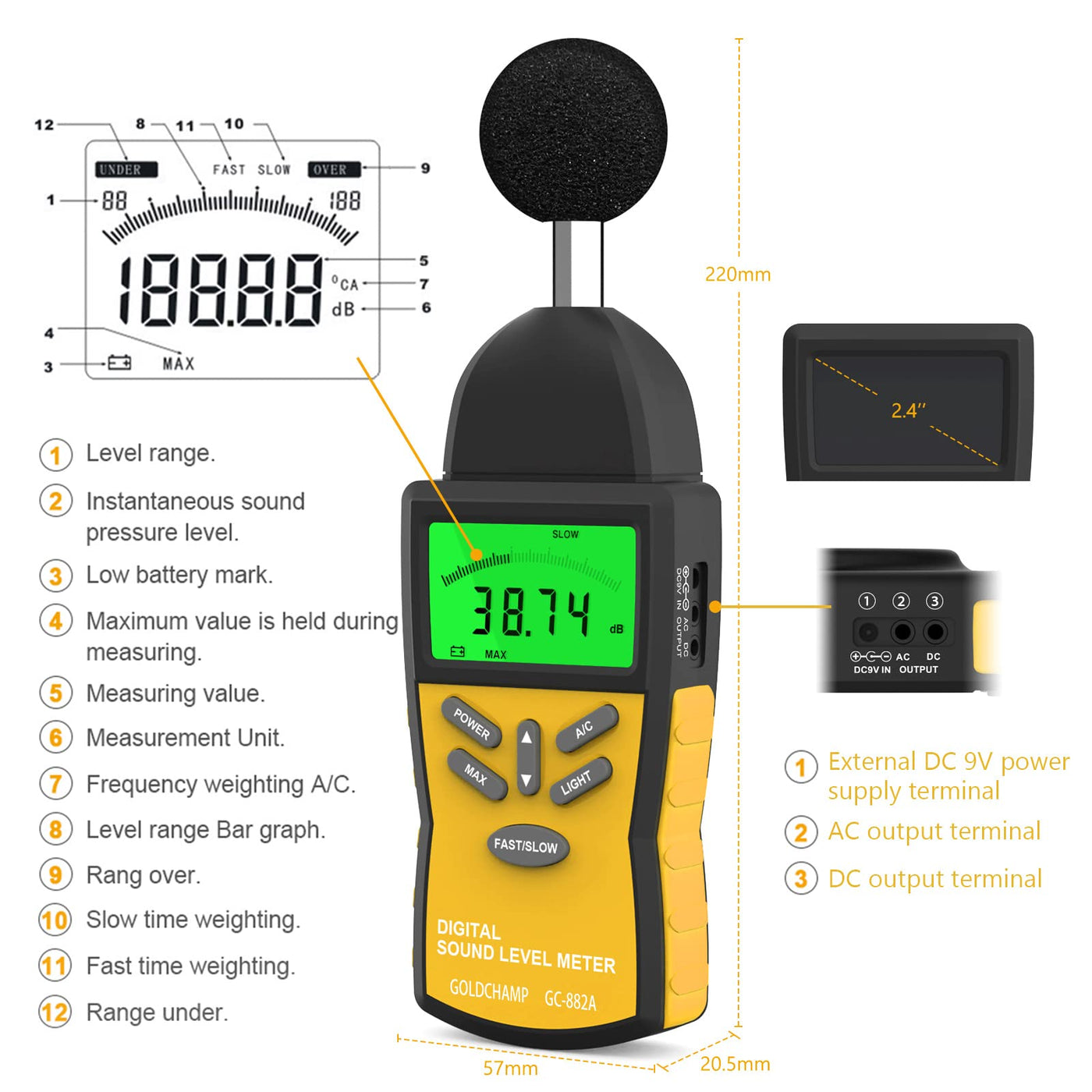

Feature Measuring range: 30-130 decibels. Instant sound measurement function. Fast and slow dynamic characteristic modes. With two equivalent rated sound pressure levels, A and C. AC and DC signed output for frequency analyzer, level writer, FFT analyzer, graphic writer, etc. This device has been developed according to IEC651 TYPE2 and ANSI S1.4 TYPE2 standards for sound level meters. Specifications Accuracy: ±1.5dB (under reference conditions) Measuring level: 30~130dBA, 30~130dBC Frequency rating: A, C Digital display: 5 digits. Resolution: 0.1 dB. About: Range Exceeding Display Under: Indicates that the lower limit of the range has been below AC Output: The signal value is determined by the microphone, and each signal is different. DC output: 10 mV / dB output impedance approx. 100Ω Time weighting: fast / slow Microphone: 1/2 inch electret condenser microphone Max: maximum holding time. Power supply: 1 x 9 V alkaline batteries or DC 9 V adapter. Working time: about 30 hours (alkaline cells) Self-calibration time: 10 seconds (each time switched on) Operating temperature: 0°C to 40°C. Operating humidity: 10% to 80% RH. Dimensions: 220 x 67 x 32 mm. Weight: approx. 210 g (including battery).
Product Features
- Accurate Measurement The measuring range of GOLDCHAMP decibel meter 882A is 30dB to 130dB, with a high accuracy (+/-1.5dB, 0.1dB resolution), the db meter digital is a useful device for you to measure the noise of running machines, music, neighbor or speech therapy and so on.

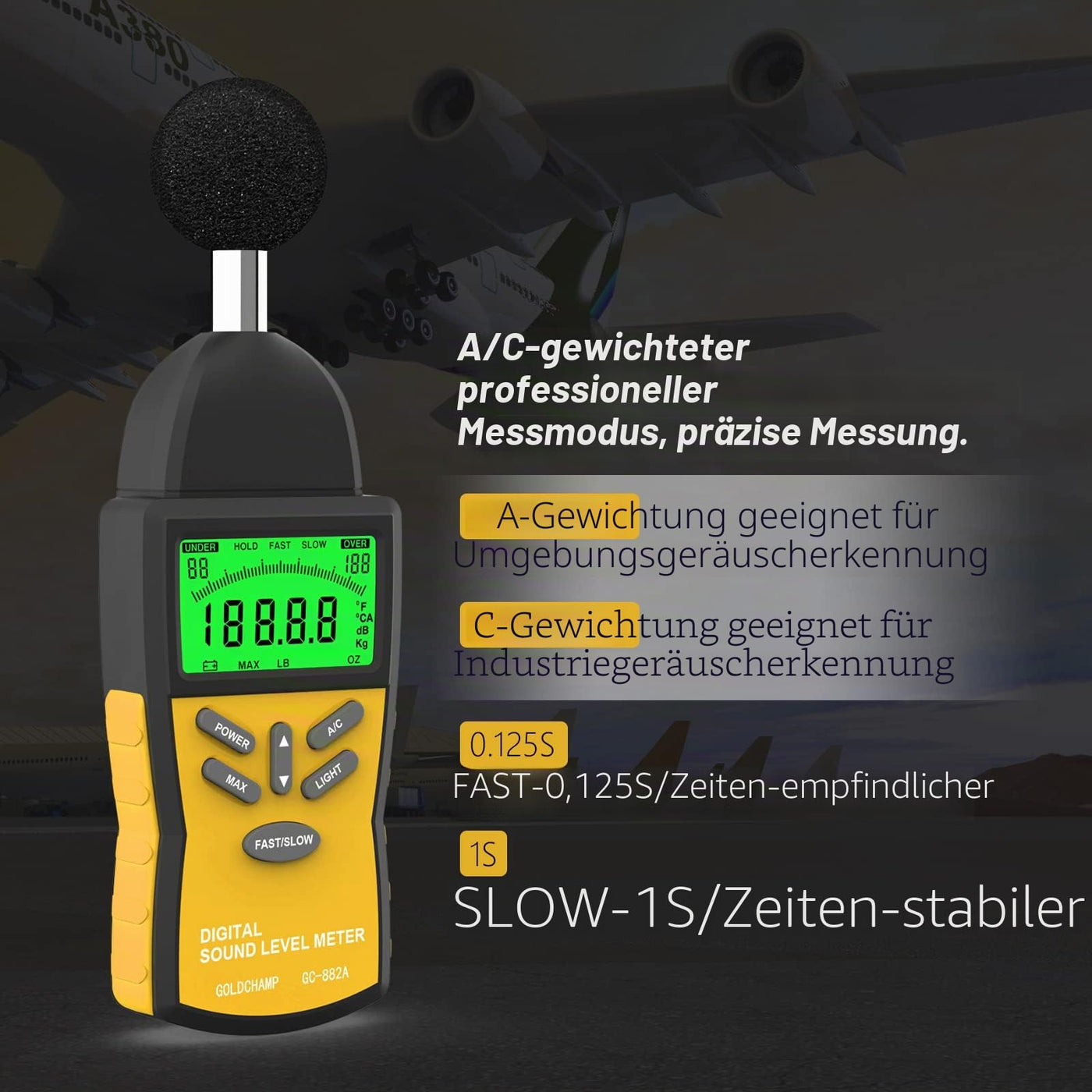

- A/C Rated Measurement The decibel sound meter is equipped with A and C rated measurement. The A-rated mode is suitable for detecting ambient noise. The C-rated mode is suitable for analysis of industrial noise such as machine motors.

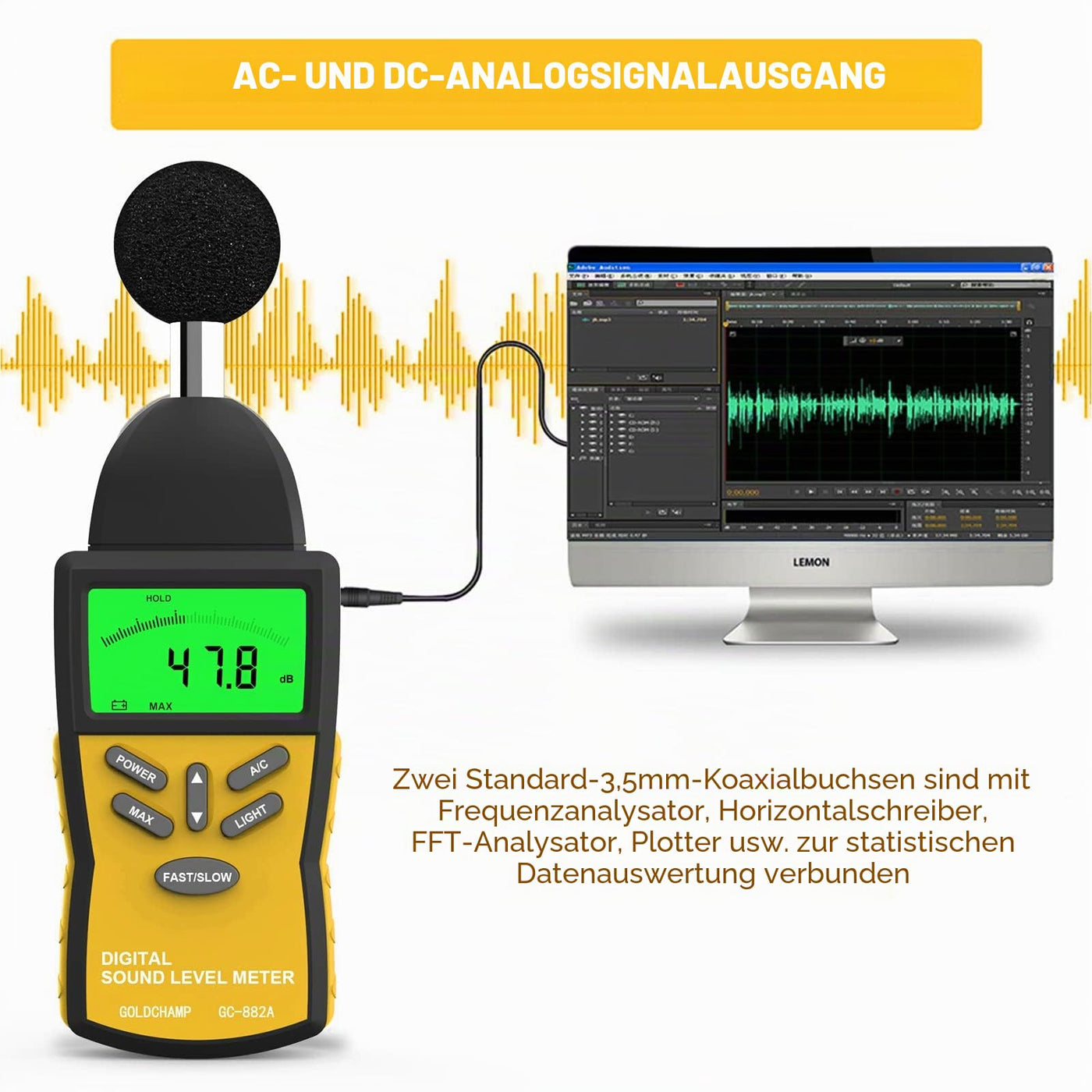

- Convenient for further analysis: there are output interfaces (AC/DC output) on the side of the decibel meter with data logging that can be better connected with other devices, such as X-Y axis writer or frequency analyzer for statistical analysis

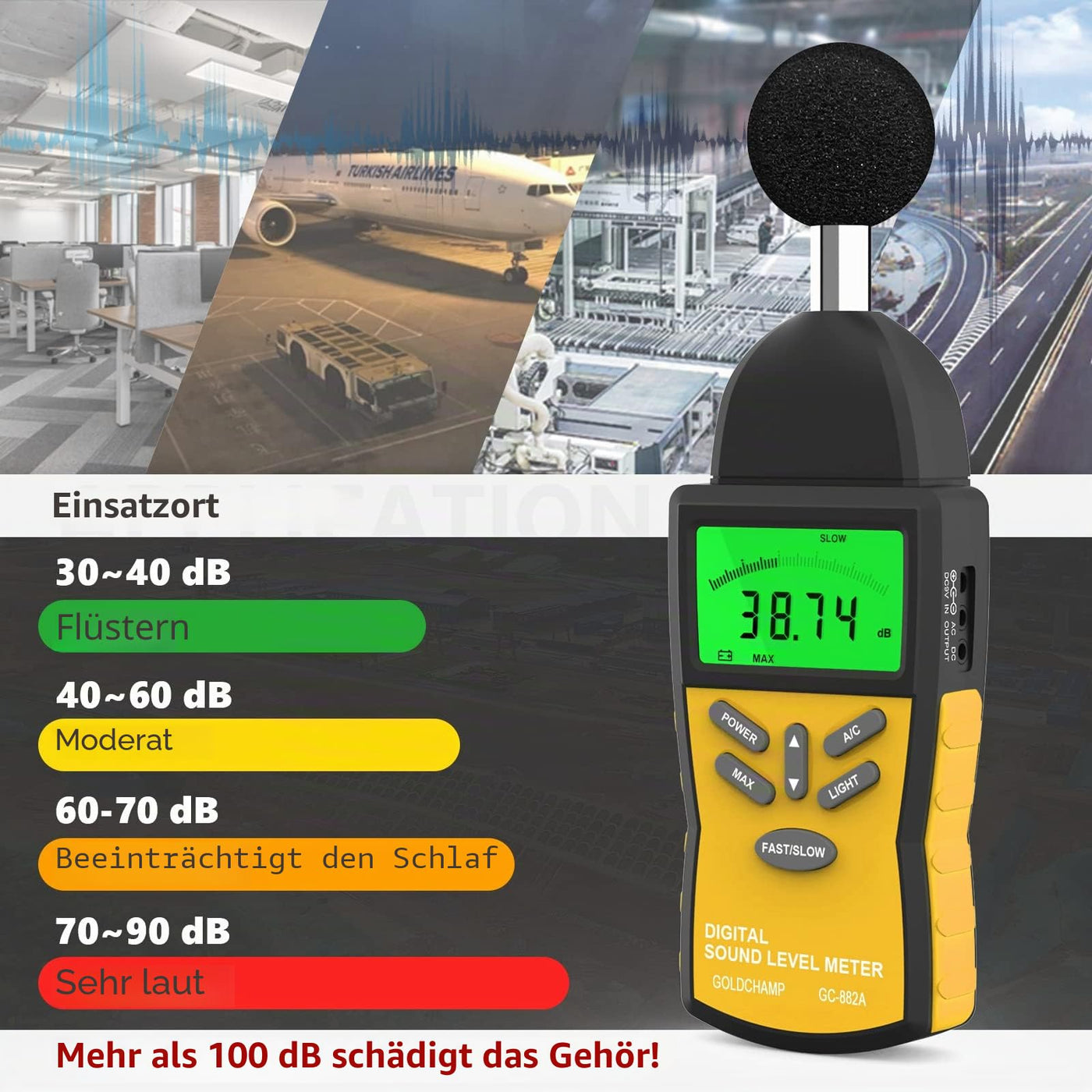

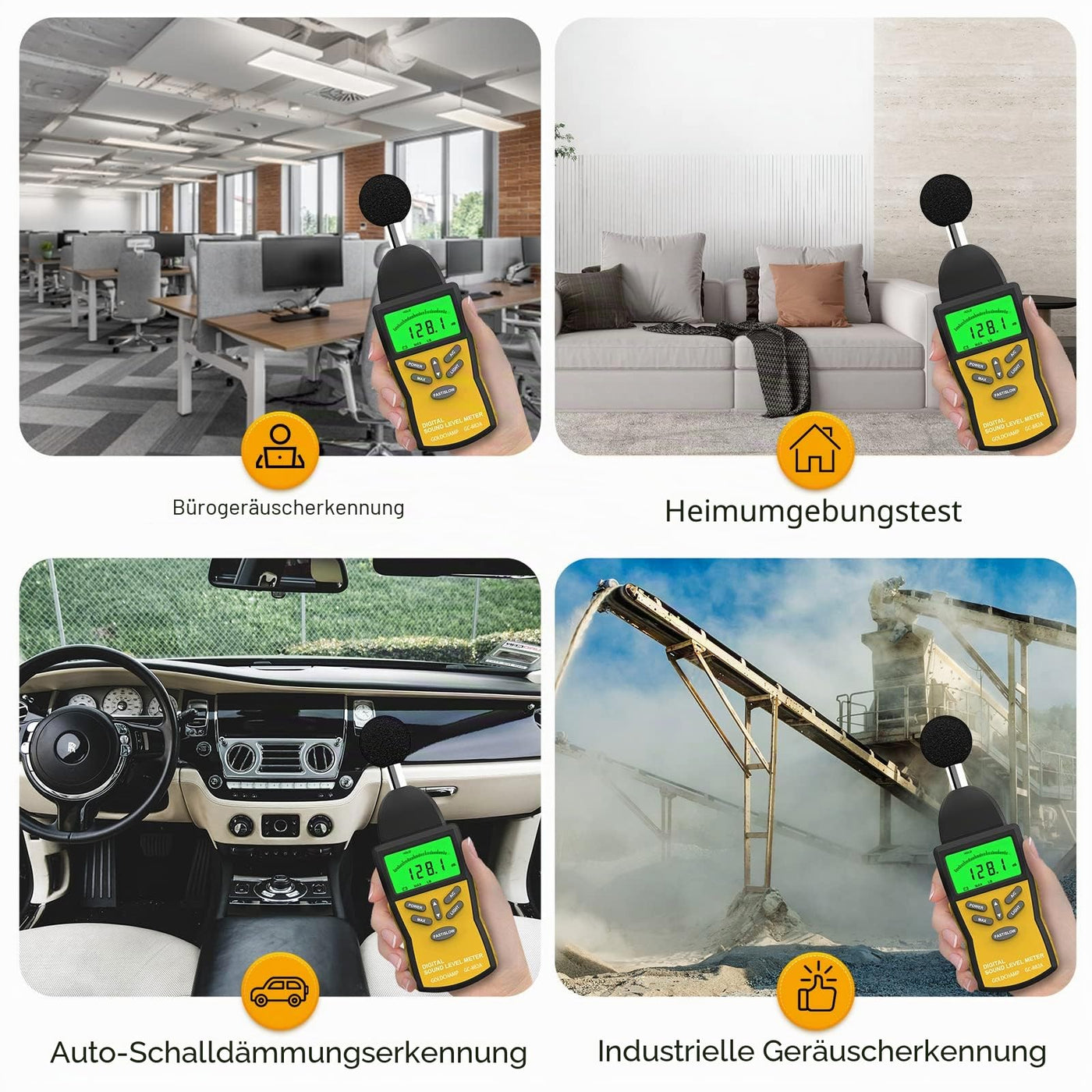

- Wide Application This sound level meter is designed to meet the measurement requirement of sound quality control in various environments. Ideal for examining music recordings, neighborhood noise complaints, industrial settings, office settings, speech therapy, & more.

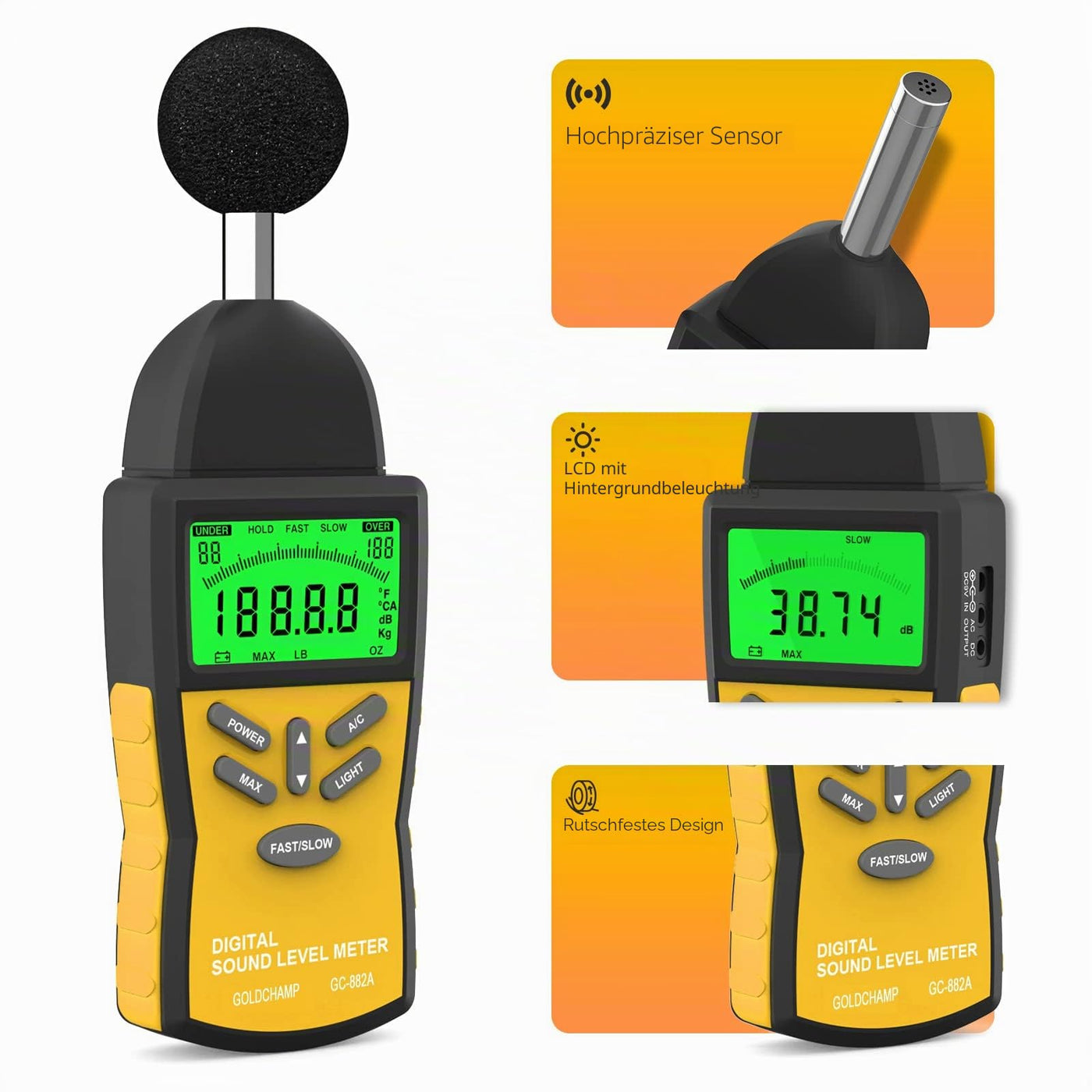

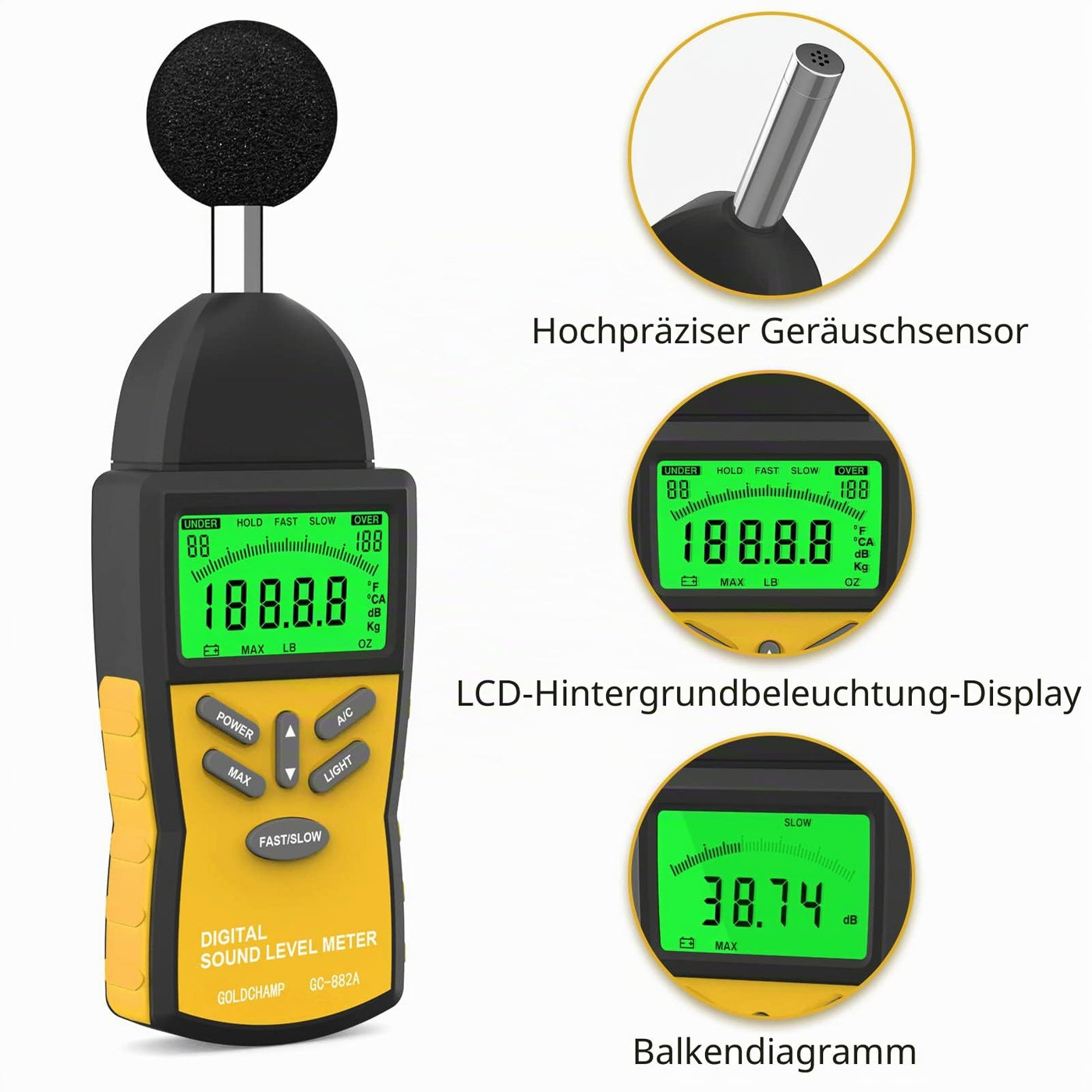

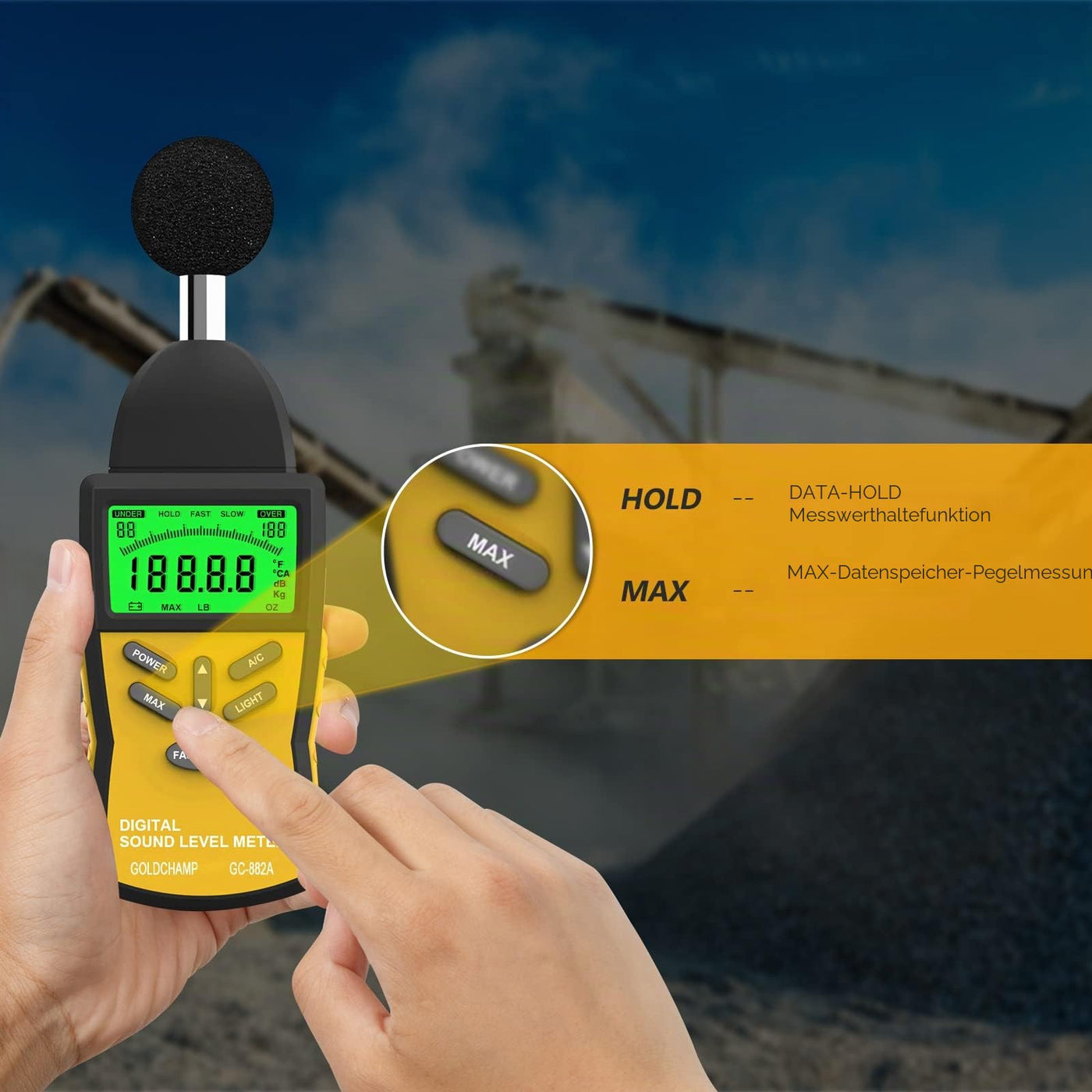

- Other Features: The noise meter sound level meter come with 5 digit LCD display. The large backlight LCD display allows you to see clearer, even in the dark. The fast/slow time weighting function can be used for general environmental measurement and relatively large in noise environment
