DDS6619 Din Rail Single Phase Energy kWh Electric Meter 120VAC 5(80) A 60Hz Power Consumption Meter Watt Meter, LCD Backlight Digital Display with Reset Function
DDS6619 Din Rail Single Phase Energy kWh Electric Meter 120VAC 5(80) A 60Hz Power Consumption Meter Watt Meter, LCD Backlight Digital Display with Reset Function
Single-phase DIN-Rail Multifunction Energy Meter Digital Backlit Energy Meter Accessories
Product Features

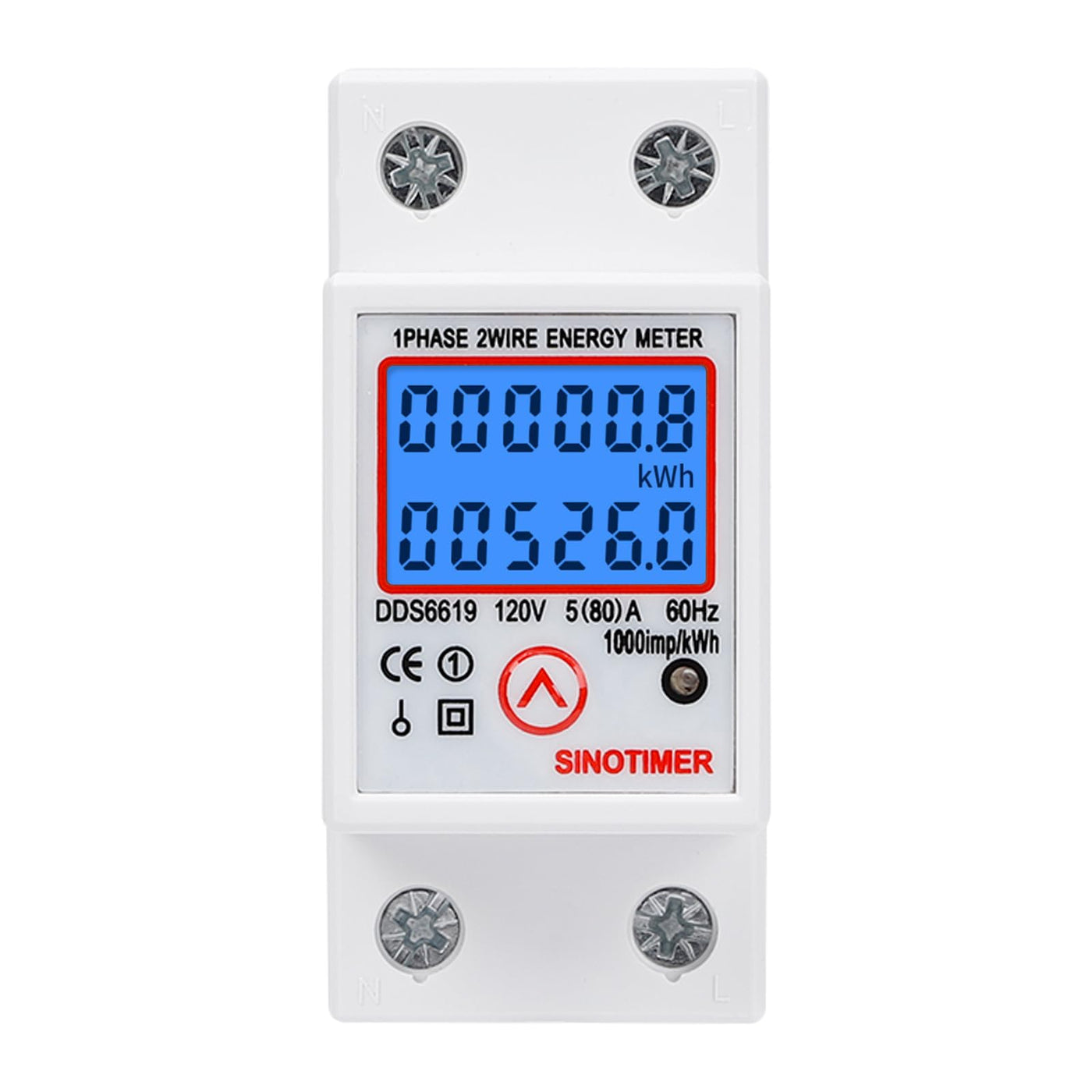

- All-New Innovative Design: Two rows display: Top portion rotating display working temporary Kwh / voltage / current / power / power factor / frequency, the second line display total power consumption; Blue LCD HD backlight, this ac wattmeter single phase is clearly visible whatever day or night.
- High Accuracy: Class 1.0 meter is the most widely used, mainly used for household and basic industrial and commercial electricity metering. DDS6619 Electricity energy meter adopts microelectronics and digital processing technology to measure electric energy, accurate and reliable.

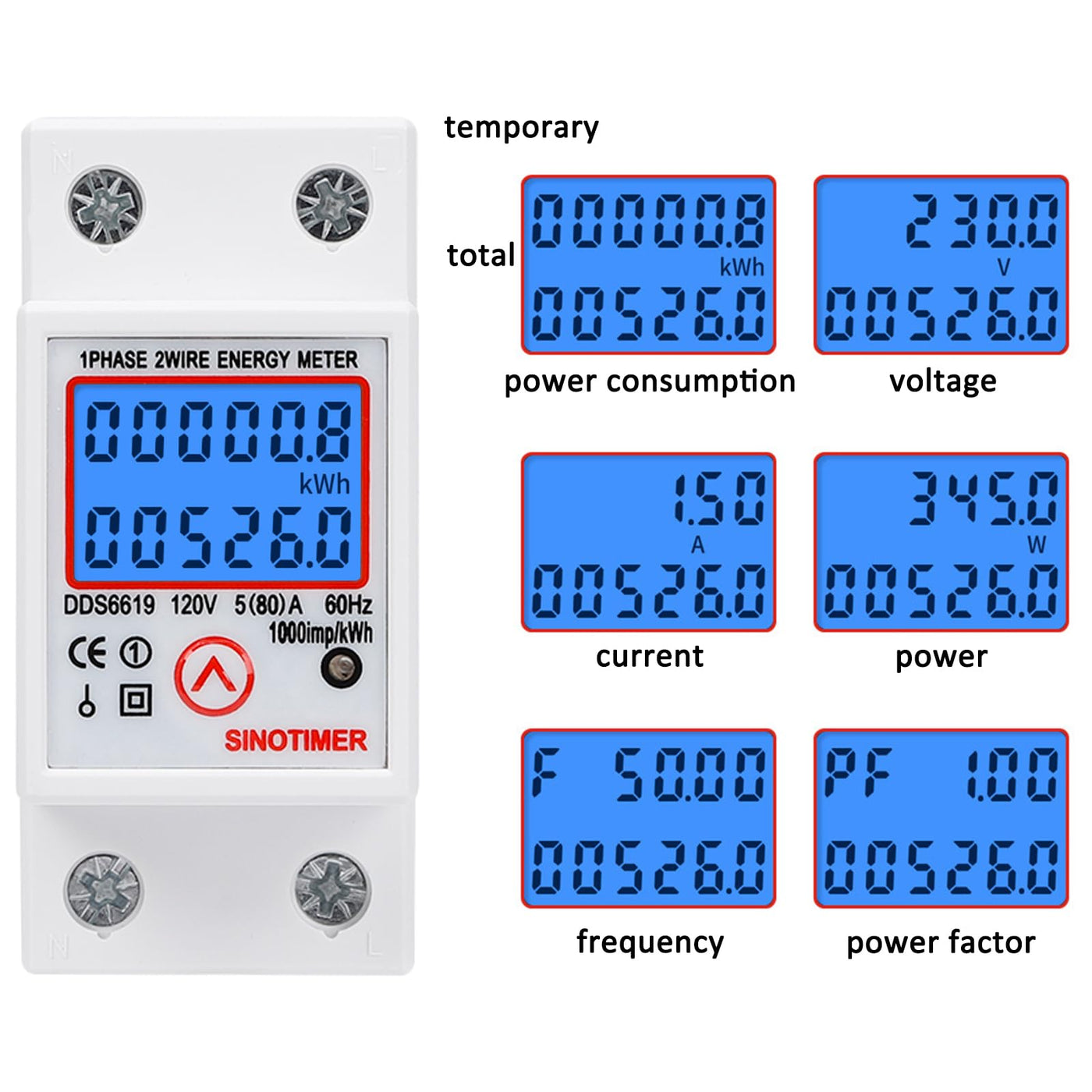

- 6 in 1 Multimeter: 6 electrical parameters display In one meter. Total Energy kWh, Temporary Energy kWh, Voltage, Current, Power, Frequency, Power Factor by manual switch pressing.

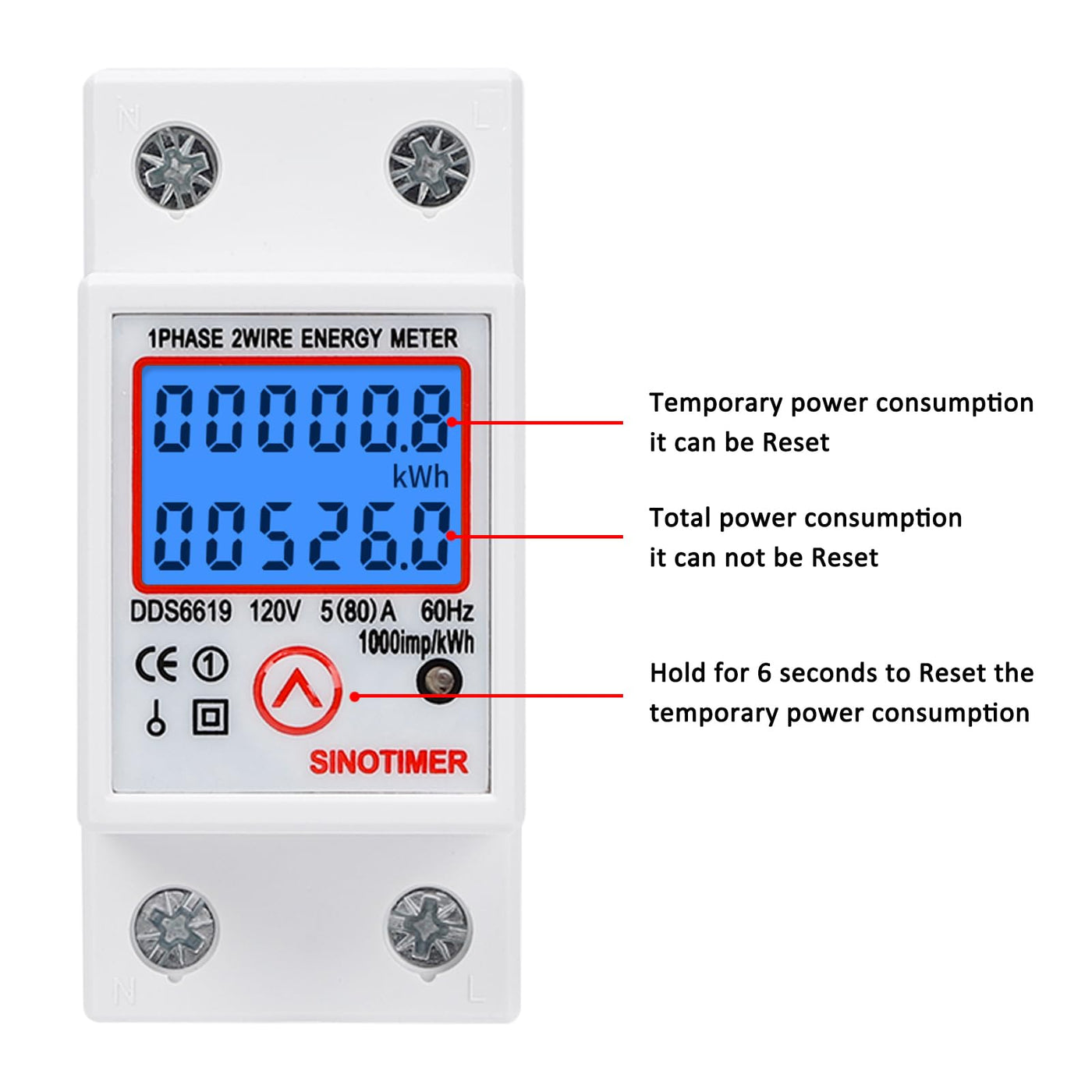

- Energy Memory & Reset Function: 1. When power off, the electric energy data will be stored and memorized. 2.Data reset for multiple measurement needs. Press the reset button for 6 seconds, temporary kWh Reset to Zero, the total power consumption shown in the second display is not be reset.

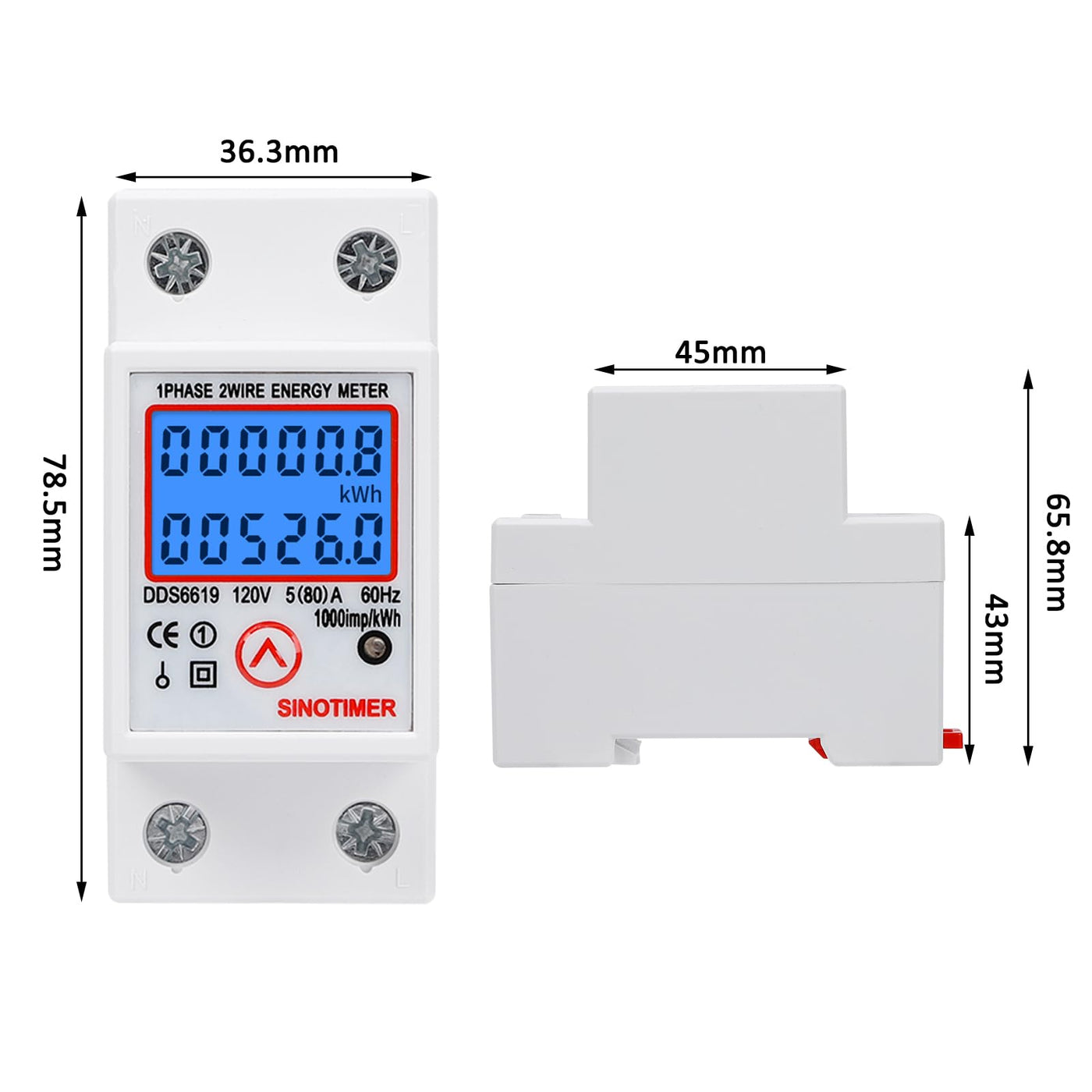

- Space-Efficient and Heavy Duty Load: Standard 36mm width with a universal DIN 35mm standard guide rail, Max 80A Load with C11000 Copper.
- Flame Retardant Material: The shell is made of full height flame retardant and high-quality ABS material, which is resistant to impact, impact, long-lasting operation, and longer service life.
