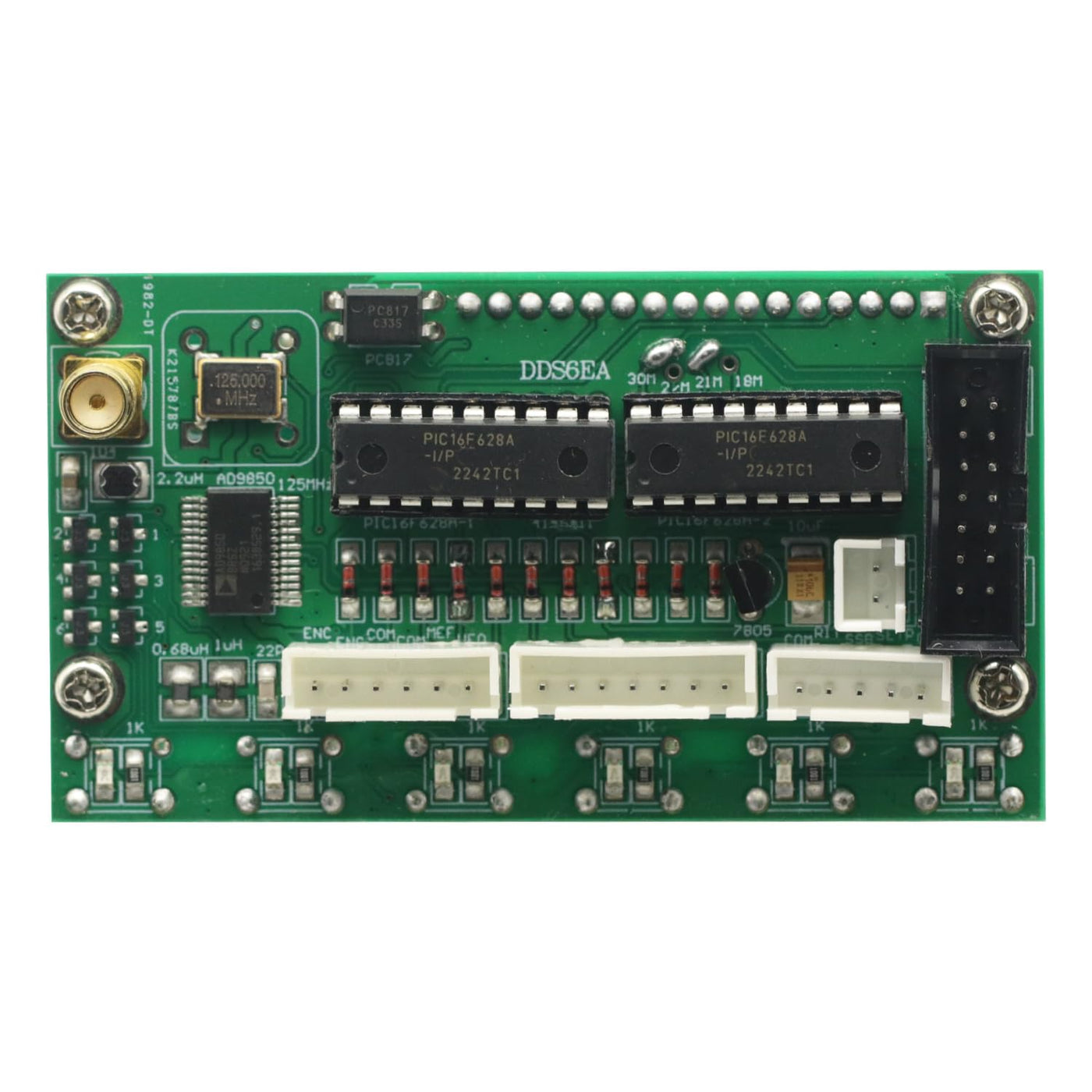

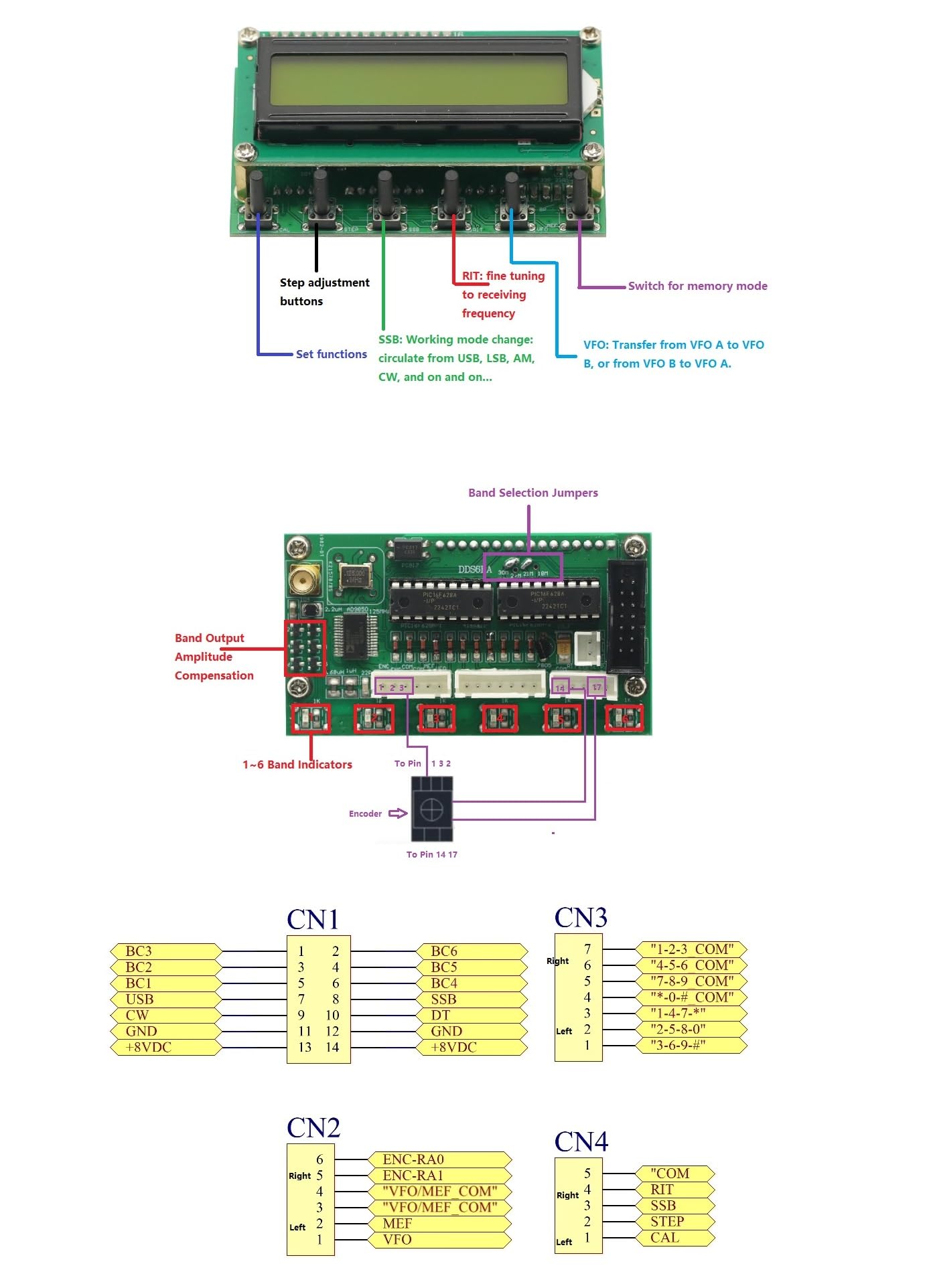

{"id":8013217038516,"title":"DDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless","handle":"dds-signal-generator-module-0-55mhz-lcd-digital-display-dds-function-generator-frequency-for-ham-radio-vfo-wireless","description":"\u003ch3\u003eDDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThis is a 0~55MHz DDS Signal Generator. It is based on AD9850 chip and is very easy to operate. Supports 0~55MHz continual adjust at 1Hz step.\u003c\/li\u003e\r\n \u003cli\u003eThis generator has 78L05 voltage regulate. Input current at 200MA, input voltage 8-9V would be the ideal voltage.\u003c\/li\u003e\r\n \u003cli\u003eInput voltage of 12V can only be used for short time testing, otherwise will cause heat to board.\u003c\/li\u003e\r\n \u003cli\u003e5p\/6p connect to encoder as per photo. 7p of the middle connects to digital matrix input. 14p (8V GND) is 8V power supply from main board. If powered by main board, DDS does not need independent power supply.\u003c\/li\u003e\r\n \u003cli\u003e1~6 correspond to 6 frequency bands: (3.8,7 ,9,14,18 or 21,27 or 29) ISB, USB, CW are the three mode choices. DT is signal from main board.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-07T19:51:54+11:00","created_at":"2025-12-07T19:51:51+11:00","vendor":"GODIYMODULES","type":"Function Generators","tags":["industrial_selected_Nov2025"],"price":16500,"price_min":16500,"price_max":16500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44102874267828,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DBVCTDPL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless","public_title":null,"options":["Default Title"],"price":16500,"weight":90,"compare_at_price":null,"inventory_management":"shopify","barcode":"DDS-0-55MHZ-001","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DBVCTDPL.jpg?v=1775782301","\/\/auspowers.com\/cdn\/shop\/files\/61MZW6PGDGL.jpg?v=1765097513","\/\/auspowers.com\/cdn\/shop\/files\/71vlI_0W0zL.jpg?v=1765097513","\/\/auspowers.com\/cdn\/shop\/files\/61O5L9uMi3L.jpg?v=1765097513","\/\/auspowers.com\/cdn\/shop\/files\/61v_UoIP7WL.jpg?v=1765097513","\/\/auspowers.com\/cdn\/shop\/files\/61evHPLaT8L.jpg?v=1765097513"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DBVCTDPL.jpg?v=1775782301","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless ","id":32452897243316,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DBVCTDPL.jpg?v=1775782301"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DBVCTDPL.jpg?v=1775782301","width":1500},{"alt":"[Australia - AusPower] - DDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless ","id":32452897276084,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61MZW6PGDGL.jpg?v=1765097513"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61MZW6PGDGL.jpg?v=1765097513","width":1500},{"alt":"[Australia - AusPower] - DDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless ","id":32452897308852,"position":3,"preview_image":{"aspect_ratio":0.719,"height":1924,"width":1384,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71vlI_0W0zL.jpg?v=1765097513"},"aspect_ratio":0.719,"height":1924,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71vlI_0W0zL.jpg?v=1765097513","width":1384},{"alt":"[Australia - AusPower] - DDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless ","id":32452897341620,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61O5L9uMi3L.jpg?v=1765097513"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61O5L9uMi3L.jpg?v=1765097513","width":1500},{"alt":"[Australia - AusPower] - DDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless ","id":32452897374388,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61v_UoIP7WL.jpg?v=1765097513"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61v_UoIP7WL.jpg?v=1765097513","width":1500},{"alt":"[Australia - AusPower] - DDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless ","id":32452897407156,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61evHPLaT8L.jpg?v=1765097513"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61evHPLaT8L.jpg?v=1765097513","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDDS Signal Generator Module 0-55MHz LCD Digital Display DDS Function Generator Frequency for HAM Radio VFO Wireless\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eThis is a 0~55MHz DDS Signal Generator. It is based on AD9850 chip and is very easy to operate. Supports 0~55MHz continual adjust at 1Hz step.\u003c\/li\u003e\r\n \u003cli\u003eThis generator has 78L05 voltage regulate. Input current at 200MA, input voltage 8-9V would be the ideal voltage.\u003c\/li\u003e\r\n \u003cli\u003eInput voltage of 12V can only be used for short time testing, otherwise will cause heat to board.\u003c\/li\u003e\r\n \u003cli\u003e5p\/6p connect to encoder as per photo. 7p of the middle connects to digital matrix input. 14p (8V GND) is 8V power supply from main board. If powered by main board, DDS does not need independent power supply.\u003c\/li\u003e\r\n \u003cli\u003e1~6 correspond to 6 frequency bands: (3.8,7 ,9,14,18 or 21,27 or 29) ISB, USB, CW are the three mode choices. DT is signal from main board.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
