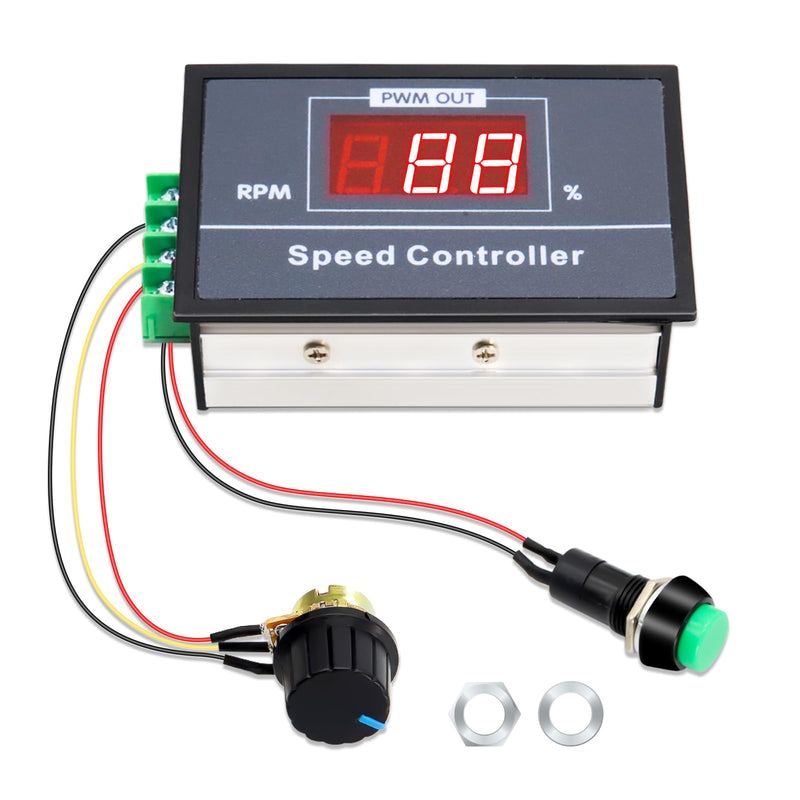

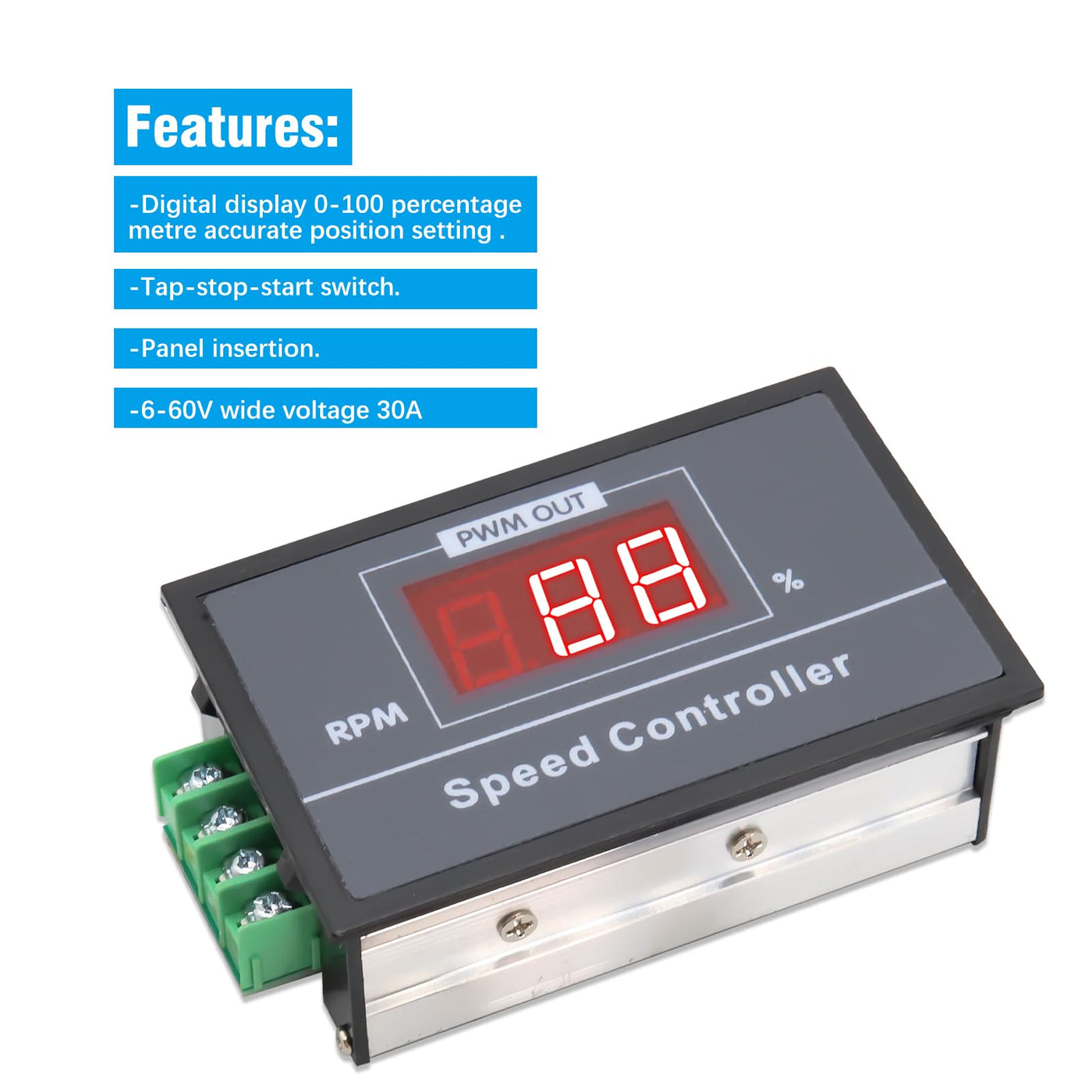

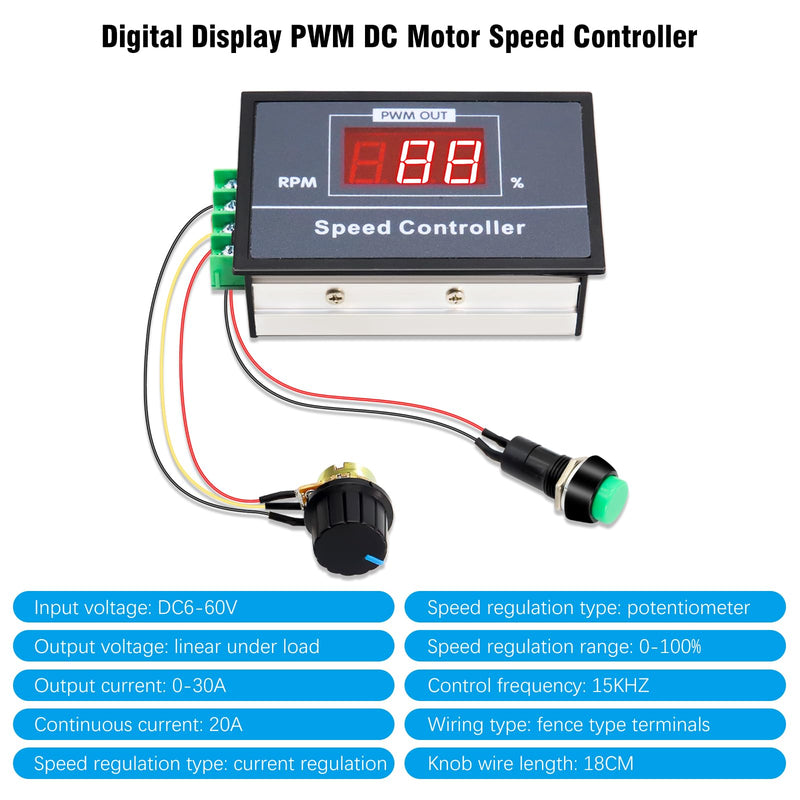

{"id":7992135450804,"title":"DC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino","handle":"dc-motor-speed-controller-binghe-12v-motor-controller-pwm-speed-controller-electric-motor-speed-controller-speed-switch-controller-dc-6v-12v-24v-48v-compatible-with-arduino","description":"\u003ch3\u003eDC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This 12 V motor controller speed controller is equipped with a\ndigital display for stable performance and can be adjusted by a potentiometer\nto display the percentage of full engine speed from 0-100. Features: Digital\ndisplay 0-100 percent meter accurate position setting. Tap Stop Start Switch\nPanel insert. 6-60V wide voltage 30A. Parameters: Input voltage: DC 6-60V.\nOutput voltage: linear under load. Output current: 0-30A. Continuous current:\n20 A. Speed control type: current control. Speed Control Type: Potentiometer\nSpeed control range: 0-100%. Control frequency: 15 kHz. Wiring type: fence\ntype clamps. Wire length of the button: 18 cm. Digital display speed: 0-100\npercentage Specification: Module size: length x width x height 96 mm x 61 mm x\n34 mm. Product net gain: 120 g. Panel opening: length x width 92 mm x 56 mm.\nProduct included: 1 x digital display PWM DC motor controller.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLED display: This DC motor speed controller is equipped with a digital display that shows the actual speed as a percentage of the maximum speed, and the data can be read through the LED display, so you can easily get accurate data.\u003c\/li\u003e\n \u003cli\u003ePrecise control: 12 V motor controller with current start\/stop switch and speed potentiometer, it can be adjusted by potentiometer to provide stable performance.\u003c\/li\u003e\n \u003cli\u003ePercentage display: displays the percentage of full engine speed of 0-100, not the actual engine speed. For example, if the maximum engine speed is 500 RPM, 100 will be displayed at 500 RPM and 50 at 250 RPM.\u003c\/li\u003e\n \u003cli\u003eVersatile voltage support: supports multiple voltage ranges, including 12 V, 24 V, 36 V, and 48 V, which makes it ideal for a variety of DC motors. 12 V motor controller with a wide range of motors and projects.\u003c\/li\u003e\n \u003cli\u003eEfficient PWM technology: Pulse-width modulation (PWM) ensures efficient motor control with minimal energy loss and maximum performance. The stepless controller allows for even speed adjustment.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T12:05:52+10:00","created_at":"2025-09-25T12:05:47+10:00","vendor":"Binghe","type":"Controllers","tags":["industryDE_Sep2025"],"price":12300,"price_min":12300,"price_max":12300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44052241514676,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DFCFC1Z7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino","public_title":null,"options":["Default Title"],"price":12300,"weight":10,"compare_at_price":null,"inventory_management":"shopify","barcode":"ae6278ff-1aed-4cd5-8cb1-7ae43ef69458","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/61LHA0-YcJL.jpg?v=1758766255","\/\/auspowers.com\/cdn\/shop\/files\/619pBI13s0L.jpg?v=1758766131","\/\/auspowers.com\/cdn\/shop\/files\/71fx4sYKJYL.jpg?v=1758766255","\/\/auspowers.com\/cdn\/shop\/files\/61aDRgnH1aL.jpg?v=1758766220","\/\/auspowers.com\/cdn\/shop\/files\/81wkOmHB_lL.jpg?v=1758766132","\/\/auspowers.com\/cdn\/shop\/files\/71X-unReFmL.jpg?v=1758766151","\/\/auspowers.com\/cdn\/shop\/files\/71vnDI9bZOL.jpg?v=1758766132"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/61LHA0-YcJL.jpg?v=1758766255","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino ","id":32197027135668,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61LHA0-YcJL.jpg?v=1758766255"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61LHA0-YcJL.jpg?v=1758766255","width":1600},{"alt":"[Australia - AusPower] - DC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino ","id":32197027168436,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/619pBI13s0L.jpg?v=1758766131"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/619pBI13s0L.jpg?v=1758766131","width":1600},{"alt":"[Australia - AusPower] - DC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino ","id":32197027201204,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71fx4sYKJYL.jpg?v=1758766255"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71fx4sYKJYL.jpg?v=1758766255","width":1600},{"alt":"[Australia - AusPower] - DC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino ","id":32197027233972,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61aDRgnH1aL.jpg?v=1758766220"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61aDRgnH1aL.jpg?v=1758766220","width":1600},{"alt":"[Australia - AusPower] - DC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino ","id":32197027266740,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81wkOmHB_lL.jpg?v=1758766132"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81wkOmHB_lL.jpg?v=1758766132","width":1600},{"alt":"[Australia - AusPower] - DC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino ","id":32197027299508,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71X-unReFmL.jpg?v=1758766151"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71X-unReFmL.jpg?v=1758766151","width":1600},{"alt":"[Australia - AusPower] - DC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino ","id":32197027332276,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71vnDI9bZOL.jpg?v=1758766132"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71vnDI9bZOL.jpg?v=1758766132","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDC Motor Speed Controller Binghe 12V Motor Controller PWM Speed Controller Electric Motor Speed Controller Speed Switch Controller DC 6V 12V 24V 48V Compatible with Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This 12 V motor controller speed controller is equipped with a\ndigital display for stable performance and can be adjusted by a potentiometer\nto display the percentage of full engine speed from 0-100. Features: Digital\ndisplay 0-100 percent meter accurate position setting. Tap Stop Start Switch\nPanel insert. 6-60V wide voltage 30A. Parameters: Input voltage: DC 6-60V.\nOutput voltage: linear under load. Output current: 0-30A. Continuous current:\n20 A. Speed control type: current control. Speed Control Type: Potentiometer\nSpeed control range: 0-100%. Control frequency: 15 kHz. Wiring type: fence\ntype clamps. Wire length of the button: 18 cm. Digital display speed: 0-100\npercentage Specification: Module size: length x width x height 96 mm x 61 mm x\n34 mm. Product net gain: 120 g. Panel opening: length x width 92 mm x 56 mm.\nProduct included: 1 x digital display PWM DC motor controller.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eLED display: This DC motor speed controller is equipped with a digital display that shows the actual speed as a percentage of the maximum speed, and the data can be read through the LED display, so you can easily get accurate data.\u003c\/li\u003e\n \u003cli\u003ePrecise control: 12 V motor controller with current start\/stop switch and speed potentiometer, it can be adjusted by potentiometer to provide stable performance.\u003c\/li\u003e\n \u003cli\u003ePercentage display: displays the percentage of full engine speed of 0-100, not the actual engine speed. For example, if the maximum engine speed is 500 RPM, 100 will be displayed at 500 RPM and 50 at 250 RPM.\u003c\/li\u003e\n \u003cli\u003eVersatile voltage support: supports multiple voltage ranges, including 12 V, 24 V, 36 V, and 48 V, which makes it ideal for a variety of DC motors. 12 V motor controller with a wide range of motors and projects.\u003c\/li\u003e\n \u003cli\u003eEfficient PWM technology: Pulse-width modulation (PWM) ensures efficient motor control with minimal energy loss and maximum performance. The stepless controller allows for even speed adjustment.\u003c\/li\u003e\n \u003c\/ul\u003e"}
