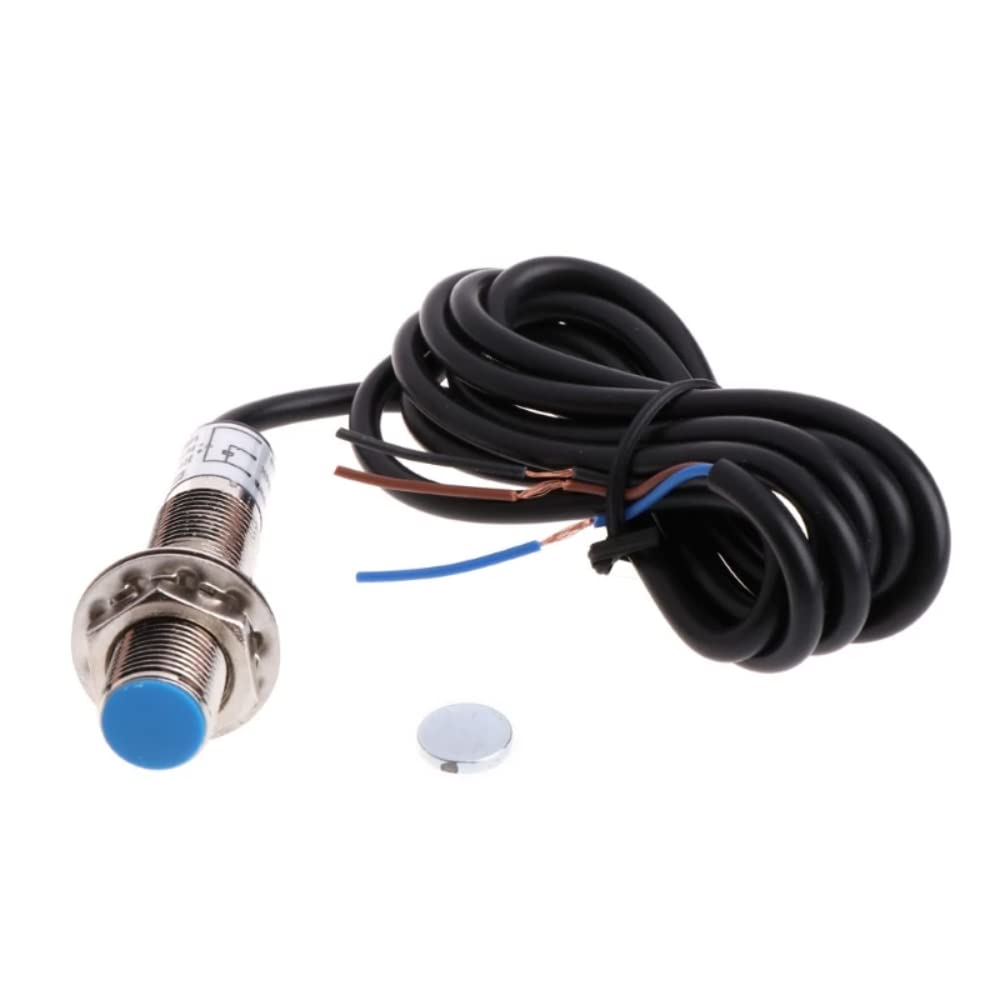

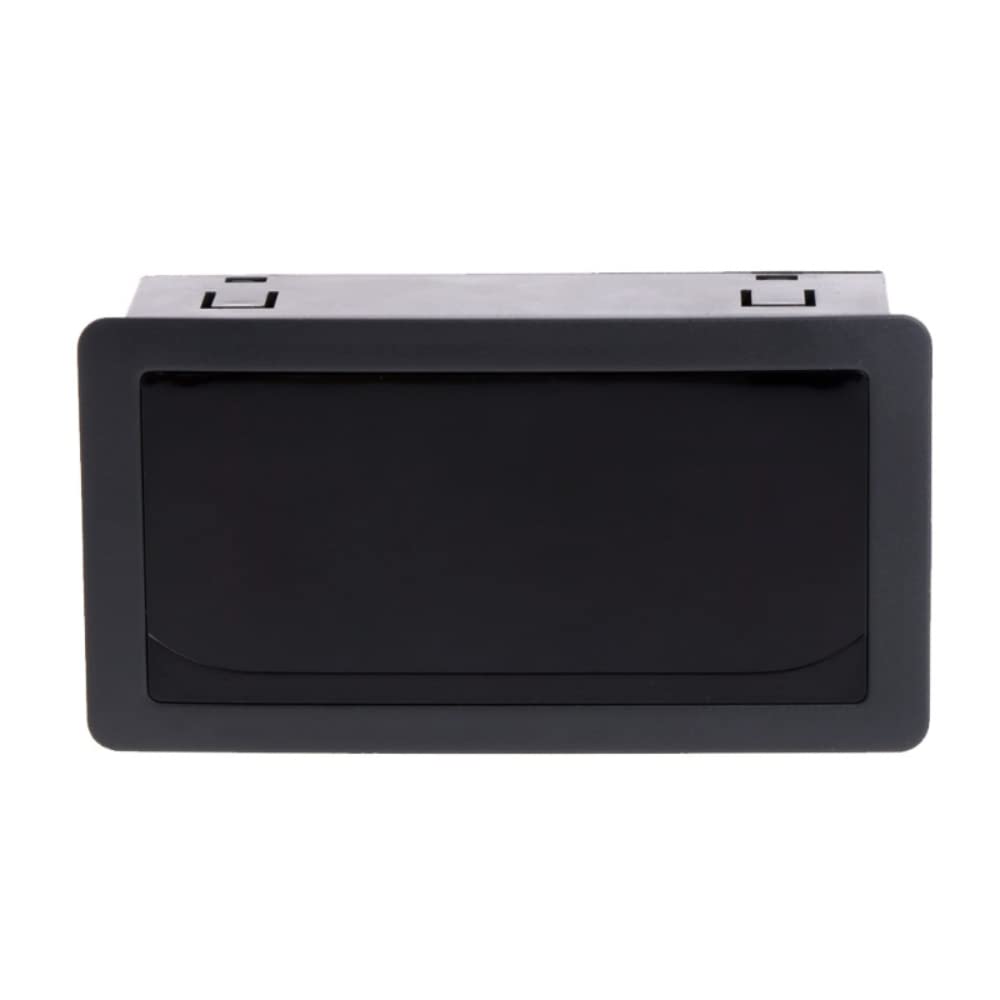

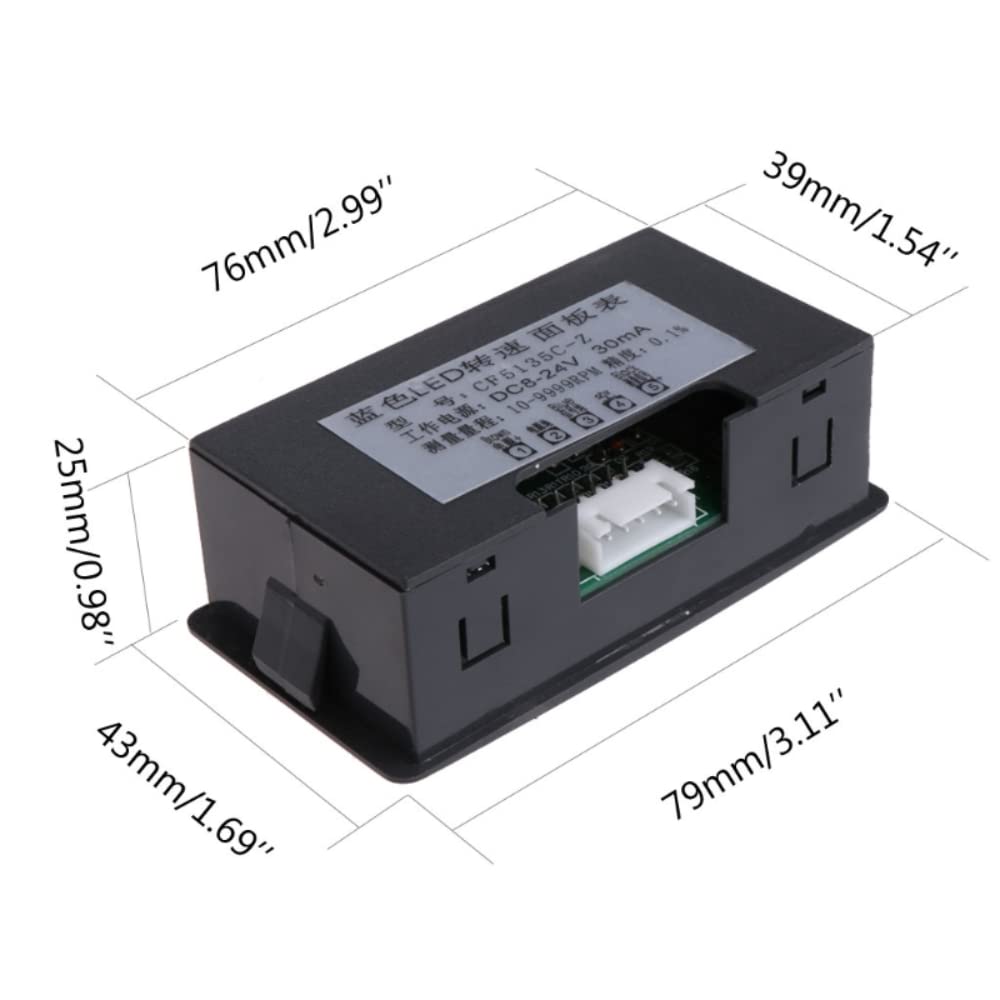

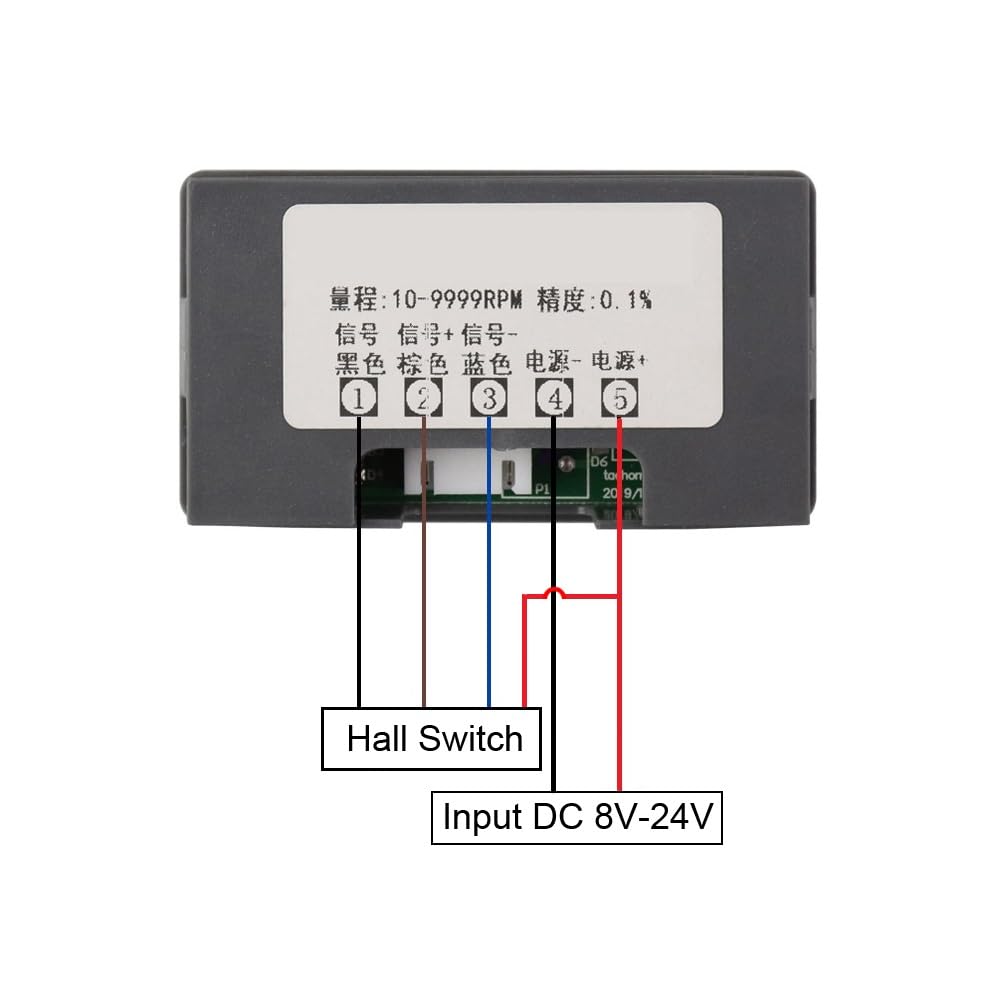

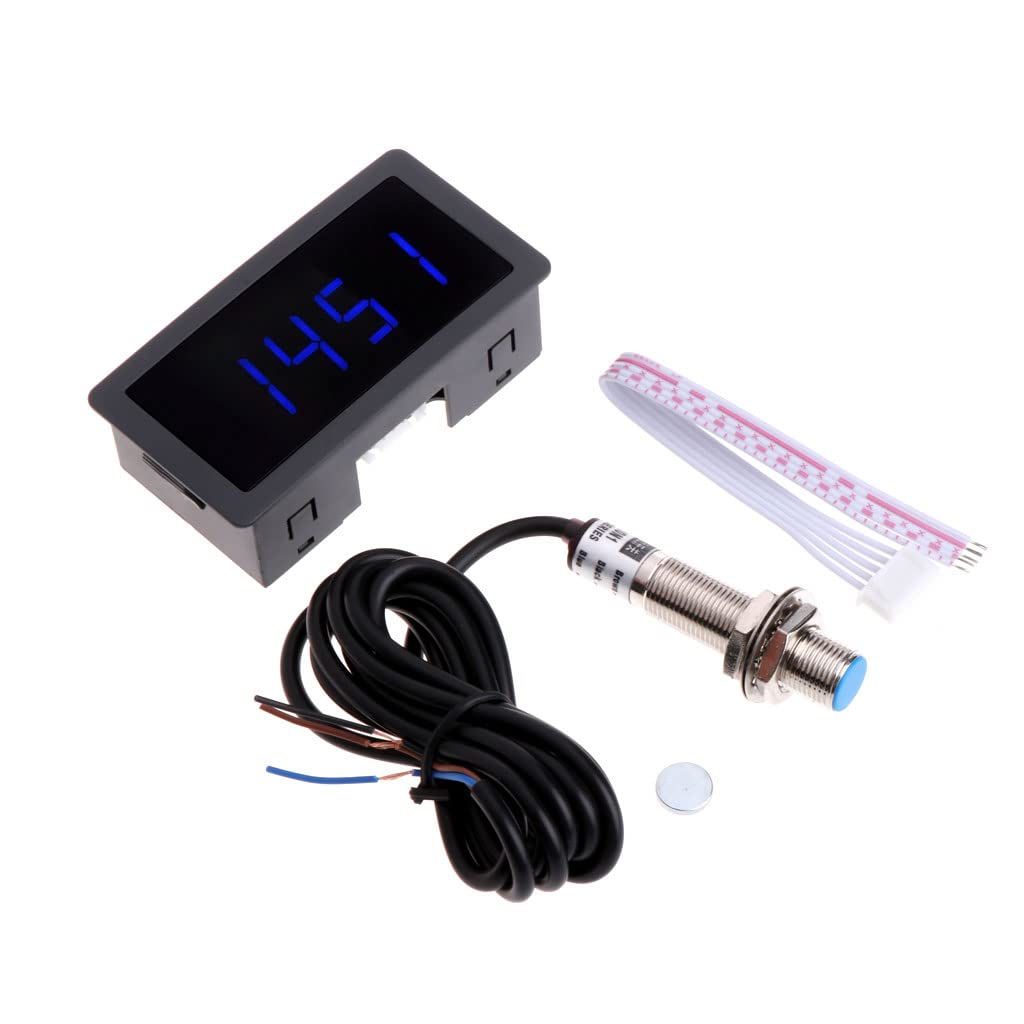

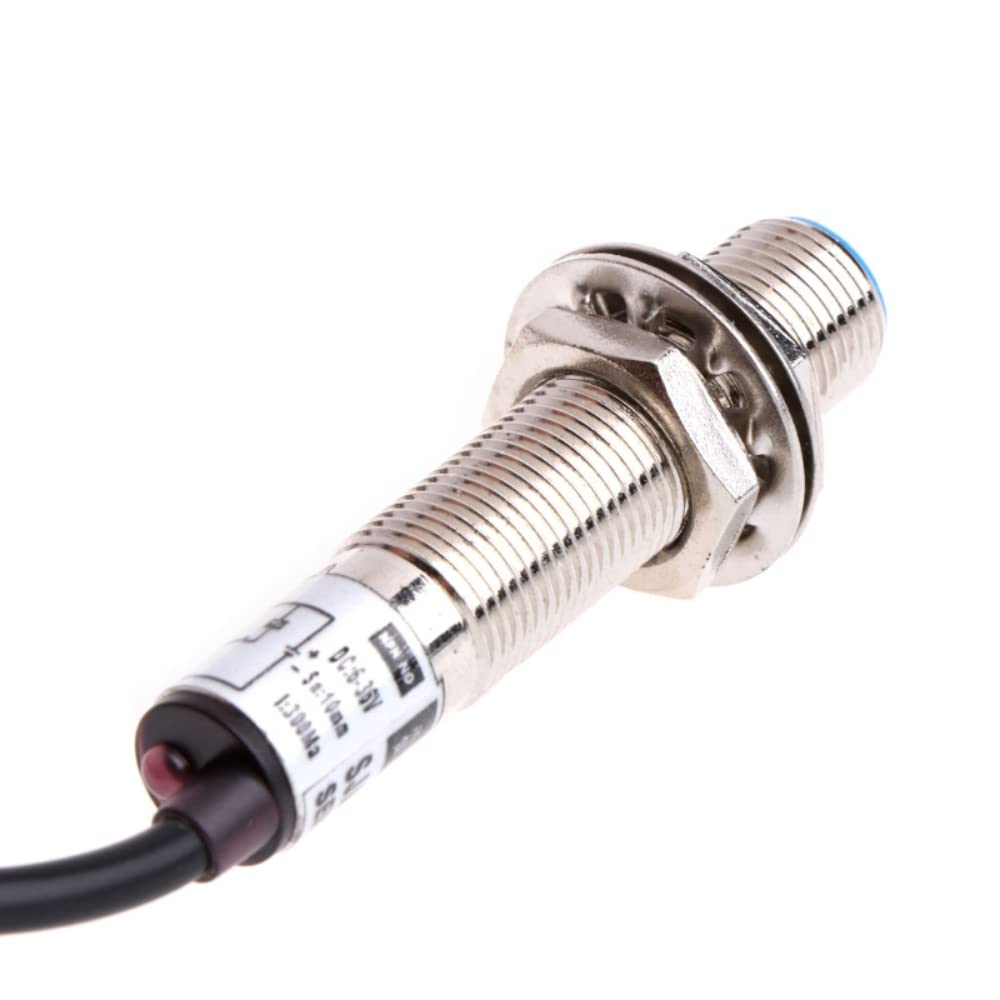

{"id":8115091308724,"title":"DC 8-24V Digital LED Tachometers Tachometer with Hall Proximity Switch Sensor NPN 10-9999RPM","handle":"dc-8-24v-digital-led-tachometers-tachometer-with-hall-proximity-switch-sensor-npn-10-9999rpm","description":"\u003ch3\u003eDC 8-24V Digital LED Tachometers Tachometer with Hall Proximity Switch Sensor NPN 10-9999RPM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Measuring accuracy: ± 0.1%. Display mode: 0.56 inch LED.\nDisplay update rate: \u0026gt; 3 times\/sec. Operating power supply: DC8-24V, 30mA,\nmeasuring range: 10-9999RPM Hall proximity switch: magnetic. Appearance size:\n80 x 42 x 25 mm \/ 3.14 x 1.65 x 0.98 inches. LED indicator (optional): red,\nblue. Weight: 80 g (red), 105 g (blue). Over range display: the first display\nshows \"1\" or \"-1\" and the last three are not displayed Precautions: 1. If\nstrong electromagnetic interference is to be avoided, it is better to use\nshielded wires or double wire wires to measure conductors 2. The counter\nsignal and the switches of the zero extinguish signal input or circuit must be\nas close as possible to the terminal of the counter to make the signal line as\nshort as possible 3. Avoid using others such as high voltage wires or power\ncables etc. with the same tube or twisted track line to avoid unnecessary\ninterference. If necessary, please use the shielded wire, shielding layer\nconnect the \"+\" of the counting terminals 4. It is not recommended to use a\nmechanical switch or micro switch as they have a relatively short service life\nand can be counted incorrectly after a long time. If you use a mechanical\nswitch or micro switch, please try to use a better quality so as not to be\nmisunderstood, and suggest a magnetic control switch Package includes: 1 x\nspeedometer. 1 x Hall NPN Proximity Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe tachometer uses the latest A\/D converter chip and reference IC with high stability. Good stability, high precision and strong anti-interference ability.\u003c\/li\u003e\n \u003cli\u003eThe outer appearance adopts standard size and is easy to install. Wide range of applications, including voltage, current and external sensor measurements for measuring temperature, pressure, displacement and other physical quantities.\u003c\/li\u003e\n \u003cli\u003eInput pulse signal: NPN \/ PNP open collector, contact switch, contactless switch, level pulse input signal voltage: low level: -30V -0.6V, high level: 4-30V\u003c\/li\u003e\n \u003cli\u003eThe LED display has two options: red and blue, four-digit precision display, display refresh rate, real-time update at a rate of more than three times per second.\u003c\/li\u003e\n \u003cli\u003eMeasuring range: Frequency: 9999 Hz, 999.9 Hz, 99.99 kHz, automatic switching selection. The automatic range selection saves the user time and effort. Efficient completion of work.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:21:10+10:00","created_at":"2026-09-01T22:00:25+10:00","vendor":"Fasizi","type":"Tachometers","tags":["industrial_DE_Aug2026"],"price":21400,"price_min":21400,"price_max":21400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374802202804,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B09Z29BGPF","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DC 8-24V Digital LED Tachometers Tachometer with Hall Proximity Switch Sensor NPN 10-9999RPM","public_title":null,"options":["Default Title"],"price":21400,"weight":80,"compare_at_price":null,"inventory_management":"shopify","barcode":"798339962693","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09Z29BGPF.jpg?v=1788264027","\/\/auspowers.com\/cdn\/shop\/files\/41UHYDnZO3L.jpg?v=1788264027","\/\/auspowers.com\/cdn\/shop\/files\/51mWURgMPWL.jpg?v=1788264027","\/\/auspowers.com\/cdn\/shop\/files\/31qD8cF-k8L.jpg?v=1788264027","\/\/auspowers.com\/cdn\/shop\/files\/51sXuZ-xyHL.jpg?v=1788264027","\/\/auspowers.com\/cdn\/shop\/files\/51HvZy9es8L.jpg?v=1788264027"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09Z29BGPF.jpg?v=1788264027","options":["Title"],"media":[{"alt":null,"id":33272063983796,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09Z29BGPF.jpg?v=1788264027"},"aspect_ratio":1.0,"height":1024,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09Z29BGPF.jpg?v=1788264027","width":1024},{"alt":null,"id":33272064016564,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41UHYDnZO3L.jpg?v=1788264027"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41UHYDnZO3L.jpg?v=1788264027","width":1000},{"alt":null,"id":33272064049332,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51mWURgMPWL.jpg?v=1788264027"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51mWURgMPWL.jpg?v=1788264027","width":1000},{"alt":null,"id":33272064082100,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31qD8cF-k8L.jpg?v=1788264027"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31qD8cF-k8L.jpg?v=1788264027","width":1000},{"alt":null,"id":33272064114868,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51sXuZ-xyHL.jpg?v=1788264027"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51sXuZ-xyHL.jpg?v=1788264027","width":1000},{"alt":null,"id":33272064147636,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51HvZy9es8L.jpg?v=1788264027"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51HvZy9es8L.jpg?v=1788264027","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDC 8-24V Digital LED Tachometers Tachometer with Hall Proximity Switch Sensor NPN 10-9999RPM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecifications: Measuring accuracy: ± 0.1%. Display mode: 0.56 inch LED.\nDisplay update rate: \u0026gt; 3 times\/sec. Operating power supply: DC8-24V, 30mA,\nmeasuring range: 10-9999RPM Hall proximity switch: magnetic. Appearance size:\n80 x 42 x 25 mm \/ 3.14 x 1.65 x 0.98 inches. LED indicator (optional): red,\nblue. Weight: 80 g (red), 105 g (blue). Over range display: the first display\nshows \"1\" or \"-1\" and the last three are not displayed Precautions: 1. If\nstrong electromagnetic interference is to be avoided, it is better to use\nshielded wires or double wire wires to measure conductors 2. The counter\nsignal and the switches of the zero extinguish signal input or circuit must be\nas close as possible to the terminal of the counter to make the signal line as\nshort as possible 3. Avoid using others such as high voltage wires or power\ncables etc. with the same tube or twisted track line to avoid unnecessary\ninterference. If necessary, please use the shielded wire, shielding layer\nconnect the \"+\" of the counting terminals 4. It is not recommended to use a\nmechanical switch or micro switch as they have a relatively short service life\nand can be counted incorrectly after a long time. If you use a mechanical\nswitch or micro switch, please try to use a better quality so as not to be\nmisunderstood, and suggest a magnetic control switch Package includes: 1 x\nspeedometer. 1 x Hall NPN Proximity Sensor\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe tachometer uses the latest A\/D converter chip and reference IC with high stability. Good stability, high precision and strong anti-interference ability.\u003c\/li\u003e\n \u003cli\u003eThe outer appearance adopts standard size and is easy to install. Wide range of applications, including voltage, current and external sensor measurements for measuring temperature, pressure, displacement and other physical quantities.\u003c\/li\u003e\n \u003cli\u003eInput pulse signal: NPN \/ PNP open collector, contact switch, contactless switch, level pulse input signal voltage: low level: -30V -0.6V, high level: 4-30V\u003c\/li\u003e\n \u003cli\u003eThe LED display has two options: red and blue, four-digit precision display, display refresh rate, real-time update at a rate of more than three times per second.\u003c\/li\u003e\n \u003cli\u003eMeasuring range: Frequency: 9999 Hz, 999.9 Hz, 99.99 kHz, automatic switching selection. The automatic range selection saves the user time and effort. Efficient completion of work.\u003c\/li\u003e\n \u003c\/ul\u003e"}
