DC 12V 100RPM Geared Motor High Torque Electric Micro Speed Reduction Gear Motor Centric Output Shaft 37 mm Diameter Gear 100 RPM

In Stock. Leaves warehouse within 2 - 3 business days

$185.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

DC 12V 100RPM Geared Motor High Torque Electric Micro Speed Reduction Gear Motor Centric Output Shaft 37 mm Diameter Gear

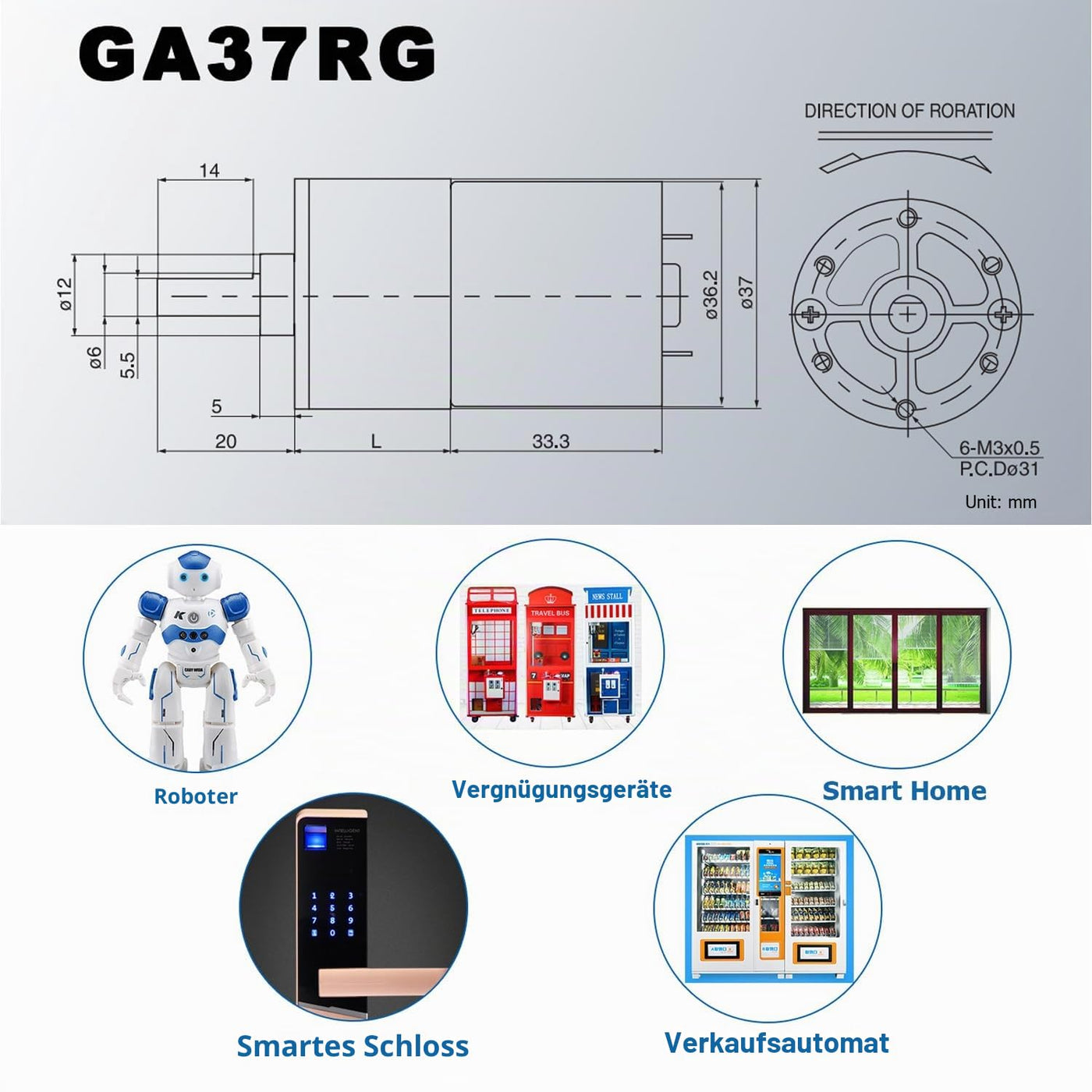

b>Specifications: Nominal voltage: DC 12 V. Reduction Ratio: 1:31.6 Idle speed: 100RPM Nominal torque: 4.5 kg. Rated current: 1.1 Amp. D shaped output shaft size: 6 x 14 mm (0.24 inches x 0.55 inches) (DL). Gear size: 37 x 24.5 mm (1.46 inches x 0.96 inches) (DL). Motor size: 36.2 x 33.3 mm (1.43 inches x 1.31 inches) (DL). Mounting hole size: M3 (not included) Application: Sales equipment, swivel camera, slot machine, money detector, coin repayment devices, automatic doors, peritoneal machine, toy motor, etc. Package contents: 1 x DC gear motor. Please note: 1. Use tolerance: pay attention to the use of voltage and current range, otherwise the motor power and engine life will decrease. Handling motors: gentle, as much as possible the use of the motor shell part. Motor wiring: red cable to positive electrode, black cable to negative pole, if reversed, the motor rotation in the opposite direction. br/> 4 Overload: As far as possible within the specified load range, prohibit engine blocking or near the standstill state for too long to run. Otherwise, the engine will burn out. Motor storage: - Storage temperature: 0℃.40℃; Storage humidity: 15% -90% RH; Avoid placing in high temperatures, high humidity and corrosive gases. 6. Engine operating temperature: 0℃-70℃

Product Features

  • All-metal gears: high temperature resistance, high abrasion resistance, strong resilience, robust and durable, effectively protect the gear motor body.

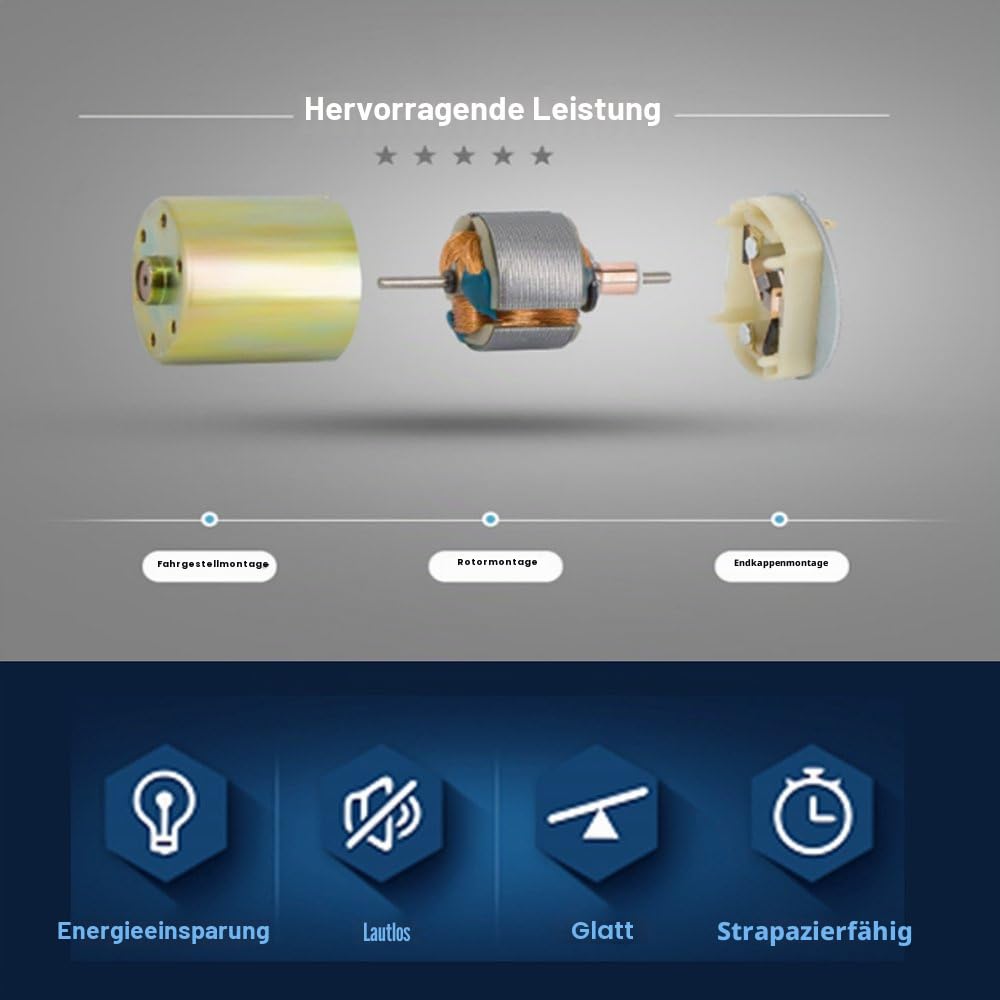

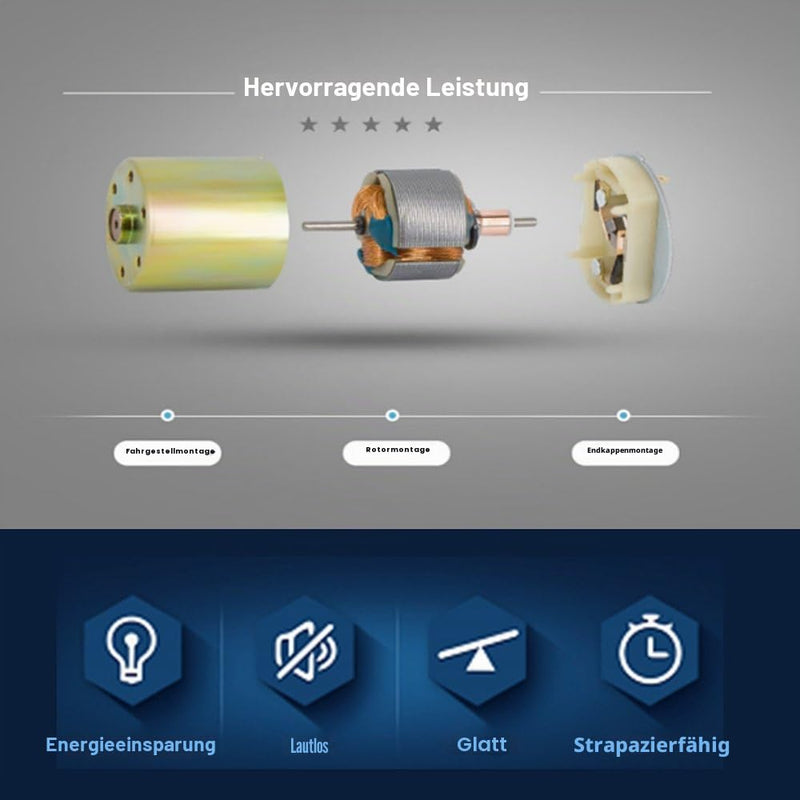

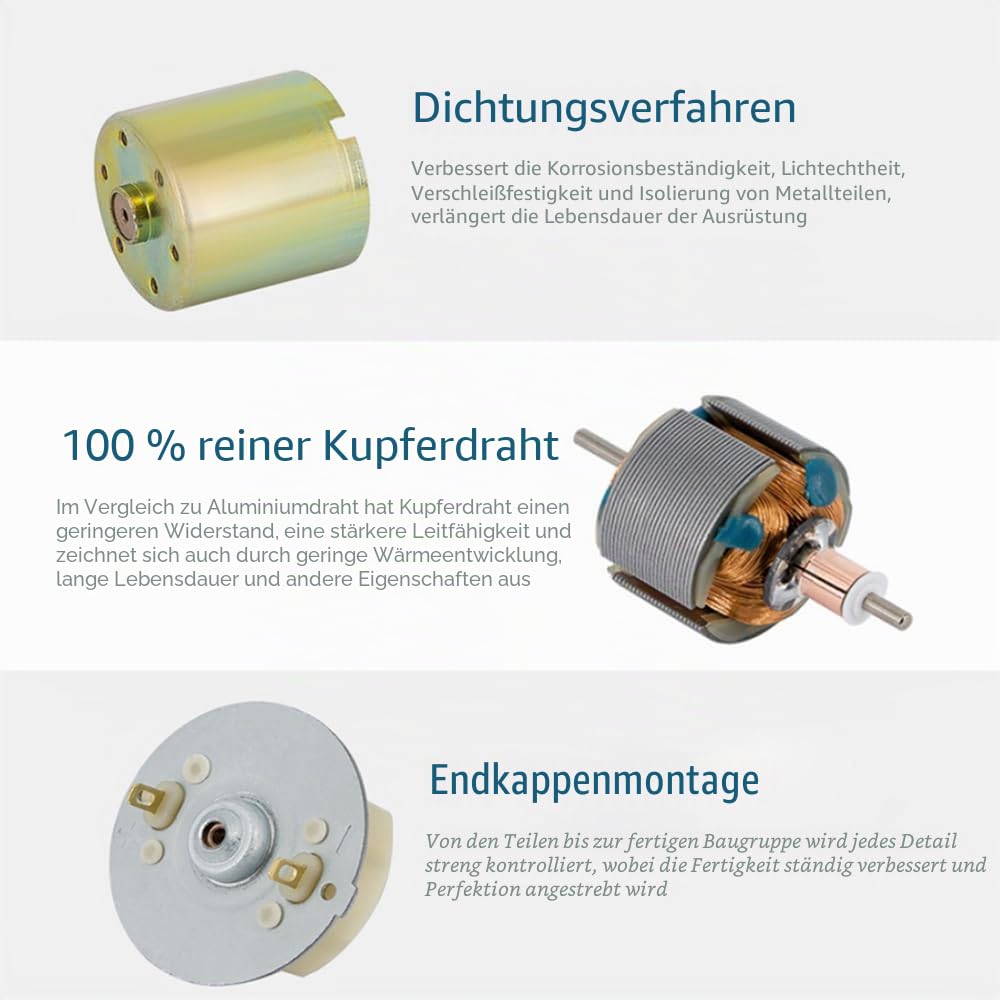

  • Pure copper wire core rotor: with precision winding technology, the geared motor performance increases immediately by 30%.
  • D Shaped Output Shaft: Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.
  • Positive negative rotation: you can also adjust the speed, but the motor speed can only be reduced, cannot be raised. Low noise and high torque, such as 10 rpm, can drive 15 kg.
  • RELIABLE GURANTEE: For quality problems, we promise 100% unconditional return service. If you need other voltage and speed, please feel free to contact us!
