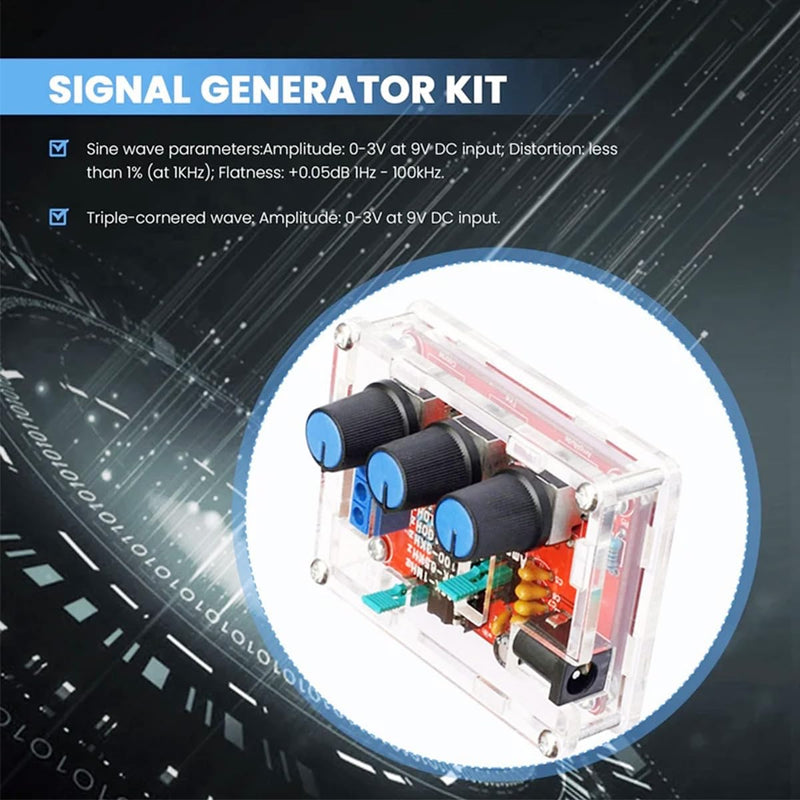

{"id":7992128733364,"title":"DAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable","handle":"daokai-xr2206-signal-generator-module-high-precision-function-signal-generator-frequency-9-12v-dc-input-sine-triangle-square-output-1hz-1mhz-adjustable-with-dc-plug-cable","description":"\u003ch3\u003eDAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: 1.High resolution, can generate sine\/triangle\/square waveforms.\nFrequency range: 1Hz-1MHz. 3.Adjustable frequency and amplitude. 4. Frequency\nadjustment features coarse tuning and fine tuning. 5.Wide power supply range,\nuse 9-12V external power or 9V battery(NOT Included). 6.All are through hole\ncomponents, easy for installation. Specifications: Amplitude: 0-3V at 9V DC\ninput. Distortion: less than 1% (at 1KHz). Flatness: +0.05dB 1Hz - 100kHz\nAmplitude: 8V (no load) at 9V DC input. Rise Time: Less than 50ns (at 1KHz)\nFall time: less than 30ns (at 1KHz). Symmetry: less than 5% (at 1KHz).\nTriangle wave: amplitude: 0-3V at 9V DC input. Linearity: less than 1% (up to\n100 KHz) 10 mA. Precautions for welding installation: 1.The components are\nwelding the front board, from low to high principles, namely the first low\nwelding components, such as, capacitor, resistor, diode, etc. 2. Welding IC\nsocket, terminal blocks, finally power socket, adjustable potentiometer.\n3.Insert the power supply, power supply for 5.5 x 2.1 port, inside and outside\nis negative polarity;Fitting for 9-12 v power supply voltage, and the waveform\nmay not be stable for more than 12V. Package includes: 1 x XR2206 signal\ngenerator module. 1 x DC male cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhat it does: The XR2206 signal generator can produce different waveform signals, such as Sine waves, triangular waves, rectangular waves, etc. Can be used for testing and measuring different circuits.\u003c\/li\u003e\n \u003cli\u003eGood precision: The XR2206 function signal generator is precise and has a transparent housing shell for good installation.\u003c\/li\u003e\n \u003cli\u003eSPECIFICATION: Power supply: 9-12V DC input; Waveforms: rectangle, sine, triangle; Impedance: 600ohm + 10%; Frequency: 1Hz-1MHz.\u003c\/li\u003e\n \u003cli\u003eSine Wave: Amplitude: 0-3V @ 9V DC input; Distortion: less than 1% (at 1kHz); Flatness: +0.05dB 1Hz - 100KHz\u003c\/li\u003e\n \u003cli\u003eSquare wave: Amplitude: 8V (without load) at 9V DC input; Rise time: less than 50ns (at 1kHz); Drop time: less than 30ns (at 1kHz); Symmetry: less than 5% (at 1kHz).\u003c\/li\u003e\n \u003cli\u003eTRIANGLE SHAFT: Amplitude: 0-3V @ 9V DC input; Linearity: less than 1% (up to 100KHz) 10mA\u003c\/li\u003e\n \u003cli\u003eProducts included: 1 x XR2206 signal generator module; 1 x DC plug cable.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T11:50:20+10:00","created_at":"2025-09-25T11:50:16+10:00","vendor":"DAOKAI","type":"Function Generators","tags":["industryDE_Sep2025"],"price":10700,"price_min":10700,"price_max":10700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44052203536564,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0CP8Y3NLW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable","public_title":null,"options":["Default Title"],"price":10700,"weight":82,"compare_at_price":null,"inventory_management":"shopify","barcode":"JA-DA-025","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/61f47IKu17L.jpg?v=1758765344","\/\/auspowers.com\/cdn\/shop\/files\/61UHe1n7ouL.jpg?v=1758765345","\/\/auspowers.com\/cdn\/shop\/files\/71Hde73XtcL.jpg?v=1758765289","\/\/auspowers.com\/cdn\/shop\/files\/61qceRGtJ_L.jpg?v=1758765288","\/\/auspowers.com\/cdn\/shop\/files\/61mlmuP-kPL.jpg?v=1758765289","\/\/auspowers.com\/cdn\/shop\/files\/61-Qs-NDgFL.jpg?v=1758765289","\/\/auspowers.com\/cdn\/shop\/files\/71nVPNEbmLL.jpg?v=1758765225"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/61f47IKu17L.jpg?v=1758765344","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable ","id":32196985847988,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61f47IKu17L.jpg?v=1758765344"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61f47IKu17L.jpg?v=1758765344","width":1200},{"alt":"[Australia - AusPower] - DAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable ","id":32196985880756,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61UHe1n7ouL.jpg?v=1758765345"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61UHe1n7ouL.jpg?v=1758765345","width":1200},{"alt":"[Australia - AusPower] - DAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable ","id":32196985913524,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Hde73XtcL.jpg?v=1758765289"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Hde73XtcL.jpg?v=1758765289","width":1200},{"alt":"[Australia - AusPower] - DAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable ","id":32196985946292,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61qceRGtJ_L.jpg?v=1758765288"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61qceRGtJ_L.jpg?v=1758765288","width":1200},{"alt":"[Australia - AusPower] - DAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable ","id":32196985979060,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61mlmuP-kPL.jpg?v=1758765289"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61mlmuP-kPL.jpg?v=1758765289","width":1200},{"alt":"[Australia - AusPower] - DAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable ","id":32196986011828,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61-Qs-NDgFL.jpg?v=1758765289"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61-Qs-NDgFL.jpg?v=1758765289","width":1200},{"alt":"[Australia - AusPower] - DAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable ","id":32196986044596,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71nVPNEbmLL.jpg?v=1758765225"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71nVPNEbmLL.jpg?v=1758765225","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDAOKAI XR2206 Signal Generator Module, High Precision Function Signal Generator, Frequency 9-12V DC, Input Sine\/Triangle\/Square, Output 1Hz-1MHz, Adjustable with DC Plug Cable\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eFeatures: 1.High resolution, can generate sine\/triangle\/square waveforms.\nFrequency range: 1Hz-1MHz. 3.Adjustable frequency and amplitude. 4. Frequency\nadjustment features coarse tuning and fine tuning. 5.Wide power supply range,\nuse 9-12V external power or 9V battery(NOT Included). 6.All are through hole\ncomponents, easy for installation. Specifications: Amplitude: 0-3V at 9V DC\ninput. Distortion: less than 1% (at 1KHz). Flatness: +0.05dB 1Hz - 100kHz\nAmplitude: 8V (no load) at 9V DC input. Rise Time: Less than 50ns (at 1KHz)\nFall time: less than 30ns (at 1KHz). Symmetry: less than 5% (at 1KHz).\nTriangle wave: amplitude: 0-3V at 9V DC input. Linearity: less than 1% (up to\n100 KHz) 10 mA. Precautions for welding installation: 1.The components are\nwelding the front board, from low to high principles, namely the first low\nwelding components, such as, capacitor, resistor, diode, etc. 2. Welding IC\nsocket, terminal blocks, finally power socket, adjustable potentiometer.\n3.Insert the power supply, power supply for 5.5 x 2.1 port, inside and outside\nis negative polarity;Fitting for 9-12 v power supply voltage, and the waveform\nmay not be stable for more than 12V. Package includes: 1 x XR2206 signal\ngenerator module. 1 x DC male cable\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhat it does: The XR2206 signal generator can produce different waveform signals, such as Sine waves, triangular waves, rectangular waves, etc. Can be used for testing and measuring different circuits.\u003c\/li\u003e\n \u003cli\u003eGood precision: The XR2206 function signal generator is precise and has a transparent housing shell for good installation.\u003c\/li\u003e\n \u003cli\u003eSPECIFICATION: Power supply: 9-12V DC input; Waveforms: rectangle, sine, triangle; Impedance: 600ohm + 10%; Frequency: 1Hz-1MHz.\u003c\/li\u003e\n \u003cli\u003eSine Wave: Amplitude: 0-3V @ 9V DC input; Distortion: less than 1% (at 1kHz); Flatness: +0.05dB 1Hz - 100KHz\u003c\/li\u003e\n \u003cli\u003eSquare wave: Amplitude: 8V (without load) at 9V DC input; Rise time: less than 50ns (at 1kHz); Drop time: less than 30ns (at 1kHz); Symmetry: less than 5% (at 1kHz).\u003c\/li\u003e\n \u003cli\u003eTRIANGLE SHAFT: Amplitude: 0-3V @ 9V DC input; Linearity: less than 1% (up to 100KHz) 10mA\u003c\/li\u003e\n \u003cli\u003eProducts included: 1 x XR2206 signal generator module; 1 x DC plug cable.\u003c\/li\u003e\n \u003c\/ul\u003e"}
