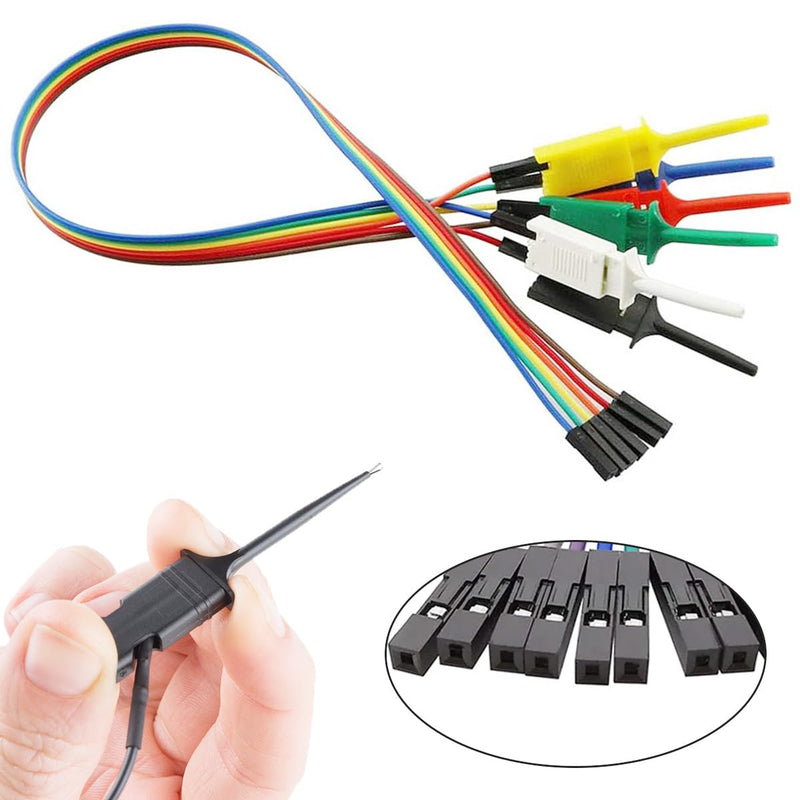

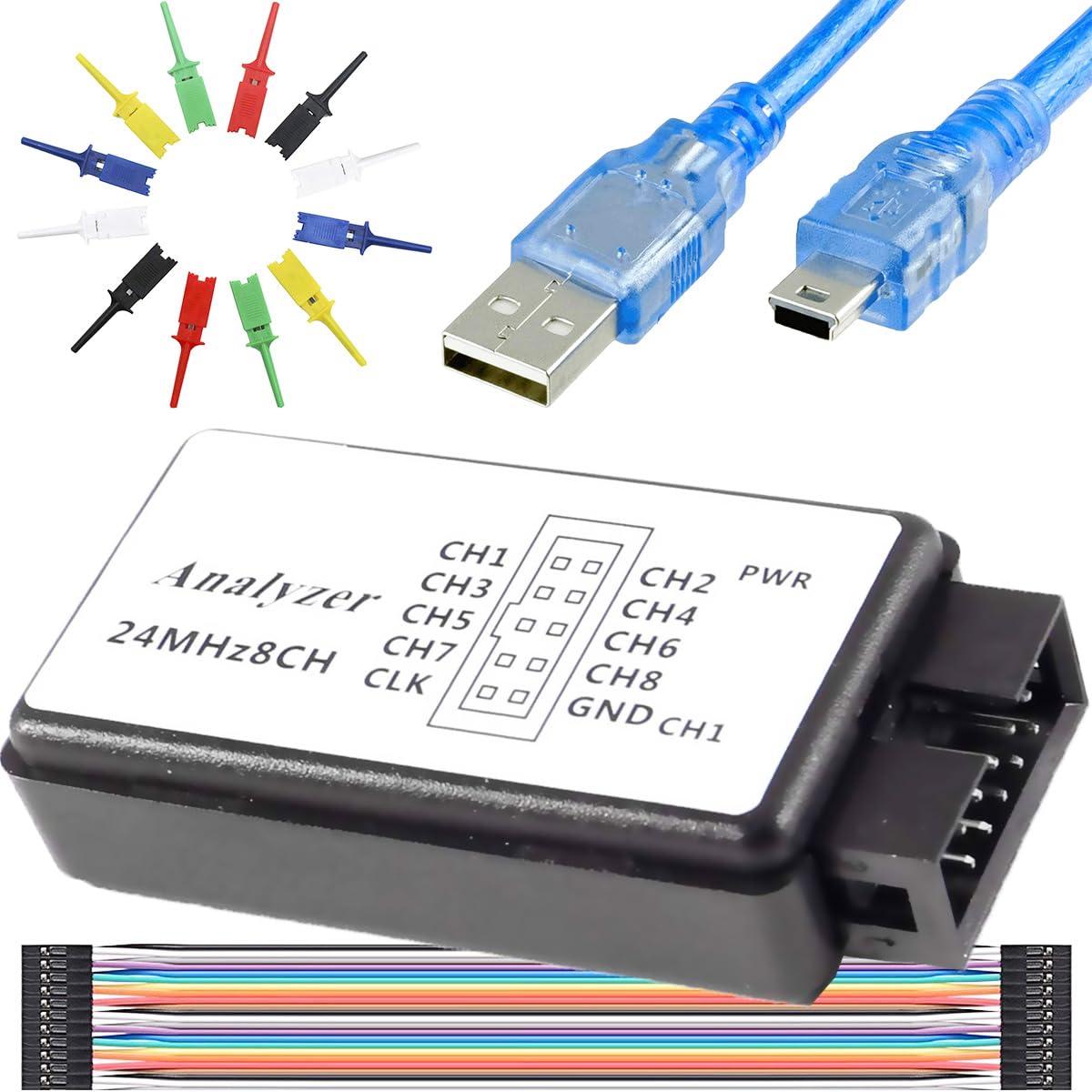

{"id":7992126668980,"title":"DAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM","handle":"daokai-usb-logic-analyzer-device-kit-usb-cable-24mhz-8-channels-24mhz-8-channels-uart-iic-spi-debug-with-6-colors-test-hook-clip-kit-mini-to-usb-cable-dupont-cable-for-arduino-fpga-m100-scm","description":"\u003ch3\u003eDAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis item is an inexpensive logic analyzer designed to be compatible with\nLogic Analyzer software. Specifications: Works with 5V, 3.3V, 2.5V, 2.0V\nsystems.May work with 1.8V but not recommended. Input impedance: 1Mohm || 10pF\n(typical, approximate). Crystal: +\/-20ppm, 24MHz Error\/Accuracy: pulse-width\nmeasurement: +\/- 42ns (at 24MHz). Voltage range: Input voltage range: -0.5V to\n5.25V Input Low Voltage: -0.5V to 0.8V Input high voltage: 2.0V to 5.25V.\nInput impedance: 1Mohm || 10pF (typical, approximate) Package includes: 1 x\nlogic analyser. 1 x mini to USB cable. 22 x Female to female cable 12 x test\nhook clips\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhat it does: the logic analyzer is mainly used to determine the timing. It collects and displays digital signals and compares signals at different voltages to determine the timing of the signal to be tested. With a logic analyzer, you can easily set the signal trigger conditions, detect signal interference interference and perform a complete analysis of the communication protocol.\u003c\/li\u003e\n \u003cli\u003eFeatures: This item is a cost-effective logic analyzer designed to be compatible with Logic Analyzer software.\u003c\/li\u003e\n \u003cli\u003eAutomatic analysis: by debugging UART, SPI, IIC and other communications, you get double the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.\u003c\/li\u003e\n \u003cli\u003eChannel value: a total of 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, over 1.5V is considered high.\u003c\/li\u003e\n \u003cli\u003eSample rate: 24 MHz, can be 24 MHz. 16 MHz, 12 MHz, 8 MHz, 4 MHz, 2 MHz, 1 MHz, 500 kHz, 250 kHz, 200 kHz, 100 kHz, 50 kHz, 25 kHz.\u003c\/li\u003e\n \u003cli\u003eApplicable for various occasions: the logical sampling rate of each of the 8 channels is 24 m\/s, generally about 10 m, which is sufficient for different occasions.\u003c\/li\u003e\n \u003cli\u003eProducts included: 1 x logic analyzer, 1 x mini to USB cable, 22 x female-to-female cables, 12 x test hook clip.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-25T11:45:37+10:00","created_at":"2025-09-25T11:45:32+10:00","vendor":"DAOKAI","type":"Logic Analysers","tags":["industryDE_Sep2025"],"price":11800,"price_min":11800,"price_max":11800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44052191903924,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0CP952357","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM","public_title":null,"options":["Default Title"],"price":11800,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":"JA-DA-026","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/6155od8hdKL.jpg?v=1758764922","\/\/auspowers.com\/cdn\/shop\/files\/61iBSuL296L.jpg?v=1758765043","\/\/auspowers.com\/cdn\/shop\/files\/61Pbay8ZyqL.jpg?v=1758764993","\/\/auspowers.com\/cdn\/shop\/files\/61mb0Ik3oTL.jpg?v=1758764993","\/\/auspowers.com\/cdn\/shop\/files\/61zlH5tgyVL.jpg?v=1758765043","\/\/auspowers.com\/cdn\/shop\/files\/61hxMwKobcL.jpg?v=1758765044","\/\/auspowers.com\/cdn\/shop\/files\/71Iqp-fzS6L.jpg?v=1758765043"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/6155od8hdKL.jpg?v=1758764922","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM ","id":32196961108148,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/6155od8hdKL.jpg?v=1758764922"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/6155od8hdKL.jpg?v=1758764922","width":1200},{"alt":"[Australia - AusPower] - DAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM ","id":32196961140916,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61iBSuL296L.jpg?v=1758765043"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61iBSuL296L.jpg?v=1758765043","width":1200},{"alt":"[Australia - AusPower] - DAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM ","id":32196961173684,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Pbay8ZyqL.jpg?v=1758764993"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Pbay8ZyqL.jpg?v=1758764993","width":1200},{"alt":"[Australia - AusPower] - DAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM ","id":32196961206452,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61mb0Ik3oTL.jpg?v=1758764993"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61mb0Ik3oTL.jpg?v=1758764993","width":1200},{"alt":"[Australia - AusPower] - DAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM ","id":32196961239220,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61zlH5tgyVL.jpg?v=1758765043"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61zlH5tgyVL.jpg?v=1758765043","width":1200},{"alt":"[Australia - AusPower] - DAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM ","id":32196961271988,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61hxMwKobcL.jpg?v=1758765044"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61hxMwKobcL.jpg?v=1758765044","width":1200},{"alt":"[Australia - AusPower] - DAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM ","id":32196961304756,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Iqp-fzS6L.jpg?v=1758765043"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Iqp-fzS6L.jpg?v=1758765043","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDAOKAI USB Logic Analyzer Device Kit USB Cable 24MHz 8 Channels 24MHz 8 Channels UART IIC SPI Debug with 6 Colors Test Hook Clip Kit Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis item is an inexpensive logic analyzer designed to be compatible with\nLogic Analyzer software. Specifications: Works with 5V, 3.3V, 2.5V, 2.0V\nsystems.May work with 1.8V but not recommended. Input impedance: 1Mohm || 10pF\n(typical, approximate). Crystal: +\/-20ppm, 24MHz Error\/Accuracy: pulse-width\nmeasurement: +\/- 42ns (at 24MHz). Voltage range: Input voltage range: -0.5V to\n5.25V Input Low Voltage: -0.5V to 0.8V Input high voltage: 2.0V to 5.25V.\nInput impedance: 1Mohm || 10pF (typical, approximate) Package includes: 1 x\nlogic analyser. 1 x mini to USB cable. 22 x Female to female cable 12 x test\nhook clips\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eWhat it does: the logic analyzer is mainly used to determine the timing. It collects and displays digital signals and compares signals at different voltages to determine the timing of the signal to be tested. With a logic analyzer, you can easily set the signal trigger conditions, detect signal interference interference and perform a complete analysis of the communication protocol.\u003c\/li\u003e\n \u003cli\u003eFeatures: This item is a cost-effective logic analyzer designed to be compatible with Logic Analyzer software.\u003c\/li\u003e\n \u003cli\u003eAutomatic analysis: by debugging UART, SPI, IIC and other communications, you get double the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.\u003c\/li\u003e\n \u003cli\u003eChannel value: a total of 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, over 1.5V is considered high.\u003c\/li\u003e\n \u003cli\u003eSample rate: 24 MHz, can be 24 MHz. 16 MHz, 12 MHz, 8 MHz, 4 MHz, 2 MHz, 1 MHz, 500 kHz, 250 kHz, 200 kHz, 100 kHz, 50 kHz, 25 kHz.\u003c\/li\u003e\n \u003cli\u003eApplicable for various occasions: the logical sampling rate of each of the 8 channels is 24 m\/s, generally about 10 m, which is sufficient for different occasions.\u003c\/li\u003e\n \u003cli\u003eProducts included: 1 x logic analyzer, 1 x mini to USB cable, 22 x female-to-female cables, 12 x test hook clip.\u003c\/li\u003e\n \u003c\/ul\u003e"}
