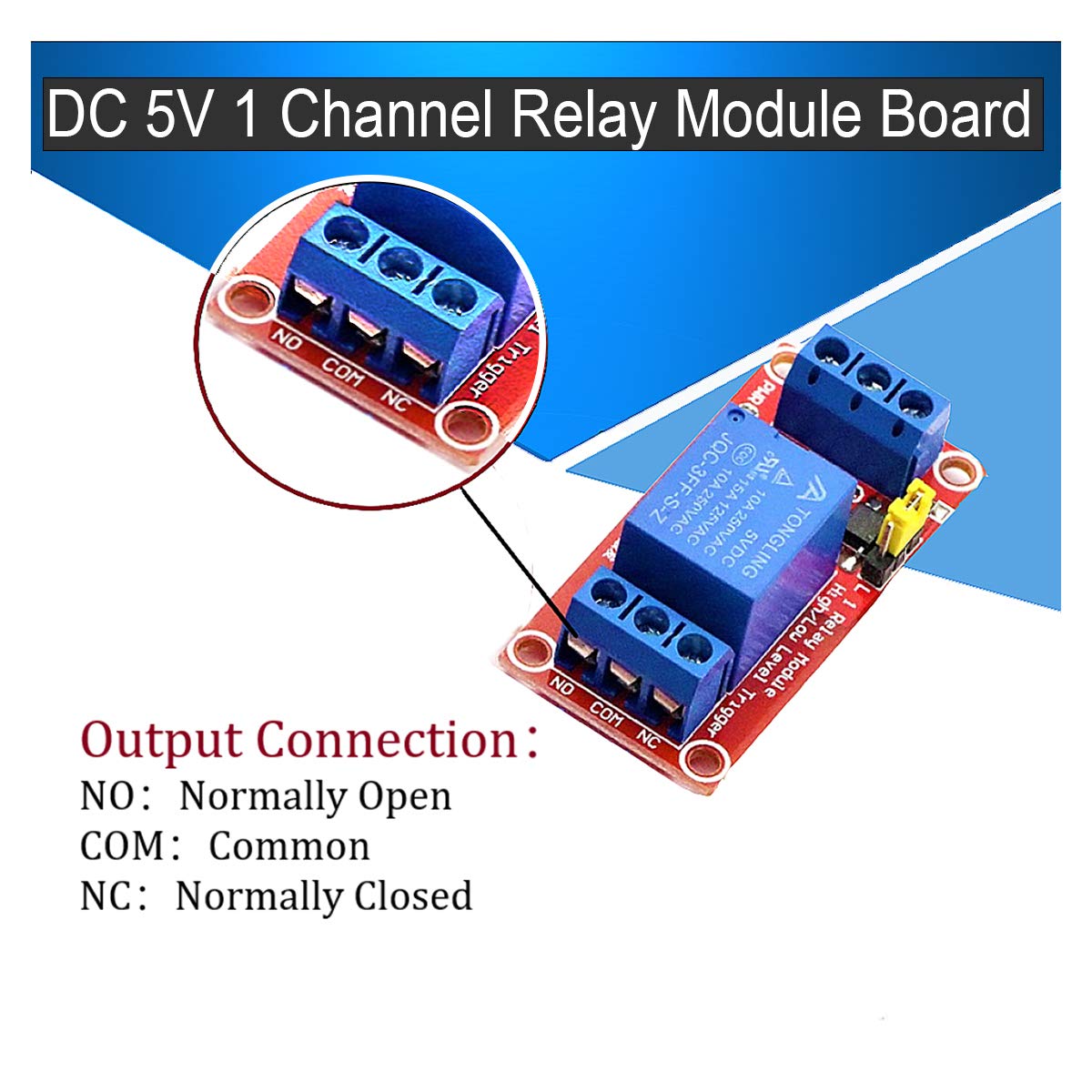

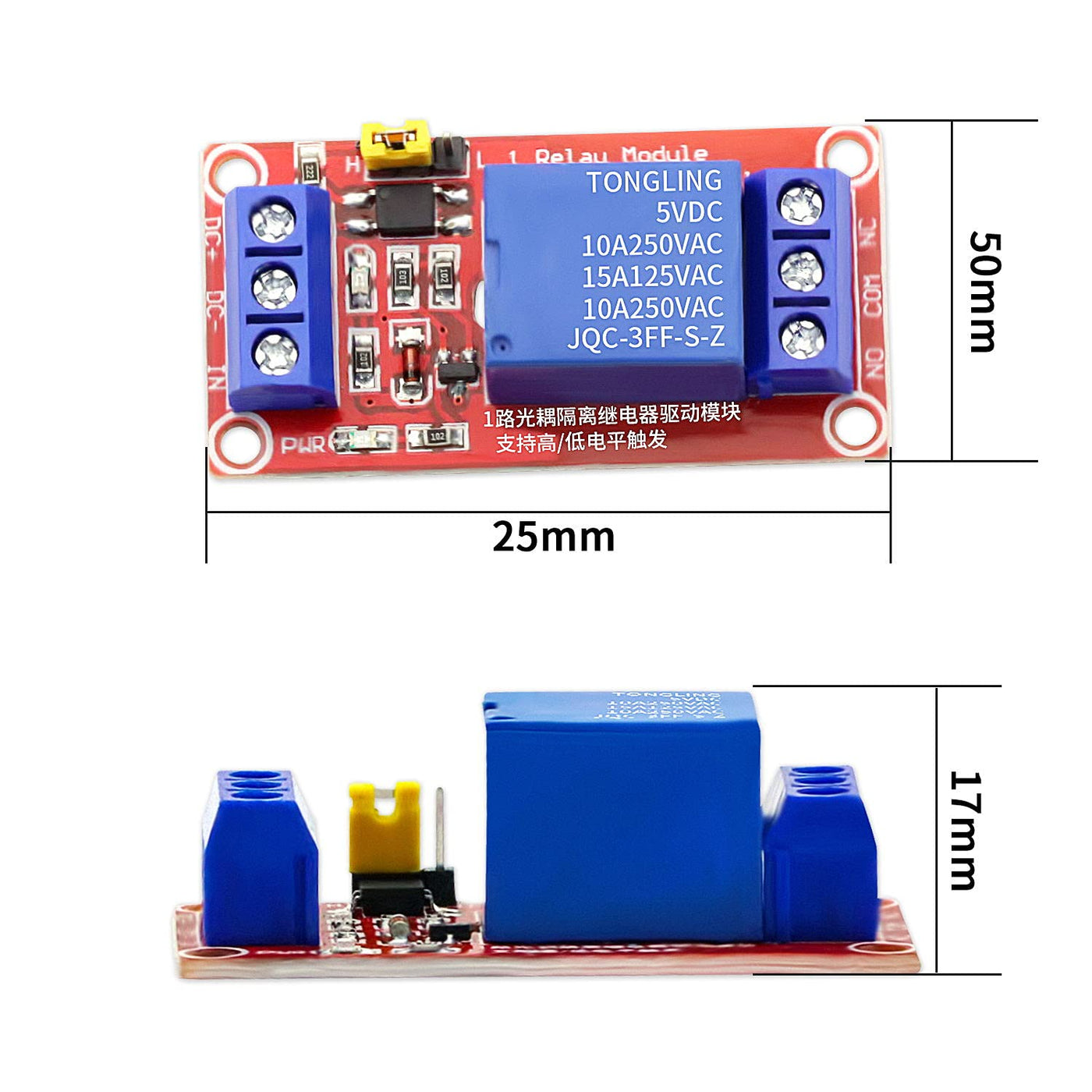

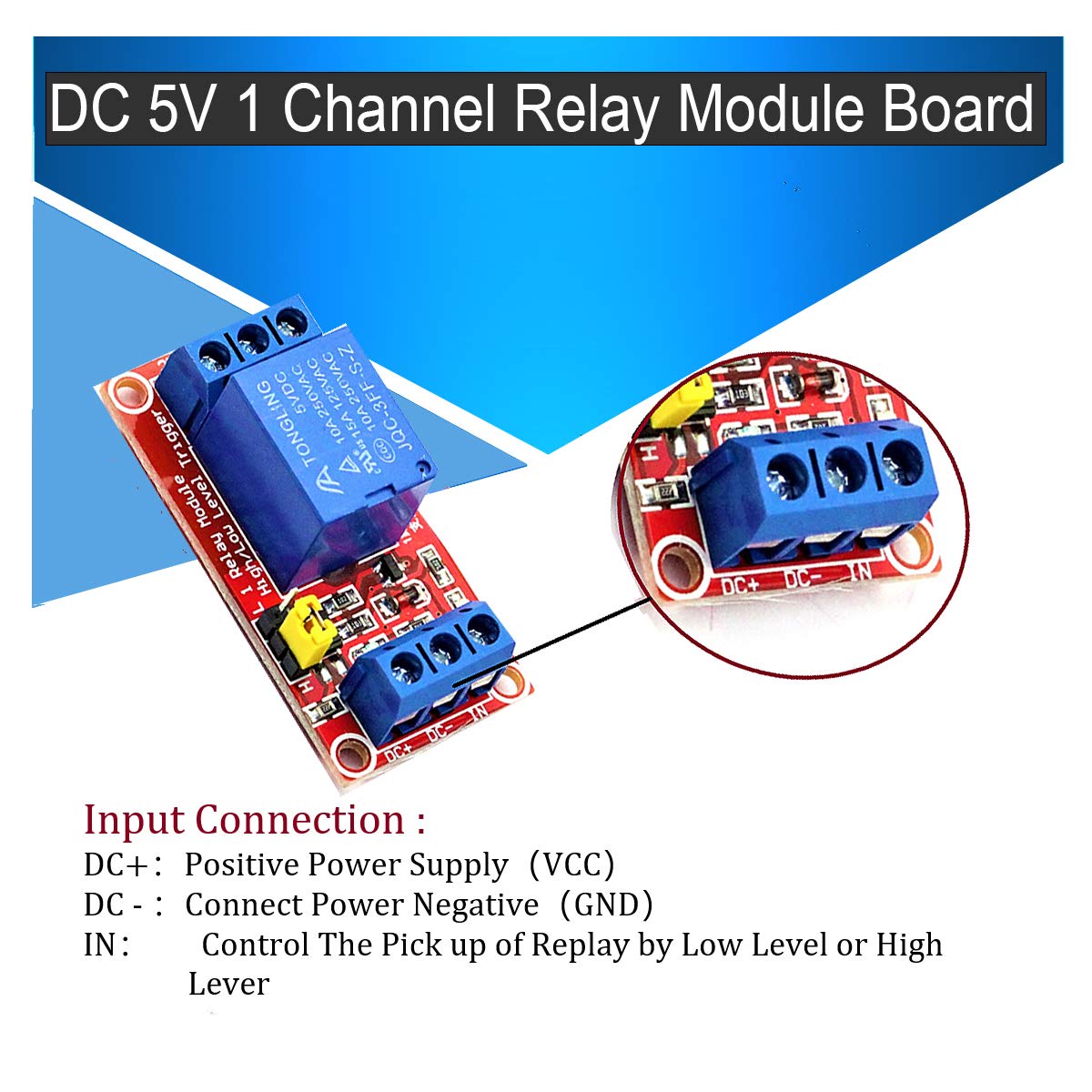

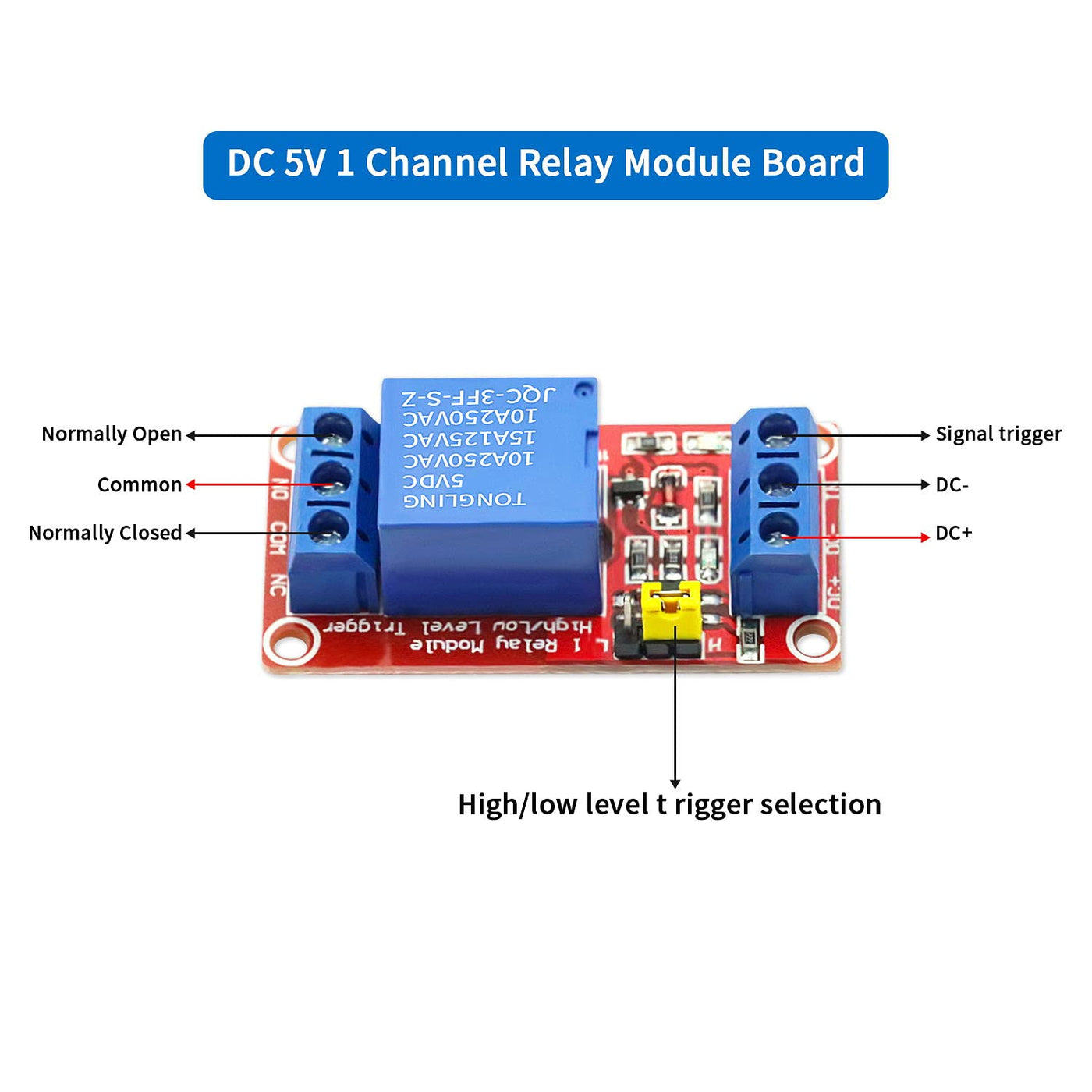

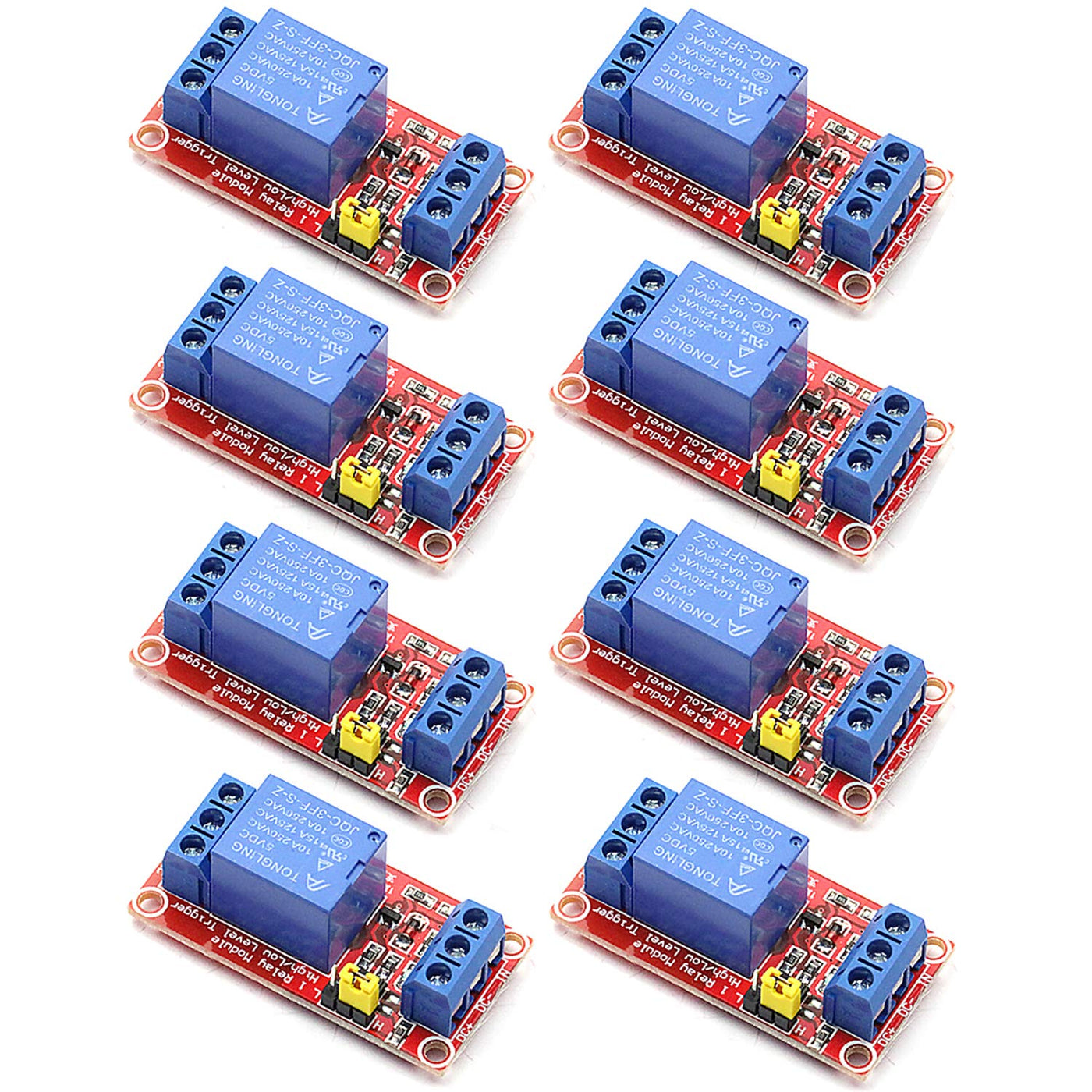

{"id":7169109655732,"title":"DaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino","handle":"dafurui-8pcs-1-channel-5v-relay-module-board-shield-with-optocoupler-support-high-low-level-trigger-compatible-relay-for-arduino","description":"\u003ch3\u003eDaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more Module description: Maximum load of normally\nopen interface: AC 250V\/10A, DC 30V\/10A;Adopt SMD optocoupler isolation,\nstrong driving ability, stable performance; trigger current 5mA Module working\nvoltage: 5V\/12V\/24V The module can be triggered by a jumper to set high or low\nlevel; Fault-tolerant design, even if the control line is broken, the relay\nwill not act;Power indicator (green), relay status indicator (red) The\ninterface design is user-friendly, all interfaces can be directly connected\nthrough the terminal block and it is convenient There are 4 fixing bolt holes,\nthe holes are 3.1mm, and the spacing is 44.5mm20.5mm Material: Circuit\nboard、Control signal: TTL NO: normally open relay interface; the relay is\nsuspended before the suction, and it is short-circuited with COM after the\nsuction.COM: Common Interface RelaysNC: normally closed relay interface; and\nthe relay is shorted to COM before the suction is closed. Read more The relay\nmodule can be used to control various loads, such as electromagnetic relays,\nLED lights, drivers, motors, electric motors, straws, etc. Electric motor LED\nLED screen Electric heaters Read more 8Pcs DC 5V 1 Channel Relay Module Board\nShield with Optocoupler 8Pcs DC 12V 1 Channel Relay Module Board Shield with\nOptocoupler 4Pcs DC 5V 2 Channel Relay Module Board Shield with Optocoupler\n4Pcs DC 12V 2 Channel Relay Module Board Shield with Optocoupler 2Pcs DC 5V 4\nChannel Relay Module Board Shield with Optocoupler High quality ✓ ✓ ✓ ✓ ✓\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Relay Board Maximum load: AC 250V\/10A, DC 30V\/10A With power and relay action indicator.\u003c\/li\u003e\n \u003cli\u003eUsing SMD optocoupler isolation, strong driving capability, stable performance.\u003c\/li\u003e\n \u003cli\u003eThe module can be set high or low triggered by jumper.\u003c\/li\u003e\n \u003cli\u003eFault-tolerant design, even if the control line is broken, the relay will not move.\u003c\/li\u003e\n \u003cli\u003eAll interfaces can be directly wired out through the terminals.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-25T18:57:25+10:00","created_at":"2022-06-25T18:57:33+10:00","vendor":"DaFuRui","type":"Relays","tags":["industrial"],"price":15500,"price_min":15500,"price_max":15500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41607788036276,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07S48BVK5","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"DaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino","public_title":null,"options":["Default Title"],"price":15500,"weight":150,"compare_at_price":null,"inventory_management":null,"barcode":"0738426125136","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07S48BVK5.jpg?v=1656225354","\/\/auspowers.com\/cdn\/shop\/products\/71A_EsjWLvL.jpg?v=1656147453","\/\/auspowers.com\/cdn\/shop\/products\/71SdM7S1CGL.jpg?v=1656147453","\/\/auspowers.com\/cdn\/shop\/products\/716ycTt3qLS.jpg?v=1656147453","\/\/auspowers.com\/cdn\/shop\/products\/71_C6XR-h8S.jpg?v=1656147453","\/\/auspowers.com\/cdn\/shop\/products\/61JNrnPSm1S.jpg?v=1656147453","\/\/auspowers.com\/cdn\/shop\/products\/71HqBN4qC9S.jpg?v=1656147453"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07S48BVK5.jpg?v=1656225354","options":["Title"],"media":[{"alt":"[Australia - AusPower] - DaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino ","id":26292946141364,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07S48BVK5.jpg?v=1656225354"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07S48BVK5.jpg?v=1656225354","width":1500},{"alt":"[Australia - AusPower] - DaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino ","id":26282228383924,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71A_EsjWLvL.jpg?v=1656147453"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71A_EsjWLvL.jpg?v=1656147453","width":1200},{"alt":"[Australia - AusPower] - DaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino ","id":26282228416692,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71SdM7S1CGL.jpg?v=1656147453"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71SdM7S1CGL.jpg?v=1656147453","width":1200},{"alt":"[Australia - AusPower] - DaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino ","id":26282228449460,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/716ycTt3qLS.jpg?v=1656147453"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/716ycTt3qLS.jpg?v=1656147453","width":1500},{"alt":"[Australia - AusPower] - DaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino ","id":26282228482228,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71_C6XR-h8S.jpg?v=1656147453"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71_C6XR-h8S.jpg?v=1656147453","width":1500},{"alt":"[Australia - AusPower] - DaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino ","id":26282228514996,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61JNrnPSm1S.jpg?v=1656147453"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61JNrnPSm1S.jpg?v=1656147453","width":1500},{"alt":"[Australia - AusPower] - DaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino ","id":26282228580532,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71HqBN4qC9S.jpg?v=1656147453"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71HqBN4qC9S.jpg?v=1656147453","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eDaFuRui 8Pcs 1 Channel 5v Relay Module Board Shield with Optocoupler Support High\/Low Level Trigger Compatible Relay for Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more Module description: Maximum load of normally\nopen interface: AC 250V\/10A, DC 30V\/10A;Adopt SMD optocoupler isolation,\nstrong driving ability, stable performance; trigger current 5mA Module working\nvoltage: 5V\/12V\/24V The module can be triggered by a jumper to set high or low\nlevel; Fault-tolerant design, even if the control line is broken, the relay\nwill not act;Power indicator (green), relay status indicator (red) The\ninterface design is user-friendly, all interfaces can be directly connected\nthrough the terminal block and it is convenient There are 4 fixing bolt holes,\nthe holes are 3.1mm, and the spacing is 44.5mm20.5mm Material: Circuit\nboard、Control signal: TTL NO: normally open relay interface; the relay is\nsuspended before the suction, and it is short-circuited with COM after the\nsuction.COM: Common Interface RelaysNC: normally closed relay interface; and\nthe relay is shorted to COM before the suction is closed. Read more The relay\nmodule can be used to control various loads, such as electromagnetic relays,\nLED lights, drivers, motors, electric motors, straws, etc. Electric motor LED\nLED screen Electric heaters Read more 8Pcs DC 5V 1 Channel Relay Module Board\nShield with Optocoupler 8Pcs DC 12V 1 Channel Relay Module Board Shield with\nOptocoupler 4Pcs DC 5V 2 Channel Relay Module Board Shield with Optocoupler\n4Pcs DC 12V 2 Channel Relay Module Board Shield with Optocoupler 2Pcs DC 5V 4\nChannel Relay Module Board Shield with Optocoupler High quality ✓ ✓ ✓ ✓ ✓\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis Relay Board Maximum load: AC 250V\/10A, DC 30V\/10A With power and relay action indicator.\u003c\/li\u003e\n \u003cli\u003eUsing SMD optocoupler isolation, strong driving capability, stable performance.\u003c\/li\u003e\n \u003cli\u003eThe module can be set high or low triggered by jumper.\u003c\/li\u003e\n \u003cli\u003eFault-tolerant design, even if the control line is broken, the relay will not move.\u003c\/li\u003e\n \u003cli\u003eAll interfaces can be directly wired out through the terminals.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
