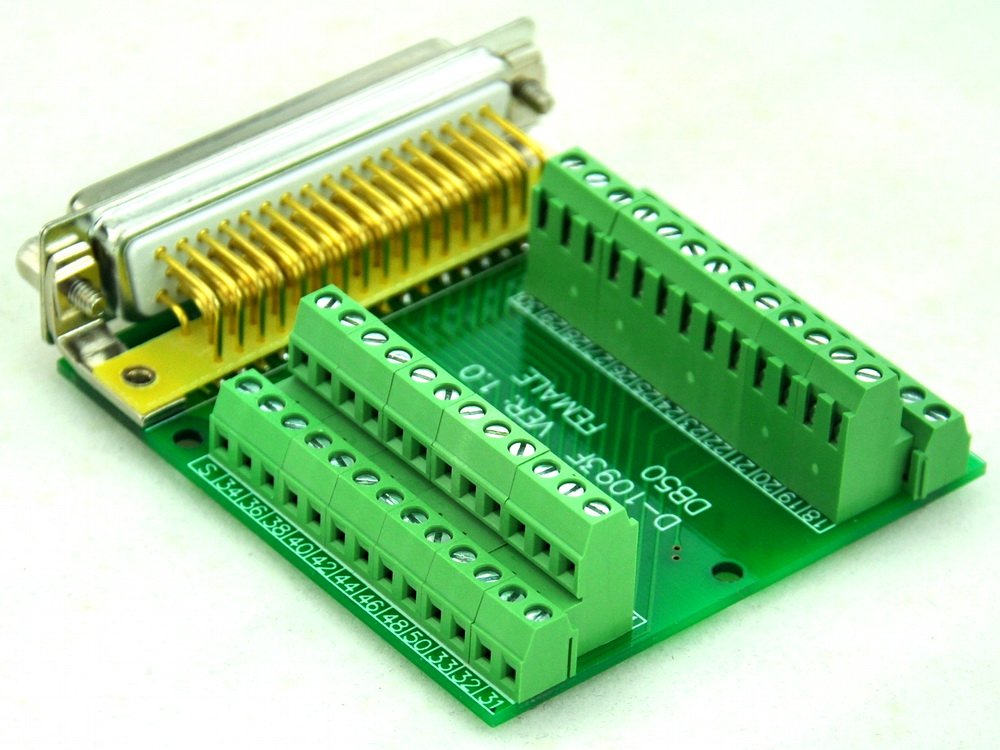

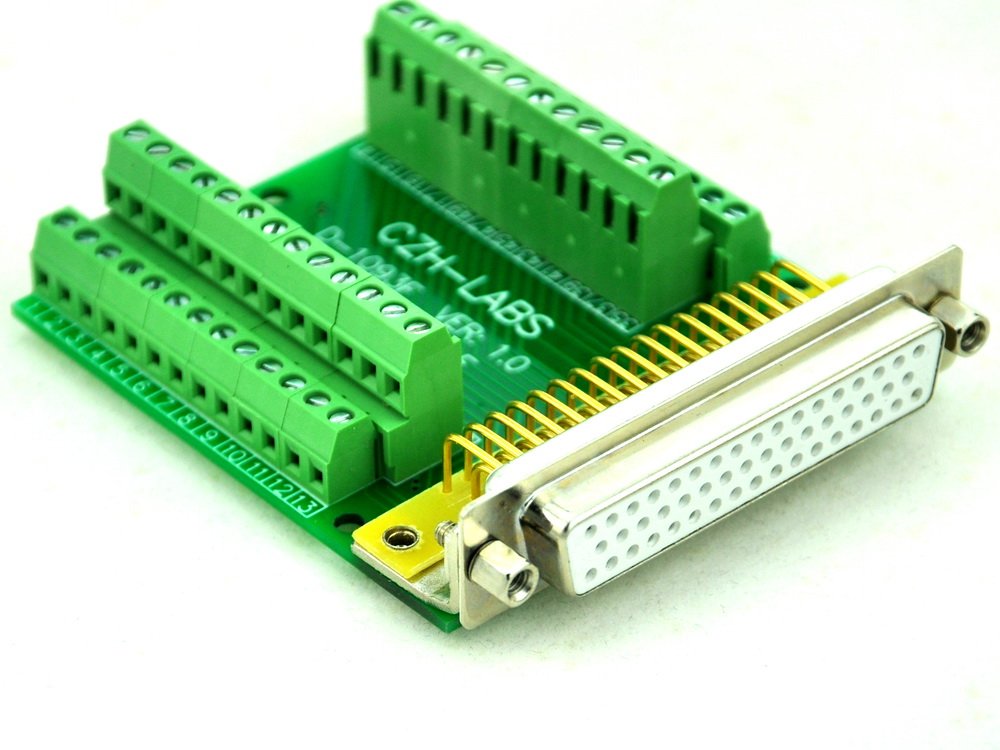

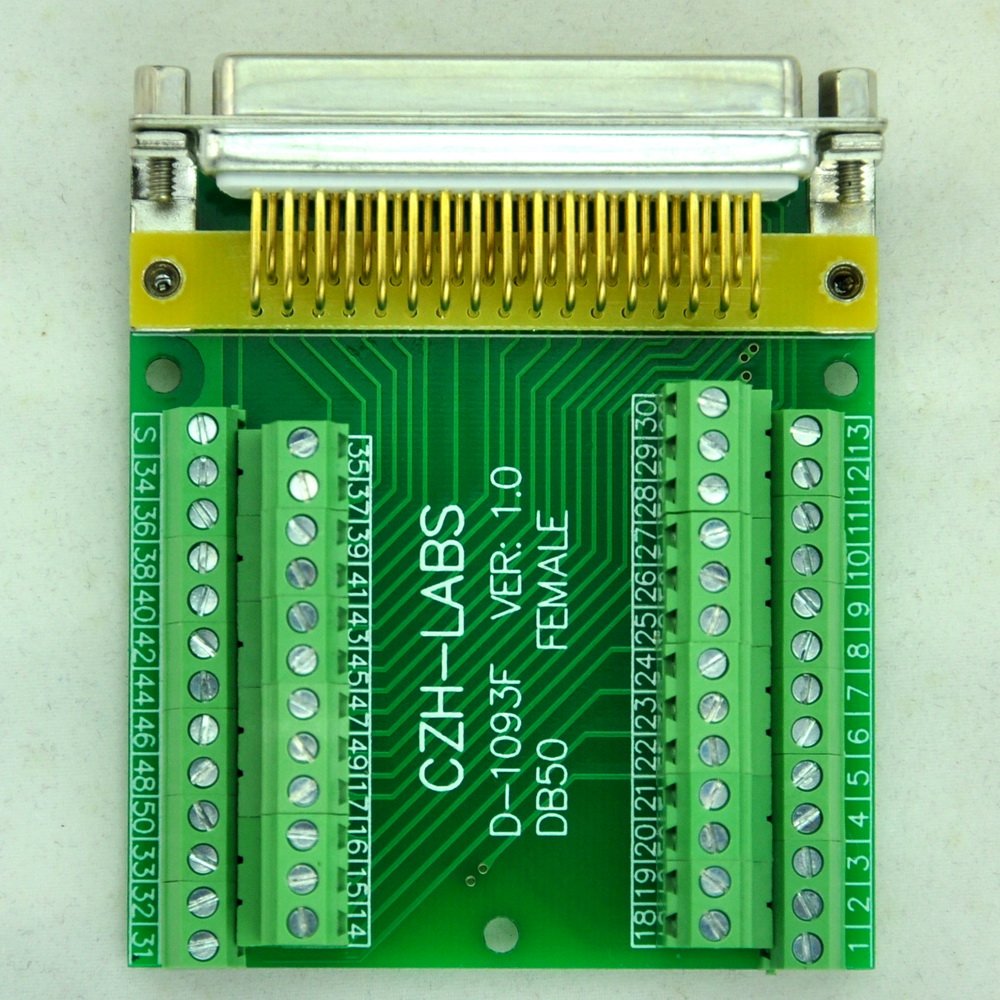

{"id":7239019823284,"title":"CZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female) DB50 Female","handle":"czh-labs-slim-right-angle-dsub-header-breakout-board-terminal-block-dsub-connector-module-db50-female-db50-female","description":" \u003ch1\u003eCZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female)\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eSlim Right Angle D'SUB Breakout Board. This item has been assembled, and\nelectrical test passed. Pitch 3.81mm\/0.15\" screw terminal block. FR-4 fiber\nglass PCB. Rated voltage: 60V, Rated current: 500mA \/ per pin. Operating\nTemperature: -20ºC to 50ºC Terminal block: Wire range 26 to 16AWG. Strip\nlength 5mm. Screws - M2,steel,Cr3+ Zn plated. Pin header and Cage - Brass.\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eThis item has been assembled, and electrical test passed.\u003c\/li\u003e\n\u003cli\u003ePitch 3.81mm\/0.15\" screw terminal block.\u003c\/li\u003e\n\u003cli\u003eFR-4 fiber glass PCB.\u003c\/li\u003e\n\u003cli\u003eRated voltage: 60V, Rated current: 500mA \/ per pin.\u003c\/li\u003e\n\u003cli\u003eOperating Temperature: -20oC to 50oC\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n ","published_at":"2022-08-27T20:02:20+10:00","created_at":"2022-08-27T20:02:27+10:00","vendor":"CZH-LABS","type":"IO Modules","tags":["electronics3"],"price":17100,"price_min":17100,"price_max":17100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41799474741428,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0179G3LRQ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female) DB50 Female","public_title":null,"options":["Default Title"],"price":17100,"weight":104,"compare_at_price":null,"inventory_management":null,"barcode":"MD-D1086toD1095 Series","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B0179G3LRQ.jpg?v=1661669210","\/\/auspowers.com\/cdn\/shop\/products\/61NcM6fMTjL.jpg?v=1661594547","\/\/auspowers.com\/cdn\/shop\/products\/71fGaRvfbvL.jpg?v=1661594547","\/\/auspowers.com\/cdn\/shop\/products\/51AeOGZP_aL_85b285f5-69cf-4426-8e05-8694ac54239e.jpg?v=1661594547","\/\/auspowers.com\/cdn\/shop\/products\/61H913KWshL_4d164b13-9bf8-44d5-b58a-3a1012d44d51.jpg?v=1661594547","\/\/auspowers.com\/cdn\/shop\/products\/71Q2HSHmNbL_1a35c9d8-b963-4f18-87f9-d668fe5a75f3.jpg?v=1661594547","\/\/auspowers.com\/cdn\/shop\/products\/81soEkubzBL_49b6b823-d533-4d65-96db-6ced123ace5b.jpg?v=1661594547"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B0179G3LRQ.jpg?v=1661669210","options":["Title"],"media":[{"alt":"[Australia - AusPower] - CZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female) DB50 Female ","id":26962684608692,"position":1,"preview_image":{"aspect_ratio":1.333,"height":750,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B0179G3LRQ.jpg?v=1661669210"},"aspect_ratio":1.333,"height":750,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B0179G3LRQ.jpg?v=1661669210","width":1000},{"alt":"[Australia - AusPower] - CZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female) DB50 Female ","id":26955807588532,"position":2,"preview_image":{"aspect_ratio":1.333,"height":750,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61NcM6fMTjL.jpg?v=1661594547"},"aspect_ratio":1.333,"height":750,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61NcM6fMTjL.jpg?v=1661594547","width":1000},{"alt":"[Australia - AusPower] - CZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female) DB50 Female ","id":26955807621300,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71fGaRvfbvL.jpg?v=1661594547"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71fGaRvfbvL.jpg?v=1661594547","width":1000},{"alt":"[Australia - AusPower] - CZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female) DB50 Female ","id":26955807654068,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51AeOGZP_aL_85b285f5-69cf-4426-8e05-8694ac54239e.jpg?v=1661594547"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51AeOGZP_aL_85b285f5-69cf-4426-8e05-8694ac54239e.jpg?v=1661594547","width":500},{"alt":"[Australia - AusPower] - CZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female) DB50 Female ","id":26955807686836,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61H913KWshL_4d164b13-9bf8-44d5-b58a-3a1012d44d51.jpg?v=1661594547"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61H913KWshL_4d164b13-9bf8-44d5-b58a-3a1012d44d51.jpg?v=1661594547","width":1000},{"alt":"[Australia - AusPower] - CZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female) DB50 Female ","id":26955807719604,"position":6,"preview_image":{"aspect_ratio":1.481,"height":675,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71Q2HSHmNbL_1a35c9d8-b963-4f18-87f9-d668fe5a75f3.jpg?v=1661594547"},"aspect_ratio":1.481,"height":675,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71Q2HSHmNbL_1a35c9d8-b963-4f18-87f9-d668fe5a75f3.jpg?v=1661594547","width":1000},{"alt":"[Australia - AusPower] - CZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female) DB50 Female ","id":26955807752372,"position":7,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81soEkubzBL_49b6b823-d533-4d65-96db-6ced123ace5b.jpg?v=1661594547"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81soEkubzBL_49b6b823-d533-4d65-96db-6ced123ace5b.jpg?v=1661594547","width":2000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":" \u003ch1\u003eCZH-LABS Slim Right Angle D'sub Header Breakout Board, Terminal Block DSUB Connector Module (DB50 Female)\u003c\/h1\u003e\n \u003ch3\u003e\n\u003cspan class=\"glyphicon glyphicon-list-alt\"\u003e\u003c\/span\u003e Description\u003c\/h3\u003e\n \u003cp\u003eSlim Right Angle D'SUB Breakout Board. This item has been assembled, and\nelectrical test passed. Pitch 3.81mm\/0.15\" screw terminal block. FR-4 fiber\nglass PCB. Rated voltage: 60V, Rated current: 500mA \/ per pin. Operating\nTemperature: -20ºC to 50ºC Terminal block: Wire range 26 to 16AWG. Strip\nlength 5mm. Screws - M2,steel,Cr3+ Zn plated. Pin header and Cage - Brass.\u003c\/p\u003e\n \u003cp\u003eFeatures:\u003c\/p\u003e\n \u003cul\u003e\n \u003cli\u003eThis item has been assembled, and electrical test passed.\u003c\/li\u003e\n\u003cli\u003ePitch 3.81mm\/0.15\" screw terminal block.\u003c\/li\u003e\n\u003cli\u003eFR-4 fiber glass PCB.\u003c\/li\u003e\n\u003cli\u003eRated voltage: 60V, Rated current: 500mA \/ per pin.\u003c\/li\u003e\n\u003cli\u003eOperating Temperature: -20oC to 50oC\u003c\/li\u003e\n \u003c\/ul\u003e\n\n\n "}
