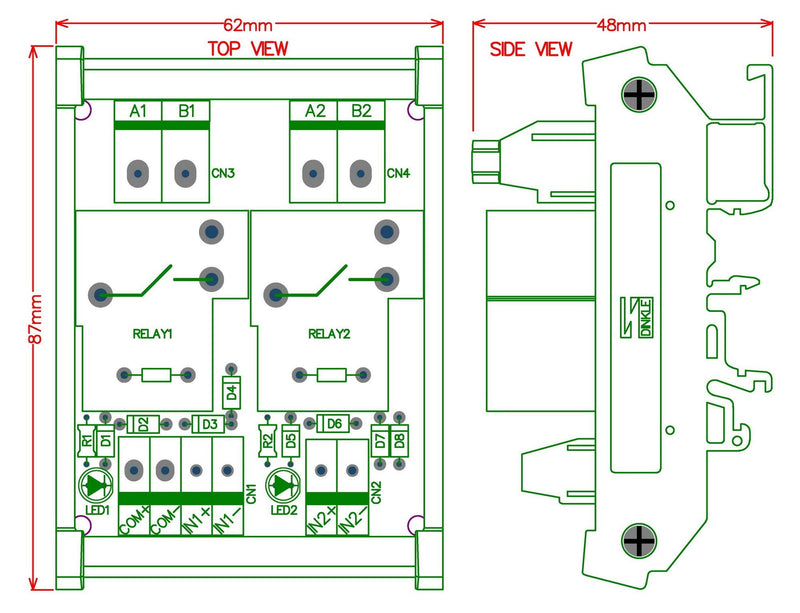

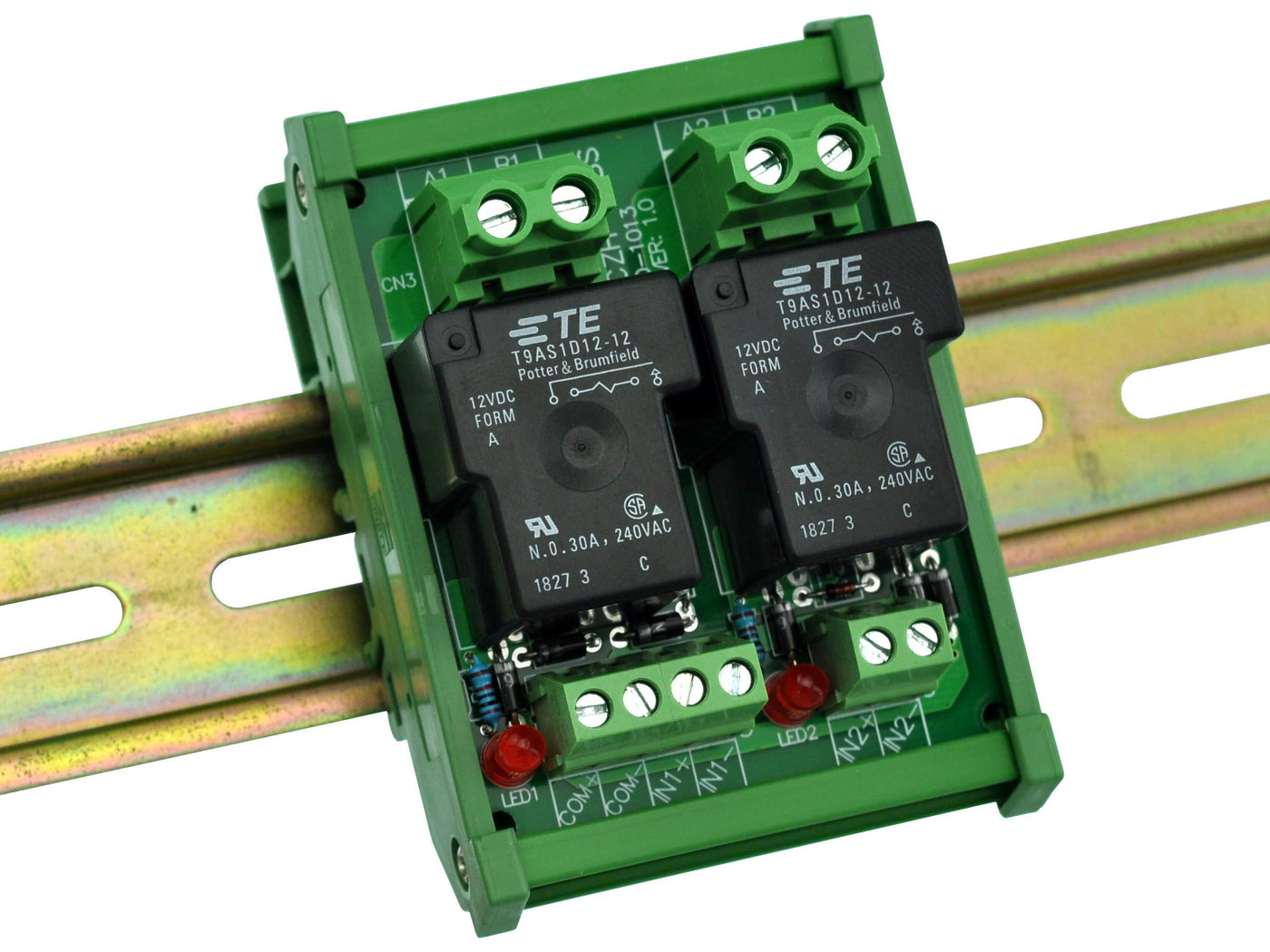

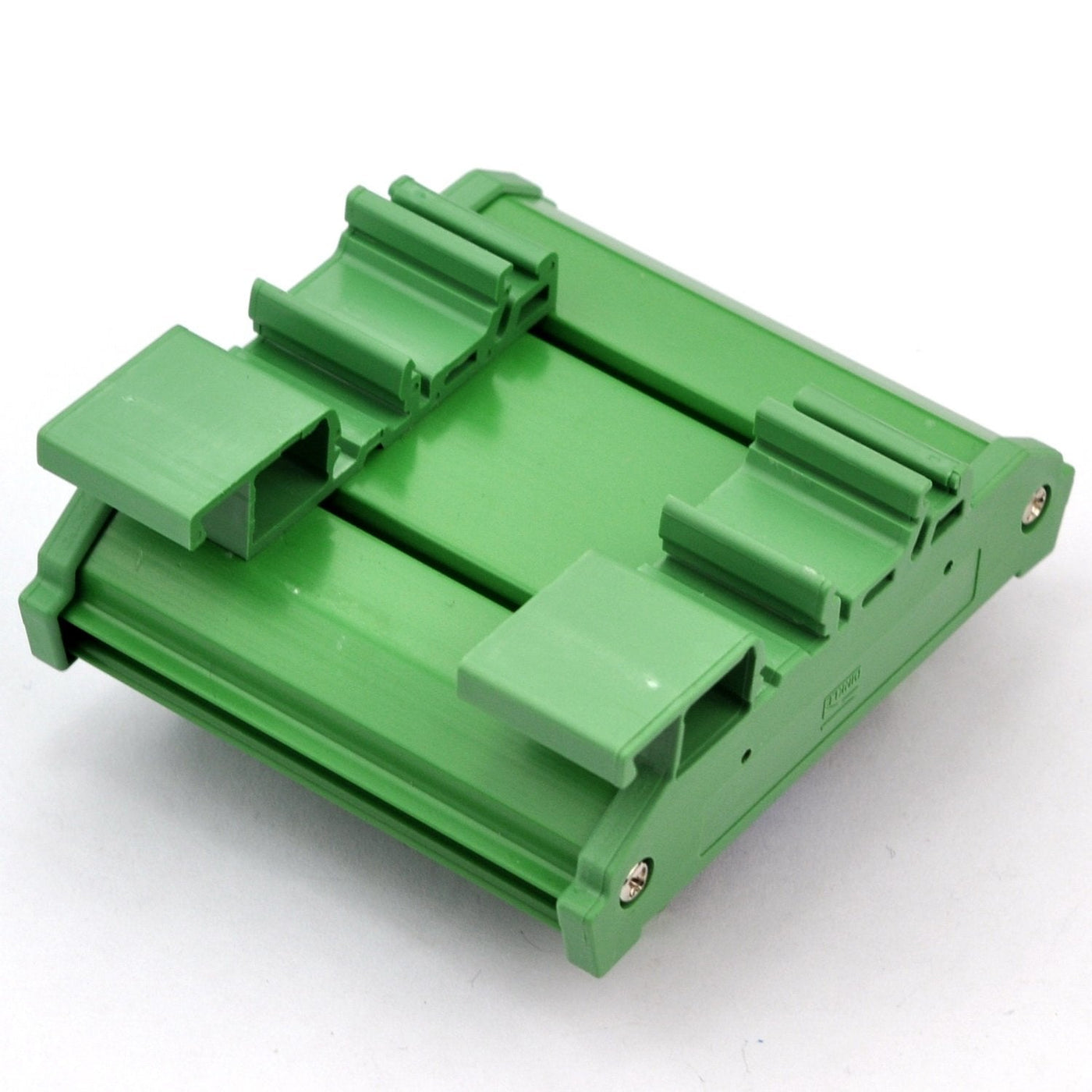

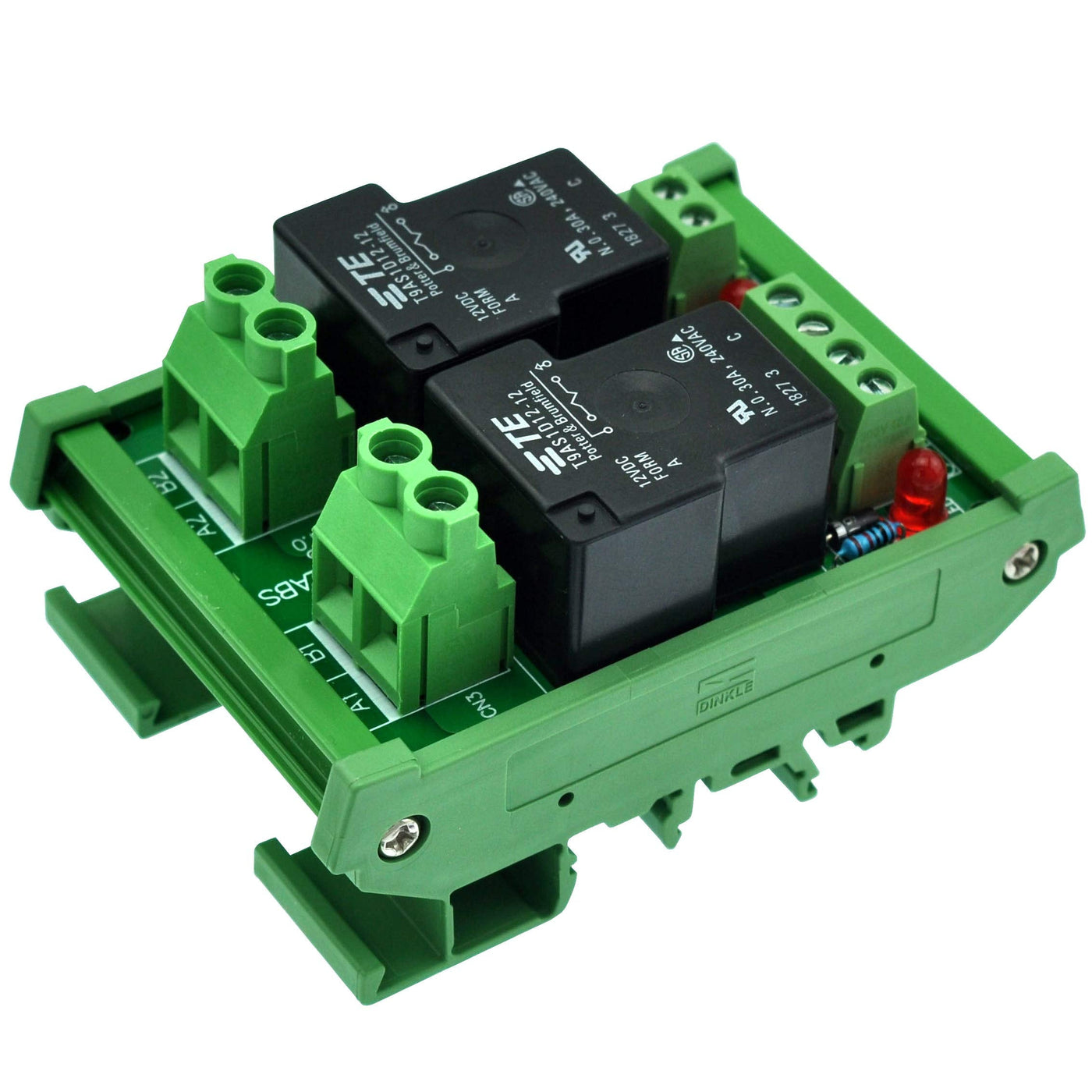

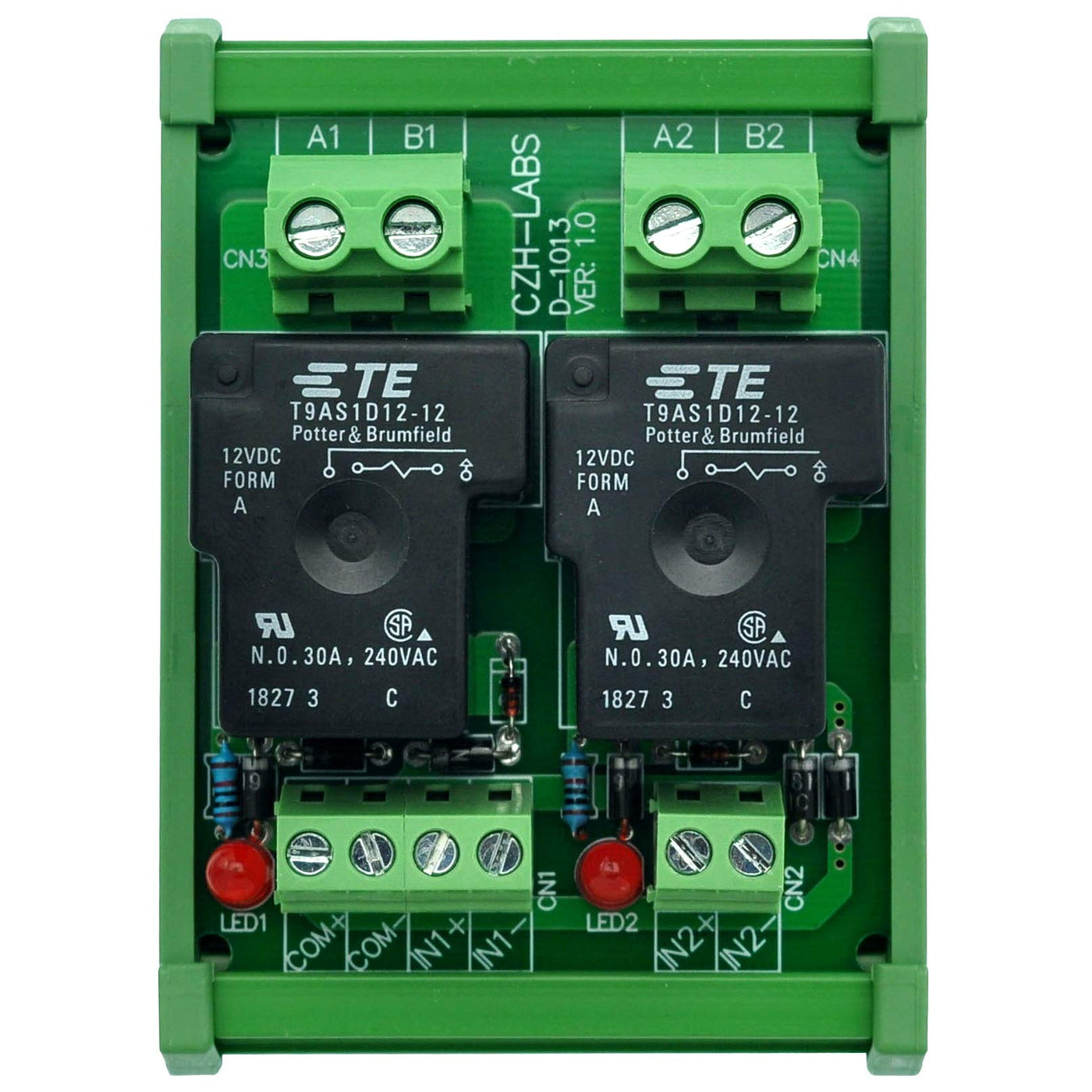

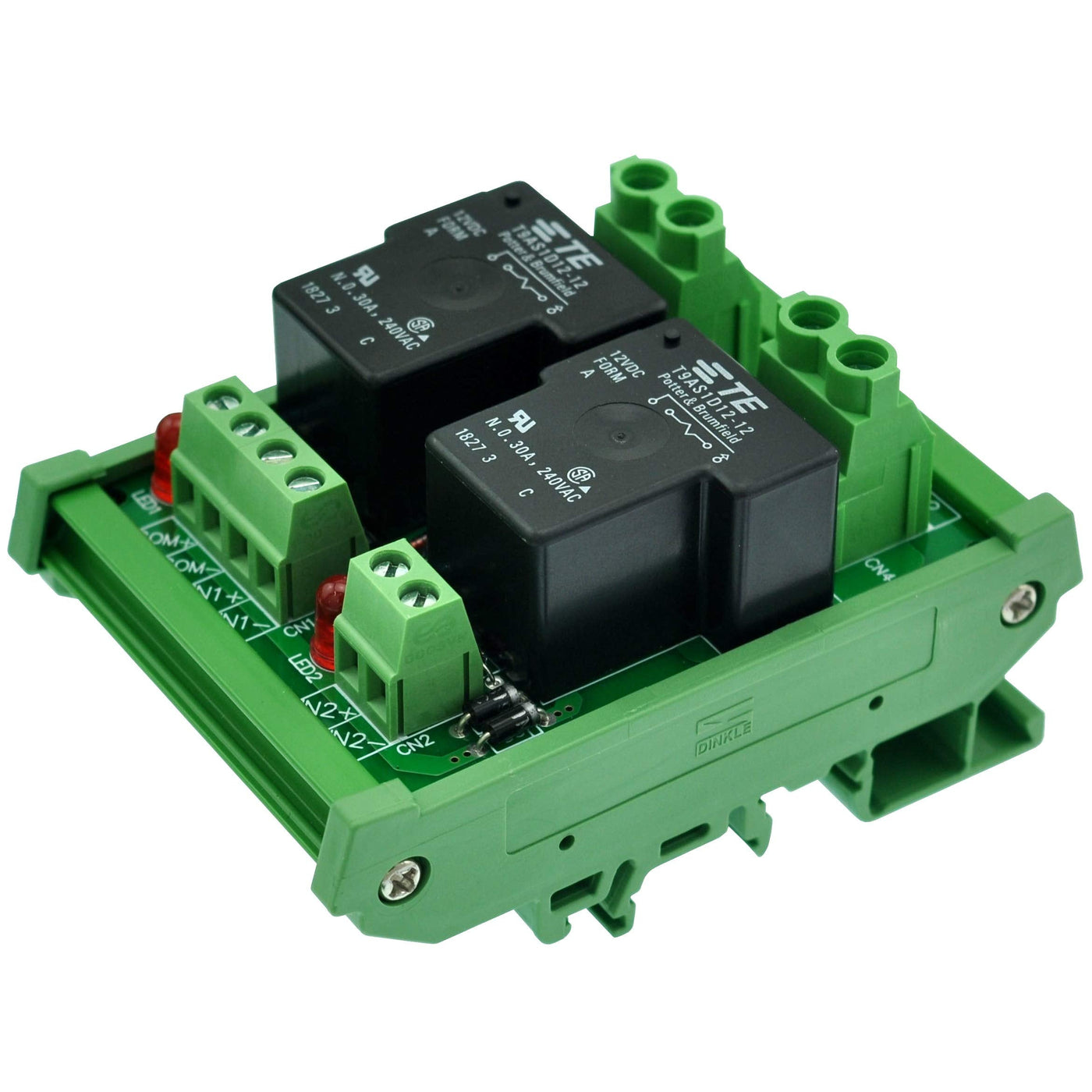

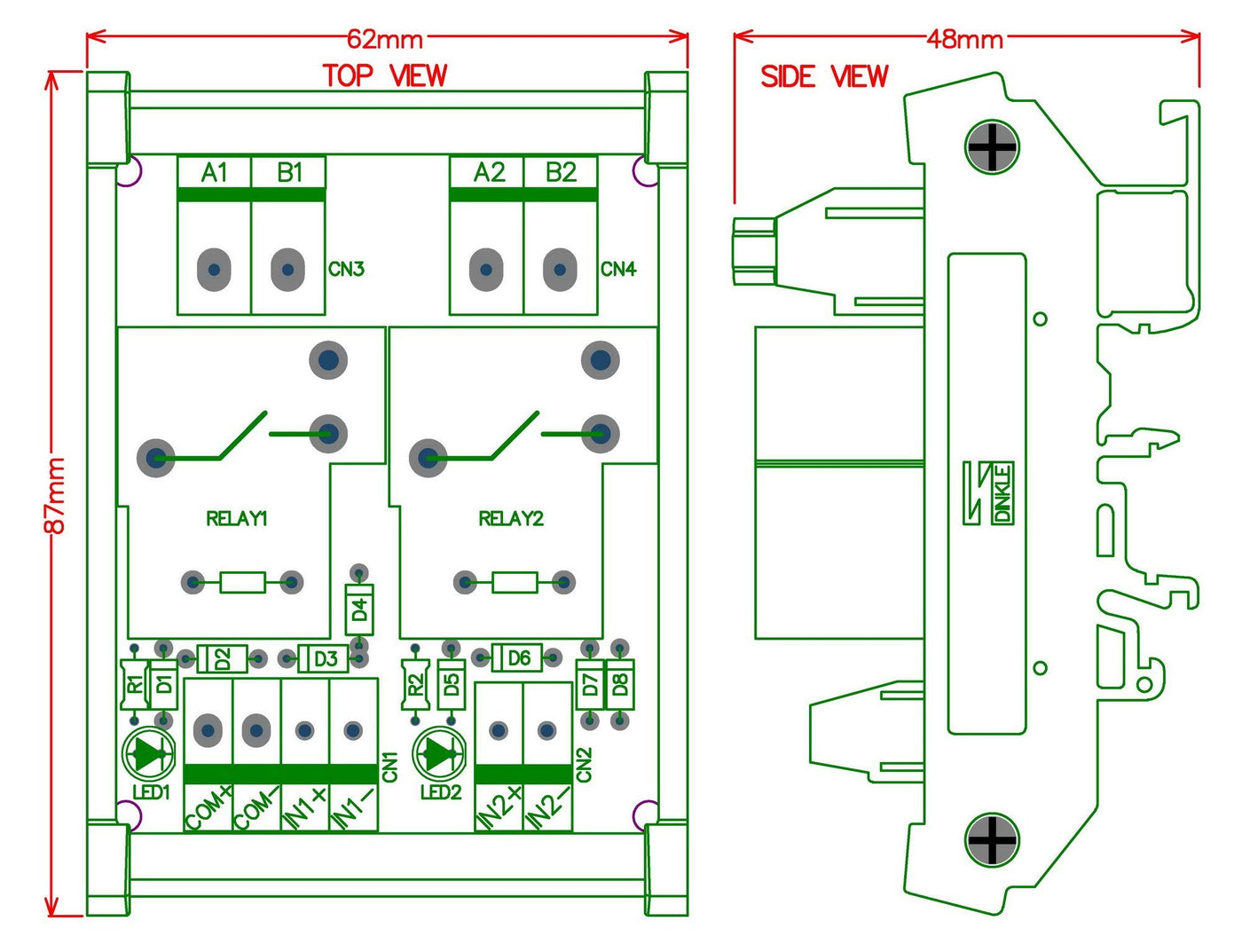

{"id":8062175215796,"title":"CZH-Labs DIN Rail Mount 12V Passive 2 SPST-NO 30Amp Power Relay Module.","handle":"czh-labs-din-rail-mount-12v-passive-2-spst-no-30amp-power-relay-module","description":"\u003ch3\u003eCZH-Labs DIN Rail Mount 12V Passive 2 SPST-NO 30Amp Power Relay Module.\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDIN Rail Mount Passive 2 Channel SPST-NO 30 Amp Power Relay Module. Part\r\nNumber: MD-D1013T\/12V The item no paper instructions, please download the PDF\r\nfile, and before buying please read the file: \r\namazon.com\/images\/I\/A1yzdGSnKLL.pdf This item has been assembled, and\r\nelectrical test passed. TE T9AS1D12-12 30Amp power relay. High quality\r\nterminal block connectors (output is real 30Amp high power terminal block).\r\nLED indicator for each relay channel. FR-4 Fiber glass PCB (Double Layer).\r\nUsers can flexibly configured control signal mode according to controllers\r\noutput. High quality DIN rail mount carrier, can support width 35mm \/32mm \/\r\n15mm rail. Size: 48mm x 87mm x 63mm. Relay characteristic: Rated Load\r\n(Resistive load): 30A at 250VAC, 20A at 28VDC. Coil action voltage: DC 10~15V,\r\nrecommended DC 12V. Coil action current: 80mA (each channel), at DC12V.\r\nTerminal block characteristic: Input terminal: Wire range 26-12AWG Mechanical\r\nTorque 0.4Nm(3.5Lb-In.) Strip length 7mm Dimensions Pitch 5.0mm(.197\") Screws\r\nM2.5 Rated current 16 Amp Output terminal: Wire range 26-10AWG Mechanical\r\nTorque 0.5Nm(4.4Lb-In.) Strip length 8mm Dimensions Pitch 7.62mm(.3\") Screws\r\nM3 Rated current: 30 Amp\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eDIN Rail Mount Passive 2 Channel SPST-NO 30 Amp Power Relay Module.\u003c\/li\u003e\r\n \u003cli\u003ePart Number: MD-D1013T\/12V\u003c\/li\u003e\r\n \u003cli\u003eTE T9AS1D12-12 30Amp power relay.\u003c\/li\u003e\r\n \u003cli\u003eFR-4 Fiber glass PCB (Double Layer).\u003c\/li\u003e\r\n \u003cli\u003eHigh quality DIN rail mount carrier, can support width 35mm \/32mm \/ 15mm rail.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-05-21T18:08:42+10:00","created_at":"2026-05-21T18:08:38+10:00","vendor":"Electronics-Salon","type":"Electromechanical Relays","tags":["industrial_April2026"],"price":19100,"price_min":19100,"price_max":19100,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44231119438004,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B00UA4R06S","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CZH-Labs DIN Rail Mount 12V Passive 2 SPST-NO 30Amp Power Relay Module.","public_title":null,"options":["Default Title"],"price":19100,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":"MD-D1013T\/12V-1","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/717jO3IyXjL.jpg?v=1779350921","\/\/auspowers.com\/cdn\/shop\/files\/81BqDxLLGbL.jpg?v=1779350921","\/\/auspowers.com\/cdn\/shop\/files\/711Zmhw4ucL.jpg?v=1779350921","\/\/auspowers.com\/cdn\/shop\/files\/81OglRWDqqL.jpg?v=1779350921","\/\/auspowers.com\/cdn\/shop\/files\/71ek0KWn2xL.jpg?v=1779350921","\/\/auspowers.com\/cdn\/shop\/files\/81RkfbqTCFL.jpg?v=1779350921","\/\/auspowers.com\/cdn\/shop\/files\/81WUlyIRIUL.jpg?v=1779350921"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/717jO3IyXjL.jpg?v=1779350921","options":["Title"],"media":[{"alt":null,"id":32959936594100,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2341,"width":2341,"src":"\/\/auspowers.com\/cdn\/shop\/files\/717jO3IyXjL.jpg?v=1779350921"},"aspect_ratio":1.0,"height":2341,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/717jO3IyXjL.jpg?v=1779350921","width":2341},{"alt":null,"id":32959936626868,"position":2,"preview_image":{"aspect_ratio":1.0,"height":2265,"width":2265,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81BqDxLLGbL.jpg?v=1779350921"},"aspect_ratio":1.0,"height":2265,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81BqDxLLGbL.jpg?v=1779350921","width":2265},{"alt":null,"id":32959936659636,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1615,"width":1615,"src":"\/\/auspowers.com\/cdn\/shop\/files\/711Zmhw4ucL.jpg?v=1779350921"},"aspect_ratio":1.0,"height":1615,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/711Zmhw4ucL.jpg?v=1779350921","width":1615},{"alt":null,"id":32959936692404,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1912,"width":2549,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81OglRWDqqL.jpg?v=1779350921"},"aspect_ratio":1.333,"height":1912,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81OglRWDqqL.jpg?v=1779350921","width":2549},{"alt":null,"id":32959936725172,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71ek0KWn2xL.jpg?v=1779350921"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71ek0KWn2xL.jpg?v=1779350921","width":1500},{"alt":null,"id":32959936757940,"position":6,"preview_image":{"aspect_ratio":0.889,"height":2249,"width":2000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81RkfbqTCFL.jpg?v=1779350921"},"aspect_ratio":0.889,"height":2249,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81RkfbqTCFL.jpg?v=1779350921","width":2000},{"alt":null,"id":32959936790708,"position":7,"preview_image":{"aspect_ratio":1.305,"height":1533,"width":2000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81WUlyIRIUL.jpg?v=1779350921"},"aspect_ratio":1.305,"height":1533,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81WUlyIRIUL.jpg?v=1779350921","width":2000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCZH-Labs DIN Rail Mount 12V Passive 2 SPST-NO 30Amp Power Relay Module.\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eDIN Rail Mount Passive 2 Channel SPST-NO 30 Amp Power Relay Module. Part\r\nNumber: MD-D1013T\/12V The item no paper instructions, please download the PDF\r\nfile, and before buying please read the file: \r\namazon.com\/images\/I\/A1yzdGSnKLL.pdf This item has been assembled, and\r\nelectrical test passed. TE T9AS1D12-12 30Amp power relay. High quality\r\nterminal block connectors (output is real 30Amp high power terminal block).\r\nLED indicator for each relay channel. FR-4 Fiber glass PCB (Double Layer).\r\nUsers can flexibly configured control signal mode according to controllers\r\noutput. High quality DIN rail mount carrier, can support width 35mm \/32mm \/\r\n15mm rail. Size: 48mm x 87mm x 63mm. Relay characteristic: Rated Load\r\n(Resistive load): 30A at 250VAC, 20A at 28VDC. Coil action voltage: DC 10~15V,\r\nrecommended DC 12V. Coil action current: 80mA (each channel), at DC12V.\r\nTerminal block characteristic: Input terminal: Wire range 26-12AWG Mechanical\r\nTorque 0.4Nm(3.5Lb-In.) Strip length 7mm Dimensions Pitch 5.0mm(.197\") Screws\r\nM2.5 Rated current 16 Amp Output terminal: Wire range 26-10AWG Mechanical\r\nTorque 0.5Nm(4.4Lb-In.) Strip length 8mm Dimensions Pitch 7.62mm(.3\") Screws\r\nM3 Rated current: 30 Amp\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eDIN Rail Mount Passive 2 Channel SPST-NO 30 Amp Power Relay Module.\u003c\/li\u003e\r\n \u003cli\u003ePart Number: MD-D1013T\/12V\u003c\/li\u003e\r\n \u003cli\u003eTE T9AS1D12-12 30Amp power relay.\u003c\/li\u003e\r\n \u003cli\u003eFR-4 Fiber glass PCB (Double Layer).\u003c\/li\u003e\r\n \u003cli\u003eHigh quality DIN rail mount carrier, can support width 35mm \/32mm \/ 15mm rail.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
