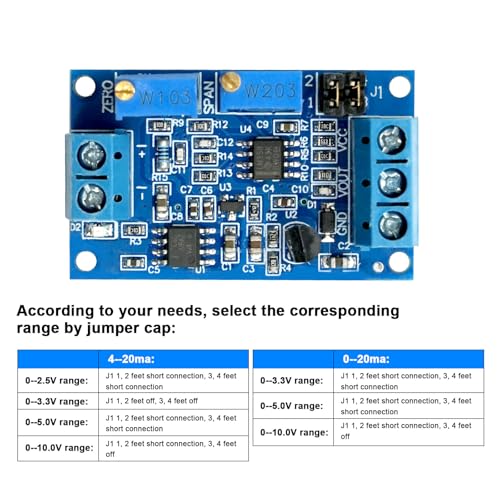

{"id":8115156353204,"title":"Current to Voltage Converter Module 0\/4-20mA to 0-3.3V 5V 10V Voltage Transmitter, Current Transformer Module Signal Conversion Board","handle":"current-to-voltage-converter-module-0-4-20ma-to-0-3-3v-5v-10v-voltage-transmitter-current-transformer-module-signal-conversion-board","description":"\u003ch3\u003eCurrent to Voltage Converter Module 0\/4-20mA to 0-3.3V 5V 10V Voltage Transmitter, Current Transformer Module Signal Conversion Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis current to voltage converter module is specially designed to convert\nindustrial current signals (0-20mA \/ 4-20mA) into voltage signals\n(0-3.3V\/0-5V\/0-10V) so that they can be easily detected and processed by\nmicrocontrollers, PLCs or ADC modules. Ideal for long transmission distances\nwhere voltage signals lose accuracy - power transmission ensures stability and\nprecision. Main features: Supported current inputs: 0-20mA or 4-20mA Output\nvoltage: 0-3.3V \/ 0-5V \/ 0-10V (choose by jumper) Wide supply voltage range:\n7V-36V DC (for 10V output \u0026gt;12V required) High-precision scanning: with colour\nring precision resistors for minimal temperature drift. Adjustable zero and\nspan: finely adjustable via Zero and SPAN potentiometer. Reverse polarity\nprotection: built-in protection against incorrect wiring. INDUSTRIAL SAFE:\nHigh stability, excellent linearity and reliability Application and use:\nWiring: supply 7-36V DC according to the terminal designations Power\nindicator: LED D2 lights up when power is successful. Zero setting: at 0 mA or\n4 mA input - adjust zero point with zero potential. Voltage setting: at 20 mA\ninput - set maximum value with SPAN potential. Adjust output voltage via\njumper (J1): For 4-20mA Input: 0-2.5V → J1: pins 1-2 \u0026amp; 3-4 plugged 0-3.3V →\nJ1: Pins 1-2 \u0026amp; 3-4 Open 0-5.0V → J1: pins 1-2 \u0026amp; 3-4 plugged 0-10.0V → J1: pins\n1-2 plugged in, 3-4 open For 0-20mA Input: 0-3.3V → J1: pins 1-2 \u0026amp; 3-4 plugged\n0-5.0V → J1: pins 1-2 \u0026amp; 3-4 plugged 0-10.0V → J1: pins 1-2 plugged in, 3-4\nopen Box contents: 5 × Current to Voltage Converter Module (0\/4-20mA to\n0-3.3V\/5V\/10V)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Precision Signal Conversion - The current transformer converts standard current signals (0-20mA \/ 4-20mA) into voltage signals (0-3.3V \/ 0-5V \/ 0-10V) - perfectly suitable for microcontrollers or PLC inputs. Excellent linearity (0.1% F.S.) and low temperature drift for precise data processing.\u003c\/li\u003e\n \u003cli\u003eWide Voltage Range: The 0\/4-20ma to 0-3.3V current to voltage module supports a supply voltage of 7V to 36V DC, making it directly compatible with typical 12V\/24V industrial power sources - no additional power supply required.\u003c\/li\u003e\n \u003cli\u003eEasy Range Selection- The current to voltage module output voltage via DIP switch freely selectable (0-3.3V\/5V\/10V), no external configuration required. Ideal for fast start-up with Arduino, ST-M32 or PLC analog modules.\u003c\/li\u003e\n \u003cli\u003eIndustrial grade design: the current transformer robust aluminium alloy housing with epoxy resin casting for use in harsh environments. The current transformer operating temperature range: -40C to +85C. Resistant to moisture, dust and vibration.\u003c\/li\u003e\n \u003cli\u003ePrecision resistors - The analogue current transformer equipped with high-precision colour ring resistors for stable signal output, low temperature drift and excellent performance in industrial continuous operation.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:01:05+10:00","created_at":"2026-09-01T22:52:23+10:00","vendor":"QIQIAZI","type":"Power Transformers","tags":["industrial_DE_Aug2026"],"price":11600,"price_min":11600,"price_max":11600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374872686772,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0FLXSXTJ7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Current to Voltage Converter Module 0\/4-20mA to 0-3.3V 5V 10V Voltage Transmitter, Current Transformer Module Signal Conversion Board","public_title":null,"options":["Default Title"],"price":11600,"weight":50,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0FLXSXTJ7.jpg?v=1788267145","\/\/auspowers.com\/cdn\/shop\/files\/51m9yZLZhtL.jpg?v=1788267145","\/\/auspowers.com\/cdn\/shop\/files\/51MnayFByXL.jpg?v=1788267145","\/\/auspowers.com\/cdn\/shop\/files\/51fXlFJ1a1L.jpg?v=1788267145","\/\/auspowers.com\/cdn\/shop\/files\/51o0jYfk88L.jpg?v=1788267145","\/\/auspowers.com\/cdn\/shop\/files\/414zS0cbIXL.jpg?v=1788267145","\/\/auspowers.com\/cdn\/shop\/files\/51kxIPzWHiL.jpg?v=1788267145"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0FLXSXTJ7.jpg?v=1788267145","options":["Title"],"media":[{"alt":null,"id":33272437899444,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FLXSXTJ7.jpg?v=1788267145"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0FLXSXTJ7.jpg?v=1788267145","width":500},{"alt":null,"id":33272437932212,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51m9yZLZhtL.jpg?v=1788267145"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51m9yZLZhtL.jpg?v=1788267145","width":500},{"alt":null,"id":33272437964980,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51MnayFByXL.jpg?v=1788267145"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51MnayFByXL.jpg?v=1788267145","width":500},{"alt":null,"id":33272437997748,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51fXlFJ1a1L.jpg?v=1788267145"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51fXlFJ1a1L.jpg?v=1788267145","width":500},{"alt":null,"id":33272438030516,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51o0jYfk88L.jpg?v=1788267145"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51o0jYfk88L.jpg?v=1788267145","width":500},{"alt":null,"id":33272438063284,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/414zS0cbIXL.jpg?v=1788267145"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/414zS0cbIXL.jpg?v=1788267145","width":500},{"alt":null,"id":33272438096052,"position":7,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51kxIPzWHiL.jpg?v=1788267145"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51kxIPzWHiL.jpg?v=1788267145","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCurrent to Voltage Converter Module 0\/4-20mA to 0-3.3V 5V 10V Voltage Transmitter, Current Transformer Module Signal Conversion Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis current to voltage converter module is specially designed to convert\nindustrial current signals (0-20mA \/ 4-20mA) into voltage signals\n(0-3.3V\/0-5V\/0-10V) so that they can be easily detected and processed by\nmicrocontrollers, PLCs or ADC modules. Ideal for long transmission distances\nwhere voltage signals lose accuracy - power transmission ensures stability and\nprecision. Main features: Supported current inputs: 0-20mA or 4-20mA Output\nvoltage: 0-3.3V \/ 0-5V \/ 0-10V (choose by jumper) Wide supply voltage range:\n7V-36V DC (for 10V output \u0026gt;12V required) High-precision scanning: with colour\nring precision resistors for minimal temperature drift. Adjustable zero and\nspan: finely adjustable via Zero and SPAN potentiometer. Reverse polarity\nprotection: built-in protection against incorrect wiring. INDUSTRIAL SAFE:\nHigh stability, excellent linearity and reliability Application and use:\nWiring: supply 7-36V DC according to the terminal designations Power\nindicator: LED D2 lights up when power is successful. Zero setting: at 0 mA or\n4 mA input - adjust zero point with zero potential. Voltage setting: at 20 mA\ninput - set maximum value with SPAN potential. Adjust output voltage via\njumper (J1): For 4-20mA Input: 0-2.5V → J1: pins 1-2 \u0026amp; 3-4 plugged 0-3.3V →\nJ1: Pins 1-2 \u0026amp; 3-4 Open 0-5.0V → J1: pins 1-2 \u0026amp; 3-4 plugged 0-10.0V → J1: pins\n1-2 plugged in, 3-4 open For 0-20mA Input: 0-3.3V → J1: pins 1-2 \u0026amp; 3-4 plugged\n0-5.0V → J1: pins 1-2 \u0026amp; 3-4 plugged 0-10.0V → J1: pins 1-2 plugged in, 3-4\nopen Box contents: 5 × Current to Voltage Converter Module (0\/4-20mA to\n0-3.3V\/5V\/10V)\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh Precision Signal Conversion - The current transformer converts standard current signals (0-20mA \/ 4-20mA) into voltage signals (0-3.3V \/ 0-5V \/ 0-10V) - perfectly suitable for microcontrollers or PLC inputs. Excellent linearity (0.1% F.S.) and low temperature drift for precise data processing.\u003c\/li\u003e\n \u003cli\u003eWide Voltage Range: The 0\/4-20ma to 0-3.3V current to voltage module supports a supply voltage of 7V to 36V DC, making it directly compatible with typical 12V\/24V industrial power sources - no additional power supply required.\u003c\/li\u003e\n \u003cli\u003eEasy Range Selection- The current to voltage module output voltage via DIP switch freely selectable (0-3.3V\/5V\/10V), no external configuration required. Ideal for fast start-up with Arduino, ST-M32 or PLC analog modules.\u003c\/li\u003e\n \u003cli\u003eIndustrial grade design: the current transformer robust aluminium alloy housing with epoxy resin casting for use in harsh environments. The current transformer operating temperature range: -40C to +85C. Resistant to moisture, dust and vibration.\u003c\/li\u003e\n \u003cli\u003ePrecision resistors - The analogue current transformer equipped with high-precision colour ring resistors for stable signal output, low temperature drift and excellent performance in industrial continuous operation.\u003c\/li\u003e\n \u003c\/ul\u003e"}
