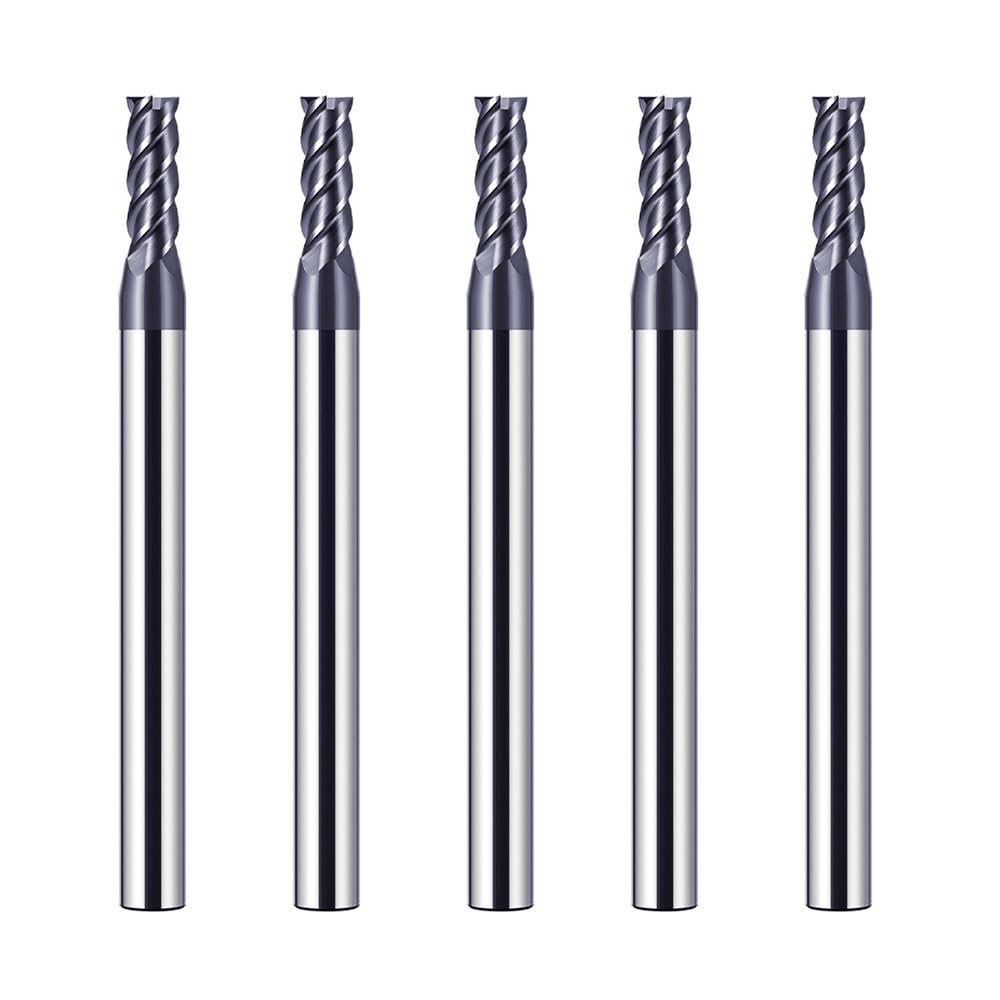

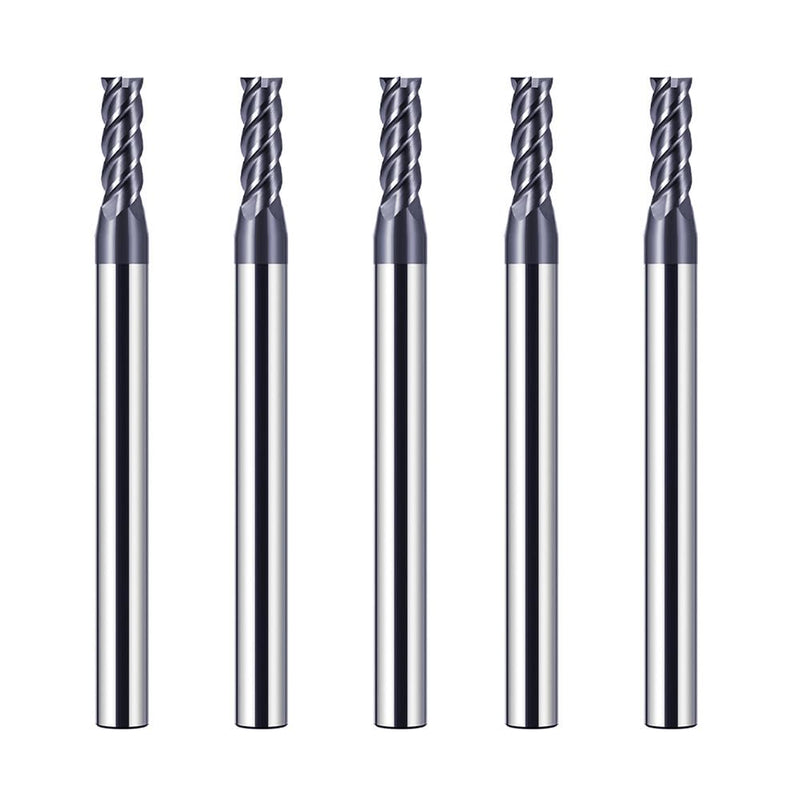

CREEYA 5 Pieces Carbide End Mill 3 mm, 4 Teeth / 4 Cutting Edge CNC Milling Cutter HRC 55, AlTiN Black Coating, Solid Carbide Cutter CNC 3 mm for Steel Metal Wood Acrylic Plastic (3 mm) 3mm-5 Stücke
CREEYA 5 Pieces Carbide End Mill 3 mm, 4 Teeth / 4 Cutting Edge CNC Milling Cutter HRC 55, AlTiN Black Coating, Solid Carbide Cutter CNC 3 mm for Steel Metal Wood Acrylic Plastic (3 mm)
If you are processing materials with not high hardness, we recommend you choose HRC45-55 cutter as you can reduce the number of replacement work. Coating: Currently, the main coatings of the cutter mainly include: TiN (color: gold/yellow), TiCN (color: blue), TiAlN/AlTiN (color: black), and the working temperature of TiAlN/AlTiN (℃) can reach more than 900 degrees, and the hardness(HV) can reach 3300, so its performance: TiAlN/AlTiN>TiCN>TiN, so if you select the mmselect the mPlease see the colour of the coating to distinguish its coating materials. 【HRC】 The higher the HRC, the greater its hardness, but its durability is poor. In addition, the lower the HRC, the lower its hardness, and its durability is superior. The higher the HRC, the better it is, but only the material it can process. When you select the end router bit, please select the appropriate HRC end mill according to the material to be processed. Currently, the main HRC: 45, 55, 60, 65 and a small number of 58, 62, 68, 70. About us: We offer cutters in different sizes and materials. If you need these, please contact us.
Product Features
- Material: solid carbide/tungsten steel, surface material: AlTiN, HRC: 55, cutting direction: right-hand cutting.

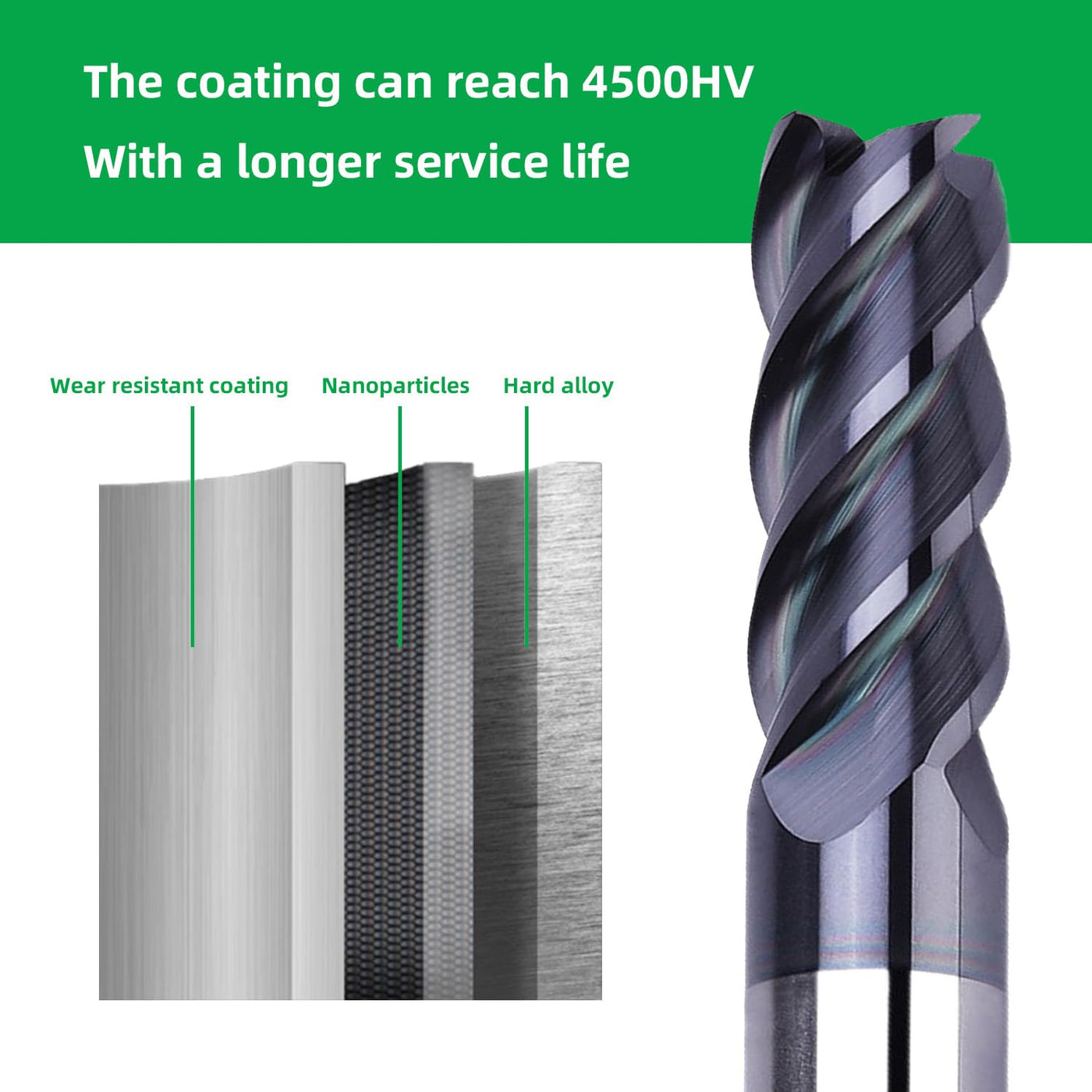

- Coating: We choose AlTiN (black) as its coating. Its surface hardness can reach more than 3300HV, and its working temperature can reach 900C. Its hardness and high temperature resistance are better than TiN (gold/yellow) and TiCN (blue) coating materials.

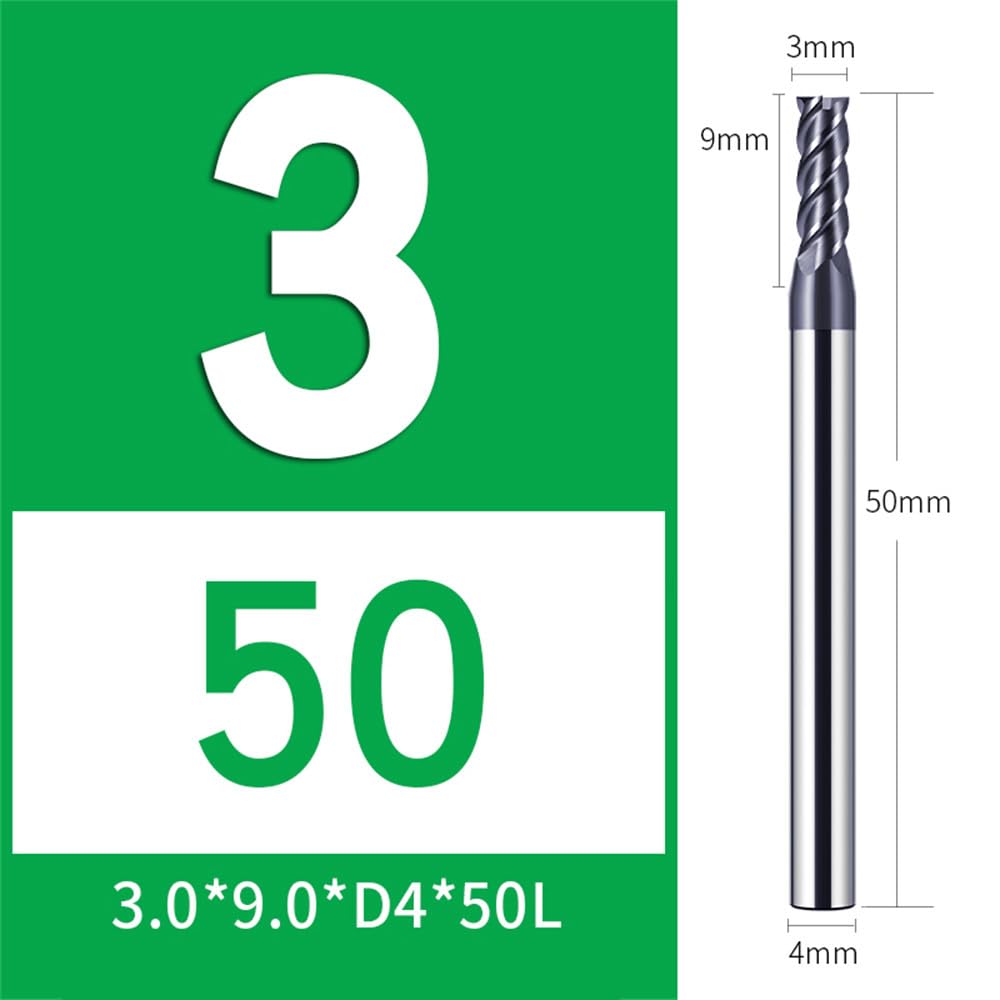

- Size: 3 mm solid carbide end mill, please choose the appropriate size according to your needs.

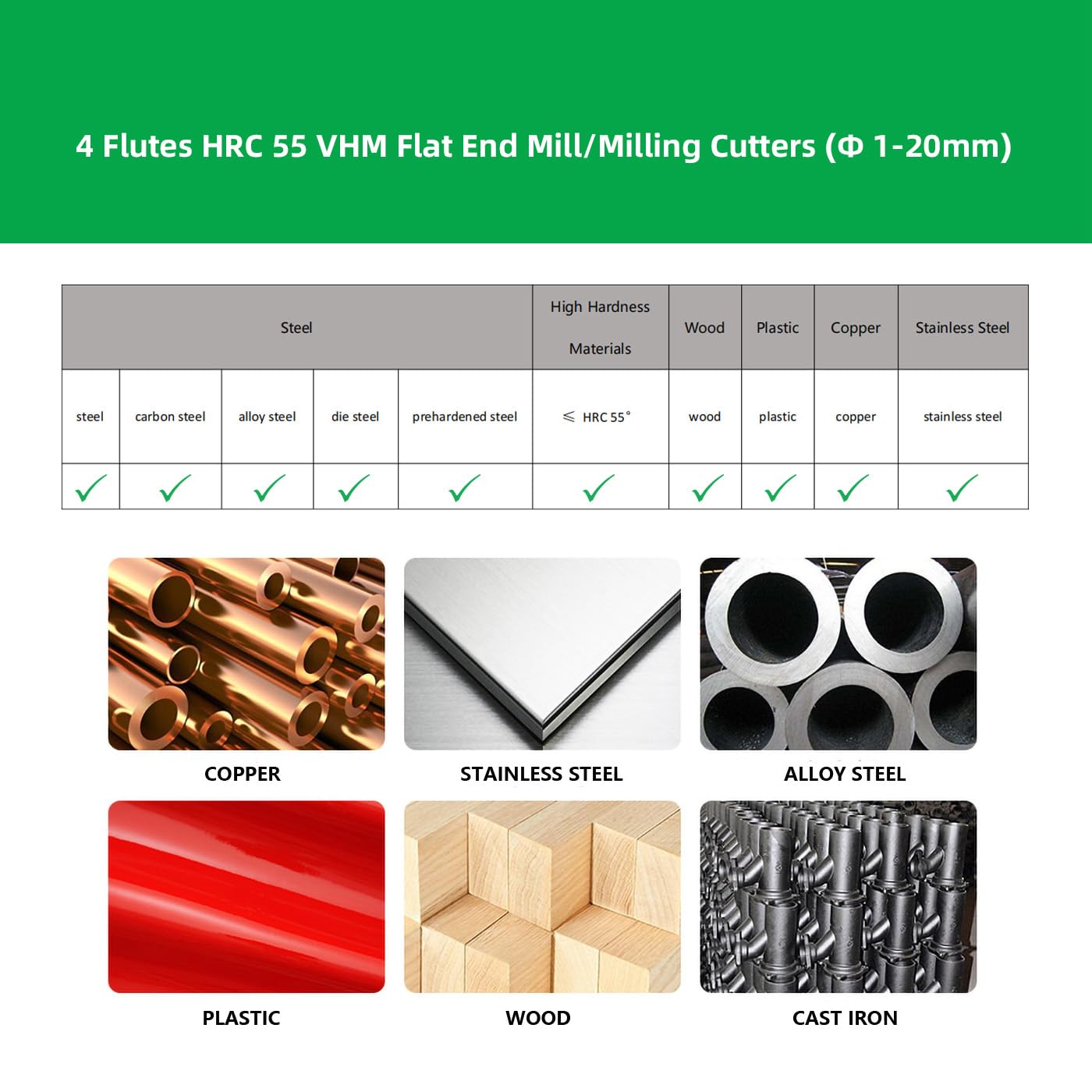

- Applicable materials: metal metals, such as steel, stainless steel, copper, cast iron, titanium alloy, carbon steel, alloy steel, plastic, wood, acrylic acid and other materials below HRC55It is not suitable for aluminum.
- Suitable machine: CNC milling machine, engraving machine, precision engraving machine and hand tools.
