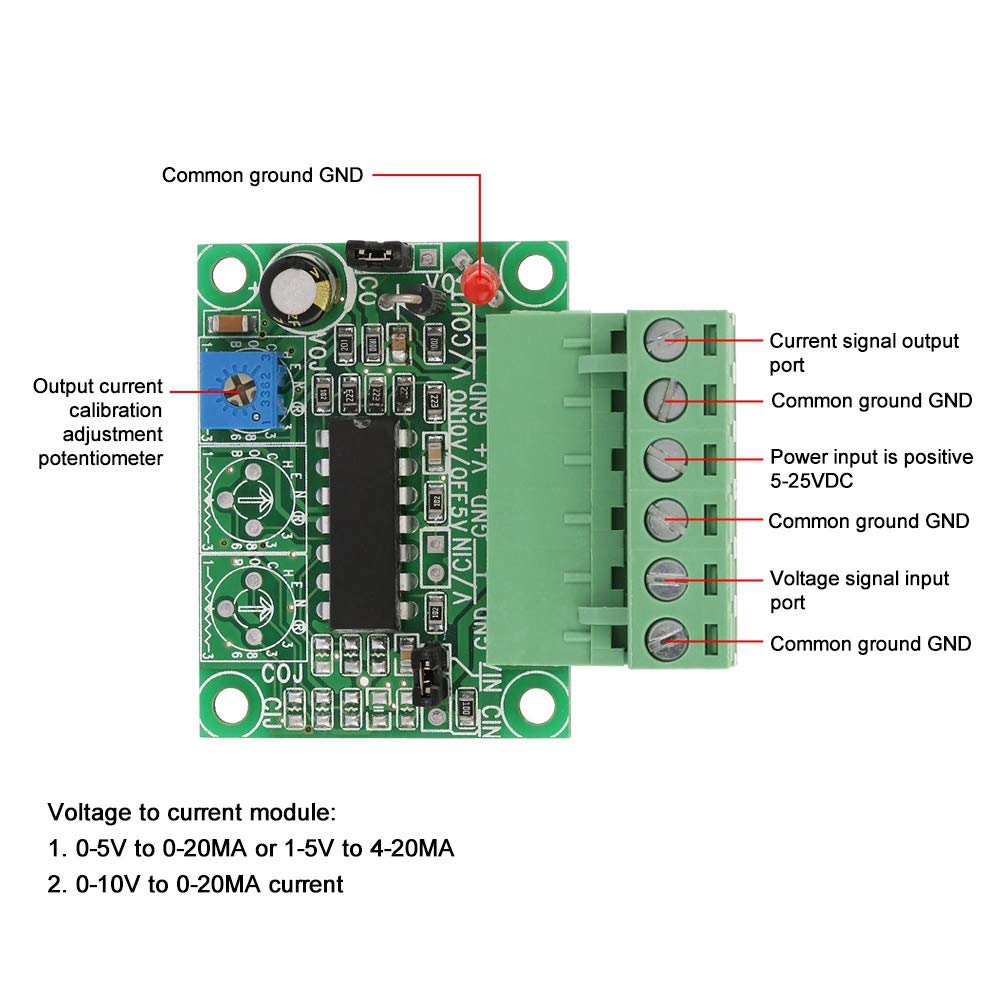

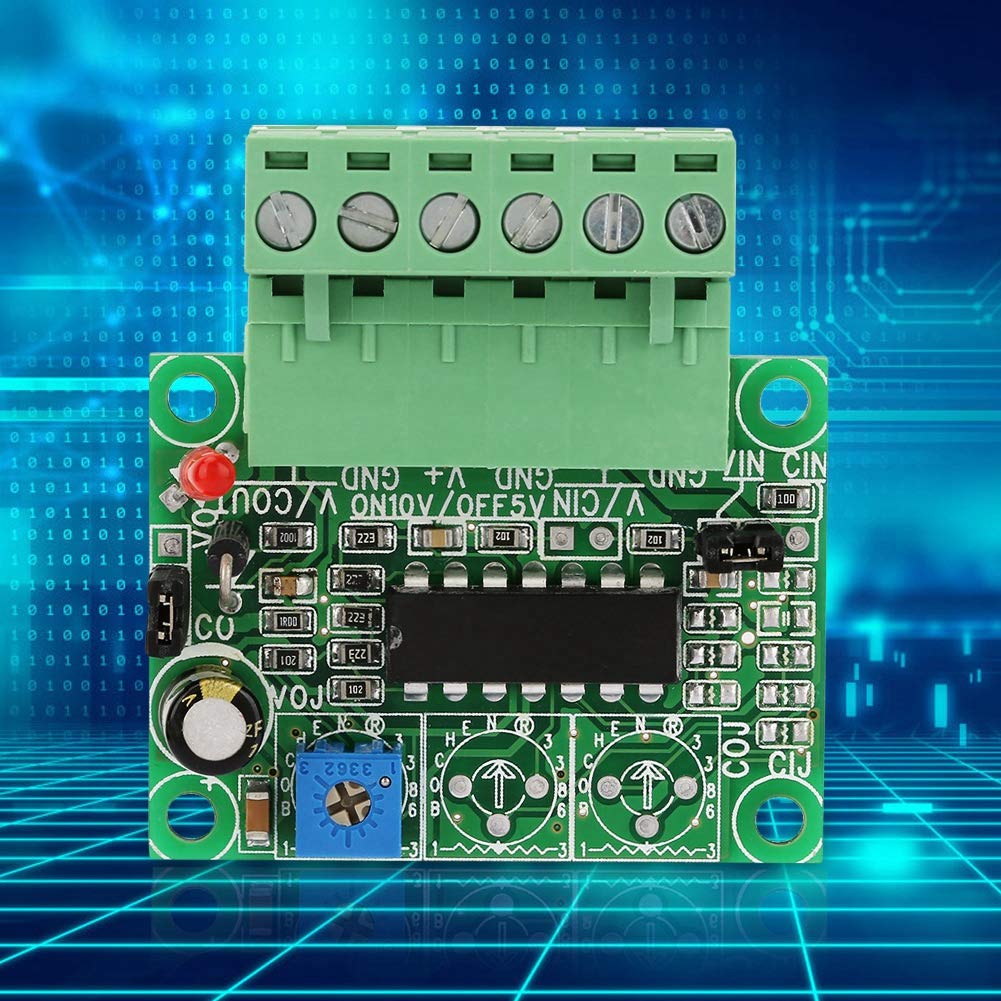

{"id":8034501460148,"title":"Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA","handle":"converter-module-transmitter-signal-board-transmitter-replacement-board-0-5v-10v-1-5v-to-0-20ma-4-20ma-voltage-current-v-c-module-0-5v-0-20ma-0-10v-1-5v-4-20ma","description":"\u003ch3\u003eConverter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Condition: 100% Brand New Module limit power supply is\r\n5-25VDCThe maximum operating current of the module does not exceed 50MAThe\r\ninternal resistance of the voltage input signal is 10KThe current input by the\r\nvoltage signal must be at least 1MA or more.The maximum input voltage signal\r\ncannot be greater than 11VThe maximum voltage signal input ripple cannot be\r\ngreater than 500 MV VPP.The voltage of the current input signal must be\r\ngreater than 3V, which is less than the power supply voltage of the power\r\nmodule.Current output capability 1MA-5MA.The output voltage is DC, ripple\r\nnovel 50MV.Current output signal internal resistance is adjustable Current\r\nCOUT output is positive: 0-20MA current output positive terminal Current\r\noutput negative (GND): 0-20MA current output negative terminal Power input\r\npositive (V+): 5-25VDC power input positive terminal Power input negative\r\n(GND): 5-25VDC power input negative terminal Voltage VIN input is positive:\r\n0-5V or 0-10V voltage input positive terminal Voltage input negative (GND):\r\n0-5V or 0-10V voltage input negative terminalAn\u0026gt;): 0-20MA current input\r\nnegative terminal Weight: Approx. 19g \/ 0.7oz Package List:1 Voltage to\r\nCurrent Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eInstructions: This converter can converter industrial standard voltage to industrial standard current.It can realize 0-5V to 0-20MA, 0-5V to 4-20MA, 0-10V to 0-20MA, 1-5 V to 4-20MA voltage signal is converted into current signal function\u003c\/li\u003e\r\n \u003cli\u003eAbout The Output: Maximum drive capacity is 15mA, linear output.The current signal of the potentiometer output 0-20MA\/4-20MA can be directly inserted as a signal generator\u003c\/li\u003e\r\n \u003cli\u003eAdvantage: Circuit is simple and practical, easy to wire.Built-in signal matching trimmer potentiometer.The output current signal is adjustable, the output drive capability is strong, and the internal resistance is small\u003c\/li\u003e\r\n \u003cli\u003eMethod of Operation: Transmitter signal board, One end is connected to sensor, the other end is connected to power supply and signal input\u003c\/li\u003e\r\n \u003cli\u003eSimple and Convenient: The output signal can be directly connected to AD converter.Can be used as a signal converter or current generator for various related occasions\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-02-28T19:16:01+11:00","created_at":"2026-02-28T19:15:58+11:00","vendor":"Yuecoom","type":"Function Generators","tags":["industrial_selected_Nov2025"],"price":9500,"price_min":9500,"price_max":9500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44154518732980,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0B7NRHLCY","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA","public_title":null,"options":["Default Title"],"price":9500,"weight":19,"compare_at_price":null,"inventory_management":"shopify","barcode":"a7fdccaf-ca73-4595-9496-4db098c4e395","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0B7NRHLCY.jpg?v=1775786320","\/\/auspowers.com\/cdn\/shop\/files\/61-5aeFEvkL.jpg?v=1772266561","\/\/auspowers.com\/cdn\/shop\/files\/71szGEbCeRL.jpg?v=1772266561","\/\/auspowers.com\/cdn\/shop\/files\/61HVdYXYpJL.jpg?v=1772266561","\/\/auspowers.com\/cdn\/shop\/files\/61Xf0Rs2Q_L.jpg?v=1772266561","\/\/auspowers.com\/cdn\/shop\/files\/61H4cbYjdqL.jpg?v=1772266561","\/\/auspowers.com\/cdn\/shop\/files\/61On2gMpsYL.jpg?v=1772266560","\/\/auspowers.com\/cdn\/shop\/files\/61Nfptw5plL.jpg?v=1772266561","\/\/auspowers.com\/cdn\/shop\/files\/61ovCIukPlL.jpg?v=1772266562"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0B7NRHLCY.jpg?v=1775786320","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA ","id":32723935199412,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B7NRHLCY.jpg?v=1775786320"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0B7NRHLCY.jpg?v=1775786320","width":1001},{"alt":"[Australia - AusPower] - Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA ","id":32723935232180,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61-5aeFEvkL.jpg?v=1772266561"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61-5aeFEvkL.jpg?v=1772266561","width":1001},{"alt":"[Australia - AusPower] - Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA ","id":32723935264948,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71szGEbCeRL.jpg?v=1772266561"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71szGEbCeRL.jpg?v=1772266561","width":1001},{"alt":"[Australia - AusPower] - Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA ","id":32723935297716,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61HVdYXYpJL.jpg?v=1772266561"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61HVdYXYpJL.jpg?v=1772266561","width":1001},{"alt":"[Australia - AusPower] - Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA ","id":32723935330484,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Xf0Rs2Q_L.jpg?v=1772266561"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Xf0Rs2Q_L.jpg?v=1772266561","width":1001},{"alt":"[Australia - AusPower] - Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA ","id":32723935363252,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61H4cbYjdqL.jpg?v=1772266561"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61H4cbYjdqL.jpg?v=1772266561","width":1001},{"alt":"[Australia - AusPower] - Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA ","id":32723935396020,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61On2gMpsYL.jpg?v=1772266560"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61On2gMpsYL.jpg?v=1772266560","width":1001},{"alt":"[Australia - AusPower] - Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA ","id":32723935428788,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Nfptw5plL.jpg?v=1772266561"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Nfptw5plL.jpg?v=1772266561","width":1001},{"alt":"[Australia - AusPower] - Converter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA ","id":32723935461556,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ovCIukPlL.jpg?v=1772266562"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ovCIukPlL.jpg?v=1772266562","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eConverter Module, Transmitter Signal Board, Transmitter Replacement Board 0-5V\/10V\/1-5V to 0-20MA\/4-20MA Voltage Current V\/C Module 0-5V 0-20MA 0-10V 1-5V 4-20MA\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eSpecification: Condition: 100% Brand New Module limit power supply is\r\n5-25VDCThe maximum operating current of the module does not exceed 50MAThe\r\ninternal resistance of the voltage input signal is 10KThe current input by the\r\nvoltage signal must be at least 1MA or more.The maximum input voltage signal\r\ncannot be greater than 11VThe maximum voltage signal input ripple cannot be\r\ngreater than 500 MV VPP.The voltage of the current input signal must be\r\ngreater than 3V, which is less than the power supply voltage of the power\r\nmodule.Current output capability 1MA-5MA.The output voltage is DC, ripple\r\nnovel 50MV.Current output signal internal resistance is adjustable Current\r\nCOUT output is positive: 0-20MA current output positive terminal Current\r\noutput negative (GND): 0-20MA current output negative terminal Power input\r\npositive (V+): 5-25VDC power input positive terminal Power input negative\r\n(GND): 5-25VDC power input negative terminal Voltage VIN input is positive:\r\n0-5V or 0-10V voltage input positive terminal Voltage input negative (GND):\r\n0-5V or 0-10V voltage input negative terminalAn\u0026gt;): 0-20MA current input\r\nnegative terminal Weight: Approx. 19g \/ 0.7oz Package List:1 Voltage to\r\nCurrent Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eInstructions: This converter can converter industrial standard voltage to industrial standard current.It can realize 0-5V to 0-20MA, 0-5V to 4-20MA, 0-10V to 0-20MA, 1-5 V to 4-20MA voltage signal is converted into current signal function\u003c\/li\u003e\r\n \u003cli\u003eAbout The Output: Maximum drive capacity is 15mA, linear output.The current signal of the potentiometer output 0-20MA\/4-20MA can be directly inserted as a signal generator\u003c\/li\u003e\r\n \u003cli\u003eAdvantage: Circuit is simple and practical, easy to wire.Built-in signal matching trimmer potentiometer.The output current signal is adjustable, the output drive capability is strong, and the internal resistance is small\u003c\/li\u003e\r\n \u003cli\u003eMethod of Operation: Transmitter signal board, One end is connected to sensor, the other end is connected to power supply and signal input\u003c\/li\u003e\r\n \u003cli\u003eSimple and Convenient: The output signal can be directly connected to AD converter.Can be used as a signal converter or current generator for various related occasions\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
