CONFAST 3/8" x 3" Hex Sleeve Anchor Zinc Plated (10 per Box)

In Stock. Leaves warehouse within 2 - 3 business days

$126.00 AUD
Maximum quantity available reached.
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

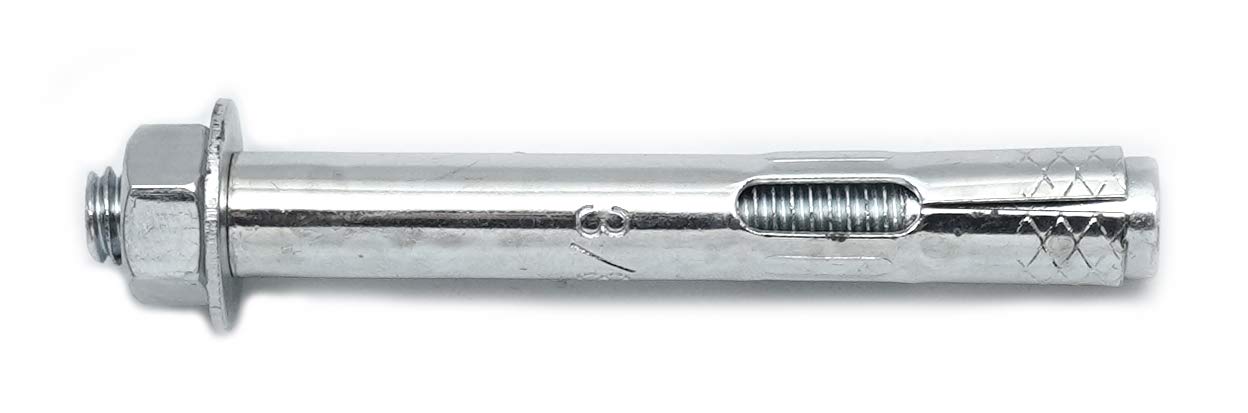

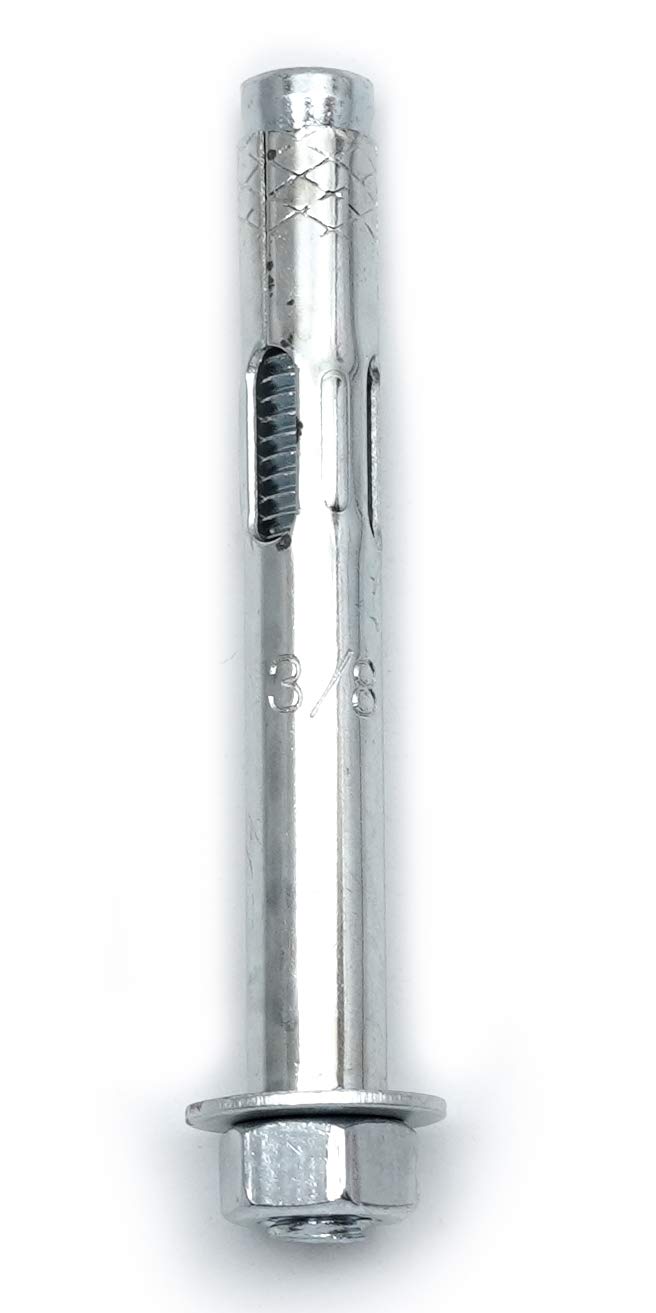

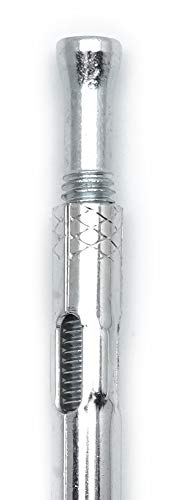

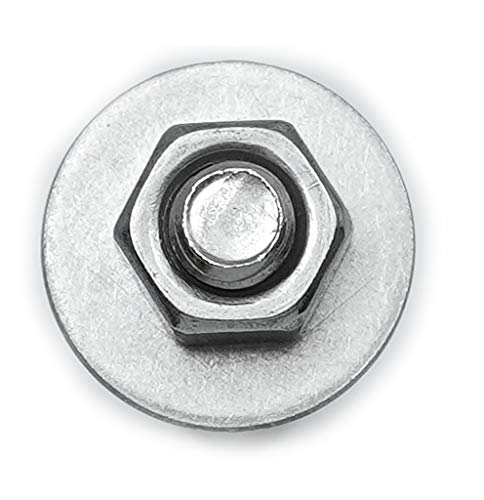

CONFAST 3/8" x 3" Hex Sleeve Anchor Zinc Plated (10 per Box)

ApplicationsThe anchor is made from Carbon Steel, and is Zinc Plated. This anchor is designed for use in Concrete, Block, and Brick.EnvironmentThe anchor is designed for use in a Dry environment.Head Style The anchor is a Hex head and is designed to allow the head to sit on top of the surface of the item being attached.Hole Diameter/Bit DiameterThe anchor requires a 3/8" hole to be drilled in the base material (Concrete, Block, and Brick). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.Diameter of Anchor The diameter of the anchor is 3/8".Length Anchor The length of the anchor is 3"Minimum EmbedmentThe minimum anchor embedment into the concrete is 1-1/4". Therefore, the anchor must be installed so that a minimum of 1-1/4" of the anchor is embedded into the concrete.Maximum Fixture ThicknessThe maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1-3/4". This will ensure that the minimum embedment of 1-1/4" will be met.Fixture Hole DiameterThe hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 3/8" diameter anchor requires the hole in the fixture to be 1/2".Spacing between AnchorsEach anchor must be spaced a minimum distance of 3-3/4" from each other when measured center to center.Edge DistanceIt is very important not to install the anchor any closer than 1-7/8" from an unsupported edge of the concrete.

Product Features

  • VERSATILE - Can be installed in a wide variety of masonry, solid concrete, brick or block
  • 360 DEGREE EXPANSION - Provides consistent holding values in a wide range of base materials
  • PRE-ASSEMBLED - Ready to install no separate parts required
  • ALL STEEL PARTS - Heavy duty for the most demanding jobs
  • ANCHOR SIZE EQUALS HOLE SIZE - Easy to remember correct hole size for best results
