CONFAST 3/8" x 3-3/4" Stainless Steel Wedge Anchor (10 per Box)

In Stock. Leaves warehouse within 2 - 3 business days

$168.00 AUD
Maximum quantity available reached.
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

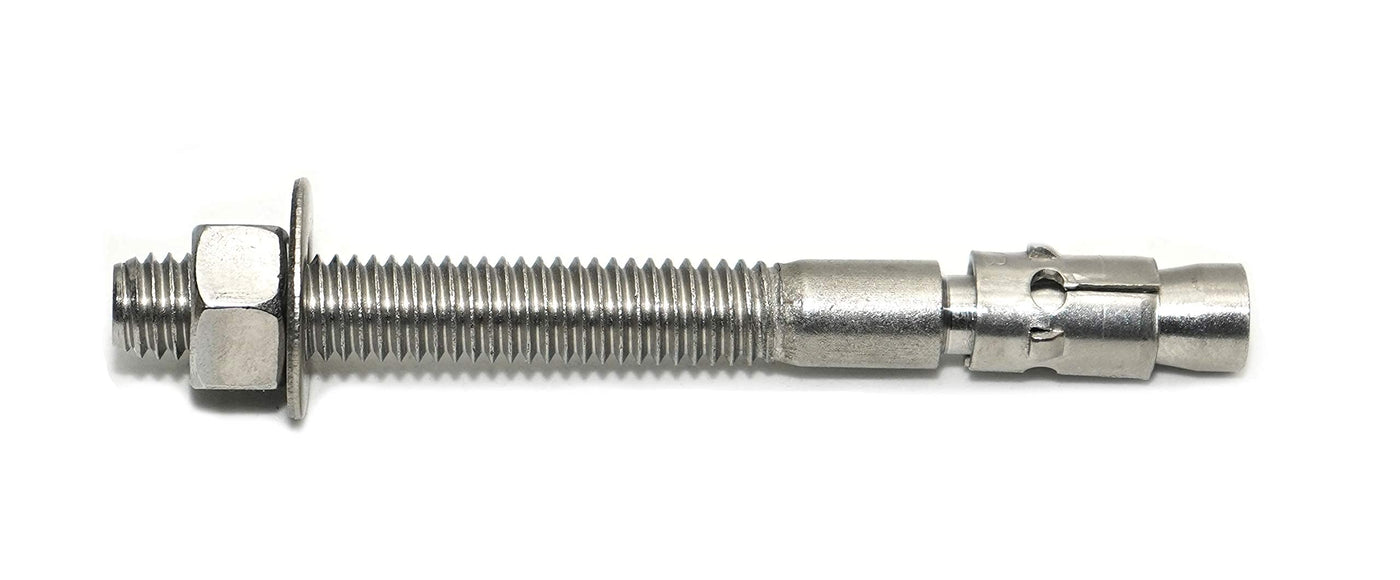

CONFAST 3/8" x 3-3/4" Stainless Steel Wedge Anchor (10 per Box)

ApplicationsThe anchor is made from 304 Stainless Steel. This anchor is designed for use in Concrete only, and should never be used in block or brick base material. EnvironmentThe anchor is designed for use in a Wet environment.Hole Diameter/Bit DiameterThe anchor requires a 3/8" hole to be drilled in the base material (Concrete only). The hole should be drilled with carbide tipped bit that meets ANSI standards and used in a hammer drill.Diameter of Anchor The diameter of the anchor is 3/8".Length Anchor The length of the anchor is 3-3/4"Thread LengthThe length of the threads on the anchor is 2-1/4" in length.Minimum EmbedmentThe minimum anchor embedment into the concrete is 1-1/2". Therefore, the anchor must be installed so that a minimum of 1-1/2" of the anchor is embedded into the concrete.Maximum Fixture ThicknessThe maximum fixture thickness or the maximum thickness of the material being fastened for a anchor is 1-7/8". This will ensure that the minimum embedment of 1-1/2" will be met.Fixture Hole DiameterThe hole in the fixture or material being fastened must be larger than the designated diameter of the anchor. The 3/8" diameter anchor requires the hole in the fixture to be 1/2".Torque ValueTo be set properly in the concrete, the anchor must be torqued to between 25 - 30 ft./lbs.Spacing between AnchorsEach anchor must be spaced a minimum distance of 3-3/4" from each other when measured center to center.Edge DistanceIt is very important not to install the anchor any closer than 1-7/8" from an unsupported edge of the concrete.

Product Features

  • MADE FROM 304 STAINLESS STEEL - Can be used in wet, submerged environments and will not rust
  • WIDE RANGE OF SIZES - Insures proper fastener for best results
  • PACKAGED WITH NUTS AND WASHERS - Fast, quick, complete installation
  • HOLE SIZE IS ANCHOR SIZE - Simplicity and ease of installation
