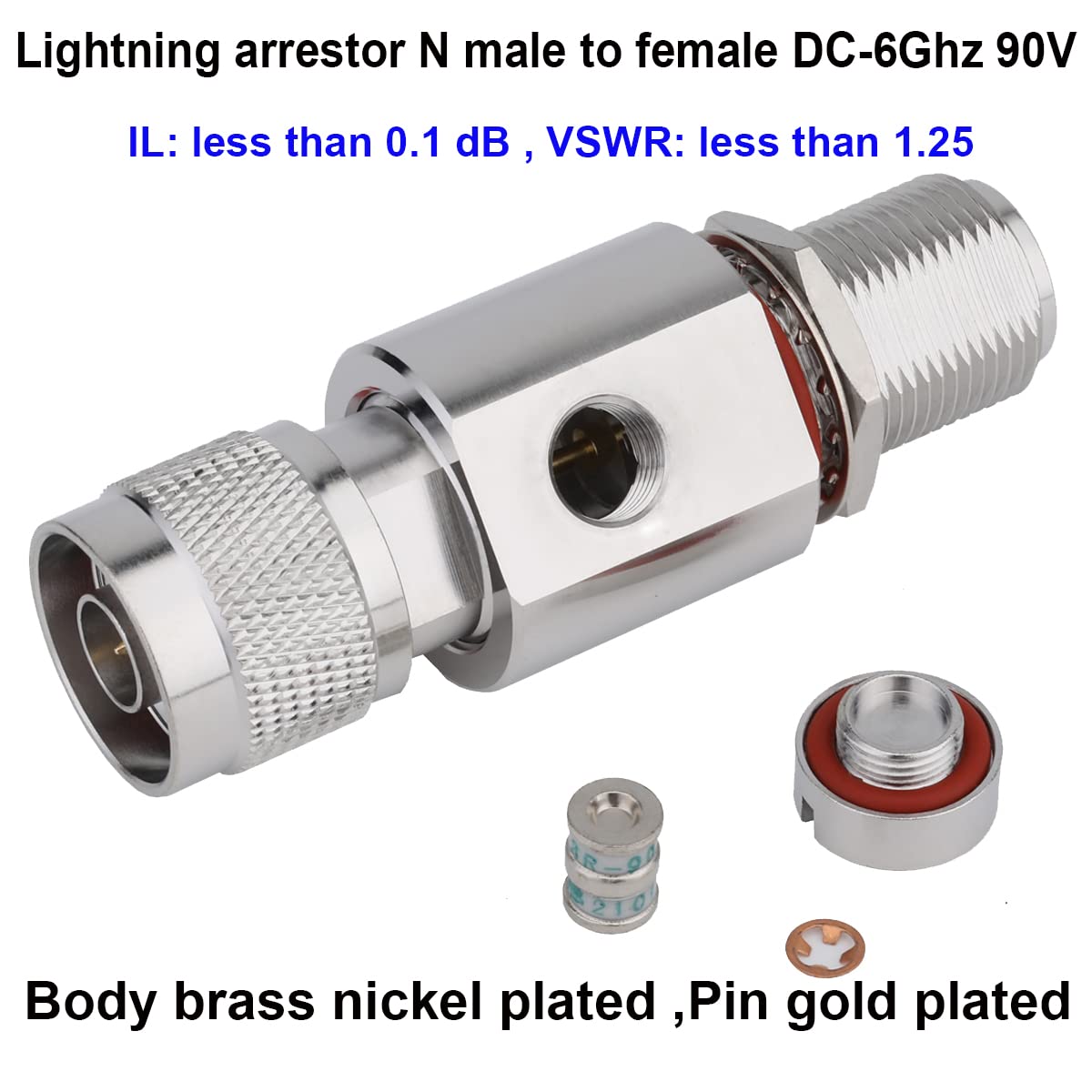

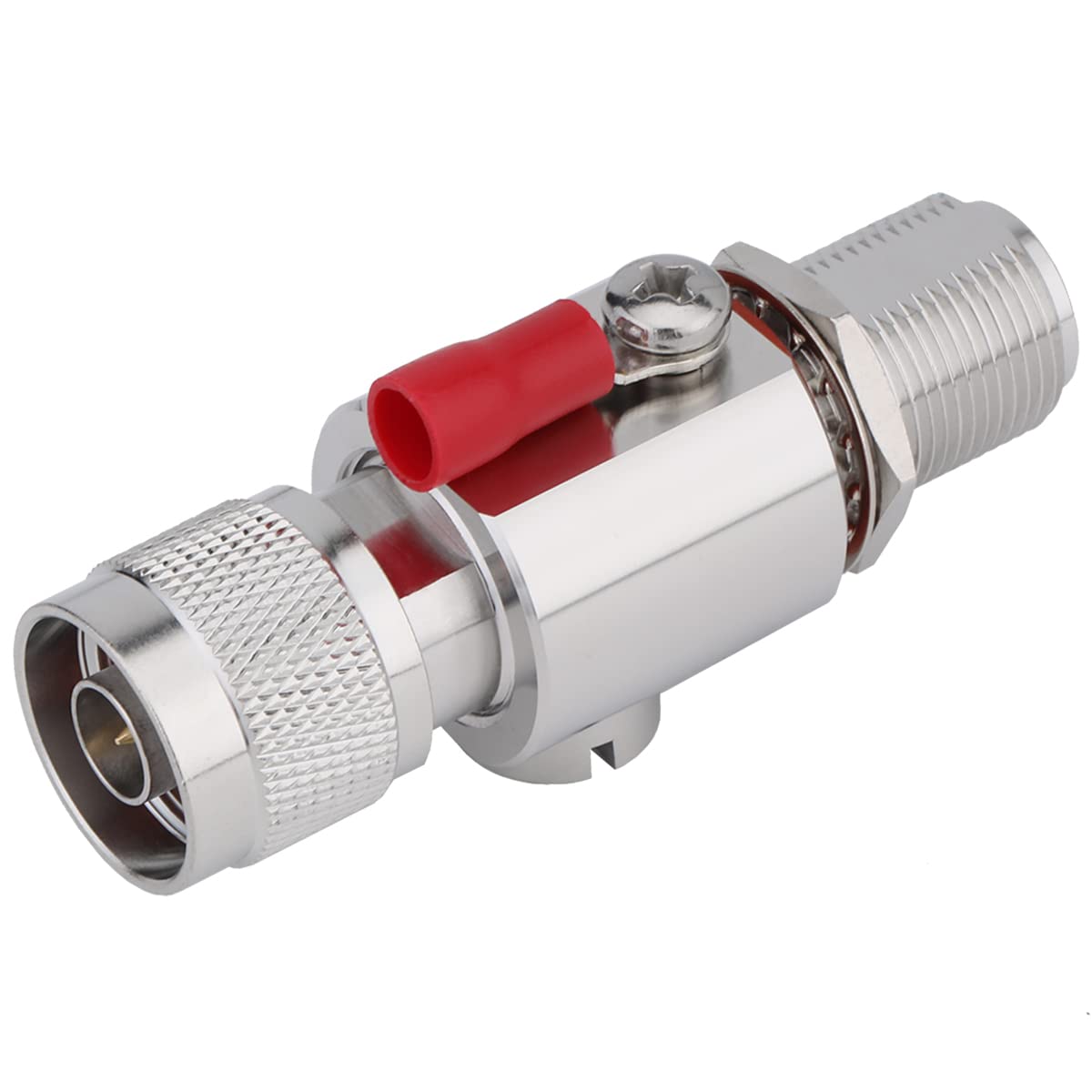

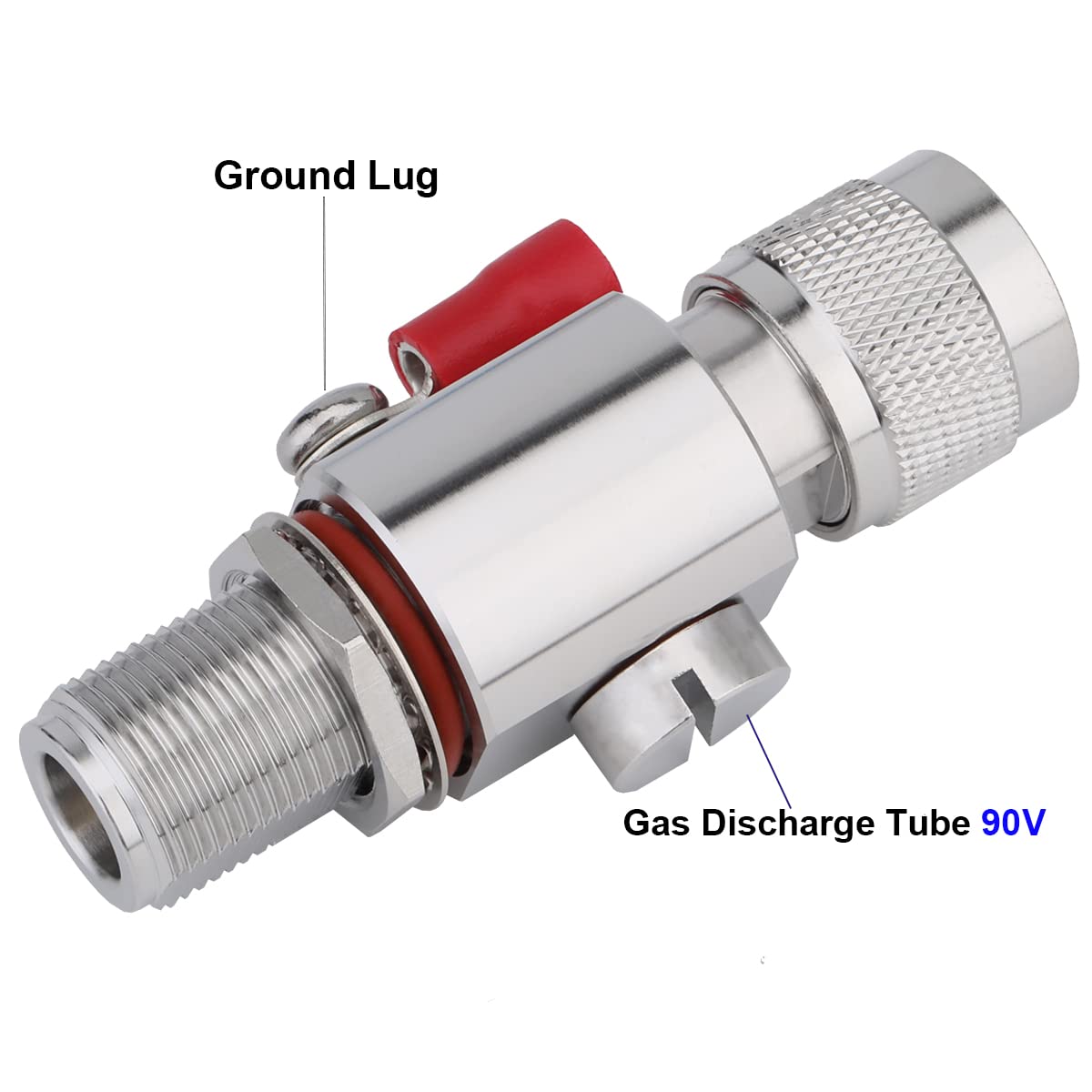

{"id":7390535450804,"title":"Coaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas","handle":"coaxial-n-type-lightning-arrestor-0-to-6-ghz-n-male-n-female-50ohm-protects-3g-4g-lte-gps-2-4ghz-5ghz-wi-fi-900mhz-ham-other-outside-antennas","description":"\u003ch3\u003eCoaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis gas discharge tube lightning suppressor features wide-band operation from\nDC to 6 GHz with low RF insertion loss, making it ideal for the newer \"5G\"\n802.11ac Wi-Fi and other high-frequency band services such as 3.5 GHz WLL and\nUNII \/ ISM applications in the 5.2 - 5.8 GHz bands. It is also a great\nlightning protector for 2G, 3G, 4G, and LTE service as well as 2.4 GHz Wi-Fi,\nHam radio and other lower frequency applications. This model features N-Male\nand N-Female Bulkhead connectors with a rubber O-ring seal for mounting\nthrough an enclosure wall or the arrestor can be used inline. This protector\nwill pass DC, so it is suitable for applications where DC is carried through\nthe coax cable, such as remote amplifiers and LNAs. Both connector ports are\nequally protected - it can be installed in either orientation. A ground lug on\nthe housing provides superior grounding. Coaxial lightning suppressors should\nbe installed between outdoor antennas and radio equipment to protect\nequipment, structures and personnel from high-energy electrical pulses carried\nthrough the coax cable either from a direct or nearby lightning strike.\nArresters should be installed as close a possible to the equipment to be\nprotected, often at the point where the coax cable enters the building. They\ncan also be installed near the antenna for additional protection.\nSpecifications: Frequency Range: 0 - 6 GHz Impedance: 50 ohms Discharge\nVoltage: DC 90V Insertion Loss: \u0026lt;0.1 dB VSWR :\u0026lt;1.25 Material: N Connectors:\nN-Male \u0026amp; N-Female Bulkhead(Body Brass Nickel Plated ) Pins :Brass Gold Plated\nO-Ring: Rubber Operating Temperature:-55℃ to +155℃ RoHS compliant Pack: one\npiece\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1.Reliable Wide-band Performance (DC ~ 6 GHz) ,Lightning arrestor 50 Ohm ,Bi-Directional Protection (N-Male \/ N-Female Connectors) - Bulkhead \/ Panel \/ Outdoor Mountable - High Quality Construction\u003c\/li\u003e\n \u003cli\u003e2.Lightning arrester protects HAM Radio Equipment and GPS Receivers.Protects 900MHz, 2.4GHz \u0026amp; 5GHz WiFi Outdoor Antennas,Protects 50 Ohm 3G, 4G, LTE Cellular Boosters and Amplifiers\u003c\/li\u003e\n \u003cli\u003e3.Lightning surge protector n female is very Low RF Insertion Loss (Signal Attenuation) - 50 Ohm Impedance - DC Pass-Through\u003c\/li\u003e\n \u003cli\u003e4.Pack one piece Ethernet lightning arrestor,replaceable 90V Gas Discharge Tube with Multi-Strike Capability Shunts Damaging Surges,Transients,and Lightning Strikes to Ground\u003c\/li\u003e\n \u003cli\u003e5.N connector lightning arrestor Connect to Antenna Coax Feedline and Earth Ground\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-06-06T18:56:42+10:00","created_at":"2023-06-06T18:56:49+10:00","vendor":"HUPENG","type":"Surge Protectors","tags":["June2023_cocoonwix"],"price":14400,"price_min":14400,"price_max":14400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42294328262836,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07JY6TD2T","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Coaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas","public_title":null,"options":["Default Title"],"price":14400,"weight":45,"compare_at_price":null,"inventory_management":null,"barcode":"192242644439","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B07JY6TD2T.jpg?v=1777972197","\/\/auspowers.com\/cdn\/shop\/products\/61HV2D4sKdL.jpg?v=1686041809","\/\/auspowers.com\/cdn\/shop\/products\/617cYByejsL.jpg?v=1686041809","\/\/auspowers.com\/cdn\/shop\/products\/61EZGpuzfBL.jpg?v=1686041809","\/\/auspowers.com\/cdn\/shop\/products\/61f157XRE8L.jpg?v=1686041810","\/\/auspowers.com\/cdn\/shop\/products\/51eP9rvsLkL.jpg?v=1686041810"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B07JY6TD2T.jpg?v=1777972197","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Coaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas ","id":28747119460532,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B07JY6TD2T.jpg?v=1777972197"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B07JY6TD2T.jpg?v=1777972197","width":1200},{"alt":"[Australia - AusPower] - Coaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas ","id":28744655634612,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61HV2D4sKdL.jpg?v=1686041809"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61HV2D4sKdL.jpg?v=1686041809","width":1200},{"alt":"[Australia - AusPower] - Coaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas ","id":28744655667380,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/617cYByejsL.jpg?v=1686041809"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/617cYByejsL.jpg?v=1686041809","width":1200},{"alt":"[Australia - AusPower] - Coaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas ","id":28744655700148,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61EZGpuzfBL.jpg?v=1686041809"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61EZGpuzfBL.jpg?v=1686041809","width":1200},{"alt":"[Australia - AusPower] - Coaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas ","id":28744655732916,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61f157XRE8L.jpg?v=1686041810"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61f157XRE8L.jpg?v=1686041810","width":1200},{"alt":"[Australia - AusPower] - Coaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas ","id":28744655765684,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1200,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51eP9rvsLkL.jpg?v=1686041810"},"aspect_ratio":1.0,"height":1200,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51eP9rvsLkL.jpg?v=1686041810","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCoaxial N Type Lightning Arrestor 0 to 6 GHz (N-Male\/N-Female) 50ohm,Protects 3G, 4G, LTE,GPS, 2.4GHz \/5GHz Wi-Fi, 900MHz, Ham Other Outside Antennas\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis gas discharge tube lightning suppressor features wide-band operation from\nDC to 6 GHz with low RF insertion loss, making it ideal for the newer \"5G\"\n802.11ac Wi-Fi and other high-frequency band services such as 3.5 GHz WLL and\nUNII \/ ISM applications in the 5.2 - 5.8 GHz bands. It is also a great\nlightning protector for 2G, 3G, 4G, and LTE service as well as 2.4 GHz Wi-Fi,\nHam radio and other lower frequency applications. This model features N-Male\nand N-Female Bulkhead connectors with a rubber O-ring seal for mounting\nthrough an enclosure wall or the arrestor can be used inline. This protector\nwill pass DC, so it is suitable for applications where DC is carried through\nthe coax cable, such as remote amplifiers and LNAs. Both connector ports are\nequally protected - it can be installed in either orientation. A ground lug on\nthe housing provides superior grounding. Coaxial lightning suppressors should\nbe installed between outdoor antennas and radio equipment to protect\nequipment, structures and personnel from high-energy electrical pulses carried\nthrough the coax cable either from a direct or nearby lightning strike.\nArresters should be installed as close a possible to the equipment to be\nprotected, often at the point where the coax cable enters the building. They\ncan also be installed near the antenna for additional protection.\nSpecifications: Frequency Range: 0 - 6 GHz Impedance: 50 ohms Discharge\nVoltage: DC 90V Insertion Loss: \u0026lt;0.1 dB VSWR :\u0026lt;1.25 Material: N Connectors:\nN-Male \u0026amp; N-Female Bulkhead(Body Brass Nickel Plated ) Pins :Brass Gold Plated\nO-Ring: Rubber Operating Temperature:-55℃ to +155℃ RoHS compliant Pack: one\npiece\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1.Reliable Wide-band Performance (DC ~ 6 GHz) ,Lightning arrestor 50 Ohm ,Bi-Directional Protection (N-Male \/ N-Female Connectors) - Bulkhead \/ Panel \/ Outdoor Mountable - High Quality Construction\u003c\/li\u003e\n \u003cli\u003e2.Lightning arrester protects HAM Radio Equipment and GPS Receivers.Protects 900MHz, 2.4GHz \u0026amp; 5GHz WiFi Outdoor Antennas,Protects 50 Ohm 3G, 4G, LTE Cellular Boosters and Amplifiers\u003c\/li\u003e\n \u003cli\u003e3.Lightning surge protector n female is very Low RF Insertion Loss (Signal Attenuation) - 50 Ohm Impedance - DC Pass-Through\u003c\/li\u003e\n \u003cli\u003e4.Pack one piece Ethernet lightning arrestor,replaceable 90V Gas Discharge Tube with Multi-Strike Capability Shunts Damaging Surges,Transients,and Lightning Strikes to Ground\u003c\/li\u003e\n \u003cli\u003e5.N connector lightning arrestor Connect to Antenna Coax Feedline and Earth Ground\u003c\/li\u003e\n \u003c\/ul\u003e"}
