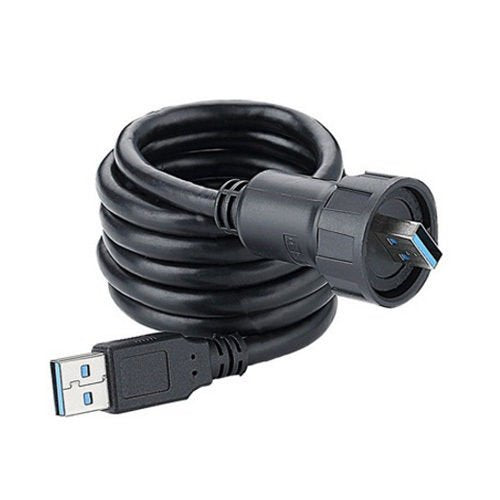

{"id":7390768136372,"title":"CNLINKO USB 3.0 Type A Connector, Male Plug with 40 inches Cable, Outdoor Waterproof IP67, Data + Power, Industrial Standard USB 3.0 Type A","handle":"cnlinko-usb-3-0-type-a-connector-male-plug-with-40-inches-cable-outdoor-waterproof-ip67-data-power-industrial-standard-usb-3-0-type-a","description":"\u003ch3\u003eCNLINKO USB 3.0 Type A Connector, Male Plug with 40 inches Cable, Outdoor Waterproof IP67, Data + Power, Industrial Standard USB 3.0 Type A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModel Number: YU-USB3-CPI-01-100 Pairing Socket Model Number: YU-\nUSB3-JSX-01-001 Features: ● Independent socket design, easy to install and\noperate ● Achieve double-headed male to female adapter, snap locking, ensure\nsafe and stable ● Compatible with USB2.0, protection level IP67 ● Sheath of\ncable protect cable outlet well ● Solid connections system can provide the\nsolutions for data transmission in harsh environments Specification: Cable\nspecification 0.15m㎡～0.2m㎡\/26-24 AWG Diameter range Φ5.5mm～Φ7mm Contact\ndiameter × number 9 Rated Current (A) 1.5A Contact resistance \u0026lt;30mΩ\nWithstanding Voltage (AC.V) 1 minute 1000V Insulation resistance \u0026gt;500MΩ\nProtection level IP67 Durability \u0026gt;500 times Working temperature -40℃～80℃\nConnecting mode Quickly bayonet connect Housing, the insulating parts High-\nperformance engineering plastics Hardware Zinc Alloy (pearl hard chrome)\nCopper needles Copper Shell Waterproof circle Silica gel Flammability rating\nUL94-V0\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatible with USB 3.0\/2.0, outdoor, waterproof IP67\u003c\/li\u003e\n \u003cli\u003ePairing CNLINKO socket \"YU-USB3-JSX-01-003\", snap locking, ensure safe and stable\u003c\/li\u003e\n \u003cli\u003eSolid connections system can provide the solutions for data transmission in harsh environments\u003c\/li\u003e\n \u003cli\u003ePBT material of the protective housing, with characters of fire safety, compression, anti-explosion and anti-deformation\u003c\/li\u003e\n \u003cli\u003eSheath of cable protect cable outlet well\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-06-07T22:56:25+10:00","created_at":"2023-06-07T22:56:30+10:00","vendor":"CNLINKO","type":"Connectors \u0026 Adapters","tags":["June2023_cocoonwix"],"price":16500,"price_min":16500,"price_max":16500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42295197892788,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B01N1HGIHN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CNLINKO USB 3.0 Type A Connector, Male Plug with 40 inches Cable, Outdoor Waterproof IP67, Data + Power, Industrial Standard USB 3.0 Type A","public_title":null,"options":["Default Title"],"price":16500,"weight":75,"compare_at_price":null,"inventory_management":null,"barcode":"600192380357","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B01N1HGIHN.jpg?v=1777973169","\/\/auspowers.com\/cdn\/shop\/products\/31mJlEu2PHL.jpg?v=1686142590","\/\/auspowers.com\/cdn\/shop\/products\/419DC-AxWpL.jpg?v=1686142590","\/\/auspowers.com\/cdn\/shop\/products\/41hM0rpqgQL.jpg?v=1686142590","\/\/auspowers.com\/cdn\/shop\/products\/41v272FGupL.jpg?v=1686142590"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B01N1HGIHN.jpg?v=1777973169","options":["Title"],"media":[{"alt":"[Australia - AusPower] - CNLINKO USB 3.0 Type A Connector, Male Plug with 40 inches Cable, Outdoor Waterproof IP67, Data + Power, Industrial Standard USB 3.0 Type A ","id":28749719240884,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B01N1HGIHN.jpg?v=1777973169"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B01N1HGIHN.jpg?v=1777973169","width":500},{"alt":"[Australia - AusPower] - CNLINKO USB 3.0 Type A Connector, Male Plug with 40 inches Cable, Outdoor Waterproof IP67, Data + Power, Industrial Standard USB 3.0 Type A ","id":28747927486644,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/31mJlEu2PHL.jpg?v=1686142590"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/31mJlEu2PHL.jpg?v=1686142590","width":500},{"alt":"[Australia - AusPower] - CNLINKO USB 3.0 Type A Connector, Male Plug with 40 inches Cable, Outdoor Waterproof IP67, Data + Power, Industrial Standard USB 3.0 Type A ","id":28747927519412,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/419DC-AxWpL.jpg?v=1686142590"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/419DC-AxWpL.jpg?v=1686142590","width":500},{"alt":"[Australia - AusPower] - CNLINKO USB 3.0 Type A Connector, Male Plug with 40 inches Cable, Outdoor Waterproof IP67, Data + Power, Industrial Standard USB 3.0 Type A ","id":28747927552180,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41hM0rpqgQL.jpg?v=1686142590"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41hM0rpqgQL.jpg?v=1686142590","width":500},{"alt":"[Australia - AusPower] - CNLINKO USB 3.0 Type A Connector, Male Plug with 40 inches Cable, Outdoor Waterproof IP67, Data + Power, Industrial Standard USB 3.0 Type A ","id":28747927584948,"position":5,"preview_image":{"aspect_ratio":1.416,"height":353,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/41v272FGupL.jpg?v=1686142590"},"aspect_ratio":1.416,"height":353,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/41v272FGupL.jpg?v=1686142590","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCNLINKO USB 3.0 Type A Connector, Male Plug with 40 inches Cable, Outdoor Waterproof IP67, Data + Power, Industrial Standard USB 3.0 Type A\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eModel Number: YU-USB3-CPI-01-100 Pairing Socket Model Number: YU-\nUSB3-JSX-01-001 Features: ● Independent socket design, easy to install and\noperate ● Achieve double-headed male to female adapter, snap locking, ensure\nsafe and stable ● Compatible with USB2.0, protection level IP67 ● Sheath of\ncable protect cable outlet well ● Solid connections system can provide the\nsolutions for data transmission in harsh environments Specification: Cable\nspecification 0.15m㎡～0.2m㎡\/26-24 AWG Diameter range Φ5.5mm～Φ7mm Contact\ndiameter × number 9 Rated Current (A) 1.5A Contact resistance \u0026lt;30mΩ\nWithstanding Voltage (AC.V) 1 minute 1000V Insulation resistance \u0026gt;500MΩ\nProtection level IP67 Durability \u0026gt;500 times Working temperature -40℃～80℃\nConnecting mode Quickly bayonet connect Housing, the insulating parts High-\nperformance engineering plastics Hardware Zinc Alloy (pearl hard chrome)\nCopper needles Copper Shell Waterproof circle Silica gel Flammability rating\nUL94-V0\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatible with USB 3.0\/2.0, outdoor, waterproof IP67\u003c\/li\u003e\n \u003cli\u003ePairing CNLINKO socket \"YU-USB3-JSX-01-003\", snap locking, ensure safe and stable\u003c\/li\u003e\n \u003cli\u003eSolid connections system can provide the solutions for data transmission in harsh environments\u003c\/li\u003e\n \u003cli\u003ePBT material of the protective housing, with characters of fire safety, compression, anti-explosion and anti-deformation\u003c\/li\u003e\n \u003cli\u003eSheath of cable protect cable outlet well\u003c\/li\u003e\n \u003c\/ul\u003e"}
