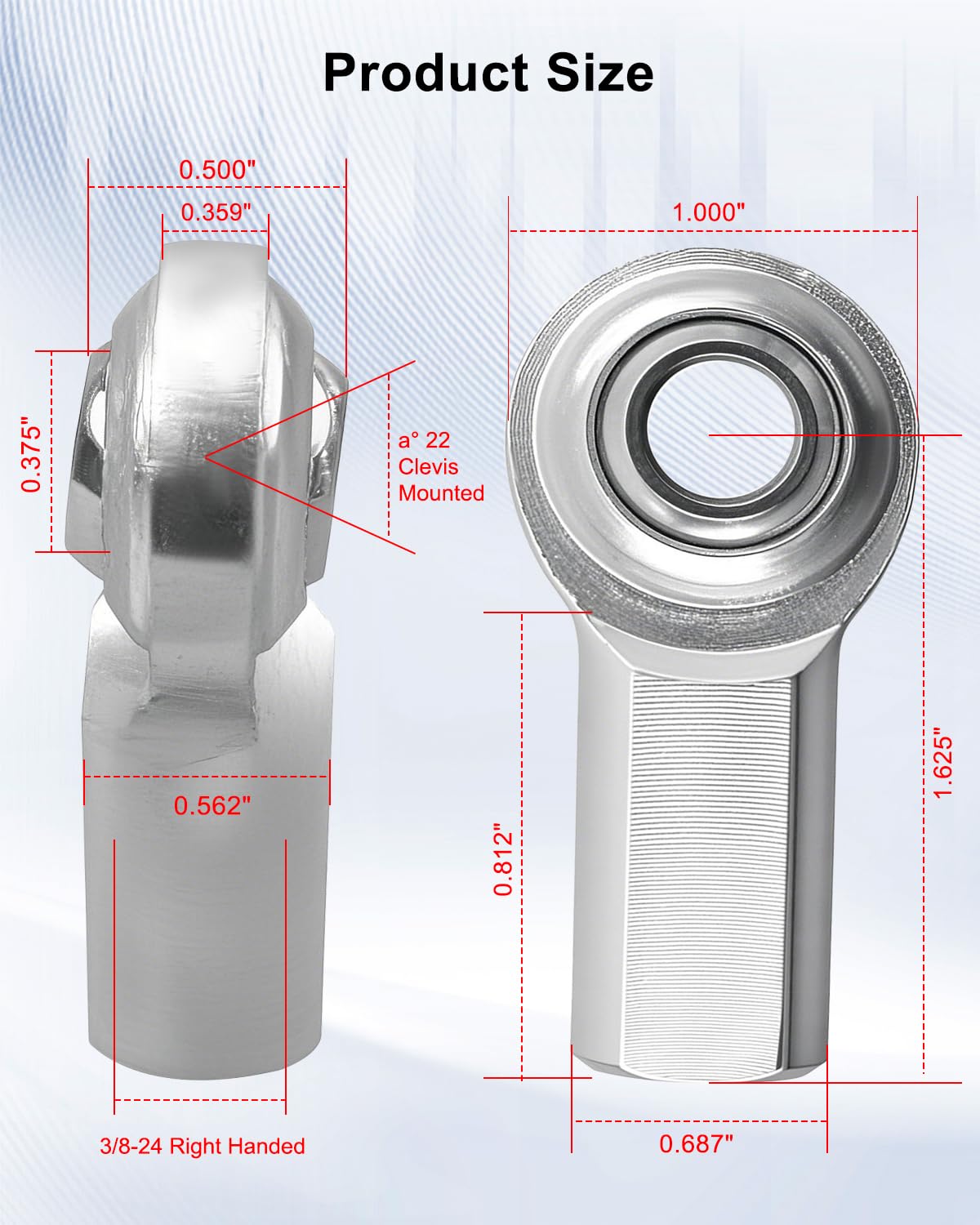

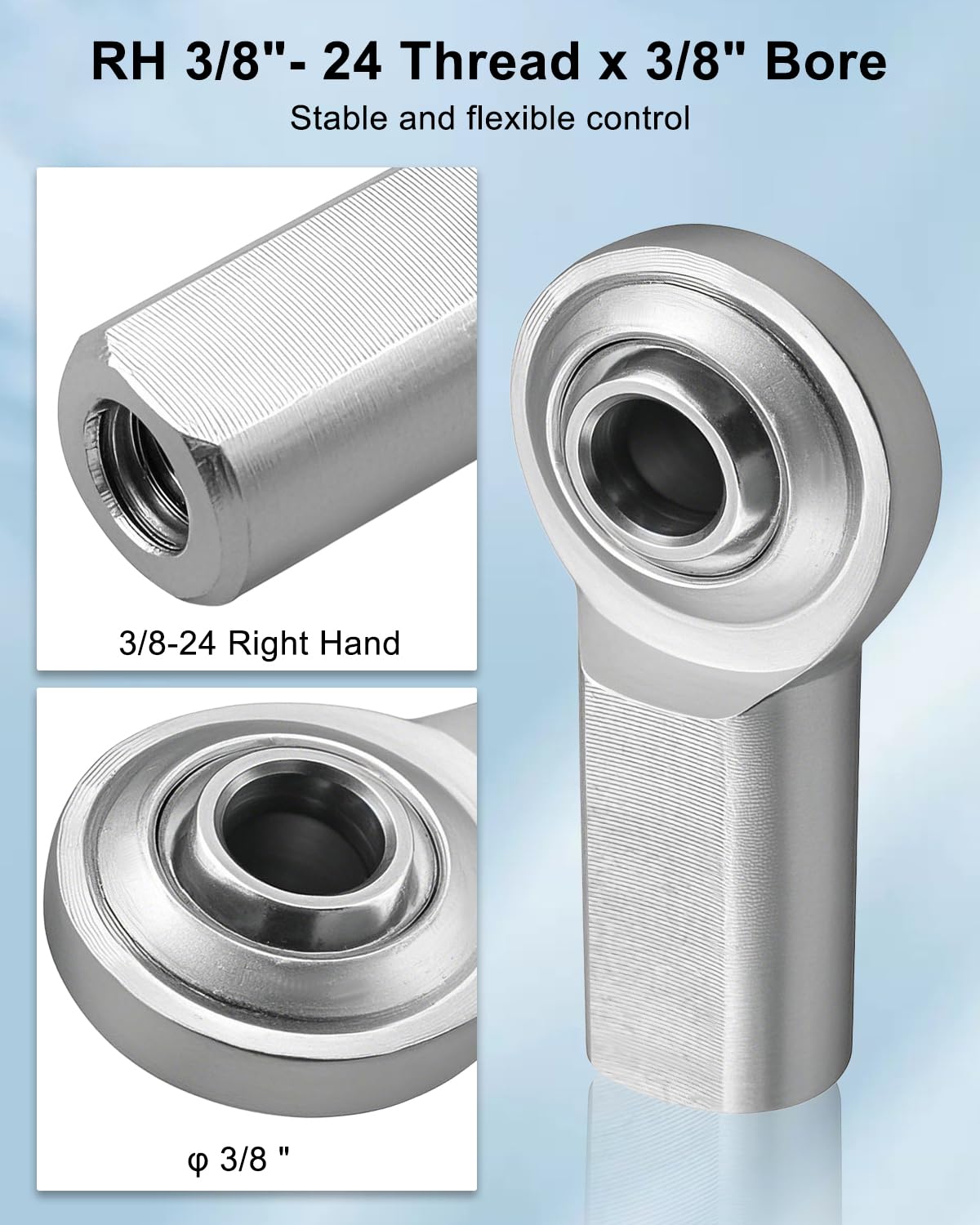

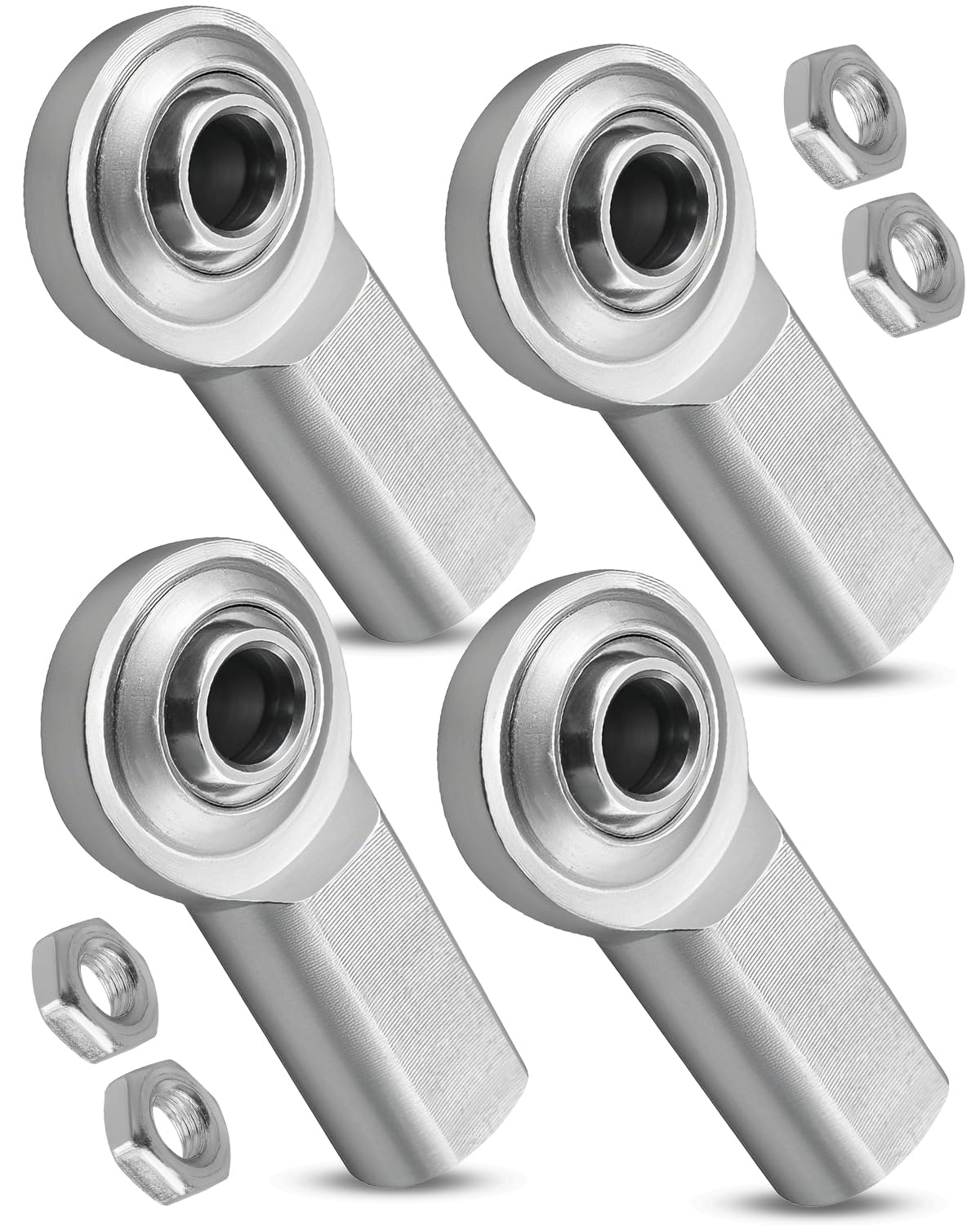

{"id":7960866554036,"title":"CF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack","handle":"cf6-rod-end-bearing-heim-joints-right-hand-female-thread-heim-joint-3-8-x-3-8-24-stainless-female-rod-end-bearing-with-jam-nuts-4-pack","description":"\u003ch3\u003eCF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSize: Thread Size: 3\/8\"-24 (Right-Hand Thread) Bore Size: 3\/8\" Ball Bore:\n0.500\" Ball Width: 0.625\" Centerline Length: 2.125\" Thread Length: 1.062\" Lock\nNut Thread: 3\/8\"-24 Load Capacity: 12,224 lbs Maximum Angular Misalignment:\n11° Material: Heat-Treated C1045 Steel Quantity: 4 Pieces High Performance:\nHigh precision, large fixed load, low noise, anti-corrosion, sturdy and\ndurable Widely Used: With extremely high rated load, it is very suitable for\nvarious applications, including engineering hydraulic cylinders, forging\npresses, electric tools, and automated machinery. The bearing assembly ensures\nsmooth and flexible control in different mechanical systems. For example, it\nis widely used in engineering hydraulic cylinders, machinery, automobiles,\nmotorcycles, beach bikes, ships, electric tools, automation equipment, CNC\nequipment, etc Easy To Install: The Haim connector design allows for quick and\nworry free installation, equipped with manual locking nuts that can be\ntightened to complete the assembly process smoothly and simply, without any\nadditional adjustments or modifications, saving time and effort during the\nsetup process\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-Quality Steel: Precision machined from heat-treated C1045 steel, with high load rating (3820 lbs), corrosion-resistant and wear-resistant, ensuring long-term stable use, suitable for high-intensity industrial and mechanical applications\u003c\/li\u003e\n \u003cli\u003eHigh-Precision Manufacturing: After precision grinding and heat treatment, the dimensions are accurate, RH 3\/8 x 3\/8-24 aperture design, fine thread cutting, smooth bearing operation, reduced mechanical wear and increased service life\u003c\/li\u003e\n \u003cli\u003eVersatile Application: Applicable to a variety of industrial and vehicle systems such as engineering hydraulic cylinders, forging machines, power tools, automation equipment, machinery, automobiles, motorcycles, CNC equipment, etc., providing stable and reliable mechanical connections\u003c\/li\u003e\n \u003cli\u003eQuick Installation: Right-hand thread design, equipped with locking nuts, no additional adjustment or modification, direct installation and use, greatly reducing assembly time and improving work efficiency\u003c\/li\u003e\n \u003cli\u003eSuper Value 4-Piece Set Combination: Each set contains 4PCS stainless steel heim joints + 4PCS screws, providing complete components to meet the needs of various mechanical equipment, economical and practical, and cost-effective\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-06-26T01:36:47+10:00","created_at":"2025-06-26T01:36:41+10:00","vendor":"QNHEAY","type":"Rod End Bearings","tags":["industrial_best_sellers_Jun2025"],"price":17200,"price_min":17200,"price_max":17200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43957659238580,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0DZ9QLGY3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"CF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack","public_title":null,"options":["Default Title"],"price":17200,"weight":272,"compare_at_price":null,"inventory_management":"shopify","barcode":"S6.SLWGDZ03.LESU","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DZ9QLGY3.jpg?v=1775758974","\/\/auspowers.com\/cdn\/shop\/files\/71yrt3OH77L.jpg?v=1750865805","\/\/auspowers.com\/cdn\/shop\/files\/71e4bL6CL5L.jpg?v=1750865805","\/\/auspowers.com\/cdn\/shop\/files\/71XeqcFddFL.jpg?v=1750865805","\/\/auspowers.com\/cdn\/shop\/files\/71bvgEHLQxL.jpg?v=1750865805","\/\/auspowers.com\/cdn\/shop\/files\/71lWoW5sZpL.jpg?v=1750865805"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DZ9QLGY3.jpg?v=1775758974","options":["Title"],"media":[{"alt":"[Australia - AusPower] - CF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack ","id":31735000596660,"position":1,"preview_image":{"aspect_ratio":0.8,"height":1500,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DZ9QLGY3.jpg?v=1775758974"},"aspect_ratio":0.8,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DZ9QLGY3.jpg?v=1775758974","width":1200},{"alt":"[Australia - AusPower] - CF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack ","id":31735000629428,"position":2,"preview_image":{"aspect_ratio":0.8,"height":1500,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71yrt3OH77L.jpg?v=1750865805"},"aspect_ratio":0.8,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71yrt3OH77L.jpg?v=1750865805","width":1200},{"alt":"[Australia - AusPower] - CF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack ","id":31735000662196,"position":3,"preview_image":{"aspect_ratio":0.8,"height":1500,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71e4bL6CL5L.jpg?v=1750865805"},"aspect_ratio":0.8,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71e4bL6CL5L.jpg?v=1750865805","width":1200},{"alt":"[Australia - AusPower] - CF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack ","id":31735000694964,"position":4,"preview_image":{"aspect_ratio":0.8,"height":1500,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71XeqcFddFL.jpg?v=1750865805"},"aspect_ratio":0.8,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71XeqcFddFL.jpg?v=1750865805","width":1200},{"alt":"[Australia - AusPower] - CF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack ","id":31735000727732,"position":5,"preview_image":{"aspect_ratio":0.8,"height":1500,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71bvgEHLQxL.jpg?v=1750865805"},"aspect_ratio":0.8,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71bvgEHLQxL.jpg?v=1750865805","width":1200},{"alt":"[Australia - AusPower] - CF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack ","id":31735000760500,"position":6,"preview_image":{"aspect_ratio":0.8,"height":1500,"width":1200,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71lWoW5sZpL.jpg?v=1750865805"},"aspect_ratio":0.8,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71lWoW5sZpL.jpg?v=1750865805","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eCF6 Rod End Bearing Heim Joints Right Hand Female Thread Heim Joint, 3\/8 x 3\/8-24 Stainless Female Rod End Bearing with Jam Nuts, 4 Pack\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSize: Thread Size: 3\/8\"-24 (Right-Hand Thread) Bore Size: 3\/8\" Ball Bore:\n0.500\" Ball Width: 0.625\" Centerline Length: 2.125\" Thread Length: 1.062\" Lock\nNut Thread: 3\/8\"-24 Load Capacity: 12,224 lbs Maximum Angular Misalignment:\n11° Material: Heat-Treated C1045 Steel Quantity: 4 Pieces High Performance:\nHigh precision, large fixed load, low noise, anti-corrosion, sturdy and\ndurable Widely Used: With extremely high rated load, it is very suitable for\nvarious applications, including engineering hydraulic cylinders, forging\npresses, electric tools, and automated machinery. The bearing assembly ensures\nsmooth and flexible control in different mechanical systems. For example, it\nis widely used in engineering hydraulic cylinders, machinery, automobiles,\nmotorcycles, beach bikes, ships, electric tools, automation equipment, CNC\nequipment, etc Easy To Install: The Haim connector design allows for quick and\nworry free installation, equipped with manual locking nuts that can be\ntightened to complete the assembly process smoothly and simply, without any\nadditional adjustments or modifications, saving time and effort during the\nsetup process\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh-Quality Steel: Precision machined from heat-treated C1045 steel, with high load rating (3820 lbs), corrosion-resistant and wear-resistant, ensuring long-term stable use, suitable for high-intensity industrial and mechanical applications\u003c\/li\u003e\n \u003cli\u003eHigh-Precision Manufacturing: After precision grinding and heat treatment, the dimensions are accurate, RH 3\/8 x 3\/8-24 aperture design, fine thread cutting, smooth bearing operation, reduced mechanical wear and increased service life\u003c\/li\u003e\n \u003cli\u003eVersatile Application: Applicable to a variety of industrial and vehicle systems such as engineering hydraulic cylinders, forging machines, power tools, automation equipment, machinery, automobiles, motorcycles, CNC equipment, etc., providing stable and reliable mechanical connections\u003c\/li\u003e\n \u003cli\u003eQuick Installation: Right-hand thread design, equipped with locking nuts, no additional adjustment or modification, direct installation and use, greatly reducing assembly time and improving work efficiency\u003c\/li\u003e\n \u003cli\u003eSuper Value 4-Piece Set Combination: Each set contains 4PCS stainless steel heim joints + 4PCS screws, providing complete components to meet the needs of various mechanical equipment, economical and practical, and cost-effective\u003c\/li\u003e\n \u003c\/ul\u003e"}
