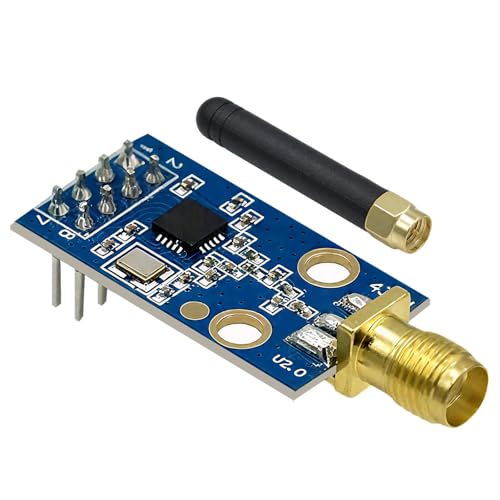

CC1101 Wireless Module with SMA Antenna Binghe CC1101 433M Transmitter Receiver Module with SMA and Antenna Rod DC 1.9-3.6V SPI Interface Compatible with Arduino
CC1101 Wireless Module with SMA Antenna Binghe CC1101 433M Transmitter Receiver Module with SMA and Antenna Rod DC 1.9-3.6V SPI Interface Compatible with Arduino
Description: The Binghe CC1101 wireless module is a powerful 433MHz transceiver based on the CC1101 RF chip. It is made of industrial grade components, supports a wide input voltage range from 1.9V to 3.6V, and works seamlessly with Arduino, STM32 and flight control boards. With an SMA antenna port, the module achieves a tested communication range of over 380 meters at data rates from 1.2 kbps to 500 kbps (recommended ≤20 kbps for 433 MHz). With a sensitivity of -117 dBm at 250 kbps, it is ideal for long-range applications with low power consumption. The standard SPI interface supports up to 10Mbps with 3-stage FIFO buffering and 1-32 byte data packets. Specifications: Product Name: CC1101 Radio Module (with Antenna) RF chip: TI CC1101. Frequency range: 387MHz-464MHz (recommended 433MHz ±10%) Output power: 10dBm (approx. 10 mW). Communication distance: ≥380 m (depending on the environment). Operating voltage: 1.8V-3.6V DC Logic Level: 0.7VDD - 3.6VDC Transmission current: 29.2mA (peak) Receiving current: 14.7mA Receiver sensitivity: -117 dBm at 250 kbps. Air data rate: 1.2kbps - 500kbps (recommended ≤20kbps at 433MHz) Communication interface: SPI (mode 0), speed up to 10Mbps Package size: 1-32 byte, 3-stage FIFO buffer Pin interface: 2×4×2.54mm connector (support dupont cable/prototyping boards) Antenna interface: standard SMA connector, rod antenna included Operating temperature: -30°C to +85°C. Storage temperature: -40°C to +125°C. Operating Humidity: 10%-90% Products include: 1 x CC1101 radio module with SMA antenna.
Product Features

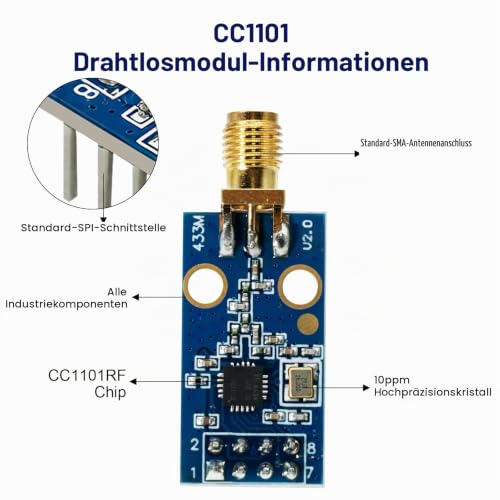

- CC1101 Core Chip: Equipped with the TI CC1101 RF chip, stable and reliable, supports 433MHz radio communication for consistent data transmission.
- Long-distance communication: tested range over 380 meters (depending on the environment), CC1101 radio module suitable for remote controls, flight controls and wireless sensor networks.
- Low power design: transmitting current peak 29.2 mA, reception current 14.7 mA, battery saving, CC1101 radio module with SMA antenna perfect for projects with low power consumption.

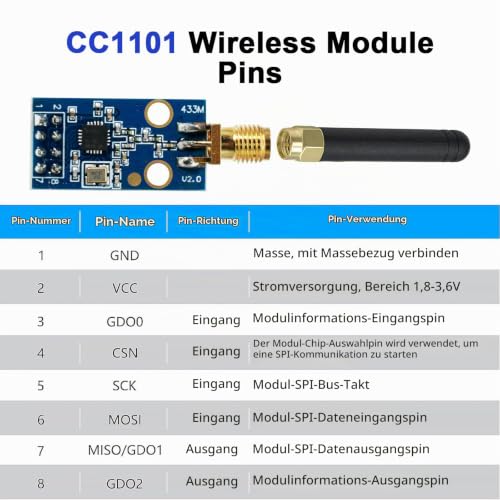

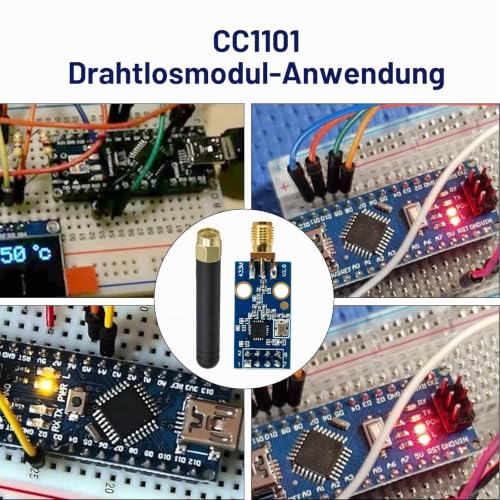

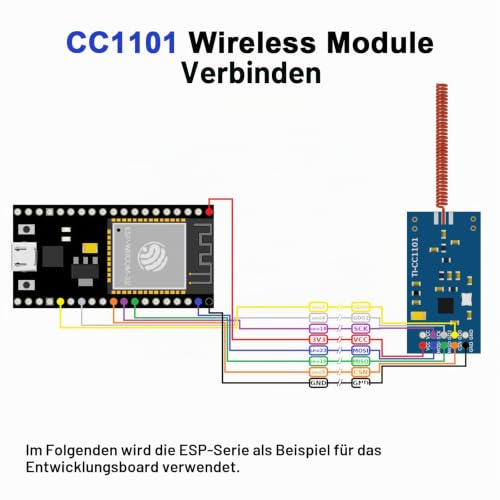

- Standard SPI interface: communication speed up to 10 Mbps, CC1101 radio module compatible with Arduino, STM32 and flight control boards for easy integration.
- Industrial Grade Components: Wide operating temperature range (-30C to +85C) and humidity range (10% to 90%), CC1101 wireless module durable for demanding industrial applications.
