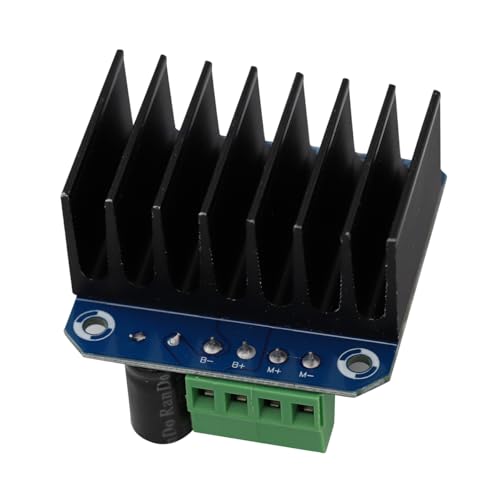

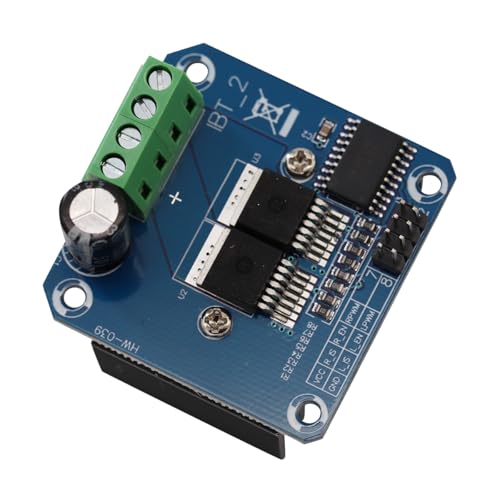

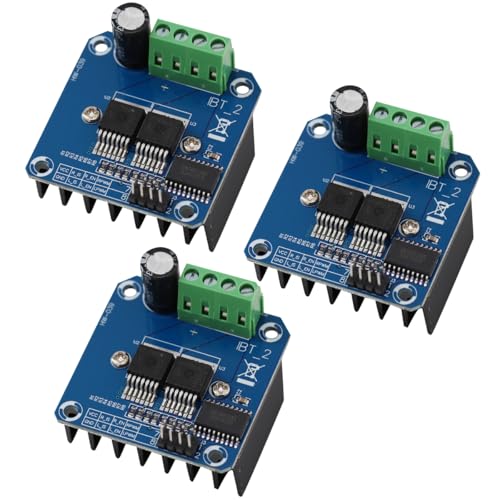

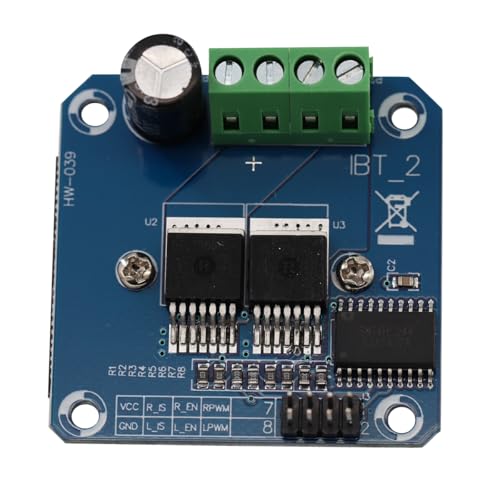

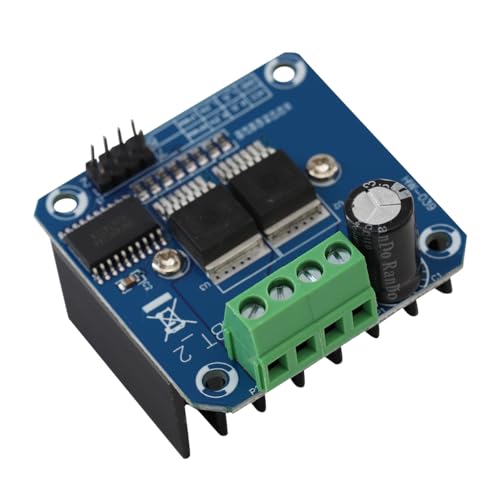

{"id":8115121356980,"title":"BTS7960 43A High Performance Double DC Stepper Motor Driver Module Motor Driver Module Module Board 5.5 V to 27 V for Smart Car (Pack of 3)","handle":"bts7960-43a-high-performance-double-dc-stepper-motor-driver-module-motor-driver-module-module-board-5-5-v-to-27-v-for-smart-car-pack-of-3","description":"\u003ch3\u003eBTS7960 43A High Performance Double DC Stepper Motor Driver Module Motor Driver Module Module Board 5.5 V to 27 V for Smart Car (Pack of 3)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: 1. Product Name: BTS7960 Motor Driver Module 2. Supply voltage:\n5.5 V ~ 27 V. 3. Max. Current: 43A 4. Control mode: PWM or level 5. Power\nconditioning output: yes. 6. Dual BTS7960 High Current (43A) H Bridge Driver\n7. 5V insulation from the microcontroller to effectively protect the\nmicrocontroller. 8. It can realize the forward and reverse rotation of the\nmotor, and the maximum frequency of two PM inputs is 25 KHZ. 9. Two-sided\novercurrent and overheating fault signal output. 10. 5V power supply of\ninsulation chip (can share 5V with microcontroller) Instructions: Method 1:\nVCC: 5V microcontroller power supply GND: GND of the microcontroller. R_EN and\nL_EN are short circuited and connected with 5V level, the driver can work.\nL_PWM, PWM input signal or high level motor rotates forward. R_PWM, PWM input\nsignal or high level reverse motor. Method 2: VCC: 5V microcontroller power\nsupply GND: GND of the microcontroller. R_EN and L_EN are short-circuited and\nconnected to the PWM input signal for speed control. L_PWM, the pin input 5V\nlevel rotates forward. R_PWM, pin input 5V level motor backwards. Package\nincludes: 3 x BTS7960 43A DC Stepper Motor Driver Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStrong Drive CapabilityDual BTS7960 high current H bridge drivers, limited to 43A high current output, with very strong drive and braking effect.\u003c\/li\u003e\n \u003cli\u003eHigh output power: With a current output of up to 43A, the BTS7960 module is suitable for driving high-performance motors to meet the requirements of high-speed movements and heavy loads of intelligent vehicles.\u003c\/li\u003e\n \u003cli\u003eSafe and reliable: the supply voltage is 5.5 V to 27 V, the 5 V power supply of the insulation chip (can share 5 V with the microcontroller) is isolated from the 5 V of the microcontroller, which effectively protects the microcontroller.\u003c\/li\u003e\n \u003cli\u003eMultiple ProtectionProtection functions: over current, overheating fault signal output, over temperature, over voltage, undervoltage, over current protection, short circuit protection.\u003c\/li\u003e\n \u003cli\u003eTwo drive channels: BTS7960 motor driver module supports the independent control of two motors for direction and speed and thus allows more flexible movement modes such as forward, reverse and rotary movements, two PWM inputs up to 25 kHz frequency\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T12:12:47+10:00","created_at":"2026-09-01T22:40:44+10:00","vendor":"Heevhas","type":"Motor Drivers","tags":["industrial_DE_Aug2026"],"price":19200,"price_min":19200,"price_max":19200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44374836183220,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DQZFZRL3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BTS7960 43A High Performance Double DC Stepper Motor Driver Module Motor Driver Module Module Board 5.5 V to 27 V for Smart Car (Pack of 3)","public_title":null,"options":["Default Title"],"price":19200,"weight":185,"compare_at_price":null,"inventory_management":"shopify","barcode":"X196","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0DQZFZRL3.jpg?v=1788266447","\/\/auspowers.com\/cdn\/shop\/files\/41W1RmhhcHL.jpg?v=1788266447","\/\/auspowers.com\/cdn\/shop\/files\/41qsjL5vFfL.jpg?v=1788266447","\/\/auspowers.com\/cdn\/shop\/files\/41O-jRK4RlL.jpg?v=1788266447","\/\/auspowers.com\/cdn\/shop\/files\/41w9f0tUKdL.jpg?v=1788266446"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0DQZFZRL3.jpg?v=1788266447","options":["Title"],"media":[{"alt":null,"id":33272230084788,"position":1,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DQZFZRL3.jpg?v=1788266447"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0DQZFZRL3.jpg?v=1788266447","width":500},{"alt":null,"id":33272230117556,"position":2,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41W1RmhhcHL.jpg?v=1788266447"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41W1RmhhcHL.jpg?v=1788266447","width":500},{"alt":null,"id":33272230150324,"position":3,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41qsjL5vFfL.jpg?v=1788266447"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41qsjL5vFfL.jpg?v=1788266447","width":500},{"alt":null,"id":33272230183092,"position":4,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41O-jRK4RlL.jpg?v=1788266447"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41O-jRK4RlL.jpg?v=1788266447","width":500},{"alt":null,"id":33272230215860,"position":5,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41w9f0tUKdL.jpg?v=1788266446"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41w9f0tUKdL.jpg?v=1788266446","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBTS7960 43A High Performance Double DC Stepper Motor Driver Module Motor Driver Module Module Board 5.5 V to 27 V for Smart Car (Pack of 3)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eParameters: 1. Product Name: BTS7960 Motor Driver Module 2. Supply voltage:\n5.5 V ~ 27 V. 3. Max. Current: 43A 4. Control mode: PWM or level 5. Power\nconditioning output: yes. 6. Dual BTS7960 High Current (43A) H Bridge Driver\n7. 5V insulation from the microcontroller to effectively protect the\nmicrocontroller. 8. It can realize the forward and reverse rotation of the\nmotor, and the maximum frequency of two PM inputs is 25 KHZ. 9. Two-sided\novercurrent and overheating fault signal output. 10. 5V power supply of\ninsulation chip (can share 5V with microcontroller) Instructions: Method 1:\nVCC: 5V microcontroller power supply GND: GND of the microcontroller. R_EN and\nL_EN are short circuited and connected with 5V level, the driver can work.\nL_PWM, PWM input signal or high level motor rotates forward. R_PWM, PWM input\nsignal or high level reverse motor. Method 2: VCC: 5V microcontroller power\nsupply GND: GND of the microcontroller. R_EN and L_EN are short-circuited and\nconnected to the PWM input signal for speed control. L_PWM, the pin input 5V\nlevel rotates forward. R_PWM, pin input 5V level motor backwards. Package\nincludes: 3 x BTS7960 43A DC Stepper Motor Driver Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eStrong Drive CapabilityDual BTS7960 high current H bridge drivers, limited to 43A high current output, with very strong drive and braking effect.\u003c\/li\u003e\n \u003cli\u003eHigh output power: With a current output of up to 43A, the BTS7960 module is suitable for driving high-performance motors to meet the requirements of high-speed movements and heavy loads of intelligent vehicles.\u003c\/li\u003e\n \u003cli\u003eSafe and reliable: the supply voltage is 5.5 V to 27 V, the 5 V power supply of the insulation chip (can share 5 V with the microcontroller) is isolated from the 5 V of the microcontroller, which effectively protects the microcontroller.\u003c\/li\u003e\n \u003cli\u003eMultiple ProtectionProtection functions: over current, overheating fault signal output, over temperature, over voltage, undervoltage, over current protection, short circuit protection.\u003c\/li\u003e\n \u003cli\u003eTwo drive channels: BTS7960 motor driver module supports the independent control of two motors for direction and speed and thus allows more flexible movement modes such as forward, reverse and rotary movements, two PWM inputs up to 25 kHz frequency\u003c\/li\u003e\n \u003c\/ul\u003e"}
