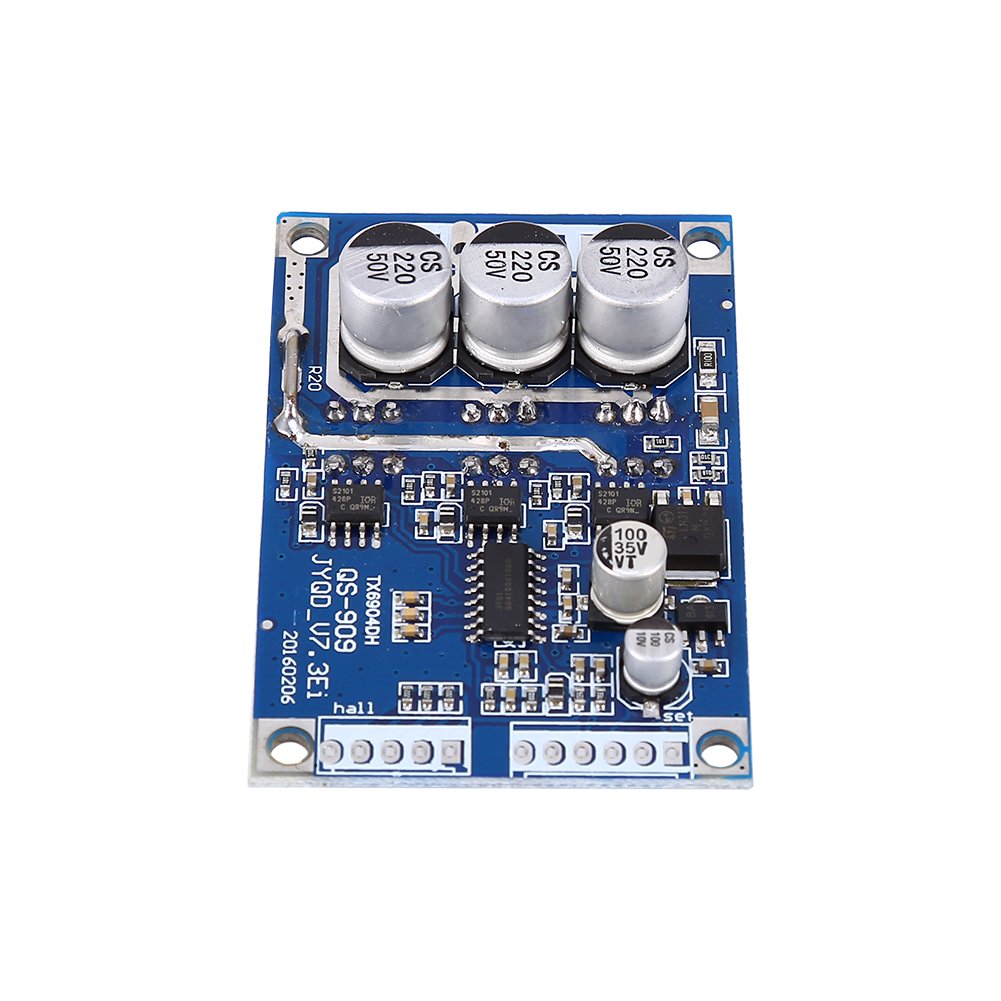

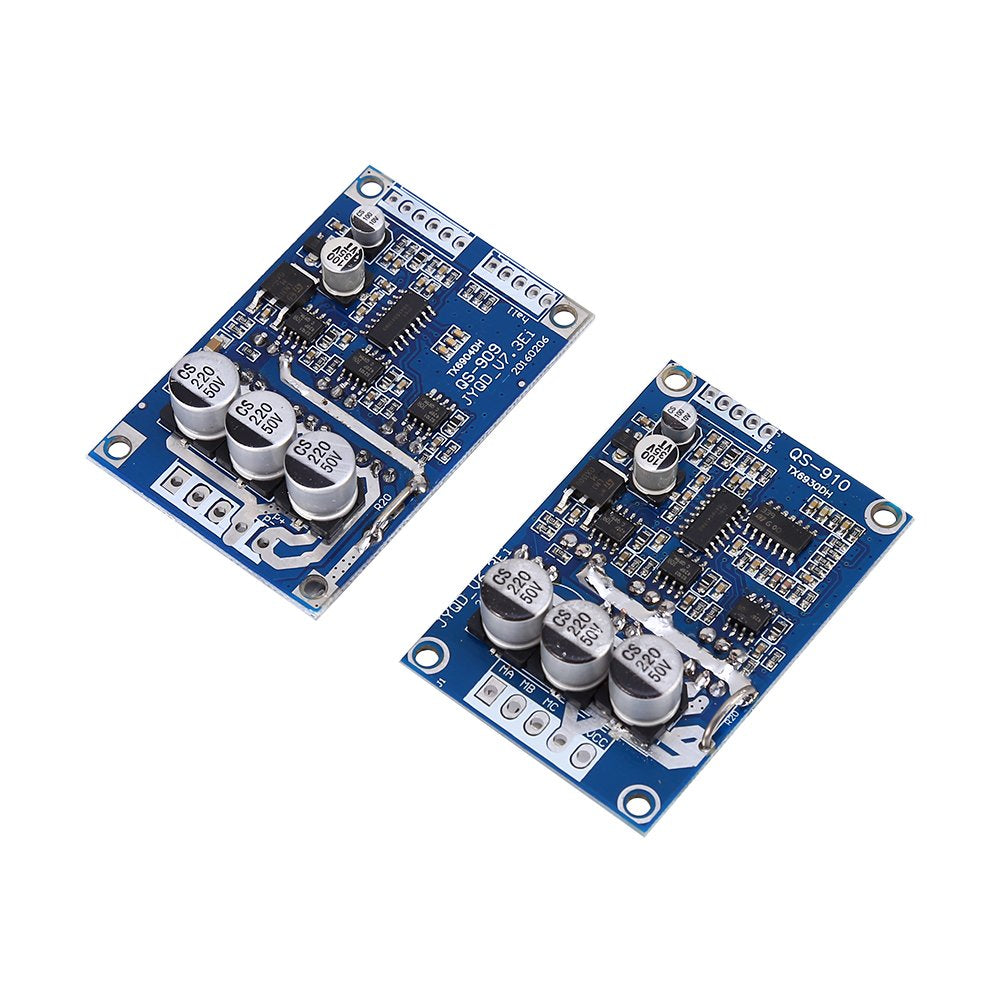

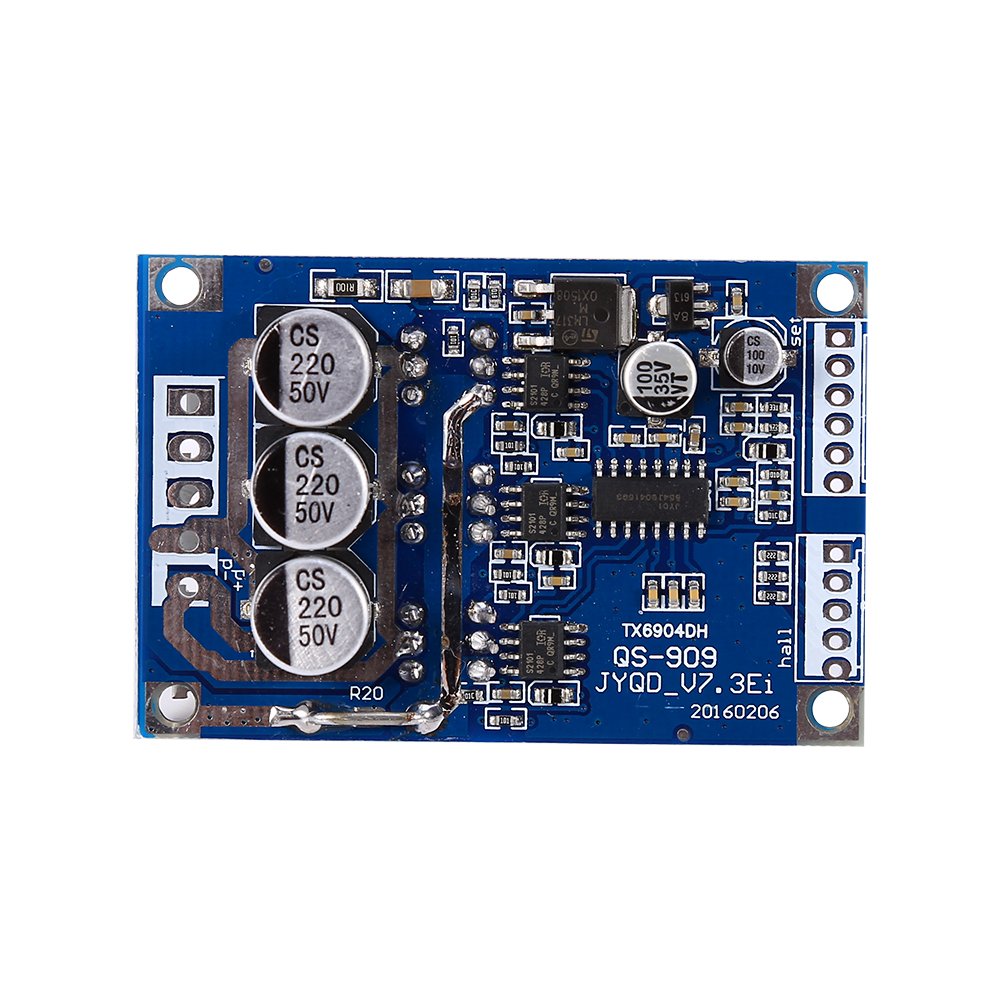

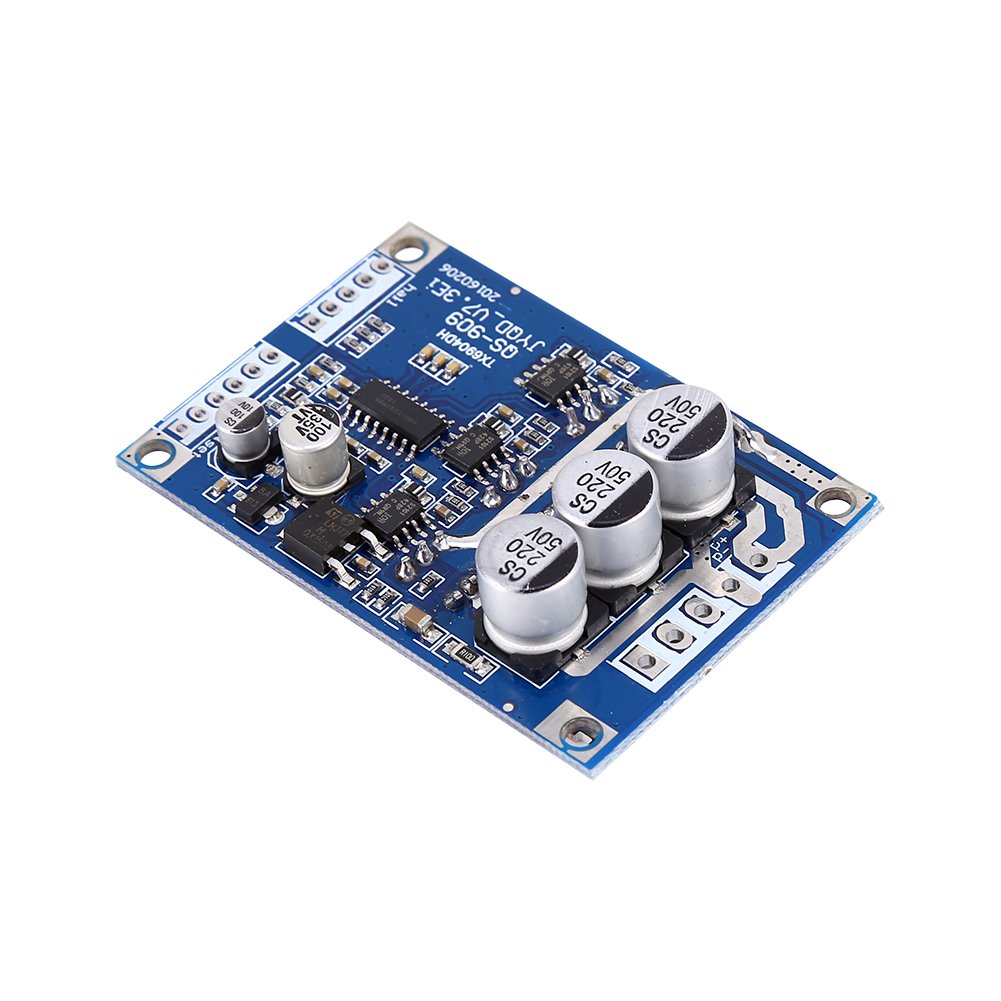

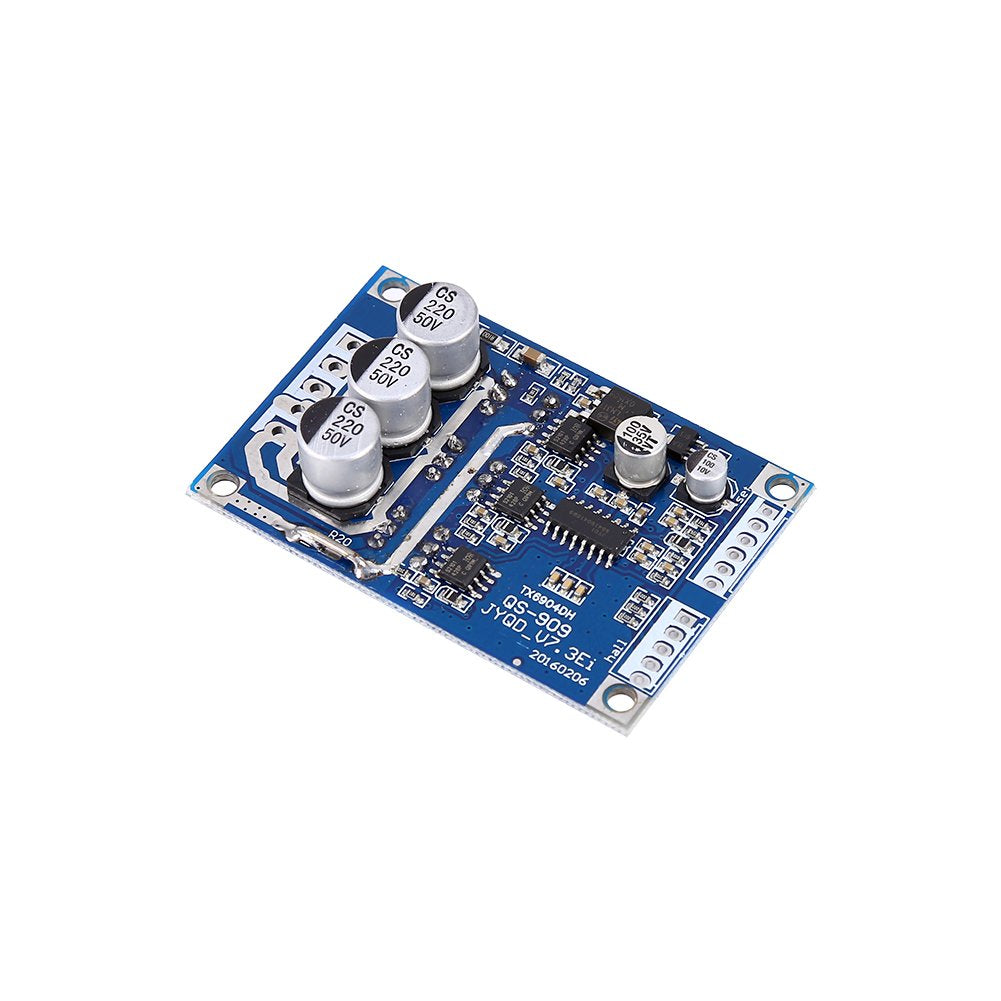

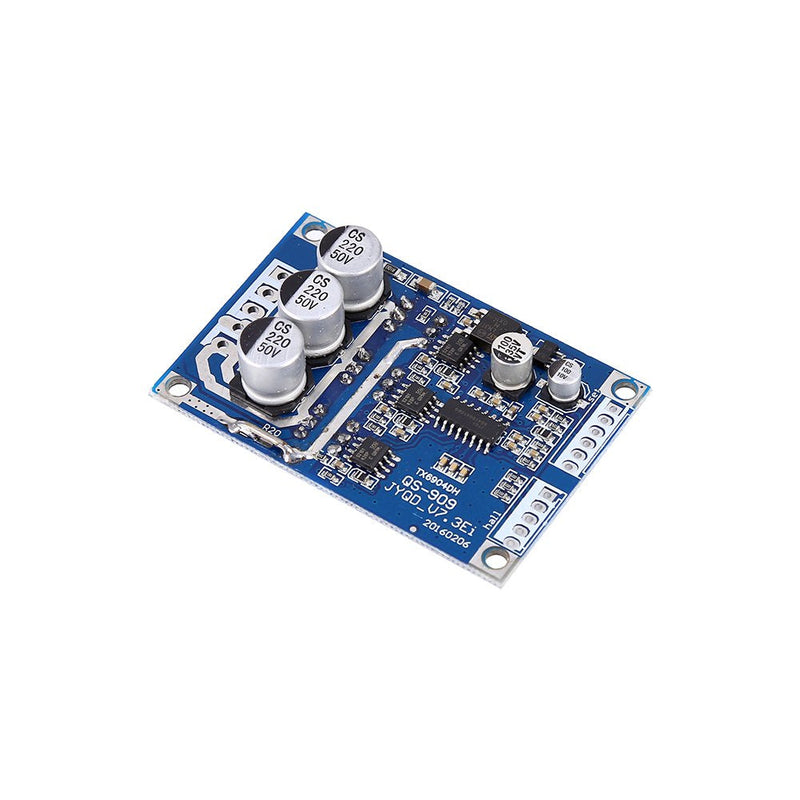

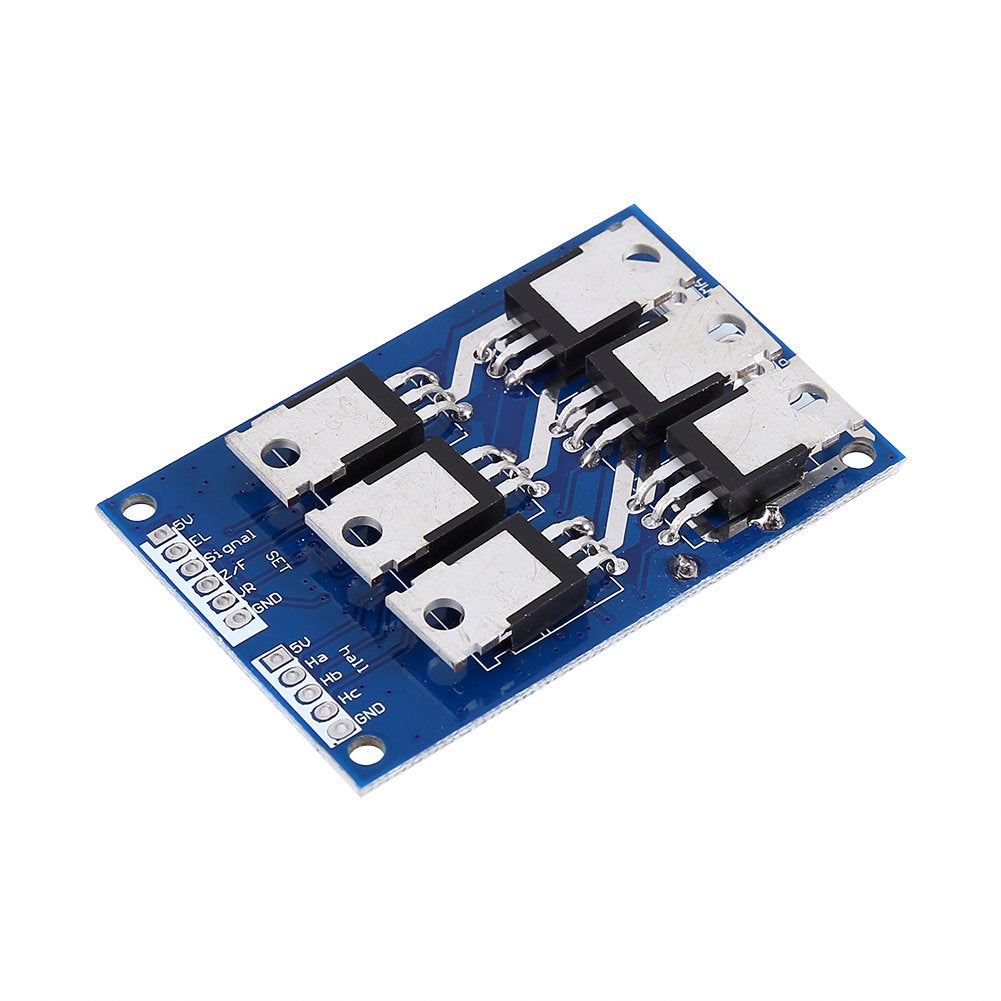

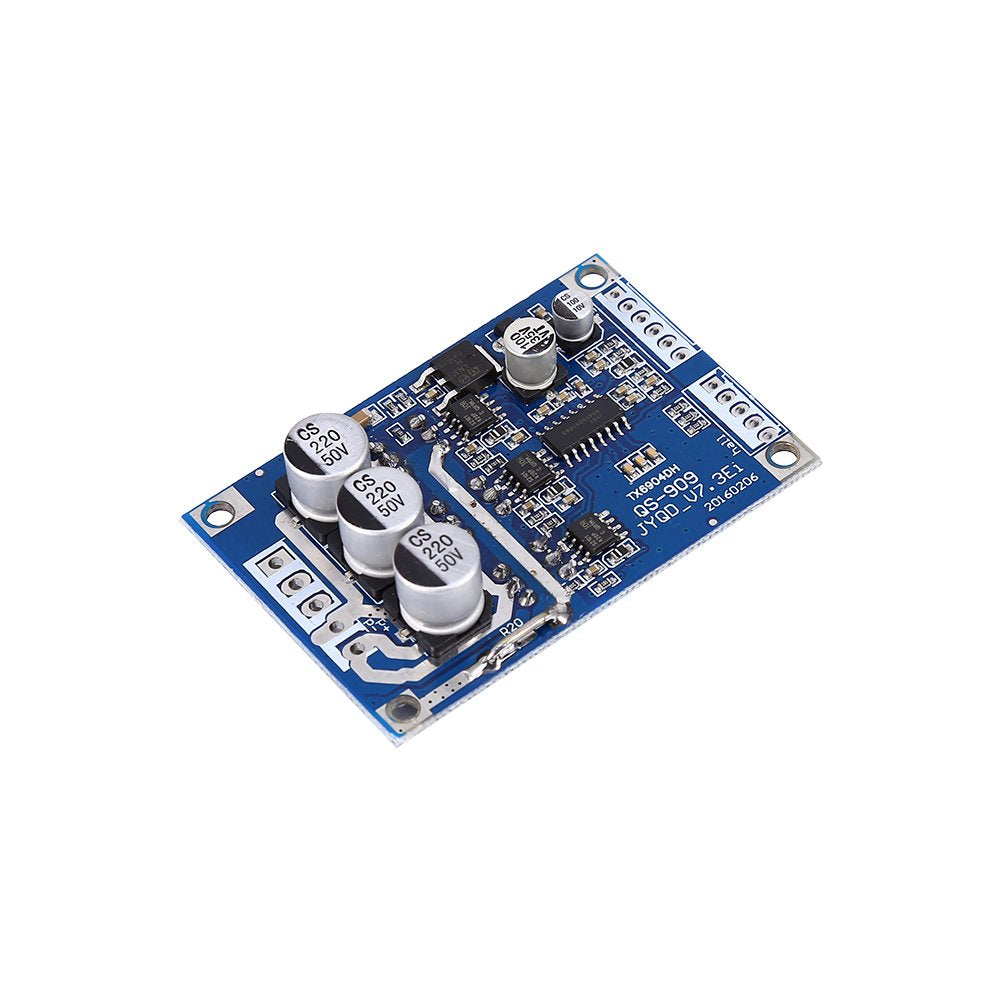

{"id":7174960054452,"title":"Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board","handle":"brushless-motor-controller-dc-12v-36v-500w-15a-hall-bldc-motor-balanced-car-driver-board","description":"\u003ch3\u003eBrushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 100% Brand New \u0026amp; High Quality. Specification: Operating voltage:\nDC 12V-36V Operating Current: \u0026lt;=15A Driver Power: \u0026lt;=500W Speed Voltage:\n0.1V-5V Operating Temperature:-40-85°C Humidity: 90%RH Stall protection:Yes\nEnable Control: Yes Over-current protection: Yes Steering control: Yes Speed\ncontrol signal: Yes Size: 63×42×17mm(L×W×H); Probe size 3mm, length: fixing\nhole center distance 57mm; width:fixed hole center distance 36.5mm Wiring:\nControl terminal for SET: 1. The motor speed control wiring methods: available\npotentiometer system speed can also be connected to the MCU control, when the\npotentiometer control wiring, the potentiometer middle pin is connected to VR\nspeed port, potentiometer connected to both ends of 5V and GND terminal\nvoltage more high speed faster. 2. Motor steering control wiring methods: you\ncan switch control can also be connected to the MCU control, to GND in one\ndirection, then in one direction 5V. Note: Due to different motor\nmanufacturers to make the hall of hall line order does not necessarily follow\nthe line on the board to match the sequence, need to be adjusted. Motor driver\nboard 12-36V DC power input, VCC positive power supply,GND power supply is\nnegative. Tips: If you use less than 60W, without additional heat sink , be\nsure to add more than 60W heatsink fins drive efficiency without lowering the\ntemperature is too high will shine into permanent damage! We recommend cooling\nsurface area greater than 200 square centimeters! Proposes to add insulation\nfilms, both sides of the insulating sheet plus thermal grease! Package\nIncludes: 1 × 12-36V 500W Brushless Motor Controller\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e[High Quality] The brushless motor controller is made of high quality electronic components for long service life.\u003c\/li\u003e\n \u003cli\u003e[Good Performance] This driver board has many advantages including low consumption, high reliability and efficiency.\u003c\/li\u003e\n \u003cli\u003e[Functions] This board has many functions such as stall protection, enable control, over-current protection, steering control and speed control signal.\u003c\/li\u003e\n \u003cli\u003e[Feature] This brushless motor controller can withstand the temperature of -40 to 85C\/-40 to 185F, easy to use.\u003c\/li\u003e\n \u003cli\u003e[Application] The motor controller is suitable for brushless DC motor.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-30T00:27:00+10:00","created_at":"2022-06-30T00:27:10+10:00","vendor":"Walfront","type":"Motor Drives","tags":["industrial"],"price":14400,"price_min":14400,"price_max":14400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41619522388148,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B07K3W3KMB","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board","public_title":null,"options":["Default Title"],"price":14400,"weight":50,"compare_at_price":null,"inventory_management":null,"barcode":"0757686756584","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B07K3W3KMB.jpg?v=1656570512","\/\/auspowers.com\/cdn\/shop\/products\/61xXQschvlL.jpg?v=1656512830","\/\/auspowers.com\/cdn\/shop\/products\/61lDMbJHJ0L.jpg?v=1656512830","\/\/auspowers.com\/cdn\/shop\/products\/610L0T5u1DL.jpg?v=1656512830","\/\/auspowers.com\/cdn\/shop\/products\/61CIK1r0FbL.jpg?v=1656512830","\/\/auspowers.com\/cdn\/shop\/products\/613FdCV2eWL.jpg?v=1656512830","\/\/auspowers.com\/cdn\/shop\/products\/71h4heIaxKL.jpg?v=1656512830","\/\/auspowers.com\/cdn\/shop\/products\/71SlgeUzyiL.jpg?v=1656512830","\/\/auspowers.com\/cdn\/shop\/products\/61PDd9SK-FL.jpg?v=1656512830"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B07K3W3KMB.jpg?v=1656570512","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board ","id":26348629328052,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B07K3W3KMB.jpg?v=1656570512"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B07K3W3KMB.jpg?v=1656570512","width":1001},{"alt":"[Australia - AusPower] - Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board ","id":26339497246900,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61xXQschvlL.jpg?v=1656512830"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61xXQschvlL.jpg?v=1656512830","width":1001},{"alt":"[Australia - AusPower] - Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board ","id":26339497279668,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61lDMbJHJ0L.jpg?v=1656512830"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61lDMbJHJ0L.jpg?v=1656512830","width":1001},{"alt":"[Australia - AusPower] - Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board ","id":26339497312436,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/610L0T5u1DL.jpg?v=1656512830"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/610L0T5u1DL.jpg?v=1656512830","width":1001},{"alt":"[Australia - AusPower] - Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board ","id":26339497345204,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61CIK1r0FbL.jpg?v=1656512830"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61CIK1r0FbL.jpg?v=1656512830","width":1001},{"alt":"[Australia - AusPower] - Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board ","id":26339497377972,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/613FdCV2eWL.jpg?v=1656512830"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/613FdCV2eWL.jpg?v=1656512830","width":1001},{"alt":"[Australia - AusPower] - Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board ","id":26339497410740,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71h4heIaxKL.jpg?v=1656512830"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71h4heIaxKL.jpg?v=1656512830","width":1001},{"alt":"[Australia - AusPower] - Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board ","id":26339497443508,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71SlgeUzyiL.jpg?v=1656512830"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71SlgeUzyiL.jpg?v=1656512830","width":1001},{"alt":"[Australia - AusPower] - Brushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board ","id":26339497476276,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61PDd9SK-FL.jpg?v=1656512830"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61PDd9SK-FL.jpg?v=1656512830","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBrushless Motor Controller DC 12V-36V 500W 15A Hall BLDC Motor Balanced Car Driver Board\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: 100% Brand New \u0026amp; High Quality. Specification: Operating voltage:\nDC 12V-36V Operating Current: \u0026lt;=15A Driver Power: \u0026lt;=500W Speed Voltage:\n0.1V-5V Operating Temperature:-40-85°C Humidity: 90%RH Stall protection:Yes\nEnable Control: Yes Over-current protection: Yes Steering control: Yes Speed\ncontrol signal: Yes Size: 63×42×17mm(L×W×H); Probe size 3mm, length: fixing\nhole center distance 57mm; width:fixed hole center distance 36.5mm Wiring:\nControl terminal for SET: 1. The motor speed control wiring methods: available\npotentiometer system speed can also be connected to the MCU control, when the\npotentiometer control wiring, the potentiometer middle pin is connected to VR\nspeed port, potentiometer connected to both ends of 5V and GND terminal\nvoltage more high speed faster. 2. Motor steering control wiring methods: you\ncan switch control can also be connected to the MCU control, to GND in one\ndirection, then in one direction 5V. Note: Due to different motor\nmanufacturers to make the hall of hall line order does not necessarily follow\nthe line on the board to match the sequence, need to be adjusted. Motor driver\nboard 12-36V DC power input, VCC positive power supply,GND power supply is\nnegative. Tips: If you use less than 60W, without additional heat sink , be\nsure to add more than 60W heatsink fins drive efficiency without lowering the\ntemperature is too high will shine into permanent damage! We recommend cooling\nsurface area greater than 200 square centimeters! Proposes to add insulation\nfilms, both sides of the insulating sheet plus thermal grease! Package\nIncludes: 1 × 12-36V 500W Brushless Motor Controller\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e[High Quality] The brushless motor controller is made of high quality electronic components for long service life.\u003c\/li\u003e\n \u003cli\u003e[Good Performance] This driver board has many advantages including low consumption, high reliability and efficiency.\u003c\/li\u003e\n \u003cli\u003e[Functions] This board has many functions such as stall protection, enable control, over-current protection, steering control and speed control signal.\u003c\/li\u003e\n \u003cli\u003e[Feature] This brushless motor controller can withstand the temperature of -40 to 85C\/-40 to 185F, easy to use.\u003c\/li\u003e\n \u003cli\u003e[Application] The motor controller is suitable for brushless DC motor.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
