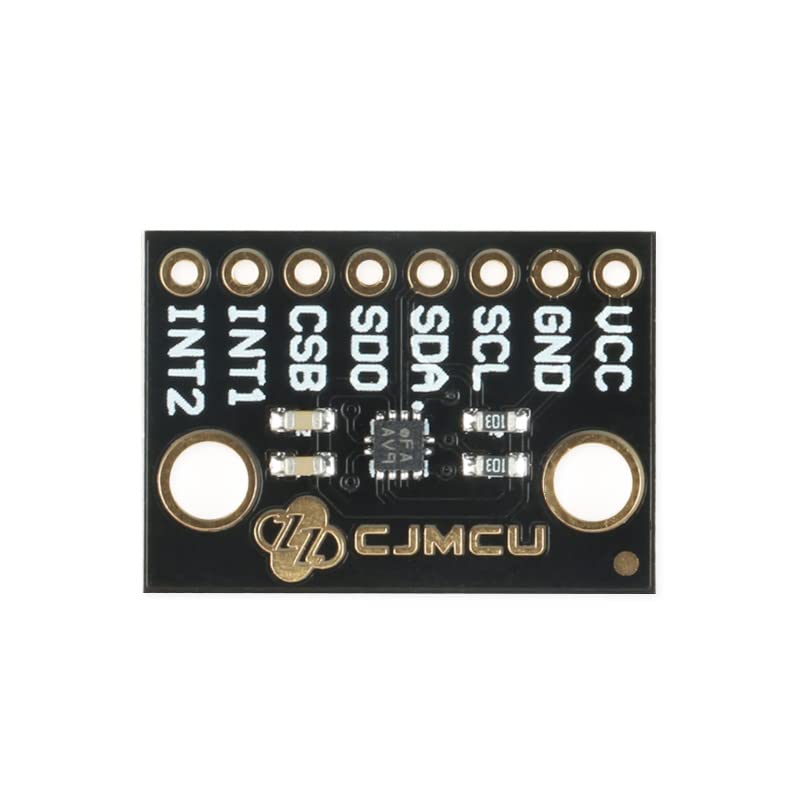

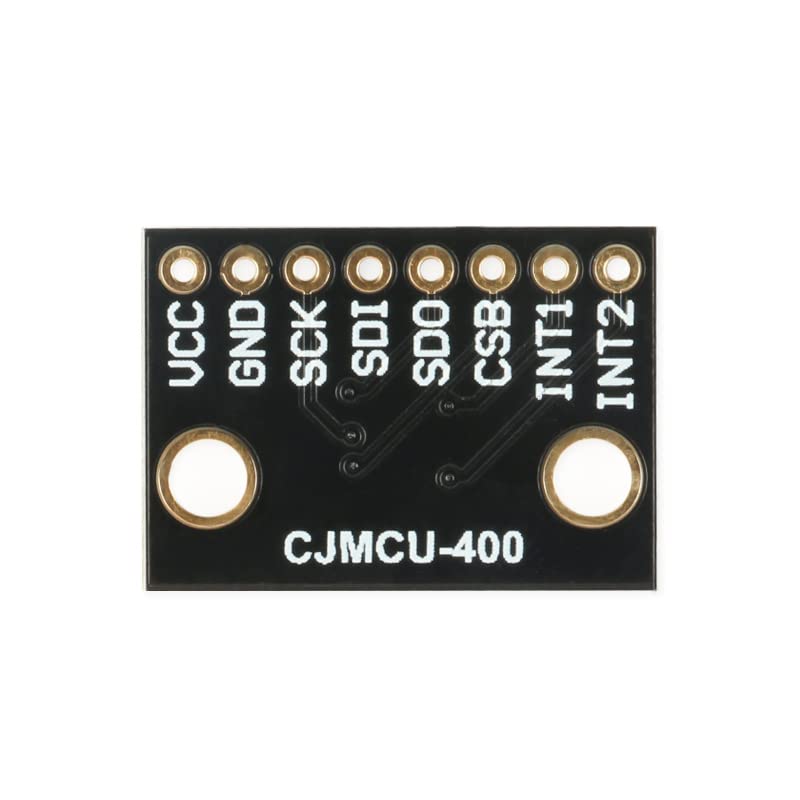

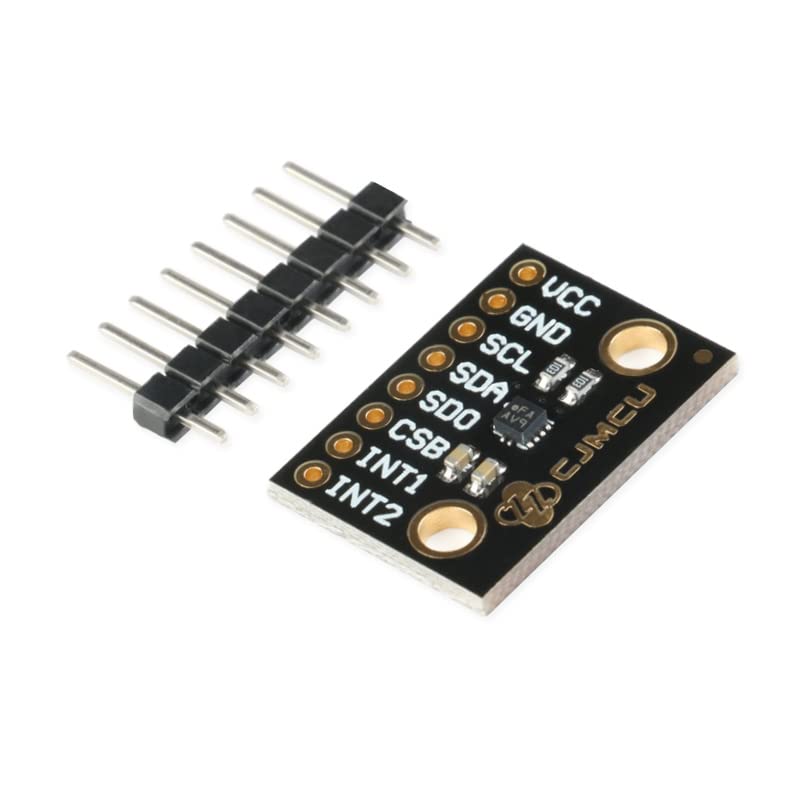

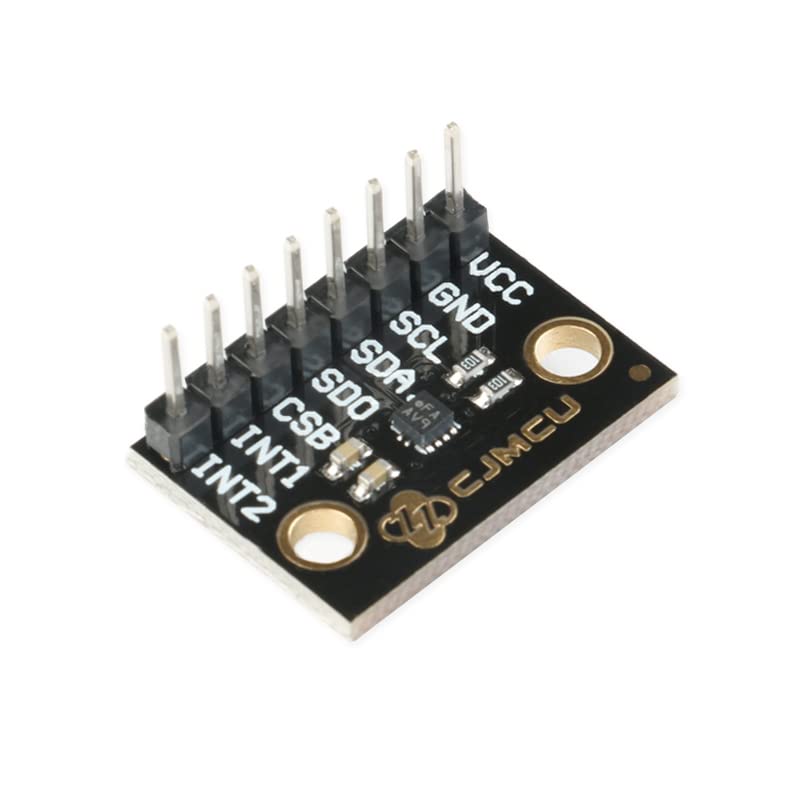

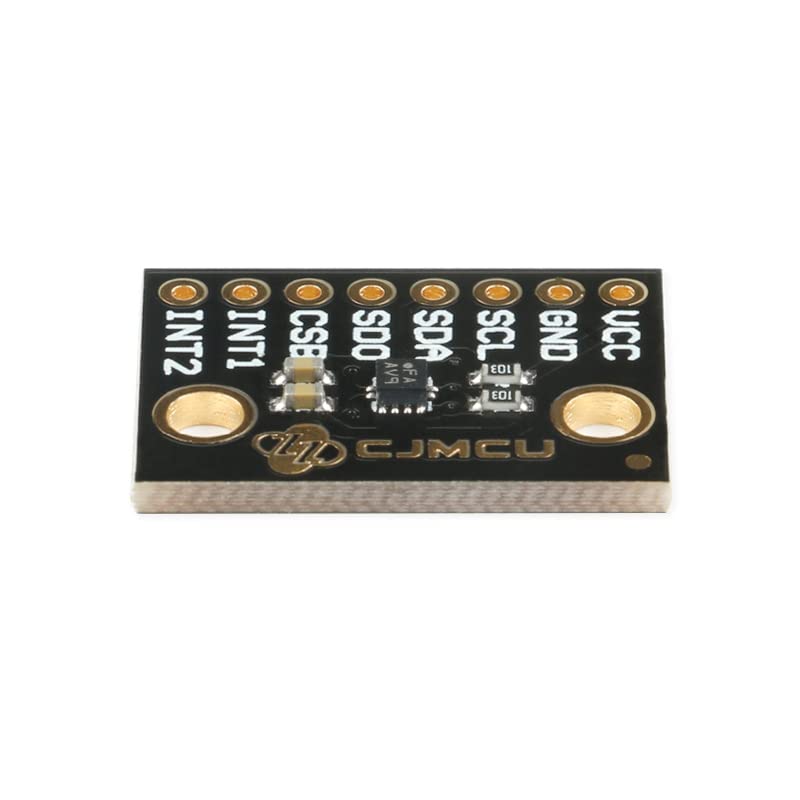

{"id":7807394807988,"title":"BMA400 3 Axis Accelerometer ±2g\/±4g\/±8g\/±16g Ultra Low Power Acceleration Sensor Module 1.2V~3.6V SPI IIC I2C Serial Interface for Intelligent Wearable Device","handle":"bma400-3-axis-accelerometer-2g-4g-8g-16g-ultra-low-power-acceleration-sensor-module-1-2v-3-6v-spi-iic-i2c-serial-interface-for-intelligent-wearable-device","description":"\u003ch3\u003eBMA400 3 Axis Accelerometer ±2g\/±4g\/±8g\/±16g Ultra Low Power Acceleration Sensor Module 1.2V~3.6V SPI IIC I2C Serial Interface for Intelligent Wearable Device\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMeasurement range: ±2g, ±4g, ±8g, ±16g Digital resolution: 12 bit Output Data\nRate (ODR): 12.5Hz to 800Hz Low path filter bandwidth: Selectable 0.48xODR or\n0.24xODR Current consumption(independent from ODR due to continuous\nmeasurement): Max. performance: 14 ?A, Typical use case:\u0026lt;8 ?A, Low power use\ncase: \u0026lt;4 ?A Noise density: Max. performance: \u0026lt;220 ug\/VHz, Typical use case:\n\u0026lt;320 ?g\/VHz, Low power: \u0026lt;600 ug\/VHz Ultra low power\/Auto-wake-up mode:\n800nA@25Hz ODR Embedded features: Step counter (\u0026lt;4 ?A overall), Activity\nrecognition (walking, running, standing stil), Activity change, Orientation,\nTab\/Double tab (\u0026lt;8 ?A overal), General interrupt 1 and 2(programmable via\nthresholds, timer, logical AND\/OR operations), 1 kB FIFO Offset: ±80 mg TCO:\n±1 mg\/K Interface: SPI \u0026amp; I2C \u0026amp; 2 Interrupt pins Supply voltage: 1.71V up to\n3.6 V BMA4400 TA RGET APPL ICATIONS: loT and smart home applications (e.g.\nindoor climate systems, security systems) Activity tracking and step counting\nin wearable devices (e.g. fitness bands, smart and regular watches, hearables)\nIndustrial applications (e.g. predi ctive maintenance, package tracking) Power\nmanagement of consumer end -devices based on motion\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe BMA400 3 Axis Accelerometer is the first real ultra-low power acceleration sensor without compromising on performance.\u003c\/li\u003e\n \u003cli\u003eFeaturing 12-bit digital resolution, continuous measurement and a defined selectable bandwidth combined with ultra-low power the BMA400 allows low-noise measurement of accelerations in three perpendicular axes.\u003c\/li\u003e\n \u003cli\u003eThe BMA400 thus senses tilt, orientation, tab\/double tab, and enables plug 'n' play step counting with activity recognition especially suited for wearable devices, which need a long-lasting battery lifetime.\u003c\/li\u003e\n \u003cli\u003eAcceleration ranges +2g\/+4g\/+8g\/+16g, Low-pass filter bandwidths=0.48*ODR, up to a max. output data read out of 800Hz\u003c\/li\u003e\n \u003cli\u003eThe continuous measurement principle and always-defined bandwidth, the BMA400 is the ideal solutionfor smart home applications such as smart indoor climate systems and smart home security systems. and the BMA4400 can distinguish between real alarm situations like broken glass and false signals coming from random vibrations.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-08-02T00:34:35+10:00","created_at":"2024-08-02T00:34:35+10:00","vendor":"JESSINIE","type":"Acceleration Sensors","tags":["industrial_Aug2024_update"],"price":11800,"price_min":11800,"price_max":11800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43449116393652,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BBLRTQTX","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BMA400 3 Axis Accelerometer ±2g\/±4g\/±8g\/±16g Ultra Low Power Acceleration Sensor Module 1.2V~3.6V SPI IIC I2C Serial Interface for Intelligent Wearable Device","public_title":null,"options":["Default Title"],"price":11800,"weight":11,"compare_at_price":null,"inventory_management":"shopify","barcode":"BMA4","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0BBLRTQTX.jpg?v=1722582057","\/\/auspowers.com\/cdn\/shop\/files\/41M98ggfBdL.jpg?v=1722522884","\/\/auspowers.com\/cdn\/shop\/files\/51-ih3u7tTL.jpg?v=1722522884","\/\/auspowers.com\/cdn\/shop\/files\/410Z5QjEQqL.jpg?v=1722522884","\/\/auspowers.com\/cdn\/shop\/files\/416J_-bh_bL.jpg?v=1722522884"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0BBLRTQTX.jpg?v=1722582057","options":["Title"],"media":[{"alt":"[Australia - AusPower] - BMA400 3 Axis Accelerometer ±2g\/±4g\/±8g\/±16g Ultra Low Power Acceleration Sensor Module 1.2V~3.6V SPI IIC I2C Serial Interface for Intelligent Wearable Device ","id":30556439478452,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BBLRTQTX.jpg?v=1722582057"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BBLRTQTX.jpg?v=1722582057","width":800},{"alt":"[Australia - AusPower] - BMA400 3 Axis Accelerometer ±2g\/±4g\/±8g\/±16g Ultra Low Power Acceleration Sensor Module 1.2V~3.6V SPI IIC I2C Serial Interface for Intelligent Wearable Device ","id":30553059885236,"position":2,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41M98ggfBdL.jpg?v=1722522884"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41M98ggfBdL.jpg?v=1722522884","width":800},{"alt":"[Australia - AusPower] - BMA400 3 Axis Accelerometer ±2g\/±4g\/±8g\/±16g Ultra Low Power Acceleration Sensor Module 1.2V~3.6V SPI IIC I2C Serial Interface for Intelligent Wearable Device ","id":30553059918004,"position":3,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51-ih3u7tTL.jpg?v=1722522884"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51-ih3u7tTL.jpg?v=1722522884","width":800},{"alt":"[Australia - AusPower] - BMA400 3 Axis Accelerometer ±2g\/±4g\/±8g\/±16g Ultra Low Power Acceleration Sensor Module 1.2V~3.6V SPI IIC I2C Serial Interface for Intelligent Wearable Device ","id":30553059950772,"position":4,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/410Z5QjEQqL.jpg?v=1722522884"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/410Z5QjEQqL.jpg?v=1722522884","width":800},{"alt":"[Australia - AusPower] - BMA400 3 Axis Accelerometer ±2g\/±4g\/±8g\/±16g Ultra Low Power Acceleration Sensor Module 1.2V~3.6V SPI IIC I2C Serial Interface for Intelligent Wearable Device ","id":30553059983540,"position":5,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/416J_-bh_bL.jpg?v=1722522884"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/416J_-bh_bL.jpg?v=1722522884","width":800}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBMA400 3 Axis Accelerometer ±2g\/±4g\/±8g\/±16g Ultra Low Power Acceleration Sensor Module 1.2V~3.6V SPI IIC I2C Serial Interface for Intelligent Wearable Device\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eMeasurement range: ±2g, ±4g, ±8g, ±16g Digital resolution: 12 bit Output Data\nRate (ODR): 12.5Hz to 800Hz Low path filter bandwidth: Selectable 0.48xODR or\n0.24xODR Current consumption(independent from ODR due to continuous\nmeasurement): Max. performance: 14 ?A, Typical use case:\u0026lt;8 ?A, Low power use\ncase: \u0026lt;4 ?A Noise density: Max. performance: \u0026lt;220 ug\/VHz, Typical use case:\n\u0026lt;320 ?g\/VHz, Low power: \u0026lt;600 ug\/VHz Ultra low power\/Auto-wake-up mode:\n800nA@25Hz ODR Embedded features: Step counter (\u0026lt;4 ?A overall), Activity\nrecognition (walking, running, standing stil), Activity change, Orientation,\nTab\/Double tab (\u0026lt;8 ?A overal), General interrupt 1 and 2(programmable via\nthresholds, timer, logical AND\/OR operations), 1 kB FIFO Offset: ±80 mg TCO:\n±1 mg\/K Interface: SPI \u0026amp; I2C \u0026amp; 2 Interrupt pins Supply voltage: 1.71V up to\n3.6 V BMA4400 TA RGET APPL ICATIONS: loT and smart home applications (e.g.\nindoor climate systems, security systems) Activity tracking and step counting\nin wearable devices (e.g. fitness bands, smart and regular watches, hearables)\nIndustrial applications (e.g. predi ctive maintenance, package tracking) Power\nmanagement of consumer end -devices based on motion\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThe BMA400 3 Axis Accelerometer is the first real ultra-low power acceleration sensor without compromising on performance.\u003c\/li\u003e\n \u003cli\u003eFeaturing 12-bit digital resolution, continuous measurement and a defined selectable bandwidth combined with ultra-low power the BMA400 allows low-noise measurement of accelerations in three perpendicular axes.\u003c\/li\u003e\n \u003cli\u003eThe BMA400 thus senses tilt, orientation, tab\/double tab, and enables plug 'n' play step counting with activity recognition especially suited for wearable devices, which need a long-lasting battery lifetime.\u003c\/li\u003e\n \u003cli\u003eAcceleration ranges +2g\/+4g\/+8g\/+16g, Low-pass filter bandwidths=0.48*ODR, up to a max. output data read out of 800Hz\u003c\/li\u003e\n \u003cli\u003eThe continuous measurement principle and always-defined bandwidth, the BMA400 is the ideal solutionfor smart home applications such as smart indoor climate systems and smart home security systems. and the BMA4400 can distinguish between real alarm situations like broken glass and false signals coming from random vibrations.\u003c\/li\u003e\n \u003c\/ul\u003e"}
