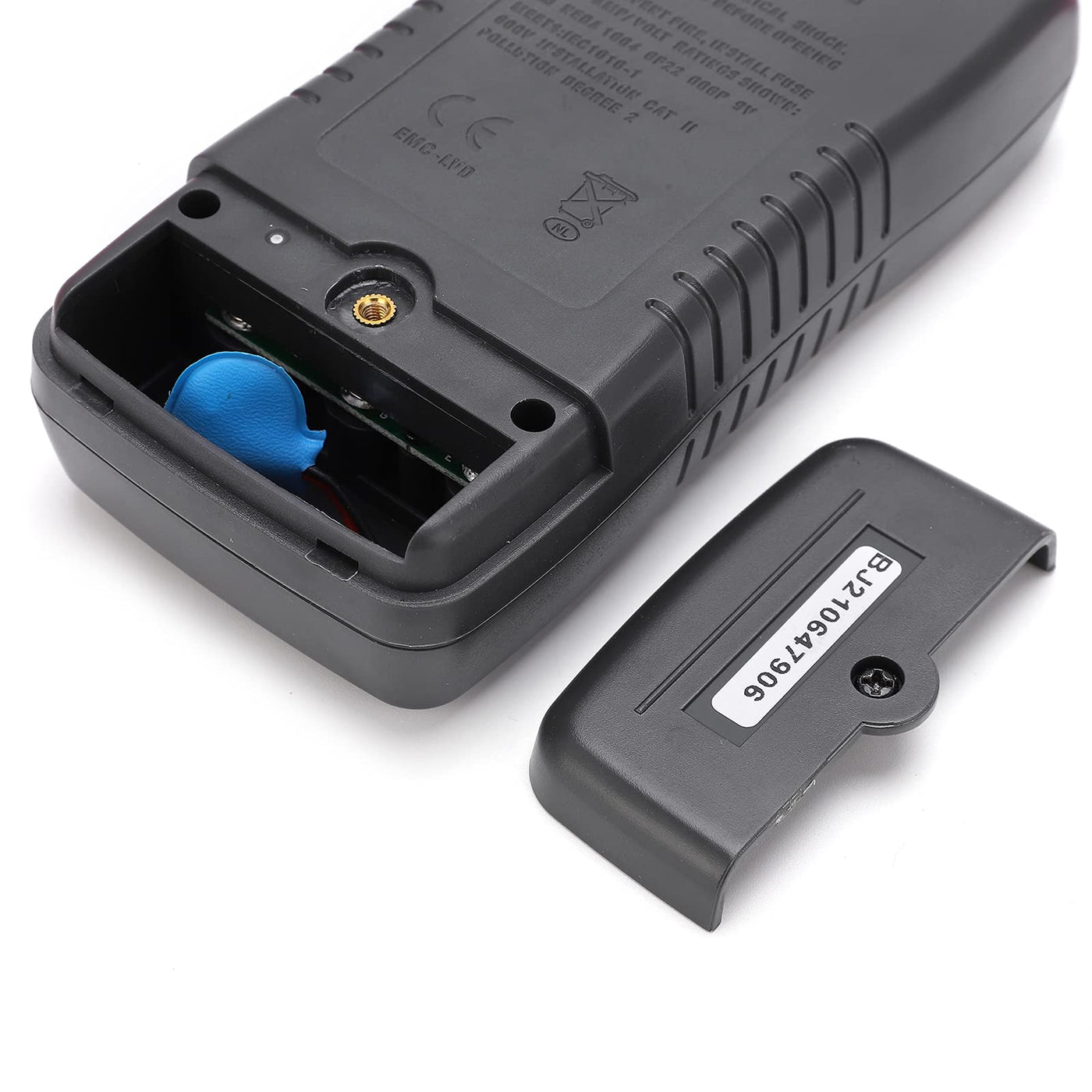

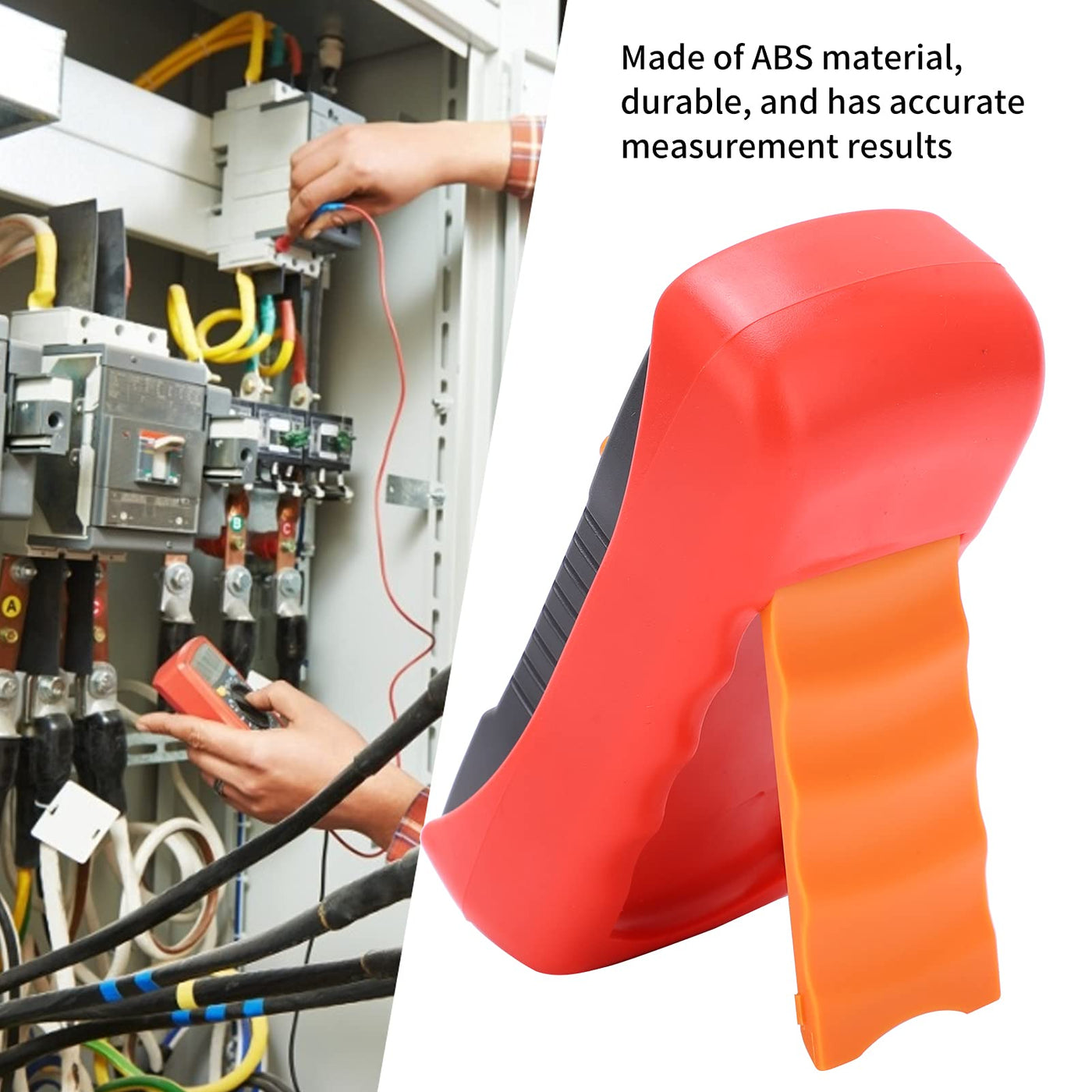

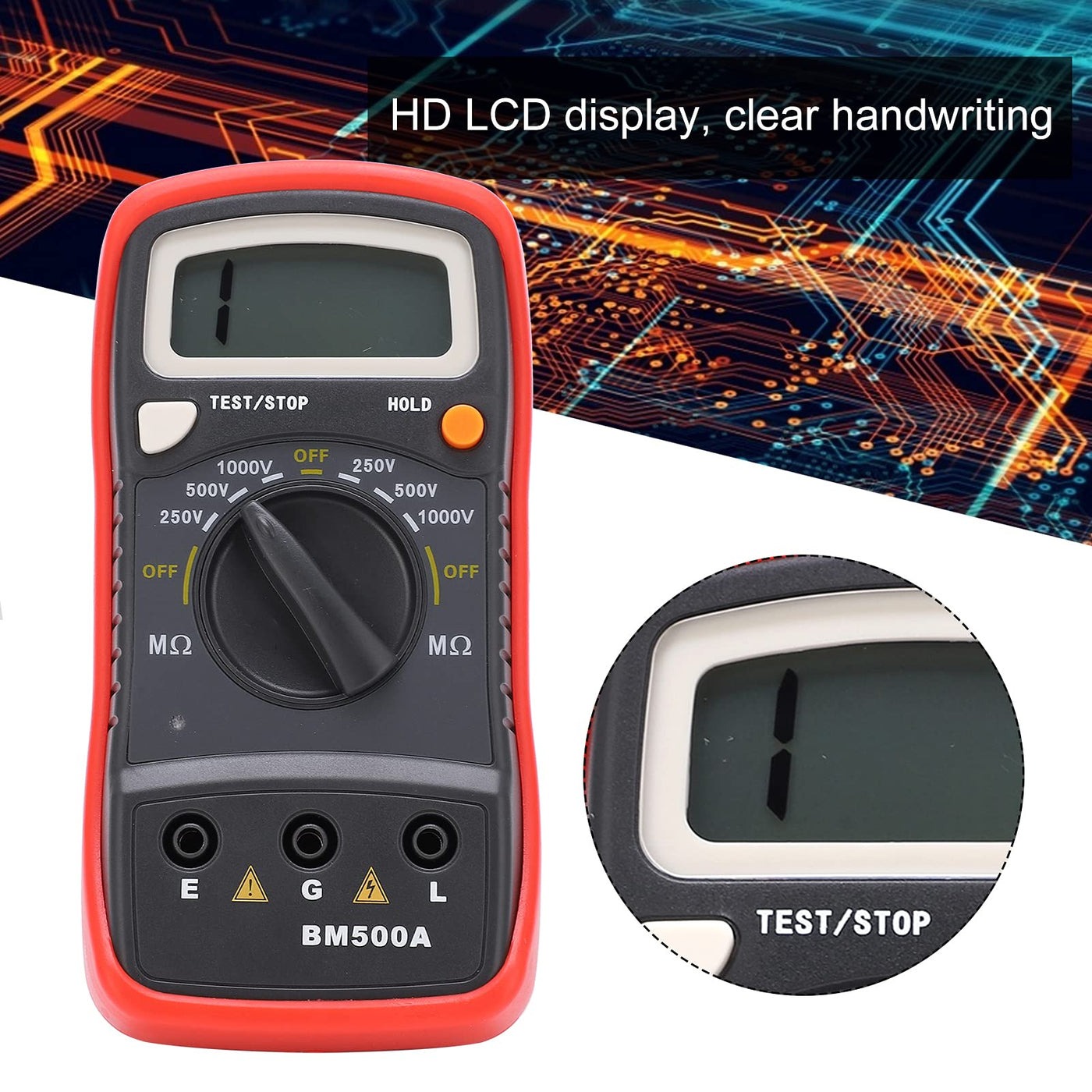

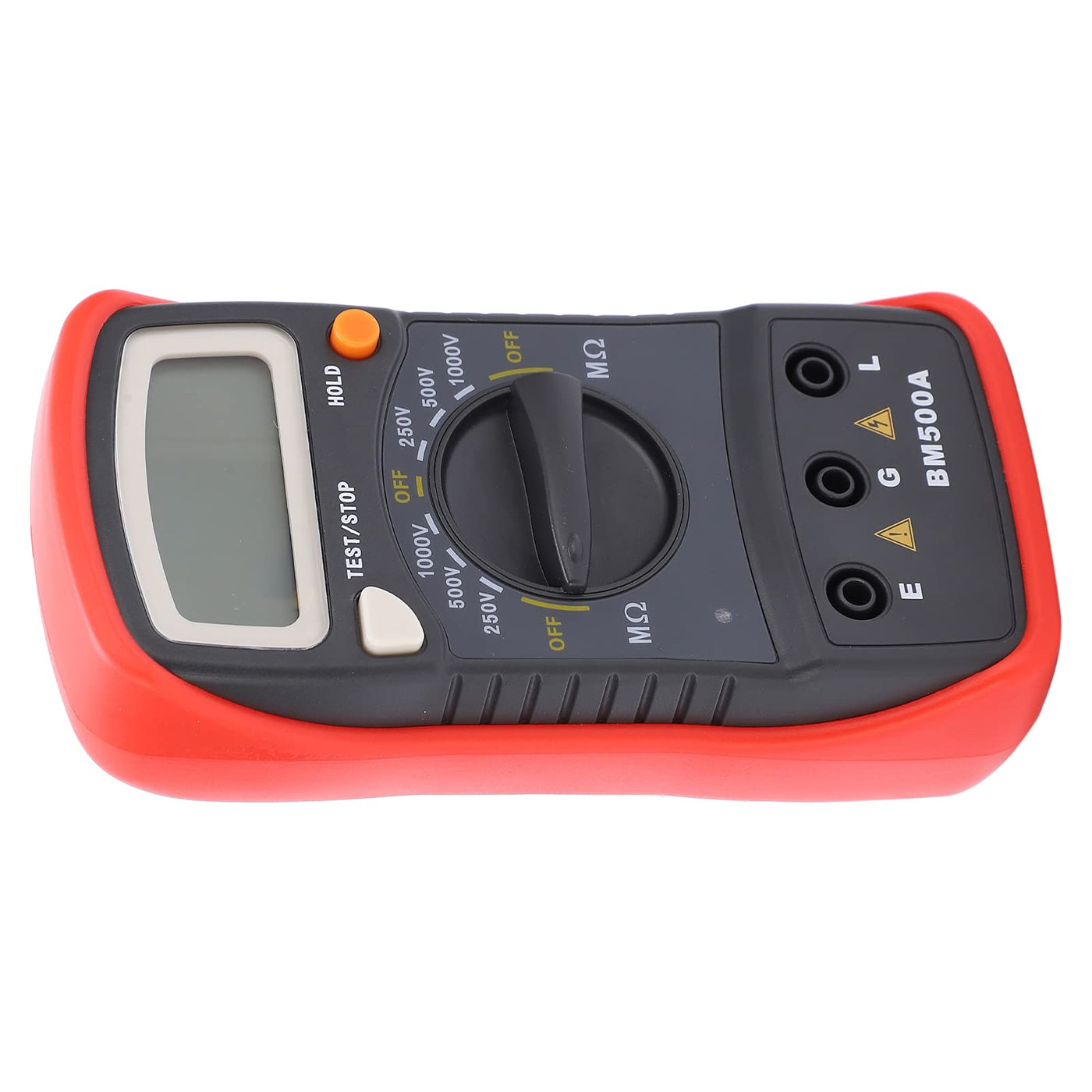

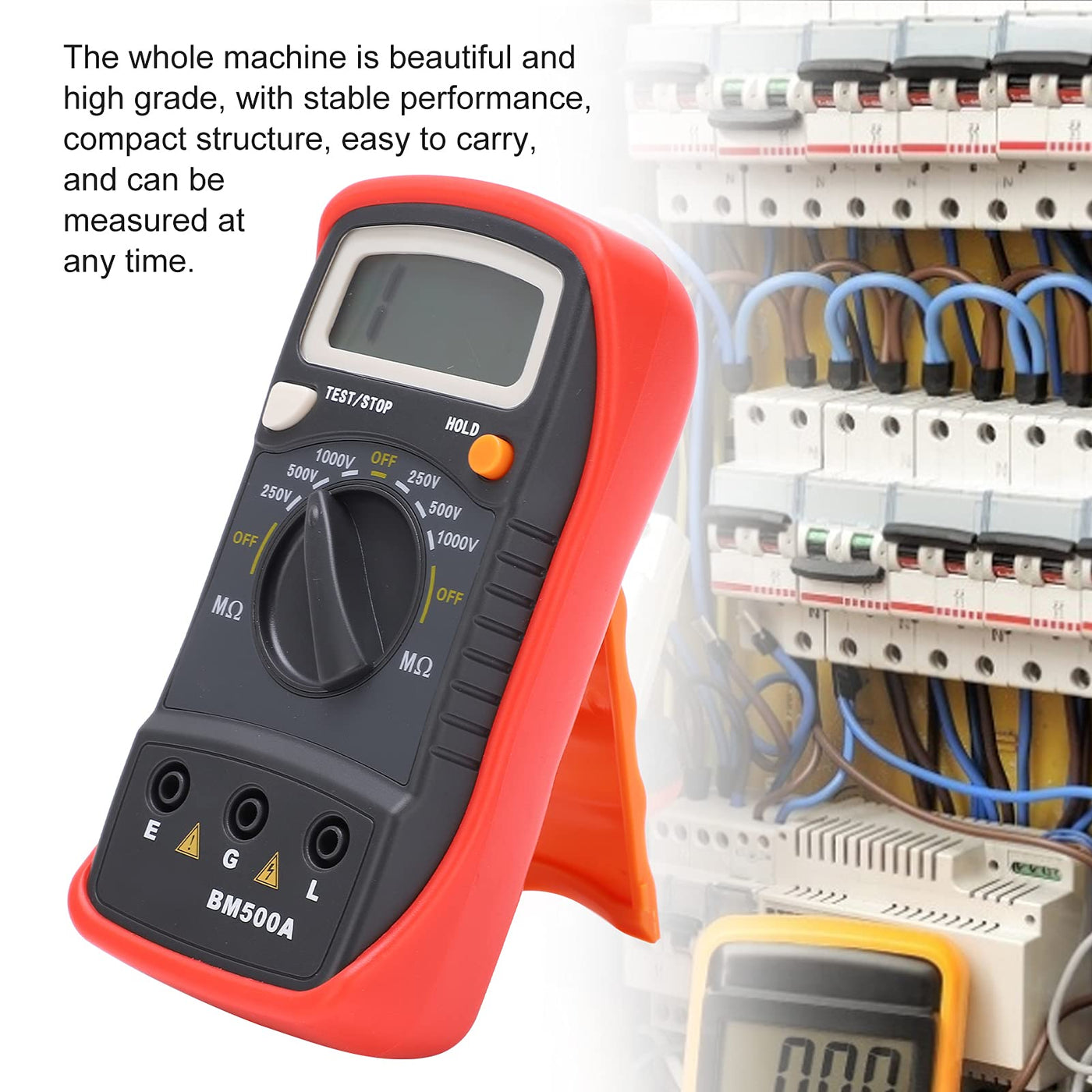

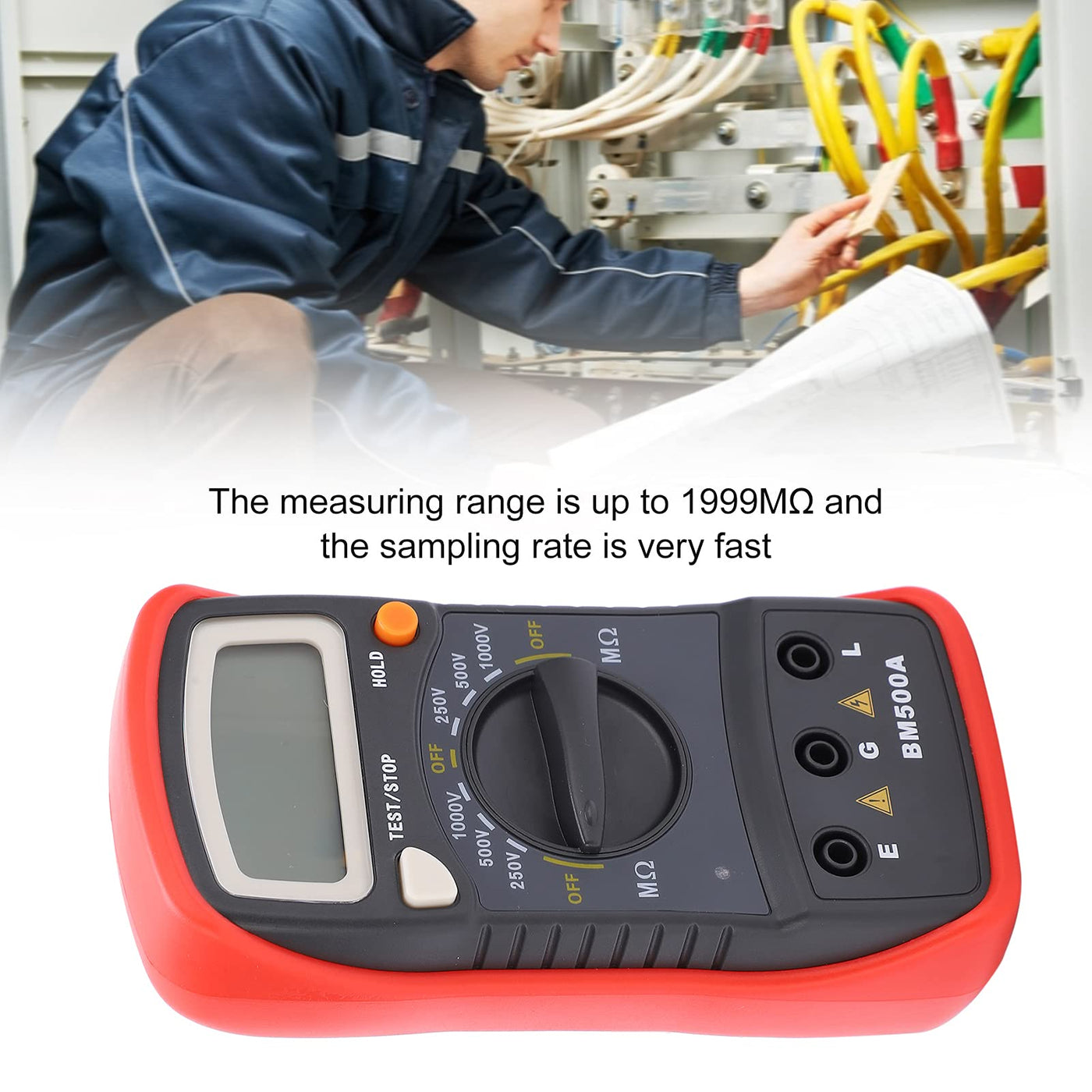

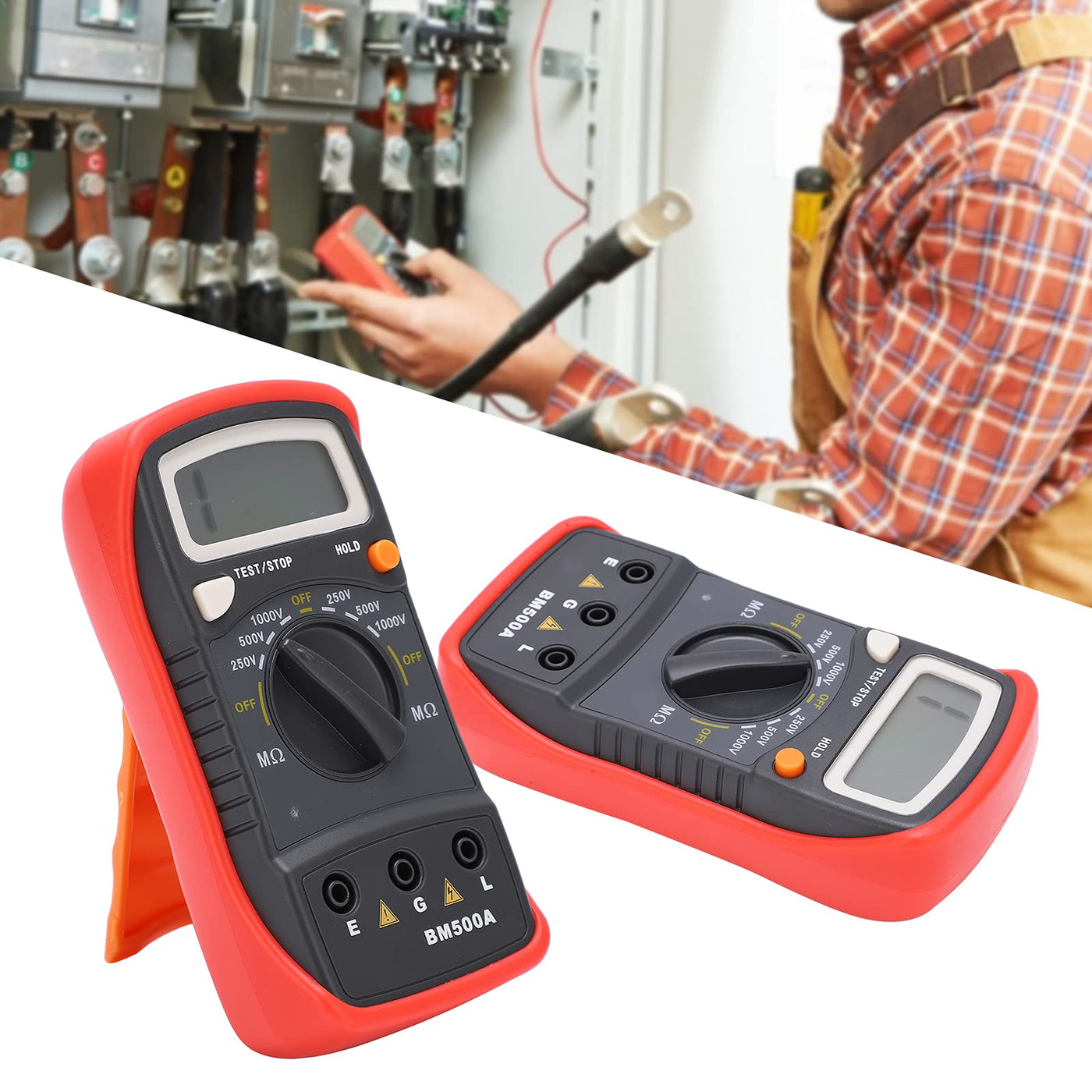

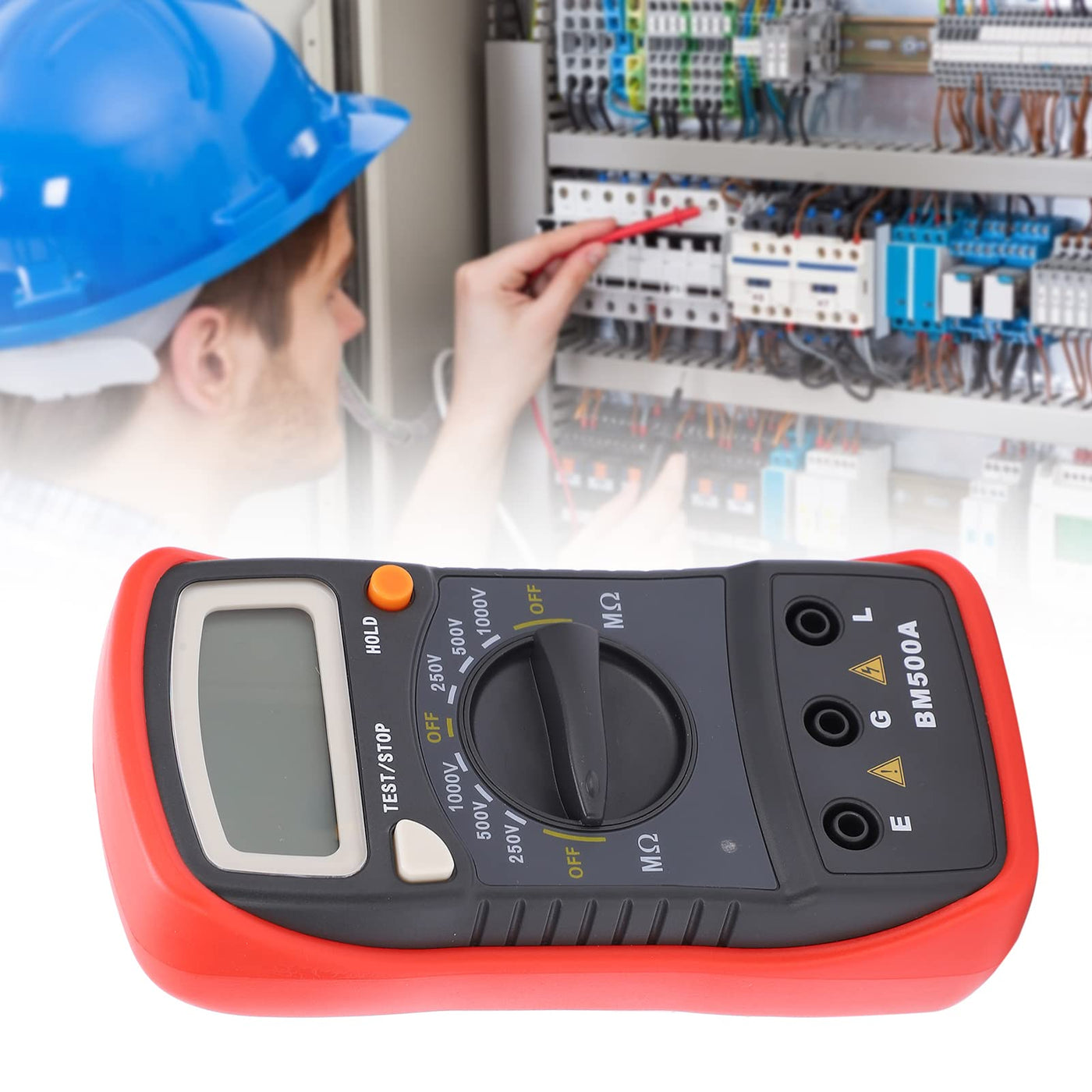

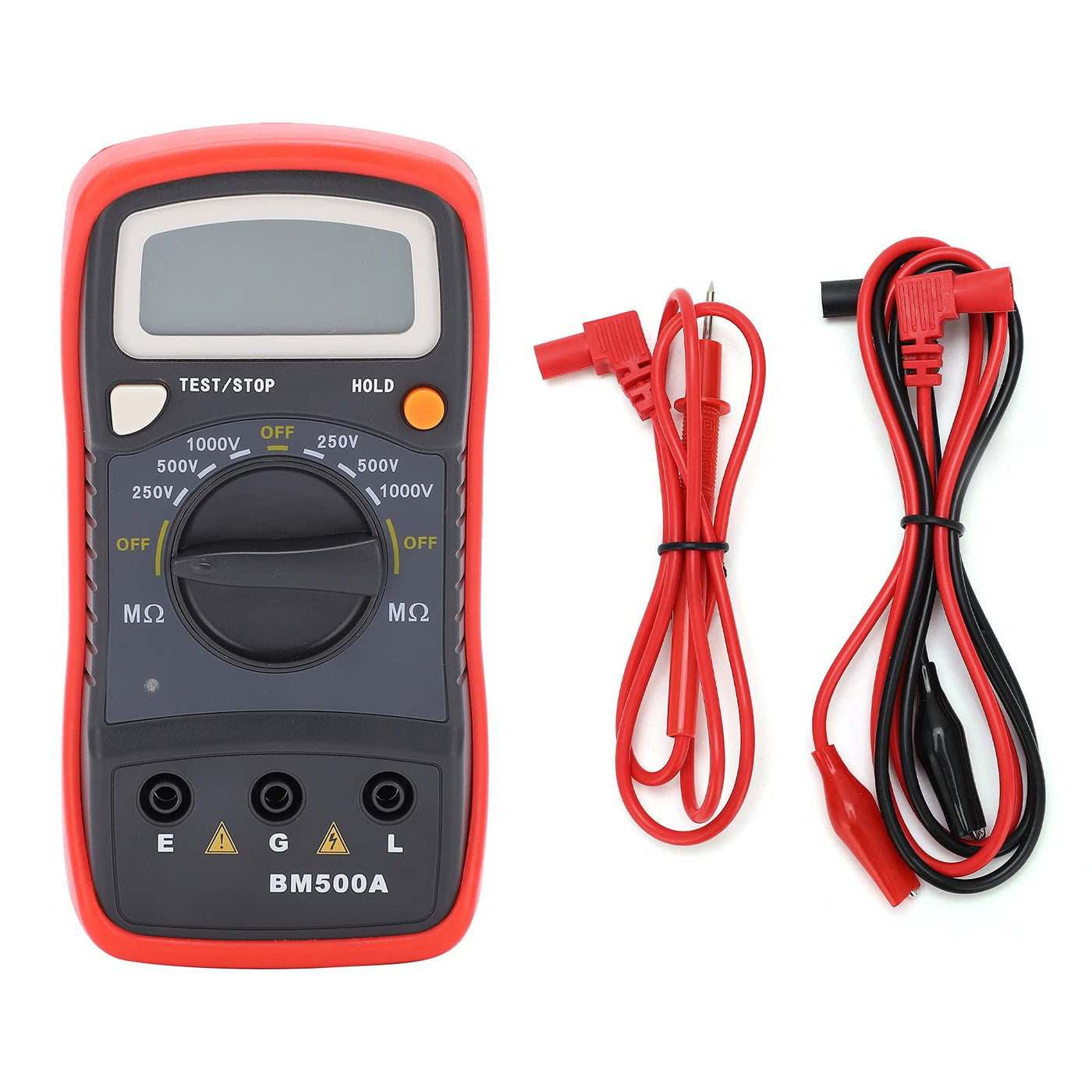

{"id":7992753029300,"title":"BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter","handle":"bm500a-250v-500v-1000v-electronic-megohmmeter-digital-insulation-resistance-meter-megohmmeter","description":"\u003ch3\u003eBM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item Type:Resistance Tester Model: BM500A. Material: ABS Power\nsupply: 1 x 6F22 9V (battery not included). Application: Numeric current test\nAutomatic range: overload indicator 1. Display mode: LCD display. Maximum\ndisplay: 1999. Sampling rate: 2.5 times\/sec. Working environment: 0°C - 40°C,\nless than 75% RH. Storage environment: -10°C - 60°C, less than 80% RH. Nominal\nvoltage: 250 V\/500 V\/1000 V. Open circuit voltage 90% to 110% of rated voltage\nMeasuring range 0.001 - 1999 MΩ. Minimum resolution 0.001 MΩ. Accuracy 250 V:\napprox. 500 kΩ. 500 V: approx. 1.5 MΩ. 1000 V: approx. 5 MΩ. Measure the\nachievable resistance value to maintain the lower limit of the rated voltage.\nNot less than 1.5mA Use: 1. Turn the according to the measurement requirements\nto the appropriate function2. Connect the electrode of the measured object to\nthe corresponding socket of this instrument3. When testing the cable, connect\nthe socket G to the protective ring 1 x user manual (English language Note: If\nthe rear cover of the gauge is not attached, it is strictly prohibited to use\nit. Otherwise, electric shock may occur.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh insulation resistance tester: Digital megohmmeter that measures high insulation resistance, the measuring range is 0.001 ~ 1999 M, the maximum display is 1999.\u003c\/li\u003e\n \u003cli\u003eWider test voltageThe output test voltage can be selected between 250V\/500V\/1000V. This insulation resistance tester is equipped with a non-slip and drop-proof protective cover with insulation.\u003c\/li\u003e\n \u003cli\u003eAccurate measurement: the sampling rate of the digital megohm meter can be 2.3 times\/sec. achievement.\u003c\/li\u003e\n \u003cli\u003eWide application: the insulation tester is often used to measure the insulation resistance of electrical devices and insulation materials such as transformers, motors, cables, switches, devices, etc. It can also be used for maintenance, testing and checking various electrical equipment.\u003c\/li\u003e\n \u003cli\u003eWith stand: the digital insulation resistance tester comes with a stand on the back, it can easily stand on the table so you can observe the data\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-27T01:06:43+10:00","created_at":"2025-09-27T01:06:39+10:00","vendor":"Fafeicy","type":"Ohmmeters","tags":["industryDE_Sep2025"],"price":26800,"price_min":26800,"price_max":26800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44053658468532,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0C1XNR7P6","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter","public_title":null,"options":["Default Title"],"price":26800,"weight":294,"compare_at_price":null,"inventory_management":"shopify","barcode":"Fafeicymtp2woqvxa","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0C1XNR7P6.jpg?v=1775771608","\/\/auspowers.com\/cdn\/shop\/files\/71PDdlqjcbL.jpg?v=1758899500","\/\/auspowers.com\/cdn\/shop\/files\/713f1AaE1dL.jpg?v=1758899511","\/\/auspowers.com\/cdn\/shop\/files\/712hGM45DiL.jpg?v=1758899513","\/\/auspowers.com\/cdn\/shop\/files\/7171UuaXc8L.jpg?v=1758899512","\/\/auspowers.com\/cdn\/shop\/files\/71of_z41CoL.jpg?v=1758899521","\/\/auspowers.com\/cdn\/shop\/files\/71tmG31iSAL.jpg?v=1758899500","\/\/auspowers.com\/cdn\/shop\/files\/61uIjg_8ZFL.jpg?v=1758899499","\/\/auspowers.com\/cdn\/shop\/files\/71ovrKzlpFL.jpg?v=1758899513"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0C1XNR7P6.jpg?v=1775771608","options":["Title"],"media":[{"alt":"[Australia - AusPower] - BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter ","id":32206256734388,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0C1XNR7P6.jpg?v=1775771608"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0C1XNR7P6.jpg?v=1775771608","width":1601},{"alt":"[Australia - AusPower] - BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter ","id":32206256767156,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71PDdlqjcbL.jpg?v=1758899500"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71PDdlqjcbL.jpg?v=1758899500","width":1601},{"alt":"[Australia - AusPower] - BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter ","id":32206256799924,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/713f1AaE1dL.jpg?v=1758899511"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/713f1AaE1dL.jpg?v=1758899511","width":1601},{"alt":"[Australia - AusPower] - BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter ","id":32206256832692,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/712hGM45DiL.jpg?v=1758899513"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/712hGM45DiL.jpg?v=1758899513","width":1601},{"alt":"[Australia - AusPower] - BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter ","id":32206256865460,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/7171UuaXc8L.jpg?v=1758899512"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/7171UuaXc8L.jpg?v=1758899512","width":1601},{"alt":"[Australia - AusPower] - BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter ","id":32206256898228,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71of_z41CoL.jpg?v=1758899521"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71of_z41CoL.jpg?v=1758899521","width":1601},{"alt":"[Australia - AusPower] - BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter ","id":32206256930996,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71tmG31iSAL.jpg?v=1758899500"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71tmG31iSAL.jpg?v=1758899500","width":1601},{"alt":"[Australia - AusPower] - BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter ","id":32206256963764,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61uIjg_8ZFL.jpg?v=1758899499"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61uIjg_8ZFL.jpg?v=1758899499","width":1601},{"alt":"[Australia - AusPower] - BM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter ","id":32206256996532,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71ovrKzlpFL.jpg?v=1758899513"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71ovrKzlpFL.jpg?v=1758899513","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBM500A 250V\/500V\/1000V Electronic Megohmmeter, Digital Insulation Resistance Meter Megohmmeter\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eSpecification: Item Type:Resistance Tester Model: BM500A. Material: ABS Power\nsupply: 1 x 6F22 9V (battery not included). Application: Numeric current test\nAutomatic range: overload indicator 1. Display mode: LCD display. Maximum\ndisplay: 1999. Sampling rate: 2.5 times\/sec. Working environment: 0°C - 40°C,\nless than 75% RH. Storage environment: -10°C - 60°C, less than 80% RH. Nominal\nvoltage: 250 V\/500 V\/1000 V. Open circuit voltage 90% to 110% of rated voltage\nMeasuring range 0.001 - 1999 MΩ. Minimum resolution 0.001 MΩ. Accuracy 250 V:\napprox. 500 kΩ. 500 V: approx. 1.5 MΩ. 1000 V: approx. 5 MΩ. Measure the\nachievable resistance value to maintain the lower limit of the rated voltage.\nNot less than 1.5mA Use: 1. Turn the according to the measurement requirements\nto the appropriate function2. Connect the electrode of the measured object to\nthe corresponding socket of this instrument3. When testing the cable, connect\nthe socket G to the protective ring 1 x user manual (English language Note: If\nthe rear cover of the gauge is not attached, it is strictly prohibited to use\nit. Otherwise, electric shock may occur.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eHigh insulation resistance tester: Digital megohmmeter that measures high insulation resistance, the measuring range is 0.001 ~ 1999 M, the maximum display is 1999.\u003c\/li\u003e\n \u003cli\u003eWider test voltageThe output test voltage can be selected between 250V\/500V\/1000V. This insulation resistance tester is equipped with a non-slip and drop-proof protective cover with insulation.\u003c\/li\u003e\n \u003cli\u003eAccurate measurement: the sampling rate of the digital megohm meter can be 2.3 times\/sec. achievement.\u003c\/li\u003e\n \u003cli\u003eWide application: the insulation tester is often used to measure the insulation resistance of electrical devices and insulation materials such as transformers, motors, cables, switches, devices, etc. It can also be used for maintenance, testing and checking various electrical equipment.\u003c\/li\u003e\n \u003cli\u003eWith stand: the digital insulation resistance tester comes with a stand on the back, it can easily stand on the table so you can observe the data\u003c\/li\u003e\n \u003c\/ul\u003e"}
