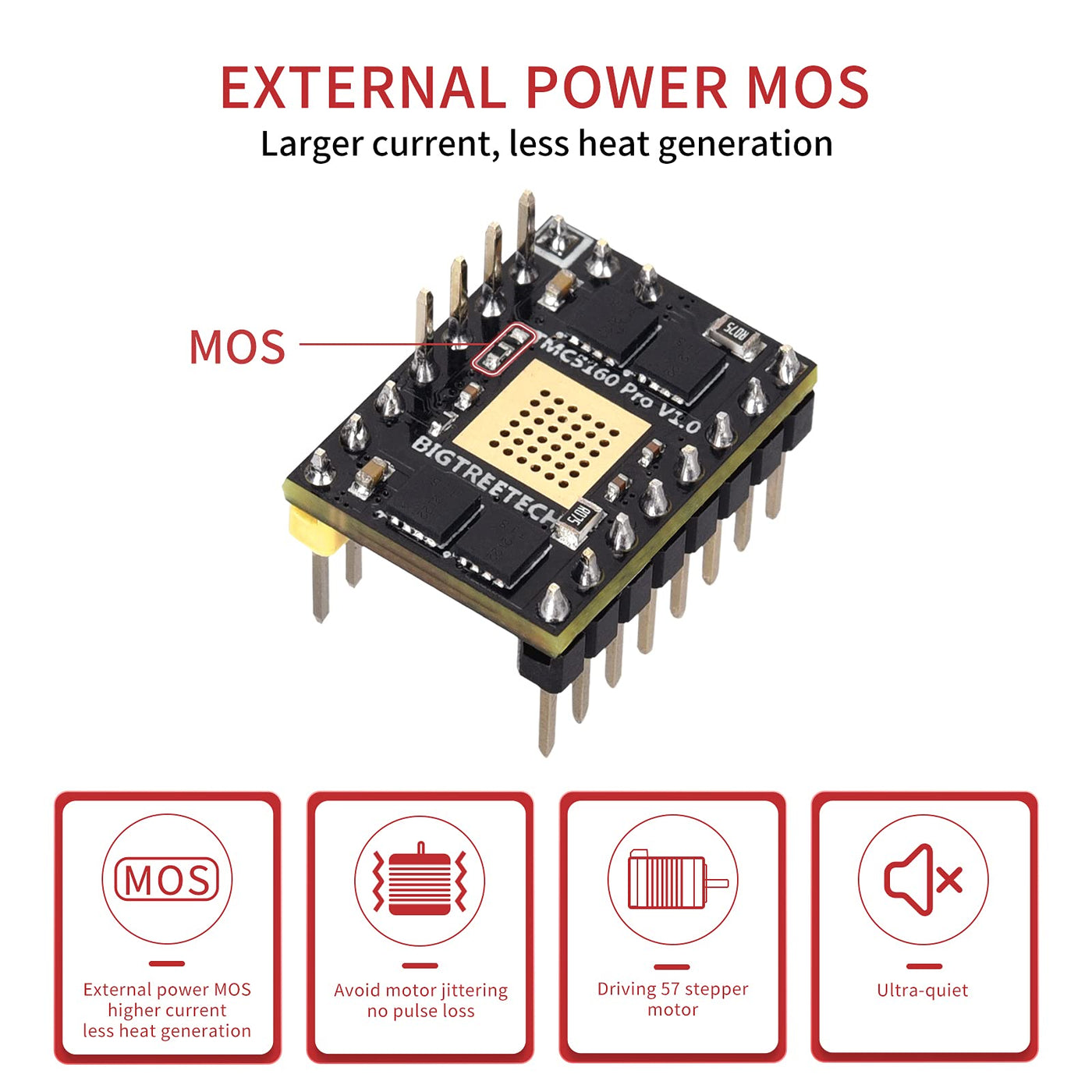

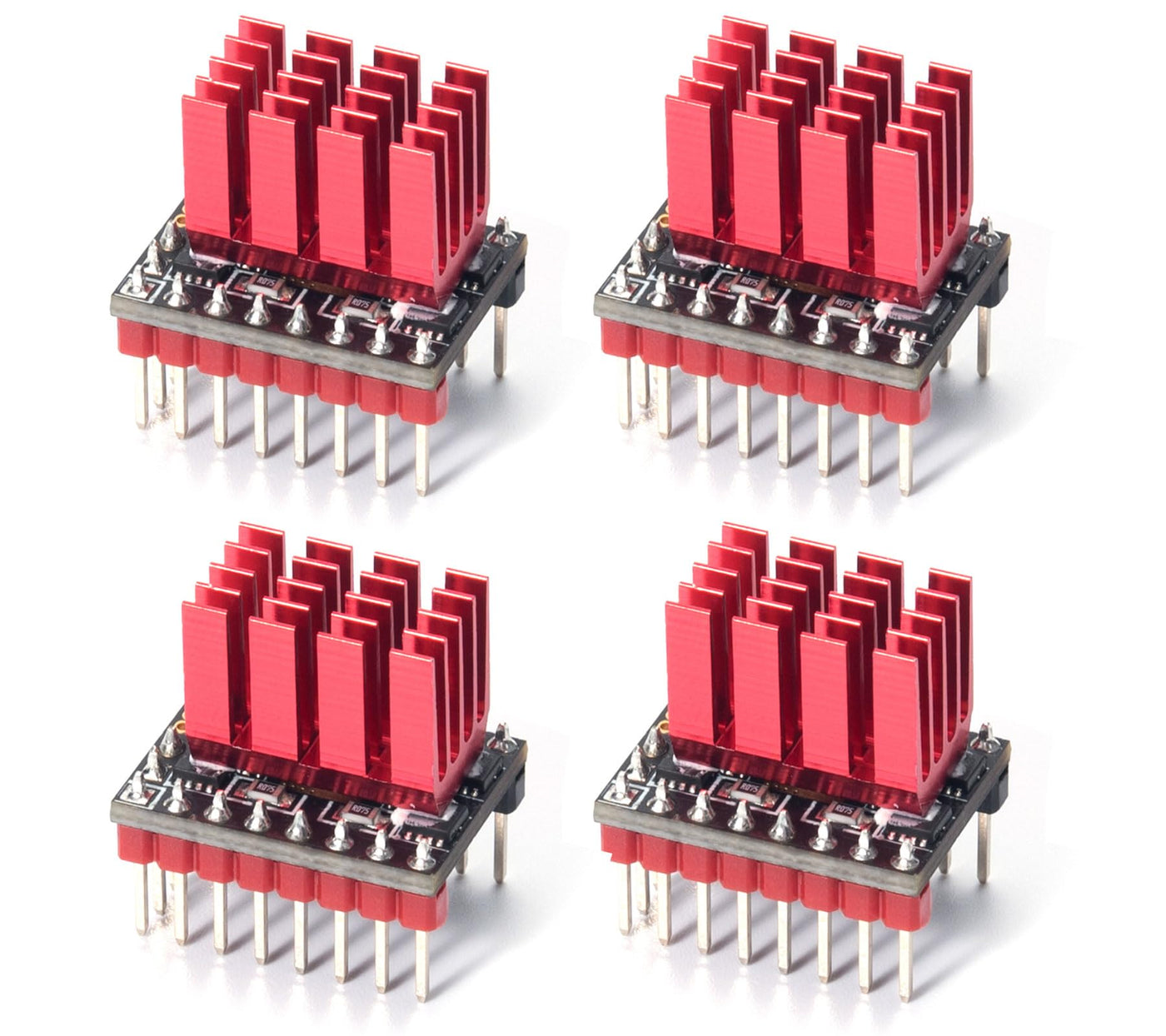

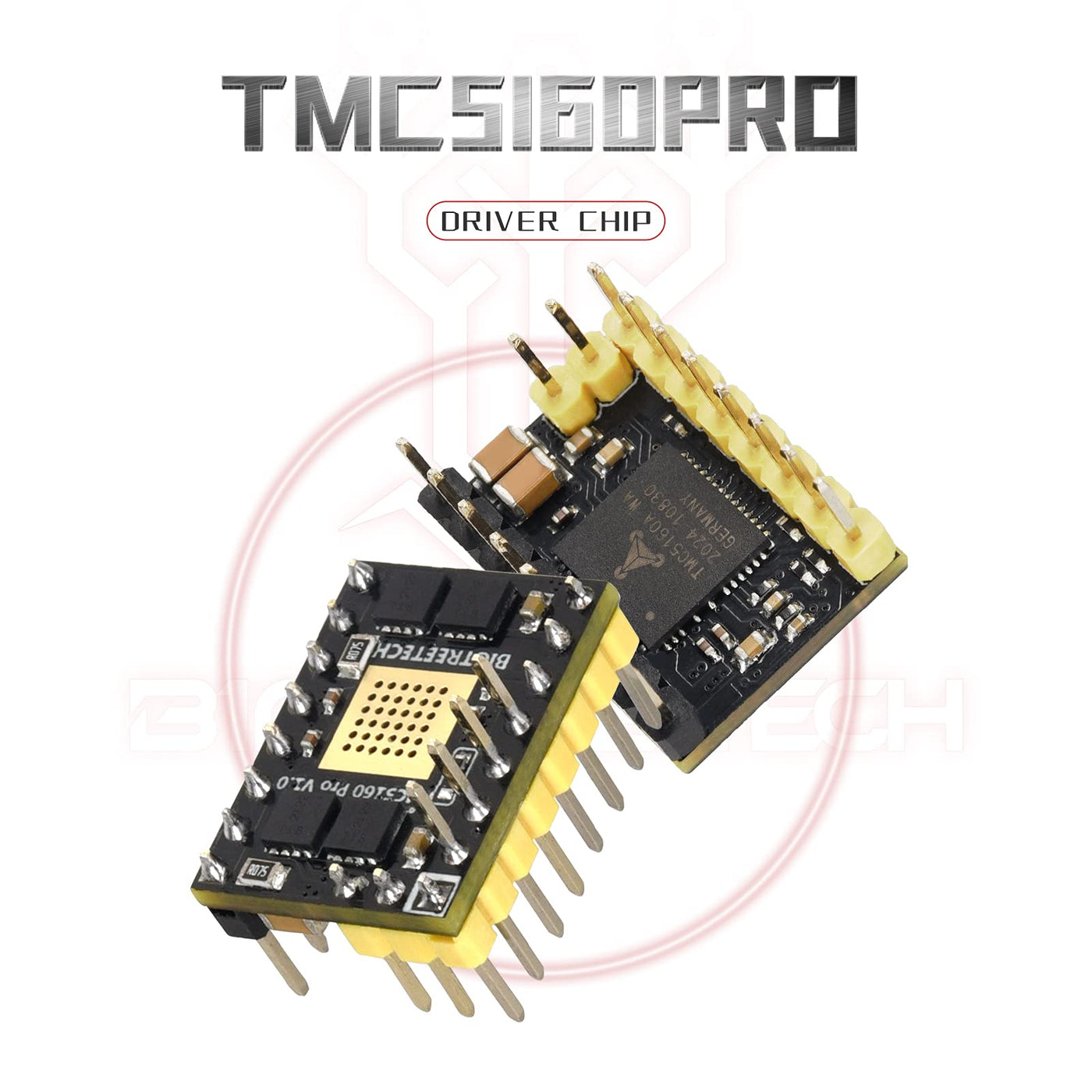

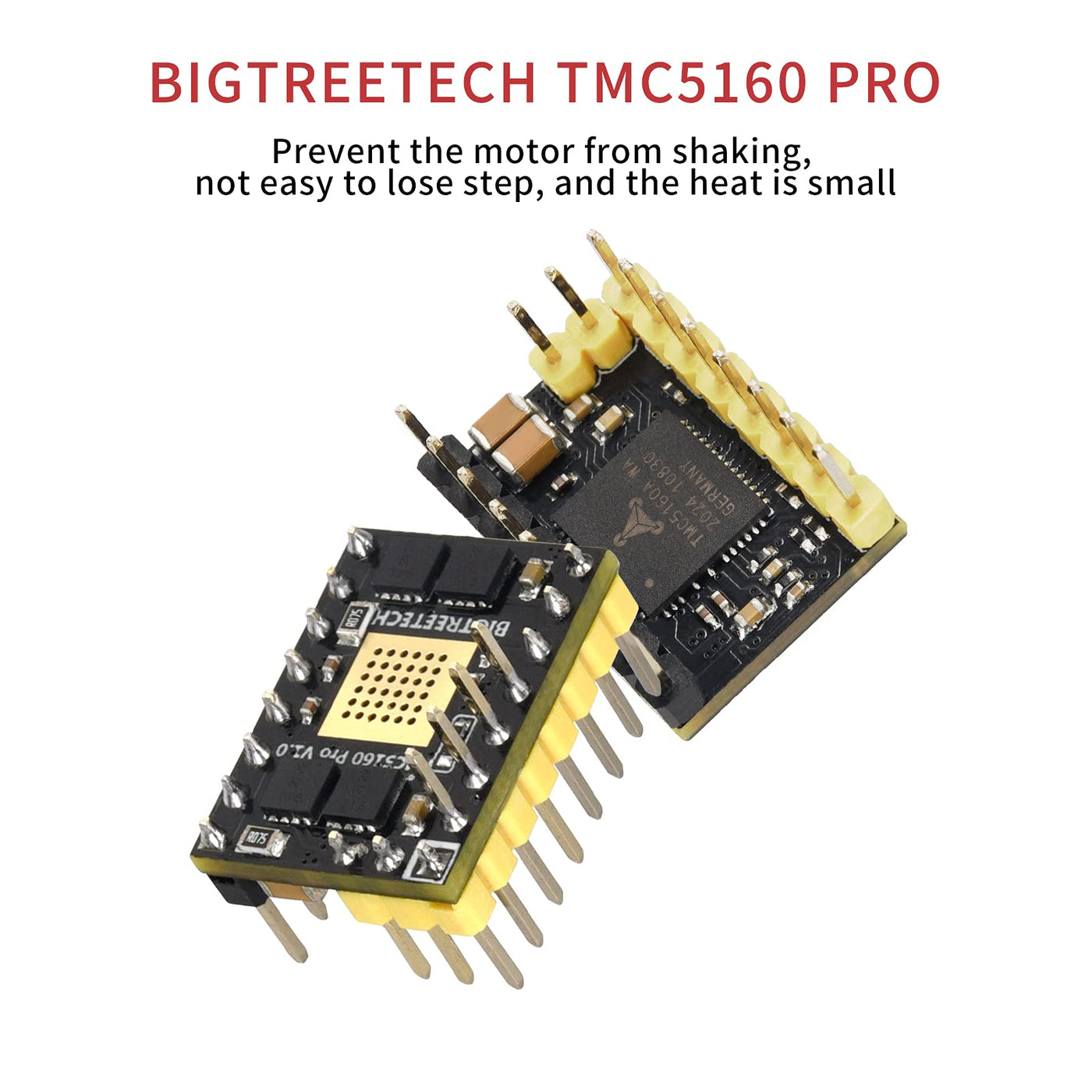

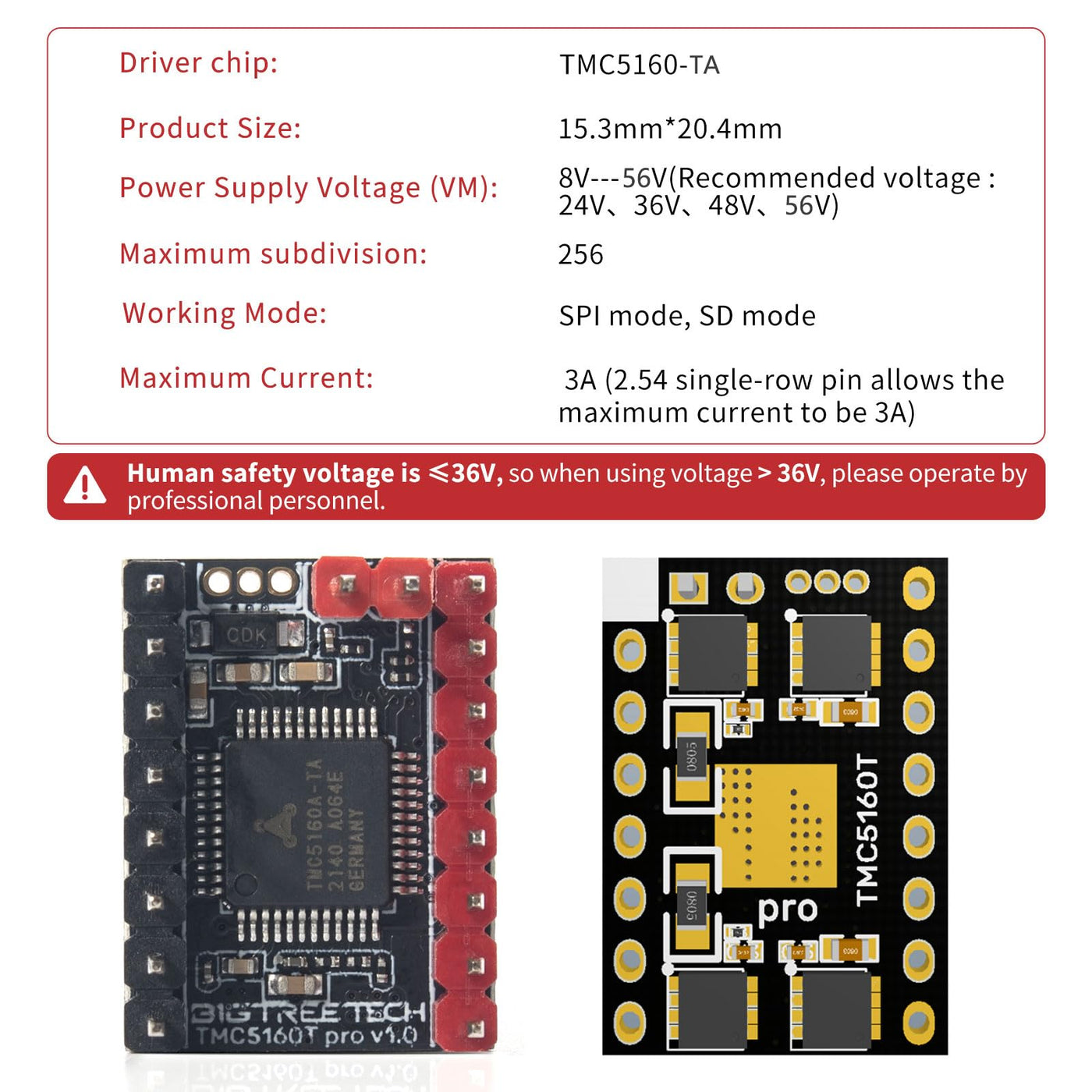

{"id":7807379636404,"title":"BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4","handle":"bigtreetech-tmc5160t-pro-stepper-motor-driver-silent-driver-up-to-56v-support-high-speed-printing-spi-sd-mode-with-heatsink-for-manta-m8p-m5p-m4p-octopus-pro-octopus-skr-3-ez-control-board-4-pcs-tmc5160t-pro-4","description":"\u003ch3\u003eBIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026amp;SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBIGTREETECH TMC5160T Pro Stepper Motor Driver Product parameters: Driver chip:\nTMC5160-TA; Product size: 15.3mm20.4mm; Power supply voltage (VM): 8V---56V;\nMaximum current: 3A (2.54 single row pin allows the maximum current to be 3A);\nMaximum segments: 256; Working mode: SPI mode, SD mode. Product Advantages: 1.\nThe external power MOS tube can support larger current, the maximum current\ncan reach 8A (because the module is limited by the area, the current cannot\nexceed 5A); 2. Ultra-silent mode; 3. Small calorific value; 4. Prevent the\nmotor from shaking; 5. Not easy to lose step; 6. Can drive 57 stepper motors.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTMC5160T Pro stepper motor driver adopts high-power control chip and externally expands power MOS tube, which can support larger current, and the maximum current can reach 8A (because the module is limited by the heating area, the current cannot exceed 5A), and low heat generation when working .\u003c\/li\u003e\n \u003cli\u003eUltra-silent Mode: Supports Trinamics' unique stealthChop2 mode, which eliminates motor noise by reducing resonance and achieves a mute effect.\u003c\/li\u003e\n \u003cli\u003ePrevents Motor From Shaking: SpreadCycle high-precision chopping algorithm for highly dynamic motor motion and producing an absolutely clean current wave. Low noise, low resonance and low vibration chopper.\u003c\/li\u003e\n \u003cli\u003eNot Easy to Lose Step: Allows the motor to operate near its load and speed limits, enabling 10x or more dynamic range without any out-of-step.\u003c\/li\u003e\n \u003cli\u003eStall detection: By safely detecting the stop action of the motor and replacing a mechanical stop switch, the torque control of the stepper motor or the sensorless return to the origin can be realized. Can drive 57 stepper motors.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-08-01T23:26:26+10:00","created_at":"2024-08-01T23:26:26+10:00","vendor":"BIGTREETECH","type":"3D Printer Controllers","tags":["industrial_Aug2024_update"],"price":31600,"price_min":31600,"price_max":31600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43448994431156,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B09JS5YDQN","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4","public_title":null,"options":["Default Title"],"price":31600,"weight":82,"compare_at_price":null,"inventory_management":"shopify","barcode":"KINGPRINTER-ZZB000574","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B09JS5YDQN.jpg?v=1722580346","\/\/auspowers.com\/cdn\/shop\/files\/71Z31C2hEOL_3d343b6f-7562-40d7-979a-4a1f6f62cfc7.jpg?v=1722518800","\/\/auspowers.com\/cdn\/shop\/files\/71DH-SKtJGL.jpg?v=1722518800","\/\/auspowers.com\/cdn\/shop\/files\/71wRPdVzd9L.jpg?v=1722518800","\/\/auspowers.com\/cdn\/shop\/files\/61GcYalw9CL.jpg?v=1722518800","\/\/auspowers.com\/cdn\/shop\/files\/71BNTLnPBkL.jpg?v=1722518800","\/\/auspowers.com\/cdn\/shop\/files\/717CH2q8uzL.jpg?v=1722518800","\/\/auspowers.com\/cdn\/shop\/files\/71Um7mEF4dL.jpg?v=1722518800"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B09JS5YDQN.jpg?v=1722580346","options":["Title"],"media":[{"alt":"[Australia - AusPower] - BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4 ","id":30556314108084,"position":1,"preview_image":{"aspect_ratio":1.125,"height":1600,"width":1800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B09JS5YDQN.jpg?v=1722580346"},"aspect_ratio":1.125,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B09JS5YDQN.jpg?v=1722580346","width":1800},{"alt":"[Australia - AusPower] - BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4 ","id":30552743248052,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Z31C2hEOL_3d343b6f-7562-40d7-979a-4a1f6f62cfc7.jpg?v=1722518800"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Z31C2hEOL_3d343b6f-7562-40d7-979a-4a1f6f62cfc7.jpg?v=1722518800","width":1600},{"alt":"[Australia - AusPower] - BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4 ","id":30552743280820,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71DH-SKtJGL.jpg?v=1722518800"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71DH-SKtJGL.jpg?v=1722518800","width":1600},{"alt":"[Australia - AusPower] - BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4 ","id":30552743313588,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71wRPdVzd9L.jpg?v=1722518800"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71wRPdVzd9L.jpg?v=1722518800","width":1600},{"alt":"[Australia - AusPower] - BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4 ","id":30552743346356,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61GcYalw9CL.jpg?v=1722518800"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61GcYalw9CL.jpg?v=1722518800","width":1600},{"alt":"[Australia - AusPower] - BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4 ","id":30552743379124,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71BNTLnPBkL.jpg?v=1722518800"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71BNTLnPBkL.jpg?v=1722518800","width":1600},{"alt":"[Australia - AusPower] - BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4 ","id":30552743411892,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/717CH2q8uzL.jpg?v=1722518800"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/717CH2q8uzL.jpg?v=1722518800","width":1600},{"alt":"[Australia - AusPower] - BIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS) TMC5160T Pro*4 ","id":30552743444660,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Um7mEF4dL.jpg?v=1722518800"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Um7mEF4dL.jpg?v=1722518800","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBIGTREETECH TMC5160T Pro Stepper Motor Driver Silent Driver Up to 56V Support High-Speed Printing SPI\u0026amp;SD Mode with Heatsink for Manta M8P\/M5P\/M4P, Octopus Pro, Octopus, SKR 3 EZ Control Board (4 PCS)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBIGTREETECH TMC5160T Pro Stepper Motor Driver Product parameters: Driver chip:\nTMC5160-TA; Product size: 15.3mm20.4mm; Power supply voltage (VM): 8V---56V;\nMaximum current: 3A (2.54 single row pin allows the maximum current to be 3A);\nMaximum segments: 256; Working mode: SPI mode, SD mode. Product Advantages: 1.\nThe external power MOS tube can support larger current, the maximum current\ncan reach 8A (because the module is limited by the area, the current cannot\nexceed 5A); 2. Ultra-silent mode; 3. Small calorific value; 4. Prevent the\nmotor from shaking; 5. Not easy to lose step; 6. Can drive 57 stepper motors.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTMC5160T Pro stepper motor driver adopts high-power control chip and externally expands power MOS tube, which can support larger current, and the maximum current can reach 8A (because the module is limited by the heating area, the current cannot exceed 5A), and low heat generation when working .\u003c\/li\u003e\n \u003cli\u003eUltra-silent Mode: Supports Trinamics' unique stealthChop2 mode, which eliminates motor noise by reducing resonance and achieves a mute effect.\u003c\/li\u003e\n \u003cli\u003ePrevents Motor From Shaking: SpreadCycle high-precision chopping algorithm for highly dynamic motor motion and producing an absolutely clean current wave. Low noise, low resonance and low vibration chopper.\u003c\/li\u003e\n \u003cli\u003eNot Easy to Lose Step: Allows the motor to operate near its load and speed limits, enabling 10x or more dynamic range without any out-of-step.\u003c\/li\u003e\n \u003cli\u003eStall detection: By safely detecting the stop action of the motor and replacing a mechanical stop switch, the torque control of the stepper motor or the sensorless return to the origin can be realized. Can drive 57 stepper motors.\u003c\/li\u003e\n \u003c\/ul\u003e"}
