BIGTREETECH Pi V1.2 Control board 64bit Quad Core 1GB DDR3L 40-pin GPIO Compatible with SKR MINI E3 V3.0 Octopus/SKR V1.4 turbo to run Klipper/Linux/Debain For I3/CoreXY 3D Printer
BIGTREETECH Pi V1.2 Control board 64bit Quad Core 1GB DDR3L 40-pin GPIO Compatible with SKR MINI E3 V3.0 Octopus/SKR V1.4 turbo to run Klipper/Linux/Debain For I3/CoreXY 3D Printer

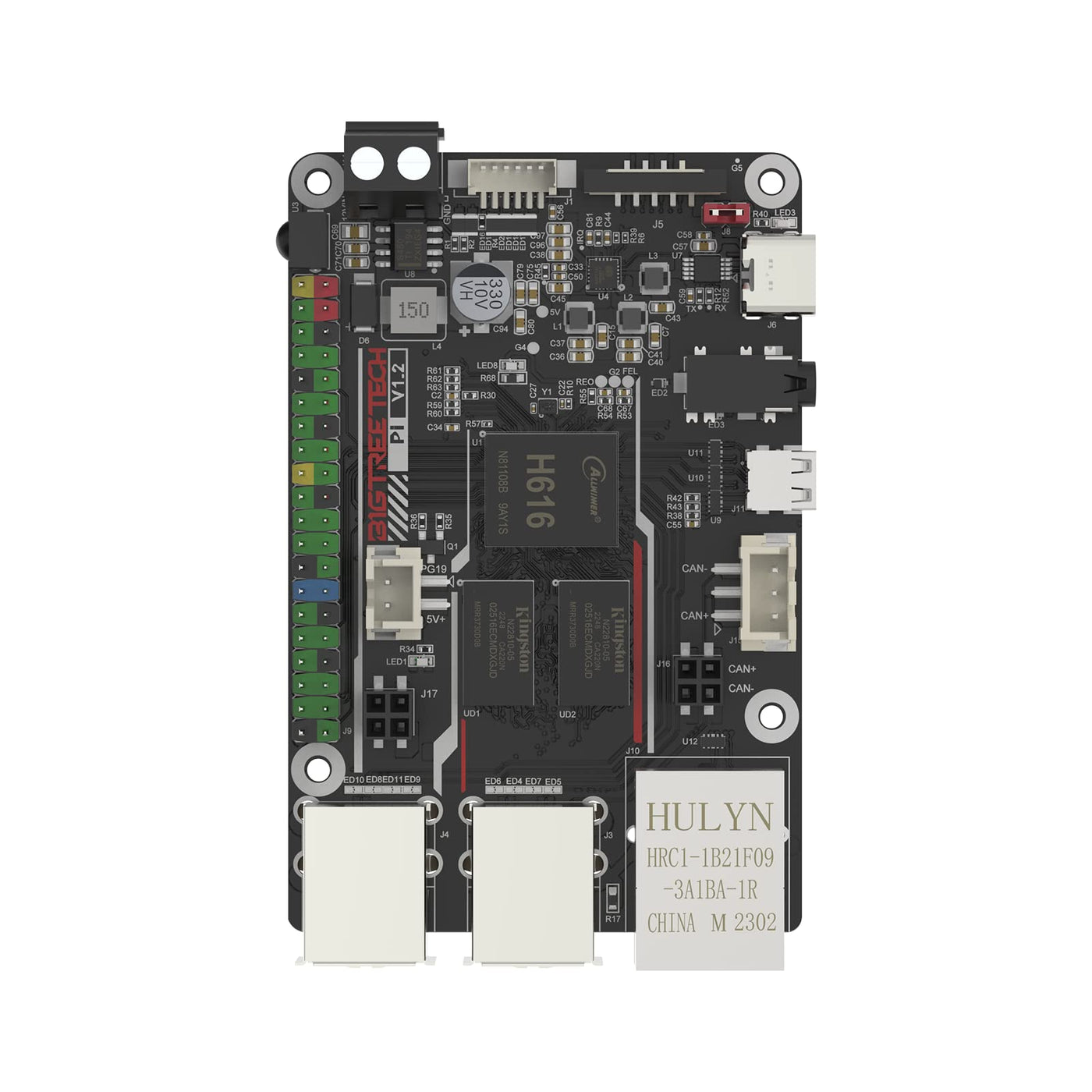

BIGTREETECH Pi V1.2, also known as the BBT Pi V1.2, is a Raspberry Pi-sized Allwinner H616 single board computer (SBC) specially designed for 3D printers with many of the same ports as the Raspberry Pi 3/4, but also features 12V-24V DC power input and connectors for the ADXL345 3-axis accelerometer, CAN Bus, and so on.The board is equipped with 1GB RAM, a microSD card slot to run the operating system (Debian 11 with Klipper), a 4K capable micro HDMI port, Fast Ethernet and WiFi 4 networking, four USB ports, and the usual 40-pin Raspberry Pi header.Feature Highlights:1.CPU:Allwinner H616 quad-core Arm Cortex-A53 @ 1.5GHz with Arm Mali G31 MP2 with support for OpenGL ES 3.22.System Memory:1GB DDR3L SDRAM3.Storage:MicroSD card slot4.Video Output:Micro HDMI 2.0a port up to 4Kp60 resolution,SPI port for display5.Audio:3.5mm audio jack6. Networking:10/100 Mbps Ethernet and 2.4 GHz WiFi 4 module with external antenna7. USB:4x USB 2.0 Ports, 1x USB Type-C for power and UART console8. Serial:3-pin CAN Bus connector for the U2C expansion module 9. 40-pin GPIO10. ADXL345 3-axis accelerometer connector (SPI)11. Misc:Built-in IR receiver, 5V CNC fan header13. Power Supply: 5V DC via USB Type-C port,12V to 24V DC via 2-pin terminal block
Product Features
- Main control chipBIGTREETECH BTT PI V1.2 motherboard adopts ALLWINNER H616,64-bit Quad-core, Processor ,RAM is 1GB DDR3L SDRAM.

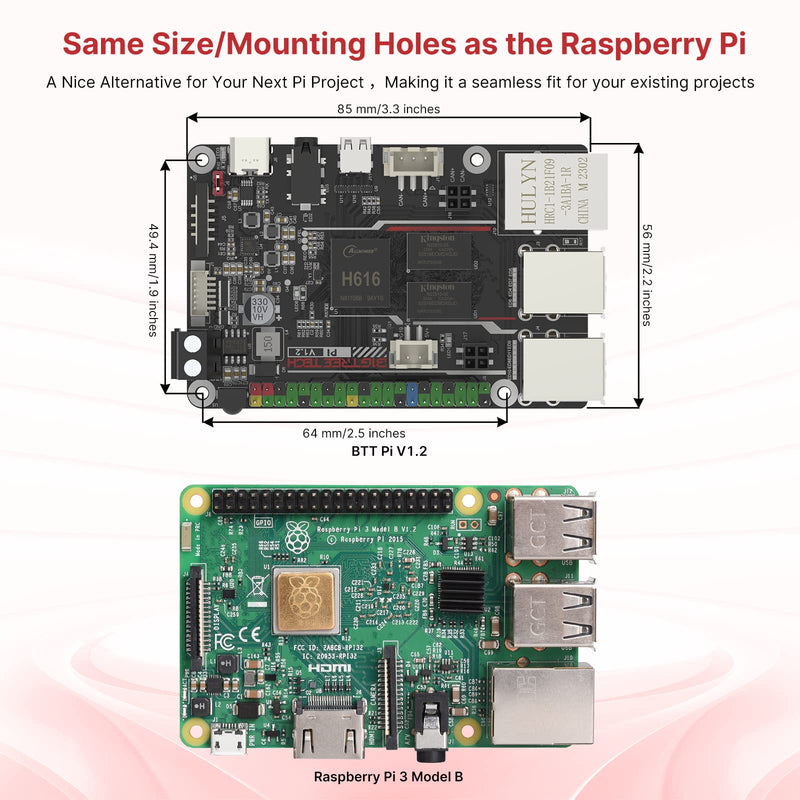

- About SizeBTT PI V1.2 Control Board size is 85*56mm,the same as the Raspberry Pi 3B/4B, Making it a seamless fit for your existing projects.

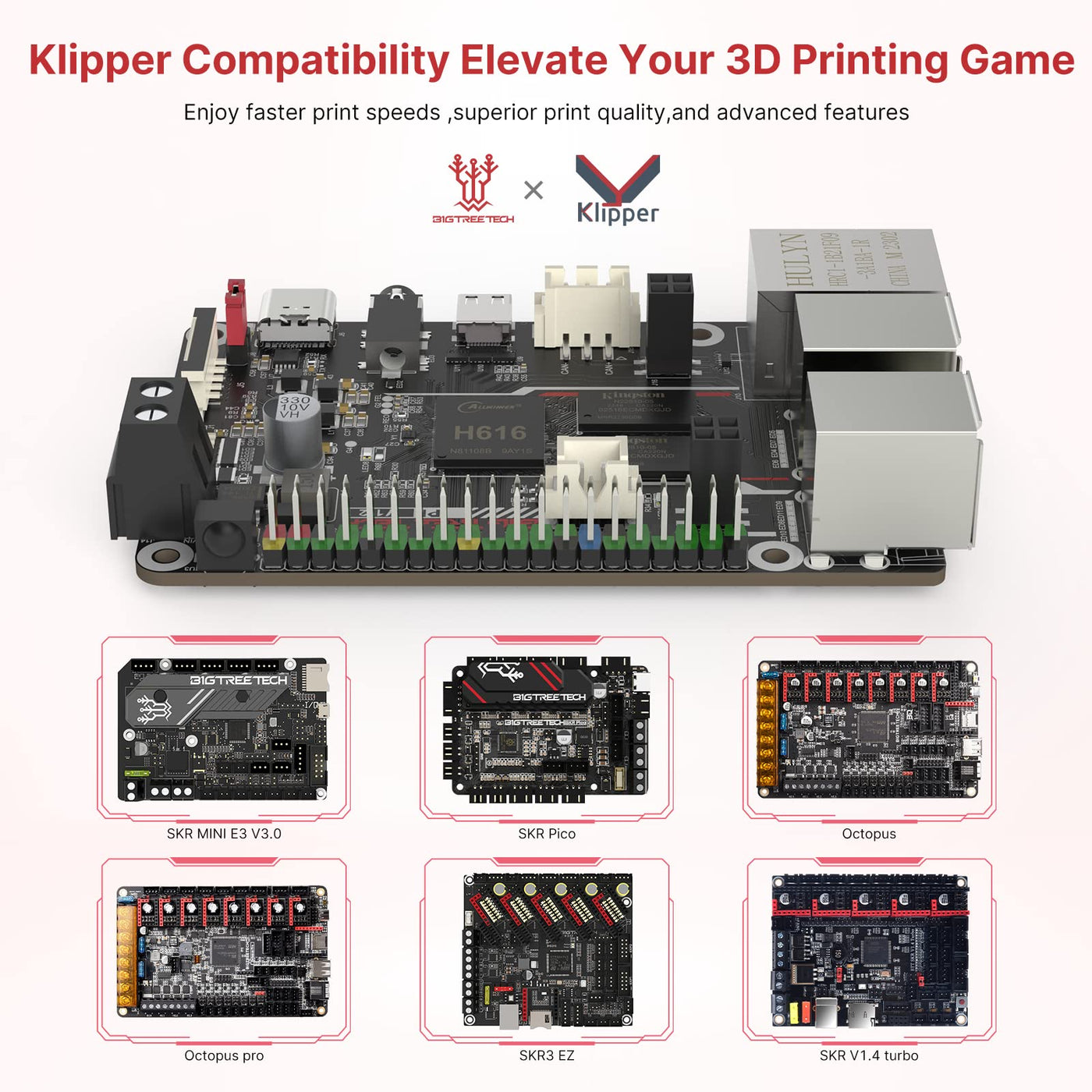

- Support Display and MotherboardBTT PI V1.2 Display Adopts MaliG32 MP2 GPU,Support OpenGL3.2 and HDMI2.0A UHD 4K Video & Audio output and SPI screen ,onboard 4xUSB2.0 port.Powerful High Performance details and clarity. motherboard suppport SKR MINI E3 V3.0 ,SKR Pico ,SKR V1.4 turbo ,Octopus pro/Octopus series.then running Klipper firmware.

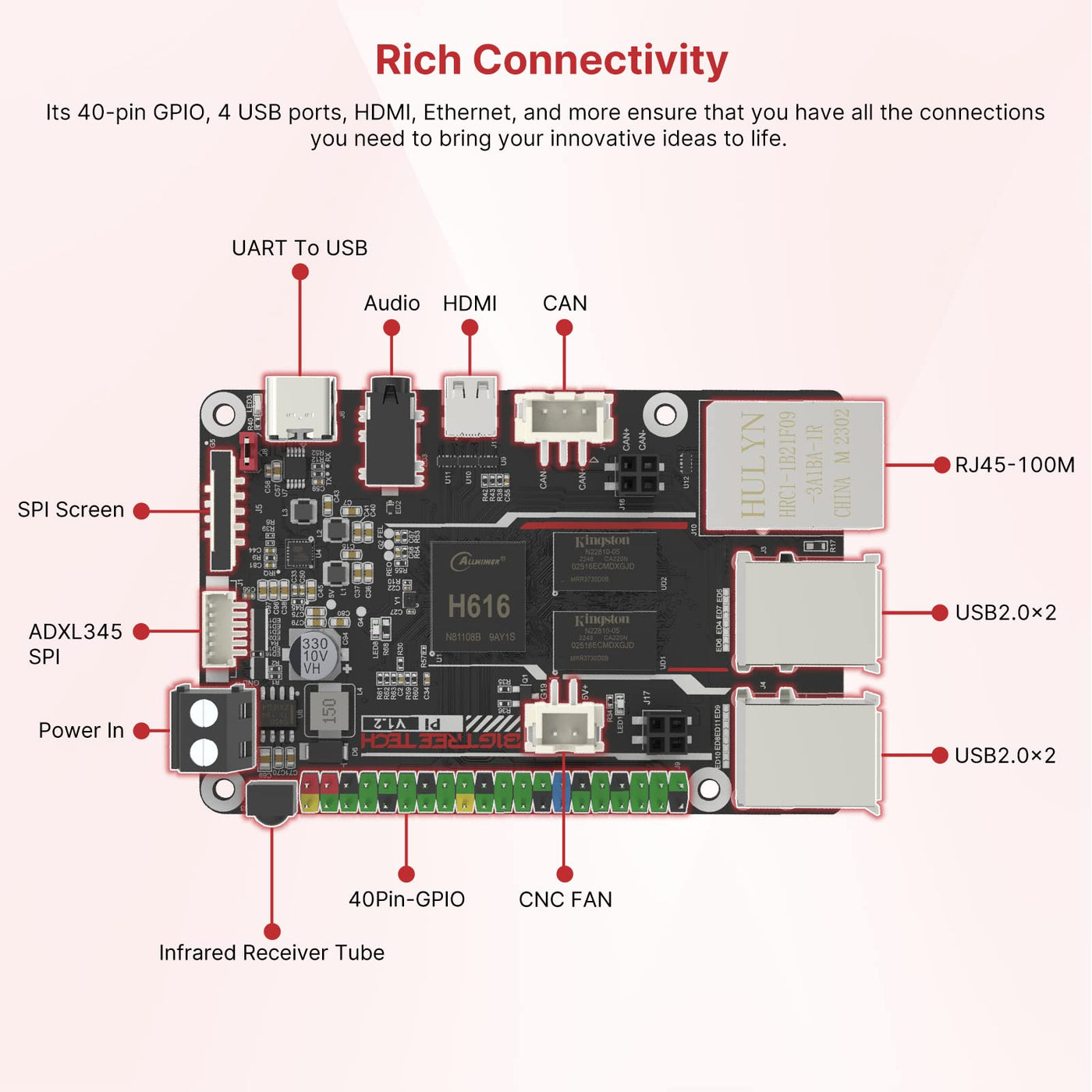

- Rich ConnectivityOnboard Standard 40-pinGPIO header,3.5mm Audio Jack,TF card Slot,ADXL345 SPI,USB To CAN Module(need to purchase U2C module),Built-in IR Receiver.RJ45 port support a 100Mbps wired network .built-in 2.4G Wifi module ,supports 100Mbps wireless network, Users can connect the inlculde wifi antenna to get a stronger and more stable Wifi signa.

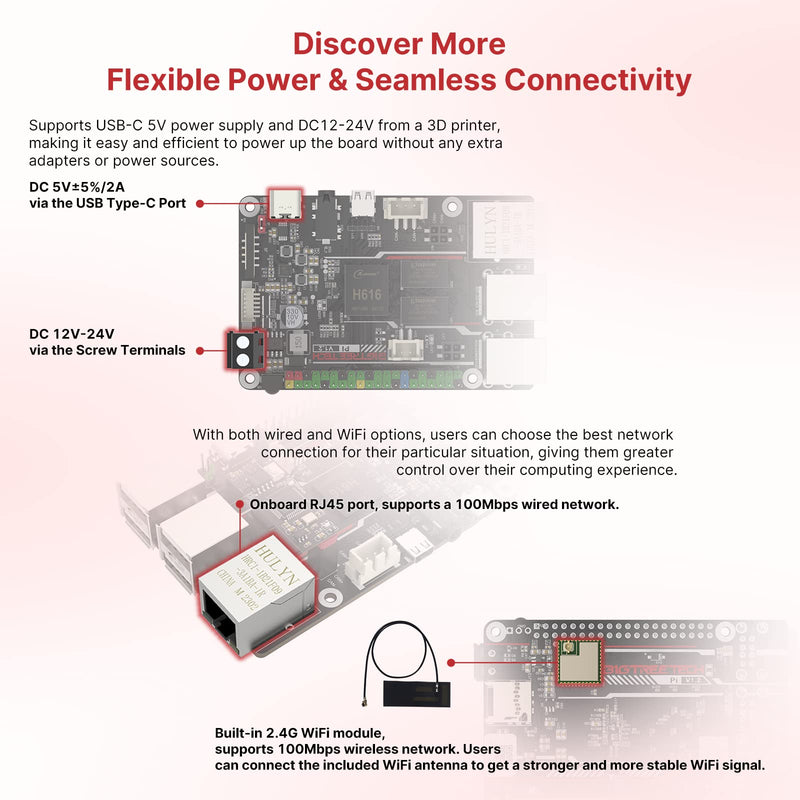

- Flexible powerSupport USB-C 5V power supply and DC12V-24V from a 3D Printer,making it easy andefficient to power up the board without any extra adapters or power soucres.
