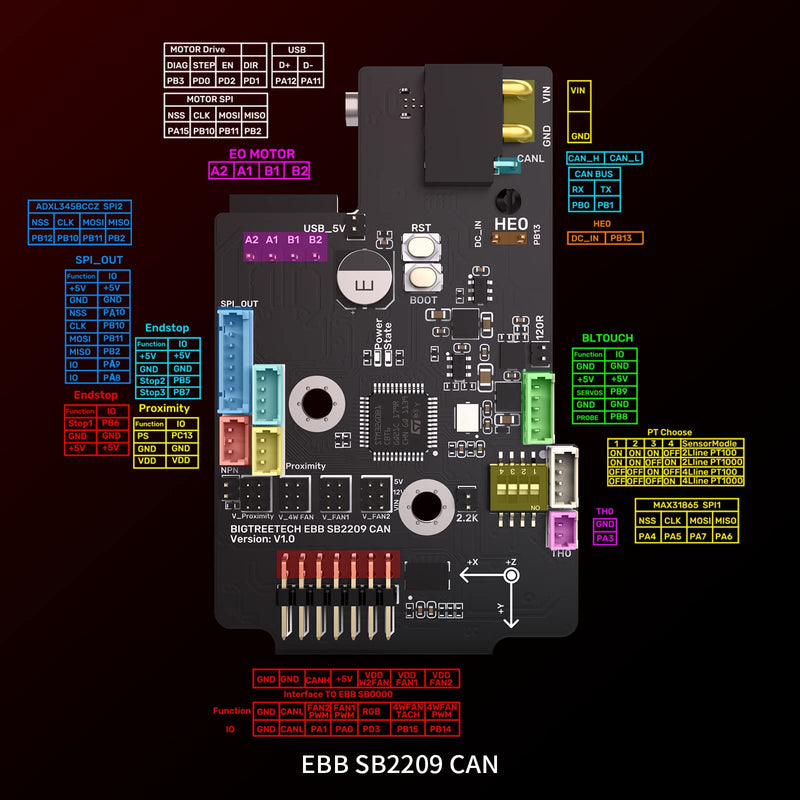

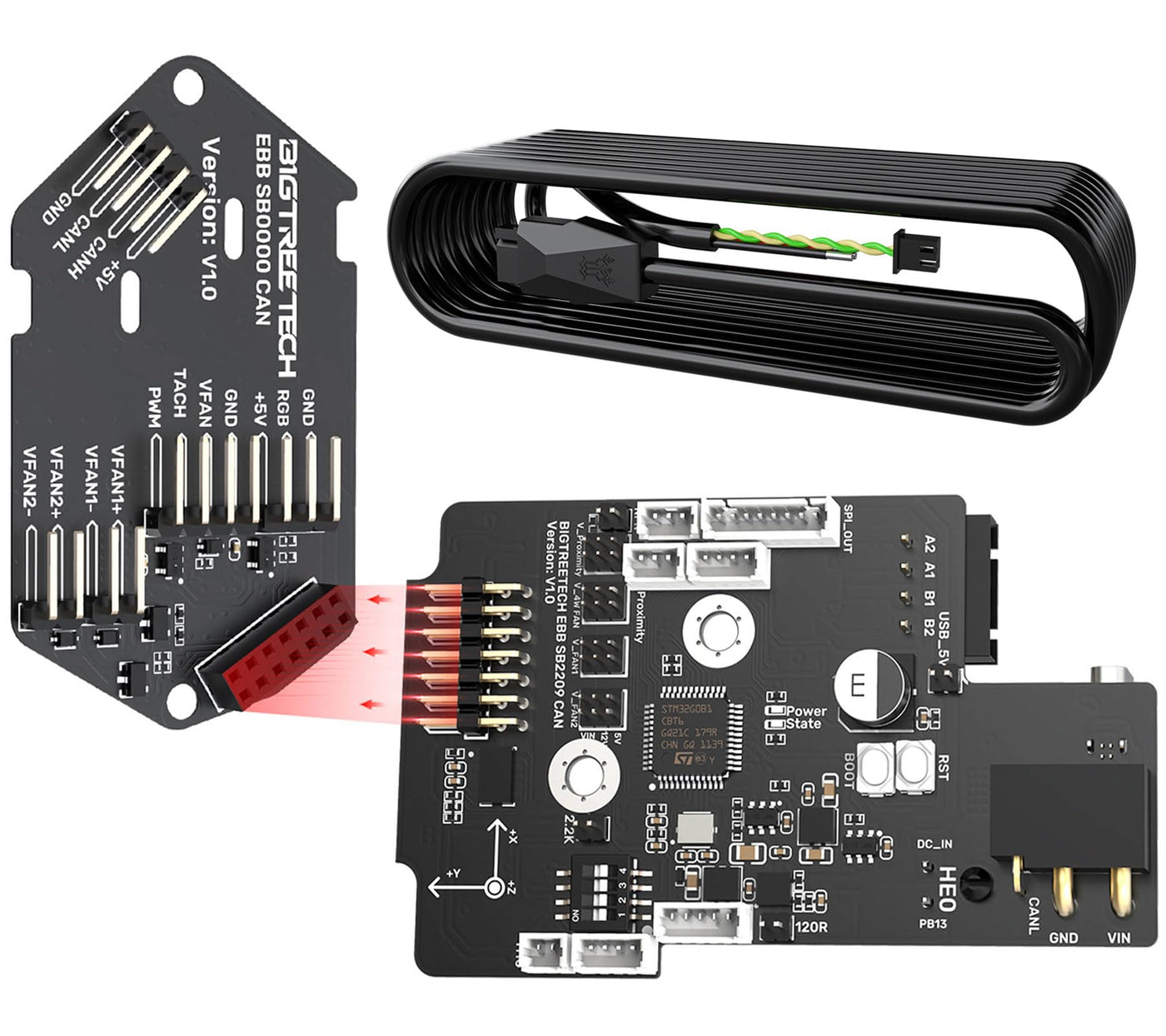

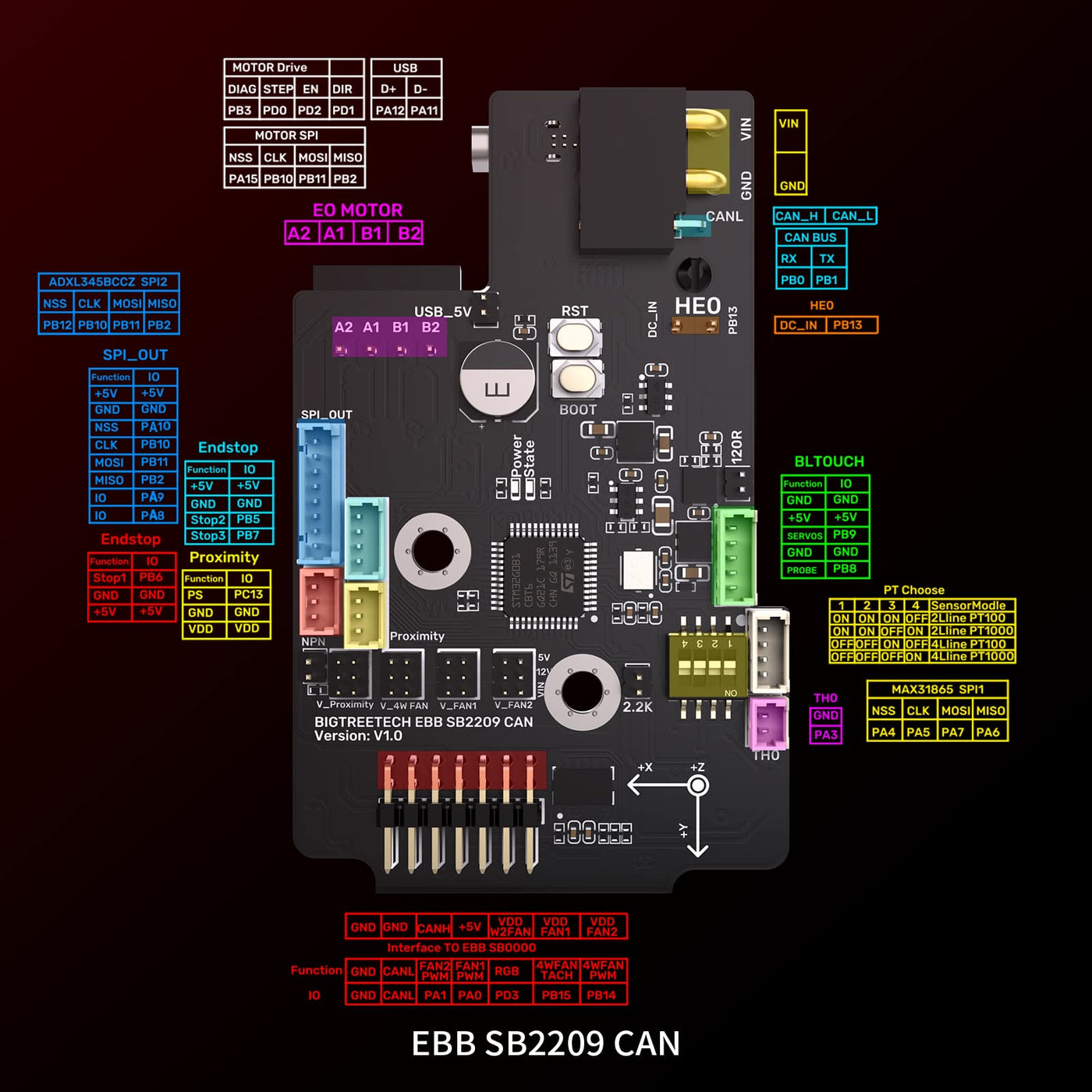

{"id":8088975835316,"title":"BIGTREETECH EBB SB2209 CAN V1.0 Extruder Breakout Board for Voron Stealthburner UART Mode Support Klipper with 100K NTC B3950 + 30-Pin Ribbon Wire Kit","handle":"bigtreetech-ebb-sb2209-can-v1-0-extruder-breakout-board-for-voron-stealthburner-uart-mode-support-klipper-with-100k-ntc-b3950-30-pin-ribbon-wire-kit","description":"\u003ch3\u003eBIGTREETECH EBB SB2209 CAN V1.0 Extruder Breakout Board for Voron Stealthburner UART Mode Support Klipper with 100K NTC B3950 + 30-Pin Ribbon Wire Kit\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhy do Voron users choose BIGTREETECH EBB SB2209\/SB2240 1. Perfect fit for the\ninstallation position of VORON StealthBurner 2. The debugging position and\ninstallation direction of the ADXL345 accelerometer are consistent 3. Fan\nvoltage 5V 12V 24V can be selected, supporting 4-wire fans to meet more DIY\nrequirements 4. The new XT30 model CAN bus is more stable and convenient\nBIGTREETECH EBB SB2209 CAN Built-in Driver: TMC2209 Driver Working Mode: UART\nMCU: Arm 32-bit Cortex-M0+ CPU STM32G0B1CBT6 64MHz Input Voltage: DC12V-DC24V\n9A Logic Voltage: DC 3.3V Heater Connection: Heater Cartridge (E0), Max Output\nCurrent: 5A Onboard Sensor: ADXL345 Fan Port: 2 x PWM (FAN0, FAN1), 1 x 4 pins\nFan Port Fan Port Max Current: 1A Continuous, 1.5A Instantaneous Stepper Motor\nInterface: EM Temperature Sensor Interface: 1 x 100K NTC or PT1000(TH0), 1 x\nPT100\/PT1000 Selectable USB Communication Interface: USB-Type-C DCDC 5V Output\nMax Current: 1A Expansion Port: EndStop, ABL, RGB, PT100\/PT1000, USB, CAN, SPI\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAdopting the leading STM high-performance 32-bit 64MHz STM32G0B1RET6 main control chip, it ensures the stability of CAN bus signals and can achieve long-distance high-speed data transmission, bidding farewell to cumbersome cable management from now on\u003c\/li\u003e\n \u003cli\u003eThe EBB SB2209 is equipped with TMC2209 driver chip and a ultra silent stepper driver, making it the most cost-effective choice for motors that are not prone to stepping out. It has functions such as overheating protection, stall protection, and preventing motor vibration\u003c\/li\u003e\n \u003cli\u003eThe CAN Bus of XT30 communication interface supports a maximum current of 10A, making it safer to use; The interface is more stable when plugged in and out, reducing the shaking caused by extrusion movement; Equipped with a dedicated 3m CAN Bus wire, it is easy to use and eliminates the need for crimping terminals and other steps\u003c\/li\u003e\n \u003cli\u003eThe onboard ADXL345 accelerometer and reserved SPI interface facilitate the activation of Klipper resonance compensation function; The SPI interface can be externally connected to the ADXL345 accelerometer module, with flexible installation positions to meet more DIY usage scenarios\u003c\/li\u003e\n \u003cli\u003eOn board temperature sensor, monitoring tool board MCU stability, extrusion head cavity temperature, more reliable to use; On board Max31865, with paddle switch selection, supports 2 or 4 wire PT100 PT1000 (more accurate data, maximum temperature measurement value of 500 C, NTC maximum temperature measurement value of 150 C)\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-07-24T15:26:17+10:00","created_at":"2026-07-21T18:08:36+10:00","vendor":"BIGTREETECH","type":"3D Printer Accessories","tags":["home_industrial_July2026"],"price":21600,"price_min":21600,"price_max":21600,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44288630849716,"title":"EBB SB2209","option1":"EBB SB2209","option2":null,"option3":null,"sku":"B0C42TBZ3L","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BIGTREETECH EBB SB2209 CAN V1.0 Extruder Breakout Board for Voron Stealthburner UART Mode Support Klipper with 100K NTC B3950 + 30-Pin Ribbon Wire Kit - EBB SB2209","public_title":"EBB SB2209","options":["EBB SB2209"],"price":21600,"weight":222,"compare_at_price":null,"inventory_management":"shopify","barcode":"KINGPRINTER-1029017","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0C42TBZ3L.jpg?v=1784621318","\/\/auspowers.com\/cdn\/shop\/files\/71V0SIpcBKL.jpg?v=1784621318","\/\/auspowers.com\/cdn\/shop\/files\/71SUsSnFlrL.jpg?v=1784621318","\/\/auspowers.com\/cdn\/shop\/files\/71KLOPGtmDL.jpg?v=1784621319","\/\/auspowers.com\/cdn\/shop\/files\/71ZH_cjyJxL.jpg?v=1784621318","\/\/auspowers.com\/cdn\/shop\/files\/71pZ168tgUL.jpg?v=1784621318","\/\/auspowers.com\/cdn\/shop\/files\/71HTro0sGnL.jpg?v=1784621318"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0C42TBZ3L.jpg?v=1784621318","options":["Style"],"media":[{"alt":null,"id":33131470454964,"position":1,"preview_image":{"aspect_ratio":1.125,"height":1600,"width":1800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C42TBZ3L.jpg?v=1784621318"},"aspect_ratio":1.125,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0C42TBZ3L.jpg?v=1784621318","width":1800},{"alt":null,"id":33131470487732,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71V0SIpcBKL.jpg?v=1784621318"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71V0SIpcBKL.jpg?v=1784621318","width":1600},{"alt":null,"id":33131470520500,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71SUsSnFlrL.jpg?v=1784621318"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71SUsSnFlrL.jpg?v=1784621318","width":1600},{"alt":null,"id":33131470553268,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71KLOPGtmDL.jpg?v=1784621319"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71KLOPGtmDL.jpg?v=1784621319","width":1600},{"alt":null,"id":33131470586036,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71ZH_cjyJxL.jpg?v=1784621318"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71ZH_cjyJxL.jpg?v=1784621318","width":1600},{"alt":null,"id":33131470618804,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71pZ168tgUL.jpg?v=1784621318"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71pZ168tgUL.jpg?v=1784621318","width":1600},{"alt":null,"id":33131470651572,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71HTro0sGnL.jpg?v=1784621318"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71HTro0sGnL.jpg?v=1784621318","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBIGTREETECH EBB SB2209 CAN V1.0 Extruder Breakout Board for Voron Stealthburner UART Mode Support Klipper with 100K NTC B3950 + 30-Pin Ribbon Wire Kit\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eWhy do Voron users choose BIGTREETECH EBB SB2209\/SB2240 1. Perfect fit for the\ninstallation position of VORON StealthBurner 2. The debugging position and\ninstallation direction of the ADXL345 accelerometer are consistent 3. Fan\nvoltage 5V 12V 24V can be selected, supporting 4-wire fans to meet more DIY\nrequirements 4. The new XT30 model CAN bus is more stable and convenient\nBIGTREETECH EBB SB2209 CAN Built-in Driver: TMC2209 Driver Working Mode: UART\nMCU: Arm 32-bit Cortex-M0+ CPU STM32G0B1CBT6 64MHz Input Voltage: DC12V-DC24V\n9A Logic Voltage: DC 3.3V Heater Connection: Heater Cartridge (E0), Max Output\nCurrent: 5A Onboard Sensor: ADXL345 Fan Port: 2 x PWM (FAN0, FAN1), 1 x 4 pins\nFan Port Fan Port Max Current: 1A Continuous, 1.5A Instantaneous Stepper Motor\nInterface: EM Temperature Sensor Interface: 1 x 100K NTC or PT1000(TH0), 1 x\nPT100\/PT1000 Selectable USB Communication Interface: USB-Type-C DCDC 5V Output\nMax Current: 1A Expansion Port: EndStop, ABL, RGB, PT100\/PT1000, USB, CAN, SPI\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eAdopting the leading STM high-performance 32-bit 64MHz STM32G0B1RET6 main control chip, it ensures the stability of CAN bus signals and can achieve long-distance high-speed data transmission, bidding farewell to cumbersome cable management from now on\u003c\/li\u003e\n \u003cli\u003eThe EBB SB2209 is equipped with TMC2209 driver chip and a ultra silent stepper driver, making it the most cost-effective choice for motors that are not prone to stepping out. It has functions such as overheating protection, stall protection, and preventing motor vibration\u003c\/li\u003e\n \u003cli\u003eThe CAN Bus of XT30 communication interface supports a maximum current of 10A, making it safer to use; The interface is more stable when plugged in and out, reducing the shaking caused by extrusion movement; Equipped with a dedicated 3m CAN Bus wire, it is easy to use and eliminates the need for crimping terminals and other steps\u003c\/li\u003e\n \u003cli\u003eThe onboard ADXL345 accelerometer and reserved SPI interface facilitate the activation of Klipper resonance compensation function; The SPI interface can be externally connected to the ADXL345 accelerometer module, with flexible installation positions to meet more DIY usage scenarios\u003c\/li\u003e\n \u003cli\u003eOn board temperature sensor, monitoring tool board MCU stability, extrusion head cavity temperature, more reliable to use; On board Max31865, with paddle switch selection, supports 2 or 4 wire PT100 PT1000 (more accurate data, maximum temperature measurement value of 500 C, NTC maximum temperature measurement value of 150 C)\u003c\/li\u003e\n \u003c\/ul\u003e"}
