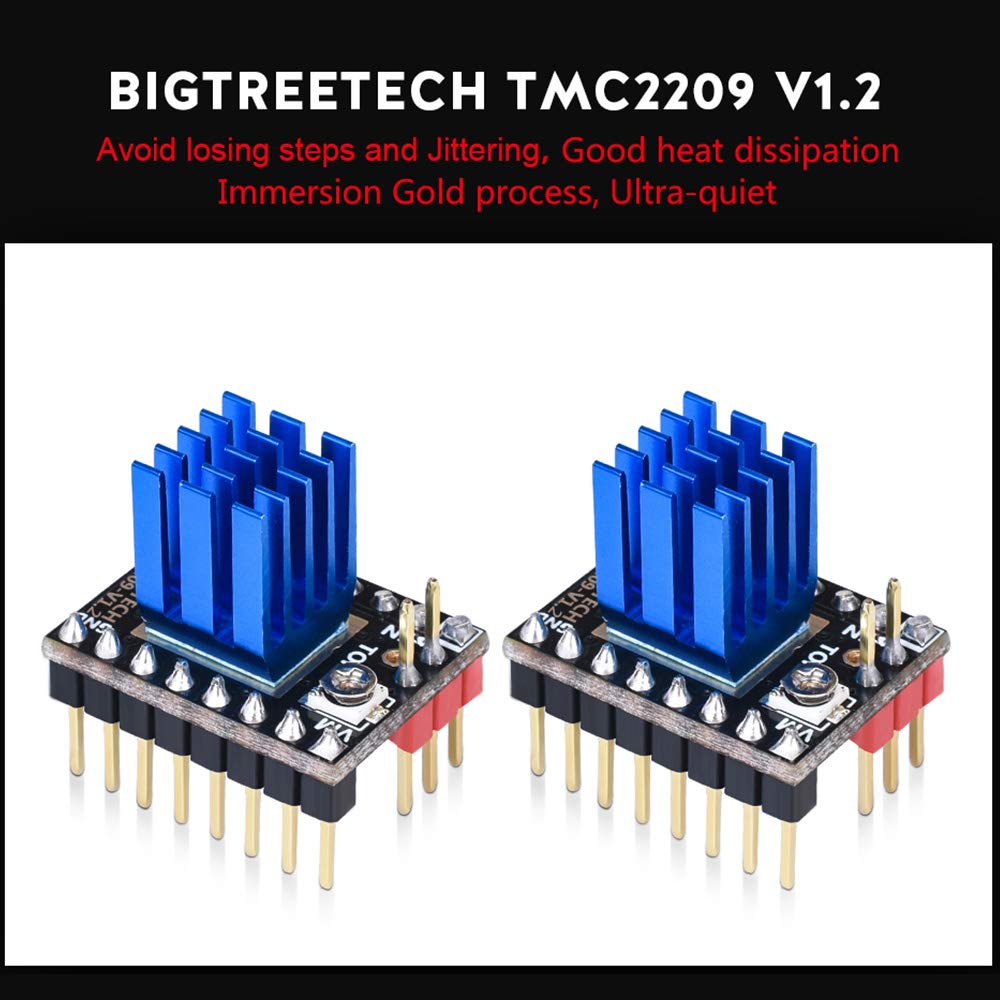

BIGTREETECH DIRECT TMC2209 UART TMC2208 Stepper Motor Driver Stepsticks Mute VS TMC2130 TMC2100 TMC2225 for Octopus/SKR 2/SKR V1.3 Pro Motherboard 5PCS

In Stock. Leaves warehouse within 2 - 3 business days

$154.00 AUD
Maximum quantity available reached.
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

BIGTREETECH DIRECT TMC2209 UART TMC2208 Stepper Motor Driver Stepsticks Mute VS TMC2130 TMC2100 TMC2225 for Octopus/SKR 2/SKR V1.3 Pro Motherboard

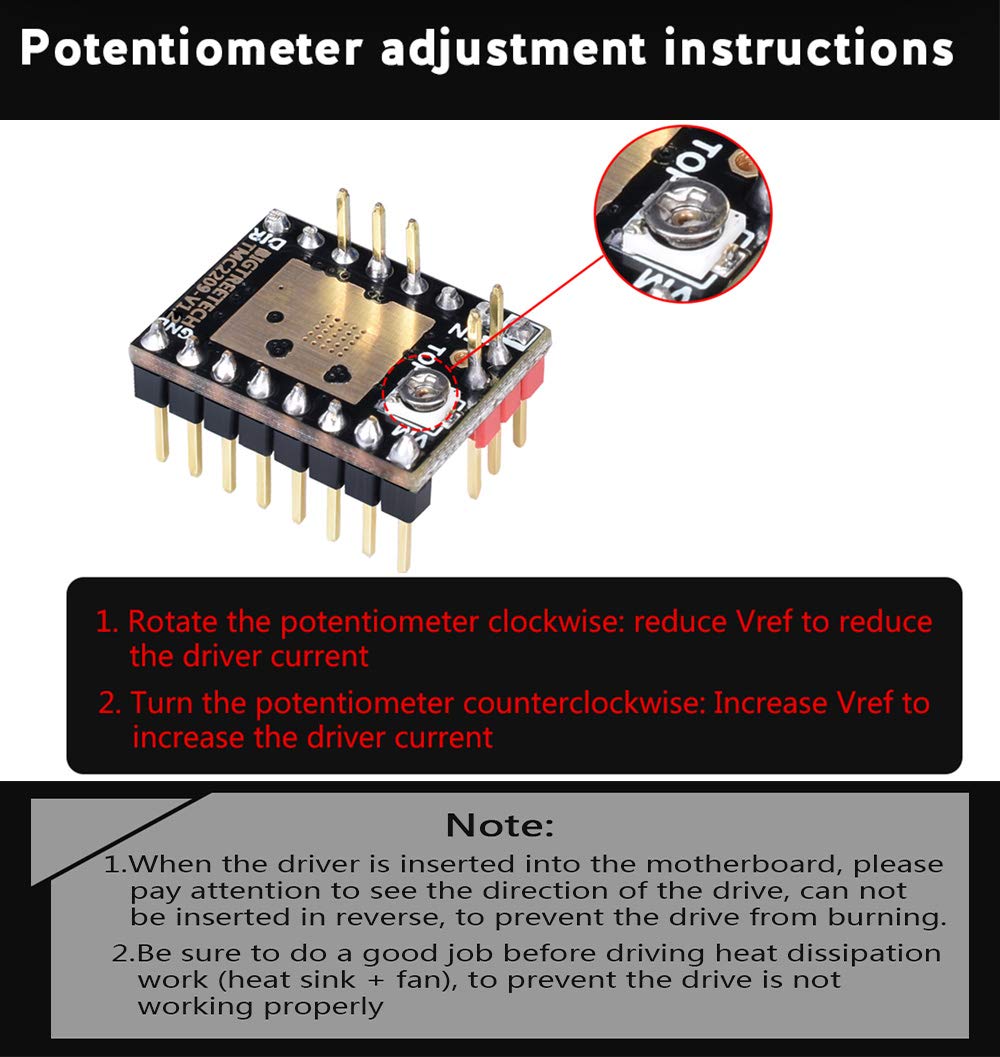

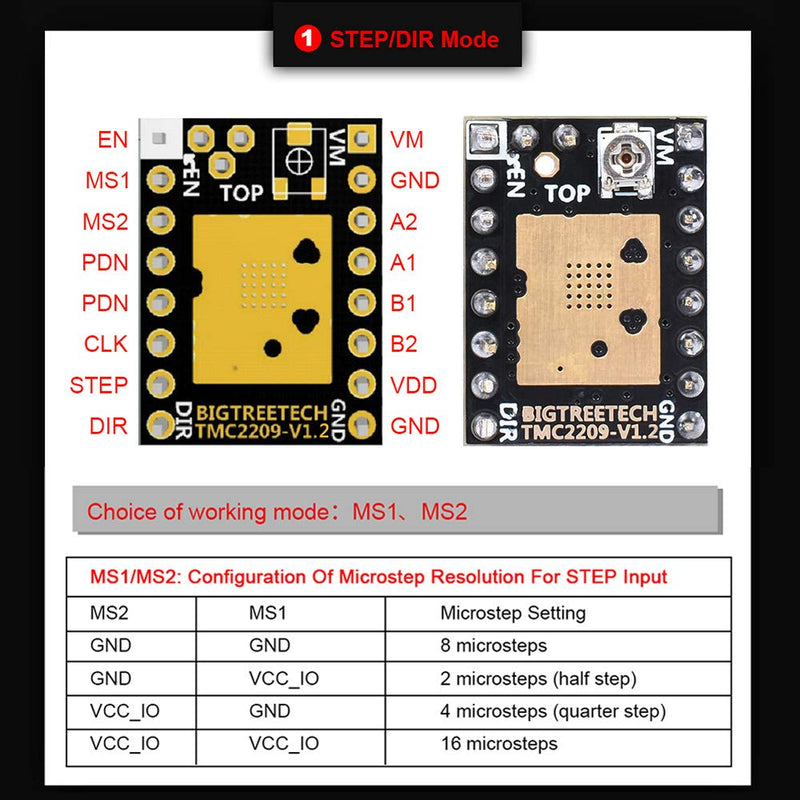

🎄🎄:🎅Material: PCB🎅Mode: DIR/STEP,UART🎅Motor Voltage: 5.5-28V🎅Logic Voltage: 3.3-5V🎅RSense: 0.11 Ohm🎅Current: 2A (Peak 2.8A)🎅Microsteps: 256 Subdivision🎄🎄Product Features:🎅Avoid Losing Steps and Jittering🎅Immersion Gold Proxess, The Better Antioxidant🎅SpreadCycle: The motor controlled by the PWM chopper mode operated more smoothly and without Jitter🎅The TMC2209 can effectively avoid problem such as running deviation losing step and fault caused by the overlode of the chip🎄🎄Warm Notice🎅When the driver is inserted into motherboard, plaese pay attention to see the direction of the drive, can not be inserted in reverse, to prevent the drive from burning.🎅Be sure to do a good job before driving heat dissipation work(heat sink+fan), to prevent the drive is not working properly.

Product Features

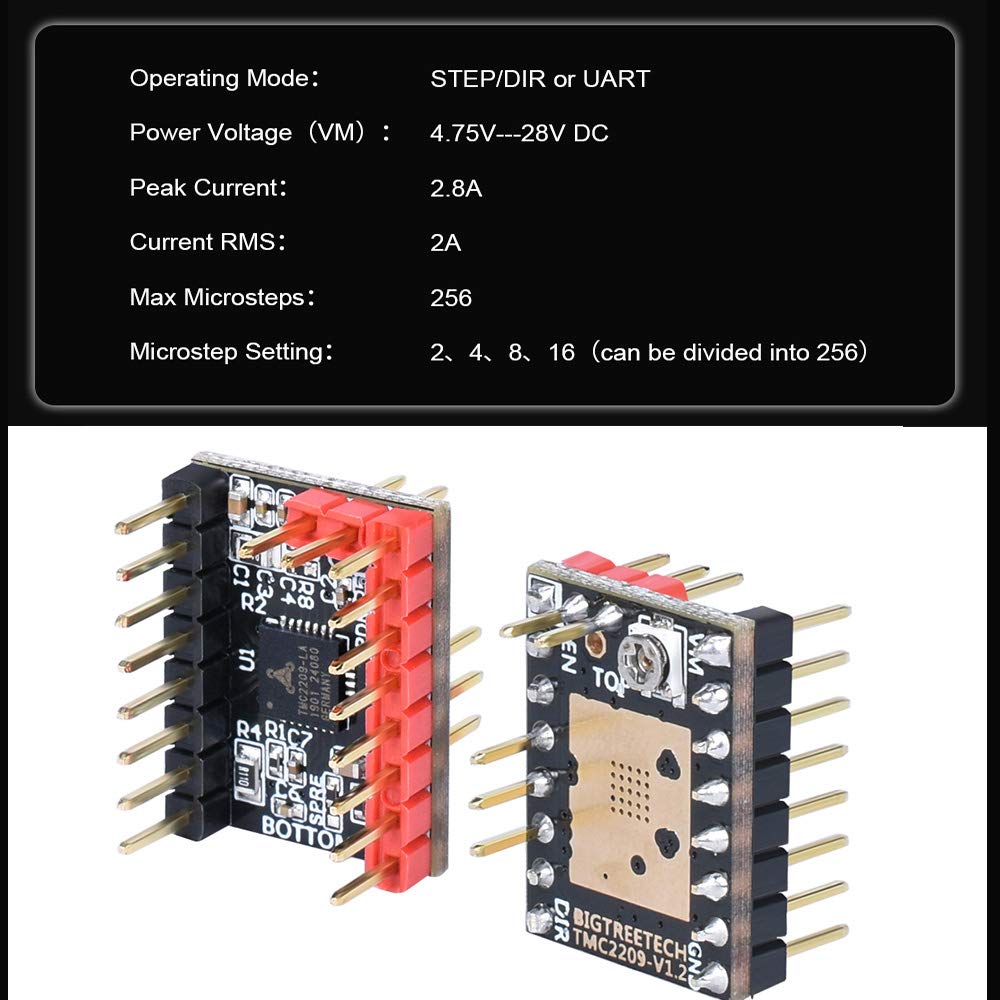

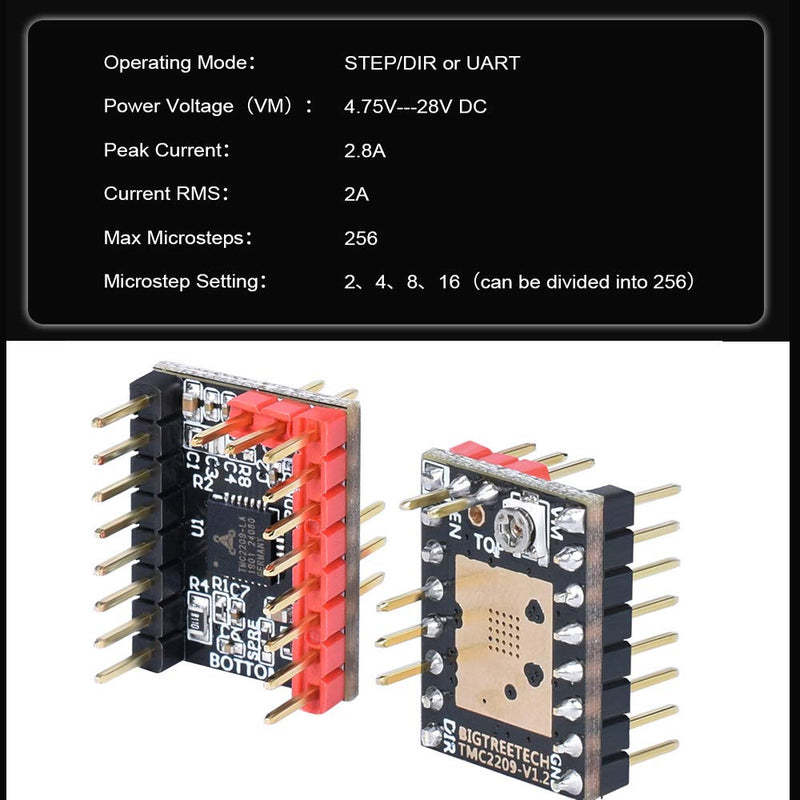

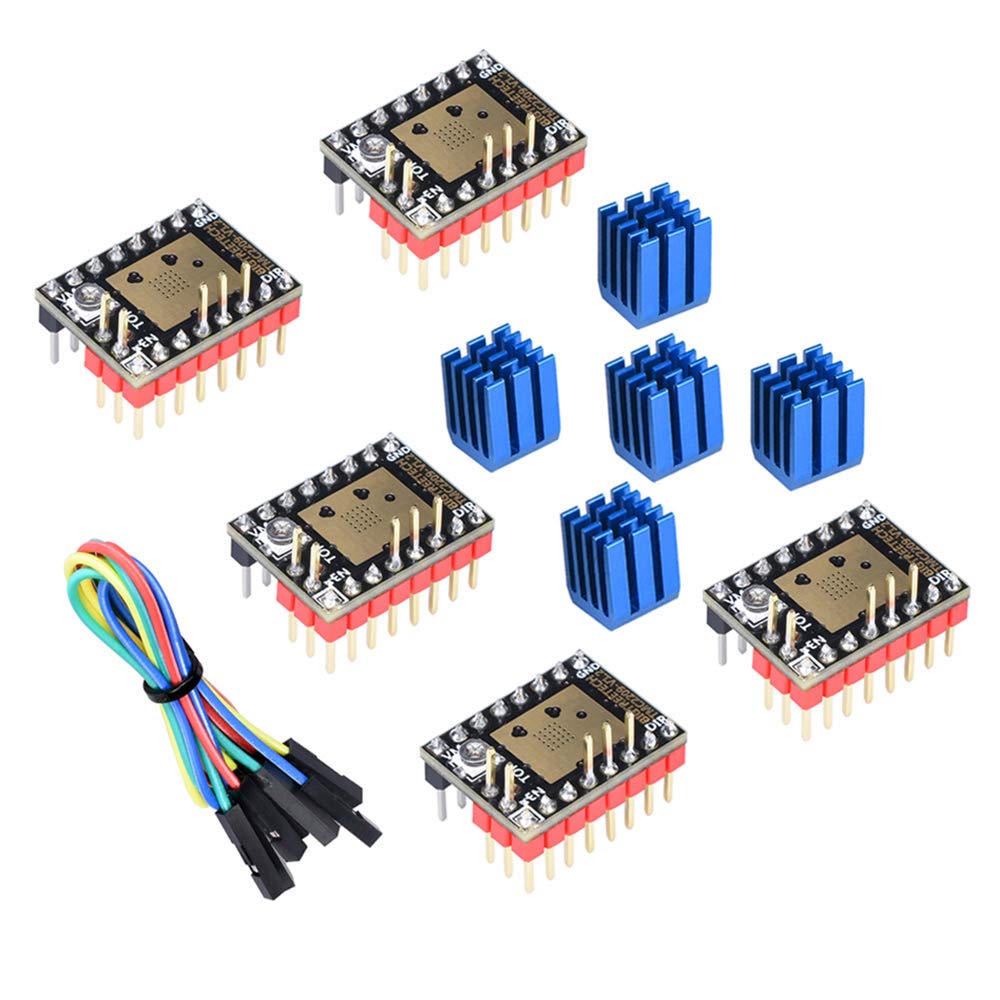

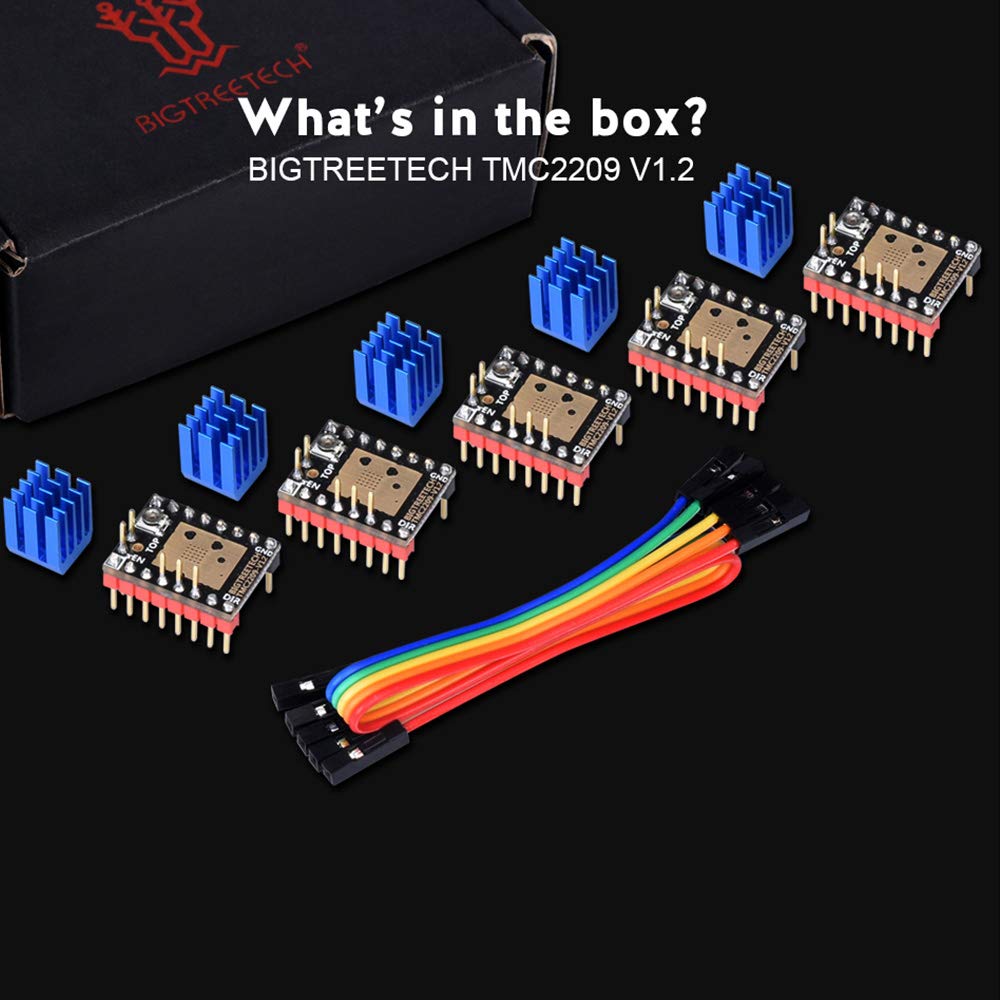

  • Package of 5: TMC2209 is an ultra-quiet two-phase stepper motor driver chip, with a continuous drive current of 2A, a peak current of 2.8A, a voltage range of 5.5V-28V, and 256 subdivisions.
  • SpreadCycle: The motor controlled by the PWM chopper mode operated more smoothly and without Jitter.
  • Ultra-Quiet: The flexible microPlyer interpolation unit provides up to 256 subdivisions, which can achieve perfect sinusoidal control even in systems with limited pulse frequency; this is also because the StealthChop ultra-quiet technology is widely used in 3D printing.

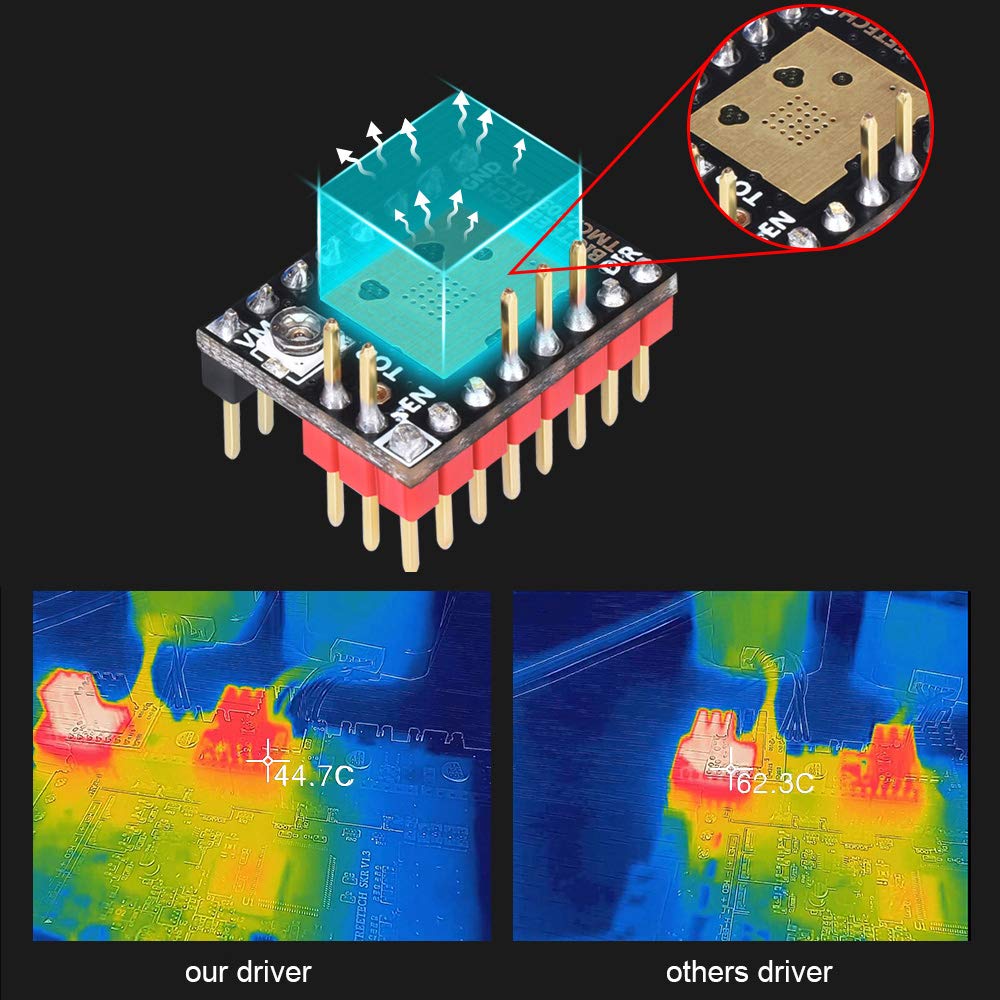

  • More Cost-effective: Compatible with existing 3D printer electronics, eliminating the expensive cost of redesign. It can replace the original TMC2100 A4988 DRV8825 LV8729, with lower calorific value, especially suitable for the 3D printing market.
