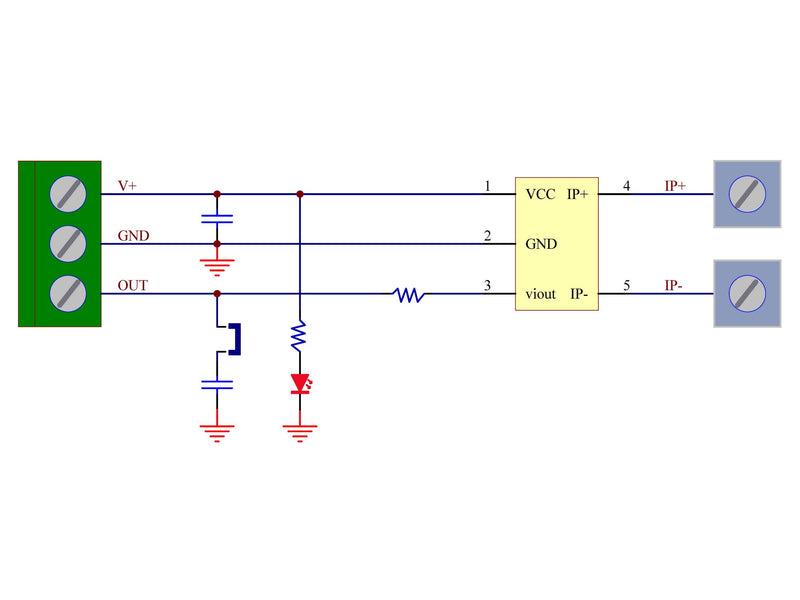

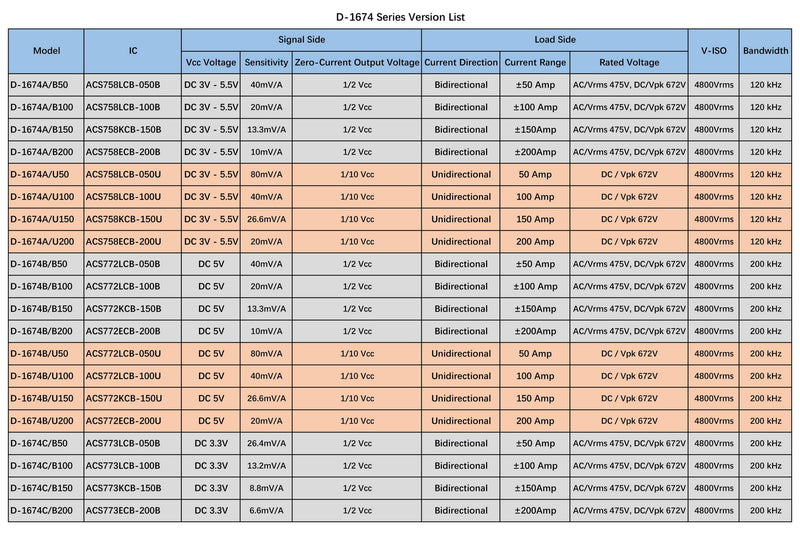

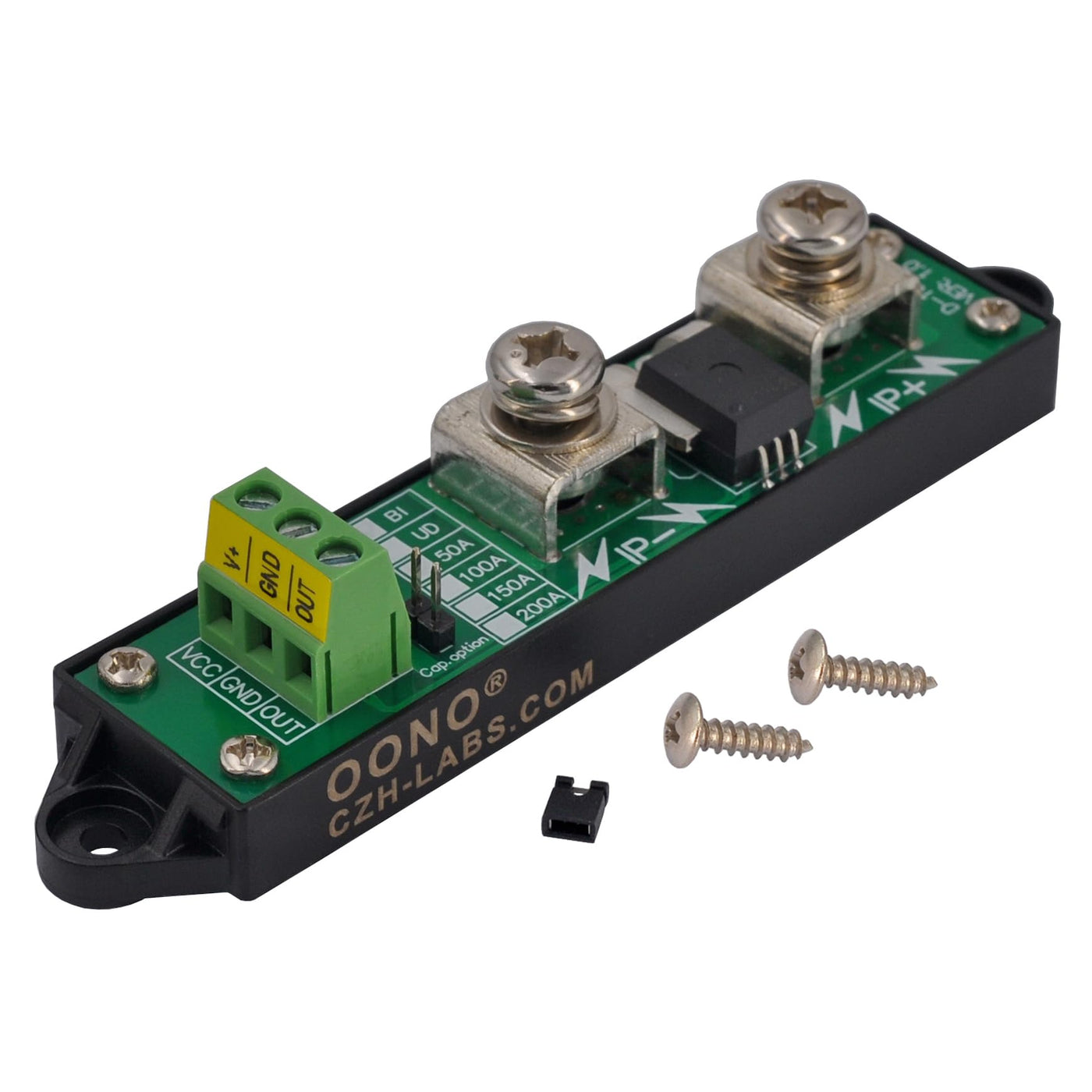

{"id":8013226606772,"title":"Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A","handle":"bidirectional-ac-dc-100-amp-isolated-current-sensor-module-acs758-100a","description":"\u003ch3\u003eBidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eModel number: D-1674A\/B100. Design based on IC ACS758LCB-100B.\u003c\/li\u003e\r\n \u003cli\u003eOperating Voltage: DC 3 - 5.5V, Operating Current: 20mA (max).\u003c\/li\u003e\r\n \u003cli\u003eZero-current Output Signal Voltage: 1\/2 Vcc (2.5V), Output Signal Sensitivity: 20mV\/A (at Vcc 5V).\u003c\/li\u003e\r\n \u003cli\u003eLoad Side Maximum Current: +\/- 100 Amp, Current Direction: Bidirectional (support AC and DC), Load Side Rated Voltage: AC\/Vrms 475V, or DC\/Vpk 672V.\u003c\/li\u003e\r\n \u003cli\u003eMinimum Isolation Voltage: 4800Vrms. Load Frequency Bandwidth: DC to 120 kHz.\u003c\/li\u003e\r\n \u003cli\u003eThe item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection. The device is not intended for automotive applications.\u003c\/li\u003e\r\n \u003cli\u003eThe red LED is used as an indicator of the operating voltage. The output signal terminal is connected to a 10nF load capacitor via a pin jumper, you can short-circuit or unplug it according to actual needs.\u003c\/li\u003e\r\n \u003cli\u003eSignal side terminal: Pitch 5.0mm\/0.197\", Wire range 26 - 12AWG \/ 2.5mm square, Strip length 7mm, Screws - M3.\u003c\/li\u003e\r\n \u003cli\u003eLoad side terminal: M6 copper terminals, for M6 (US 1\/4) ring or fork connectors.\u003c\/li\u003e\r\n \u003cli\u003eUL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-07T20:10:03+11:00","created_at":"2025-12-07T20:09:59+11:00","vendor":"OONO","type":"Sensors","tags":["industrial_selected_Nov2025"],"price":15300,"price_min":15300,"price_max":15300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44102892880052,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0FFYH21YM","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A","public_title":null,"options":["Default Title"],"price":15300,"weight":77,"compare_at_price":null,"inventory_management":"shopify","barcode":"D-1674A\/B100","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/61L4JYO5h4L.jpg?v=1765098601","\/\/auspowers.com\/cdn\/shop\/files\/6168Jpyez0L.jpg?v=1765098601","\/\/auspowers.com\/cdn\/shop\/files\/61gG_6cmPvL.jpg?v=1765098602","\/\/auspowers.com\/cdn\/shop\/files\/61Gaqul2-gL.jpg?v=1765098601","\/\/auspowers.com\/cdn\/shop\/files\/71cA0B01tuL.jpg?v=1765098601","\/\/auspowers.com\/cdn\/shop\/files\/81iyskY2QWL.jpg?v=1765098602","\/\/auspowers.com\/cdn\/shop\/files\/81cLCqT01qL.jpg?v=1765098603","\/\/auspowers.com\/cdn\/shop\/files\/81SWhQmNiPL.jpg?v=1765098602","\/\/auspowers.com\/cdn\/shop\/files\/514q0ijIKeL.jpg?v=1765098601"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/61L4JYO5h4L.jpg?v=1765098601","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A ","id":32452963926196,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1741,"width":1741,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61L4JYO5h4L.jpg?v=1765098601"},"aspect_ratio":1.0,"height":1741,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61L4JYO5h4L.jpg?v=1765098601","width":1741},{"alt":"[Australia - AusPower] - Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A ","id":32452963958964,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1804,"width":1804,"src":"\/\/auspowers.com\/cdn\/shop\/files\/6168Jpyez0L.jpg?v=1765098601"},"aspect_ratio":1.0,"height":1804,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/6168Jpyez0L.jpg?v=1765098601","width":1804},{"alt":"[Australia - AusPower] - Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A ","id":32452963991732,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1800,"width":1800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61gG_6cmPvL.jpg?v=1765098602"},"aspect_ratio":1.0,"height":1800,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61gG_6cmPvL.jpg?v=1765098602","width":1800},{"alt":"[Australia - AusPower] - Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A ","id":32452964024500,"position":4,"preview_image":{"aspect_ratio":1.333,"height":1688,"width":2250,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61Gaqul2-gL.jpg?v=1765098601"},"aspect_ratio":1.333,"height":1688,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61Gaqul2-gL.jpg?v=1765098601","width":2250},{"alt":"[Australia - AusPower] - Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A ","id":32452964057268,"position":5,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71cA0B01tuL.jpg?v=1765098601"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71cA0B01tuL.jpg?v=1765098601","width":1800},{"alt":"[Australia - AusPower] - Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A ","id":32452964090036,"position":6,"preview_image":{"aspect_ratio":1.498,"height":1502,"width":2250,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81iyskY2QWL.jpg?v=1765098602"},"aspect_ratio":1.498,"height":1502,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81iyskY2QWL.jpg?v=1765098602","width":2250},{"alt":"[Australia - AusPower] - Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A ","id":32452964122804,"position":7,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81cLCqT01qL.jpg?v=1765098603"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81cLCqT01qL.jpg?v=1765098603","width":1800},{"alt":"[Australia - AusPower] - Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A ","id":32452964155572,"position":8,"preview_image":{"aspect_ratio":1.333,"height":1350,"width":1800,"src":"\/\/auspowers.com\/cdn\/shop\/files\/81SWhQmNiPL.jpg?v=1765098602"},"aspect_ratio":1.333,"height":1350,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/81SWhQmNiPL.jpg?v=1765098602","width":1800},{"alt":"[Australia - AusPower] - Bidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A ","id":32452964188340,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1616,"width":1616,"src":"\/\/auspowers.com\/cdn\/shop\/files\/514q0ijIKeL.jpg?v=1765098601"},"aspect_ratio":1.0,"height":1616,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/514q0ijIKeL.jpg?v=1765098601","width":1616}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBidirectional AC\/DC +\/-100 Amp Isolated Current Sensor Module, ACS758, +\/-100A\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003e\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eModel number: D-1674A\/B100. Design based on IC ACS758LCB-100B.\u003c\/li\u003e\r\n \u003cli\u003eOperating Voltage: DC 3 - 5.5V, Operating Current: 20mA (max).\u003c\/li\u003e\r\n \u003cli\u003eZero-current Output Signal Voltage: 1\/2 Vcc (2.5V), Output Signal Sensitivity: 20mV\/A (at Vcc 5V).\u003c\/li\u003e\r\n \u003cli\u003eLoad Side Maximum Current: +\/- 100 Amp, Current Direction: Bidirectional (support AC and DC), Load Side Rated Voltage: AC\/Vrms 475V, or DC\/Vpk 672V.\u003c\/li\u003e\r\n \u003cli\u003eMinimum Isolation Voltage: 4800Vrms. Load Frequency Bandwidth: DC to 120 kHz.\u003c\/li\u003e\r\n \u003cli\u003eThe item provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. Typical applications include motor control, load detection and management, switched-mode power supplies, and overcurrent fault protection. The device is not intended for automotive applications.\u003c\/li\u003e\r\n \u003cli\u003eThe red LED is used as an indicator of the operating voltage. The output signal terminal is connected to a 10nF load capacitor via a pin jumper, you can short-circuit or unplug it according to actual needs.\u003c\/li\u003e\r\n \u003cli\u003eSignal side terminal: Pitch 5.0mm\/0.197\", Wire range 26 - 12AWG \/ 2.5mm square, Strip length 7mm, Screws - M3.\u003c\/li\u003e\r\n \u003cli\u003eLoad side terminal: M6 copper terminals, for M6 (US 1\/4) ring or fork connectors.\u003c\/li\u003e\r\n \u003cli\u003eUL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
