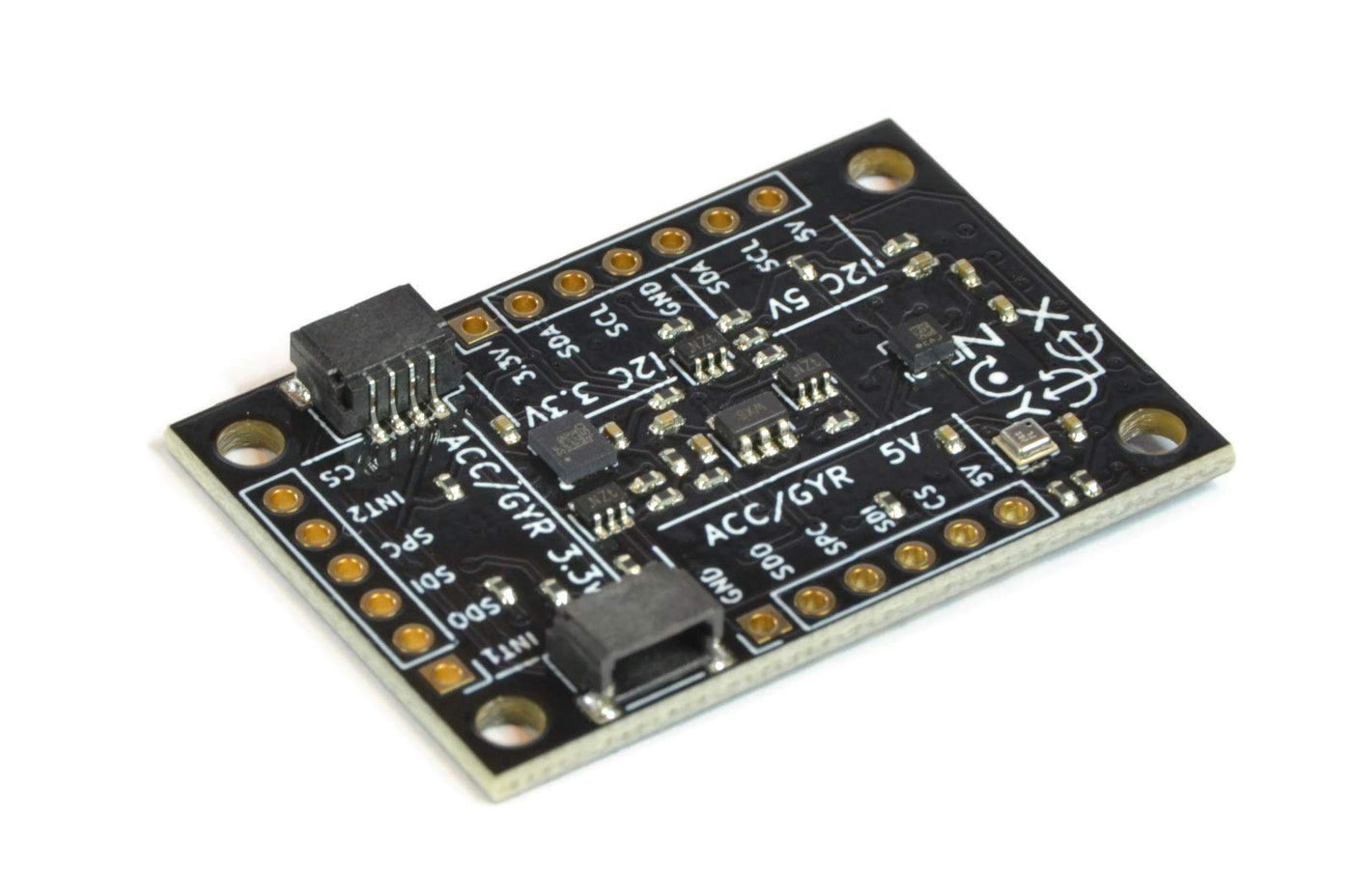

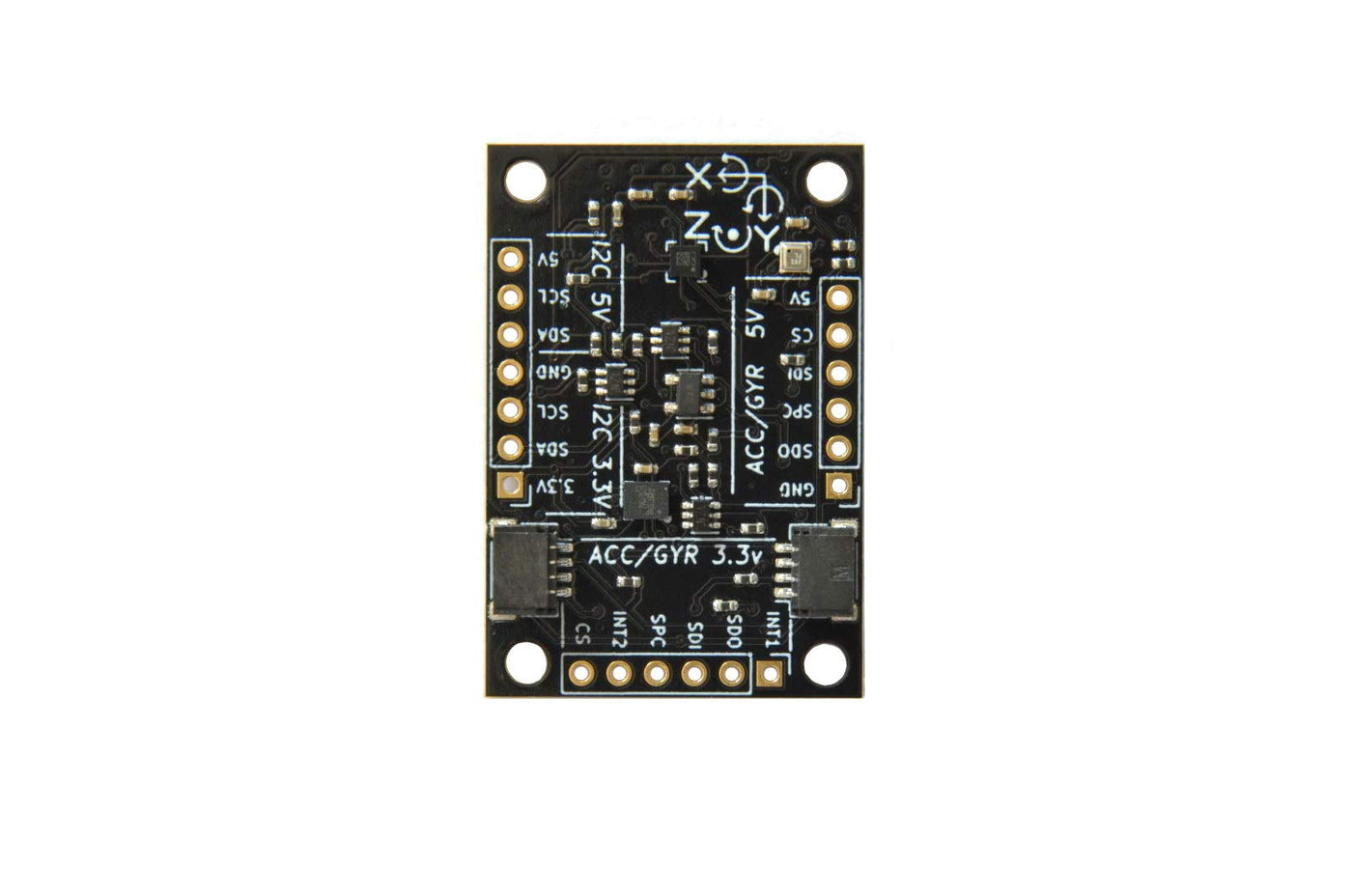

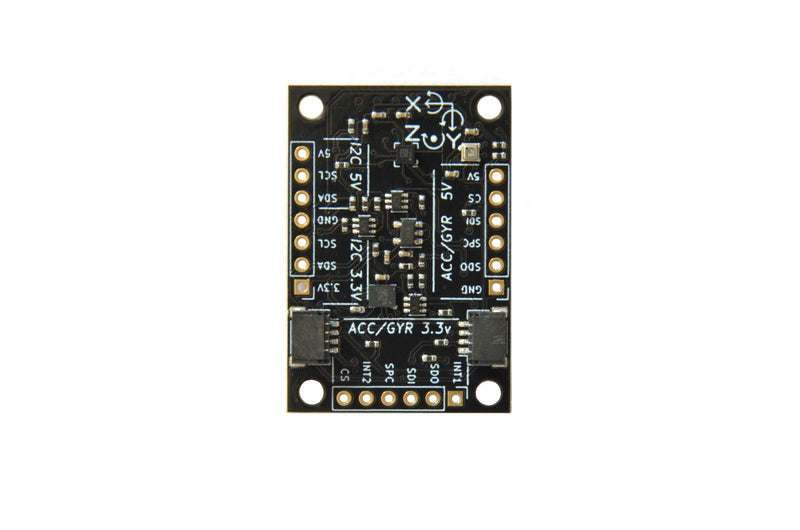

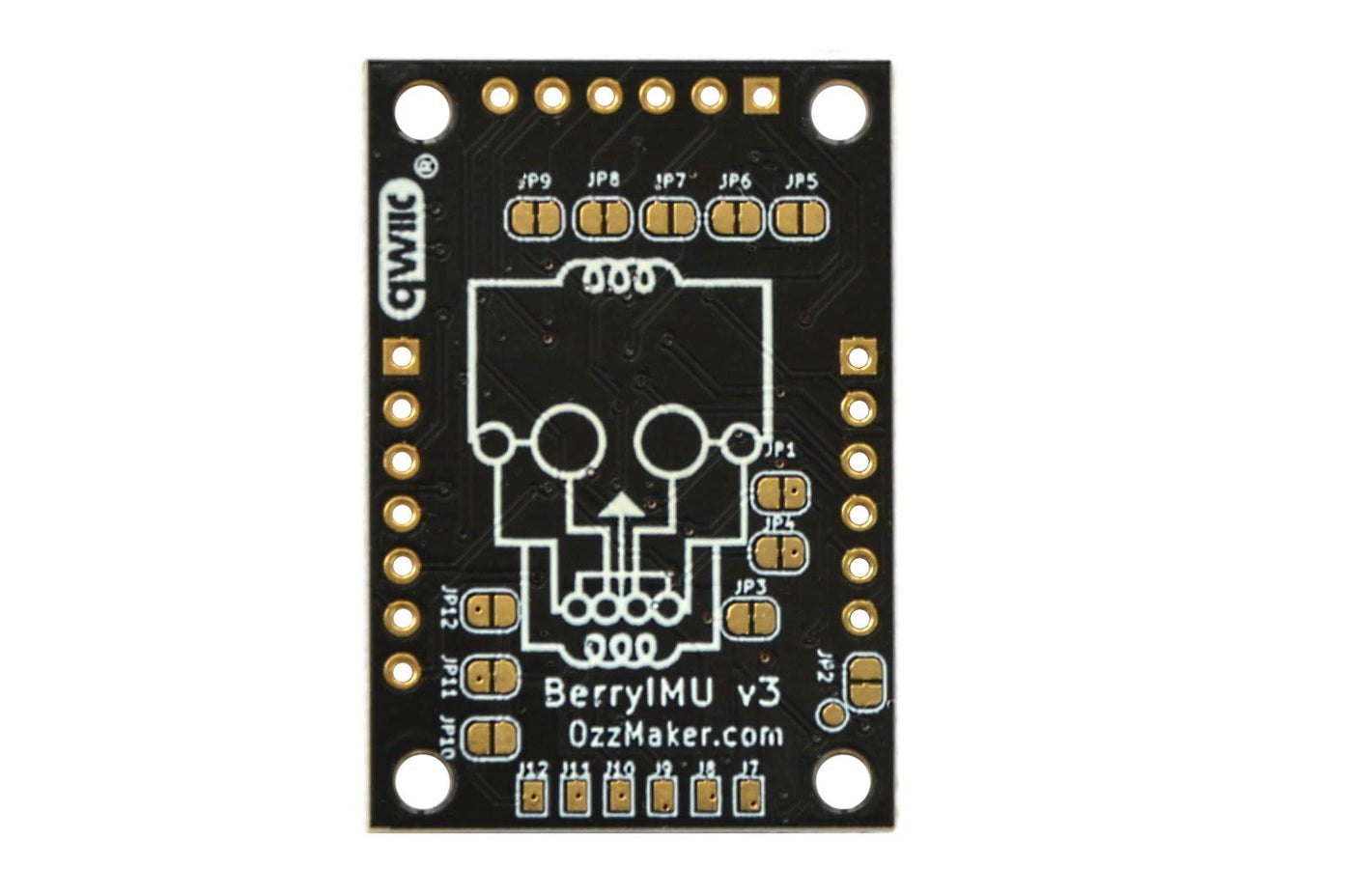

{"id":7807392940212,"title":"BerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor","handle":"berryimuv3-10dof-an-accelerometer-gyroscope-magnetometer-and-barometric-altitude-sensor","description":"\u003ch3\u003eBerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBerryIMUv3 is an inertial measurement unit, or IMU, that measures and reports\non velocity, orientation and gravitational forces, using a combination of an\naccelerometer, gyroscope, and a magnetometer. BerryIMUv3 is also fitted with a\nbarometric sensor (BMP388) which can be used to calculate altitude. A\ntemperature sensor is also included. IMUs can be found in devices like: quad\ncopters, smart phones, segways, Wii remote, etc.. and are used to sense\nmovement and orientation. BerryIMUv3 is compatible will all models of\nRaspberry Pi It is also compatible with Arduino, Teensy, ESP8266. Both 3.3V\nand 5V are supported. (We have included logic level shifters for 5V use)\nTechnical specifications: i2c and SPI interface Weight = 5gm IMU sensor\nLSM6DSL \u0026amp; LIS3MDL Gyroscope: Measurement range:±125\/±250\/±500\/±1000\/±2000 dps\nAccelerometer: Scales of ±2g \/ ±4g \/ ±8g \/ ±16g Magnetometer: Magnetic field\nfull scale of ±4 \/ ±8 \/ ±12 \/ ±16 gauss. Internal temperature sensor\nBarometric Sensor BMP388 Pressure range: 300...1250 hPa @ 25°C 950...1050 hPa\n±0.12 hPa, ±0.1m Temperature range: -40...+85 °C BerryIMUv3 comes with:\nBerryIMU PCB with sensors 1x male header Raspberry Pi and Arduino not included\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatible with the Raspberry Pi (including Pico), Arduino, Teensy, ESP9266\u003c\/li\u003e\n \u003cli\u003eoutput rates of 6.7KHz (6,664 times a second!), Detect tilt, tap and double tap\u003c\/li\u003e\n \u003cli\u003eBMP388 - Barometric Sensor, Temperature sensor, QWIIC connector\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-08-02T00:26:55+10:00","created_at":"2024-08-02T00:26:55+10:00","vendor":"O","type":"Acceleration Sensors","tags":["industrial_Aug2024_update"],"price":20700,"price_min":20700,"price_max":20700,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43449111150772,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B072MN8ZRC","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"BerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor","public_title":null,"options":["Default Title"],"price":20700,"weight":91,"compare_at_price":null,"inventory_management":"shopify","barcode":"704438461319","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B072MN8ZRC.jpg?v=1722581849","\/\/auspowers.com\/cdn\/shop\/files\/61ZSUNOUizL.jpg?v=1722522427","\/\/auspowers.com\/cdn\/shop\/files\/61_RisHC2L.jpg?v=1722522427","\/\/auspowers.com\/cdn\/shop\/files\/61zmarUf2WL.jpg?v=1722522427","\/\/auspowers.com\/cdn\/shop\/files\/61CUrqROy_L.jpg?v=1722522427","\/\/auspowers.com\/cdn\/shop\/files\/71QG56Y-cfL.jpg?v=1722522427","\/\/auspowers.com\/cdn\/shop\/files\/61f2EoEb-JL.jpg?v=1722522427"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B072MN8ZRC.jpg?v=1722581849","options":["Title"],"media":[{"alt":"[Australia - AusPower] - BerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor ","id":30556427092148,"position":1,"preview_image":{"aspect_ratio":1.509,"height":1060,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B072MN8ZRC.jpg?v=1722581849"},"aspect_ratio":1.509,"height":1060,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B072MN8ZRC.jpg?v=1722581849","width":1600},{"alt":"[Australia - AusPower] - BerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor ","id":30553023643828,"position":2,"preview_image":{"aspect_ratio":1.509,"height":1060,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ZSUNOUizL.jpg?v=1722522427"},"aspect_ratio":1.509,"height":1060,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ZSUNOUizL.jpg?v=1722522427","width":1600},{"alt":"[Australia - AusPower] - BerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor ","id":30553023676596,"position":3,"preview_image":{"aspect_ratio":1.509,"height":1060,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61_RisHC2L.jpg?v=1722522427"},"aspect_ratio":1.509,"height":1060,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61_RisHC2L.jpg?v=1722522427","width":1600},{"alt":"[Australia - AusPower] - BerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor ","id":30553023742132,"position":4,"preview_image":{"aspect_ratio":1.509,"height":1060,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61zmarUf2WL.jpg?v=1722522427"},"aspect_ratio":1.509,"height":1060,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61zmarUf2WL.jpg?v=1722522427","width":1600},{"alt":"[Australia - AusPower] - BerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor ","id":30553023774900,"position":5,"preview_image":{"aspect_ratio":1.509,"height":1060,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61CUrqROy_L.jpg?v=1722522427"},"aspect_ratio":1.509,"height":1060,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61CUrqROy_L.jpg?v=1722522427","width":1600},{"alt":"[Australia - AusPower] - BerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor ","id":30553023938740,"position":6,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71QG56Y-cfL.jpg?v=1722522427"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71QG56Y-cfL.jpg?v=1722522427","width":1500},{"alt":"[Australia - AusPower] - BerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor ","id":30553023971508,"position":7,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61f2EoEb-JL.jpg?v=1722522427"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61f2EoEb-JL.jpg?v=1722522427","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBerryIMUv3-10DOF - an Accelerometer, Gyroscope, Magnetometer and Barometric\/Altitude Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eBerryIMUv3 is an inertial measurement unit, or IMU, that measures and reports\non velocity, orientation and gravitational forces, using a combination of an\naccelerometer, gyroscope, and a magnetometer. BerryIMUv3 is also fitted with a\nbarometric sensor (BMP388) which can be used to calculate altitude. A\ntemperature sensor is also included. IMUs can be found in devices like: quad\ncopters, smart phones, segways, Wii remote, etc.. and are used to sense\nmovement and orientation. BerryIMUv3 is compatible will all models of\nRaspberry Pi It is also compatible with Arduino, Teensy, ESP8266. Both 3.3V\nand 5V are supported. (We have included logic level shifters for 5V use)\nTechnical specifications: i2c and SPI interface Weight = 5gm IMU sensor\nLSM6DSL \u0026amp; LIS3MDL Gyroscope: Measurement range:±125\/±250\/±500\/±1000\/±2000 dps\nAccelerometer: Scales of ±2g \/ ±4g \/ ±8g \/ ±16g Magnetometer: Magnetic field\nfull scale of ±4 \/ ±8 \/ ±12 \/ ±16 gauss. Internal temperature sensor\nBarometric Sensor BMP388 Pressure range: 300...1250 hPa @ 25°C 950...1050 hPa\n±0.12 hPa, ±0.1m Temperature range: -40...+85 °C BerryIMUv3 comes with:\nBerryIMU PCB with sensors 1x male header Raspberry Pi and Arduino not included\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eCompatible with the Raspberry Pi (including Pico), Arduino, Teensy, ESP9266\u003c\/li\u003e\n \u003cli\u003eoutput rates of 6.7KHz (6,664 times a second!), Detect tilt, tap and double tap\u003c\/li\u003e\n \u003cli\u003eBMP388 - Barometric Sensor, Temperature sensor, QWIIC connector\u003c\/li\u003e\n \u003c\/ul\u003e"}
