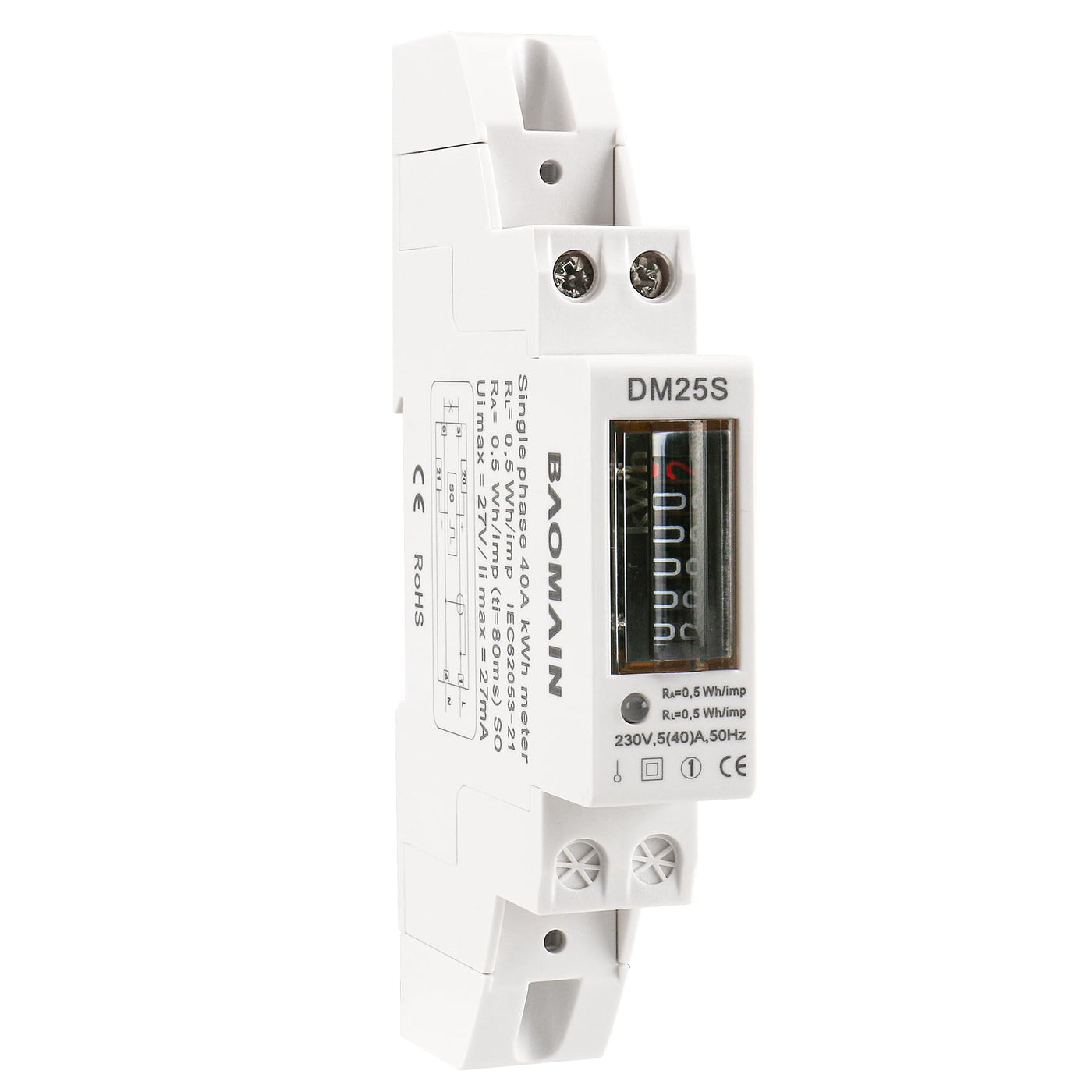

{"id":8013025181876,"title":"Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC)","handle":"baomain-single-phase-two-wires-energy-meter-540-a-230v-50hz-one-module-kwh-meter-din-rail-mount-counter-display-dm25s-220vac","description":"\u003ch3\u003eBaomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe Single Phase Energy kWh meter is widely used in rail, smart switch\r\ncabinet, intelligent buildings, smart factories and energy management systems.\r\nPhase : Single Phase (2 wire)Nominal Voltage (Un): 220VAC Opertional Voltage:\r\n100-300V ACInsulation capabilities: ① AC Voltage withstand 2kV for 1 minutes ②\r\nImpulse voltage withstand 6kV-1.2μS waveformBasic current(Ib): 5AAccuracy\r\nClass: 1.0Measuring range: 0-99999.9Maximum rated current( Imax) : 5(20A)\/\r\n5(30A)\/ 5(40A)Operational current range: 0.25A~40AOver current withstand: 960A\r\nfor 0.01sOperational Frequency range: 50Hz-60Hz ±10%Internal power\r\nconsumption： ≤ 2W\/10VATest output flash rate(RED LED): 2000 Impulses per kWh\r\n(0.5Wh\/imp)Pulse output rate（pins 20\u0026amp;21): 2000 pulses per kWh (0.5Wh\/imp)Power\r\nsupply indicator(Green Led),meter is connected and working OKConsumption\r\nIndicator (RED LED): Flashing at load runningDisplay Type: Counter Display 5+1\r\nwith backlightOperating Humidity : ≤ 75%Storage Humidity : ≤ 95%Operating\r\nTemperature: -25°C~+55°CStorage Temperature: -30°C~+70°CInternational\r\nStandard： IEC 62053-21IP Protection: IP51(panel) \/IP20 (case)Insulating\r\nencased meter of protective class: IIHousing Material: PC Inflammable\r\nretarding,Environmenta,Flame Retardant Data save: The data can be stored more\r\nthan 20 Years when power cut.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eSingle Phase, 2 Wire, Accuracy class:1\u003c\/li\u003e\r\n \u003cli\u003eMaximum rated current( Imax) : 5(20A)\/ 5(30A)\/ 5(40A) ; Operational current range: 0.25A~40A\u003c\/li\u003e\r\n \u003cli\u003eNominal Voltage (Un): 220VAC; Internal power consumption: 2W\/10VA\u003c\/li\u003e\r\n \u003cli\u003eDisplay Type: Counter Display 5+1 with backlight\u003c\/li\u003e\r\n \u003cli\u003eSize : 116 x 18 x 59 mm \/ 4.56 x 0.7 x 2.32 '' (LxWxD)\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2025-12-06T18:26:54+11:00","created_at":"2025-12-06T18:26:51+11:00","vendor":"Baomain","type":"Voltage Testers","tags":["industrial_selected_Nov2025"],"price":11500,"price_min":11500,"price_max":11500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44102401622196,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0CT8622DL","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC)","public_title":null,"options":["Default Title"],"price":11500,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"Counter Display \/ DM25S","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0CT8622DL.jpg?v=1775781199","\/\/auspowers.com\/cdn\/shop\/files\/51BQR6LWBKL.jpg?v=1765006013","\/\/auspowers.com\/cdn\/shop\/files\/615B4sGa7cL.jpg?v=1765006013","\/\/auspowers.com\/cdn\/shop\/files\/5149BdsUcHL.jpg?v=1765006013","\/\/auspowers.com\/cdn\/shop\/files\/61zls9UuKbL.jpg?v=1765006014","\/\/auspowers.com\/cdn\/shop\/files\/617qyWjXz-L.jpg?v=1765006013","\/\/auspowers.com\/cdn\/shop\/files\/51a7aoG8SQL.jpg?v=1765006014","\/\/auspowers.com\/cdn\/shop\/files\/51jCq9UWWdL.jpg?v=1765006013"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0CT8622DL.jpg?v=1775781199","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC) ","id":32450400944308,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1700,"width":1700,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CT8622DL.jpg?v=1775781199"},"aspect_ratio":1.0,"height":1700,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0CT8622DL.jpg?v=1775781199","width":1700},{"alt":"[Australia - AusPower] - Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC) ","id":32450400977076,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51BQR6LWBKL.jpg?v=1765006013"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51BQR6LWBKL.jpg?v=1765006013","width":1600},{"alt":"[Australia - AusPower] - Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC) ","id":32450401009844,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/615B4sGa7cL.jpg?v=1765006013"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/615B4sGa7cL.jpg?v=1765006013","width":1600},{"alt":"[Australia - AusPower] - Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC) ","id":32450401042612,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/5149BdsUcHL.jpg?v=1765006013"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/5149BdsUcHL.jpg?v=1765006013","width":1600},{"alt":"[Australia - AusPower] - Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC) ","id":32450401075380,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61zls9UuKbL.jpg?v=1765006014"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61zls9UuKbL.jpg?v=1765006014","width":1600},{"alt":"[Australia - AusPower] - Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC) ","id":32450401108148,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/617qyWjXz-L.jpg?v=1765006013"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/617qyWjXz-L.jpg?v=1765006013","width":1600},{"alt":"[Australia - AusPower] - Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC) ","id":32450401140916,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51a7aoG8SQL.jpg?v=1765006014"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51a7aoG8SQL.jpg?v=1765006014","width":1600},{"alt":"[Australia - AusPower] - Baomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC) ","id":32450401173684,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51jCq9UWWdL.jpg?v=1765006013"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51jCq9UWWdL.jpg?v=1765006013","width":1600}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eBaomain Single Phase Two Wires Energy Meter 5(40) A 230V 50Hz One Module Kwh Meter DIN-Rail Mount (Counter Display \/ DM25S, 220VAC)\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eThe Single Phase Energy kWh meter is widely used in rail, smart switch\r\ncabinet, intelligent buildings, smart factories and energy management systems.\r\nPhase : Single Phase (2 wire)Nominal Voltage (Un): 220VAC Opertional Voltage:\r\n100-300V ACInsulation capabilities: ① AC Voltage withstand 2kV for 1 minutes ②\r\nImpulse voltage withstand 6kV-1.2μS waveformBasic current(Ib): 5AAccuracy\r\nClass: 1.0Measuring range: 0-99999.9Maximum rated current( Imax) : 5(20A)\/\r\n5(30A)\/ 5(40A)Operational current range: 0.25A~40AOver current withstand: 960A\r\nfor 0.01sOperational Frequency range: 50Hz-60Hz ±10%Internal power\r\nconsumption： ≤ 2W\/10VATest output flash rate(RED LED): 2000 Impulses per kWh\r\n(0.5Wh\/imp)Pulse output rate（pins 20\u0026amp;21): 2000 pulses per kWh (0.5Wh\/imp)Power\r\nsupply indicator(Green Led),meter is connected and working OKConsumption\r\nIndicator (RED LED): Flashing at load runningDisplay Type: Counter Display 5+1\r\nwith backlightOperating Humidity : ≤ 75%Storage Humidity : ≤ 95%Operating\r\nTemperature: -25°C~+55°CStorage Temperature: -30°C~+70°CInternational\r\nStandard： IEC 62053-21IP Protection: IP51(panel) \/IP20 (case)Insulating\r\nencased meter of protective class: IIHousing Material: PC Inflammable\r\nretarding,Environmenta,Flame Retardant Data save: The data can be stored more\r\nthan 20 Years when power cut.\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eSingle Phase, 2 Wire, Accuracy class:1\u003c\/li\u003e\r\n \u003cli\u003eMaximum rated current( Imax) : 5(20A)\/ 5(30A)\/ 5(40A) ; Operational current range: 0.25A~40A\u003c\/li\u003e\r\n \u003cli\u003eNominal Voltage (Un): 220VAC; Internal power consumption: 2W\/10VA\u003c\/li\u003e\r\n \u003cli\u003eDisplay Type: Counter Display 5+1 with backlight\u003c\/li\u003e\r\n \u003cli\u003eSize : 116 x 18 x 59 mm \/ 4.56 x 0.7 x 2.32 '' (LxWxD)\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
