AS5048A Magnetic Encoder, 14-Bit AS5048A Magnetic Encoder with PWM SPI I2C Interface, 0.05° Angle Accuracy, High Precision Rotation Position Sensor Induction Angle Measuring Sensor Module
AS5048A Magnetic Encoder, 14-Bit AS5048A Magnetic Encoder with PWM SPI I2C Interface, 0.05° Angle Accuracy, High Precision Rotation Position Sensor Induction Angle Measuring Sensor Module

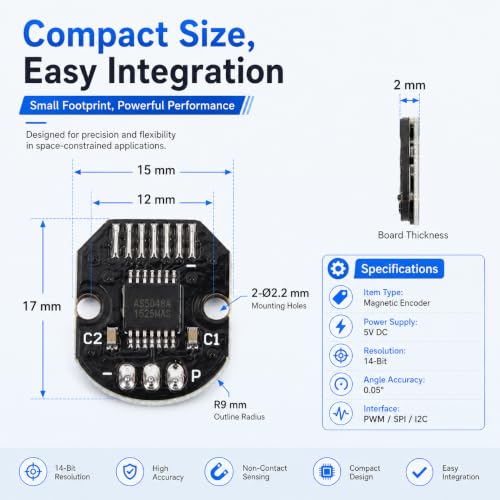

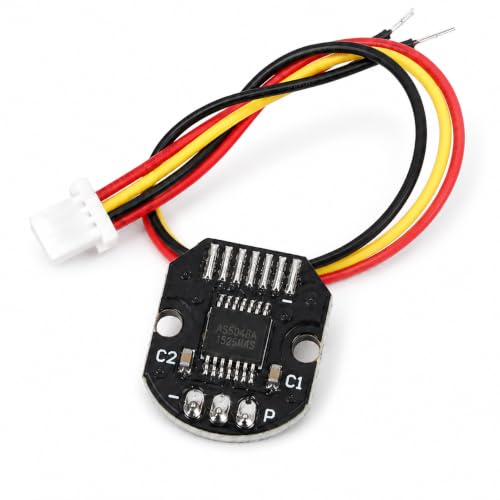

Function: 1. The AS5048 magnetic rotary encoder can provide more accurate measurements than the previous magnetic rotary encoder products from Austrian Microelectronics. Its analogue 14-bit measuring front end provides a measurement resolution of only 0.0219 degrees. Due to the linearization and averaging processing of the microcontroller, the angle measurement can be accurate to 0.05 degrees. Specification: Element type: Magnetic encoder Resolution: 14-bit full resolution Angle accuracy: 0.05°. Supply voltage: 5 V DC. Material: Synthetic cardboard Package list: 1 x wiring1 x magnetic encoder
Product Features

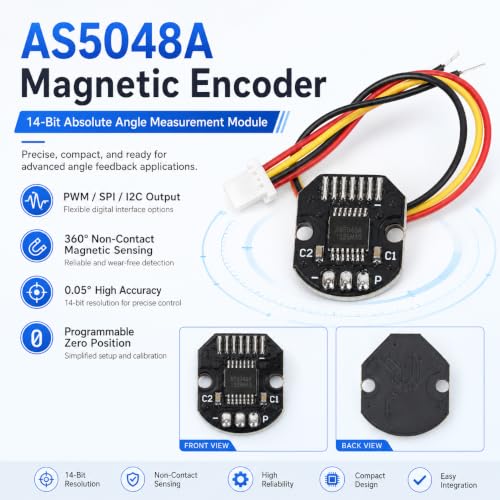

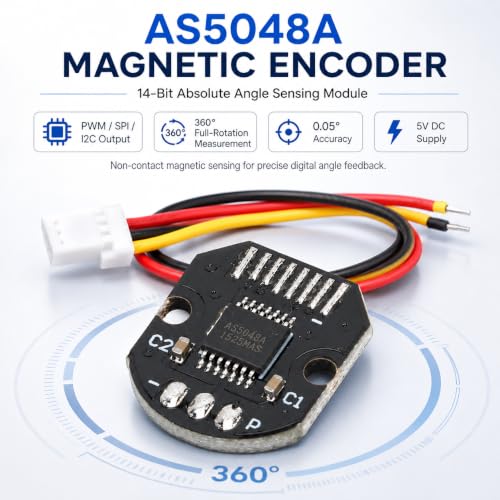

- AS5048A Magnetic Rotary Encoder - The AS5048A is a 14-bit rotary position sensor (formerly called rotary encoder) for absolute angle measurement and PWM (pulse width modulation) over 360 based on non-contact magnetic sensor technology with full rotation output.

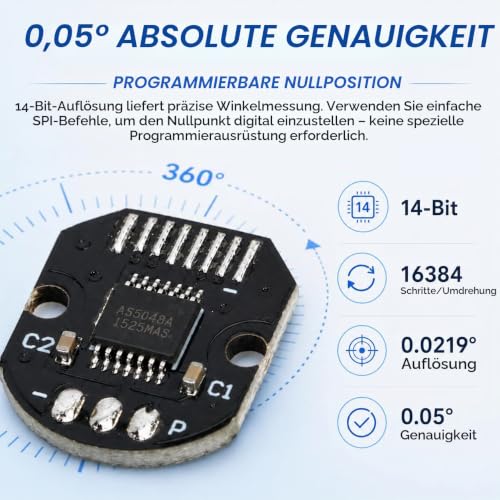

- Position Measurement - The device is suitable for wave applications where a simple two-pole magnet rotates the sensor IC above or below. The position can be programmed into the device with simple SPI commands. The absolute magnetic angle position resolution is 14 bit = 16384 for position measurement, with each revolution transmitted via the serial port (SPI) with digital values.

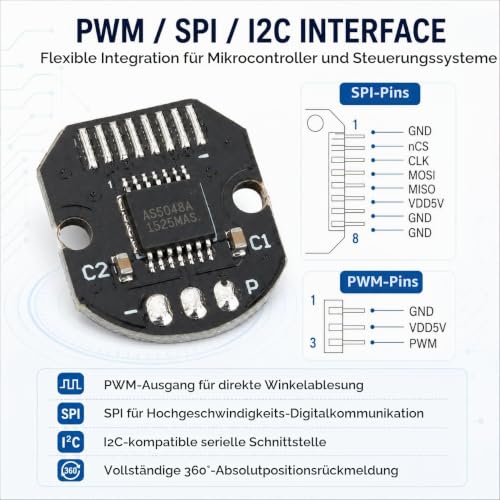

- PWM Output & SPI/I2C Interface - The AS5048 provides PWM output and SPI or I2C interface for absolute angle measurement for the microcontroller. In the mechanical construction, the exact assignment of the zero position of the chip to the magnetic poles of the magnets used does not have to be taken into account. The solution is as follows: The zero position can be programmed into the assembly via simple SPI or I2C commands (no special programming equipment required). The AS5048 has internal memory.
- HIGH PRECISION - The AS5048 magnetic rotary encoder provides more accurate measurement results than previous magnetic encoders from Austrian Microelectronics. Its 14-bit analog input signal allows a measurement resolution of up to 0.0219 degrees. By linearisation and averaging in the microcontroller, an angle accuracy of 0.05 degrees is achieved.

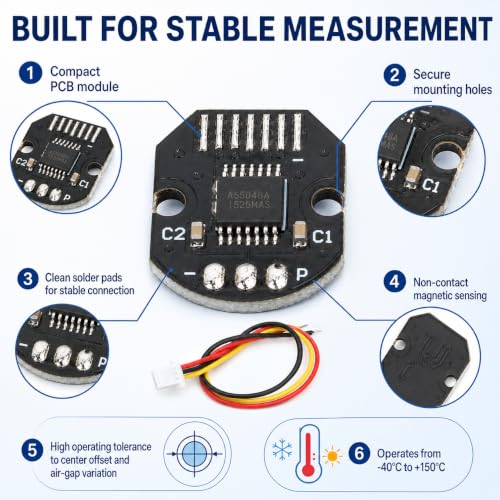

- High Operating Tolerance - The AS5048 features a very high operating tolerance, including the deviation of the center position between the chip and associated magnet, the deviation of the air gap between chip and associated magnet, and the temperature tolerance between -40C and +150C.
