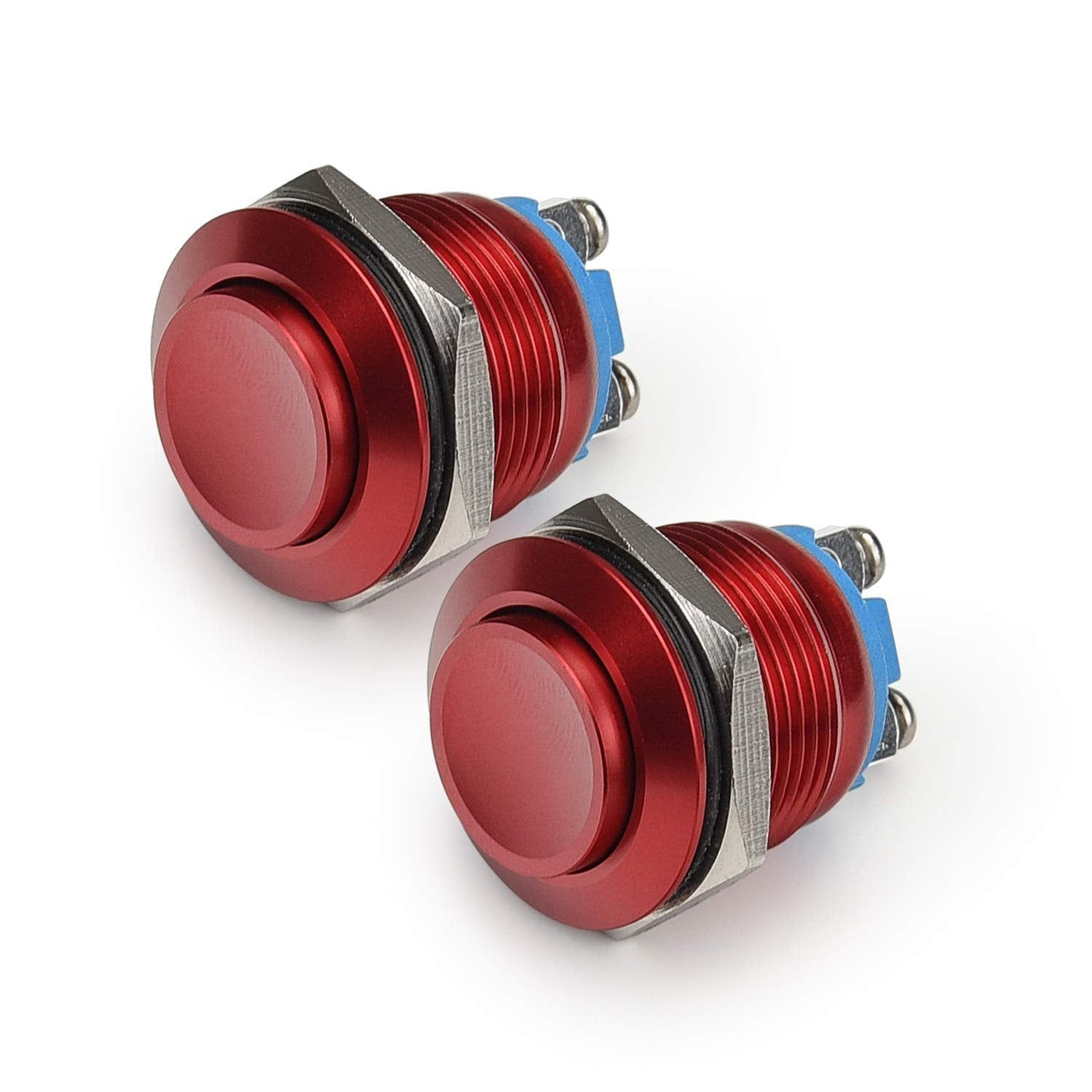

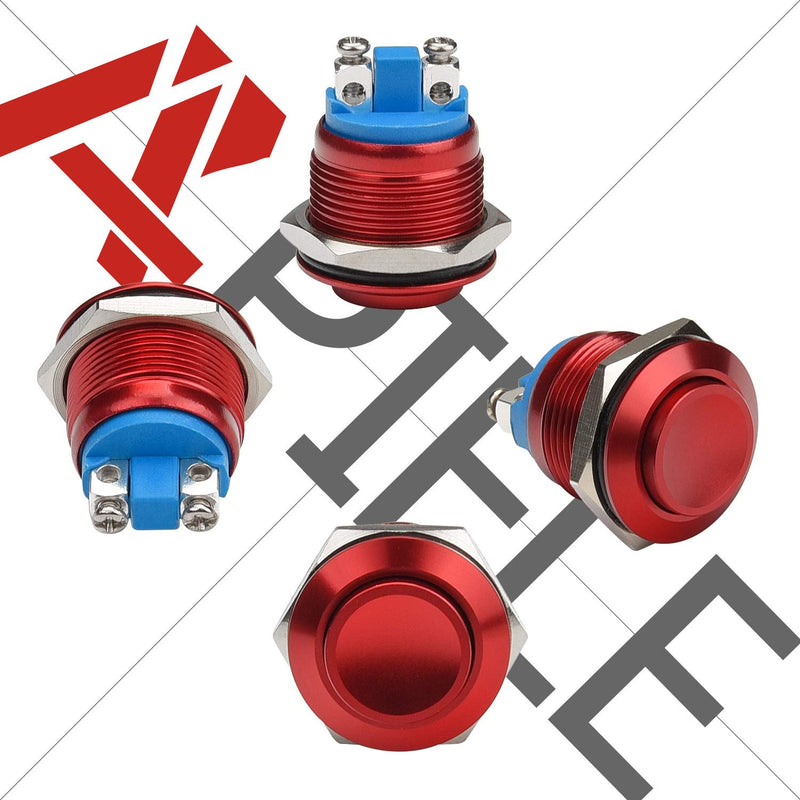

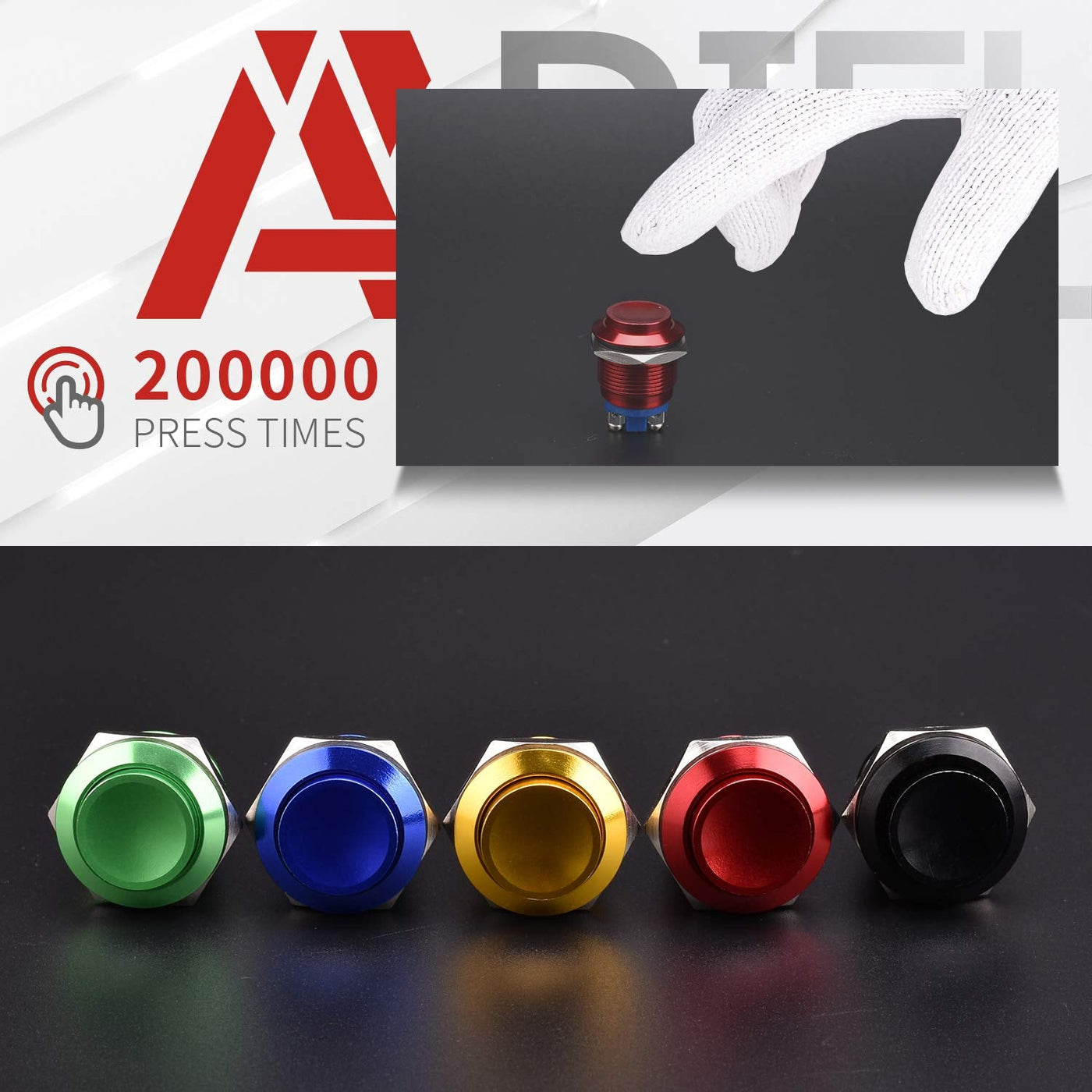

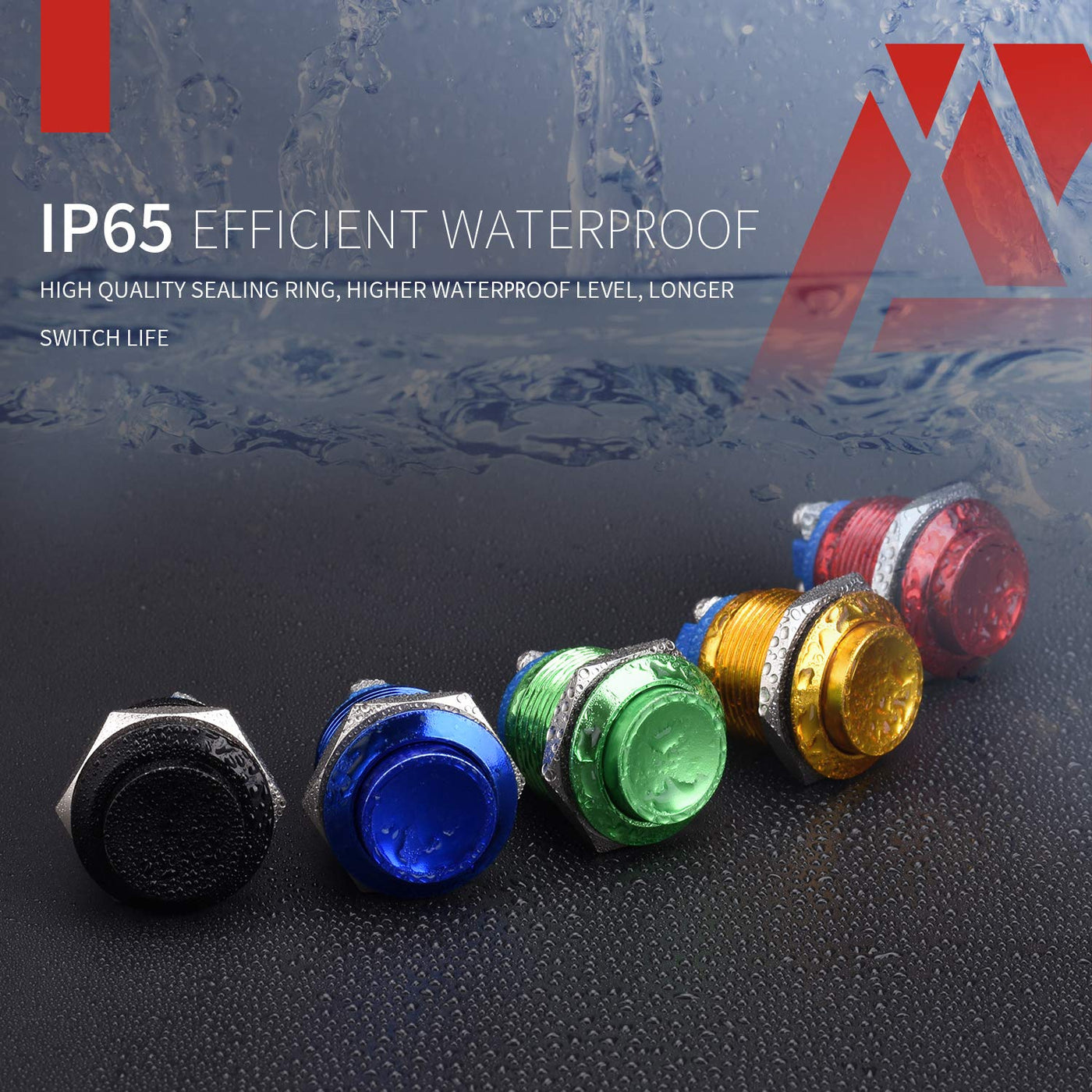

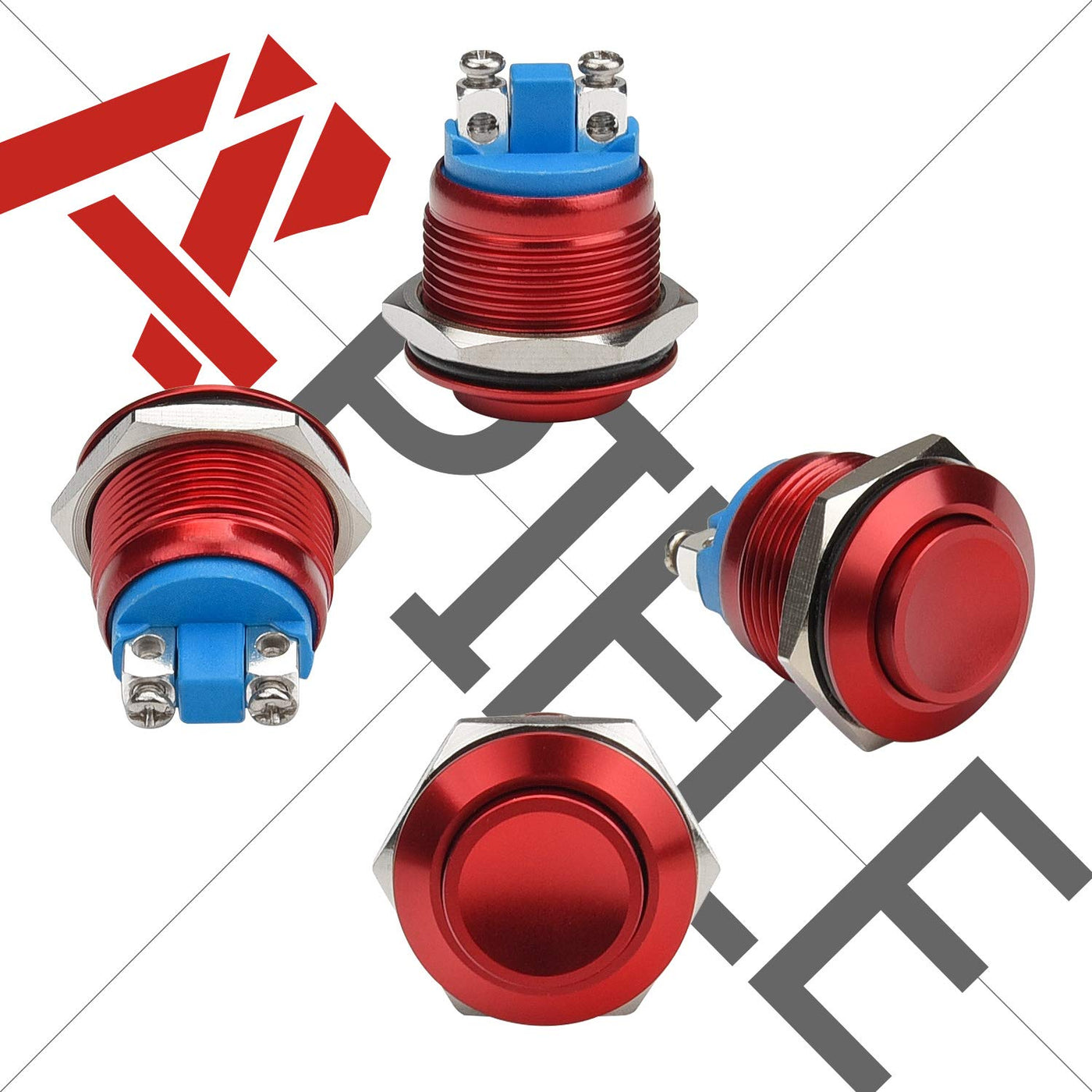

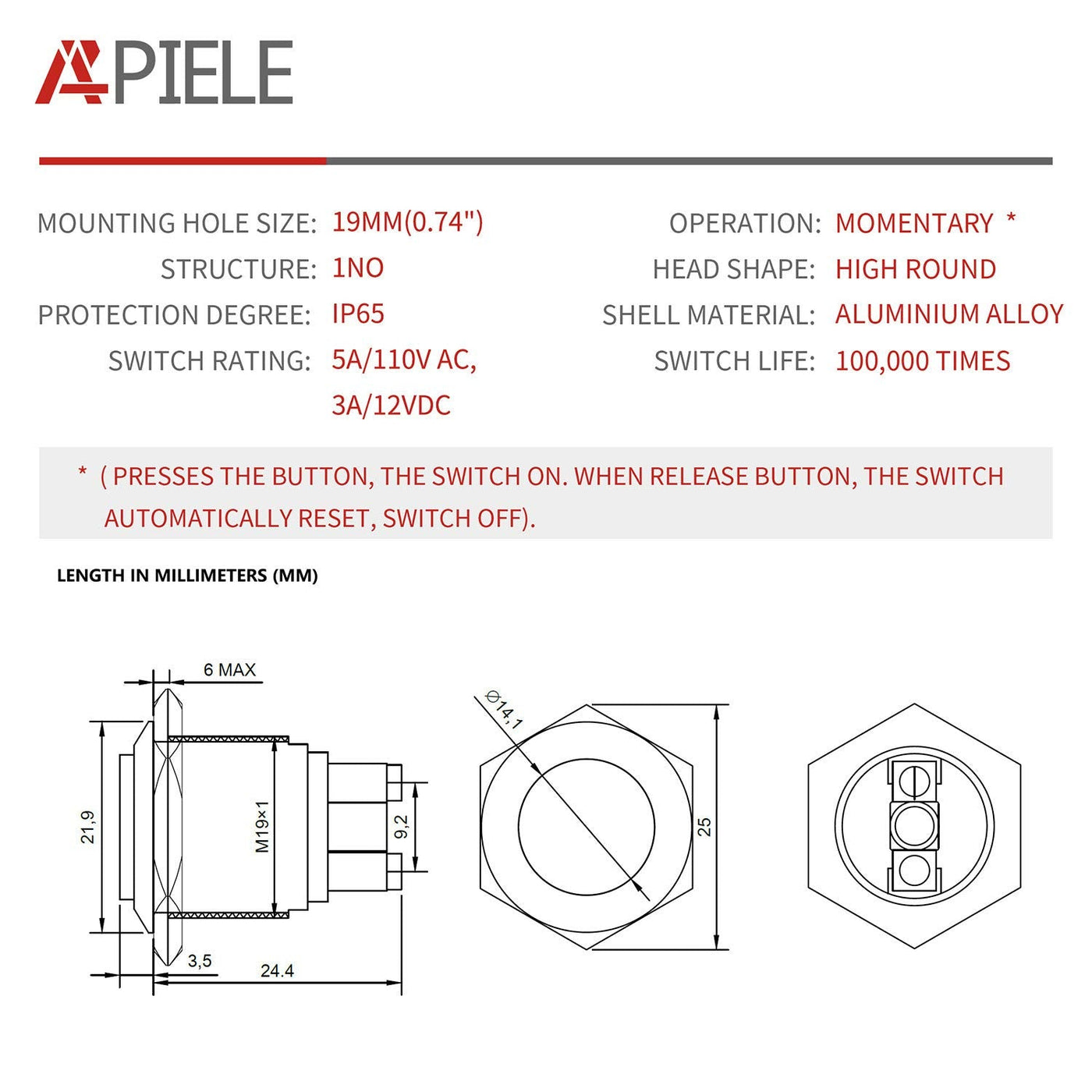

{"id":7173000986804,"title":"APIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell) Red","handle":"apiele-pack-of-2-19mm-momentary-push-button-switch-5a-aluminium-alloy-shell-12v-24v-36-dc-110v-250v-ac-5a-1no-spst-screw-terminal-apiele-red-shell-red","description":"\u003ch3\u003eAPIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more Specification: Switch Rating: 5A\/250VAC; 3A,12V\nAC\/DC;Operation Temperature: -20℃~ +55℃Mechanical life: 1,000,000 cycles,\nElectrical life: 200,000 cyclesPanel thickness: 1 - 10mm; Protection level:\nIP65, IK08Mounting Cut Hole: 19mm; Operation Type: MomentarySwitch Contact:\n1NO (Normally Open)Head Shape: High RoundTerminal Type: ScrewBody and Button\nMaterial: Aluminium AlloyColor: Red Read more Momentary switch 100,000 Times\nElectric Work Life.Momentary switches only remain in their on stateas long as\nthey're being pressed.Use this switch to replace the light switch, horn switch\nor other control switches in the cars\/ boats\/ trucks. IP65 Waterproof As it is\nfull metal appearance and with a rubber ring, the switch achieves IP65\nwaterproof degree. It can used in wet environment, such as boat control panel,\nkitchen, outdoors etc. Note that this switch can be used under water. Wide Use\nRange It can use as a door bell, entrance guard push button switch in the\noutdoors.Also a good choice to use it as a replacement switch of household\nAppliances. Such as table lamp switch, PC switch, Audio switch. Read more\nAPIELE Brand New Switch Introduction: This switch can be used for circuit\ncontrol inelectromagnetic starter, contactor, relay and other electric\ncircuits. There are Red, Black, Green, Yellow, Blue color for you to choose.\nAPIELE Aluminum Alloy Push Button Switch Momentary This All Metal Switch\nFunctions Manually As A Replacement Of Auto Refit, Boat Refit, Instruments\nApparatus, Enter Guard, Household Appliance. It Provides Solid And Crisp Push\nFeedback And Comfortable Led Light. Ip65 Waterproof Make It Can Be Used In\nHumid Environment. Metal shell tolerates vibration and other harsh\nenvironmental conditions. The Improved Wire Diagram Come With The Switch And A\nNon-Electrical Person Can Install It Easy. Package Include: 2 PCS of APIELE\nPush Button Switch Read more 16mm Momentary Swicth No Lamp 16mm Momentary\nSwitch Ring Led 19mm Momentary Switch No lamp 19mm Momentary Switch Ring Led\n22mm Momentary Switch Ring Led Mounting Hole Size 5\/8\" ( 16mm ) 5\/8\" ( 16mm )\n3\/4\" (19mm) 3\/4\" (19mm) 7\/8\" ( 22mm ) Structure Types 1NO 1NO1NC 1NO 1NO1NC\n1NO1NC LED Color Select No Led Lamp R,B,Y,G,W No Led Lamp R,B,Y,G,W R,B,Y,G,W\nRated Amp 3A,12V AC\/DC 5A,12V AC\/DC 5A,12V AC\/DC 5A,12V AC\/DC 12A,12V AC\/DC If\nwith wire socket NO YES NO YES YES Shell Material Stainless steel Stainless\nsteel Stainless steel Stainless steel Stainless steel\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH.\u003c\/li\u003e\n \u003cli\u003eBrand New Red Aluminium High Round Pushbutton Switch; Voltage: 250V, 5A. Hole size required: 0.74''\/19mm\u003c\/li\u003e\n \u003cli\u003e19mm Momentary Push Button Switch: Push \u0026amp; Hold, ON; Release, OFF, Contact Configuration: 1NO\u003c\/li\u003e\n \u003cli\u003eElectrical life: 200 thousand times. Mechanical life: 1,000,000 cycles\u003c\/li\u003e\n \u003cli\u003eHigh quality metal material \u0026amp; IP65 waterproof protection can be used in wet or dusty enviroment.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n","published_at":"2022-06-28T22:46:49+10:00","created_at":"2022-06-28T22:46:57+10:00","vendor":"APIELE","type":"Pushbutton Switches","tags":["industrial"],"price":11800,"price_min":11800,"price_max":11800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":41615693119668,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08BKRX6X3","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"APIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell) Red","public_title":null,"options":["Default Title"],"price":11800,"weight":32,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/products\/B08BKRX.jpg?v=1777961236","\/\/auspowers.com\/cdn\/shop\/products\/719UOCxCB7L.jpg?v=1656420417","\/\/auspowers.com\/cdn\/shop\/products\/71uPkMJ6goL.jpg?v=1656420417","\/\/auspowers.com\/cdn\/shop\/products\/81e40eOzU_L.jpg?v=1656420417","\/\/auspowers.com\/cdn\/shop\/products\/717rOvFgRvL.jpg?v=1656420417","\/\/auspowers.com\/cdn\/shop\/products\/715qM2bJMiL_dcc3fcc1-7aa0-4324-a325-43bdccd2f05a.jpg?v=1656420417","\/\/auspowers.com\/cdn\/shop\/products\/71KQ32JmSfL.jpg?v=1656420417"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/products\/B08BKRX.jpg?v=1777961236","options":["Title"],"media":[{"alt":"[Australia - AusPower] - APIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell) Red ","id":26335381094580,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/B08BKRX.jpg?v=1777961236"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/B08BKRX.jpg?v=1777961236","width":1500},{"alt":"[Australia - AusPower] - APIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell) Red ","id":26324339490996,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/719UOCxCB7L.jpg?v=1656420417"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/719UOCxCB7L.jpg?v=1656420417","width":1500},{"alt":"[Australia - AusPower] - APIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell) Red ","id":26324339523764,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71uPkMJ6goL.jpg?v=1656420417"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71uPkMJ6goL.jpg?v=1656420417","width":1500},{"alt":"[Australia - AusPower] - APIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell) Red ","id":26324339556532,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/81e40eOzU_L.jpg?v=1656420417"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/81e40eOzU_L.jpg?v=1656420417","width":1500},{"alt":"[Australia - AusPower] - APIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell) Red ","id":26324339589300,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1500,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/products\/717rOvFgRvL.jpg?v=1656420417"},"aspect_ratio":1.0,"height":1500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/717rOvFgRvL.jpg?v=1656420417","width":1500},{"alt":"[Australia - AusPower] - APIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell) Red ","id":26324339622068,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/715qM2bJMiL_dcc3fcc1-7aa0-4324-a325-43bdccd2f05a.jpg?v=1656420417"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/715qM2bJMiL_dcc3fcc1-7aa0-4324-a325-43bdccd2f05a.jpg?v=1656420417","width":1000},{"alt":"[Australia - AusPower] - APIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell) Red ","id":26324339654836,"position":7,"preview_image":{"aspect_ratio":1.0,"height":2000,"width":2000,"src":"\/\/auspowers.com\/cdn\/shop\/products\/71KQ32JmSfL.jpg?v=1656420417"},"aspect_ratio":1.0,"height":2000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/71KQ32JmSfL.jpg?v=1656420417","width":2000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAPIELE (Pack of 2) 19MM Momentary Push Button Switch 5A Aluminium Alloy Shell 12V 24V 36 DC 110V 250V AC 5A 1NO SPST Screw Terminal APIELE (Red Shell)\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eRead more Specification: Switch Rating: 5A\/250VAC; 3A,12V\nAC\/DC;Operation Temperature: -20℃~ +55℃Mechanical life: 1,000,000 cycles,\nElectrical life: 200,000 cyclesPanel thickness: 1 - 10mm; Protection level:\nIP65, IK08Mounting Cut Hole: 19mm; Operation Type: MomentarySwitch Contact:\n1NO (Normally Open)Head Shape: High RoundTerminal Type: ScrewBody and Button\nMaterial: Aluminium AlloyColor: Red Read more Momentary switch 100,000 Times\nElectric Work Life.Momentary switches only remain in their on stateas long as\nthey're being pressed.Use this switch to replace the light switch, horn switch\nor other control switches in the cars\/ boats\/ trucks. IP65 Waterproof As it is\nfull metal appearance and with a rubber ring, the switch achieves IP65\nwaterproof degree. It can used in wet environment, such as boat control panel,\nkitchen, outdoors etc. Note that this switch can be used under water. Wide Use\nRange It can use as a door bell, entrance guard push button switch in the\noutdoors.Also a good choice to use it as a replacement switch of household\nAppliances. Such as table lamp switch, PC switch, Audio switch. Read more\nAPIELE Brand New Switch Introduction: This switch can be used for circuit\ncontrol inelectromagnetic starter, contactor, relay and other electric\ncircuits. There are Red, Black, Green, Yellow, Blue color for you to choose.\nAPIELE Aluminum Alloy Push Button Switch Momentary This All Metal Switch\nFunctions Manually As A Replacement Of Auto Refit, Boat Refit, Instruments\nApparatus, Enter Guard, Household Appliance. It Provides Solid And Crisp Push\nFeedback And Comfortable Led Light. Ip65 Waterproof Make It Can Be Used In\nHumid Environment. Metal shell tolerates vibration and other harsh\nenvironmental conditions. The Improved Wire Diagram Come With The Switch And A\nNon-Electrical Person Can Install It Easy. Package Include: 2 PCS of APIELE\nPush Button Switch Read more 16mm Momentary Swicth No Lamp 16mm Momentary\nSwitch Ring Led 19mm Momentary Switch No lamp 19mm Momentary Switch Ring Led\n22mm Momentary Switch Ring Led Mounting Hole Size 5\/8\" ( 16mm ) 5\/8\" ( 16mm )\n3\/4\" (19mm) 3\/4\" (19mm) 7\/8\" ( 22mm ) Structure Types 1NO 1NO1NC 1NO 1NO1NC\n1NO1NC LED Color Select No Led Lamp R,B,Y,G,W No Led Lamp R,B,Y,G,W R,B,Y,G,W\nRated Amp 3A,12V AC\/DC 5A,12V AC\/DC 5A,12V AC\/DC 5A,12V AC\/DC 12A,12V AC\/DC If\nwith wire socket NO YES NO YES YES Shell Material Stainless steel Stainless\nsteel Stainless steel Stainless steel Stainless steel\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eGET NEW ONE IF NOT MAN MADE BROKEN IN 3 YEARS SINCE YOU PURCHASE THE SWITCH.\u003c\/li\u003e\n \u003cli\u003eBrand New Red Aluminium High Round Pushbutton Switch; Voltage: 250V, 5A. Hole size required: 0.74''\/19mm\u003c\/li\u003e\n \u003cli\u003e19mm Momentary Push Button Switch: Push \u0026amp; Hold, ON; Release, OFF, Contact Configuration: 1NO\u003c\/li\u003e\n \u003cli\u003eElectrical life: 200 thousand times. Mechanical life: 1,000,000 cycles\u003c\/li\u003e\n \u003cli\u003eHigh quality metal material \u0026amp; IP65 waterproof protection can be used in wet or dusty enviroment.\u003c\/li\u003e\n \u003c\/ul\u003e\n\n"}
