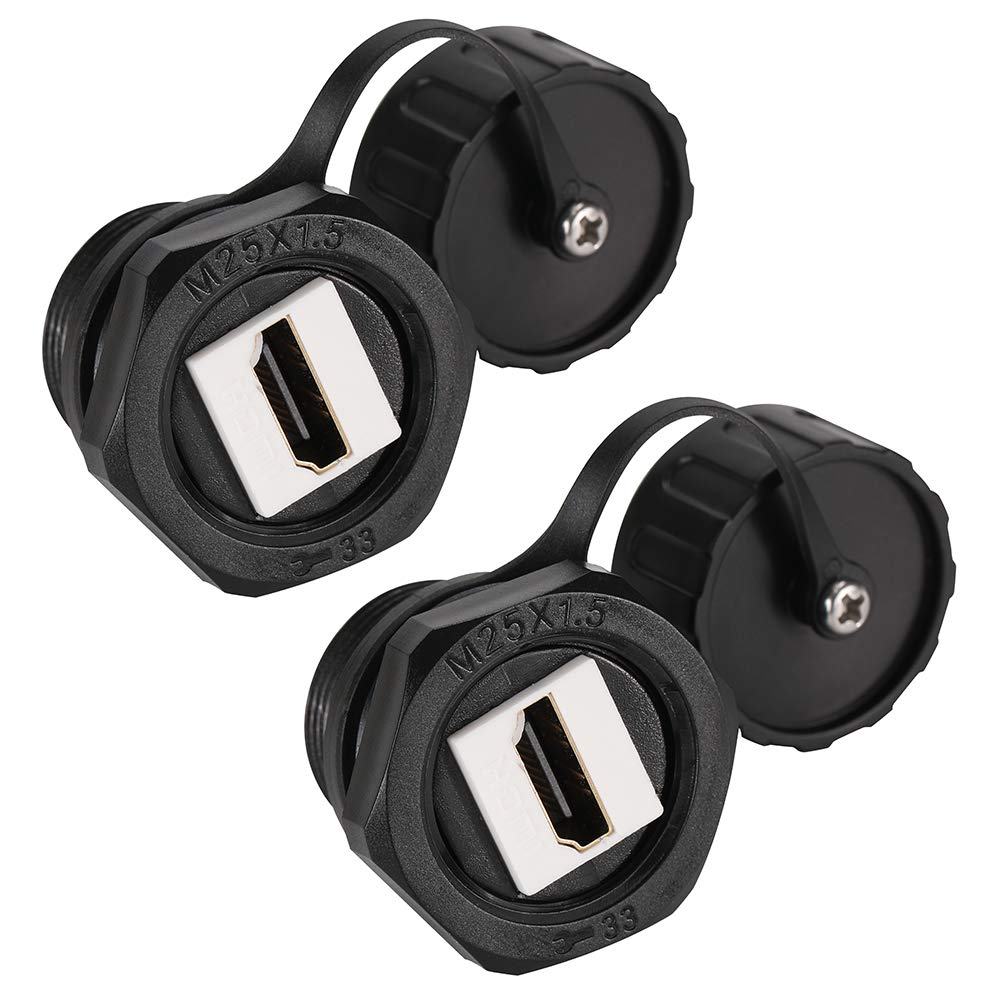

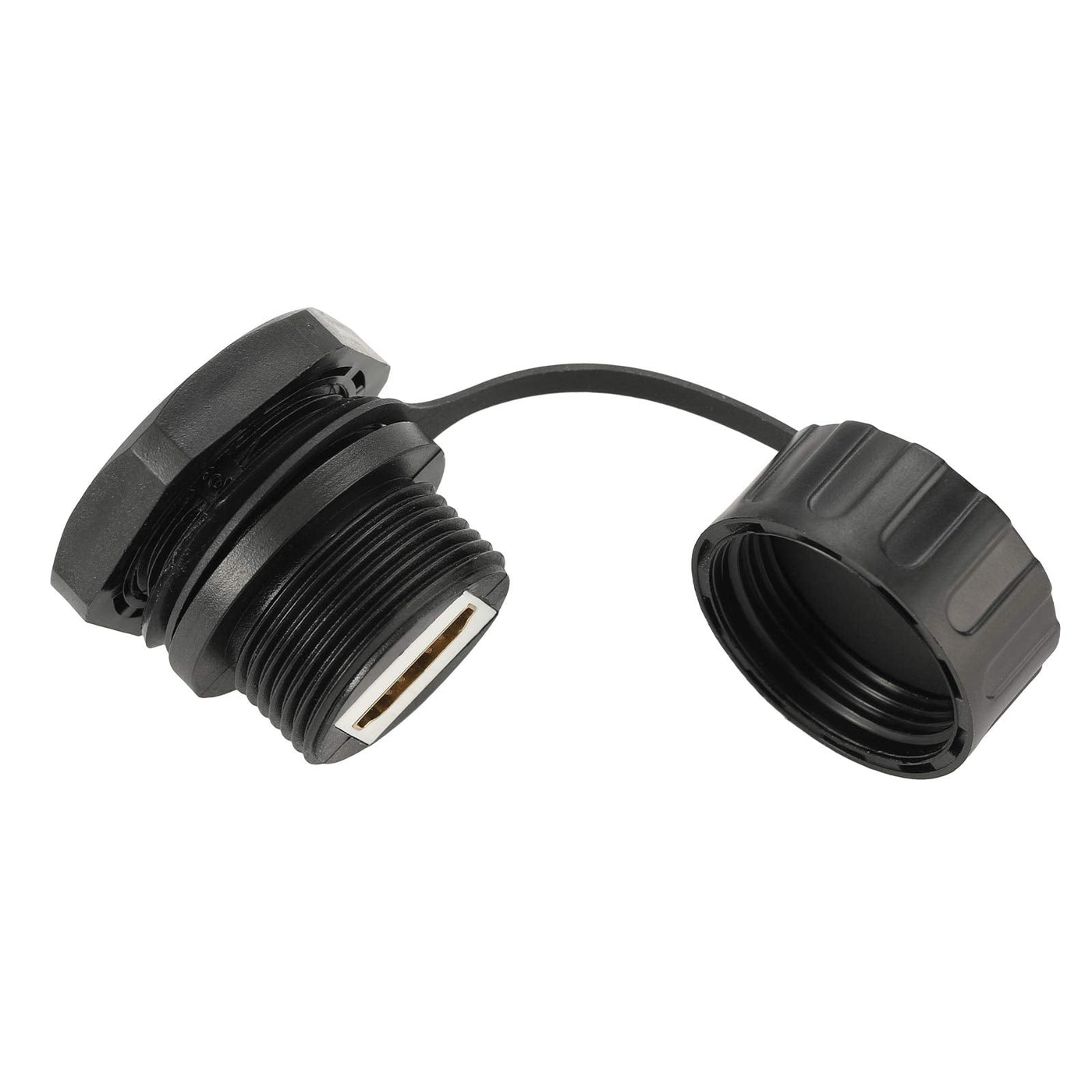

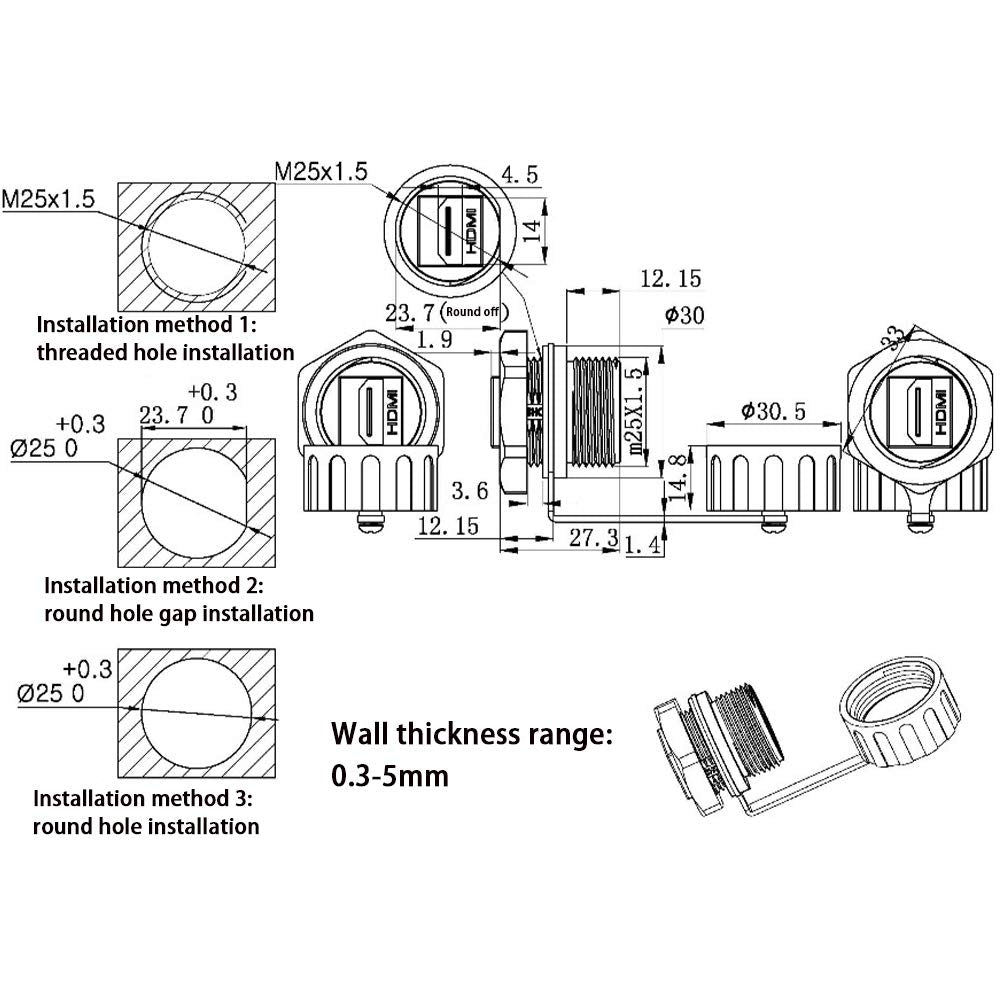

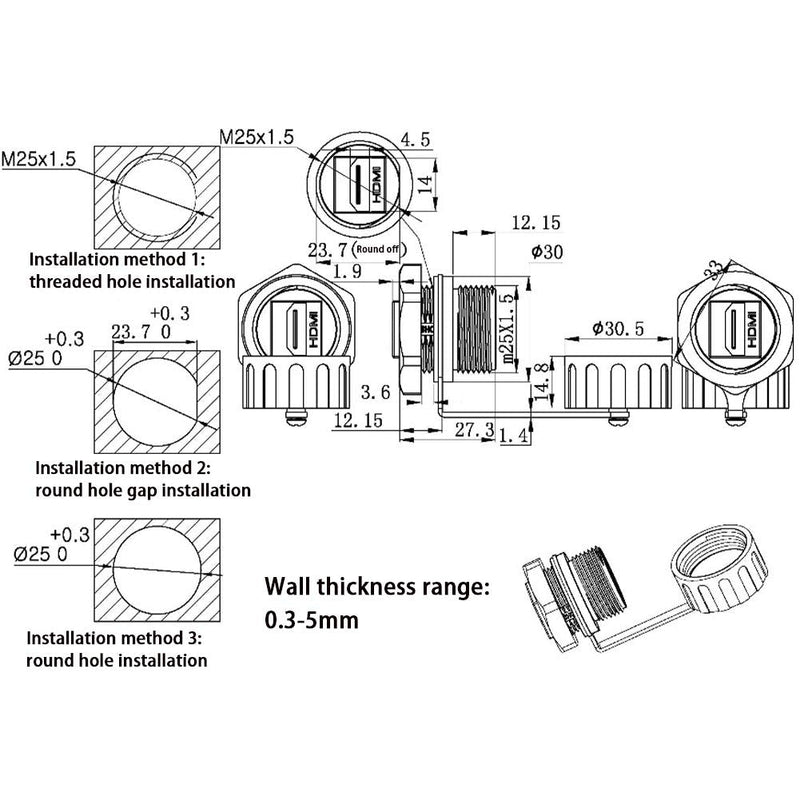

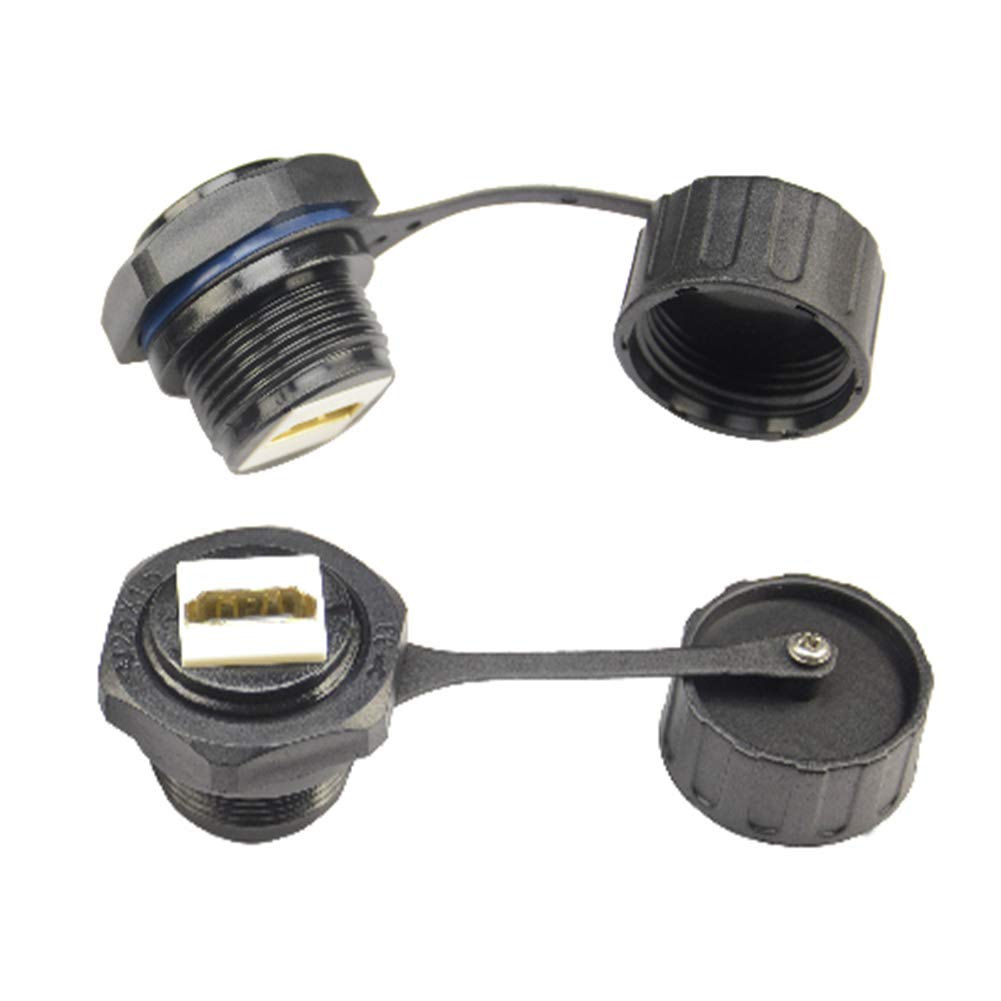

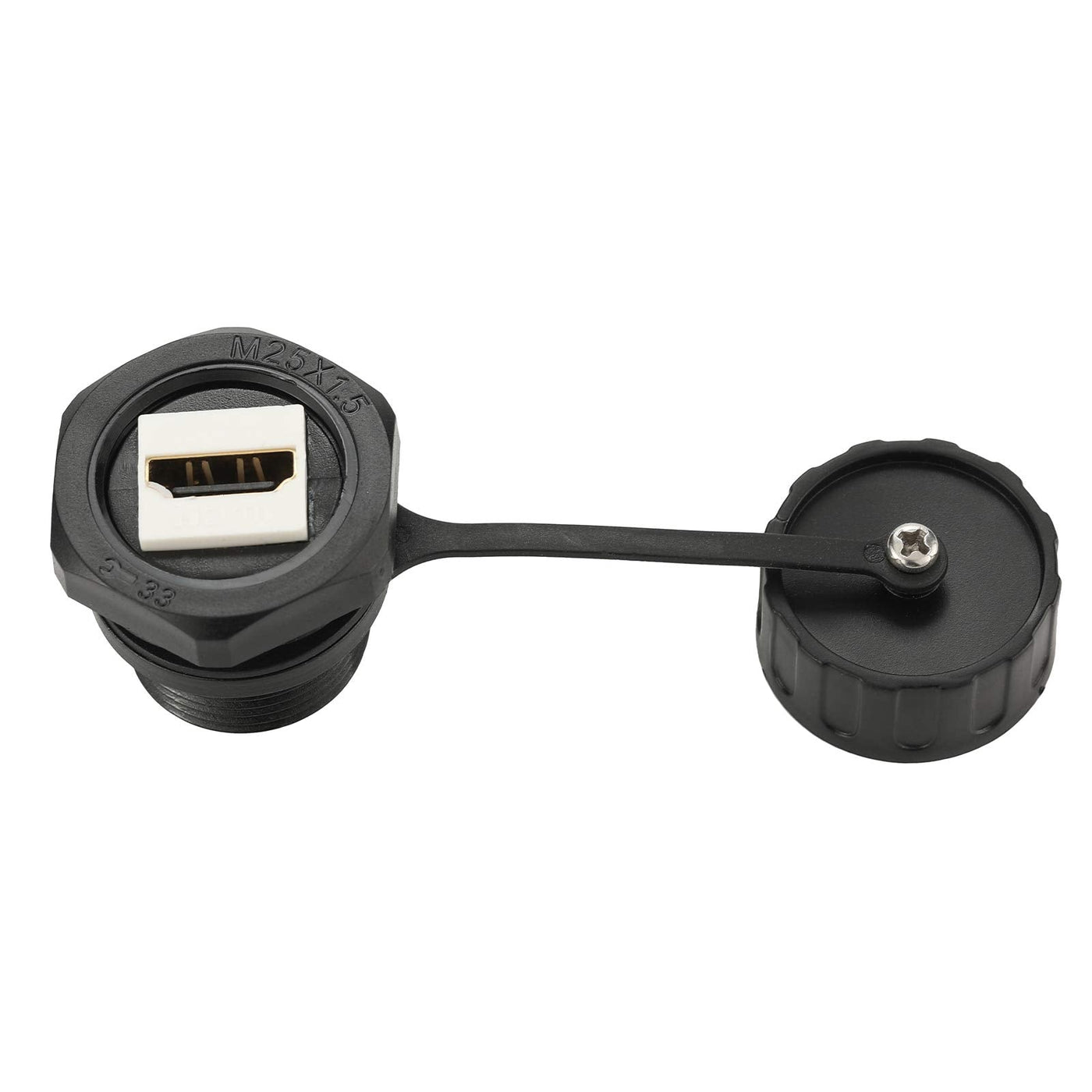

{"id":7390772854964,"title":"ANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap","handle":"anmbest-2pcs-hdmi-waterproof-connector-m25-panel-mounting-female-to-female-hdmi-bulkhead-coupler-with-waterproof-dust-cap","description":"\u003ch3\u003eANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical Specifications: Number of cores: 19 pin Waterproof rating: None\n(without waterproof cover), IP67 (with waterproof cover) Connection type: HDMI\n(standard port) Flame retardant rating: UL94V-0 Connection method: plug type +\nthread pressure lock Installation size: M25X1.5 Case wall thickness: threaded\ntype: \u0026gt;3mm, through-hole type: 0.3~5mm Connector transmission classification:\nHDMI (version 2.0) Transmission speed range: 18Gbps Electrical parameters:\nRated current: 0.5A Rated voltage: 30VDC Insulation resistance: ＞100MΩ(DC250V)\nCompressive strength: AC1000V 50HZ or 60HZ for 1 minute Contact resistance:\n＜50MΩ Mechanical behavior: Insertion force: 35N max Pull out force: 10N\nminimum Service life: 5000 cycles Material: Shell: Nylon PA66 (UL94V-0) Socket\ncontact pin: phosphor bronze Shielding shell: phosphor bronze Contact pin gold\nplating thickness: 6u inch Waterproof rubber ring: silicone Environmental\nconditions: Working temperature: -40～85Celsius Storage temperature:\n-25～65Celsius Atmospheric pressure: 86～106KPa Relative humidity: ≤90% RH\nPackage includes: 2 x Panel Mounting HDMI Waterproof Connector\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDURABLE: This HDMI connector is made of PA66 nylon native environmentally friendly injection molding material, flame retardant, UV resistant, and anti-aging.\u003c\/li\u003e\n \u003cli\u003ePerfectly supports 4K HDR 1080P 60FPS. Bandwidth up to 18Gbps.\u003c\/li\u003e\n \u003cli\u003eThe contact pin is phosphor bronze plated with 6FU gold, which is more sensitive to contact.\u003c\/li\u003e\n \u003cli\u003eThe industrial panel mount bulkhead includes a water\/dust cap that meets IP67 Waterproof Protection.\u003c\/li\u003e\n \u003cli\u003eStrongly locked with M25 large nut, firm and not loose.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2023-06-07T23:13:39+10:00","created_at":"2023-06-07T23:13:49+10:00","vendor":"ANMBEST","type":"Connectors \u0026 Adapters","tags":["June2023_cocoonwix","sold2024"],"price":14500,"price_min":14500,"price_max":14500,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":42295230628020,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08HSYH4YW","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"ANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap","public_title":null,"options":["Default Title"],"price":14500,"weight":50,"compare_at_price":null,"inventory_management":null,"barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B08HSYH4YW.jpg?v=1777973283","\/\/auspowers.com\/cdn\/shop\/products\/61VSd7cGcYL.jpg?v=1686143629","\/\/auspowers.com\/cdn\/shop\/products\/61kl3o_KvGL.jpg?v=1686143629","\/\/auspowers.com\/cdn\/shop\/products\/61oEQFGbK3L.jpg?v=1686143629","\/\/auspowers.com\/cdn\/shop\/products\/61xDDZc2R9L.jpg?v=1686143629","\/\/auspowers.com\/cdn\/shop\/products\/51JXmN073lL.jpg?v=1686143629","\/\/auspowers.com\/cdn\/shop\/products\/51oLKjn_AKL.jpg?v=1686143629"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B08HSYH4YW.jpg?v=1777973283","options":["Title"],"media":[{"alt":"[Australia - AusPower] - ANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap ","id":28749738311860,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B08HSYH4YW.jpg?v=1777973283"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B08HSYH4YW.jpg?v=1777973283","width":1001},{"alt":"[Australia - AusPower] - ANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap ","id":28747980210356,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61VSd7cGcYL.jpg?v=1686143629"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61VSd7cGcYL.jpg?v=1686143629","width":1600},{"alt":"[Australia - AusPower] - ANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap ","id":28747980243124,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61kl3o_KvGL.jpg?v=1686143629"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61kl3o_KvGL.jpg?v=1686143629","width":1600},{"alt":"[Australia - AusPower] - ANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap ","id":28747980275892,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61oEQFGbK3L.jpg?v=1686143629"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61oEQFGbK3L.jpg?v=1686143629","width":1001},{"alt":"[Australia - AusPower] - ANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap ","id":28747980308660,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/61xDDZc2R9L.jpg?v=1686143629"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/61xDDZc2R9L.jpg?v=1686143629","width":1001},{"alt":"[Australia - AusPower] - ANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap ","id":28747980341428,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51JXmN073lL.jpg?v=1686143629"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51JXmN073lL.jpg?v=1686143629","width":1001},{"alt":"[Australia - AusPower] - ANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap ","id":28747980374196,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/products\/51oLKjn_AKL.jpg?v=1686143629"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/products\/51oLKjn_AKL.jpg?v=1686143629","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eANMBEST 2PCS HDMI Waterproof Connector, M25 Panel Mounting Female to Female HDMI Bulkhead Coupler with Waterproof Dust Cap\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eTechnical Specifications: Number of cores: 19 pin Waterproof rating: None\n(without waterproof cover), IP67 (with waterproof cover) Connection type: HDMI\n(standard port) Flame retardant rating: UL94V-0 Connection method: plug type +\nthread pressure lock Installation size: M25X1.5 Case wall thickness: threaded\ntype: \u0026gt;3mm, through-hole type: 0.3~5mm Connector transmission classification:\nHDMI (version 2.0) Transmission speed range: 18Gbps Electrical parameters:\nRated current: 0.5A Rated voltage: 30VDC Insulation resistance: ＞100MΩ(DC250V)\nCompressive strength: AC1000V 50HZ or 60HZ for 1 minute Contact resistance:\n＜50MΩ Mechanical behavior: Insertion force: 35N max Pull out force: 10N\nminimum Service life: 5000 cycles Material: Shell: Nylon PA66 (UL94V-0) Socket\ncontact pin: phosphor bronze Shielding shell: phosphor bronze Contact pin gold\nplating thickness: 6u inch Waterproof rubber ring: silicone Environmental\nconditions: Working temperature: -40～85Celsius Storage temperature:\n-25～65Celsius Atmospheric pressure: 86～106KPa Relative humidity: ≤90% RH\nPackage includes: 2 x Panel Mounting HDMI Waterproof Connector\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eDURABLE: This HDMI connector is made of PA66 nylon native environmentally friendly injection molding material, flame retardant, UV resistant, and anti-aging.\u003c\/li\u003e\n \u003cli\u003ePerfectly supports 4K HDR 1080P 60FPS. Bandwidth up to 18Gbps.\u003c\/li\u003e\n \u003cli\u003eThe contact pin is phosphor bronze plated with 6FU gold, which is more sensitive to contact.\u003c\/li\u003e\n \u003cli\u003eThe industrial panel mount bulkhead includes a water\/dust cap that meets IP67 Waterproof Protection.\u003c\/li\u003e\n \u003cli\u003eStrongly locked with M25 large nut, firm and not loose.\u003c\/li\u003e\n \u003c\/ul\u003e"}
