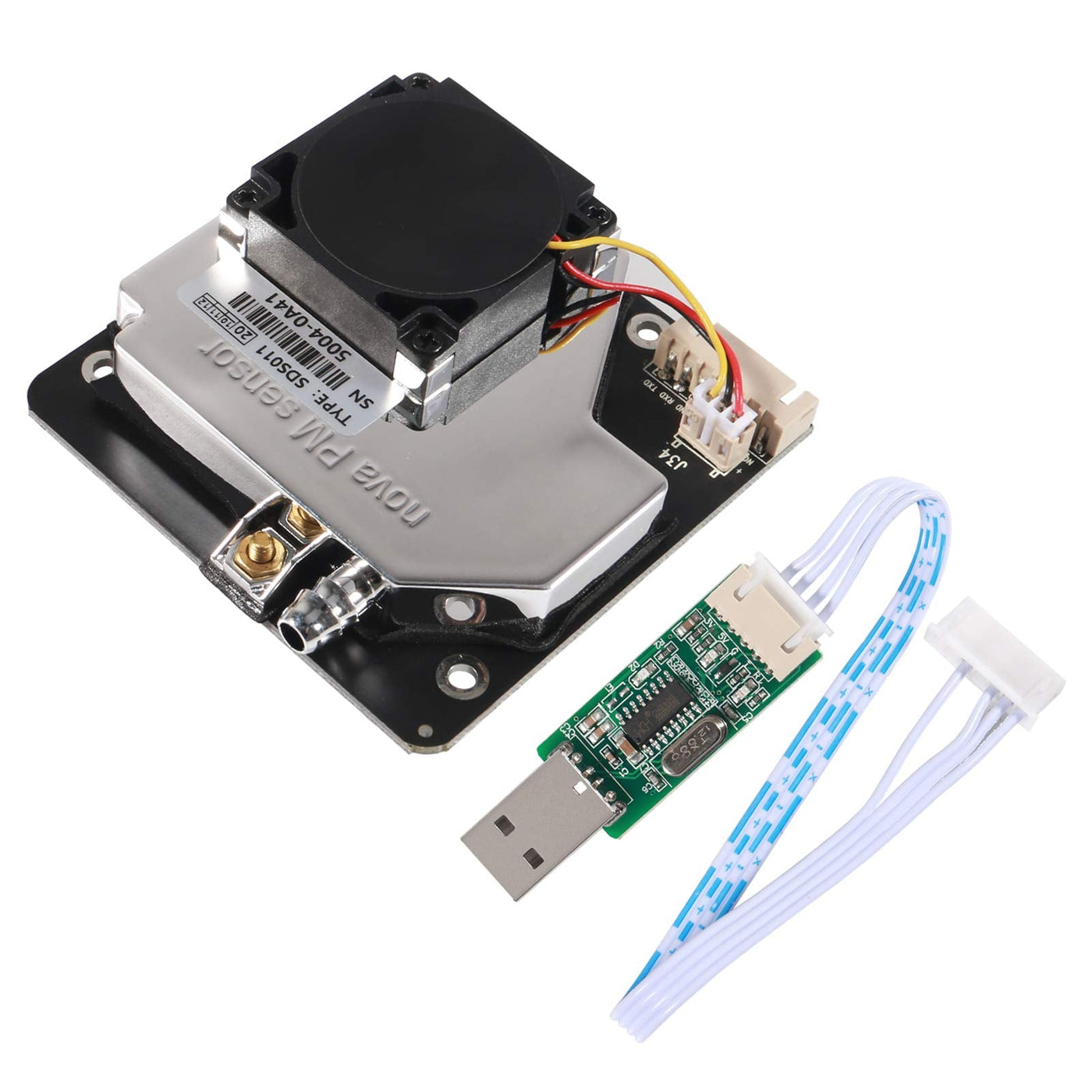

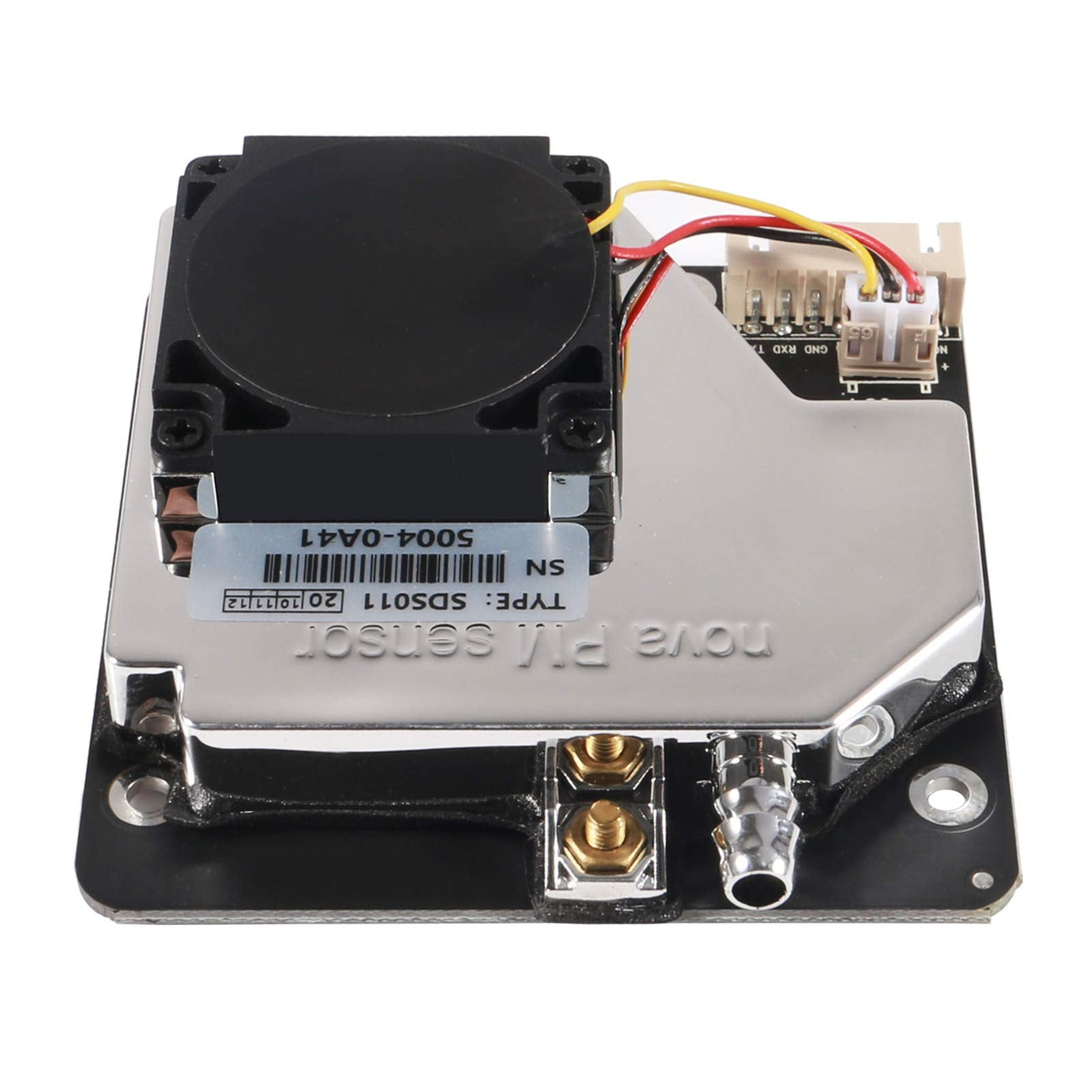

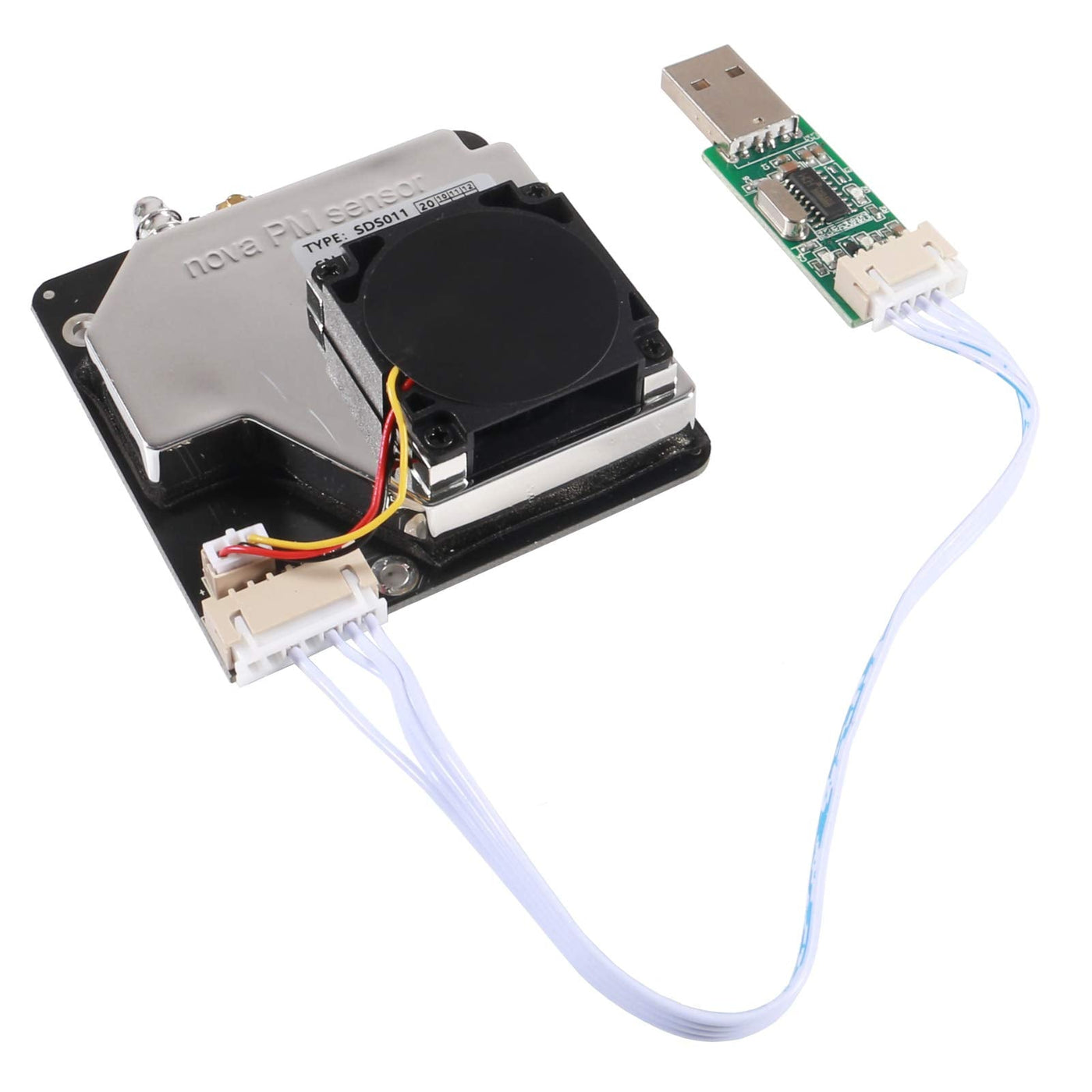

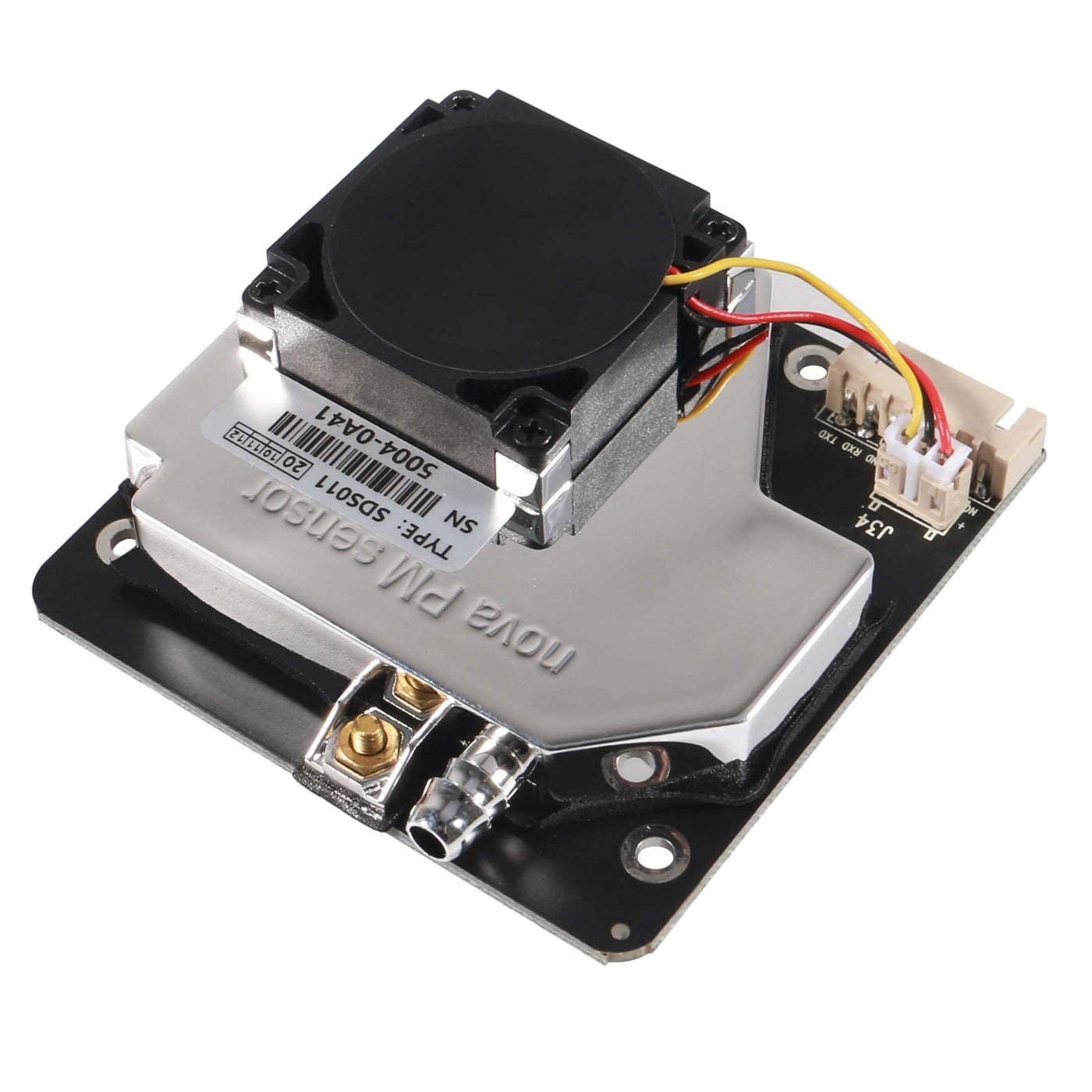

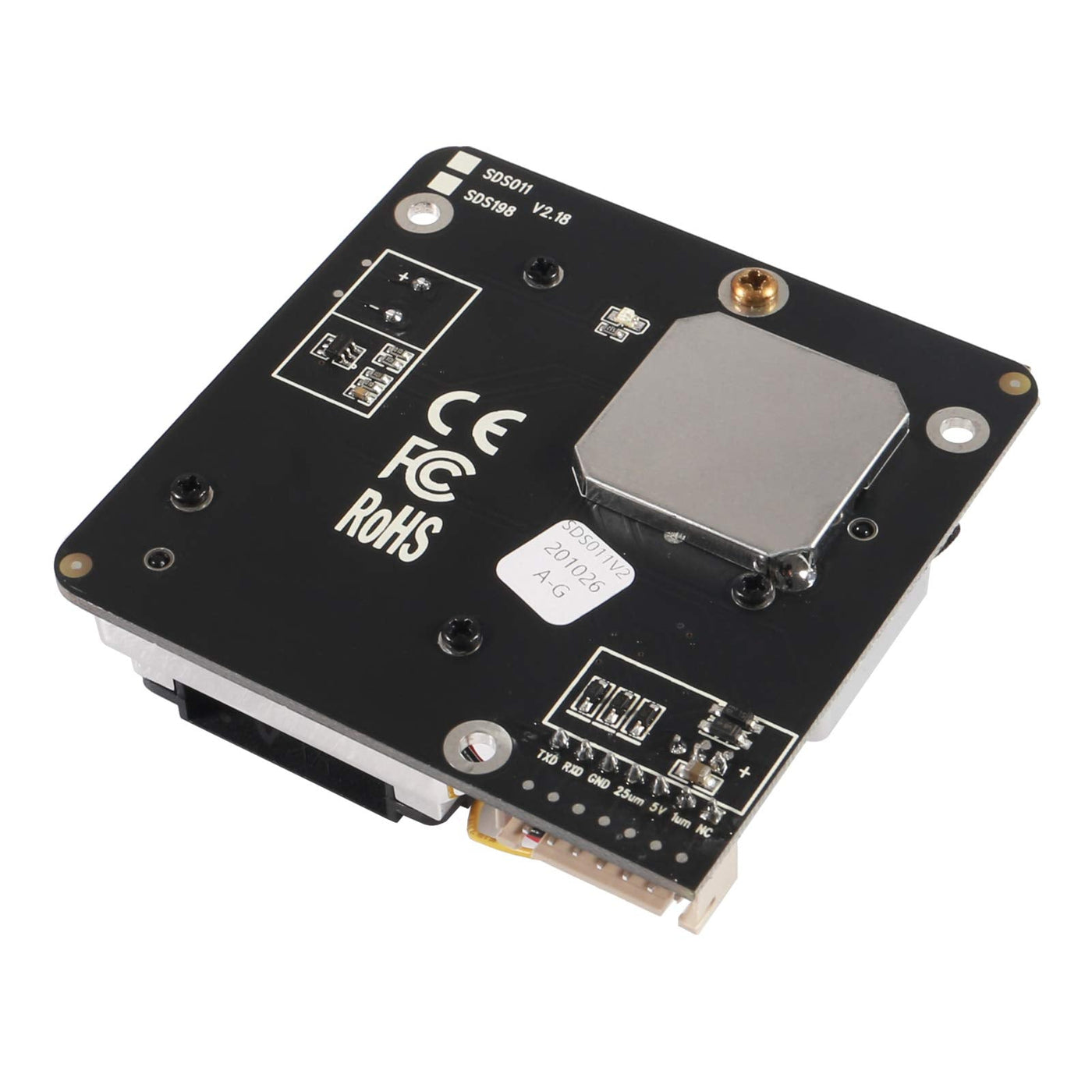

{"id":8051000311988,"title":"AITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino","handle":"aitrip-pm-sensor-sds011-high-precision-pm2-5-air-quality-detection-sensor-module-super-dust-sensors-digital-output-compatible-with-arduino","description":"\u003ch3\u003eAITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eCommunication protocol:Serial communication protocol: 9600 8N1. (Rate of 9600,\r\ndata bits 8, parity none, stop bits 1)Serial report communication cycle: 1+0.5\r\nsecondsData frame (10 bytes): message header + order+ data(6 bytes) + checksum\r\n+ message trailerThe number of bytes:Name:Content0:message\r\nheader:AAorder:C0data 1:PM2.5 low bytedata 2:PM2.5 high bytedata 3:PM10 low\r\nbytedata 4:PM10 high bytedata 5:0(reserved)data\r\n6:0(reserved)checksum:checksummessage trailer:ABChecksum: data 1 + data 2 +\r\n...+ data 6PM2.5 data content: PM2.5 (ug\/m3) = ((PM2.5 high byte256 ) + PM2.5\r\nlow byte)\/10PM10 data content: PM10 (ug\/m3) = ((PM10 high byte256 ) + PM10\r\nlow byte)\/10Interface specification:CTL:Control pin, reserved1um:\u0026gt;0.3 Micron\r\nparticle concentration, PWM Output5V:5V power input25um:\u0026gt;2.5 Micron particle\r\nconcentration, PWM OutputGND:GNDR:Serial port receiver RXT:Serial port\r\ntransmission TXPS: The pitch of Interface is 2.54mmPackage included:1 x PM\r\nSensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eScope of application:PM2.5 Detector;Purifier;Air Exchangers;Filtering system\u003c\/li\u003e\r\n \u003cli\u003eAccurate and Reliable: detection, stable, good consistency;Quick response: response time is less than 10 seconds when the scene changes.\u003c\/li\u003e\r\n \u003cli\u003eEasy integration: UART output (or IO output can be customized), fan built-in;High resolution: resolution of 0.3ug\/m3\u003c\/li\u003e\r\n \u003cli\u003eThe SDS011 using principle of scattering,can get the particle concentration between 0.3 to 10um in the air.It with digital output and built-in fan is stable and reliable.\u003c\/li\u003e\r\n \u003cli\u003eWorking principle:Using scattering principle:Light scattering can be induced when particles go through the detecting area;The scattered light is transformed into electrical signals and these signals will be amplified and processed PM sensor SDS011 High precision laser pm2.5 air quality detection sensor module Super dust dust sensors, digital output Note : It supports 5V power supply voltage, output signal TTL Is 5V, higher than this voltage, the product will burn out\u003c\/li\u003e\r\n \u003c\/ul\u003e","published_at":"2026-05-05T17:51:18+10:00","created_at":"2026-05-05T17:51:15+10:00","vendor":"AITRIP","type":"Sensor Blocks","tags":["industrial_April2026"],"price":17400,"price_min":17400,"price_max":17400,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44215392338100,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B08QRJSVW7","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"AITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino","public_title":null,"options":["Default Title"],"price":17400,"weight":82,"compare_at_price":null,"inventory_management":"shopify","barcode":"701715454378","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B08QRJSVW7.jpg?v=1777994687","\/\/auspowers.com\/cdn\/shop\/files\/61j_Y06abPL.jpg?v=1777967477","\/\/auspowers.com\/cdn\/shop\/files\/71Mv8HRKsyL.jpg?v=1777967477","\/\/auspowers.com\/cdn\/shop\/files\/61X9PlYUI0L.jpg?v=1777967477","\/\/auspowers.com\/cdn\/shop\/files\/71MgvvasoXL.jpg?v=1777967477","\/\/auspowers.com\/cdn\/shop\/files\/71azU-mtRxL.jpg?v=1777967478"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B08QRJSVW7.jpg?v=1777994687","options":["Title"],"media":[{"alt":"[Australia - AusPower] - AITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino ","id":32914249187508,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B08QRJSVW7.jpg?v=1777994687"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B08QRJSVW7.jpg?v=1777994687","width":1601},{"alt":"[Australia - AusPower] - AITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino ","id":32914249220276,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61j_Y06abPL.jpg?v=1777967477"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61j_Y06abPL.jpg?v=1777967477","width":1601},{"alt":"[Australia - AusPower] - AITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino ","id":32914249253044,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71Mv8HRKsyL.jpg?v=1777967477"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71Mv8HRKsyL.jpg?v=1777967477","width":1601},{"alt":"[Australia - AusPower] - AITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino ","id":32914249285812,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61X9PlYUI0L.jpg?v=1777967477"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61X9PlYUI0L.jpg?v=1777967477","width":1601},{"alt":"[Australia - AusPower] - AITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino ","id":32914249318580,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71MgvvasoXL.jpg?v=1777967477"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71MgvvasoXL.jpg?v=1777967477","width":1601},{"alt":"[Australia - AusPower] - AITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino ","id":32914249351348,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1601,"width":1601,"src":"\/\/auspowers.com\/cdn\/shop\/files\/71azU-mtRxL.jpg?v=1777967478"},"aspect_ratio":1.0,"height":1601,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/71azU-mtRxL.jpg?v=1777967478","width":1601}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAITRIP PM Sensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module Super Dust Sensors Digital Output Compatible with Arduino\u003c\/h3\u003e\r\n\u003cp id=\"b\"\u003eCommunication protocol:Serial communication protocol: 9600 8N1. (Rate of 9600,\r\ndata bits 8, parity none, stop bits 1)Serial report communication cycle: 1+0.5\r\nsecondsData frame (10 bytes): message header + order+ data(6 bytes) + checksum\r\n+ message trailerThe number of bytes:Name:Content0:message\r\nheader:AAorder:C0data 1:PM2.5 low bytedata 2:PM2.5 high bytedata 3:PM10 low\r\nbytedata 4:PM10 high bytedata 5:0(reserved)data\r\n6:0(reserved)checksum:checksummessage trailer:ABChecksum: data 1 + data 2 +\r\n...+ data 6PM2.5 data content: PM2.5 (ug\/m3) = ((PM2.5 high byte256 ) + PM2.5\r\nlow byte)\/10PM10 data content: PM10 (ug\/m3) = ((PM10 high byte256 ) + PM10\r\nlow byte)\/10Interface specification:CTL:Control pin, reserved1um:\u0026gt;0.3 Micron\r\nparticle concentration, PWM Output5V:5V power input25um:\u0026gt;2.5 Micron particle\r\nconcentration, PWM OutputGND:GNDR:Serial port receiver RXT:Serial port\r\ntransmission TXPS: The pitch of Interface is 2.54mmPackage included:1 x PM\r\nSensor SDS011 High Precision PM2.5 Air Quality Detection Sensor Module\u003c\/p\u003e \r\n\r\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\r\n \u003cul class=\"a\"\u003e\r\n \u003cli\u003eScope of application:PM2.5 Detector;Purifier;Air Exchangers;Filtering system\u003c\/li\u003e\r\n \u003cli\u003eAccurate and Reliable: detection, stable, good consistency;Quick response: response time is less than 10 seconds when the scene changes.\u003c\/li\u003e\r\n \u003cli\u003eEasy integration: UART output (or IO output can be customized), fan built-in;High resolution: resolution of 0.3ug\/m3\u003c\/li\u003e\r\n \u003cli\u003eThe SDS011 using principle of scattering,can get the particle concentration between 0.3 to 10um in the air.It with digital output and built-in fan is stable and reliable.\u003c\/li\u003e\r\n \u003cli\u003eWorking principle:Using scattering principle:Light scattering can be induced when particles go through the detecting area;The scattered light is transformed into electrical signals and these signals will be amplified and processed PM sensor SDS011 High precision laser pm2.5 air quality detection sensor module Super dust dust sensors, digital output Note : It supports 5V power supply voltage, output signal TTL Is 5V, higher than this voltage, the product will burn out\u003c\/li\u003e\r\n \u003c\/ul\u003e"}
