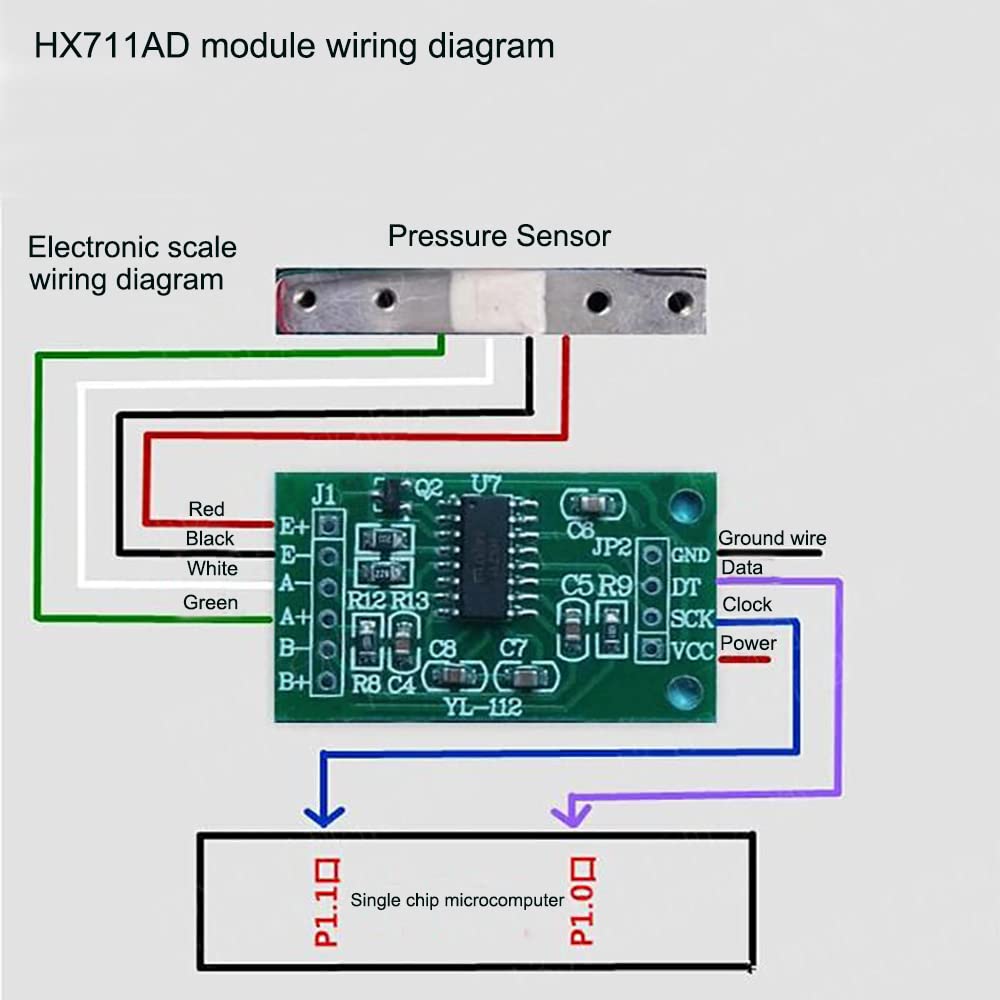

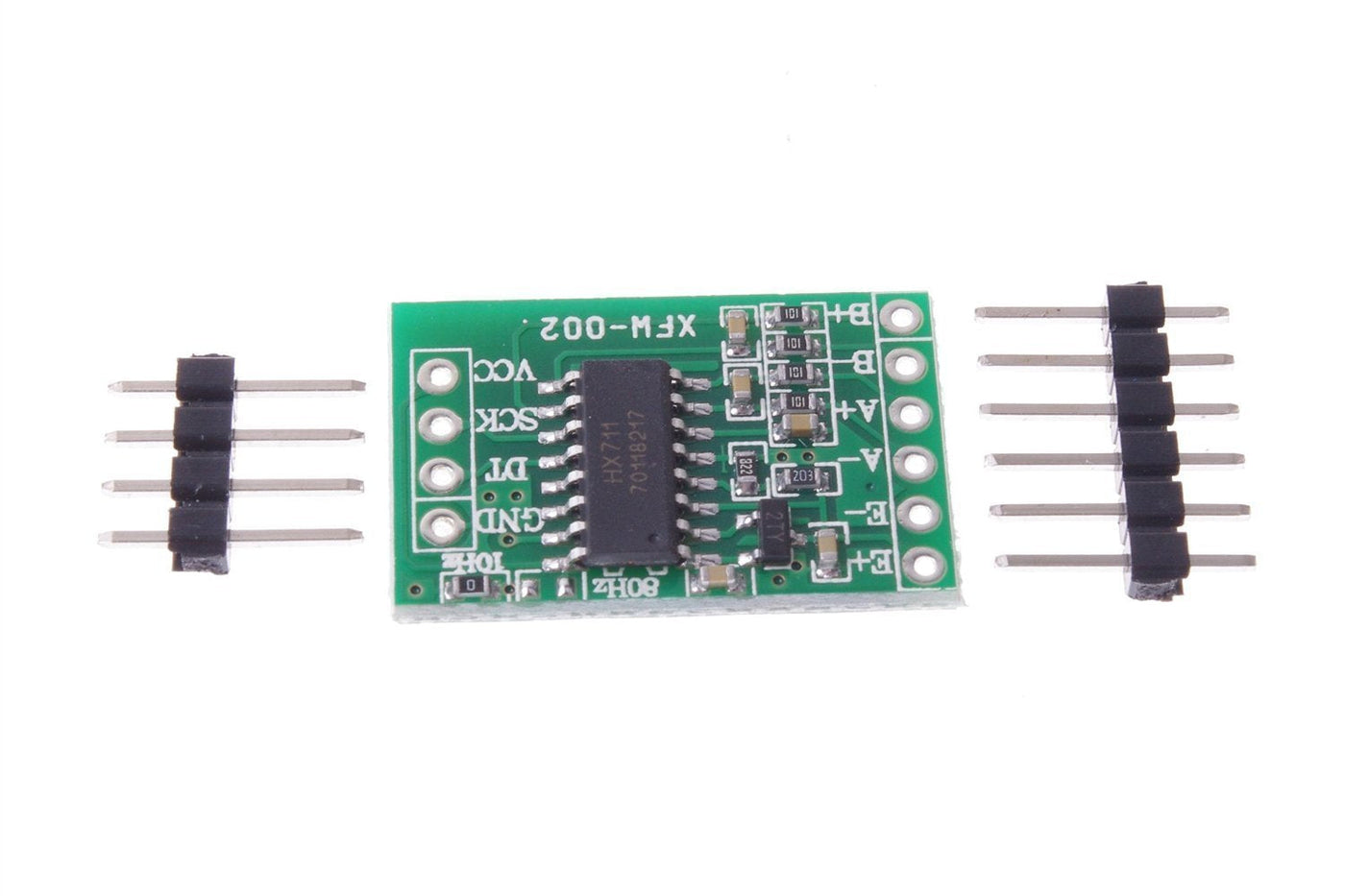

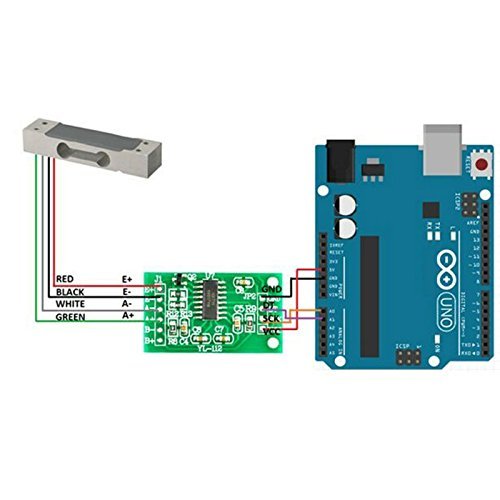

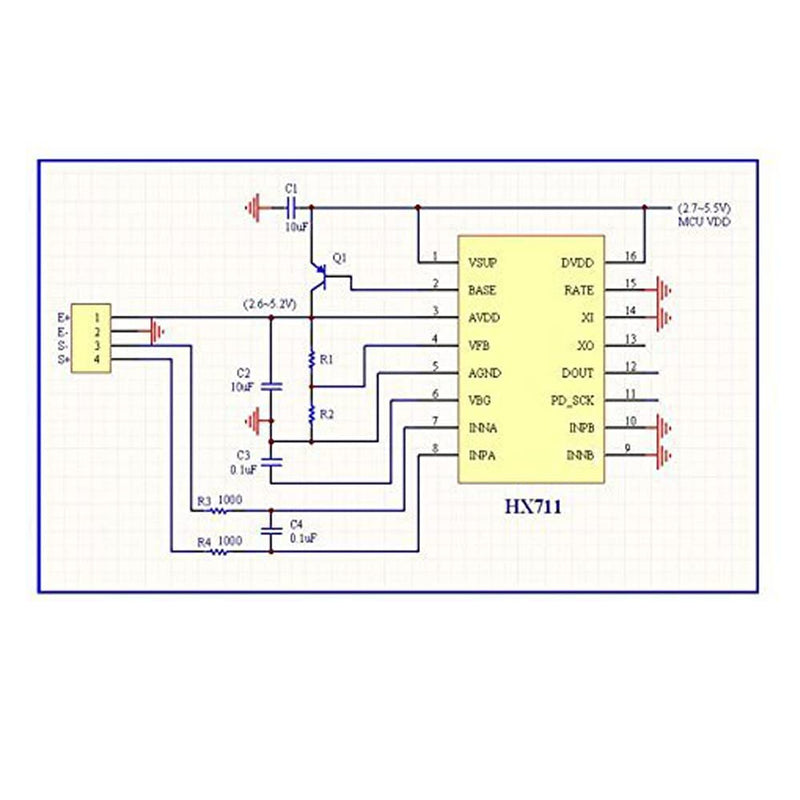

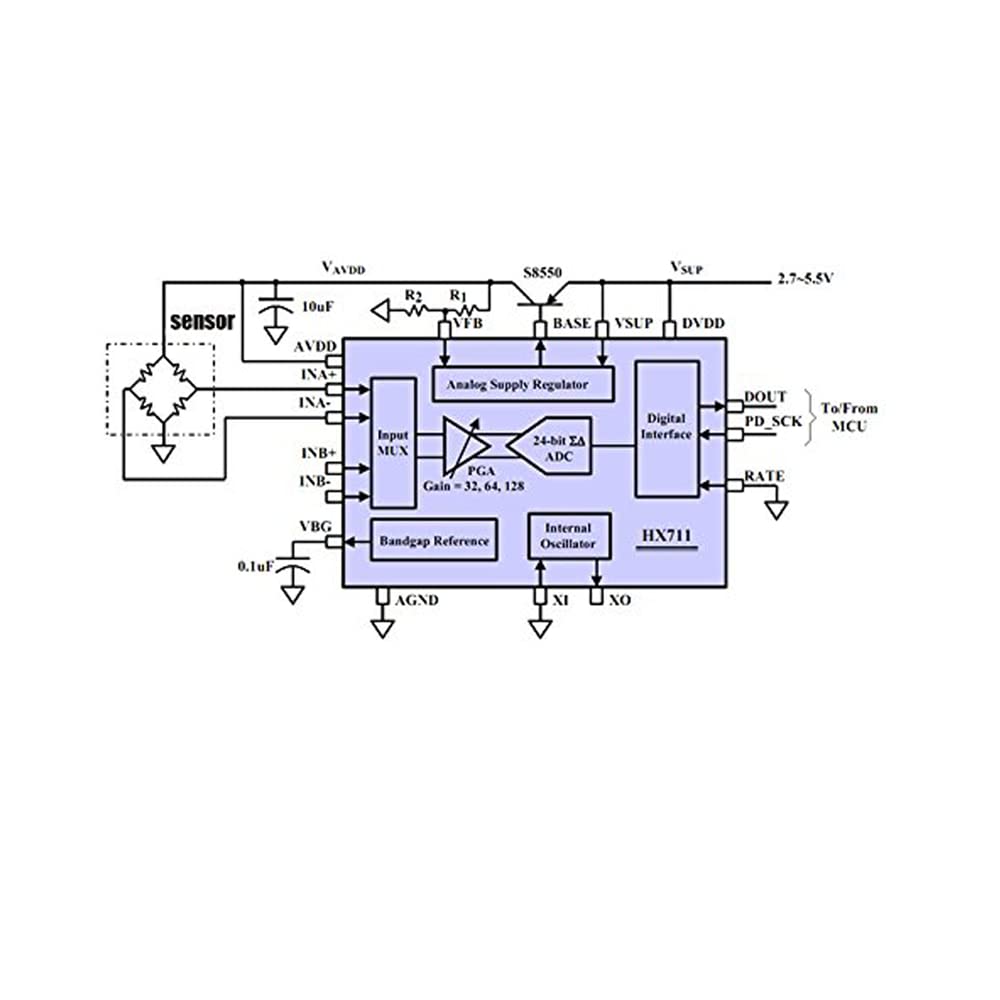

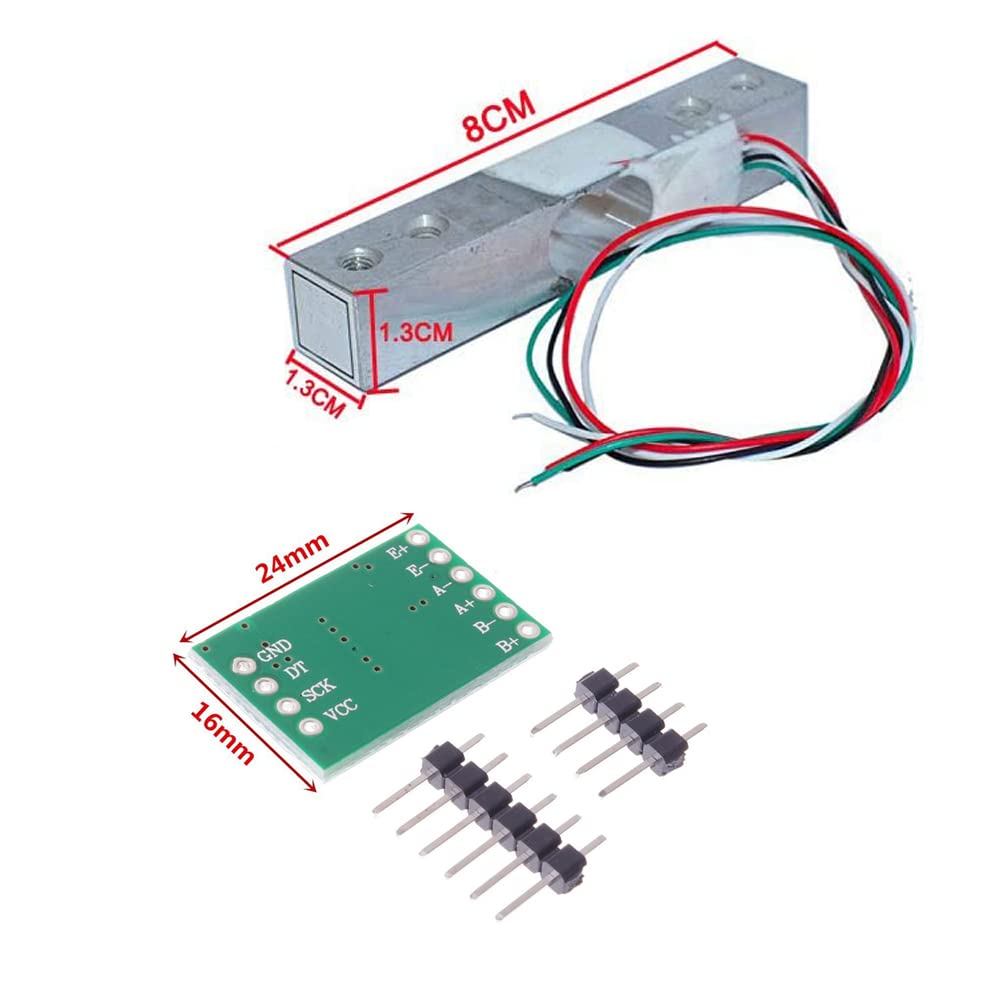

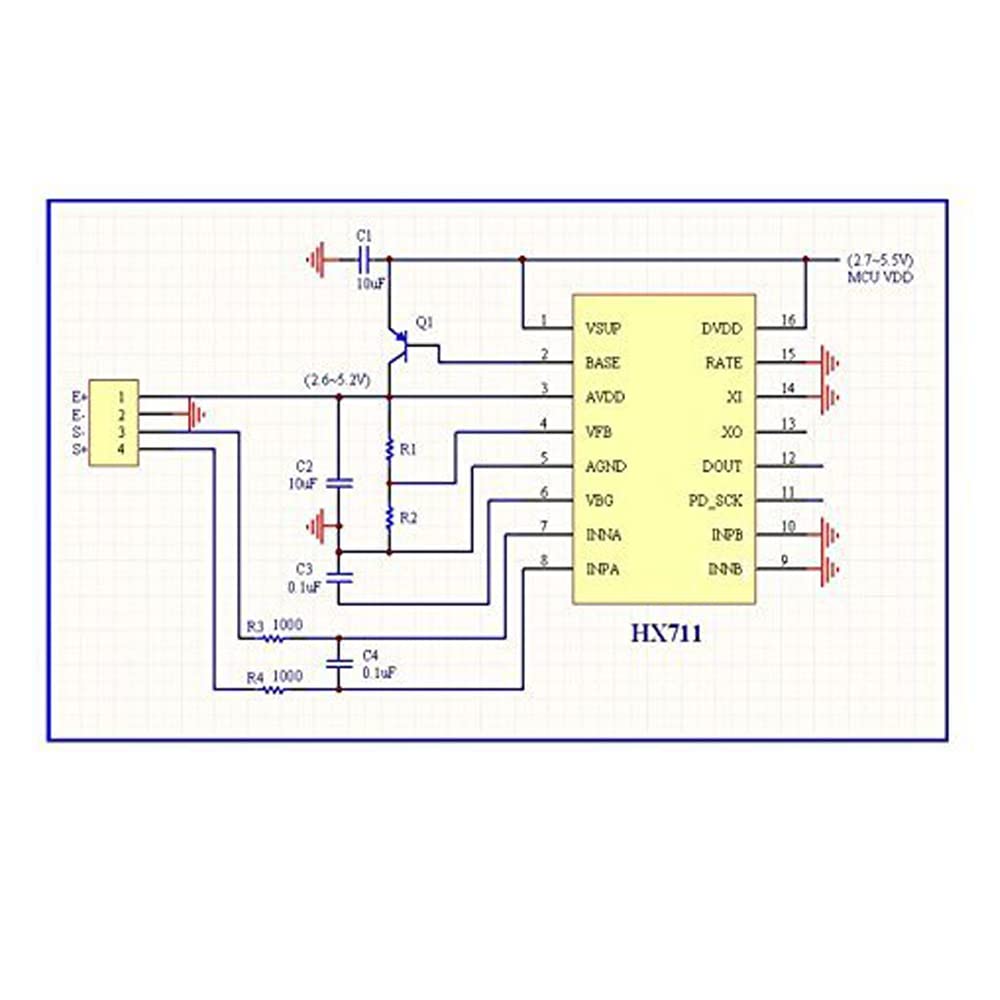

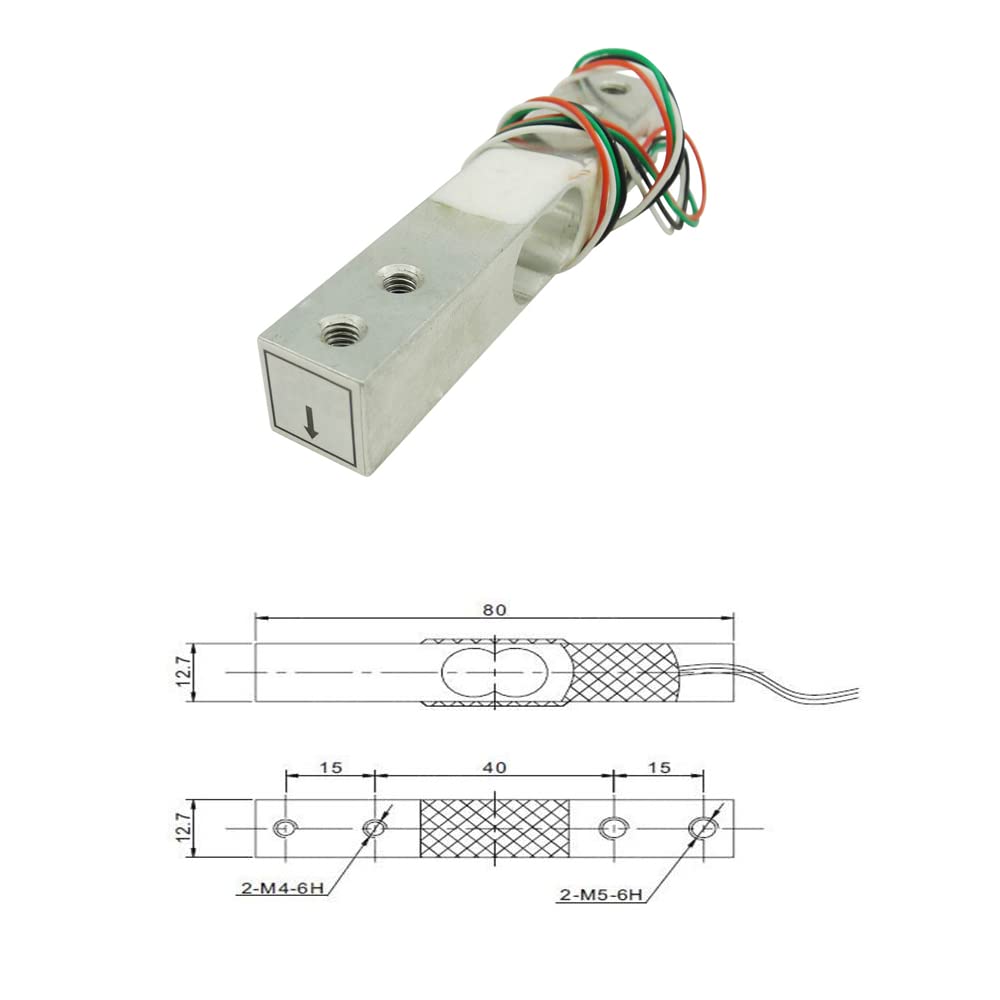

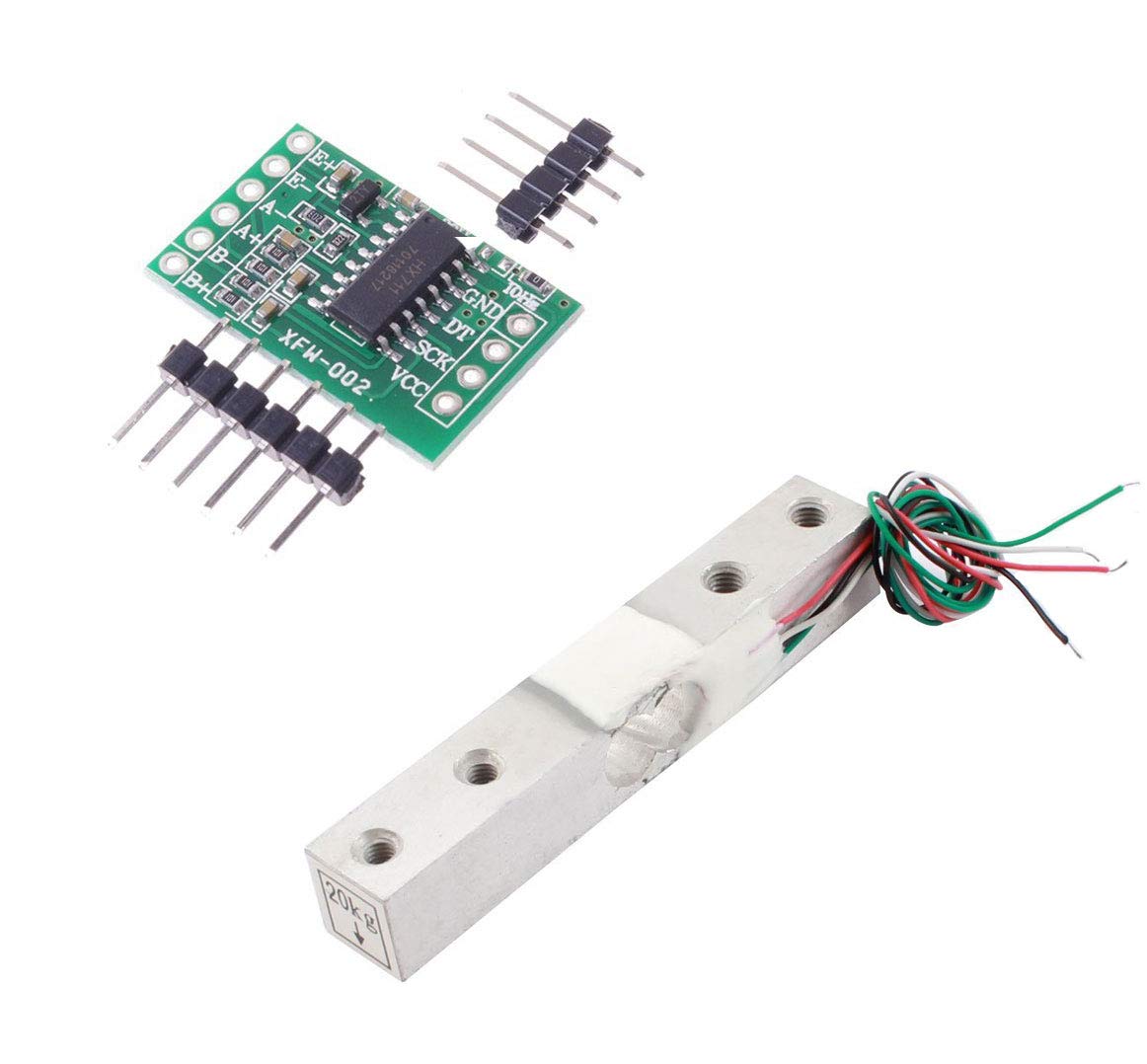

{"id":7991576002740,"title":"Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino","handle":"aihasd-digital-load-cell-weight-sensor-20-kg-portable-electronic-kitchen-scales-hx711-weighing-sensors-ad-module-for-arduino","description":"\u003ch3\u003eAihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This module uses 24 high precision A\/D converter chip HX711. It\nis a special design for the high-precision electronic scale design with two\nanalog input channels, the internal integration of 128 times of the\nprogrammable gain amplifier. The input circuit can be configured to provide a\nbridge type pressure bridge (such as pressure weight sensor mode). The high\nprecision cost is an ideal front-end module. Four leads, easy to use, 5-10V\napplied drive voltage, the force is output directly as voltage change signal.\nSize of cells: 80 x 12.7 x 12.7 mm. Module size: 24 mm x 16 mm. Features: Two\nselectable different input channels. On-chip active low noise PGA with\nselectable gain of 3264 and 128. On-chip power supply controller for charging\ncells and analog ADC power supply. On-chip oscillator requires no external\ncomponent with optional external glass. On-chip, power-on-reset. Easy digital\ncontrol and serial interface: pin control, no programming required. Selectable\n10 PLC or 80 PLC data rates. Simultaneous 50 and 60 Hz supply rection. Power\nconsumption including on-chip, analog power supply, controller: normal\noperation \u0026lt;1.5mA power \u0026lt;1uA. Operating voltage range: 2.6~5.5V Operating\ntemperature: -20 degrees ~ +85 degrees Document link:\n\nLoad-Ce\/ \n Flex\/HX7 11_english.pdf\n Connection: Red to E+. Black to E\nGreen to A+. White to A Package includes: 1 x 20kg Sensor 1 x HX711 24BIT\nPrecision ADC Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis module uses 24 high precision A\/D converter chip hx711. It is a specially designed for the high precision electronic scale design with two analogue input channel.\u003c\/li\u003e\n \u003cli\u003eThe internal integration of 128 times the programmable gain amplifier.\u003c\/li\u003e\n \u003cli\u003eThe input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.\u003c\/li\u003e\n \u003cli\u003eFour leads, easy to use, 5-10V drive voltage applied, the force is directly output as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eLoad cell size: 80 mm x 12.7 mm x 12.7 mm; module size: 24 mm x 16 mm\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2025-09-23T00:27:36+10:00","created_at":"2025-09-23T00:27:32+10:00","vendor":"Aihasd","type":"Accessories, Hardware \u0026 Tools","tags":["industryDE_Sep2025"],"price":11300,"price_min":11300,"price_max":11300,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44047743484084,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B075KF3W3L","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino","public_title":null,"options":["Default Title"],"price":11300,"weight":30,"compare_at_price":null,"inventory_management":"shopify","barcode":"9","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/61sXkyyIcAL.jpg?v=1758551255","\/\/auspowers.com\/cdn\/shop\/files\/61ePbwh-6rL.jpg?v=1758551255","\/\/auspowers.com\/cdn\/shop\/files\/51GUM8xeWJL.jpg?v=1758551255","\/\/auspowers.com\/cdn\/shop\/files\/51OX7G9wmPL.jpg?v=1758551255","\/\/auspowers.com\/cdn\/shop\/files\/51xQ6F2ly_L.jpg?v=1758551255","\/\/auspowers.com\/cdn\/shop\/files\/413-nVa-zyL.jpg?v=1758551255","\/\/auspowers.com\/cdn\/shop\/files\/514CMBBqYUL.jpg?v=1758551255","\/\/auspowers.com\/cdn\/shop\/files\/61FpAObvyZL.jpg?v=1758551255","\/\/auspowers.com\/cdn\/shop\/files\/61anqK3qcEL.jpg?v=1758551255"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/61sXkyyIcAL.jpg?v=1758551255","options":["Title"],"media":[{"alt":"[Australia - AusPower] - Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino ","id":32184600723636,"position":1,"preview_image":{"aspect_ratio":1.078,"height":1078,"width":1162,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61sXkyyIcAL.jpg?v=1758551255"},"aspect_ratio":1.078,"height":1078,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61sXkyyIcAL.jpg?v=1758551255","width":1162},{"alt":"[Australia - AusPower] - Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino ","id":32184600756404,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61ePbwh-6rL.jpg?v=1758551255"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61ePbwh-6rL.jpg?v=1758551255","width":1000},{"alt":"[Australia - AusPower] - Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino ","id":32184600789172,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51GUM8xeWJL.jpg?v=1758551255"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51GUM8xeWJL.jpg?v=1758551255","width":1000},{"alt":"[Australia - AusPower] - Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino ","id":32184600821940,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51OX7G9wmPL.jpg?v=1758551255"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51OX7G9wmPL.jpg?v=1758551255","width":1000},{"alt":"[Australia - AusPower] - Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino ","id":32184600854708,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51xQ6F2ly_L.jpg?v=1758551255"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51xQ6F2ly_L.jpg?v=1758551255","width":1000},{"alt":"[Australia - AusPower] - Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino ","id":32184600887476,"position":6,"preview_image":{"aspect_ratio":1.0,"height":500,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/413-nVa-zyL.jpg?v=1758551255"},"aspect_ratio":1.0,"height":500,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/413-nVa-zyL.jpg?v=1758551255","width":500},{"alt":"[Australia - AusPower] - Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino ","id":32184600920244,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/auspowers.com\/cdn\/shop\/files\/514CMBBqYUL.jpg?v=1758551255"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/514CMBBqYUL.jpg?v=1758551255","width":1000},{"alt":"[Australia - AusPower] - Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino ","id":32184600953012,"position":8,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61FpAObvyZL.jpg?v=1758551255"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61FpAObvyZL.jpg?v=1758551255","width":1500},{"alt":"[Australia - AusPower] - Aihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino ","id":32184600985780,"position":9,"preview_image":{"aspect_ratio":1.5,"height":1000,"width":1500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/61anqK3qcEL.jpg?v=1758551255"},"aspect_ratio":1.5,"height":1000,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/61anqK3qcEL.jpg?v=1758551255","width":1500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAihasd Digital Load Cell Weight Sensor 20 kg Portable Electronic Kitchen Scales + HX711 Weighing Sensors Ad Module for Arduino\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eDescription: This module uses 24 high precision A\/D converter chip HX711. It\nis a special design for the high-precision electronic scale design with two\nanalog input channels, the internal integration of 128 times of the\nprogrammable gain amplifier. The input circuit can be configured to provide a\nbridge type pressure bridge (such as pressure weight sensor mode). The high\nprecision cost is an ideal front-end module. Four leads, easy to use, 5-10V\napplied drive voltage, the force is output directly as voltage change signal.\nSize of cells: 80 x 12.7 x 12.7 mm. Module size: 24 mm x 16 mm. Features: Two\nselectable different input channels. On-chip active low noise PGA with\nselectable gain of 3264 and 128. On-chip power supply controller for charging\ncells and analog ADC power supply. On-chip oscillator requires no external\ncomponent with optional external glass. On-chip, power-on-reset. Easy digital\ncontrol and serial interface: pin control, no programming required. Selectable\n10 PLC or 80 PLC data rates. Simultaneous 50 and 60 Hz supply rection. Power\nconsumption including on-chip, analog power supply, controller: normal\noperation \u0026lt;1.5mA power \u0026lt;1uA. Operating voltage range: 2.6~5.5V Operating\ntemperature: -20 degrees ~ +85 degrees Document link:\n\nLoad-Ce\/ \n Flex\/HX7 11_english.pdf\n Connection: Red to E+. Black to E\nGreen to A+. White to A Package includes: 1 x 20kg Sensor 1 x HX711 24BIT\nPrecision ADC Module\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eThis module uses 24 high precision A\/D converter chip hx711. It is a specially designed for the high precision electronic scale design with two analogue input channel.\u003c\/li\u003e\n \u003cli\u003eThe internal integration of 128 times the programmable gain amplifier.\u003c\/li\u003e\n \u003cli\u003eThe input circuit can be configured to provide a bridge type pressure bridge (such as pressureweighing sensor mode)is of high precisionlow cost is an ideal sampling front-end module.\u003c\/li\u003e\n \u003cli\u003eFour leads, easy to use, 5-10V drive voltage applied, the force is directly output as a voltage change signal.\u003c\/li\u003e\n \u003cli\u003eLoad cell size: 80 mm x 12.7 mm x 12.7 mm; module size: 24 mm x 16 mm\u003c\/li\u003e\n \u003c\/ul\u003e"}
