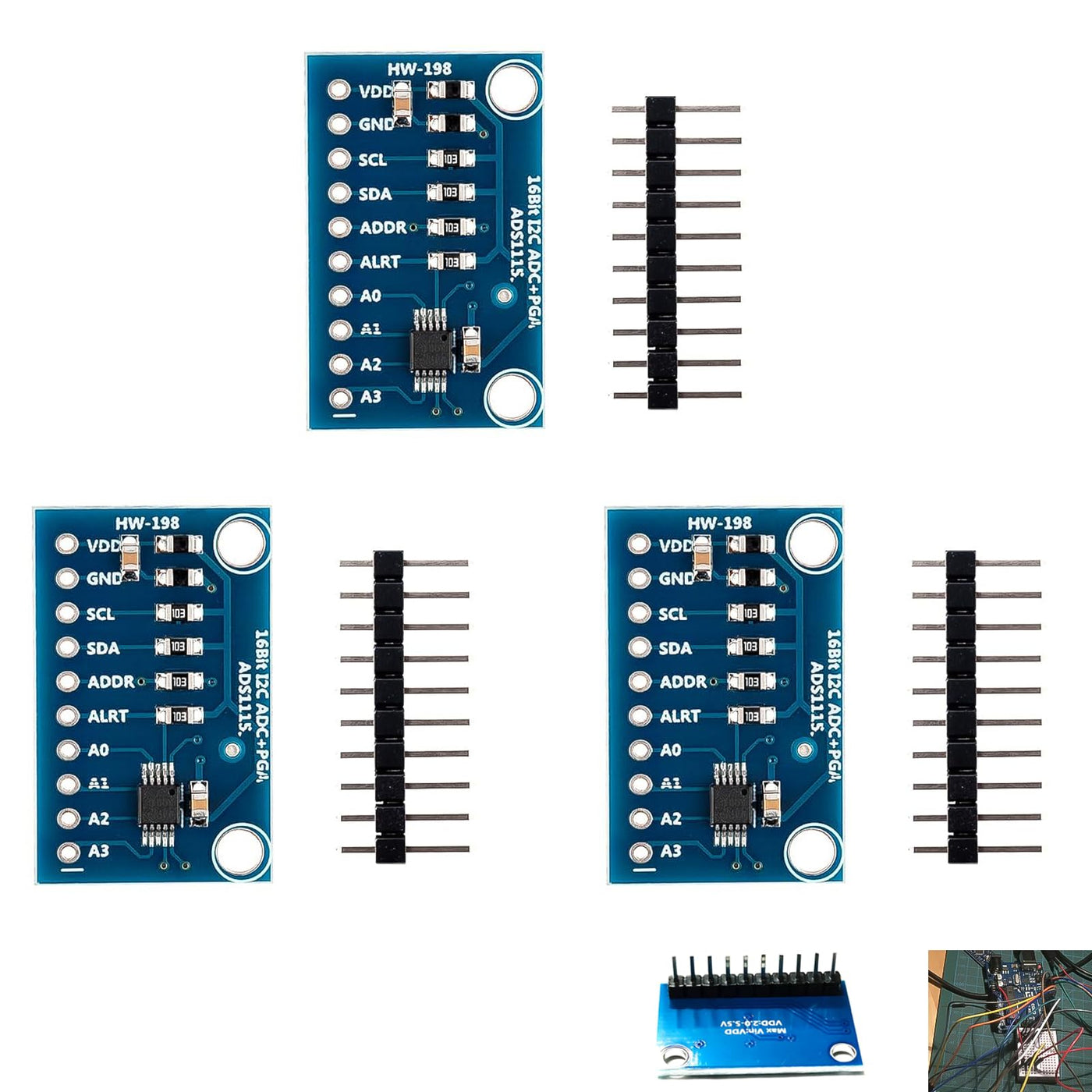

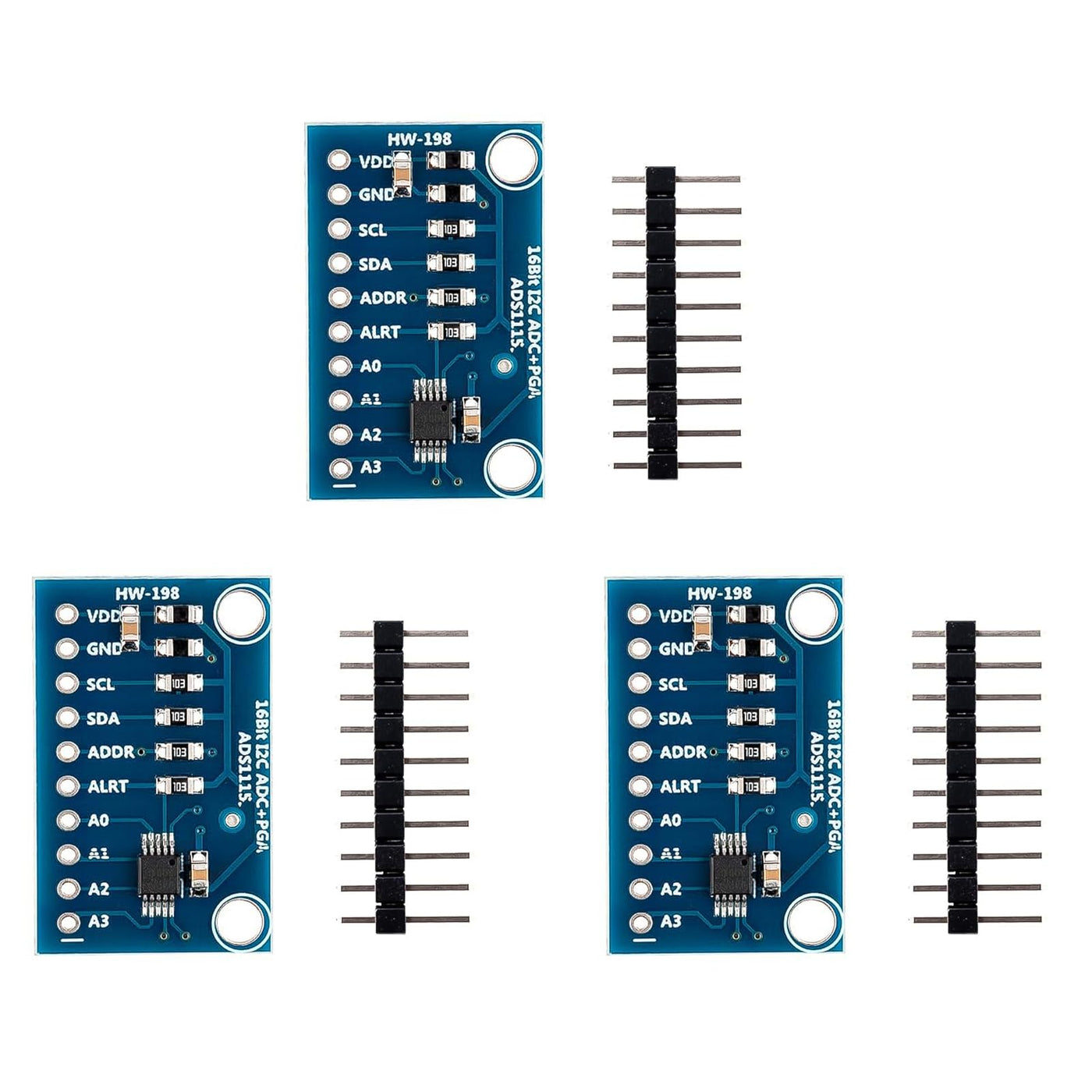

ADS1115 Module I2C, ADC Module 16 Bit 4 Channels, High Precision Analogue Digital Converter, Differential or Single Inputs, for Raspberry Pi, Microcontroller Projects, Measurement and Data Acquisition
ADS1115 Module I2C, ADC Module 16 Bit 4 Channels, High Precision Analogue Digital Converter, Differential or Single Inputs, for Raspberry Pi, Microcontroller Projects, Measurement and Data Acquisition
This set of 3 ADC modules with 16-bit resolution is ideal for applications where analogue signals need to be precisely converted into digital values. Thanks to the high resolution, even small voltage changes can be reliably detected, which makes the module particularly attractive for sensors, measurement and control technology as well as data acquisition systems. The module has four input channels, which can be used either as single-ended or as two differential inputs. This allows flexible adaptation to different measuring tasks. The programmable sampling rate allows you to choose between high measurement accuracy and fast signal processing, depending on the requirements of the project. Thanks to the integrated amplifier and the internal oscillator, the module is stable and reliable. The automatic shut-off mode in single measurement mode significantly reduces power consumption and makes the module suitable for mobile or battery-powered systems. With its wide operating voltage range and robust design for different temperatures, this ADC module is versatile. It is suitable for both learning and development projects as well as for professional applications in electronics, automation and prototype development. Included components: 3 x ADS1115 module.
Product Features
- High precision 16 bit analog-digital conversion: ADS1115 ADC module provides high resolution for accurate analog signal measurements. Ideal for precise sensor queries, voltage measurements and data acquisition in electronics and embedded projects.
- Four flexible input channels: ADS1115 4 channels supports four single ended inputs or two differential channels. This allows both small and larger signals to be reliably captured and flexibly adapted to different applications.
- Programmable sampling rate: ADC module for Raspberry Pi sampling rate is adjustable between 8 and 860 samples per second. This allows you to optimally choose between measuring accuracy, speed and energy consumption.
- Low power consumption: ADS1115 module integrated single measurement mode with automatic shut-off significantly reduces energy consumption. Particularly suitable for battery operated systems and energy efficient applications.
- Wide voltage and temperature range: ADC 16 bit module operating voltage from 2.0 to 5.5 V as well as a wide temperature range allow for use in a wide range of environments, from laboratory projects to industrial applications.
