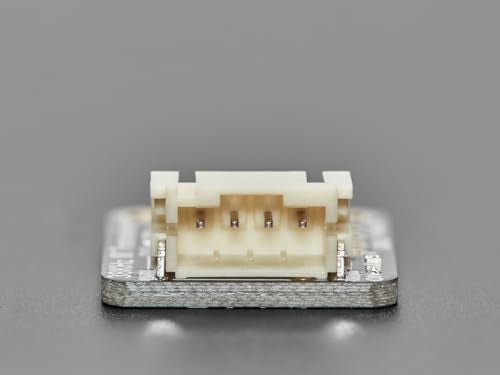

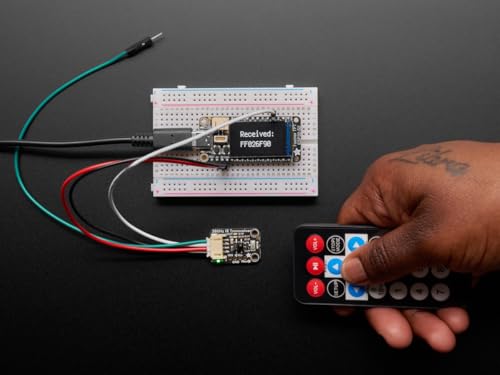

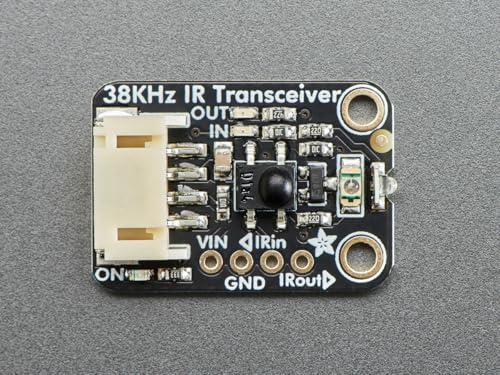

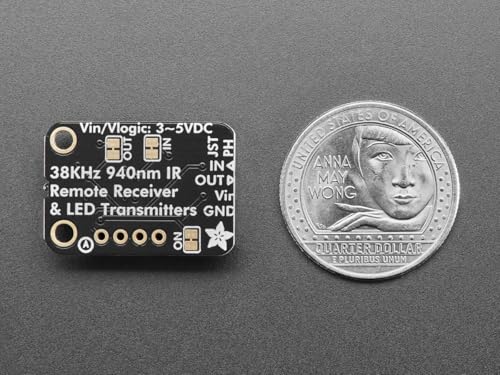

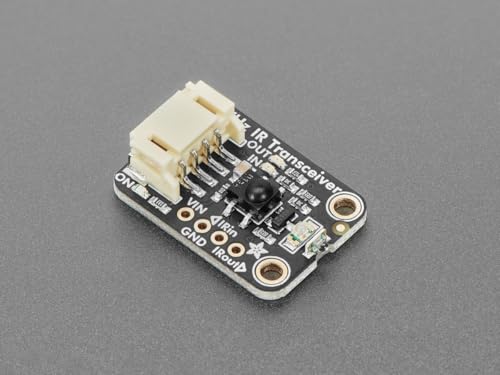

{"id":8115412205748,"title":"Adafruit Infrared Remote Control Transceiver, IR, STEMMA JST PH 2 mm, 940 nm Transmitter + 38 kHz Receiver, 5990","handle":"adafruit-infrared-remote-control-transceiver-ir-stemma-jst-ph-2-mm-940-nm-transmitter-38-khz-receiver-5990","description":"\u003ch3\u003eAdafruit Infrared Remote Control Transceiver, IR, STEMMA JST PH 2 mm, 940 nm Transmitter + 38 kHz Receiver, 5990\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eAre you looking for a versatile infrared solution? Our Adafruit infrared\ntransceiver breakout provides both emission and reception of 940nm infrared\ndata - all in one convenient, solderless package! Important information: This\nboard is equipped with solderable breakout pads and a JST PH 4 pin cable. Note\nthat it does not use I2C. The white cable is used to transfer data from a\nmicrocontroller to emission via IR LED, the green cable receives demodulated\nIR data. The black cable is ground, the red is 3V~5V power supply and logic\nlevel. Emitter Features: Built-in N-channel FET driver. Transmits 100mA-200mA\nfor LED pulsation, range 10+ meters. One vertical and one horizontal LED for\ncomprehensive coverage. Yellow IN LED flashes when IR LEDs are active.\nReceiver Features: Receives 38KHz, 940nm signals, ideal for remote controls.\nDemodulated IR data goes to your microcontroller. Second yellow OUT LED\nflashes when data is received. Each STEMMA board is fully assembled and\ntested, cables are sold separately. If you want to solder, there are 0.1 inch\nheaders for power\/ground\/signals. Important note: This board is specially\ndesigned for receiving 940nm 38KHz IR remote control signals and not suitable\nfor proximity\/distance measurements or other frequencies. Make sure your\nmicrocontroller supports pulse input capabilities to decode the signals. Ready\nto take your project to the next level? Get our infrared transceiver breakout\nand get ready for easier and flexible IR communication!\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTransmitter and receiver with this Adafruit infrared transceiver you get not only a transmitter, but also a receiver combined in one practical board. Perfect for anyone who wants to use IR remote controls!\u003c\/li\u003e\n \u003cli\u003eEasy to use thanks to the pre-installed JST PH 4-pin connection, you do not have to solder. Simply connect the board and go - no complicated technology required. Cable not included.\u003c\/li\u003e\n \u003cli\u003ePowerful IR emission with an N-channel FET driver, the board transmits up to 200 mA current through the LEDs. This allows you to reach a range of over 10 metres ideal for your project!\u003c\/li\u003e\n \u003cli\u003ePractical LED indicators: the yellow LED indicates when the IR LEDs are active, and a second LED flashes when data is received. So you can keep track of your remote control signals!\u003c\/li\u003e\n \u003cli\u003eIdeal for projects this board supports 940 nm and 38 kHz modulated signals. It is perfect for DIY projects that should be controlled with IR remote controls!\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2026-09-02T10:35:50+10:00","created_at":"2026-09-02T03:19:16+10:00","vendor":"Adafruit","type":"Infrared Emitters","tags":["industrial_DE_Aug2026"],"price":14200,"price_min":14200,"price_max":14200,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375188635828,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"de-B0DX6TNH2B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Adafruit Infrared Remote Control Transceiver, IR, STEMMA JST PH 2 mm, 940 nm Transmitter + 38 kHz Receiver, 5990","public_title":null,"options":["Default Title"],"price":14200,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"5990","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/de-B0DX6TNH2B.jpg?v=1788283158","\/\/auspowers.com\/cdn\/shop\/files\/51B2whwk3fL.jpg?v=1788283158","\/\/auspowers.com\/cdn\/shop\/files\/31O5yR2wPQL.jpg?v=1788283158","\/\/auspowers.com\/cdn\/shop\/files\/51nba-Yk-1L.jpg?v=1788283158","\/\/auspowers.com\/cdn\/shop\/files\/41R25U2YsvL.jpg?v=1788283158"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DX6TNH2B.jpg?v=1788283158","options":["Title"],"media":[{"alt":null,"id":33274080297140,"position":1,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DX6TNH2B.jpg?v=1788283158"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/de-B0DX6TNH2B.jpg?v=1788283158","width":500},{"alt":null,"id":33274080329908,"position":2,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51B2whwk3fL.jpg?v=1788283158"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51B2whwk3fL.jpg?v=1788283158","width":500},{"alt":null,"id":33274080362676,"position":3,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/31O5yR2wPQL.jpg?v=1788283158"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/31O5yR2wPQL.jpg?v=1788283158","width":500},{"alt":null,"id":33274080395444,"position":4,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51nba-Yk-1L.jpg?v=1788283158"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51nba-Yk-1L.jpg?v=1788283158","width":500},{"alt":null,"id":33274080428212,"position":5,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41R25U2YsvL.jpg?v=1788283158"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41R25U2YsvL.jpg?v=1788283158","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAdafruit Infrared Remote Control Transceiver, IR, STEMMA JST PH 2 mm, 940 nm Transmitter + 38 kHz Receiver, 5990\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eAre you looking for a versatile infrared solution? Our Adafruit infrared\ntransceiver breakout provides both emission and reception of 940nm infrared\ndata - all in one convenient, solderless package! Important information: This\nboard is equipped with solderable breakout pads and a JST PH 4 pin cable. Note\nthat it does not use I2C. The white cable is used to transfer data from a\nmicrocontroller to emission via IR LED, the green cable receives demodulated\nIR data. The black cable is ground, the red is 3V~5V power supply and logic\nlevel. Emitter Features: Built-in N-channel FET driver. Transmits 100mA-200mA\nfor LED pulsation, range 10+ meters. One vertical and one horizontal LED for\ncomprehensive coverage. Yellow IN LED flashes when IR LEDs are active.\nReceiver Features: Receives 38KHz, 940nm signals, ideal for remote controls.\nDemodulated IR data goes to your microcontroller. Second yellow OUT LED\nflashes when data is received. Each STEMMA board is fully assembled and\ntested, cables are sold separately. If you want to solder, there are 0.1 inch\nheaders for power\/ground\/signals. Important note: This board is specially\ndesigned for receiving 940nm 38KHz IR remote control signals and not suitable\nfor proximity\/distance measurements or other frequencies. Make sure your\nmicrocontroller supports pulse input capabilities to decode the signals. Ready\nto take your project to the next level? Get our infrared transceiver breakout\nand get ready for easier and flexible IR communication!\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003eTransmitter and receiver with this Adafruit infrared transceiver you get not only a transmitter, but also a receiver combined in one practical board. Perfect for anyone who wants to use IR remote controls!\u003c\/li\u003e\n \u003cli\u003eEasy to use thanks to the pre-installed JST PH 4-pin connection, you do not have to solder. Simply connect the board and go - no complicated technology required. Cable not included.\u003c\/li\u003e\n \u003cli\u003ePowerful IR emission with an N-channel FET driver, the board transmits up to 200 mA current through the LEDs. This allows you to reach a range of over 10 metres ideal for your project!\u003c\/li\u003e\n \u003cli\u003ePractical LED indicators: the yellow LED indicates when the IR LEDs are active, and a second LED flashes when data is received. So you can keep track of your remote control signals!\u003c\/li\u003e\n \u003cli\u003eIdeal for projects this board supports 940 nm and 38 kHz modulated signals. It is perfect for DIY projects that should be controlled with IR remote controls!\u003c\/li\u003e\n \u003c\/ul\u003e"}
