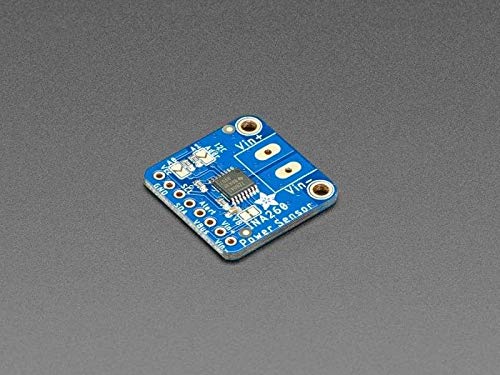

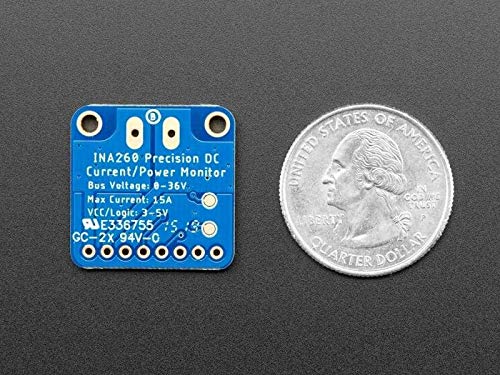

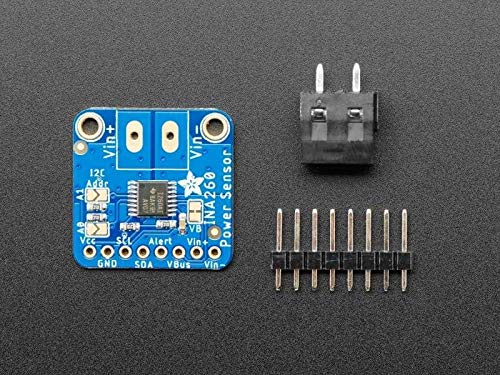

{"id":8115603931316,"title":"Adafruit INA260 High or Low Side Voltage, Current, Power Sensor","handle":"adafruit-ina260-high-or-low-side-voltage-current-power-sensor","description":"\u003ch3\u003eAdafruit INA260 High or Low Side Voltage, Current, Power Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis breakout board may be the last current measurement solution you will ever\nneed to buy. It can not only do the work of two multimeters, but also with\namazing precision and flexibility. With it, you can measure high or low side\nDC current, bus voltage, and automatically calculate the power. It can do this\nover impressive voltage, current and temperature ranges with an accuracy of\nmore than 1%, while the data is delivered in an easy-to-use format over I2C.\nWorks great with any microcontroller that is CircuitPython or Arduino\ncompatible, as well as single-board computers such as the Raspberry Pi. It is\ncompatible with 3V or 5V logic and can measure bus voltages up to +36VDC. Not\nfor use with AC voltages. Most current meters work with some notable\nlimitations that limit what they can be used for. Many are only on low side,\nwhich can cause problems when the ground reference changes with the current.\nOthers, like its little sister, the INA219B, avoid this by measuring on the\nhigh side, but need to change their shunt resistance to measure different\ncurrent ranges. The INA260 avoids these limitations and with its built-in\nprecision shunt resistor it can be used to measure up to +36V at up to 15A\ncontinuously on the high or low side. Wow! The voltage via the integrated 2\nmilliohm (0.002 ohm!) 0.1% shunt resistance is measured by the internal 16-bit\nADC, which allows measurements over the impressive current range with a\nresolution of 1.5 mA. (The resistance of the resistance is so low that some\nmultimeters register it as a short circuit! In a high-side configuration, bus\nvoltage measurement and power calculation can be retrieved accurately, but\nadvanced hackers who want to measure bus voltage in a low-side configuration\nmust cut off the bridge connecting V+ to VBUS and connect the VBUS pin to the\nvoltage bus.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003c\/ul\u003e","published_at":"2026-09-03T00:36:11+10:00","created_at":"2026-09-02T20:19:24+10:00","vendor":"Adafruit","type":"Current Sensors","tags":["industrial_UK_Aug2026"],"price":18800,"price_min":18800,"price_max":18800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44375693557940,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"uk-B07TGF4HMK","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Adafruit INA260 High or Low Side Voltage, Current, Power Sensor","public_title":null,"options":["Default Title"],"price":18800,"weight":20,"compare_at_price":null,"inventory_management":"shopify","barcode":"WM-NRH3-RR88-FBA","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/uk-B07TGF4HMK.jpg?v=1788344366","\/\/auspowers.com\/cdn\/shop\/files\/51bfQRnWDqL.jpg?v=1788344366","\/\/auspowers.com\/cdn\/shop\/files\/51r3x8xku0L.jpg?v=1788344366"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07TGF4HMK.jpg?v=1788344366","options":["Title"],"media":[{"alt":null,"id":33276590325940,"position":1,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07TGF4HMK.jpg?v=1788344366"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/uk-B07TGF4HMK.jpg?v=1788344366","width":500},{"alt":null,"id":33276590358708,"position":2,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51bfQRnWDqL.jpg?v=1788344366"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51bfQRnWDqL.jpg?v=1788344366","width":500},{"alt":null,"id":33276590391476,"position":3,"preview_image":{"aspect_ratio":1.333,"height":375,"width":500,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51r3x8xku0L.jpg?v=1788344366"},"aspect_ratio":1.333,"height":375,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51r3x8xku0L.jpg?v=1788344366","width":500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003eAdafruit INA260 High or Low Side Voltage, Current, Power Sensor\u003c\/h3\u003e\n\u003cp id=\"b\"\u003eThis breakout board may be the last current measurement solution you will ever\nneed to buy. It can not only do the work of two multimeters, but also with\namazing precision and flexibility. With it, you can measure high or low side\nDC current, bus voltage, and automatically calculate the power. It can do this\nover impressive voltage, current and temperature ranges with an accuracy of\nmore than 1%, while the data is delivered in an easy-to-use format over I2C.\nWorks great with any microcontroller that is CircuitPython or Arduino\ncompatible, as well as single-board computers such as the Raspberry Pi. It is\ncompatible with 3V or 5V logic and can measure bus voltages up to +36VDC. Not\nfor use with AC voltages. Most current meters work with some notable\nlimitations that limit what they can be used for. Many are only on low side,\nwhich can cause problems when the ground reference changes with the current.\nOthers, like its little sister, the INA219B, avoid this by measuring on the\nhigh side, but need to change their shunt resistance to measure different\ncurrent ranges. The INA260 avoids these limitations and with its built-in\nprecision shunt resistor it can be used to measure up to +36V at up to 15A\ncontinuously on the high or low side. Wow! The voltage via the integrated 2\nmilliohm (0.002 ohm!) 0.1% shunt resistance is measured by the internal 16-bit\nADC, which allows measurements over the impressive current range with a\nresolution of 1.5 mA. (The resistance of the resistance is so low that some\nmultimeters register it as a short circuit! In a high-side configuration, bus\nvoltage measurement and power calculation can be retrieved accurately, but\nadvanced hackers who want to measure bus voltage in a low-side configuration\nmust cut off the bridge connecting V+ to VBUS and connect the VBUS pin to the\nvoltage bus.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003c\/ul\u003e"}
